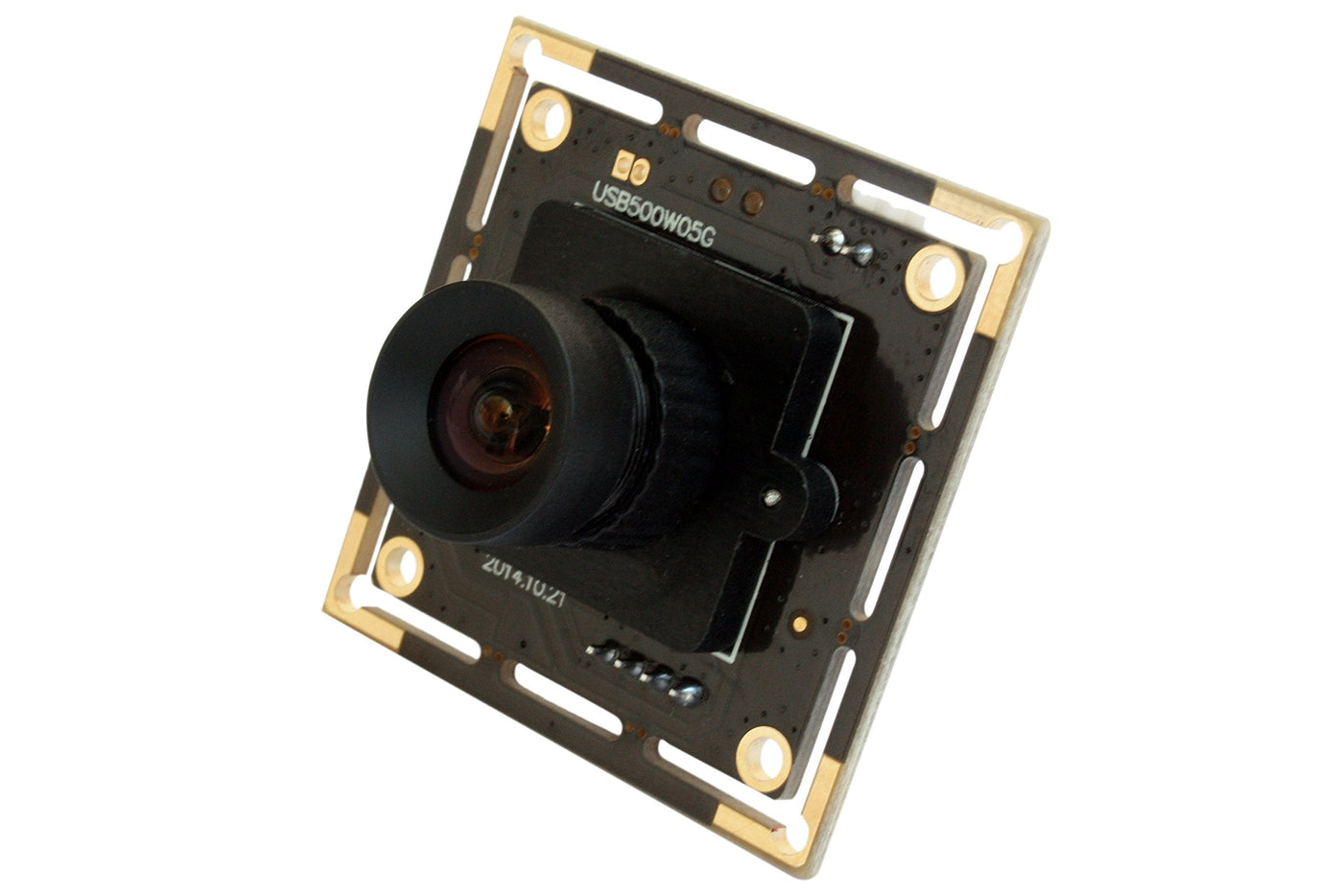

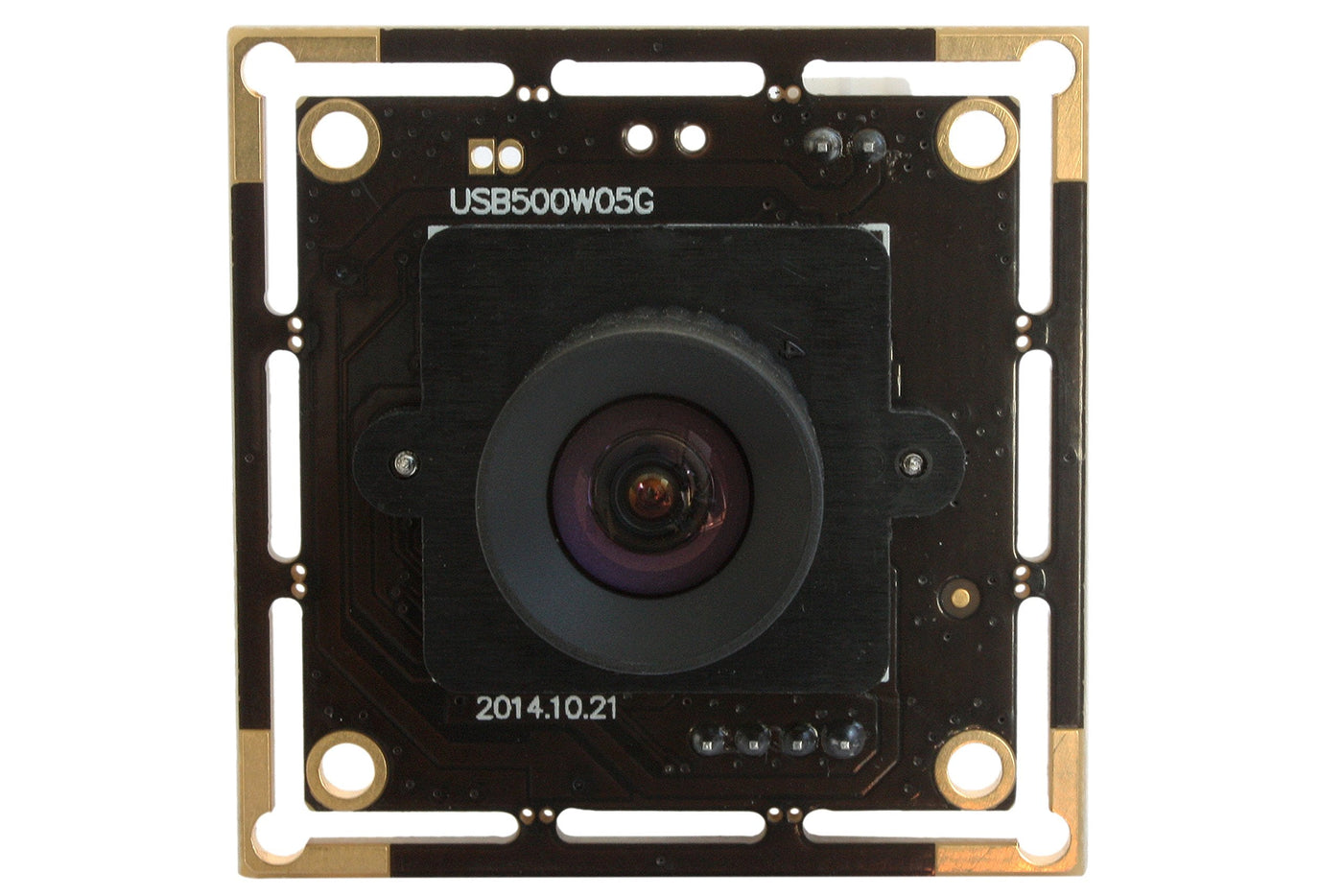

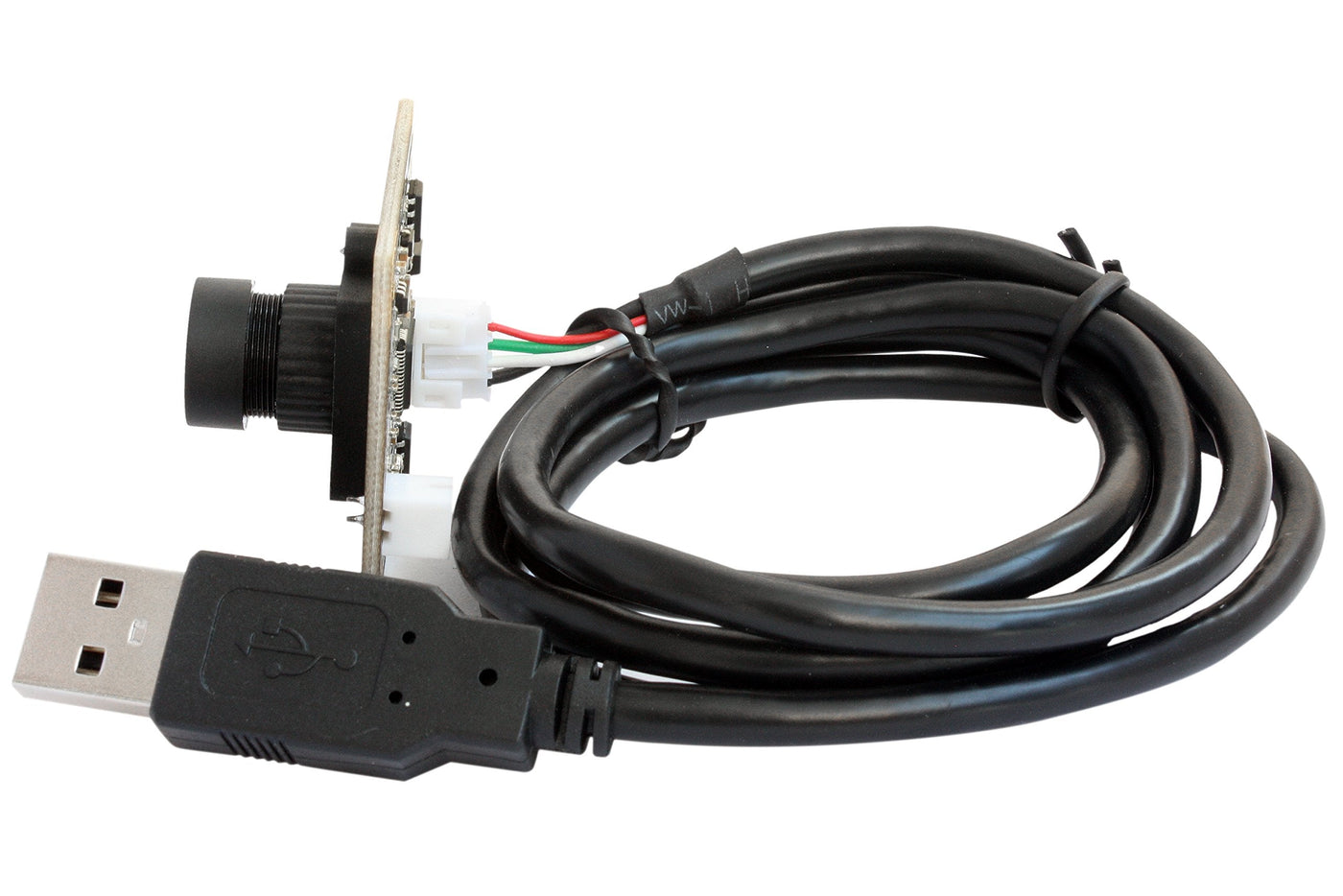

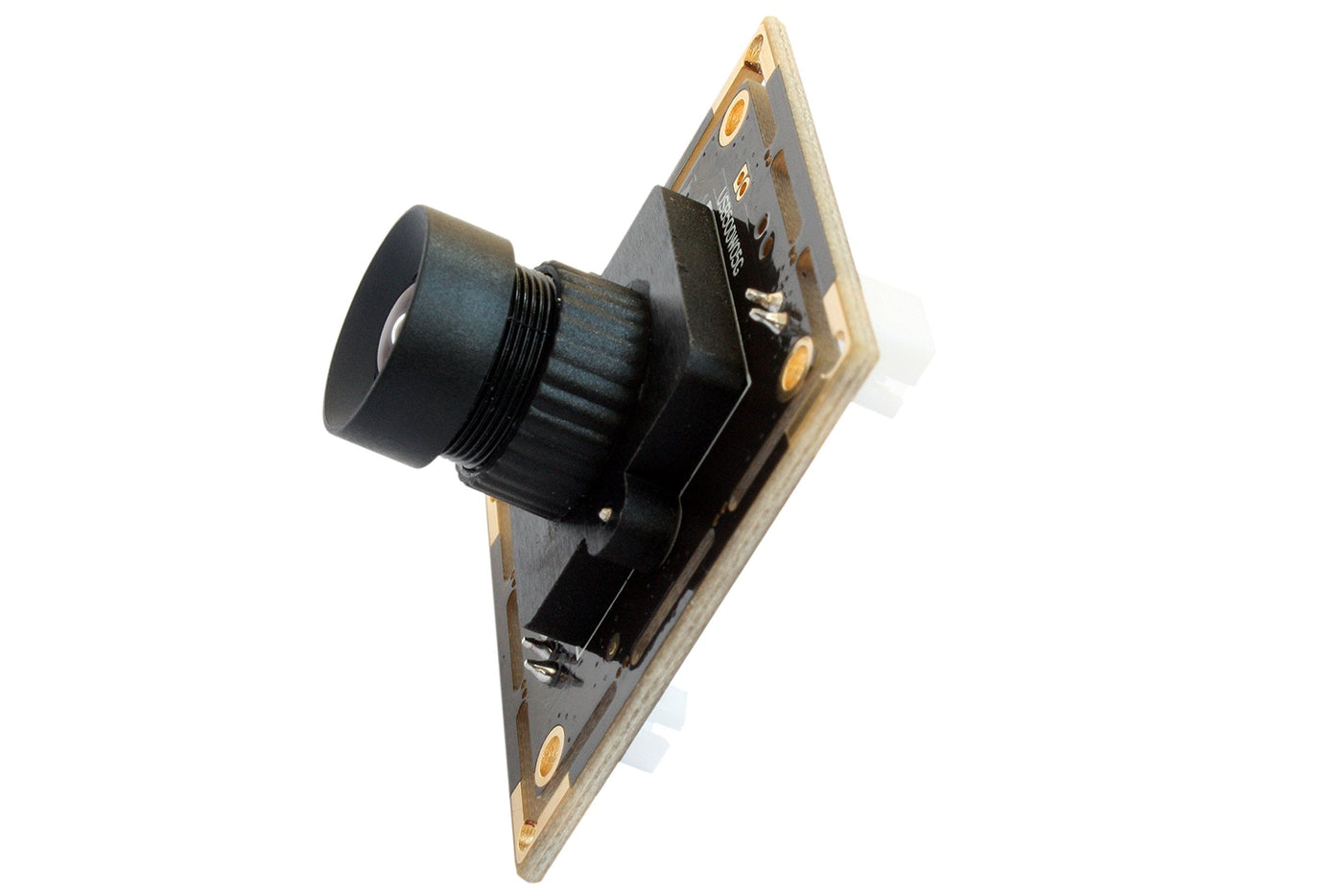

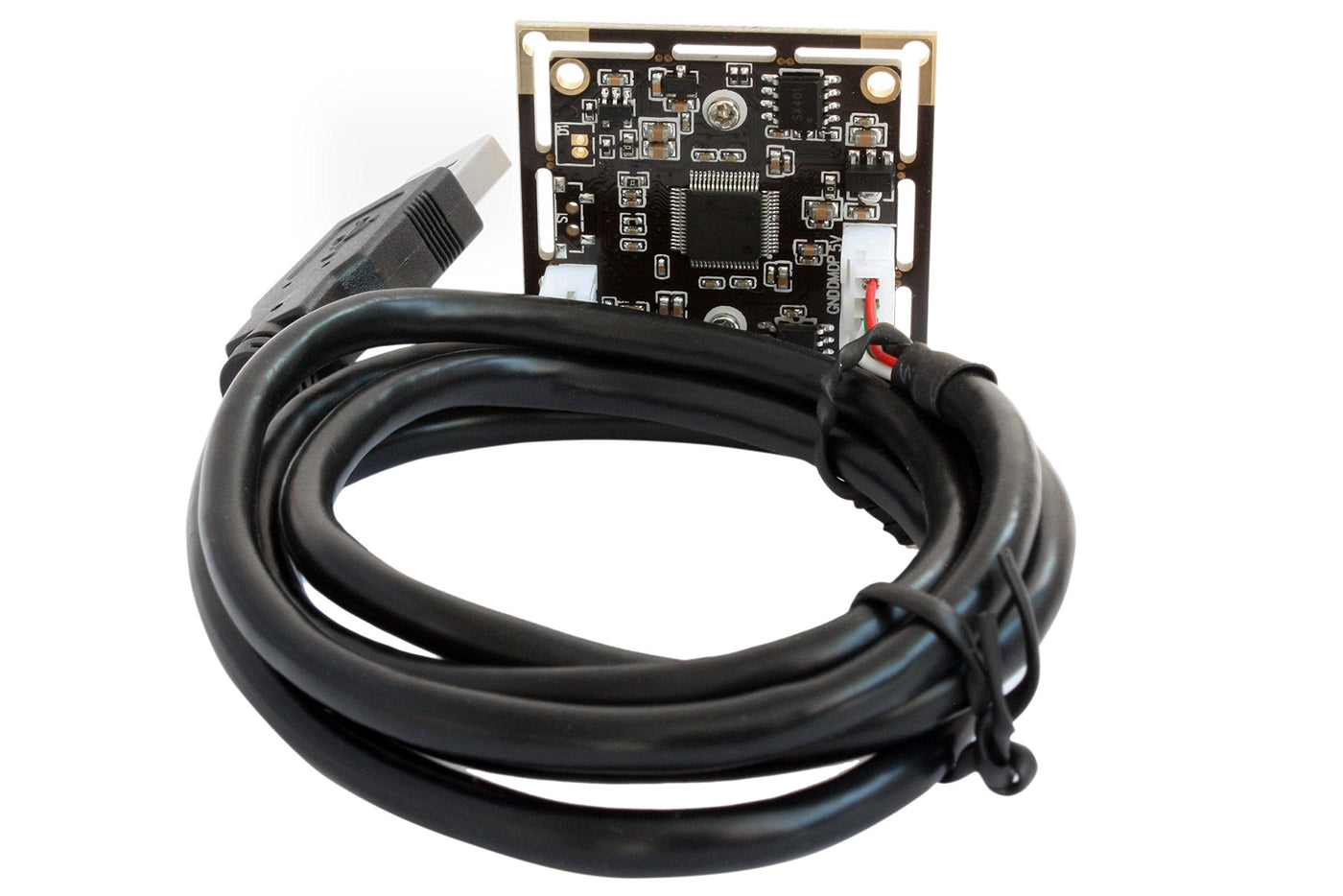

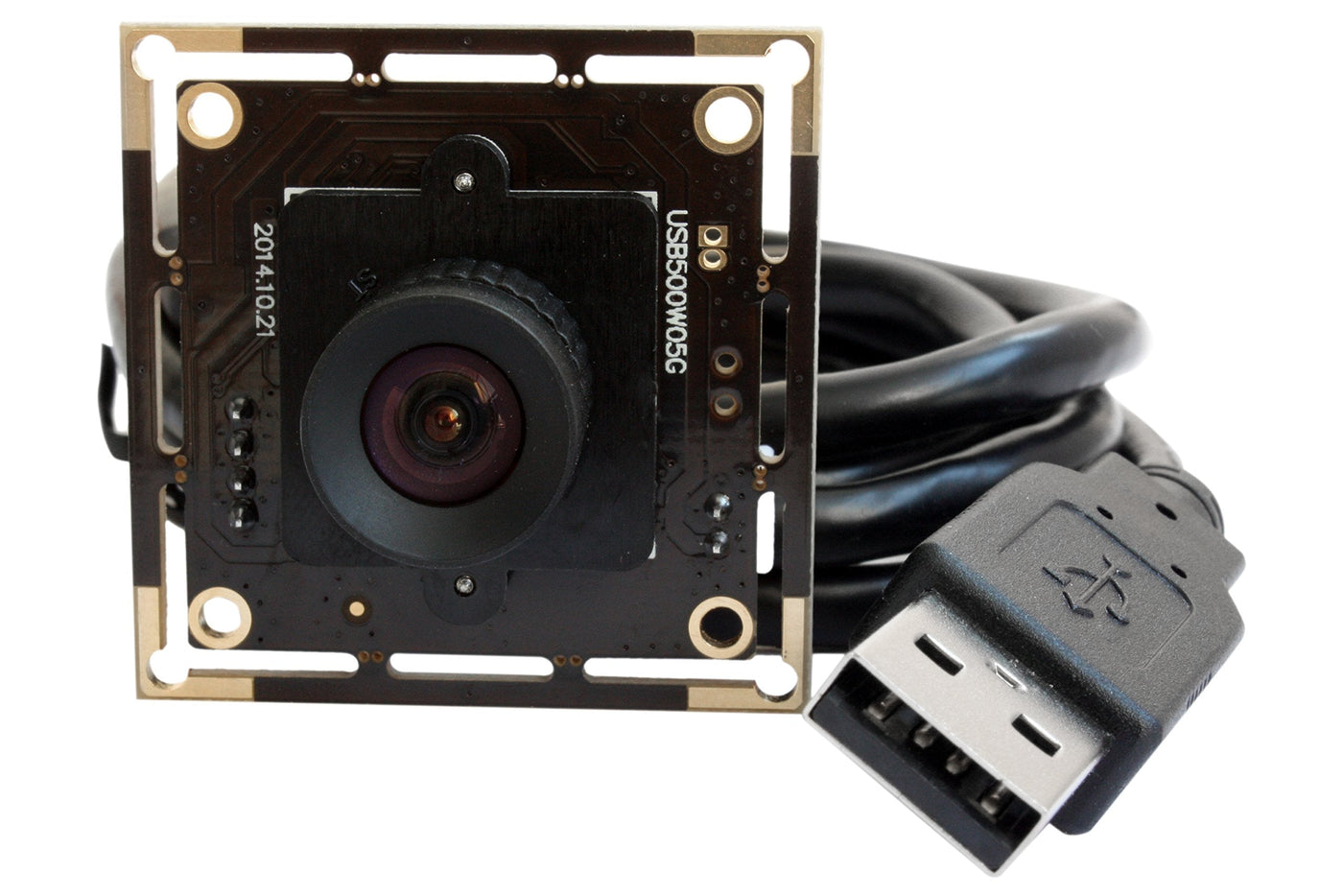

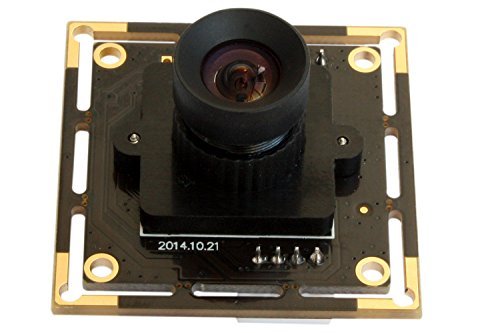

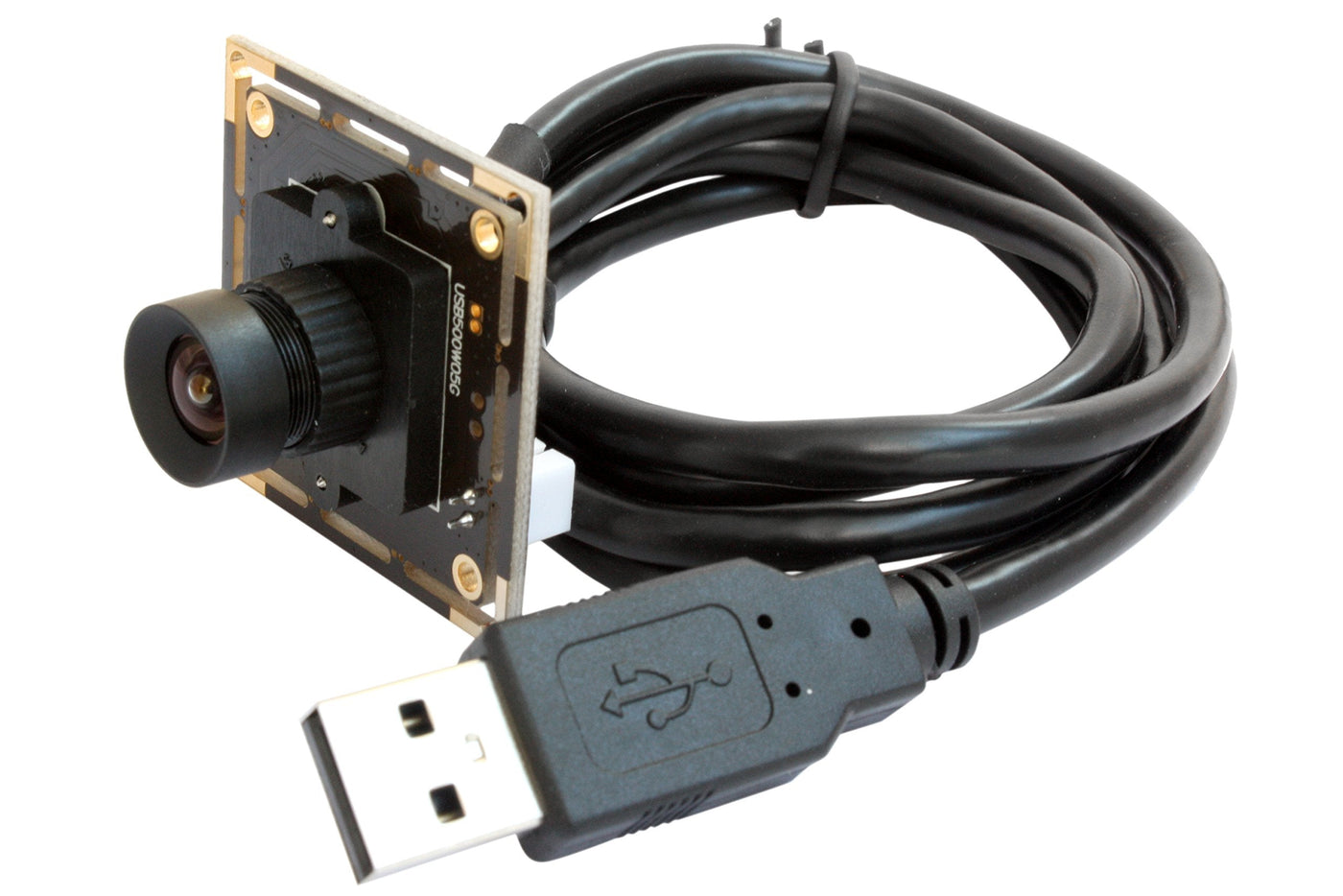

{"id":7351108599968,"title":"ELP 5megapixel USB Camera Module,USB with Camera 2592x1944 HD Wide Angle USB Camera for Industrial, Machine Vision,undistorted Imaging,correctable,aptina Sensor 170 Degree fisheye Lens","handle":"elp-5megapixel-usb-camera-module-usb-with-camera-2592x1944-hd-wide-angle-usb-camera-for-industrial-machine-vision-undistorted-imaging-correctable-aptina-sensor-170-degree-fisheye-lens","description":"\u003ch3\u003eELP 5megapixel USB Camera Module,USB with Camera 2592x1944 HD Wide Angle USB Camera for Industrial, Machine Vision,undistorted Imaging,correctable,aptina Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct Name:ELP-USB500W05G-FD100 Sensor:Aptina MI5100 Lens Size:1\/2.5\ninch（4:3） Pixel Size: 2.2um image area:5.7mm x 4.28mm Max. Resolution: 2592(H)\nX 1944(V) Compression format:MJPEG \/ YUV2（YUYV） Resolution \u0026amp; frame:2592x1944 @\n15fps MJPEG \/ 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG \/ 1280x1024 @\n15fps MJPEG 1920x1080 @ 30fps MJPEG \/ 1280x720 @ 30fps MJPEG 800x600 @ 30fps\nMJPEG \/ 640x480 @ 30fps MJPEG S\/N Ratio: 38dB Dynamic Range: 70dBv\nSensitivity: 1.4V\/lux-sec@550nm Mini illumination: 0.1lux Connecting Port\ntype: USB2.0 High Speed Free Drive Protocol: USB Video Class（UVC） OTG\nprotocol: USB2.0 OTG AEC: Support AEB: Support AGC: Support Adjustable\nparameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain,\nWhite balance, Backlight Contrast, Exposure Lens Parameter: No distortion\nSize: 1\/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree LED board control\ninterface: Support 2P-1.25mm socket LED board power connector: Support\n2P-2.0mm socket Power supply: USB BUS POWER 4P-2.0mm socket Operating Voltage:\nDC5V Working current: 150Ma~200Ma Working temperature: -10～70℃ Board size:\n38X38mm（compatible 32X32mm）\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUse the top sensor Aptina MI5100\u003c\/li\u003e\n \u003cli\u003eUSB2.0 High Speed\/USB2.0 OTG\u003c\/li\u003e\n \u003cli\u003eMax. Resolution :2592(H) X 1944(V)\u003c\/li\u003e\n \u003cli\u003eColor reproduction deviation less than 20%\u003c\/li\u003e\n \u003cli\u003eOperating system request: WinXP\/Vista\/Win7\/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-04-23T03:04:01+10:00","created_at":"2022-04-23T03:04:11+10:00","vendor":"ELP","type":"Webcams","tags":["electronics2022"],"price":25300,"price_min":25300,"price_max":25300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42013296820384,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B012CH5F58","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELP 5megapixel USB Camera Module,USB with Camera 2592x1944 HD Wide Angle USB Camera for Industrial, Machine Vision,undistorted Imaging,correctable,aptina Sensor 170 Degree fisheye Lens","public_title":null,"options":["Default Title"],"price":25300,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"711978710869","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B012CH5F58.jpg?v=1650670909","\/\/dingoship.com.au\/cdn\/shop\/products\/81isp_-RbNL.jpg?v=1650647051","\/\/dingoship.com.au\/cdn\/shop\/products\/81EczRRnu4L.jpg?v=1650647051","\/\/dingoship.com.au\/cdn\/shop\/products\/71_vopnDbHL.jpg?v=1650647051","\/\/dingoship.com.au\/cdn\/shop\/products\/81LPjzKmQgL.jpg?v=1650647051","\/\/dingoship.com.au\/cdn\/shop\/products\/810ExA1HzjL.jpg?v=1650647051","\/\/dingoship.com.au\/cdn\/shop\/products\/811lPYsweBL.jpg?v=1650647051","\/\/dingoship.com.au\/cdn\/shop\/products\/81P6zg0IhPL.jpg?v=1650647051"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B012CH5F58.jpg?v=1650670909","options":["Title"],"media":[{"alt":null,"id":24534414524576,"position":1,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B012CH5F58.jpg?v=1650670909"},"aspect_ratio":1.502,"height":333,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B012CH5F58.jpg?v=1650670909","width":500},{"alt":null,"id":24530422136992,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81isp_-RbNL.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81isp_-RbNL.jpg?v=1650647051","width":2560},{"alt":null,"id":24530422169760,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81EczRRnu4L.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81EczRRnu4L.jpg?v=1650647051","width":2560},{"alt":null,"id":24530422202528,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71_vopnDbHL.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71_vopnDbHL.jpg?v=1650647051","width":2560},{"alt":null,"id":24530422235296,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81LPjzKmQgL.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81LPjzKmQgL.jpg?v=1650647051","width":2560},{"alt":null,"id":24530422268064,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/810ExA1HzjL.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/810ExA1HzjL.jpg?v=1650647051","width":2560},{"alt":null,"id":24530422300832,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/811lPYsweBL.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/811lPYsweBL.jpg?v=1650647051","width":2560},{"alt":null,"id":24530422333600,"position":8,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81P6zg0IhPL.jpg?v=1650647051"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81P6zg0IhPL.jpg?v=1650647051","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eELP 5megapixel USB Camera Module,USB with Camera 2592x1944 HD Wide Angle USB Camera for Industrial, Machine Vision,undistorted Imaging,correctable,aptina Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct Name:ELP-USB500W05G-FD100 Sensor:Aptina MI5100 Lens Size:1\/2.5\ninch（4:3） Pixel Size: 2.2um image area:5.7mm x 4.28mm Max. Resolution: 2592(H)\nX 1944(V) Compression format:MJPEG \/ YUV2（YUYV） Resolution \u0026amp; frame:2592x1944 @\n15fps MJPEG \/ 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG \/ 1280x1024 @\n15fps MJPEG 1920x1080 @ 30fps MJPEG \/ 1280x720 @ 30fps MJPEG 800x600 @ 30fps\nMJPEG \/ 640x480 @ 30fps MJPEG S\/N Ratio: 38dB Dynamic Range: 70dBv\nSensitivity: 1.4V\/lux-sec@550nm Mini illumination: 0.1lux Connecting Port\ntype: USB2.0 High Speed Free Drive Protocol: USB Video Class（UVC） OTG\nprotocol: USB2.0 OTG AEC: Support AEB: Support AGC: Support Adjustable\nparameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain,\nWhite balance, Backlight Contrast, Exposure Lens Parameter: No distortion\nSize: 1\/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree LED board control\ninterface: Support 2P-1.25mm socket LED board power connector: Support\n2P-2.0mm socket Power supply: USB BUS POWER 4P-2.0mm socket Operating Voltage:\nDC5V Working current: 150Ma~200Ma Working temperature: -10～70℃ Board size:\n38X38mm（compatible 32X32mm）\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUse the top sensor Aptina MI5100\u003c\/li\u003e\n \u003cli\u003eUSB2.0 High Speed\/USB2.0 OTG\u003c\/li\u003e\n \u003cli\u003eMax. Resolution :2592(H) X 1944(V)\u003c\/li\u003e\n \u003cli\u003eColor reproduction deviation less than 20%\u003c\/li\u003e\n \u003cli\u003eOperating system request: WinXP\/Vista\/Win7\/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
