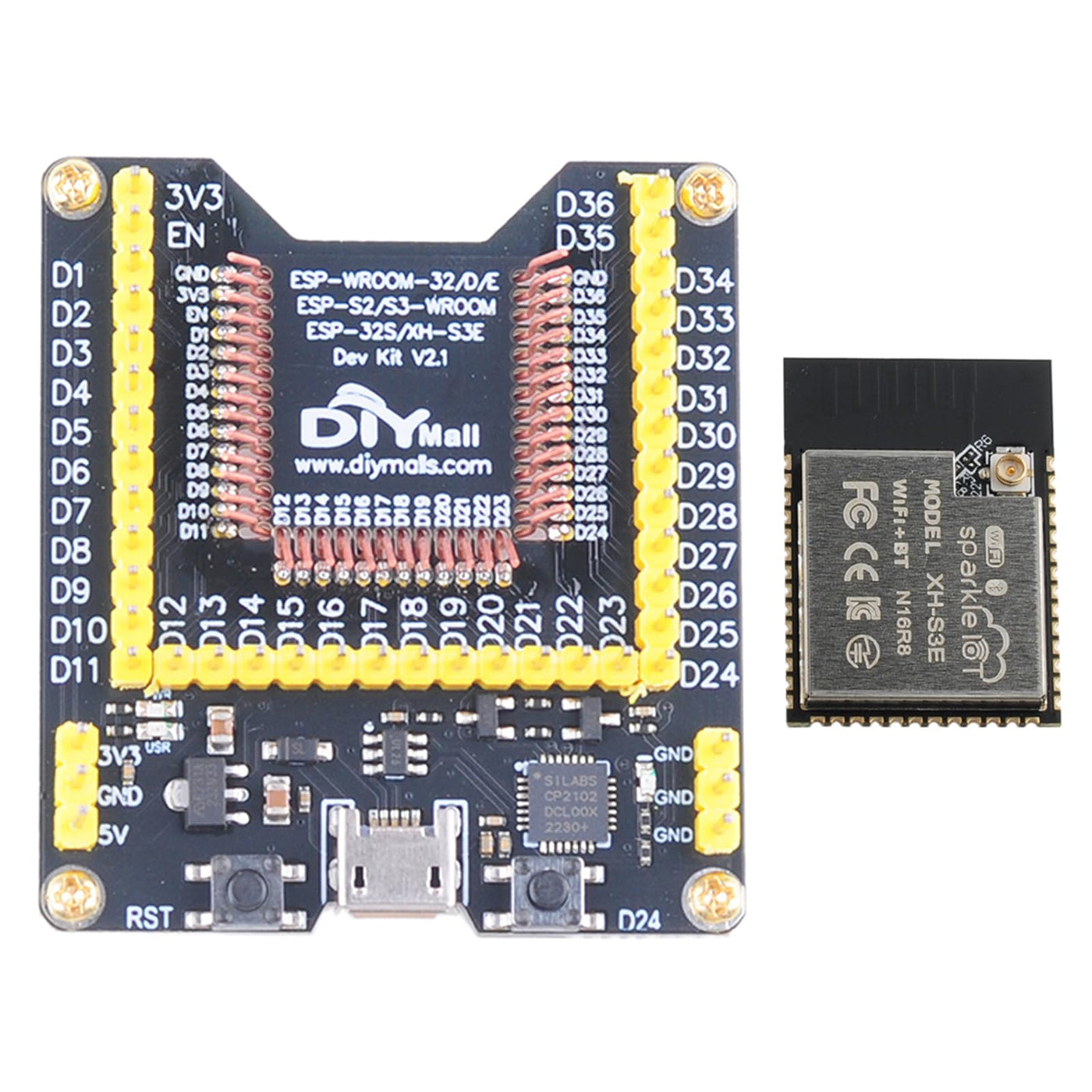

{"id":15199794266272,"title":"ESP32 Programming Module Test Board Burning Fixture System Development Board + ESP32-S3-WROOM-1 XH-S3E N16R8 Wi-Fi BLE Module","handle":"esp32-programming-module-test-board-burning-fixture-system-development-board-esp32-s3-wroom-1-xh-s3e-n16r8-wi-fi-ble-module","description":"\u003ch3\u003eESP32 Programming Module Test Board Burning Fixture System Development Board + ESP32-S3-WROOM-1 XH-S3E N16R8 Wi-Fi BLE Module\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eESP32 Programming Module Test Board Burning Fixture System Development Board\r\nUsed for burning: ESP32-WROOM-32D ESP32-WROOM-32E ESP-S2-WROOM ESP-S3-WROOM\r\nESP-32S XH-S3E XH-S3E N16R8 Feature: CPU and On-Chip Memory ESP32-S3R8 SoCs\r\nembedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to\r\n240MHz Operating voltage: 3.0V ~ 3.6V 384 KB ROM 512 KB SRAM 16 KB SRAM in RTC\r\nSPI Flash: 16 MB PSRAM: 8 MB Peripherals: PWM\/ I2C\/ UART\/SPI\/SDIO \/ IrDA Wi-Fi\r\n802.11 b\/g\/n Bit rate: 802.11n up to 150 Mbps Support A-MPDU and A-MSDU\r\naggregation Support max 18dBm output power in 802.11b mode Support\r\nSTA\/APO\/STA+AP working mode Center frequency range of operating channel: 2412\r\nMHz ~ 2484 MHz BT Low power BLE: BLE 5, BLE mesh Speed: 125 Kbps, 500 Kbps, 1\r\nMbps, 2 Mbps Advertising extensions Multiple advertisement sets Channel\r\nselection algorithm 2 Peripherals GPIO, SPI, LCD interface, Camera interface,\r\nUART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB\r\nSerial\/JTAG controller, MCPWM, SDIO host, GDMA, ADC, touch sensor, temperature\r\nsensor, timers and watchdogs Operating temeprature: -40°C ~ 105°C Module size:\r\n18x25.5x3mm Module power supply:3.3V Wi-Fi module IO max output current: 12mA\r\nWi-Fi module RST pin low level active Wi-Fi module connected to the external\r\nMCU: RXD to TXD, TXD to RXD FLASH download mode: IO0 is at low level, the\r\nmodule is reset and powered on; normal working mode: IO0 is at high level, the\r\nmodule is reset and powered on Application: Smart Home Smart Building Webcams\r\nWearable Electronics Wireless Location System Beacons Industrial Wireless\r\nControl Generic Low-power IoT Sensor Hub Smart Agriculture Smart Bus Wi-Fi-\r\nenabled Toys\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eESP32 programming test board burning fixture can be used for burning: ESP32-WROOM-32D, ESP32-WROOM-32E, ESP-S2-WROOM, ESP-S3-WROOM, ESP-32S, XH-S3E\u003c\/li\u003e\r\n \u003cli\u003eXH-S3E N16R8: ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz\u003c\/li\u003e\r\n \u003cli\u003eXH-S3E N16R8 Memory: 384 KB ROM, 512 KB SRAM, 16 KB SRAM in RTC, SPI Flash: 16 MB, PSRAM: 8 MB\u003c\/li\u003e\r\n \u003cli\u003eWi-Fi: 802.11 b\/g\/n; Low power BLE: BLE 5, BLE mesh\u003c\/li\u003e\r\n \u003cli\u003ePeripherals: PWM\/ I2C\/ UART\/SPI\/SDIO \/ IrDA\u003c\/li\u003e\r\n \u003cli\u003eWhat you will get: 1 x ESP32 Programming Module Test Board Burning Fixture + 1 x XH-S3E N16R8 Wi-Fi BLE Module\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-14T18:53:35+11:00","created_at":"2025-10-14T18:53:32+11:00","vendor":"DIYmall","type":"","tags":["electronics_selected_Oct2025"],"price":12900,"price_min":12900,"price_max":12900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52918373744800,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09WD3DFP8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ESP32 Programming Module Test Board Burning Fixture System Development Board + ESP32-S3-WROOM-1 XH-S3E N16R8 Wi-Fi BLE Module","public_title":null,"options":["Default Title"],"price":12900,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/71vjhbfWPAL.jpg?v=1760428414","\/\/dingoship.com.au\/cdn\/shop\/files\/61rBVfTd4oL.jpg?v=1760428414","\/\/dingoship.com.au\/cdn\/shop\/files\/51prPFvJf6L.jpg?v=1760428414","\/\/dingoship.com.au\/cdn\/shop\/files\/71EiLU7dmML.jpg?v=1760428414","\/\/dingoship.com.au\/cdn\/shop\/files\/71BUvscMt-L.jpg?v=1760428414"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/71vjhbfWPAL.jpg?v=1760428414","options":["Title"],"media":[{"alt":null,"id":38448598188192,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71vjhbfWPAL.jpg?v=1760428414"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71vjhbfWPAL.jpg?v=1760428414","width":1600},{"alt":null,"id":38448598220960,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rBVfTd4oL.jpg?v=1760428414"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rBVfTd4oL.jpg?v=1760428414","width":1600},{"alt":null,"id":38448598253728,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51prPFvJf6L.jpg?v=1760428414"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51prPFvJf6L.jpg?v=1760428414","width":1600},{"alt":null,"id":38448598286496,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71EiLU7dmML.jpg?v=1760428414"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71EiLU7dmML.jpg?v=1760428414","width":1600},{"alt":null,"id":38448598319264,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71BUvscMt-L.jpg?v=1760428414"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71BUvscMt-L.jpg?v=1760428414","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eESP32 Programming Module Test Board Burning Fixture System Development Board + ESP32-S3-WROOM-1 XH-S3E N16R8 Wi-Fi BLE Module\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eESP32 Programming Module Test Board Burning Fixture System Development Board\r\nUsed for burning: ESP32-WROOM-32D ESP32-WROOM-32E ESP-S2-WROOM ESP-S3-WROOM\r\nESP-32S XH-S3E XH-S3E N16R8 Feature: CPU and On-Chip Memory ESP32-S3R8 SoCs\r\nembedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to\r\n240MHz Operating voltage: 3.0V ~ 3.6V 384 KB ROM 512 KB SRAM 16 KB SRAM in RTC\r\nSPI Flash: 16 MB PSRAM: 8 MB Peripherals: PWM\/ I2C\/ UART\/SPI\/SDIO \/ IrDA Wi-Fi\r\n802.11 b\/g\/n Bit rate: 802.11n up to 150 Mbps Support A-MPDU and A-MSDU\r\naggregation Support max 18dBm output power in 802.11b mode Support\r\nSTA\/APO\/STA+AP working mode Center frequency range of operating channel: 2412\r\nMHz ~ 2484 MHz BT Low power BLE: BLE 5, BLE mesh Speed: 125 Kbps, 500 Kbps, 1\r\nMbps, 2 Mbps Advertising extensions Multiple advertisement sets Channel\r\nselection algorithm 2 Peripherals GPIO, SPI, LCD interface, Camera interface,\r\nUART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB\r\nSerial\/JTAG controller, MCPWM, SDIO host, GDMA, ADC, touch sensor, temperature\r\nsensor, timers and watchdogs Operating temeprature: -40°C ~ 105°C Module size:\r\n18x25.5x3mm Module power supply:3.3V Wi-Fi module IO max output current: 12mA\r\nWi-Fi module RST pin low level active Wi-Fi module connected to the external\r\nMCU: RXD to TXD, TXD to RXD FLASH download mode: IO0 is at low level, the\r\nmodule is reset and powered on; normal working mode: IO0 is at high level, the\r\nmodule is reset and powered on Application: Smart Home Smart Building Webcams\r\nWearable Electronics Wireless Location System Beacons Industrial Wireless\r\nControl Generic Low-power IoT Sensor Hub Smart Agriculture Smart Bus Wi-Fi-\r\nenabled Toys\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eESP32 programming test board burning fixture can be used for burning: ESP32-WROOM-32D, ESP32-WROOM-32E, ESP-S2-WROOM, ESP-S3-WROOM, ESP-32S, XH-S3E\u003c\/li\u003e\r\n \u003cli\u003eXH-S3E N16R8: ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz\u003c\/li\u003e\r\n \u003cli\u003eXH-S3E N16R8 Memory: 384 KB ROM, 512 KB SRAM, 16 KB SRAM in RTC, SPI Flash: 16 MB, PSRAM: 8 MB\u003c\/li\u003e\r\n \u003cli\u003eWi-Fi: 802.11 b\/g\/n; Low power BLE: BLE 5, BLE mesh\u003c\/li\u003e\r\n \u003cli\u003ePeripherals: PWM\/ I2C\/ UART\/SPI\/SDIO \/ IrDA\u003c\/li\u003e\r\n \u003cli\u003eWhat you will get: 1 x ESP32 Programming Module Test Board Burning Fixture + 1 x XH-S3E N16R8 Wi-Fi BLE Module\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
