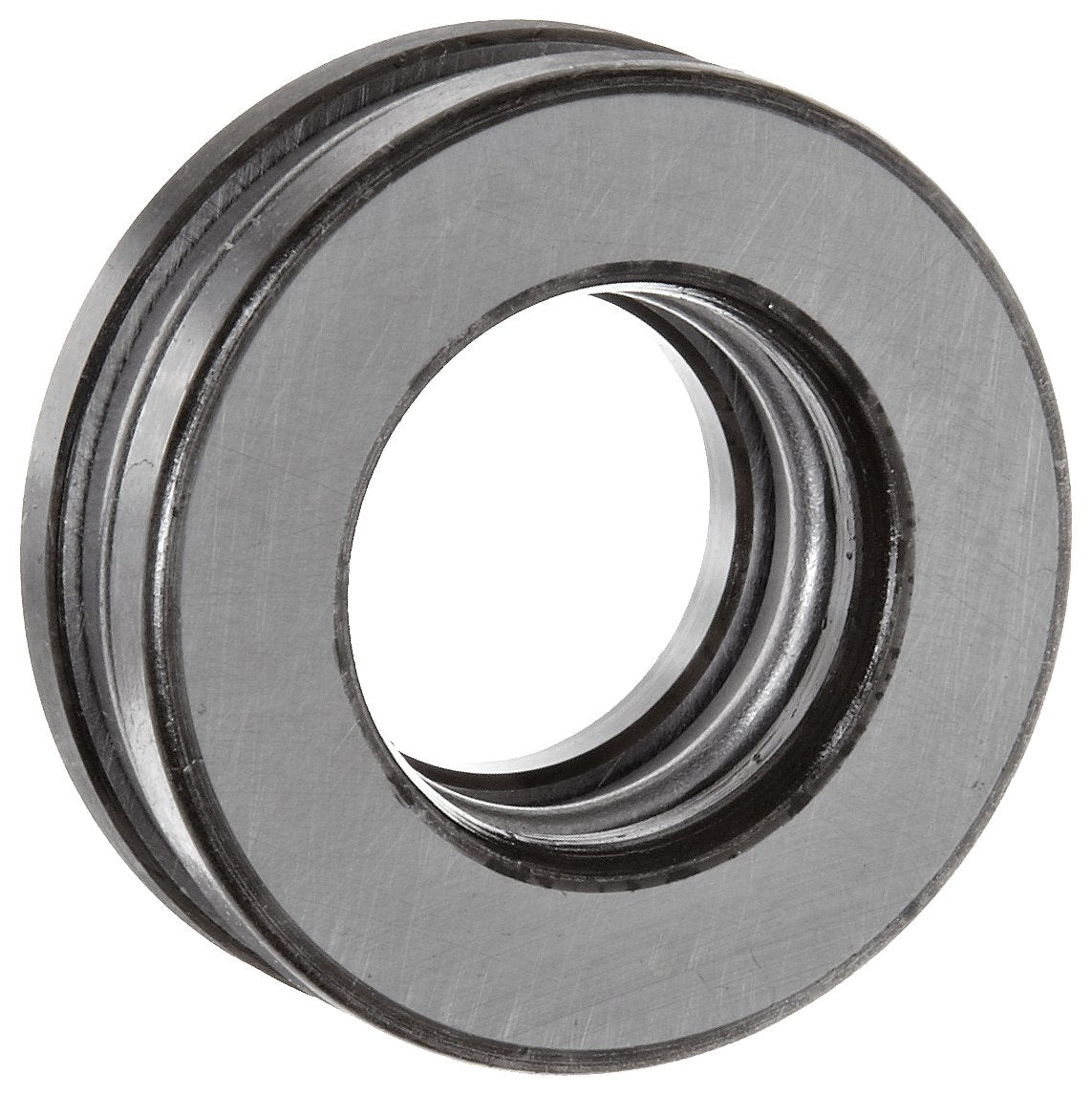

{"id":7575254630560,"title":"FAG 51105 Grooved Race Thrust Bearing, Single Row, Open, 90° Contact Angle, Steel Cage, Metric, 25mm ID, 42mm OD, 11mm Width, 6300rpm Maximum Rotational Speed, 6550lbf Static Load Capacity, 3550lbf Dynamic Load Capacity","handle":"fag-51105-grooved-race-thrust-bearing-single-row-open-90-contact-angle-steel-cage-metric-25mm-id-42mm-od-11mm-width-6300rpm-maximum-rotational-speed-6550lbf-static-load-capacity-3550lbf-dynamic-load-capacity","description":"\u003ch3\u003eFAG 51105 Grooved Race Thrust Bearing, Single Row, Open, 90° Contact Angle, Steel Cage, Metric, 25mm ID, 42mm OD, 11mm Width, 6300rpm Maximum Rotational Speed, 6550lbf Static Load Capacity, 3550lbf Dynamic Load Capacity\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis FAG single-row thrust ball bearing has grooved raceways, a 90-degree\ncontact angle, a steel cage, and an open construction. It is suitable for\nmoderate-speed applications that support heavy axial loads in one direction\nand no radial loads. This deep-groove thrust ball bearing consists of a\nhousing locating washer (ring), a shaft locating washer, and a ball and cage\nassembly. The washers have grooved raceways that conform to the balls rotating\nbetween them, allowing higher speeds and thrust bearing capacity than bearings\nwith flat raceways. The single-row design supports thrust loads in a single\ndirection and tolerates axial deflection, and the open construction allows for\nthe bearing to be lubricated in place. This bearing has a 90-degree contact\nangle in which the ball and inner and outer raceway contact points are on a\nplane parallel to the axial load, which enables the bearing to receive high\naxial force. The balls and washers are made of a low-alloy, through-hardened\nchromium steel for durability, heat tolerance, and resistance to deformity\nunder heavy loads, and the sheet steel cage prevents the balls from coming\ninto contact with each other during use, reducing friction, vibration, and\nnoise. This bearing is separable so it mounts more easily than nonseparable\nbearings because its components can be installed independently. It can be used\nat operating temperatures from -30 degrees C to 150 C (-22 degrees F to 302\nF). This thrust ball bearing has a PN (normal) tolerance class rating for\ndimensional accuracy and is suitable for applications including machine tool\ndrive shafts, automotive steering gears and clutches, rotary tables, outboard\nmotor propellers, and household appliances. SpecificationsMain bearing\ndimensionsDIN 711\/ISO 104Basic dynamic load ratingsDIN ISO 281Dimensional and\ngeometric tolerancesDIN 620-3 (ISO 199), tolerance class PNThrough-hardening\nsteel for inner and outer rings and rollersISO 683-17Steel strip for cageEN\n10139, SAE J403Load carrying capacity and lifeDIN ISO 281 Appendix 1System for\ncreating part numbers for rolling bearingsDIN 623-1Rolling bearings use\nrolling elements to maintain the separation between moving parts to reduce\nrotational friction and support radial and axial loads. These elements can be\none of the following types: ball, cylindrical, spherical, barrel, needle,\nspindle, or tapered. All rolling bearings are open, shielded, or sealed.\nSealed bearings are lubricated with oil or grease in the bearing factory,\nwhile open and shielded bearings are meant to be lubricated in place, with\nperiodic reapplication of lubrication, based on use. The shield protects the\nworking parts of the bearing from environmental debris that may be introduced\nand could reduce the ball bearing speed and lifespan. Rolling bearings are\nused in a range of applications from agricultural machinery to conveying\nequipment, robotics, dental equipment, elevators, rolling mills, ship rudder\nshafts, and aggregate crushers, among others.FAG manufactures a variety of\nbearings that meet International Organization for Standardization (ISO) and\nDeutsches Institut für Normung (DIN) standards for quality assurance. The\ncompany, founded in 1883, is based in Schweinfurt, Germany.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSingle direction, deep-groove thrust ball bearing for applications that support heavy axial loads in one direction\u003c\/li\u003e\n \u003cli\u003eOpen bearing for lubrication applied in place\u003c\/li\u003e\n \u003cli\u003eThrough-hardened chromium steel for durability and resistance to deformity under heavy loads\u003c\/li\u003e\n \u003cli\u003eSheet steel retainer evenly spaces rollers for reduced friction, vibration, and noise\u003c\/li\u003e\n \u003cli\u003eGrooved raceways for higher speeds and thrust-bearing capacity than flat washers\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-10-12T14:17:15+11:00","created_at":"2022-10-12T14:17:18+11:00","vendor":"FAG Bearings","type":"","tags":["industrial2"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42669803208864,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B007MFHJC8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FAG 51105 Grooved Race Thrust Bearing, Single Row, Open, 90° Contact Angle, Steel Cage, Metric, 25mm ID, 42mm OD, 11mm Width, 6300rpm Maximum Rotational Speed, 6550lbf Static Load Capacity, 3550lbf Dynamic Load Capacity","public_title":null,"options":["Default Title"],"price":16500,"weight":45,"compare_at_price":null,"inventory_management":null,"barcode":"51105","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B007MFHJC8.jpg?v=1665619430","\/\/dingoship.com.au\/cdn\/shop\/products\/81XsxNBkfbL.jpg?v=1665544638"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B007MFHJC8.jpg?v=1665619430","options":["Title"],"media":[{"alt":null,"id":25646583447712,"position":1,"preview_image":{"aspect_ratio":0.997,"height":1147,"width":1143,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B007MFHJC8.jpg?v=1665619430"},"aspect_ratio":0.997,"height":1147,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B007MFHJC8.jpg?v=1665619430","width":1143},{"alt":null,"id":25642271899808,"position":2,"preview_image":{"aspect_ratio":1.312,"height":1951,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81XsxNBkfbL.jpg?v=1665544638"},"aspect_ratio":1.312,"height":1951,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81XsxNBkfbL.jpg?v=1665544638","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFAG 51105 Grooved Race Thrust Bearing, Single Row, Open, 90° Contact Angle, Steel Cage, Metric, 25mm ID, 42mm OD, 11mm Width, 6300rpm Maximum Rotational Speed, 6550lbf Static Load Capacity, 3550lbf Dynamic Load Capacity\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis FAG single-row thrust ball bearing has grooved raceways, a 90-degree\ncontact angle, a steel cage, and an open construction. It is suitable for\nmoderate-speed applications that support heavy axial loads in one direction\nand no radial loads. This deep-groove thrust ball bearing consists of a\nhousing locating washer (ring), a shaft locating washer, and a ball and cage\nassembly. The washers have grooved raceways that conform to the balls rotating\nbetween them, allowing higher speeds and thrust bearing capacity than bearings\nwith flat raceways. The single-row design supports thrust loads in a single\ndirection and tolerates axial deflection, and the open construction allows for\nthe bearing to be lubricated in place. This bearing has a 90-degree contact\nangle in which the ball and inner and outer raceway contact points are on a\nplane parallel to the axial load, which enables the bearing to receive high\naxial force. The balls and washers are made of a low-alloy, through-hardened\nchromium steel for durability, heat tolerance, and resistance to deformity\nunder heavy loads, and the sheet steel cage prevents the balls from coming\ninto contact with each other during use, reducing friction, vibration, and\nnoise. This bearing is separable so it mounts more easily than nonseparable\nbearings because its components can be installed independently. It can be used\nat operating temperatures from -30 degrees C to 150 C (-22 degrees F to 302\nF). This thrust ball bearing has a PN (normal) tolerance class rating for\ndimensional accuracy and is suitable for applications including machine tool\ndrive shafts, automotive steering gears and clutches, rotary tables, outboard\nmotor propellers, and household appliances. SpecificationsMain bearing\ndimensionsDIN 711\/ISO 104Basic dynamic load ratingsDIN ISO 281Dimensional and\ngeometric tolerancesDIN 620-3 (ISO 199), tolerance class PNThrough-hardening\nsteel for inner and outer rings and rollersISO 683-17Steel strip for cageEN\n10139, SAE J403Load carrying capacity and lifeDIN ISO 281 Appendix 1System for\ncreating part numbers for rolling bearingsDIN 623-1Rolling bearings use\nrolling elements to maintain the separation between moving parts to reduce\nrotational friction and support radial and axial loads. These elements can be\none of the following types: ball, cylindrical, spherical, barrel, needle,\nspindle, or tapered. All rolling bearings are open, shielded, or sealed.\nSealed bearings are lubricated with oil or grease in the bearing factory,\nwhile open and shielded bearings are meant to be lubricated in place, with\nperiodic reapplication of lubrication, based on use. The shield protects the\nworking parts of the bearing from environmental debris that may be introduced\nand could reduce the ball bearing speed and lifespan. Rolling bearings are\nused in a range of applications from agricultural machinery to conveying\nequipment, robotics, dental equipment, elevators, rolling mills, ship rudder\nshafts, and aggregate crushers, among others.FAG manufactures a variety of\nbearings that meet International Organization for Standardization (ISO) and\nDeutsches Institut für Normung (DIN) standards for quality assurance. The\ncompany, founded in 1883, is based in Schweinfurt, Germany.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSingle direction, deep-groove thrust ball bearing for applications that support heavy axial loads in one direction\u003c\/li\u003e\n \u003cli\u003eOpen bearing for lubrication applied in place\u003c\/li\u003e\n \u003cli\u003eThrough-hardened chromium steel for durability and resistance to deformity under heavy loads\u003c\/li\u003e\n \u003cli\u003eSheet steel retainer evenly spaces rollers for reduced friction, vibration, and noise\u003c\/li\u003e\n \u003cli\u003eGrooved raceways for higher speeds and thrust-bearing capacity than flat washers\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
