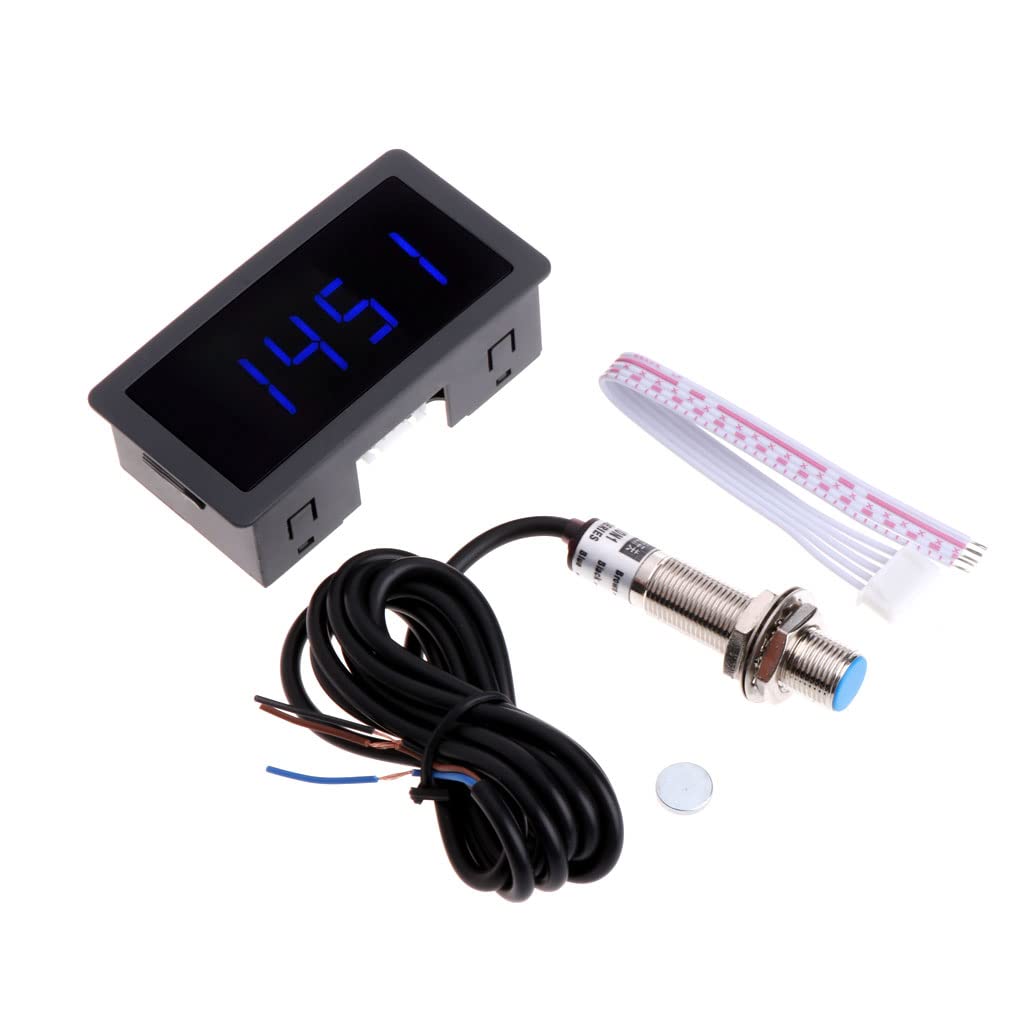

Fasizi 4 Digital LED Tachometer DC 8-24V Tachometer with Hall Proximity Switch Sensor NPN 10-9999RPM
Fasizi Tachometer with 4 Digital LED Tachometers DC 8-24V with Hall Proximity Switch Sensor NPN 10-9999RPM

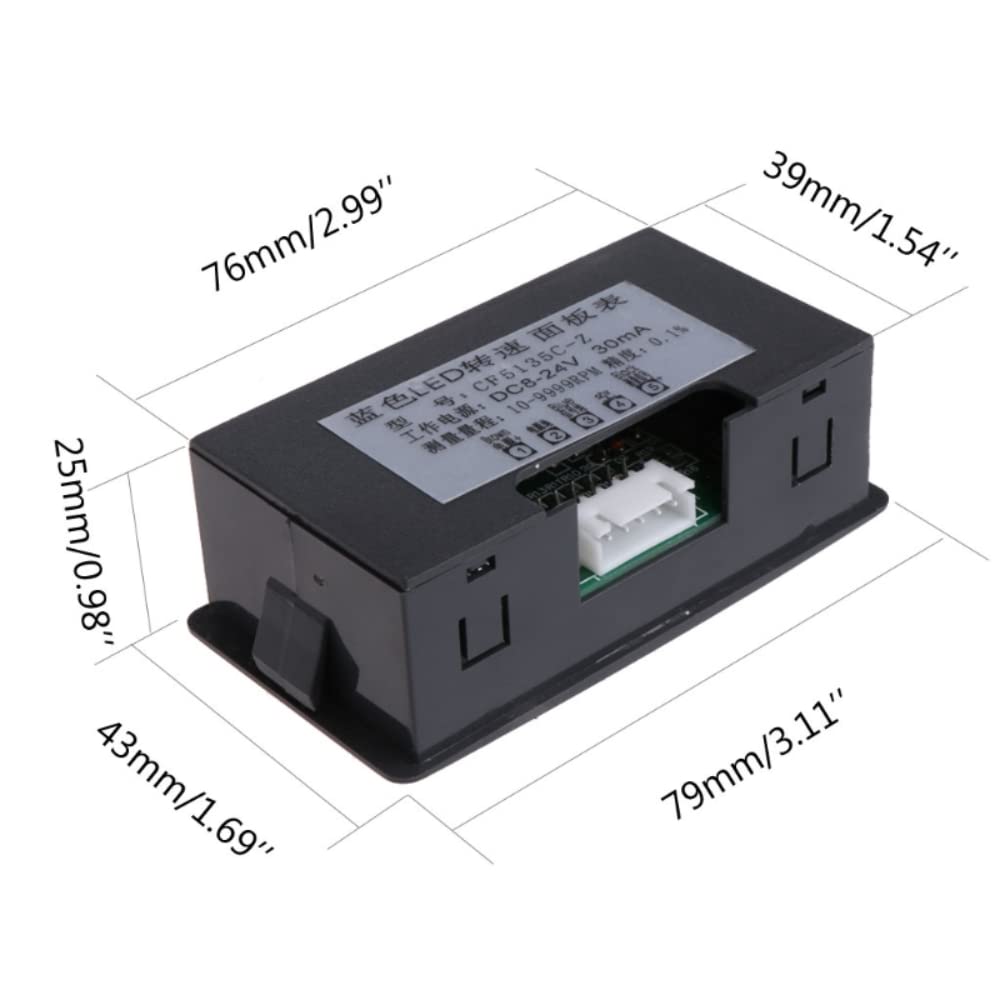

Specifications: Measuring Accuracy: ± 0.1% Display Mode: 0.56" LED Display Update Rate: > 3 times/sec Operating Power Supply: DC8-24V, 30mA, Measuring Range: 10-9999RPM Hall Proximity Switch: Magnetic Appearance Size: 80 x 42 x 25mm / 3.14 x 1.65 x 0.98 inch LED display (optional): red, blue Weight: 80g (red), 105g (blue) Over-range display: The first display shows "1" or "-1" and the last three are not displayed Precautions: 1. If strong electromagnetic interference is to be avoided, it is better to use shielded wires or double rope wires to measure conductors 2. The counting signal of the counter and the switches of the zero clear signal input or circuit must be as close as possible at the connection of the meter to make the signal line as short as possible 3. Avoid using others such as high voltage wires or power cables etc. with the same tube or twisted pair track line to avoid unnecessary interference. If necessary, please use the shielded wire, shielding layer connect the "+" of the counting terminals 4. It is not recommended to use a mechanical switch or micro switch, as they have a relatively short lifespan and may be counted incorrectly after a long time. If you use mechanical switch or micro switch, please try to use better quality so as not to be misunderstood and suggest magnetic control switch Package included: 1 x Speedometer 1 x Hall NPN Proximity Sensor
Product Features
- The speedometer uses the latest A/D converter chip and the reference IC with high stability. Good stability, high precision and strong anti-interference ability.
- The external appearance adopts standard size and is easy to install. Wide range of applications, including voltage, current and external sensor measurements to measure temperature, pressure, displacement and other physical quantities.
- Input pulse signal: NPN / PNP open collector, contact switch, contactless switch, level pulse Input signal voltage: Low Level: -30V -0.6V, High Level: 4-30V
- The LED display has two options: red and blue, four-digit precision display, display update rate, real-time update at a rate of more than three times per second .
- Measuring range: Frequency: 9999 Hz, 999.9 Hz, 99.99 kHz, automatic switching selection. Automatic range selection saves the user time and effort. Efficient completion of the work.
