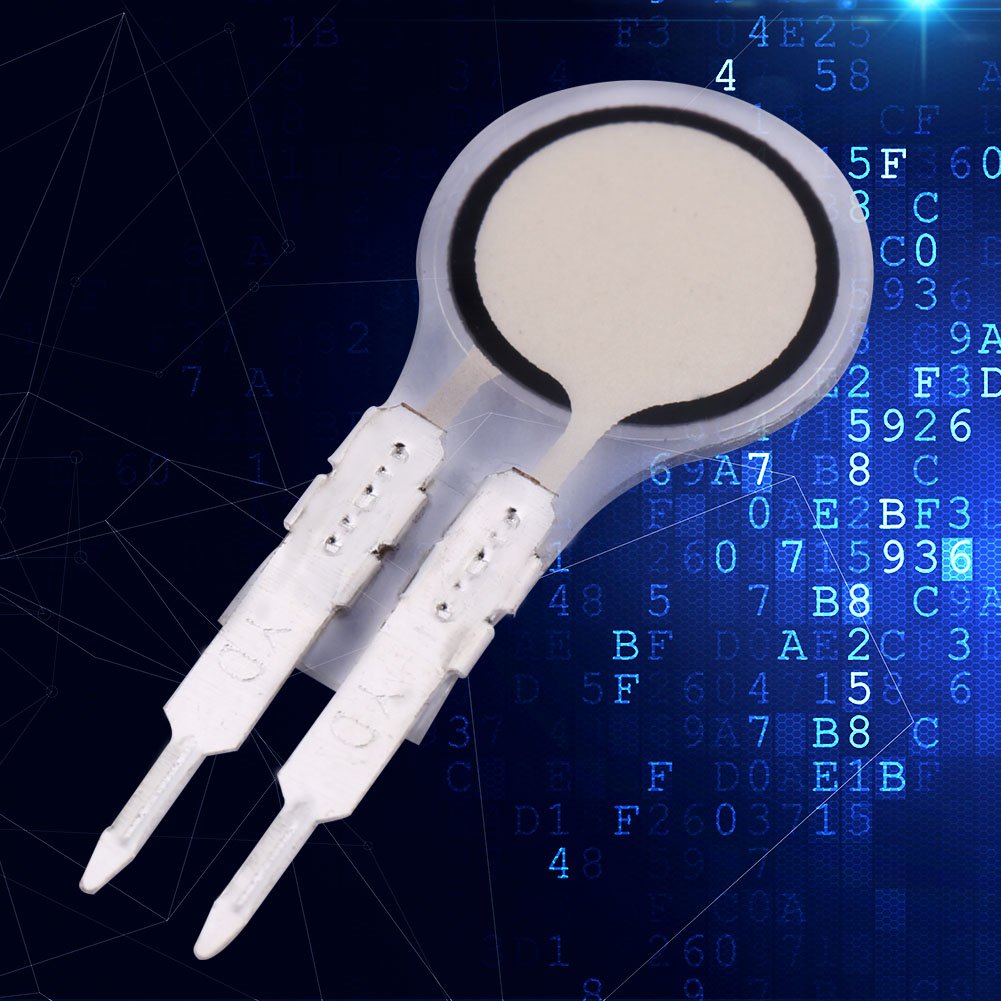

{"id":7419109605536,"title":"Force Sensor Thin Film Force-Sensitive Resistor Diameter 7.5mm Waterproof Pressure Sensor, 10kg","handle":"force-sensor-thin-film-force-sensitive-resistor-diameter-7-5mm-waterproof-pressure-sensor-10kg","description":"\u003ch3\u003eForce Sensor Thin Film Force-Sensitive Resistor Diameter 7.5mm Waterproof Pressure Sensor, 10kg\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures:This flexible pressure sensor is based on new nanometer pressure-\nsensitive materials supplemented by ultra-thin film substrate. Highly\nsensitive flexible nanometer materials can realize highly sensitive detection\nof pressure. It has pressure sensitive function as well as water-resistant\nfunction. When sensor detects outside pressure, the resistance of sensor will\nchange. Pressure signal can be converted into a corresponding electrical\nsignal output using simple circuit. Specifications:Measuring Range: 0~10kg\nThickness: \u0026lt;0.25mm Response Point: \u0026lt;20g Repeatability: \u0026lt;±4.1%(50% load)\nPrecision: ±2.5% Lifespan: \u0026gt;1million times Initial Resistance: \u0026gt;10MΩ(no load)\nResponse Time: \u0026lt;1ms Restore Time: \u0026lt;15ms Test Voltage: DC 3.3V (typical)\nOperating Temperature: -20℃ ~ 60℃ EMI: Not generate EDS: Not sensitive Sensing\nArea Outer Diameter: 9mm Sensing Area Inner Diameter: 7.5mm Pin Spacing:\n2.54mm Quantity: 1 Package Includes:1 x Pressure Sensor Note: Please allow\nsmall size error due to manual measurement. Thanks for your understanding.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePURPOSE-- When sensor detects outside pressure, the resistance of sensor will change, so the sensor can be used for detection of pressure.\u003c\/li\u003e\n \u003cli\u003eHIGH QUALITY-- This pressure sensor adopts new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate, high precision and long lifespan, lifespan: \u0026gt;1 million times.\u003c\/li\u003e\n \u003cli\u003eAPPLICATION-- Pressure signal can be converted into a corresponding electrical signal output using simple circuit. It is ideal for pressure measurement.\u003c\/li\u003e\n \u003cli\u003eWATERPROOF-- Force sensor has pressure sensitive function as well as water-resistant function. It can work normally under the temperature from -20C\/-4F to 60C\/140F.\u003c\/li\u003e\n \u003cli\u003eFEATURE-- It features quick response time, response time less than 1ms, restore time less than 15ms, convenient to use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-19T03:14:07+10:00","created_at":"2022-06-19T03:14:16+10:00","vendor":"Wal front","type":"Pressure Probes \u0026 Sensors","tags":["dingo"],"price":9000,"price_min":9000,"price_max":9000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42217596354720,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07SL6KHM3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Force Sensor Thin Film Force-Sensitive Resistor Diameter 7.5mm Waterproof Pressure Sensor, 10kg","public_title":null,"options":["Default Title"],"price":9000,"weight":50,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07SL6KHM3.jpg?v=1655595613","\/\/dingoship.com.au\/cdn\/shop\/products\/61ASvssNqEL.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/51CEhdL8oDL_9420696e-f2cb-47d0-b16a-a68c38a5e3c5.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/51b0nsYmVgL_dbc5e49f-5975-4760-8ea4-32834afba3a8.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/519FLwjPTEL_b21248fc-4af4-4ee3-966a-df413d80a0da.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/71UO2lA3FzL.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/61SeDXJuYWL.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/51Ch0L0ZjkL.jpg?v=1655572456","\/\/dingoship.com.au\/cdn\/shop\/products\/51-UU-1gAoL.jpg?v=1655572456"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07SL6KHM3.jpg?v=1655595613","options":["Title"],"media":[{"alt":null,"id":24880280207520,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07SL6KHM3.jpg?v=1655595613"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07SL6KHM3.jpg?v=1655595613","width":1001},{"alt":null,"id":24879410938016,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ASvssNqEL.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ASvssNqEL.jpg?v=1655572456","width":1001},{"alt":null,"id":24879410970784,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51CEhdL8oDL_9420696e-f2cb-47d0-b16a-a68c38a5e3c5.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51CEhdL8oDL_9420696e-f2cb-47d0-b16a-a68c38a5e3c5.jpg?v=1655572456","width":1001},{"alt":null,"id":24879411003552,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51b0nsYmVgL_dbc5e49f-5975-4760-8ea4-32834afba3a8.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51b0nsYmVgL_dbc5e49f-5975-4760-8ea4-32834afba3a8.jpg?v=1655572456","width":1001},{"alt":null,"id":24879411036320,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/519FLwjPTEL_b21248fc-4af4-4ee3-966a-df413d80a0da.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/519FLwjPTEL_b21248fc-4af4-4ee3-966a-df413d80a0da.jpg?v=1655572456","width":1001},{"alt":null,"id":24879411069088,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71UO2lA3FzL.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71UO2lA3FzL.jpg?v=1655572456","width":1001},{"alt":null,"id":24879411101856,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SeDXJuYWL.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SeDXJuYWL.jpg?v=1655572456","width":1001},{"alt":null,"id":24879411134624,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Ch0L0ZjkL.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Ch0L0ZjkL.jpg?v=1655572456","width":1001},{"alt":null,"id":24879411167392,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51-UU-1gAoL.jpg?v=1655572456"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51-UU-1gAoL.jpg?v=1655572456","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eForce Sensor Thin Film Force-Sensitive Resistor Diameter 7.5mm Waterproof Pressure Sensor, 10kg\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures:This flexible pressure sensor is based on new nanometer pressure-\nsensitive materials supplemented by ultra-thin film substrate. Highly\nsensitive flexible nanometer materials can realize highly sensitive detection\nof pressure. It has pressure sensitive function as well as water-resistant\nfunction. When sensor detects outside pressure, the resistance of sensor will\nchange. Pressure signal can be converted into a corresponding electrical\nsignal output using simple circuit. Specifications:Measuring Range: 0~10kg\nThickness: \u0026lt;0.25mm Response Point: \u0026lt;20g Repeatability: \u0026lt;±4.1%(50% load)\nPrecision: ±2.5% Lifespan: \u0026gt;1million times Initial Resistance: \u0026gt;10MΩ(no load)\nResponse Time: \u0026lt;1ms Restore Time: \u0026lt;15ms Test Voltage: DC 3.3V (typical)\nOperating Temperature: -20℃ ~ 60℃ EMI: Not generate EDS: Not sensitive Sensing\nArea Outer Diameter: 9mm Sensing Area Inner Diameter: 7.5mm Pin Spacing:\n2.54mm Quantity: 1 Package Includes:1 x Pressure Sensor Note: Please allow\nsmall size error due to manual measurement. Thanks for your understanding.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePURPOSE-- When sensor detects outside pressure, the resistance of sensor will change, so the sensor can be used for detection of pressure.\u003c\/li\u003e\n \u003cli\u003eHIGH QUALITY-- This pressure sensor adopts new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate, high precision and long lifespan, lifespan: \u0026gt;1 million times.\u003c\/li\u003e\n \u003cli\u003eAPPLICATION-- Pressure signal can be converted into a corresponding electrical signal output using simple circuit. It is ideal for pressure measurement.\u003c\/li\u003e\n \u003cli\u003eWATERPROOF-- Force sensor has pressure sensitive function as well as water-resistant function. It can work normally under the temperature from -20C\/-4F to 60C\/140F.\u003c\/li\u003e\n \u003cli\u003eFEATURE-- It features quick response time, response time less than 1ms, restore time less than 15ms, convenient to use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
