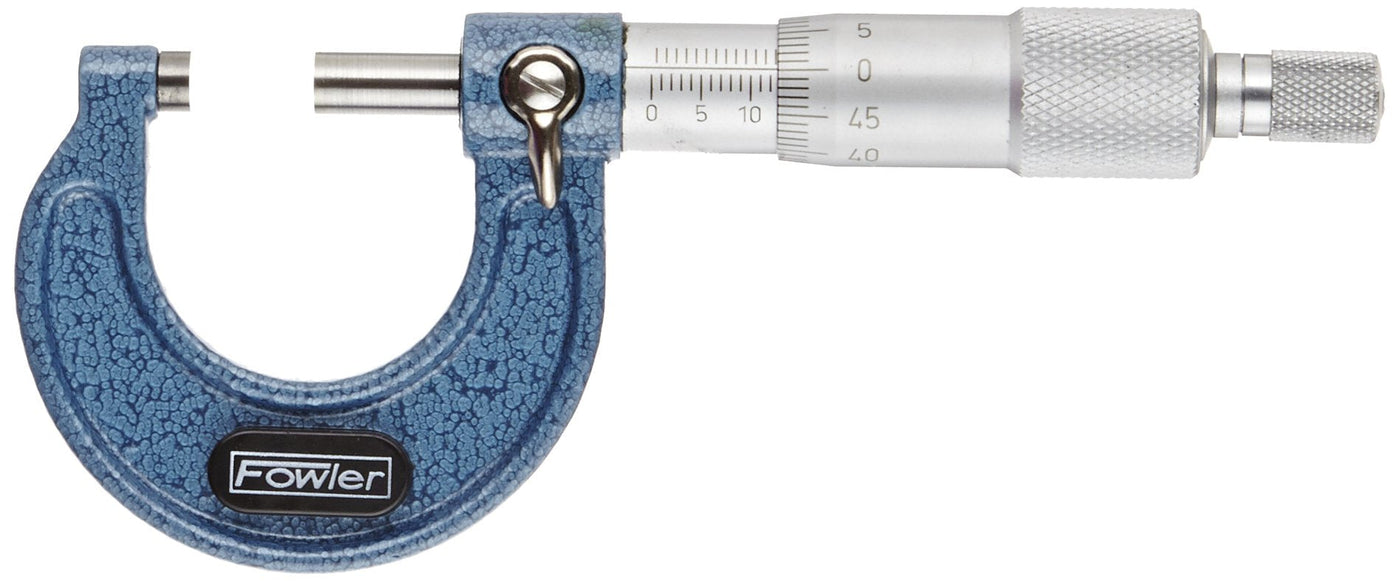

{"id":7409392582816,"title":"Fowler 52-248-101-0, Outside Metric Micrometer With 0-25MM Measuring Range 0.01mm 0.001mm","handle":"fowler-52-248-101-0-outside-metric-micrometer-with-0-25mm-measuring-range-0-01mm-0-001mm","description":"\u003ch3\u003eFowler 52-248-101-0, Outside Metric Micrometer With 0-25MM Measuring Range\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe Fowler 52-217-075 outside micrometer set has a flat anvil\/spindle pair\nwith a choice of measuring range and 0.01mm graduations for general purpose\nmeasuring. The three micrometers have a measuring range of 0 to 25mm, 25 to\n50mm, and 50 to 75mm. The Vernier scale has 0.01mm graduations and an accuracy\nof 0.001mm for precise readings and accurate measurements. The anvil\/spindle\npair has a 6.5mm diameter, 0.00076mm flatness, and 0.000125mm parallelism on\nthe 0 to 25mm micrometer for accurate measurements. Hardened, ground, and\nmicro-lapped measuring faces provide wear resistance. The hardened, ground,\nand lapped spindle thread provides smooth movement, accuracy, and long life.\nThe ratchet-stop thimble provides an audible sound and stops the spindle from\nturning when the spindle comes into contact with the workpiece, providing\nconstant force for consistent measurements between operators. A satin chrome\nfinish on the thimble and sleeve helps reduce rust and glare, providing\ndurability and long life, and microfine graduations help ensure accurate\nreadings. The baked-enamel frame provides durability and long life. The\nmicrometer includes a wrench and a fitted case. Micrometers 50mm and above\ninclude a standard.SpecificationsDisplay type Vernier scale Anvil\/spindle\nstyle Flat Measuring range Varies Graduation interval 0.01mm Accuracy 0.001mm\nfor 0 to 25mm micrometers Thimble style Ratchet Anvil\/spindle diameter 6.5mm\nFlatness 0.00076mm Parallelism 0.000125mm for 0 to 25mm micrometersMicrometers\nare precision measuring instruments that use a calibrated screw to measure\ndistances. These measurements are translated into large rotations of the screw\nthat are then able to be read from a scale or a dial. Micrometers are\ntypically used in manufacturing, machining, and mechanical engineering. There\nare three types of micrometer: outside, inside, and depth. Outside micrometers\nmay also be called micrometer calipers, and are used to measure the length,\nwidth, or outside diameter of an object. Inside micrometers are typically used\nto measure interior diameter, as in a hole. Depth micrometers measure the\nheight, or depth, of any shape that has a step, groove, or slot.The Fred V.\nFowler Company manufactures inspection and measurement instruments such as\nelectronic indicators, calipers, bore gages, and digital scales. The company,\nfounded in 1946, is headquartered in Newton, MA.What’s in the Box?Fowler\n52-248 series outside micrometerStandard (for micrometers 50mm and above)\nWrench Fitted case\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOutside micrometer with choice of measuring range and flat anvil\/spindle pair for general purpose measuring\u003c\/li\u003e\n \u003cli\u003eVernier scale with 0.01mm graduations and 0.001mm accuracy for precise readings\u003c\/li\u003e\n \u003cli\u003eHardened, precision-ground, and carbide-tipped anvil and spindle have 6.5mm measuring faces with micro-lapped finish, 0.00076mm flatness and 0.000125mm parallelism for accurate measurements\u003c\/li\u003e\n \u003cli\u003eHardened, ground and lapped spindle thread provides smooth movement, accuracy, and long life\u003c\/li\u003e\n \u003cli\u003eRatchet stop applies constant force for repeatability between users\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-09T18:15:39+10:00","created_at":"2022-06-09T18:15:42+10:00","vendor":"Fowler","type":"Outside Micrometers","tags":["dingo"],"price":23800,"price_min":23800,"price_max":23800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42172696068256,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00B5HFCZK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fowler 52-248-101-0, Outside Metric Micrometer With 0-25MM Measuring Range 0.01mm 0.001mm","public_title":null,"options":["Default Title"],"price":23800,"weight":249,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B00B5HFCZK.jpg?v=1654816860","\/\/dingoship.com.au\/cdn\/shop\/products\/A13P1eRx6uL.jpg?v=1654762542"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00B5HFCZK.jpg?v=1654816860","options":["Title"],"media":[{"alt":null,"id":24831920079008,"position":1,"preview_image":{"aspect_ratio":2.412,"height":787,"width":1898,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00B5HFCZK.jpg?v=1654816860"},"aspect_ratio":2.412,"height":787,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00B5HFCZK.jpg?v=1654816860","width":1898},{"alt":null,"id":24826857423008,"position":2,"preview_image":{"aspect_ratio":1.038,"height":2237,"width":2322,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/A13P1eRx6uL.jpg?v=1654762542"},"aspect_ratio":1.038,"height":2237,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/A13P1eRx6uL.jpg?v=1654762542","width":2322}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFowler 52-248-101-0, Outside Metric Micrometer With 0-25MM Measuring Range\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe Fowler 52-217-075 outside micrometer set has a flat anvil\/spindle pair\nwith a choice of measuring range and 0.01mm graduations for general purpose\nmeasuring. The three micrometers have a measuring range of 0 to 25mm, 25 to\n50mm, and 50 to 75mm. The Vernier scale has 0.01mm graduations and an accuracy\nof 0.001mm for precise readings and accurate measurements. The anvil\/spindle\npair has a 6.5mm diameter, 0.00076mm flatness, and 0.000125mm parallelism on\nthe 0 to 25mm micrometer for accurate measurements. Hardened, ground, and\nmicro-lapped measuring faces provide wear resistance. The hardened, ground,\nand lapped spindle thread provides smooth movement, accuracy, and long life.\nThe ratchet-stop thimble provides an audible sound and stops the spindle from\nturning when the spindle comes into contact with the workpiece, providing\nconstant force for consistent measurements between operators. A satin chrome\nfinish on the thimble and sleeve helps reduce rust and glare, providing\ndurability and long life, and microfine graduations help ensure accurate\nreadings. The baked-enamel frame provides durability and long life. The\nmicrometer includes a wrench and a fitted case. Micrometers 50mm and above\ninclude a standard.SpecificationsDisplay type Vernier scale Anvil\/spindle\nstyle Flat Measuring range Varies Graduation interval 0.01mm Accuracy 0.001mm\nfor 0 to 25mm micrometers Thimble style Ratchet Anvil\/spindle diameter 6.5mm\nFlatness 0.00076mm Parallelism 0.000125mm for 0 to 25mm micrometersMicrometers\nare precision measuring instruments that use a calibrated screw to measure\ndistances. These measurements are translated into large rotations of the screw\nthat are then able to be read from a scale or a dial. Micrometers are\ntypically used in manufacturing, machining, and mechanical engineering. There\nare three types of micrometer: outside, inside, and depth. Outside micrometers\nmay also be called micrometer calipers, and are used to measure the length,\nwidth, or outside diameter of an object. Inside micrometers are typically used\nto measure interior diameter, as in a hole. Depth micrometers measure the\nheight, or depth, of any shape that has a step, groove, or slot.The Fred V.\nFowler Company manufactures inspection and measurement instruments such as\nelectronic indicators, calipers, bore gages, and digital scales. The company,\nfounded in 1946, is headquartered in Newton, MA.What’s in the Box?Fowler\n52-248 series outside micrometerStandard (for micrometers 50mm and above)\nWrench Fitted case\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOutside micrometer with choice of measuring range and flat anvil\/spindle pair for general purpose measuring\u003c\/li\u003e\n \u003cli\u003eVernier scale with 0.01mm graduations and 0.001mm accuracy for precise readings\u003c\/li\u003e\n \u003cli\u003eHardened, precision-ground, and carbide-tipped anvil and spindle have 6.5mm measuring faces with micro-lapped finish, 0.00076mm flatness and 0.000125mm parallelism for accurate measurements\u003c\/li\u003e\n \u003cli\u003eHardened, ground and lapped spindle thread provides smooth movement, accuracy, and long life\u003c\/li\u003e\n \u003cli\u003eRatchet stop applies constant force for repeatability between users\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
