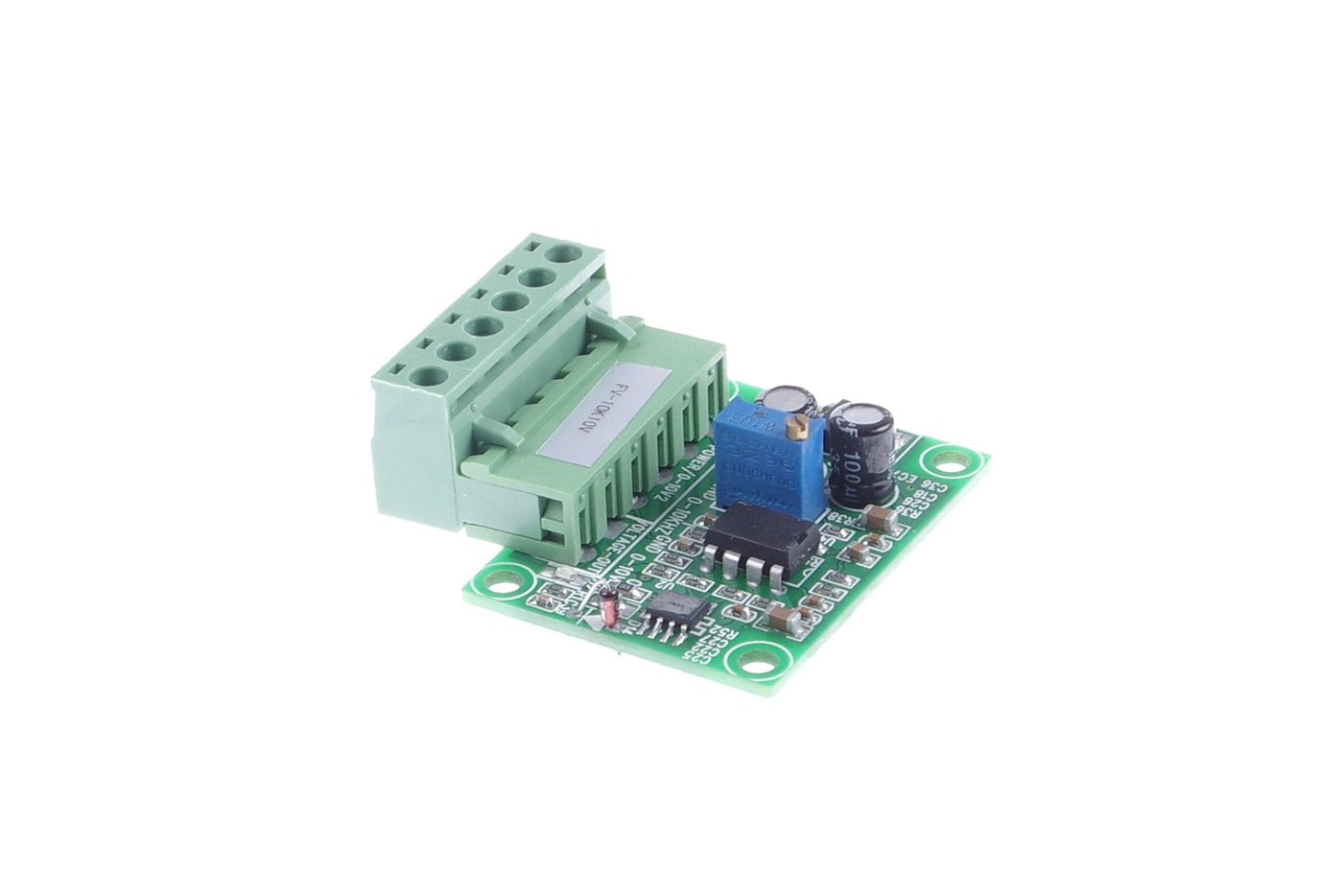

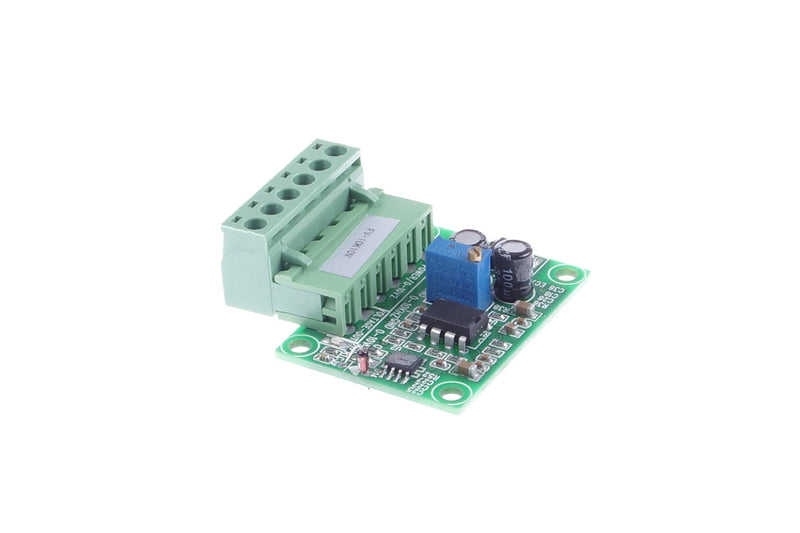

{"id":15200496025760,"title":"Frequency to Voltage Conversion Module 0-10KHz to 0-10V F V Conversion Module Digital to Analog Converter Module","handle":"frequency-to-voltage-conversion-module-0-10khz-to-0-10v-f-v-conversion-module-digital-to-analog-converter-module","description":"\u003ch3\u003eFrequency to Voltage Conversion Module 0-10KHz to 0-10V F V Conversion Module Digital to Analog Converter Module\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e0Hz to 10KHz frequency pulse signal into 0-10V analog voltage signal. Can be\r\nused for PLC and inverter interface between the conversion, or motion control\r\ncard and inverter interface matching control occasions. Input pulse level is\r\n5V \/ 12V \/ 24V can be directly input, no need to string resistance. But the\r\ninput signal frequency, to maintain more than 0.5 seconds. The output current\r\nis 5mA. The input power supply voltage range is DC12-30V. Instructions for\r\nuse: 1, Multi-turn potentiometer is used to calibrate the frequency and\r\nvoltage of the corresponding relationship. 2, The input power supply voltage\r\nrange of DC12-30V. 4, For the use of PLC, support NPN type. Must have ground\r\nwire. 5, If used with the encoder, the encoder constant speed required to\r\ncontinue to rotate more than 0.5 seconds. 6, F \/ V conversion module, the\r\nresponse time of about 0.3-0.5 seconds Note: 1. Accuracy is 1%, can not be\r\naccurate to the decimal point after the two digits, if the use of high\r\nprecision requirements are not recommended. 2. You can adjust the blue\r\npotentiometer on the board to calibrate (in the factory, we have F \/ v\r\npotentiometer to adjust a certain correspondence, generally do not recommend\r\nself adjustment). 3. If the signal input is turbine flow, due to signal\r\nmatching reasons, to add a 817 optical coupler and a resistor in order to make\r\nthe flow meter to function properly. Package Included: 1Frequency To Voltage\r\nConversion Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eModule function: 0Hz to 10KHz frequency pulse signal into 0-10V analog voltage signal.\u003c\/li\u003e\r\n \u003cli\u003eCan be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.\u003c\/li\u003e\r\n \u003cli\u003eInput pulse level is 5V \/ 12V \/ 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.\u003c\/li\u003e\r\n \u003cli\u003eThe output current is 5mA. The input power supply voltage range is DC12-30V.\u003c\/li\u003e\r\n \u003cli\u003ePotentiometer is used to calibrate the frequency and voltage of the corresponding relationship.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-16T03:24:51+11:00","created_at":"2025-10-16T03:24:47+11:00","vendor":"KNACRO","type":"","tags":["electronics_selected_Oct2025"],"price":10800,"price_min":10800,"price_max":10800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52921493553312,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B06Y11YQPQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Frequency to Voltage Conversion Module 0-10KHz to 0-10V F V Conversion Module Digital to Analog Converter Module","public_title":null,"options":["Default Title"],"price":10800,"weight":68,"compare_at_price":null,"inventory_management":"shopify","barcode":"713653014101","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/61gtbUyUi8L.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/61G63zJur4L.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/61A3T5Y0pfL.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/61_YbCnDe_L.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/61Nc--J1IdL.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/71dqmlXEgSL.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/81Kl6WZLXjL.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/71jPL3E_lUL.jpg?v=1760545490","\/\/dingoship.com.au\/cdn\/shop\/files\/81Ela3UEixL_3928f89e-6177-448e-a60f-0371c5ab65a9.jpg?v=1760545490"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gtbUyUi8L.jpg?v=1760545490","options":["Title"],"media":[{"alt":null,"id":38454018637984,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1339,"width":2008,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gtbUyUi8L.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1339,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gtbUyUi8L.jpg?v=1760545490","width":2008},{"alt":null,"id":38454018670752,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1339,"width":2008,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61G63zJur4L.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1339,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61G63zJur4L.jpg?v=1760545490","width":2008},{"alt":null,"id":38454018703520,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1339,"width":2008,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61A3T5Y0pfL.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1339,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61A3T5Y0pfL.jpg?v=1760545490","width":2008},{"alt":null,"id":38454018736288,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1339,"width":2008,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_YbCnDe_L.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1339,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_YbCnDe_L.jpg?v=1760545490","width":2008},{"alt":null,"id":38454018769056,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1339,"width":2008,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Nc--J1IdL.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1339,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Nc--J1IdL.jpg?v=1760545490","width":2008},{"alt":null,"id":38454018801824,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1693,"width":2540,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71dqmlXEgSL.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1693,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71dqmlXEgSL.jpg?v=1760545490","width":2540},{"alt":null,"id":38454018834592,"position":7,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/81Kl6WZLXjL.jpg?v=1760545490"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/81Kl6WZLXjL.jpg?v=1760545490","width":2560},{"alt":null,"id":38454018867360,"position":8,"preview_image":{"aspect_ratio":1.5,"height":1600,"width":2400,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71jPL3E_lUL.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71jPL3E_lUL.jpg?v=1760545490","width":2400},{"alt":null,"id":38454018900128,"position":9,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/81Ela3UEixL_3928f89e-6177-448e-a60f-0371c5ab65a9.jpg?v=1760545490"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/81Ela3UEixL_3928f89e-6177-448e-a60f-0371c5ab65a9.jpg?v=1760545490","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFrequency to Voltage Conversion Module 0-10KHz to 0-10V F V Conversion Module Digital to Analog Converter Module\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e0Hz to 10KHz frequency pulse signal into 0-10V analog voltage signal. Can be\r\nused for PLC and inverter interface between the conversion, or motion control\r\ncard and inverter interface matching control occasions. Input pulse level is\r\n5V \/ 12V \/ 24V can be directly input, no need to string resistance. But the\r\ninput signal frequency, to maintain more than 0.5 seconds. The output current\r\nis 5mA. The input power supply voltage range is DC12-30V. Instructions for\r\nuse: 1, Multi-turn potentiometer is used to calibrate the frequency and\r\nvoltage of the corresponding relationship. 2, The input power supply voltage\r\nrange of DC12-30V. 4, For the use of PLC, support NPN type. Must have ground\r\nwire. 5, If used with the encoder, the encoder constant speed required to\r\ncontinue to rotate more than 0.5 seconds. 6, F \/ V conversion module, the\r\nresponse time of about 0.3-0.5 seconds Note: 1. Accuracy is 1%, can not be\r\naccurate to the decimal point after the two digits, if the use of high\r\nprecision requirements are not recommended. 2. You can adjust the blue\r\npotentiometer on the board to calibrate (in the factory, we have F \/ v\r\npotentiometer to adjust a certain correspondence, generally do not recommend\r\nself adjustment). 3. If the signal input is turbine flow, due to signal\r\nmatching reasons, to add a 817 optical coupler and a resistor in order to make\r\nthe flow meter to function properly. Package Included: 1Frequency To Voltage\r\nConversion Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eModule function: 0Hz to 10KHz frequency pulse signal into 0-10V analog voltage signal.\u003c\/li\u003e\r\n \u003cli\u003eCan be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.\u003c\/li\u003e\r\n \u003cli\u003eInput pulse level is 5V \/ 12V \/ 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.\u003c\/li\u003e\r\n \u003cli\u003eThe output current is 5mA. The input power supply voltage range is DC12-30V.\u003c\/li\u003e\r\n \u003cli\u003ePotentiometer is used to calibrate the frequency and voltage of the corresponding relationship.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
