Greartisan DC 12V 550RPM Gear Motor High Torque Electric Micro Speed Reduction Gear Motor Centric Output Shaft 37mm Diameter Gear 550 RPM 12 Volt

In Stock. Leaves warehouse within 2 - 3 business days

197.00 AUD
Maximum quantity available reached.
Shop today and get free shipping anywhere in Australia.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Greartisan DC 12V 550RPM Gear Motor High Torque Electric Microspeed Reduction Gear Motor Centric Output Shaft 37mm Diameter Gear

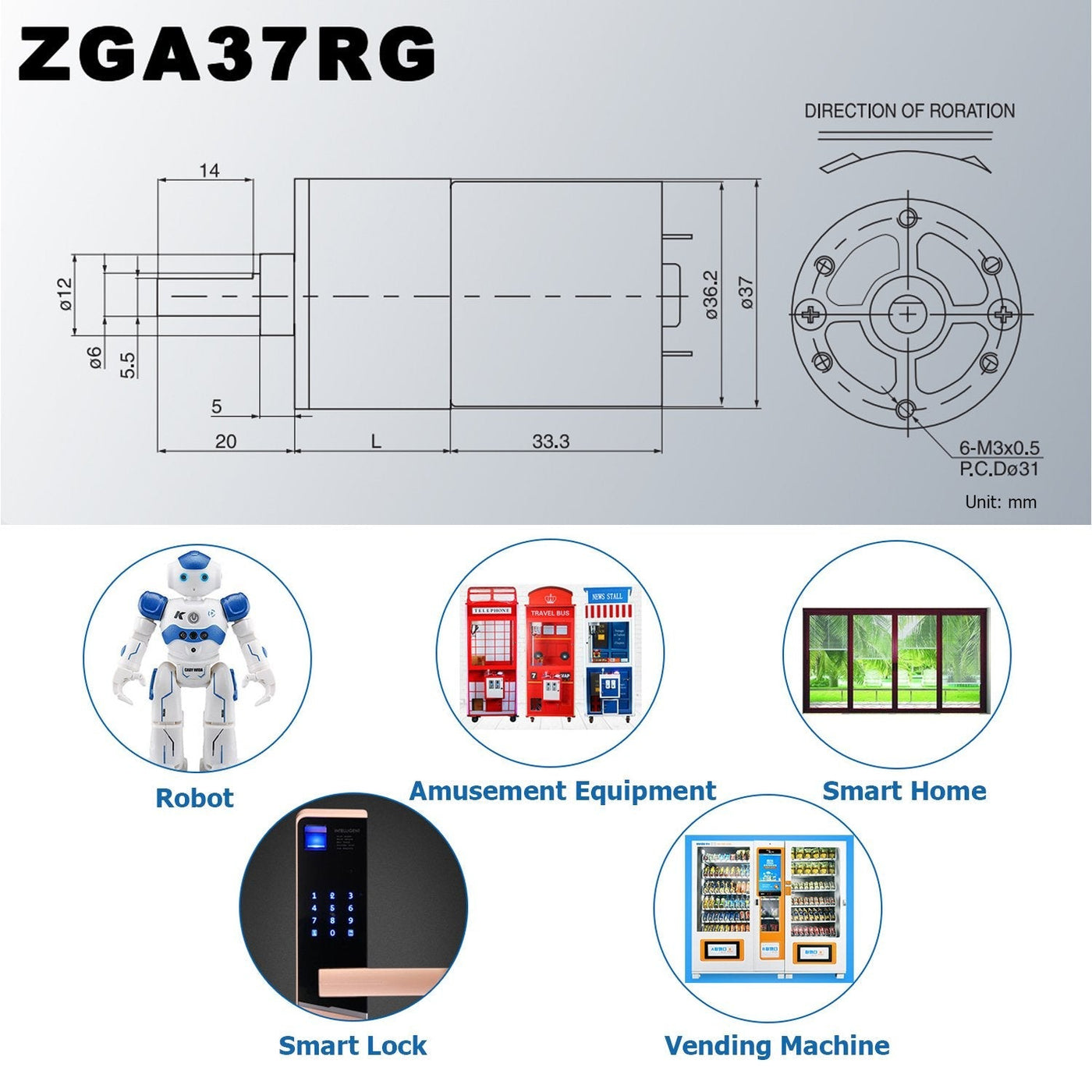

Specifications: Rated voltage: DC 12V Reduction ratio: 1:9 No-load speed: 550RPM Rated torque: 0. 31kg. cm chuang 是 3Ncm Rated current: 0.6Amp D shaped output shaft size: 614mm (0.24" x 0.55") (DL) Gear size: 37 x 22.5mm (1.46" x 0.89") (DL) Motor size: 36.2 x 33.3mm (1.43" x 1.31") (DL) Mounting Hole Size: M3 (not included) Application: Vending Equipments, Panning Camera, Slot Machine, Money Detector, Coin Return Devices, Automatic Doors, Peritoneal Machine, Toy Motor etc. Packages: - 1 x DC Gear Motor PLEASE NOTE: 1.Use tolerance : Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decrease. 2.Handling engines: Gently, as much as possible the use of the engine shell part. 3.Motor wiring: Red wire to positive electrode, black wire to negative pole, when reversed, the motor rotation in the opposite direction. 4.Overload: As much as possible within the specified load range, prohibit motor stalling or near standstill condition for too long time to run. Otherwise the engine will burn out. 5.Motor Storage: -Storage temperature: 0℃.40℃; ◌Storage humidity: 15% -90% RH; Avoid placing in high temperatures, high humidity and corrosive gases. 6.Motor Usage Temperature: 0℃-70℃

Product Features

  • ALL-METAL GEARS: High temperature resistance, high abrasion resistance, strong resilience, sturdy and durable, effectively protect the gear motor body.

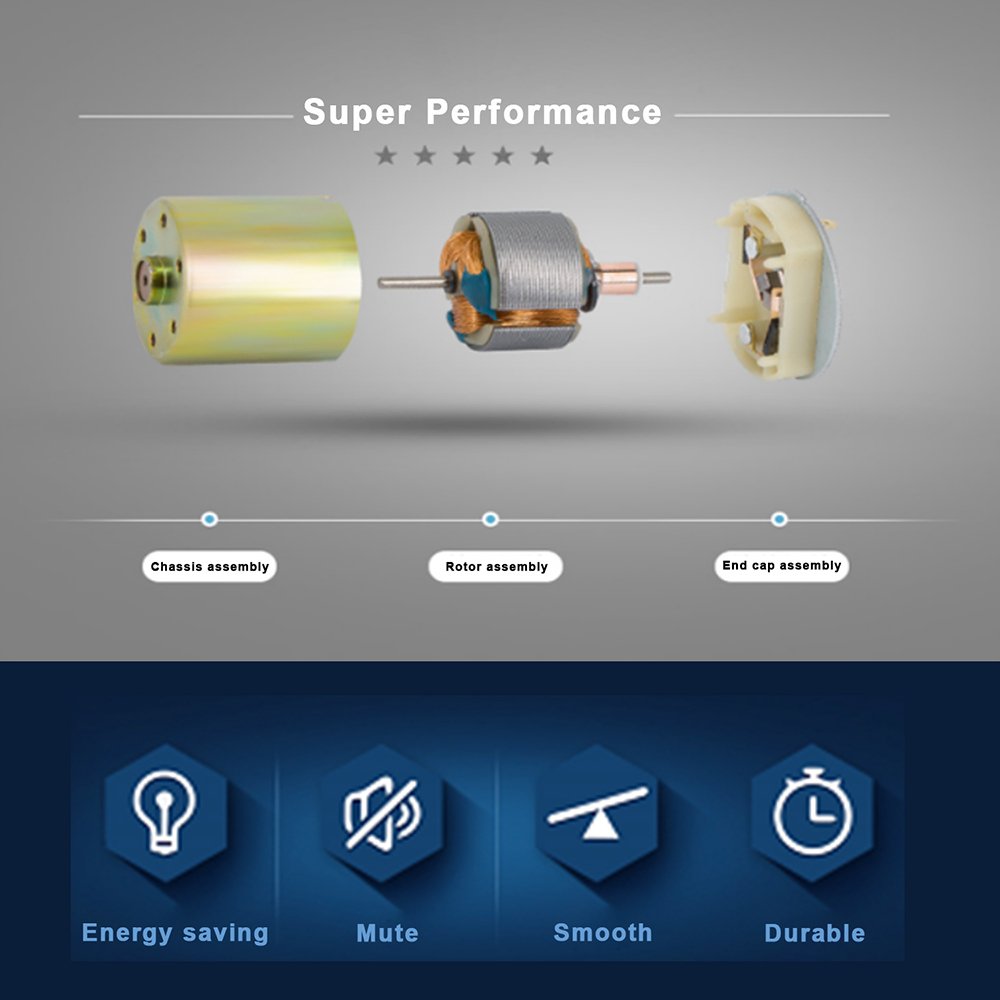

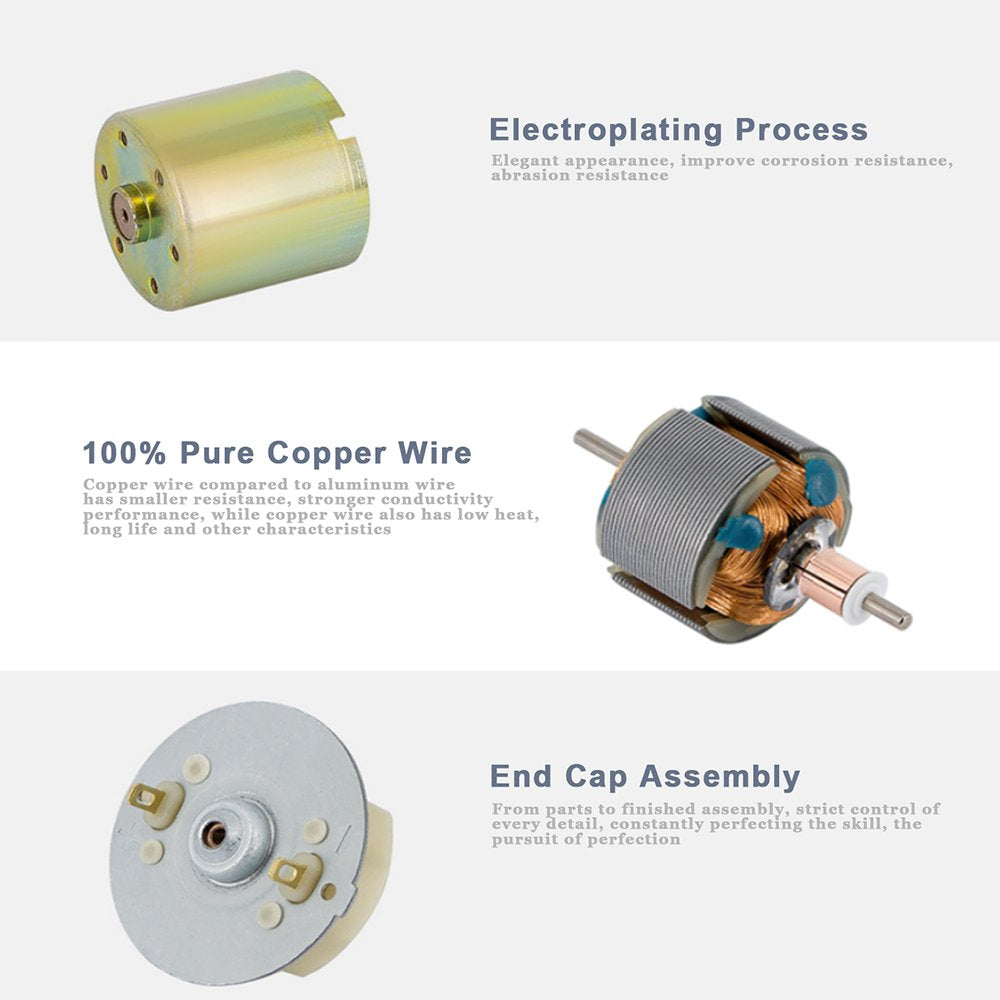

  • PURE COPPER WIRE CORE ROTOR: With precision winding technology, the gear motor power increases by 30% instantly.
  • D shaped output shaft: Using high hardness steel, good toughness , Impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
  • POSITIVE-NEGATIVE ROTATION: You can also adjust the speed, but the motor speed can only be reduced, cannot be increased. Low noise and high torque, like 10rpm can drive 15 kilograms.
  • RELIABLE GURANTEE: If there are any quality problems, we promise 100% unconditional return service. If you need other voltage and speed, please feel free to contact us!
