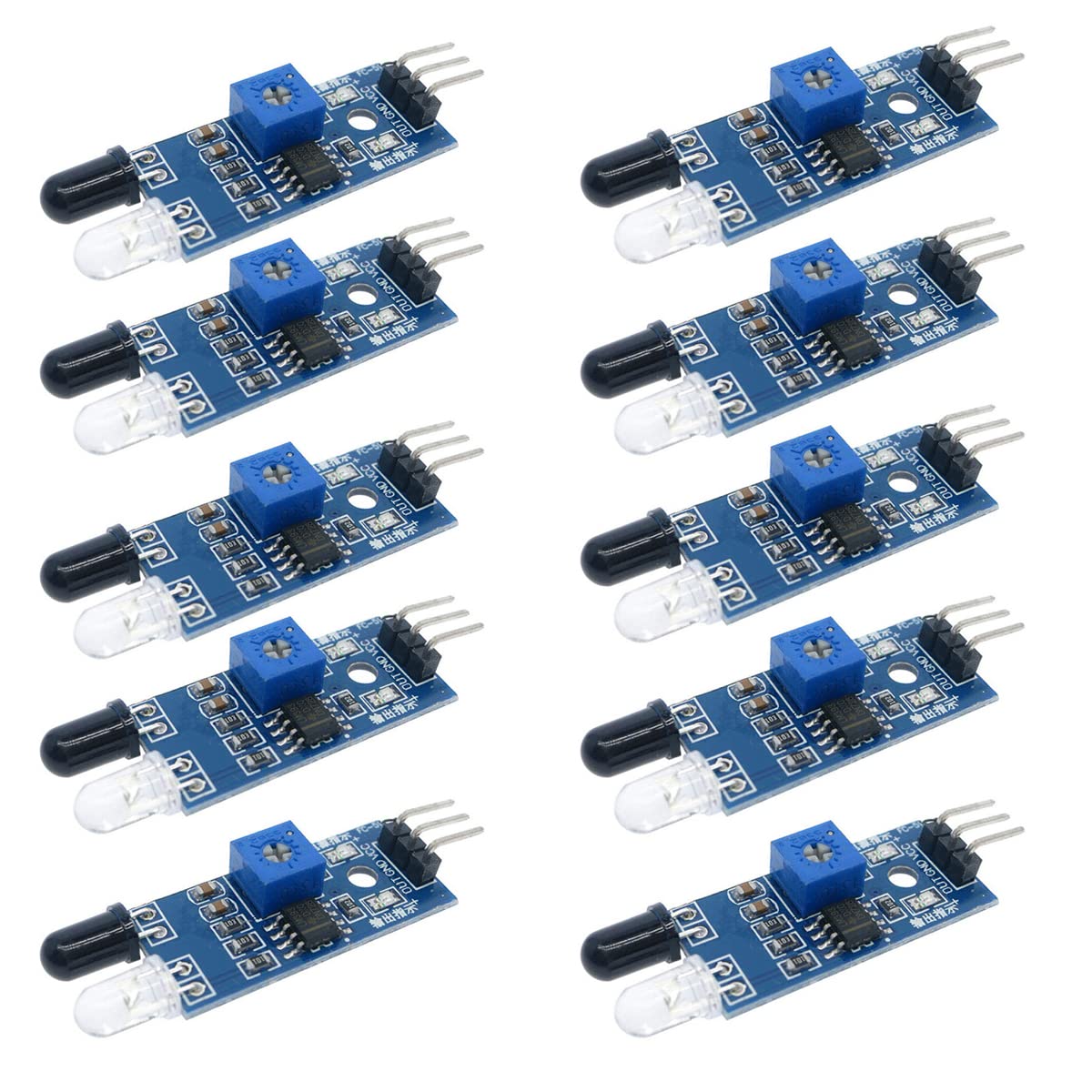

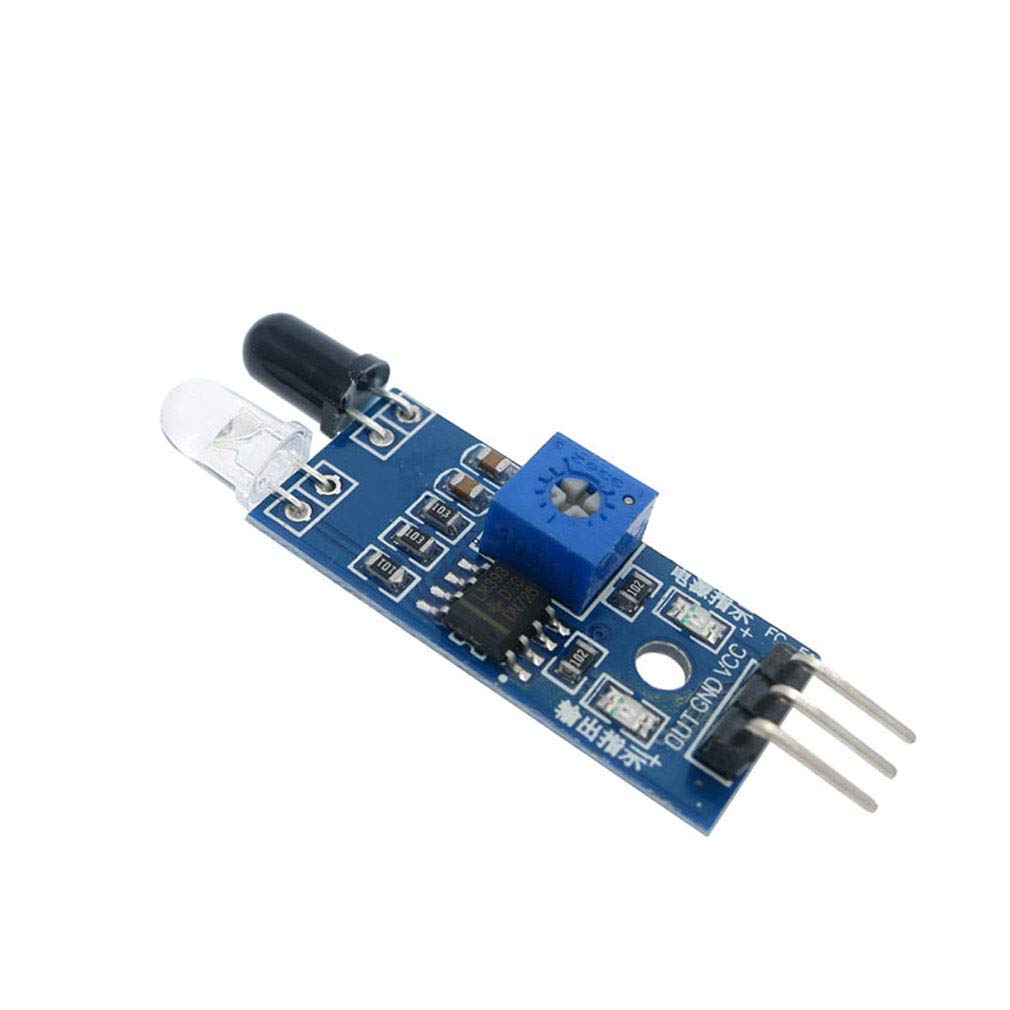

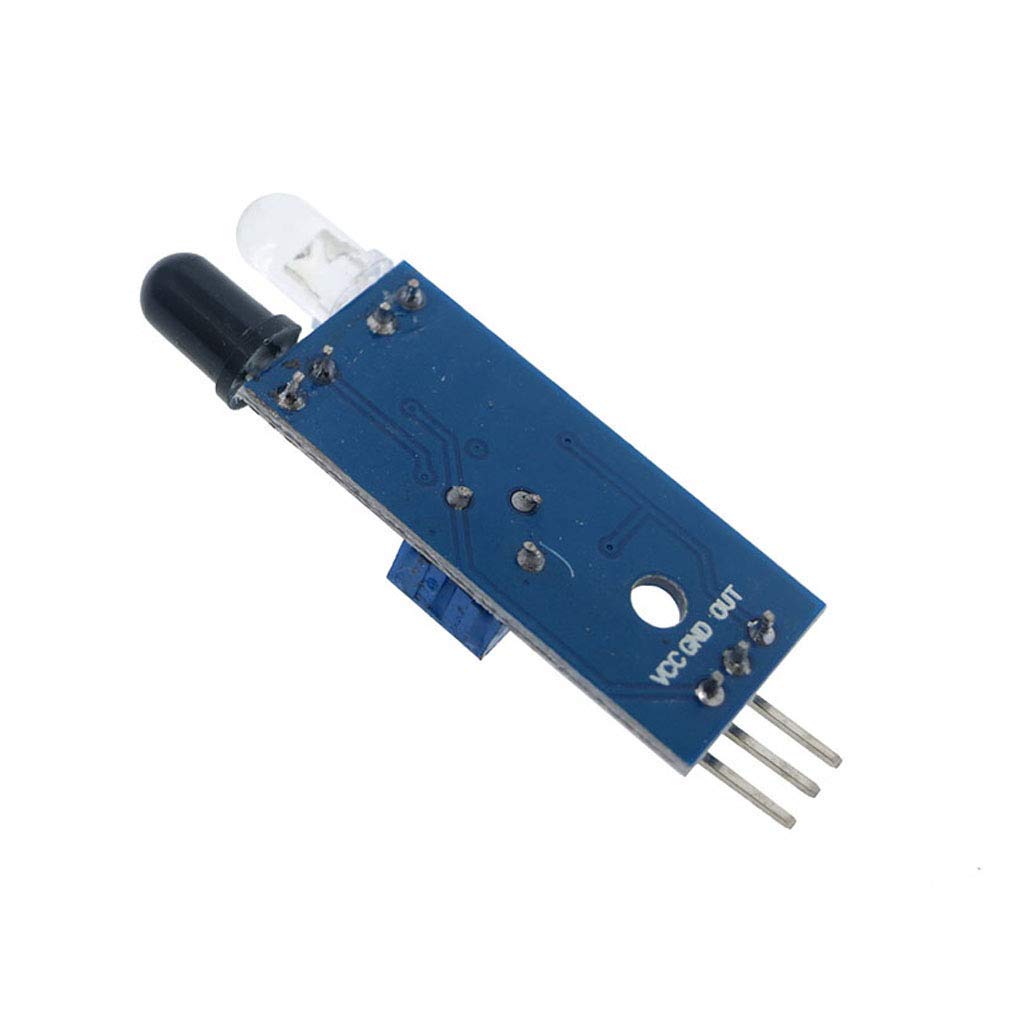

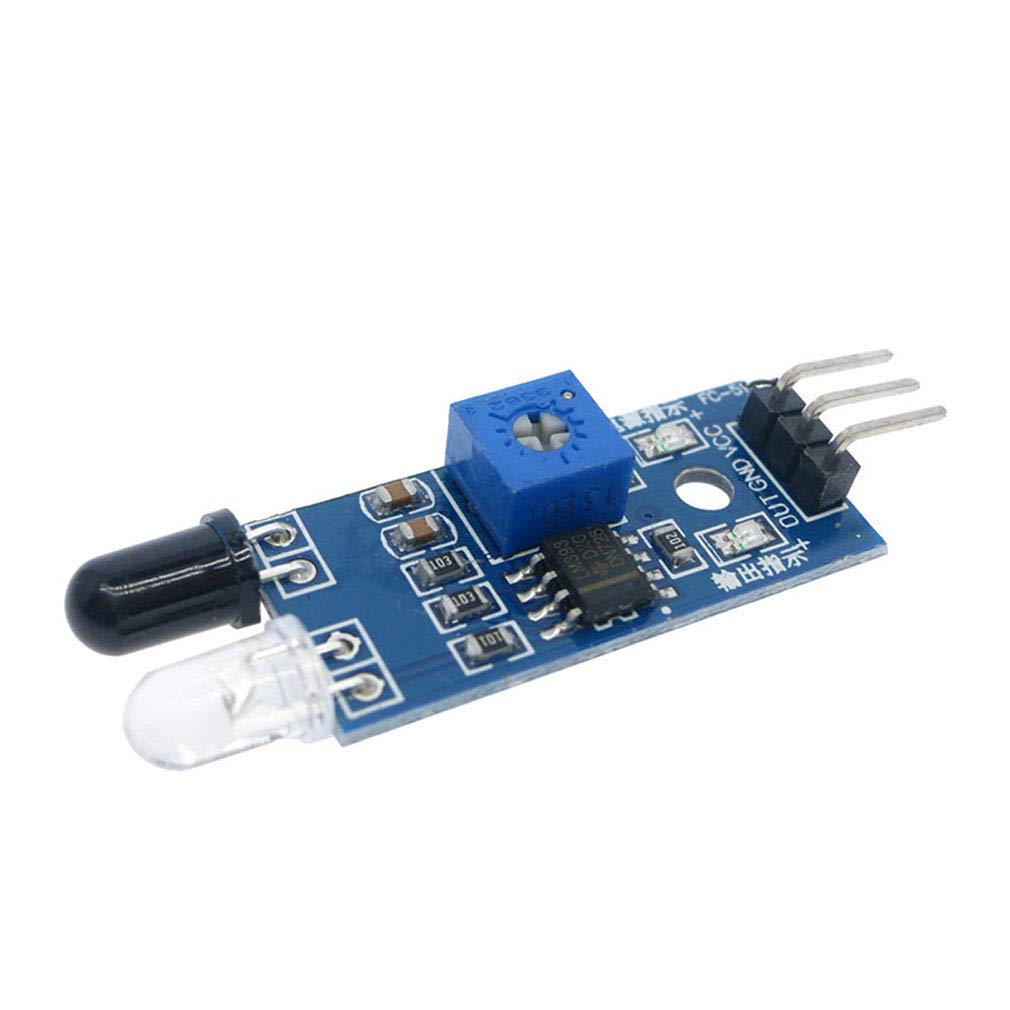

{"id":12639937822880,"title":"Hailege 10pcs IR Infrared Obstacle Avoidance Sensor Module LM393 3-Wire IR Reflective Photoelectric Sensor for Smart Car Robot","handle":"hailege-10pcs-ir-infrared-obstacle-avoidance-sensor-module-lm393-3-wire-ir-reflective-photoelectric-sensor-for-smart-car-robot","description":"\u003ch3\u003eHailege 10pcs IR Infrared Obstacle Avoidance Sensor Module LM393 3-Wire IR Reflective Photoelectric Sensor for Smart Car Robot\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: 1. When the module detects an obstacle in front of the signal , the green indicator lights on the board level, while the OUT port sustained low signal output, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer, detects the distance increases; counterclockwise adjustment potentiometer, reducing detection distance. 2. The sensor active infrared reflection detection, target reflectivity and therefore the shape is critical detection distance. Where the minimum detection distance black, white, maximum; small objects away from a small area, a large area from the Grand. 3. The sensor module output port OUT port can be directly connected to the microcontroller IO can also be directly drive a 5V relay; Connection VCC-VCC; GND-GND; OUT-IO. 4. the module can be 3-5V DC power supply. When the power is turned on, the red power indicator lights; 5. With the screw holes 3mm, easy fixed installation; 6. Each module has been shipped threshold comparator voltage adjusted by potentiometer good, non-special case, do not adjustable potentiometer. PIN Definition: 1.VCC 3.3V-5V external voltage (can be directly connected to 5v and 3.3v MCU MCU) 2. GND GND External 3. OUT small board digital output interface (0 and 1) Package Includes: 10 IR Infrared Obstacle Avoidance Sensor Modules\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eLM393 IR Infrared Obstacle Avoidance Sensor Module\u003c\/li\u003e \u003cli\u003eInfrared sensor active infrared reflection detection, target reflectivity and therefore the shape is critical detection distance.\u003c\/li\u003e \u003cli\u003eEach module has been threshold comparator voltage adjusted by potentiometer good, non-special case, do not adjustable potentiometer.\u003c\/li\u003e \u003cli\u003eThe sensor output port OUT port can be directly connected to the microcontroller IO can also be directly drive a 5V relay\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-07T01:35:37+11:00","created_at":"2024-03-07T01:35:43+11:00","vendor":"Hailege","type":"Infrared proximity sensors","tags":["industryDE"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48971953537184,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0BN1N3LR6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 10pcs IR Infrared Obstacle Avoidance Sensor Module LM393 3-Wire IR Reflective Photoelectric Sensor for Smart Car Robot","public_title":null,"options":["Default Title"],"price":13000,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0063","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BN1N3LR6.jpg?v=1709767845","\/\/dingoship.com.au\/cdn\/shop\/products\/516CNlG4bgL.jpg?v=1709735743","\/\/dingoship.com.au\/cdn\/shop\/products\/51caChysjGL.jpg?v=1709735743","\/\/dingoship.com.au\/cdn\/shop\/products\/51PZrxlb_sL.jpg?v=1709735743","\/\/dingoship.com.au\/cdn\/shop\/products\/51c0Ga4AmdL_c25e604f-fac5-40d6-9174-1ba9f4e1291f.jpg?v=1709735743"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BN1N3LR6.jpg?v=1709767845","options":["Title"],"media":[{"alt":null,"id":32683153555616,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BN1N3LR6.jpg?v=1709767845"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BN1N3LR6.jpg?v=1709767845","width":1200},{"alt":null,"id":32675839869088,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/516CNlG4bgL.jpg?v=1709735743"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/516CNlG4bgL.jpg?v=1709735743","width":1010},{"alt":null,"id":32675839901856,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51caChysjGL.jpg?v=1709735743"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51caChysjGL.jpg?v=1709735743","width":1010},{"alt":null,"id":32675839934624,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51PZrxlb_sL.jpg?v=1709735743"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51PZrxlb_sL.jpg?v=1709735743","width":1010},{"alt":null,"id":32675839967392,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51c0Ga4AmdL_c25e604f-fac5-40d6-9174-1ba9f4e1291f.jpg?v=1709735743"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51c0Ga4AmdL_c25e604f-fac5-40d6-9174-1ba9f4e1291f.jpg?v=1709735743","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 10pcs IR Infrared Obstacle Avoidance Sensor Module LM393 3-Wire IR Reflective Photoelectric Sensor for Smart Car Robot\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: 1. When the module detects an obstacle in front of the signal , the green indicator lights on the board level, while the OUT port sustained low signal output, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer, detects the distance increases; counterclockwise adjustment potentiometer, reducing detection distance. 2. The sensor active infrared reflection detection, target reflectivity and therefore the shape is critical detection distance. Where the minimum detection distance black, white, maximum; small objects away from a small area, a large area from the Grand. 3. The sensor module output port OUT port can be directly connected to the microcontroller IO can also be directly drive a 5V relay; Connection VCC-VCC; GND-GND; OUT-IO. 4. the module can be 3-5V DC power supply. When the power is turned on, the red power indicator lights; 5. With the screw holes 3mm, easy fixed installation; 6. Each module has been shipped threshold comparator voltage adjusted by potentiometer good, non-special case, do not adjustable potentiometer. PIN Definition: 1.VCC 3.3V-5V external voltage (can be directly connected to 5v and 3.3v MCU MCU) 2. GND GND External 3. OUT small board digital output interface (0 and 1) Package Includes: 10 IR Infrared Obstacle Avoidance Sensor Modules\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eLM393 IR Infrared Obstacle Avoidance Sensor Module\u003c\/li\u003e \u003cli\u003eInfrared sensor active infrared reflection detection, target reflectivity and therefore the shape is critical detection distance.\u003c\/li\u003e \u003cli\u003eEach module has been threshold comparator voltage adjusted by potentiometer good, non-special case, do not adjustable potentiometer.\u003c\/li\u003e \u003cli\u003eThe sensor output port OUT port can be directly connected to the microcontroller IO can also be directly drive a 5V relay\u003c\/li\u003e \u003c\/ul\u003e"}
