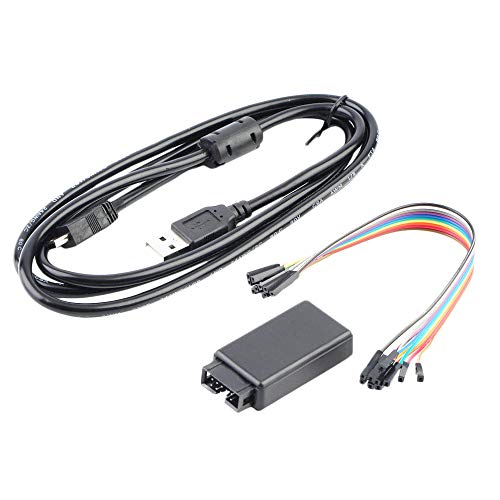

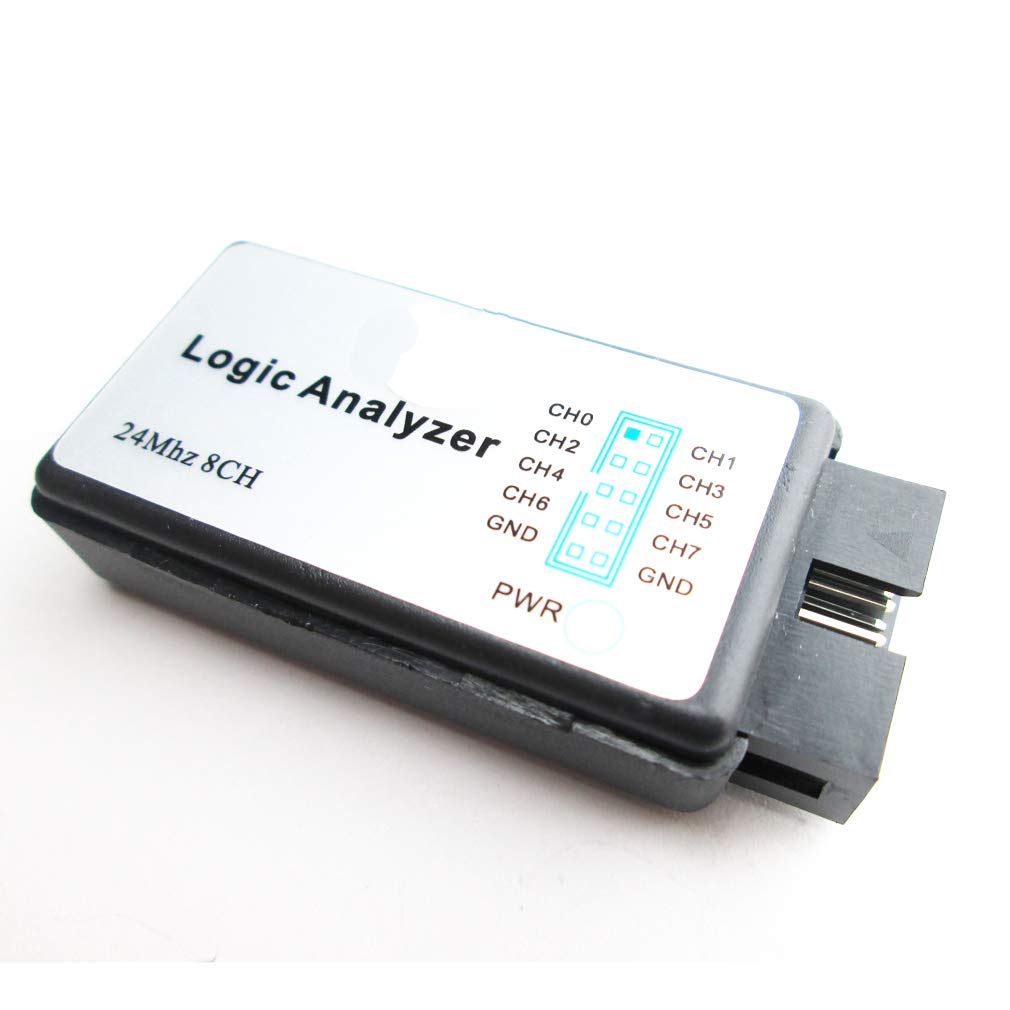

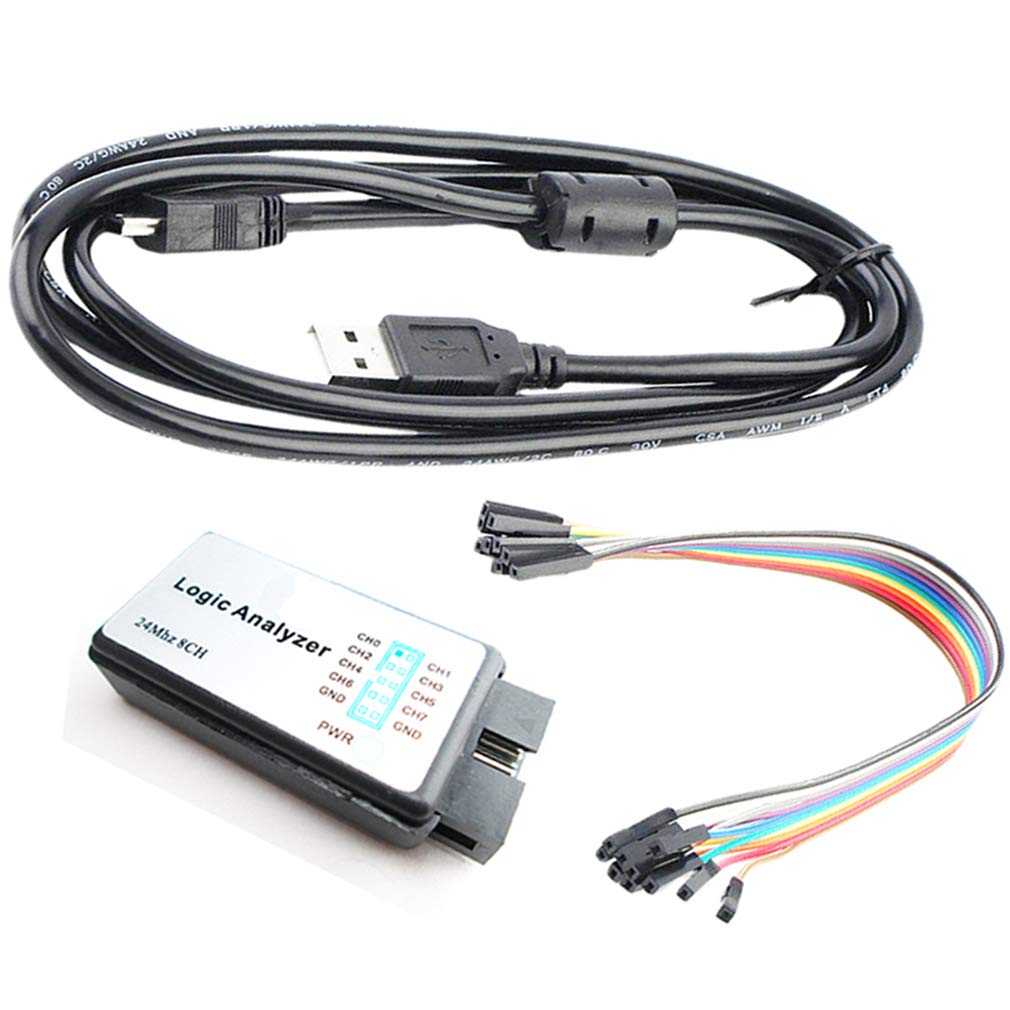

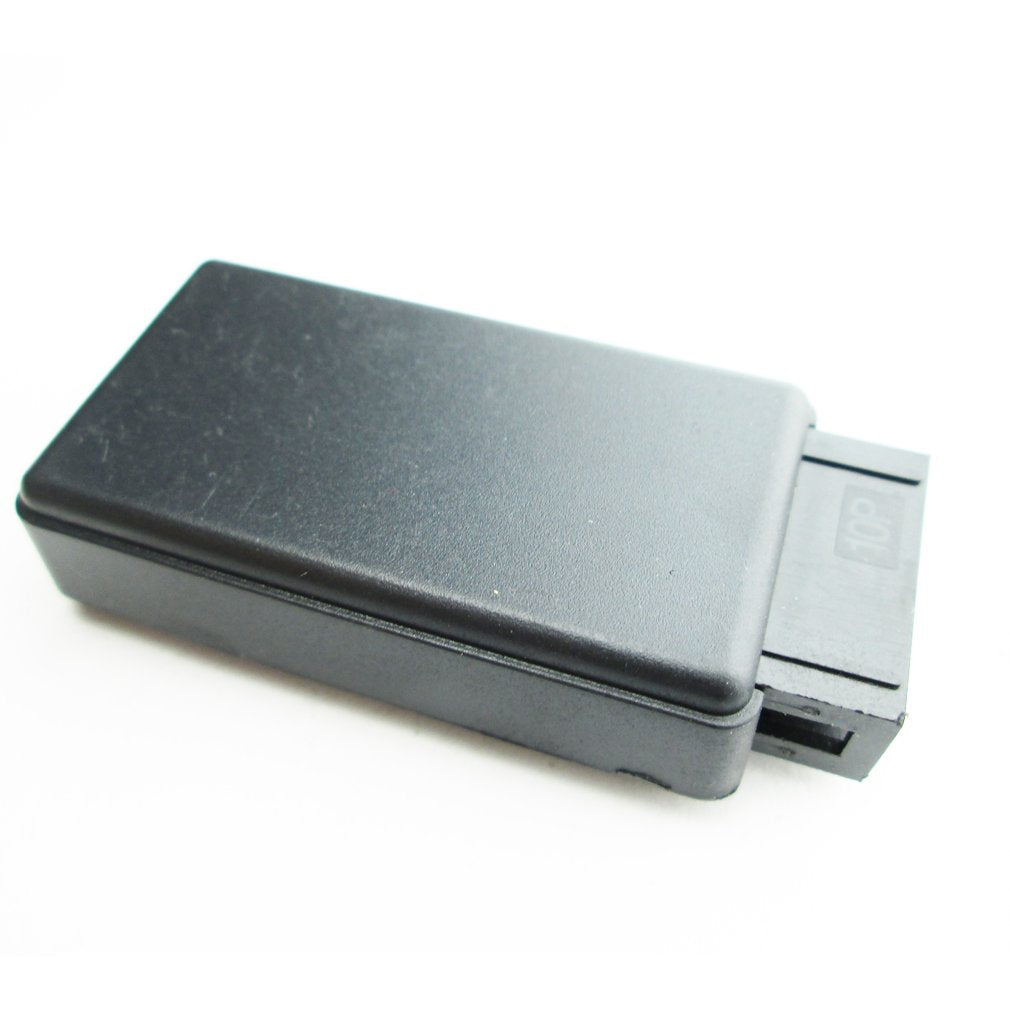

{"id":12639938740384,"title":"Hailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM","handle":"hailege-24mhz-8ch-usb-logic-analyzer-device-with-emi-ferrite-ring-usb-cable-24mhz-8-channel-uart-iic-spi-debug-arm-fpga-m100-scm","description":"\u003ch3\u003eHailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The logic for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety of occasions; Input voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input High Voltage: 2.0V to 5.25V Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended. Input Impedance: 1Mohm || 10pF (typical, approximate) Crystal: +\/-20ppm, 24MHz Error\/Accuracy: pulse-width measurement: +\/- 42ns (at 24MHz). Packing Included: 1 Logic Analyzer 1 USB Cable 1 Dupont wire\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e24MHz 8CH Logic Analyzer Device UART IIC SPI Debug ARM FPGA M100 SCM\u0026lt; \/li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eThe logic analyzer for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety of occasions; 8-channel\u003c\/li\u003e \u003cli\u003eSampling rate up to: 24 MHz,can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;\u003c\/li\u003e \u003cli\u003eInput voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V\u003c\/li\u003e \u003cli\u003eInput Impedance: 1Mohm || 10pF (typical, approximate); Crystal: +\/-20ppm, 24MHz\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-07T01:35:45+11:00","created_at":"2024-03-07T01:35:51+11:00","vendor":"Hailege","type":"Logic analyzers","tags":["industryDE"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48971954946208,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XQCRR6R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM","public_title":null,"options":["Default Title"],"price":14500,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0015","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1709767851","\/\/dingoship.com.au\/cdn\/shop\/products\/41PRfXF3evL.jpg?v=1709735751","\/\/dingoship.com.au\/cdn\/shop\/products\/51JHyuN5ZvL.jpg?v=1709735751","\/\/dingoship.com.au\/cdn\/shop\/products\/61Bt7ctlcML.jpg?v=1709735751","\/\/dingoship.com.au\/cdn\/shop\/products\/51vxjRYr51L.jpg?v=1709735751"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1709767851","options":["Title"],"media":[{"alt":null,"id":32683155062944,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1709767851"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1709767851","width":1010},{"alt":null,"id":32675842785440,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41PRfXF3evL.jpg?v=1709735751"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41PRfXF3evL.jpg?v=1709735751","width":500},{"alt":null,"id":32675842850976,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51JHyuN5ZvL.jpg?v=1709735751"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51JHyuN5ZvL.jpg?v=1709735751","width":1010},{"alt":null,"id":32675842883744,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Bt7ctlcML.jpg?v=1709735751"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Bt7ctlcML.jpg?v=1709735751","width":1010},{"alt":null,"id":32675842949280,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51vxjRYr51L.jpg?v=1709735751"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51vxjRYr51L.jpg?v=1709735751","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The logic for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety of occasions; Input voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input High Voltage: 2.0V to 5.25V Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended. Input Impedance: 1Mohm || 10pF (typical, approximate) Crystal: +\/-20ppm, 24MHz Error\/Accuracy: pulse-width measurement: +\/- 42ns (at 24MHz). Packing Included: 1 Logic Analyzer 1 USB Cable 1 Dupont wire\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e24MHz 8CH Logic Analyzer Device UART IIC SPI Debug ARM FPGA M100 SCM\u0026lt; \/li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eThe logic analyzer for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety of occasions; 8-channel\u003c\/li\u003e \u003cli\u003eSampling rate up to: 24 MHz,can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;\u003c\/li\u003e \u003cli\u003eInput voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V\u003c\/li\u003e \u003cli\u003eInput Impedance: 1Mohm || 10pF (typical, approximate); Crystal: +\/-20ppm, 24MHz\u003c\/li\u003e\n\u003c\/ul\u003e"}
