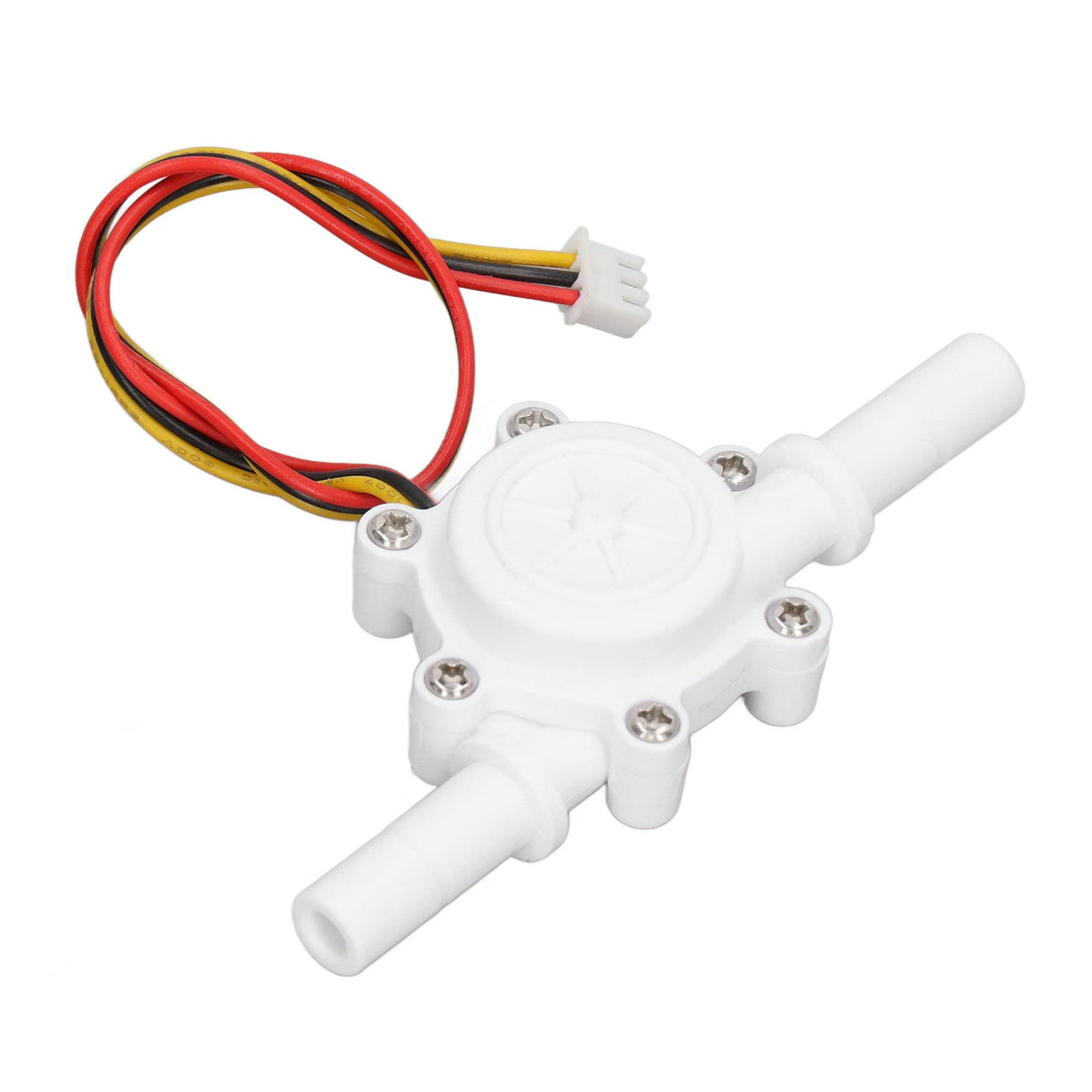

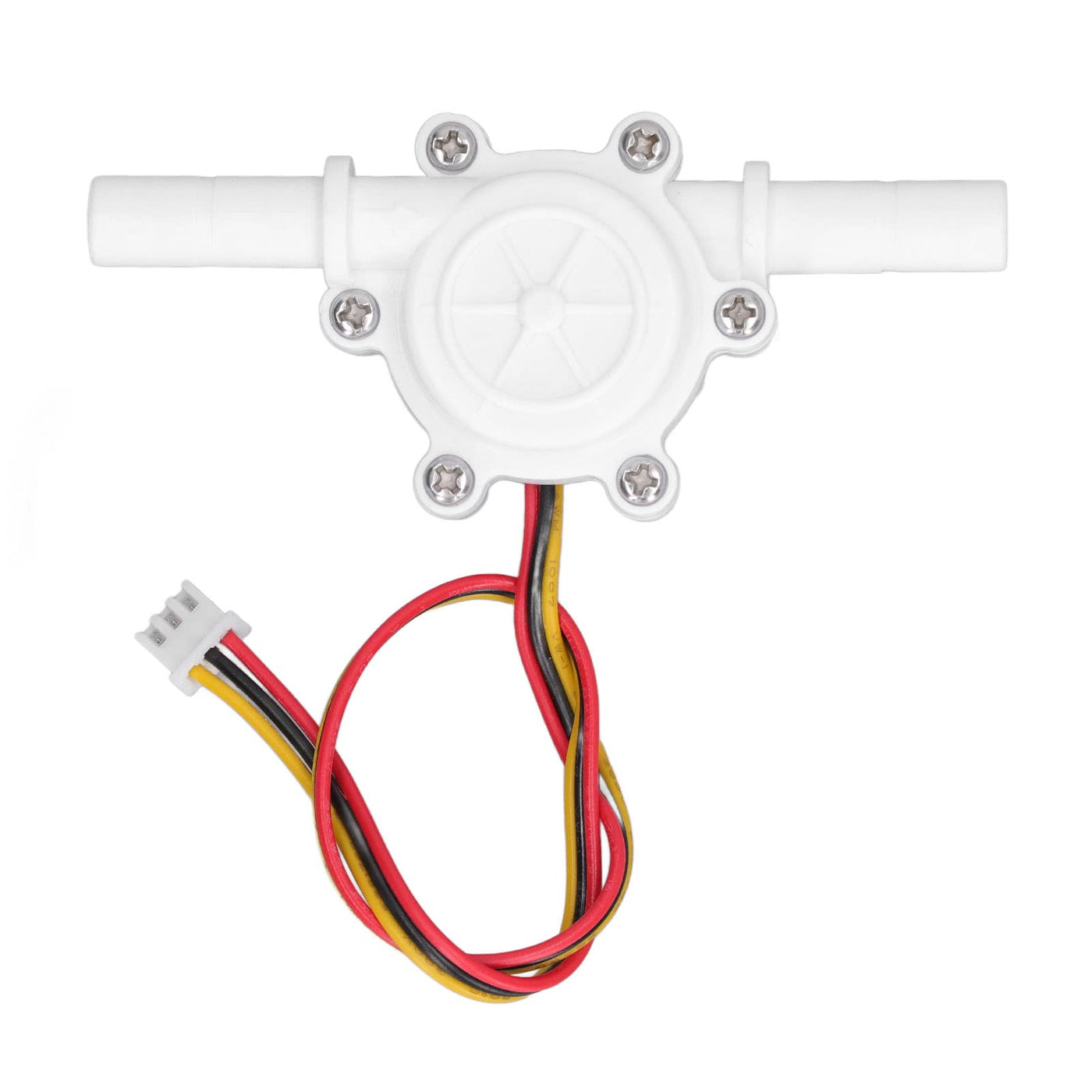

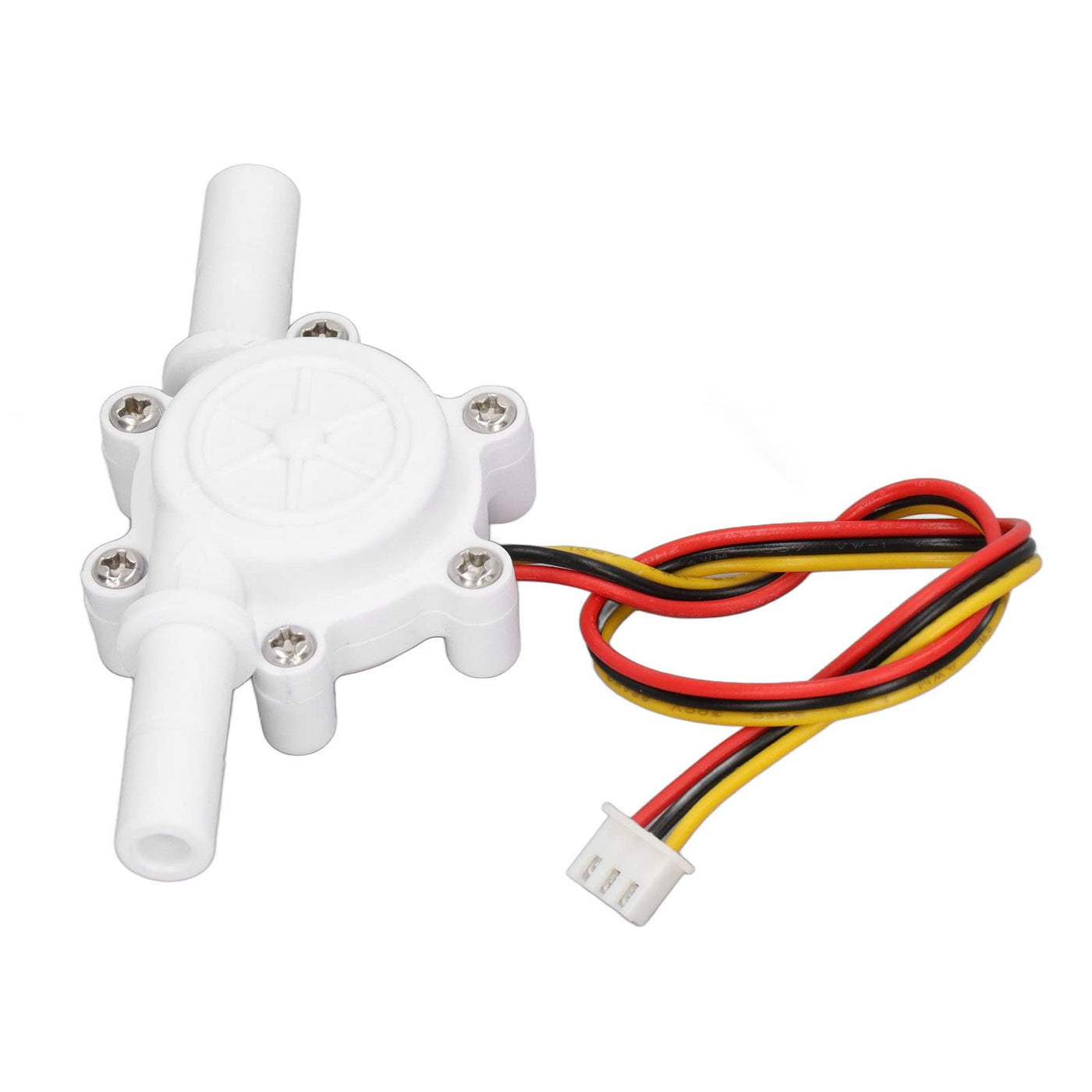

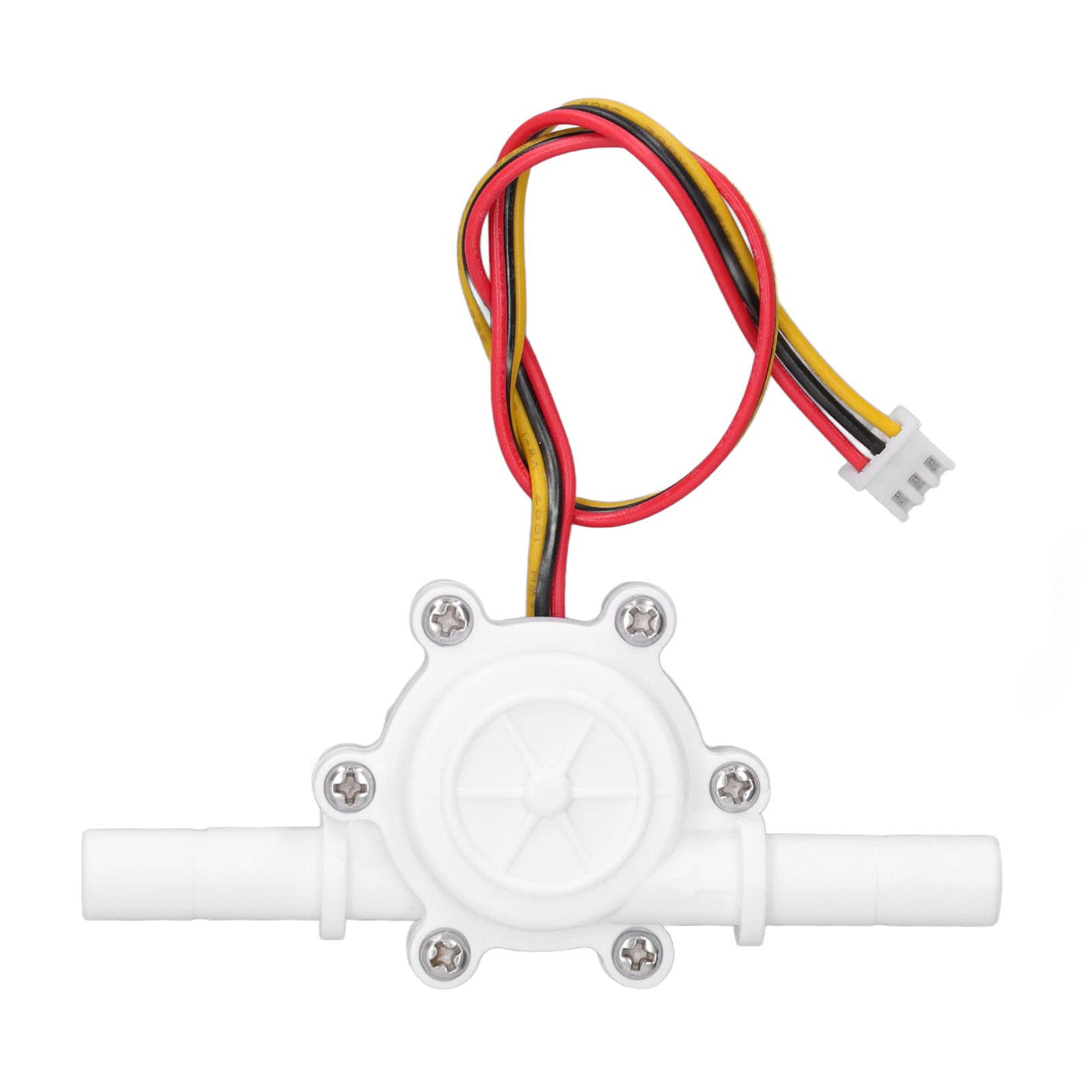

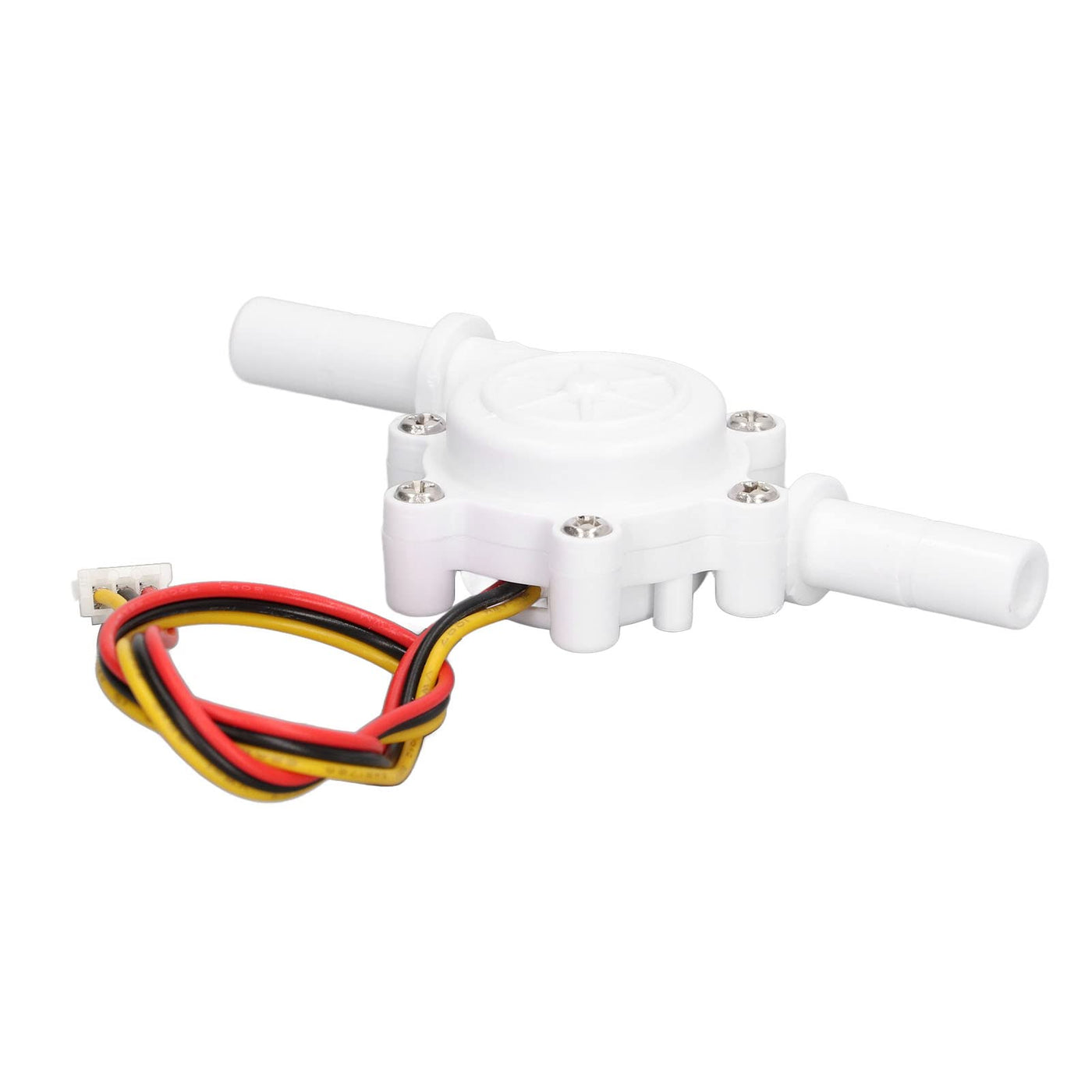

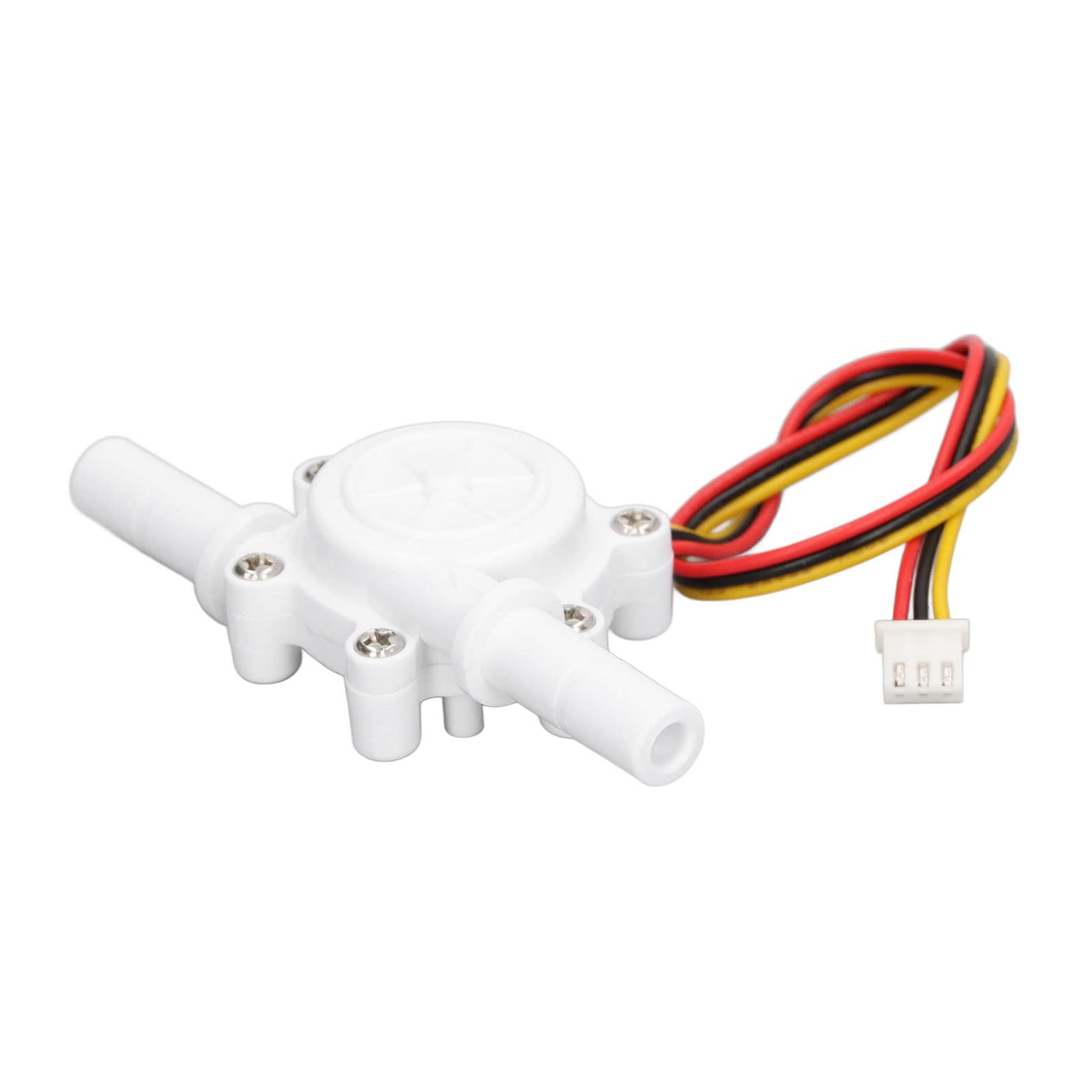

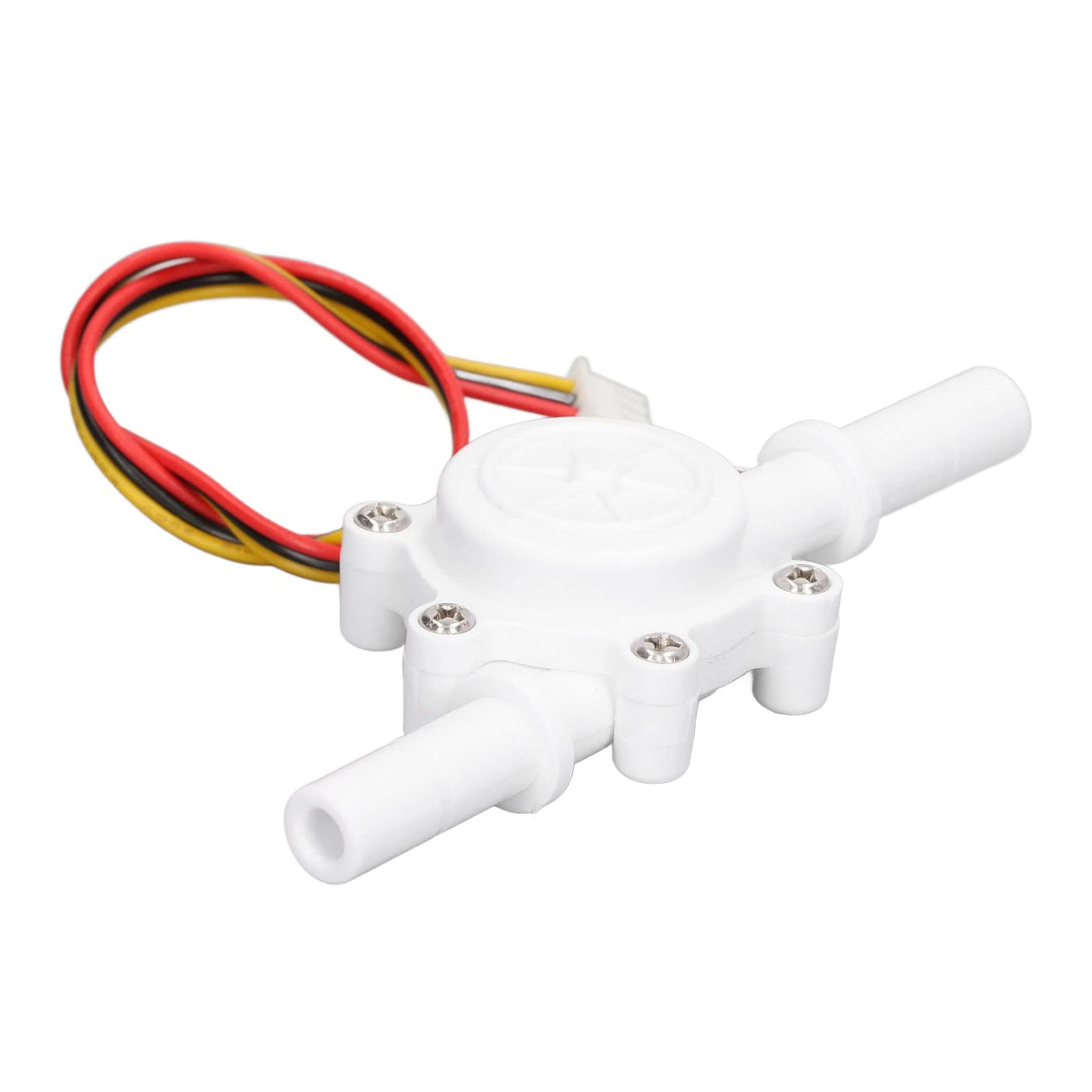

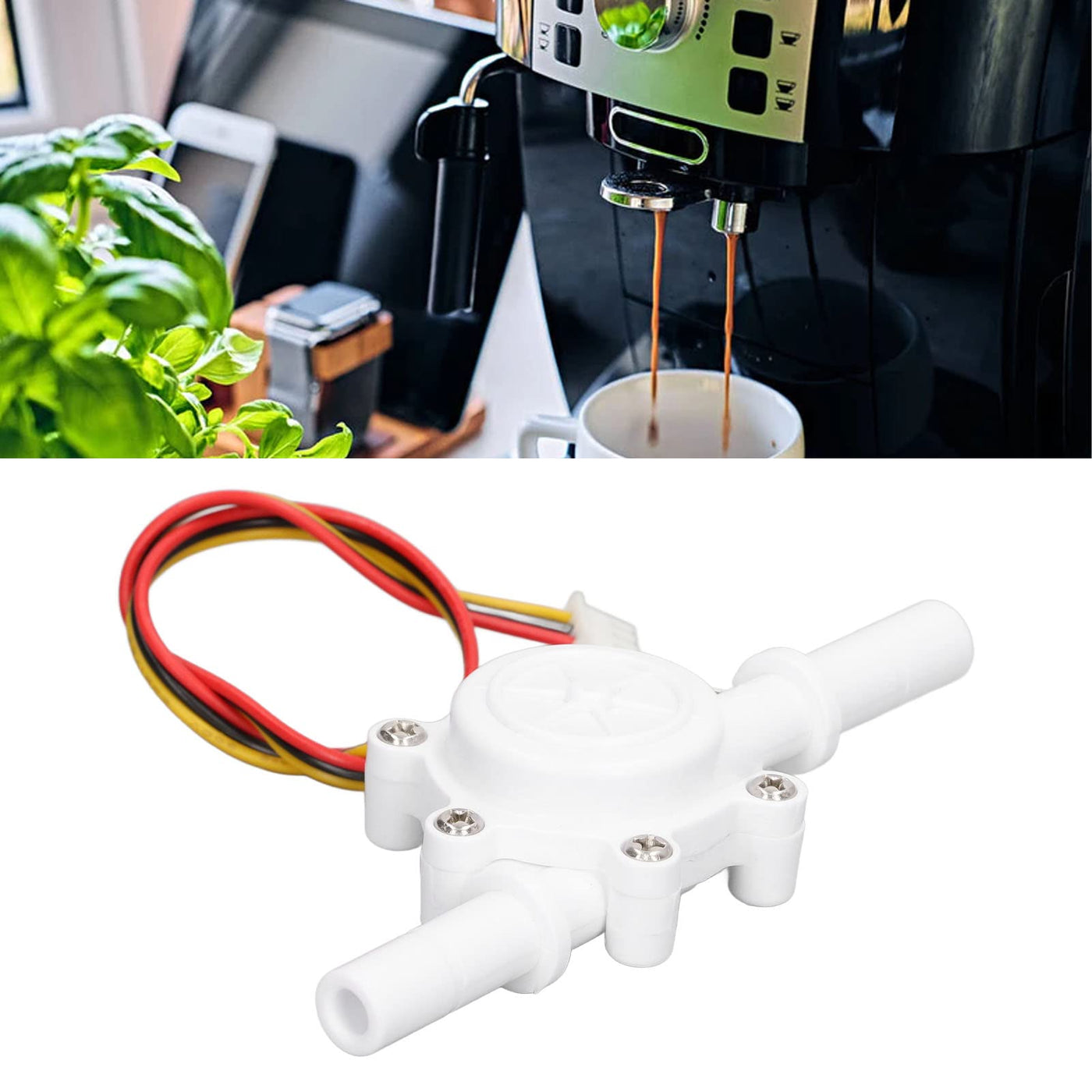

{"id":15190068428960,"title":"Hall Flow Sensor Water G3\/8 Hall Effect Flow Meter DC 3.5V-24V 0.3-10L\/min 25Cm Water Flow Sensor Switch","handle":"hall-flow-sensor-water-g3-8-hall-effect-flow-meter-dc-3-5v-24v-0-3-10l-min-25cm-water-flow-sensor-switch","description":"\u003ch3\u003eHall Flow Sensor Water G3\/8 Hall Effect Flow Meter DC 3.5V‑24V 0.3‑10L\/min 25Cm Water Flow Sensor Switch\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: The Hall component has a waterproof design to prevent water from entering, high quality material is inserted in the impeller, durable and wear-resistant Specification: Item Type: Hall Flow Sensor Material: POM Interface Size: G3\/8 tube Voltage Range: DC3.5- 24V Inner Diameter: Approx. 5mm \/ 0.2in, Outer Diameter: Approx. 9.5mm \/ 0.37in Flow Range: 0.3-10L\/min Pulse Frequency: F=(10xQ)±5% Withstand Voltage: ≤ 1.75map Output Pulse High Level: ≥DC4.6V (Input Voltage DC5V) Low Output Pulse Level: ≤DC0.5V (Input Voltage DC5V) Maximum Operating Current: 15mA (DC5V) Operating Temperature Range: ≤80℃ Package List: 1 x Hall Flow Sensor\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eInner Diameter: Approx. 5 mm \/ 0.2 inch, Outer Diameter: Approx. 9.5 mm \/ 0.37 inch \u003c\/li\u003e \u003cli\u003eNote: 1. The installation should follow the flow direction on the back of the product, otherwise there will be no signal output. 2. A filter must be installed at the input of the sensor to prevent particles and dirt from entering the sensor.\u003c\/li\u003e \u003cli\u003eOutput pulse high level: DC4.6V (input voltage DC5V); Low level output pulse: DC0.5V (input voltage DC5V); Maximum operating current: 15mA (DC5V)\u003c\/li\u003e \u003cli\u003eThe water flow sensor is attached to the water heater and can be practically used as a flow switch\u003c\/li\u003e \u003cli\u003eRed is positive, black is negative, yellow is pulse signal, different colors are for To distinguish them clearly \u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-01T16:12:51+10:00","created_at":"2025-10-01T16:12:47+10:00","vendor":"YWBL-WH","type":"Flow sensors","tags":["industryDE"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52863944589472,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B33RF8NX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hall Flow Sensor Water G3\/8 Hall Effect Flow Meter DC 3.5V-24V 0.3-10L\/min 25Cm Water Flow Sensor Switch","public_title":null,"options":["Default Title"],"price":16100,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B33RF8NX.jpg?v=1775752845","\/\/dingoship.com.au\/cdn\/shop\/files\/61_alBcAZJL.jpg?v=1759299170","\/\/dingoship.com.au\/cdn\/shop\/files\/61danRJh24L.jpg?v=1759299169","\/\/dingoship.com.au\/cdn\/shop\/files\/51X9iDwREGL.jpg?v=1759299169","\/\/dingoship.com.au\/cdn\/shop\/files\/51knLKcXPeL.jpg?v=1759299169","\/\/dingoship.com.au\/cdn\/shop\/files\/51iaHbA_YnL.jpg?v=1759299169","\/\/dingoship.com.au\/cdn\/shop\/files\/51C9Fb22rBL.jpg?v=1759299169","\/\/dingoship.com.au\/cdn\/shop\/files\/51P8x3qcbBL.jpg?v=1759299169","\/\/dingoship.com.au\/cdn\/shop\/files\/51cvQM9T7iL.jpg?v=1759299169"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B33RF8NX.jpg?v=1775752845","options":["Title"],"media":[{"alt":null,"id":38370507784352,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B33RF8NX.jpg?v=1775752845"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B33RF8NX.jpg?v=1775752845","width":1601},{"alt":null,"id":38370507817120,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_alBcAZJL.jpg?v=1759299170"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_alBcAZJL.jpg?v=1759299170","width":1601},{"alt":null,"id":38370507849888,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61danRJh24L.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61danRJh24L.jpg?v=1759299169","width":1601},{"alt":null,"id":38370507882656,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51X9iDwREGL.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51X9iDwREGL.jpg?v=1759299169","width":1601},{"alt":null,"id":38370507915424,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51knLKcXPeL.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51knLKcXPeL.jpg?v=1759299169","width":1601},{"alt":null,"id":38370507948192,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51iaHbA_YnL.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51iaHbA_YnL.jpg?v=1759299169","width":1601},{"alt":null,"id":38370507980960,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51C9Fb22rBL.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51C9Fb22rBL.jpg?v=1759299169","width":1601},{"alt":null,"id":38370508013728,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51P8x3qcbBL.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51P8x3qcbBL.jpg?v=1759299169","width":1601},{"alt":null,"id":38370508046496,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51cvQM9T7iL.jpg?v=1759299169"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51cvQM9T7iL.jpg?v=1759299169","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHall Flow Sensor Water G3\/8 Hall Effect Flow Meter DC 3.5V‑24V 0.3‑10L\/min 25Cm Water Flow Sensor Switch\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: The Hall component has a waterproof design to prevent water from entering, high quality material is inserted in the impeller, durable and wear-resistant Specification: Item Type: Hall Flow Sensor Material: POM Interface Size: G3\/8 tube Voltage Range: DC3.5- 24V Inner Diameter: Approx. 5mm \/ 0.2in, Outer Diameter: Approx. 9.5mm \/ 0.37in Flow Range: 0.3-10L\/min Pulse Frequency: F=(10xQ)±5% Withstand Voltage: ≤ 1.75map Output Pulse High Level: ≥DC4.6V (Input Voltage DC5V) Low Output Pulse Level: ≤DC0.5V (Input Voltage DC5V) Maximum Operating Current: 15mA (DC5V) Operating Temperature Range: ≤80℃ Package List: 1 x Hall Flow Sensor\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eInner Diameter: Approx. 5 mm \/ 0.2 inch, Outer Diameter: Approx. 9.5 mm \/ 0.37 inch \u003c\/li\u003e \u003cli\u003eNote: 1. The installation should follow the flow direction on the back of the product, otherwise there will be no signal output. 2. A filter must be installed at the input of the sensor to prevent particles and dirt from entering the sensor.\u003c\/li\u003e \u003cli\u003eOutput pulse high level: DC4.6V (input voltage DC5V); Low level output pulse: DC0.5V (input voltage DC5V); Maximum operating current: 15mA (DC5V)\u003c\/li\u003e \u003cli\u003eThe water flow sensor is attached to the water heater and can be practically used as a flow switch\u003c\/li\u003e \u003cli\u003eRed is positive, black is negative, yellow is pulse signal, different colors are for To distinguish them clearly \u003c\/li\u003e\n\u003c\/ul\u003e"}
