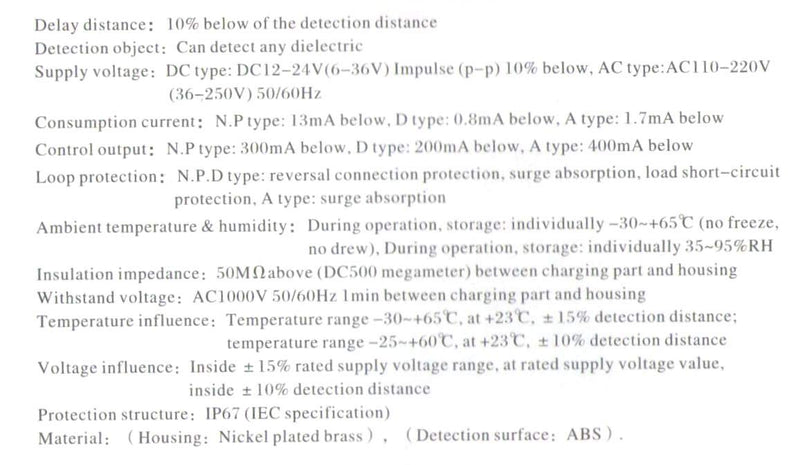

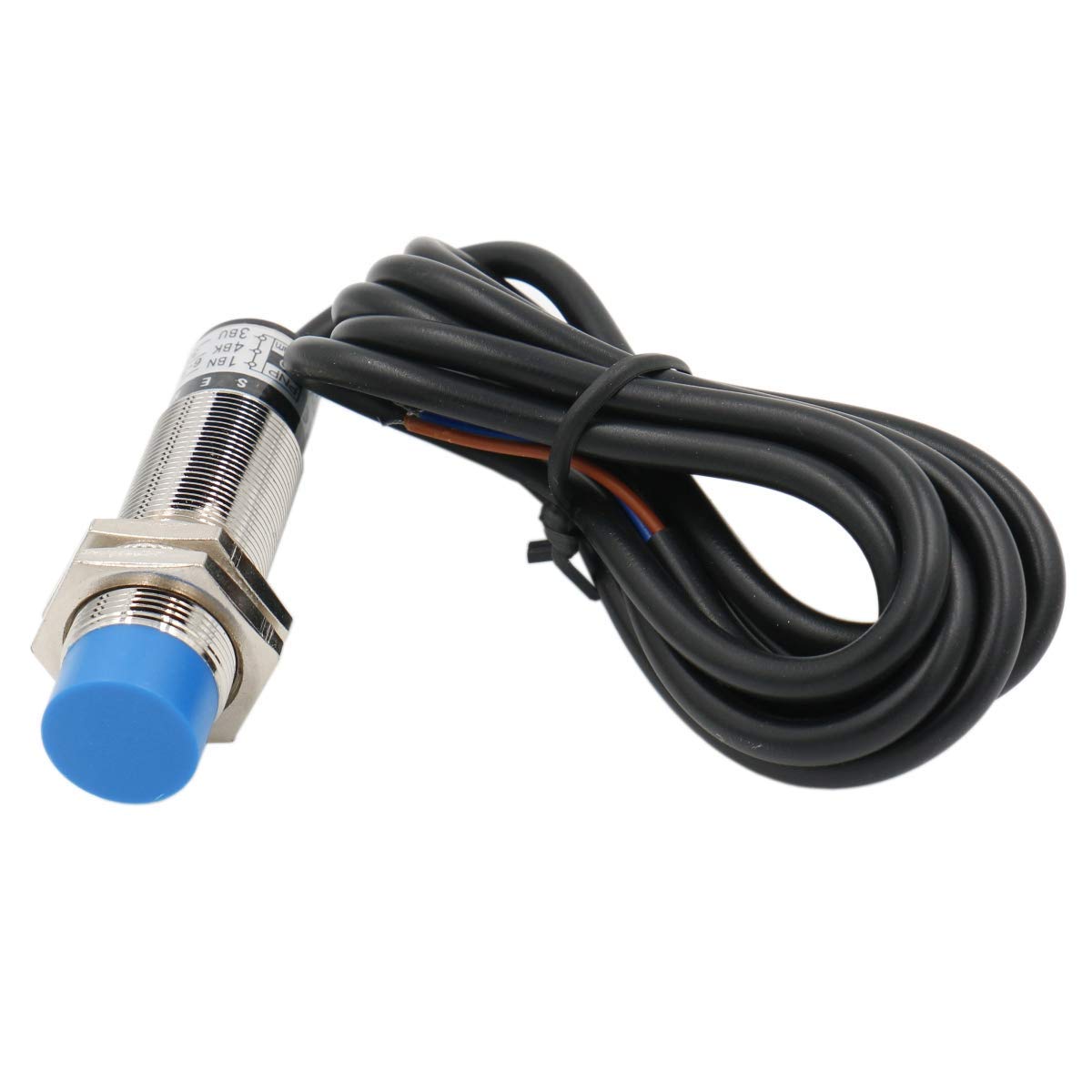

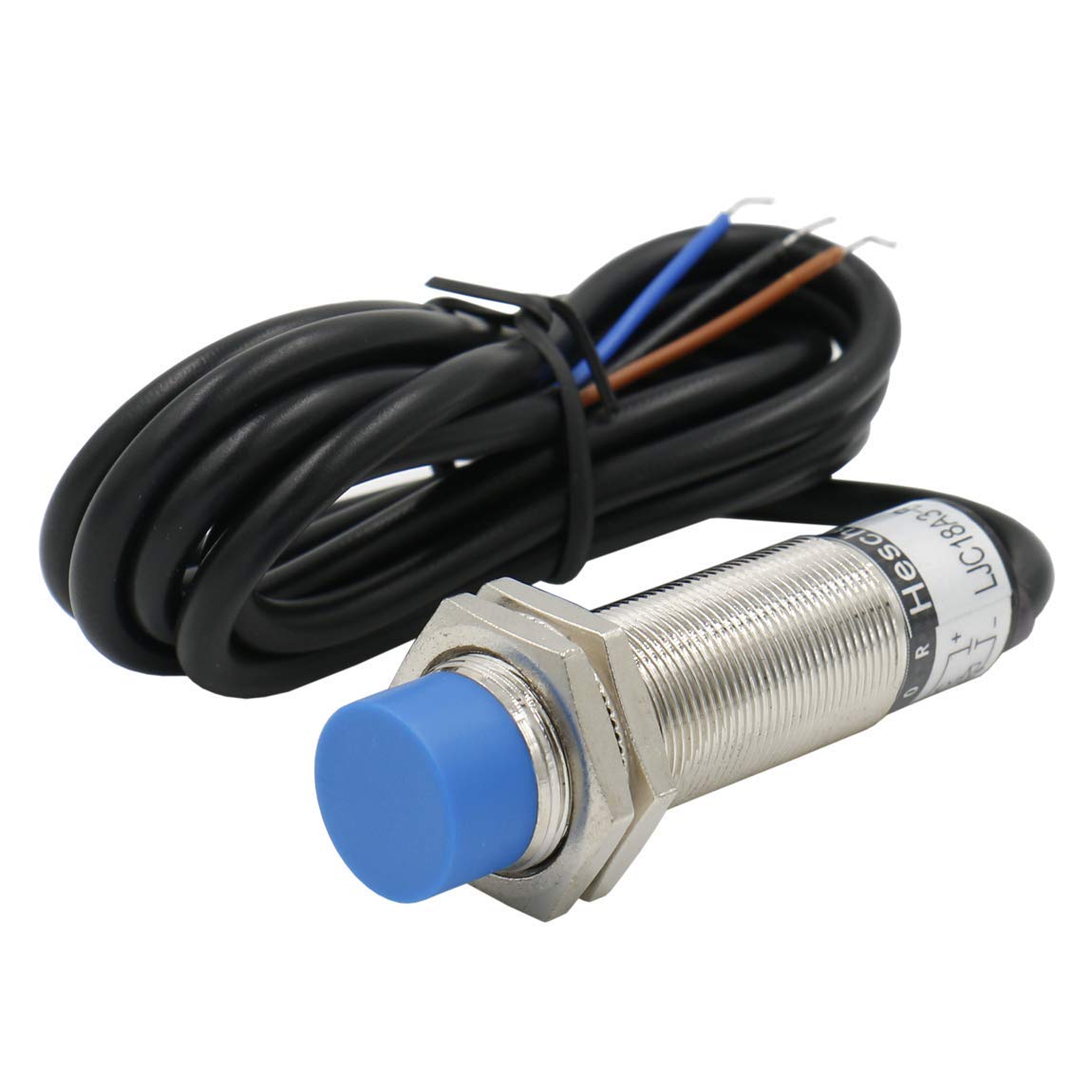

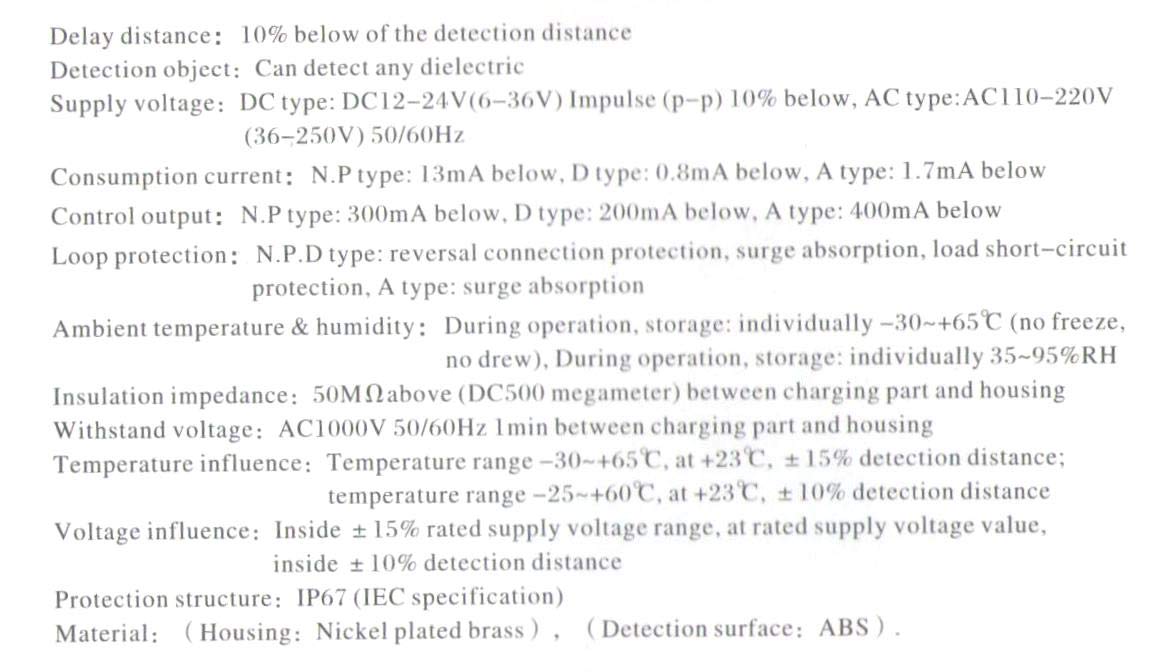

{"id":7417394200736,"title":"Heschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/CX Detection 10mm 10-30VDC 300mA NPN NO+NC 4 Wires","handle":"heschen-m18-capacitive-proximity-sensor-switch-non-shield-type-ljc18a3-b-z-cx-detection-10mm-10-30vdc-300ma-npn-no-nc-4-wires","description":"\u003ch3\u003eHeschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/CX Detection 10mm 10-30VDC 300mA NPN NO+NC 4 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection\n:reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10mm10%; Set distance:0-8mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: NO+NC, Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eCable Length: 50\"(127cm)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-26T14:59:49+11:00","created_at":"2022-06-16T21:49:28+10:00","vendor":"Heschen","type":"Proximity Sensors","tags":["dingo","sold2026"],"price":11000,"price_min":11000,"price_max":11000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42211000418464,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07XMHJSLQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/CX Detection 10mm 10-30VDC 300mA NPN NO+NC 4 Wires","public_title":null,"options":["Default Title"],"price":11000,"weight":60,"compare_at_price":null,"inventory_management":null,"barcode":"LJC18A3-B-Z\/CX","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07XMHJSLQ.jpg?v=1655424186","\/\/dingoship.com.au\/cdn\/shop\/products\/61_DdmqeZFL.jpg?v=1655380168","\/\/dingoship.com.au\/cdn\/shop\/products\/61lfeL-j0FL_c502836e-973b-4340-ad05-f8da6c897152.jpg?v=1655380168","\/\/dingoship.com.au\/cdn\/shop\/products\/7110ZtDf16L_555d5284-6ba8-46a1-b0d0-09056f072665.jpg?v=1655380168","\/\/dingoship.com.au\/cdn\/shop\/products\/61-uj912dQL_dac8a320-5198-4324-ba75-4c3302494787.jpg?v=1655380168"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07XMHJSLQ.jpg?v=1655424186","options":["Title"],"media":[{"alt":null,"id":24872194146464,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1150,"width":1150,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07XMHJSLQ.jpg?v=1655424186"},"aspect_ratio":1.0,"height":1150,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07XMHJSLQ.jpg?v=1655424186","width":1150},{"alt":null,"id":24869206655136,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61_DdmqeZFL.jpg?v=1655380168"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61_DdmqeZFL.jpg?v=1655380168","width":1200},{"alt":null,"id":24869206687904,"position":3,"preview_image":{"aspect_ratio":1.72,"height":672,"width":1156,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61lfeL-j0FL_c502836e-973b-4340-ad05-f8da6c897152.jpg?v=1655380168"},"aspect_ratio":1.72,"height":672,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61lfeL-j0FL_c502836e-973b-4340-ad05-f8da6c897152.jpg?v=1655380168","width":1156},{"alt":null,"id":24869206720672,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1355,"width":1355,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/7110ZtDf16L_555d5284-6ba8-46a1-b0d0-09056f072665.jpg?v=1655380168"},"aspect_ratio":1.0,"height":1355,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/7110ZtDf16L_555d5284-6ba8-46a1-b0d0-09056f072665.jpg?v=1655380168","width":1355},{"alt":null,"id":24869206753440,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1150,"width":1150,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61-uj912dQL_dac8a320-5198-4324-ba75-4c3302494787.jpg?v=1655380168"},"aspect_ratio":1.0,"height":1150,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61-uj912dQL_dac8a320-5198-4324-ba75-4c3302494787.jpg?v=1655380168","width":1150}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/CX Detection 10mm 10-30VDC 300mA NPN NO+NC 4 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection\n:reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10mm10%; Set distance:0-8mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: NO+NC, Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eCable Length: 50\"(127cm)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
