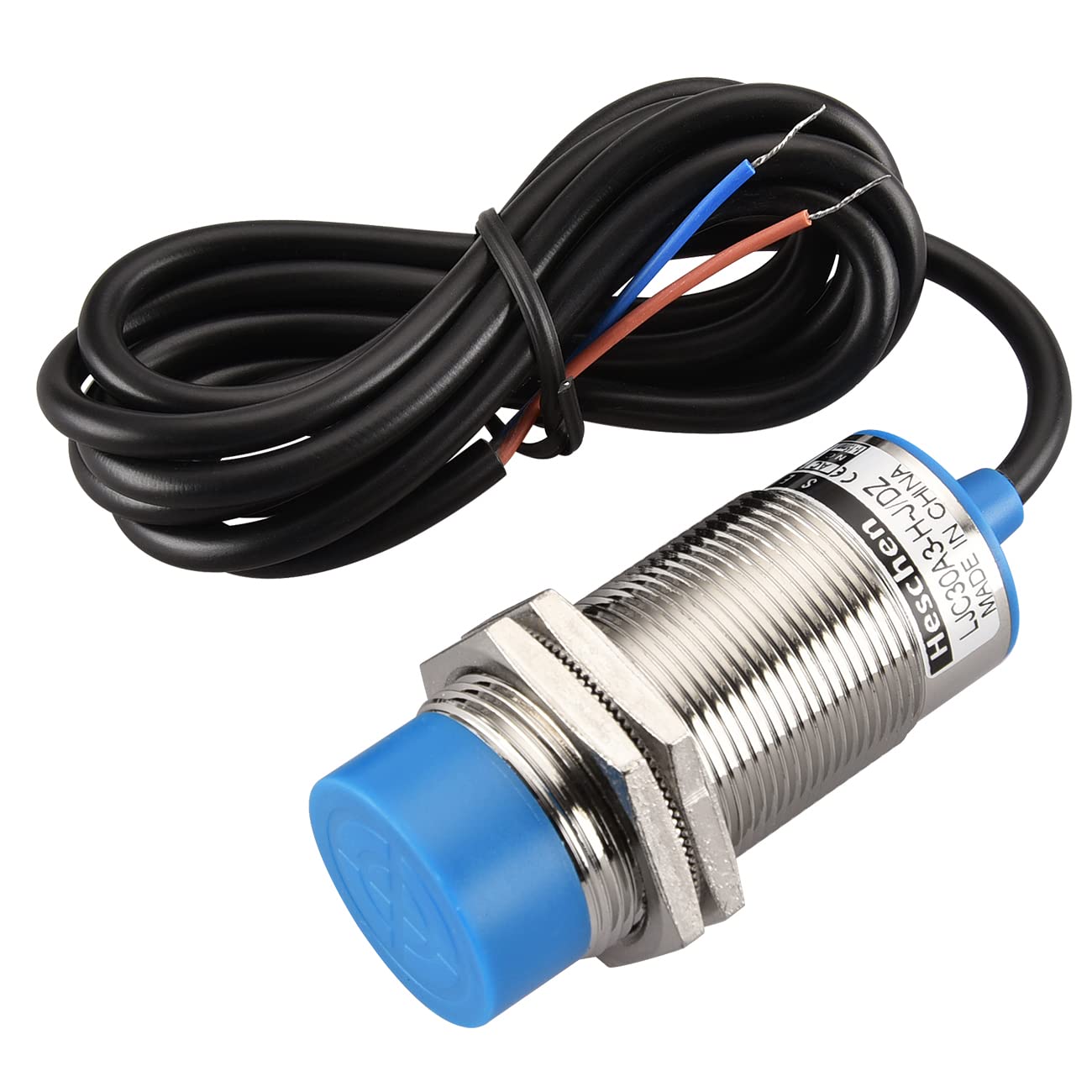

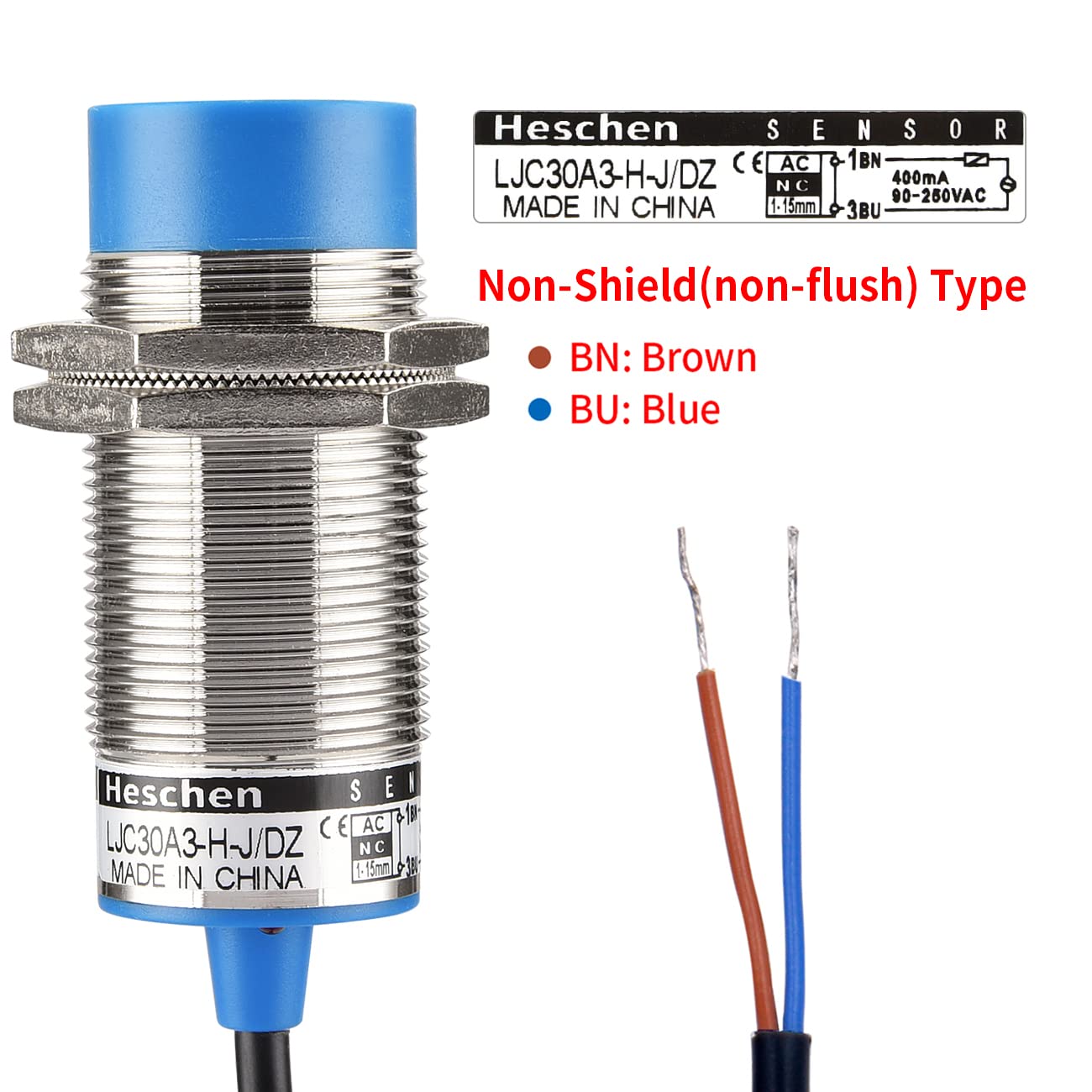

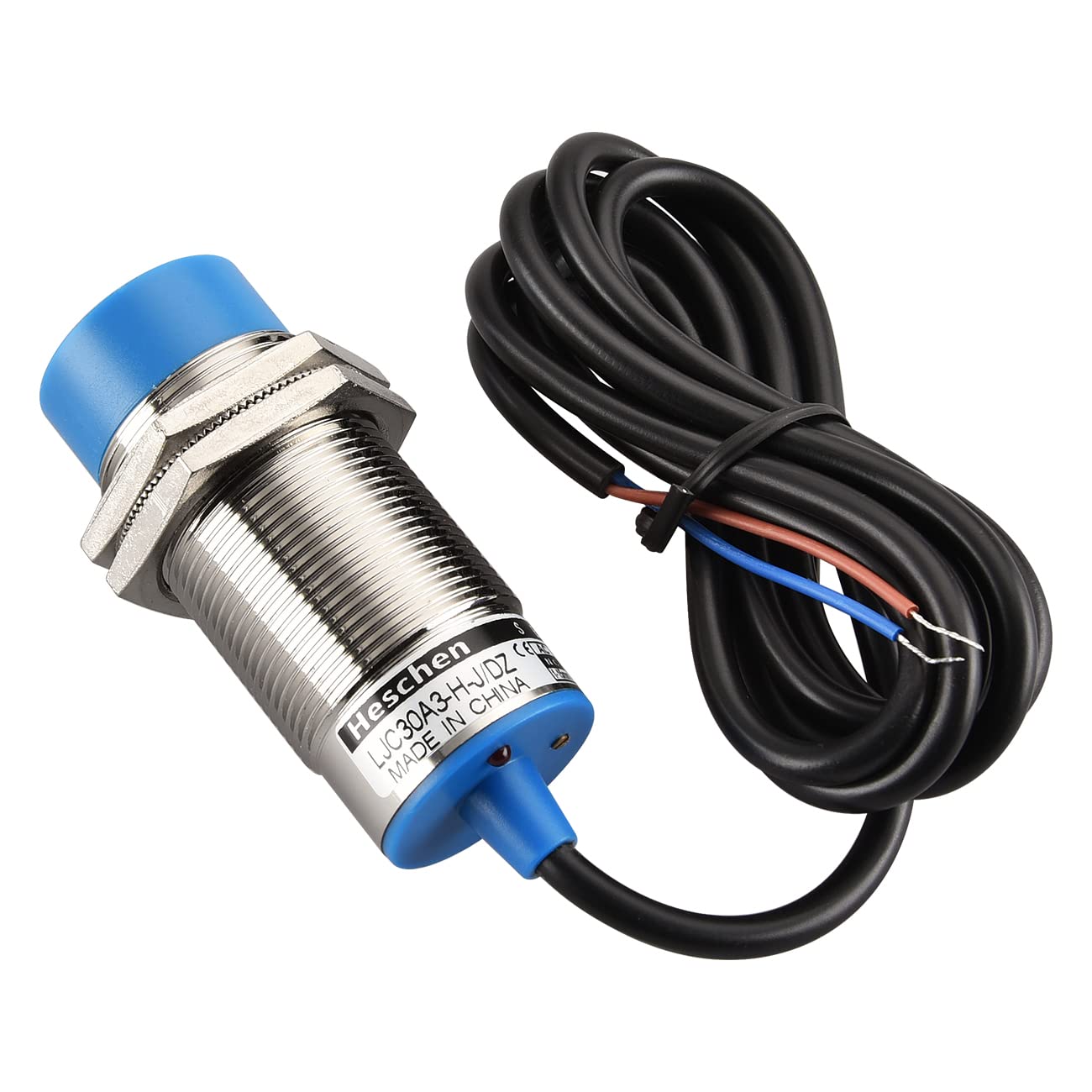

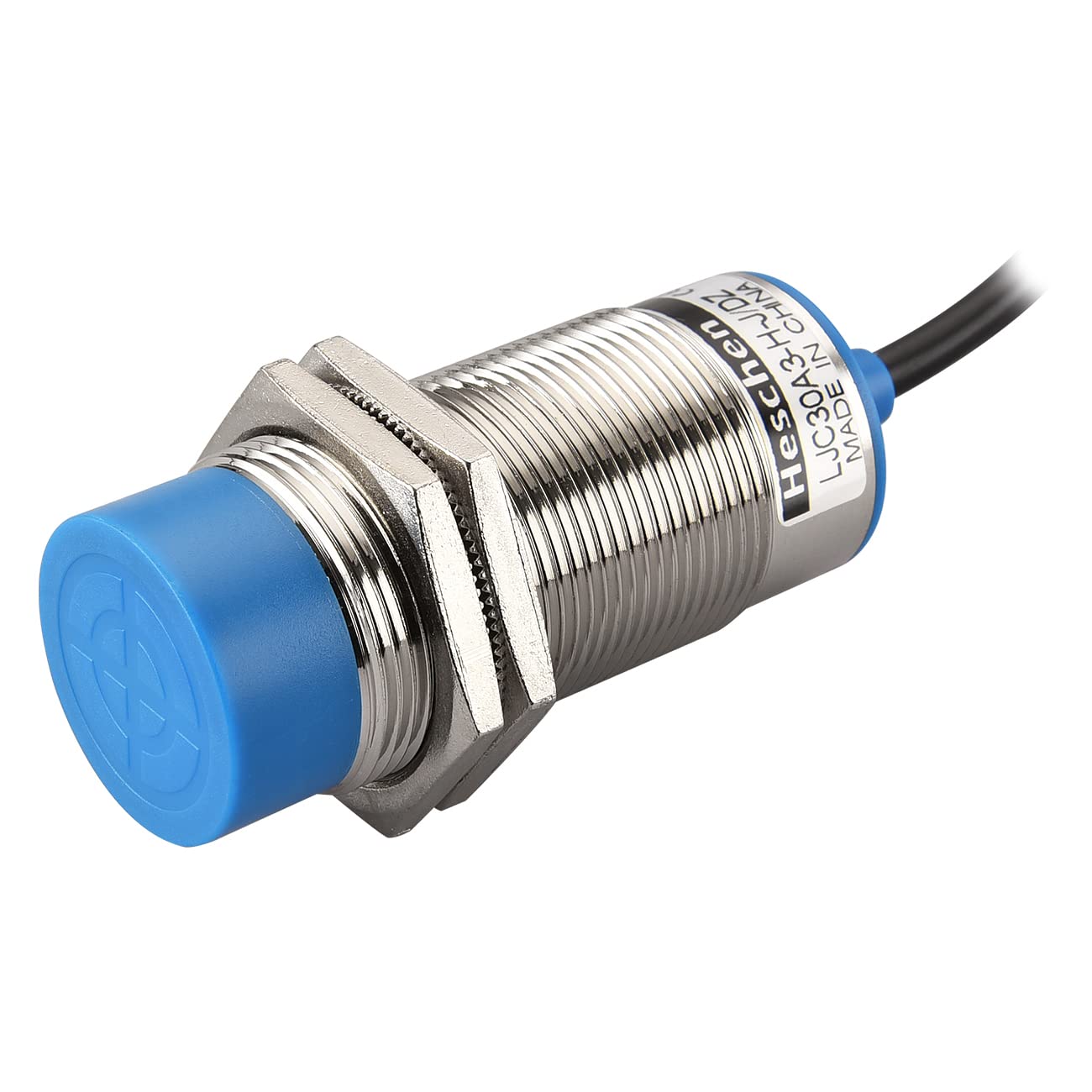

{"id":7417368543392,"title":"Heschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-J\/DZ Detection 1-15mm 90-250VAC 400mA Normally Closed (NC) 2 Wires","handle":"heschen-m30-capacitive-proximity-sensor-switch-non-shield-type-ljc30a3-h-j-dz-detection-1-15mm-90-250vac-400ma-normally-closed-nc-2-wires","description":"\u003ch3\u003eHeschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-J\/DZ Detection 1-15mm 90-250VAC 400mA Normally Closed (NC) 2 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:AC90-250V 50\/60Hz.Comsuption Current:1.7mA\nbelow.Control Output: 400mA below.Loop Protection : Surge absorption.Ambient\nTemperature \u0026amp; Humidity:During operation , storage : individually-30～＋65℃(no\nfreeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation\nImpedance :50MΩ above ( DC500 megameter ) between charging part and\nshell.Withstand Voltage : AC1000V 50\/60Hz 1 min. between charging part and\nshell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15%\ndetection distance, Temperature range-25～＋60℃,at +23℃,±10% detection\ndistance.Voltage influence : Inside ±I5% rated supply voltage range,at rated\nsupply voltage value ,inside ± 10 % detection distance.Protection structure:\nIP67(IEC specification)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 30mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 20mm10%; Set distance:0-18mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: Normally Closed(NC); Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 400mA; Working Voltage: 90-250 VAC\u003c\/li\u003e\n \u003cli\u003eDetection Object: Can detect any dielectric.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-26T15:02:56+11:00","created_at":"2022-06-16T21:29:12+10:00","vendor":"Heschen","type":"Proximity Sensors","tags":["dingo","sold2026"],"price":13500,"price_min":13500,"price_max":13500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42210924495008,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07T4TRQFW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-J\/DZ Detection 1-15mm 90-250VAC 400mA Normally Closed (NC) 2 Wires","public_title":null,"options":["Default Title"],"price":13500,"weight":160,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07T4TRQFW.jpg?v=1655423202","\/\/dingoship.com.au\/cdn\/shop\/products\/61LyeeSYPoL.jpg?v=1655378952","\/\/dingoship.com.au\/cdn\/shop\/products\/616b3JB_85L.jpg?v=1655378952","\/\/dingoship.com.au\/cdn\/shop\/products\/61utBpb8o0L_1e0f59d1-15db-4852-8f1c-3bbd42fcbbd3.jpg?v=1655378952","\/\/dingoship.com.au\/cdn\/shop\/products\/710l1ssQcmL.jpg?v=1655378952","\/\/dingoship.com.au\/cdn\/shop\/products\/61INZ8SCm-L.jpg?v=1655378952"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07T4TRQFW.jpg?v=1655423202","options":["Title"],"media":[{"alt":null,"id":24872168816800,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07T4TRQFW.jpg?v=1655423202"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07T4TRQFW.jpg?v=1655423202","width":1300},{"alt":null,"id":24869099798688,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61LyeeSYPoL.jpg?v=1655378952"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61LyeeSYPoL.jpg?v=1655378952","width":1300},{"alt":null,"id":24869099831456,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/616b3JB_85L.jpg?v=1655378952"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/616b3JB_85L.jpg?v=1655378952","width":1300},{"alt":null,"id":24869099864224,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61utBpb8o0L_1e0f59d1-15db-4852-8f1c-3bbd42fcbbd3.jpg?v=1655378952"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61utBpb8o0L_1e0f59d1-15db-4852-8f1c-3bbd42fcbbd3.jpg?v=1655378952","width":1300},{"alt":null,"id":24869099896992,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/710l1ssQcmL.jpg?v=1655378952"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/710l1ssQcmL.jpg?v=1655378952","width":1300},{"alt":null,"id":24869099929760,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61INZ8SCm-L.jpg?v=1655378952"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61INZ8SCm-L.jpg?v=1655378952","width":1300}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-J\/DZ Detection 1-15mm 90-250VAC 400mA Normally Closed (NC) 2 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:AC90-250V 50\/60Hz.Comsuption Current:1.7mA\nbelow.Control Output: 400mA below.Loop Protection : Surge absorption.Ambient\nTemperature \u0026amp; Humidity:During operation , storage : individually-30～＋65℃(no\nfreeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation\nImpedance :50MΩ above ( DC500 megameter ) between charging part and\nshell.Withstand Voltage : AC1000V 50\/60Hz 1 min. between charging part and\nshell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15%\ndetection distance, Temperature range-25～＋60℃,at +23℃,±10% detection\ndistance.Voltage influence : Inside ±I5% rated supply voltage range,at rated\nsupply voltage value ,inside ± 10 % detection distance.Protection structure:\nIP67(IEC specification)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 30mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 20mm10%; Set distance:0-18mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: Normally Closed(NC); Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 400mA; Working Voltage: 90-250 VAC\u003c\/li\u003e\n \u003cli\u003eDetection Object: Can detect any dielectric.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
