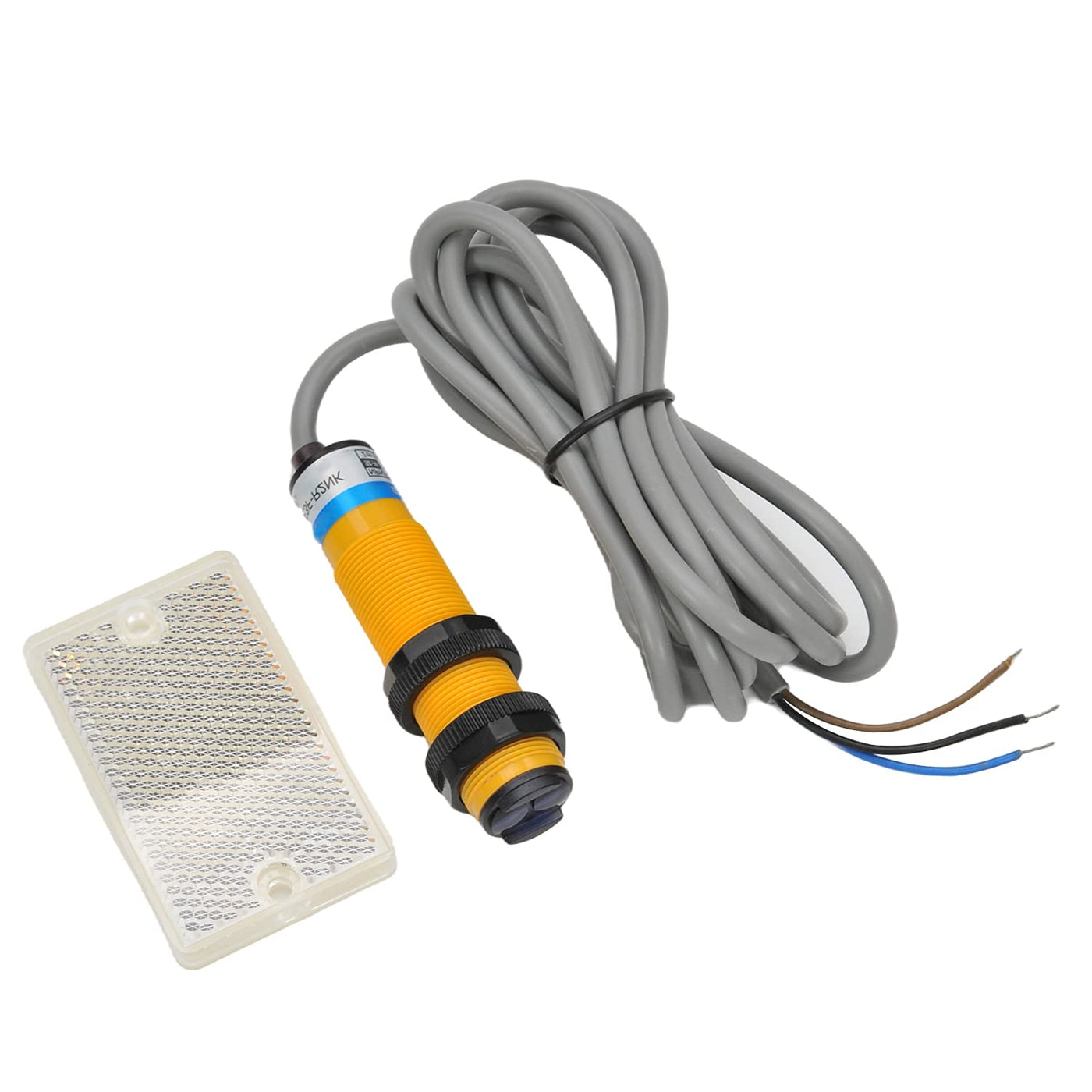

{"id":7417394069664,"title":"Heyiarbeit Photoelectric Sensors Specular Reflection Photoelectric Sensor Switch 200MA Detection Distance 2M 3 Wires E3F-R2NK 1pcs","handle":"heyiarbeit-photoelectric-sensors-specular-reflection-photoelectric-sensor-switch-200ma-detection-distance-2m-3-wires-e3f-r2nk-1pcs","description":"\u003ch3\u003eHeyiarbeit Photoelectric Sensors Specular Reflection Photoelectric Sensor Switch 200MA Detection Distance 2M 3 Wires E3F-R2NK 1pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection method: Specular reflection type Insulation\nimpedance: 50Mohm above between charging part and housing Withstand voltage:\nAC1000V 50\/60Hz 1min between charging part and housing Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature\nrange-25～＋60℃, at +23℃, ±10% detection distance Voltage influence: Inside ±15%\nrated supply voltage range, at rated supply voltage value, inside ±10%\ndetection distance Protection structure: IP67(IEC specification) Material:\nHousing: Brass nickel plated(ABS) Detection surface(lens): PMMA Description 1.\nThe photoelectric switch with integrated circuit technology and SMT surface\nmount technology, a new generation of optical switch sensor devices are\nmanufactured with external synchronization, anti-interference, high\nreliability,working for regional stability and self-diagnosis 2. Photoelectric\nswitch sensor is the use of the test object to blocked or reflected beam, by\nthe synchronization loop gating circuit to detect the presence or absence of\nthe object. All objects can reflect light can be detected Read more Wide\nApplication The current sensor switch is Widely used in mechanical\nautomation,3D Printer Probe Bed Leveling,paper making,light industry for\nlimiting station,orientation taking count,speeding trial etc E3F-5L+E3F-5DN1\nDS10Y1 CDD-11N E3JK-R4M2 RPR220 HY860F Type NPN NO NPN NO NPN NO+NC \/ \/ \/\nVoltage DC 6-36V DC 6-36V DC 12-24V DC12-240V AC24-240V DC 30V DC 5V Current\n300mA 300mA 30mA (Max) 10mA 30mA 20mA Sensory Distance 5m 10cm 10cm 4m 1-13mm\n6mm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecifications- Product Name: Photoelectric Switch; Model: E3F-R2NK; Detection Way: Specular reflection type; Whether the detection distance is adjustable: Not Adjustable; Detection object: Opaque object; Color: Black, Orange\u003c\/li\u003e\n \u003cli\u003eParameters- Output Type: NPN NO 3 Wires; Working Voltage: DC 6-36V; Output Current: 300mA; Sensory Distance: 2m; Thread diameter: M18\u003c\/li\u003e\n \u003cli\u003ePrecise Detecting- Photoelectric switch sensor is the use of the test object to blocked or reflected beam, by the synchronization loop gating circuit to detect the presence or absence of the object. All objects can reflect light can be detected\u003c\/li\u003e\n \u003cli\u003eApplication- The current sensor switch is widely used in mechanical automation, 3D Printer Probe Bed Leveling, paper making, light industry for limiting station, orientation taking count, speeding trial etc\u003c\/li\u003e\n \u003cli\u003ePackage Contents- 1 x Photoelectric Sensors\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-26T14:59:52+11:00","created_at":"2022-06-16T21:49:21+10:00","vendor":"Heyiarbeit","type":"Photoelectric Sensors","tags":["dingo"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42210994585760,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B095WM5X6N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heyiarbeit Photoelectric Sensors Specular Reflection Photoelectric Sensor Switch 200MA Detection Distance 2M 3 Wires E3F-R2NK 1pcs","public_title":null,"options":["Default Title"],"price":10000,"weight":104,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B095WM5X6N.jpg?v=1655424181","\/\/dingoship.com.au\/cdn\/shop\/products\/61Nr5-IQtxS.jpg?v=1655380161","\/\/dingoship.com.au\/cdn\/shop\/products\/61uHKWcImQS.jpg?v=1655380161","\/\/dingoship.com.au\/cdn\/shop\/products\/61TDz6484QS.jpg?v=1655380161"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B095WM5X6N.jpg?v=1655424181","options":["Title"],"media":[{"alt":null,"id":24872194080928,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B095WM5X6N.jpg?v=1655424181"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B095WM5X6N.jpg?v=1655424181","width":1500},{"alt":null,"id":24869205934240,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Nr5-IQtxS.jpg?v=1655380161"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Nr5-IQtxS.jpg?v=1655380161","width":1500},{"alt":null,"id":24869205967008,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uHKWcImQS.jpg?v=1655380161"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uHKWcImQS.jpg?v=1655380161","width":1500},{"alt":null,"id":24869205999776,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61TDz6484QS.jpg?v=1655380161"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61TDz6484QS.jpg?v=1655380161","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeyiarbeit Photoelectric Sensors Specular Reflection Photoelectric Sensor Switch 200MA Detection Distance 2M 3 Wires E3F-R2NK 1pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection method: Specular reflection type Insulation\nimpedance: 50Mohm above between charging part and housing Withstand voltage:\nAC1000V 50\/60Hz 1min between charging part and housing Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature\nrange-25～＋60℃, at +23℃, ±10% detection distance Voltage influence: Inside ±15%\nrated supply voltage range, at rated supply voltage value, inside ±10%\ndetection distance Protection structure: IP67(IEC specification) Material:\nHousing: Brass nickel plated(ABS) Detection surface(lens): PMMA Description 1.\nThe photoelectric switch with integrated circuit technology and SMT surface\nmount technology, a new generation of optical switch sensor devices are\nmanufactured with external synchronization, anti-interference, high\nreliability,working for regional stability and self-diagnosis 2. Photoelectric\nswitch sensor is the use of the test object to blocked or reflected beam, by\nthe synchronization loop gating circuit to detect the presence or absence of\nthe object. All objects can reflect light can be detected Read more Wide\nApplication The current sensor switch is Widely used in mechanical\nautomation,3D Printer Probe Bed Leveling,paper making,light industry for\nlimiting station,orientation taking count,speeding trial etc E3F-5L+E3F-5DN1\nDS10Y1 CDD-11N E3JK-R4M2 RPR220 HY860F Type NPN NO NPN NO NPN NO+NC \/ \/ \/\nVoltage DC 6-36V DC 6-36V DC 12-24V DC12-240V AC24-240V DC 30V DC 5V Current\n300mA 300mA 30mA (Max) 10mA 30mA 20mA Sensory Distance 5m 10cm 10cm 4m 1-13mm\n6mm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecifications- Product Name: Photoelectric Switch; Model: E3F-R2NK; Detection Way: Specular reflection type; Whether the detection distance is adjustable: Not Adjustable; Detection object: Opaque object; Color: Black, Orange\u003c\/li\u003e\n \u003cli\u003eParameters- Output Type: NPN NO 3 Wires; Working Voltage: DC 6-36V; Output Current: 300mA; Sensory Distance: 2m; Thread diameter: M18\u003c\/li\u003e\n \u003cli\u003ePrecise Detecting- Photoelectric switch sensor is the use of the test object to blocked or reflected beam, by the synchronization loop gating circuit to detect the presence or absence of the object. All objects can reflect light can be detected\u003c\/li\u003e\n \u003cli\u003eApplication- The current sensor switch is widely used in mechanical automation, 3D Printer Probe Bed Leveling, paper making, light industry for limiting station, orientation taking count, speeding trial etc\u003c\/li\u003e\n \u003cli\u003ePackage Contents- 1 x Photoelectric Sensors\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
