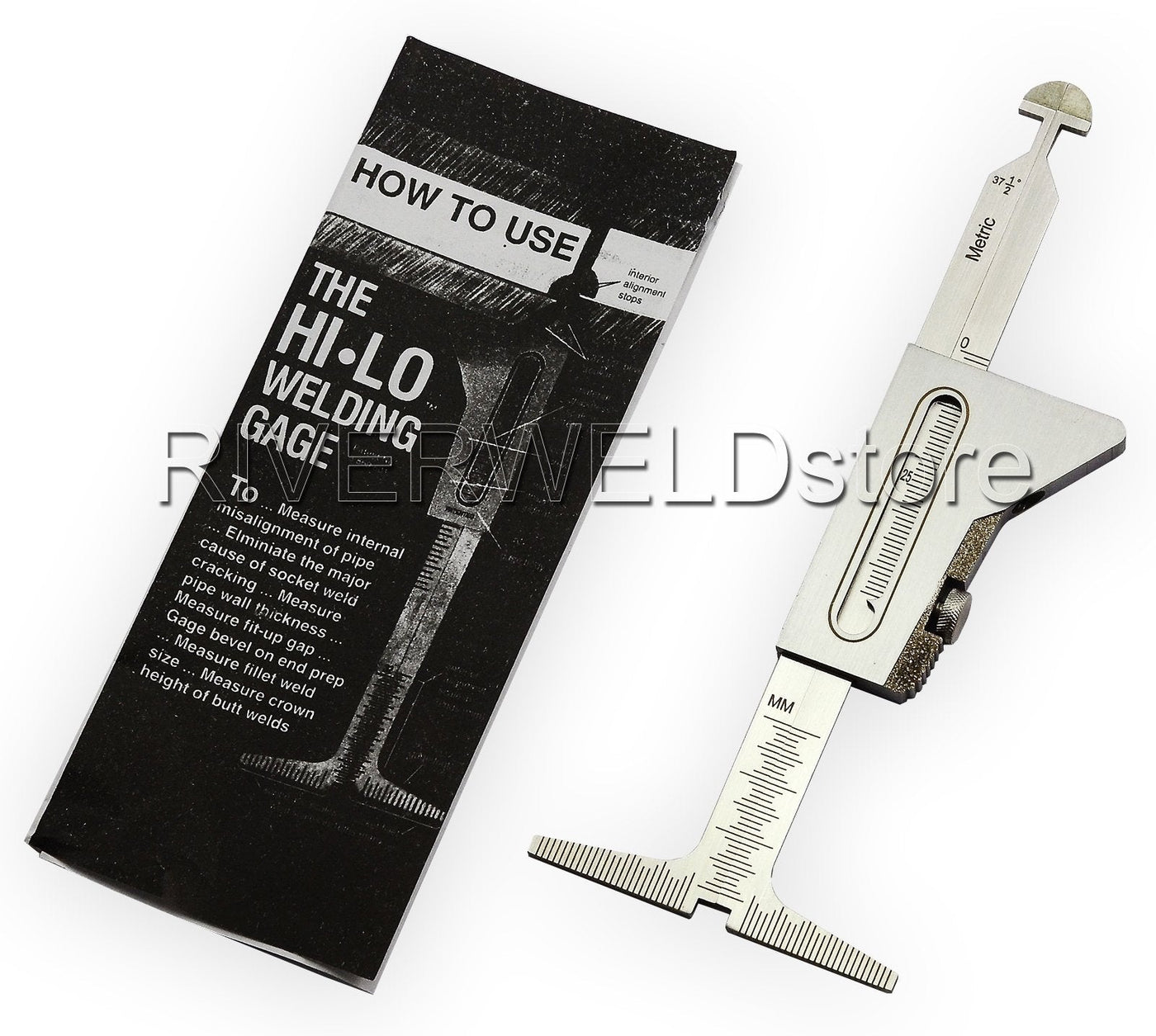

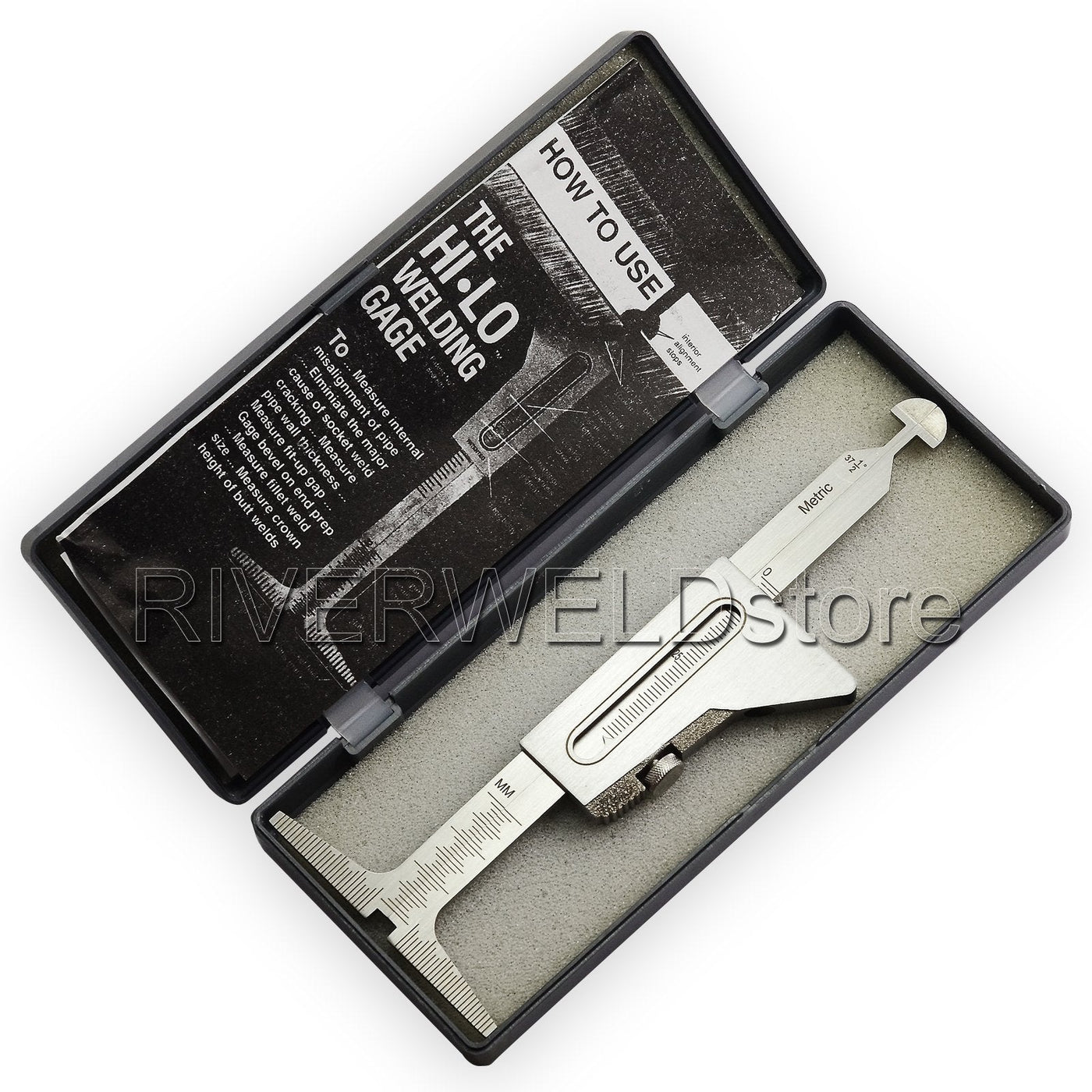

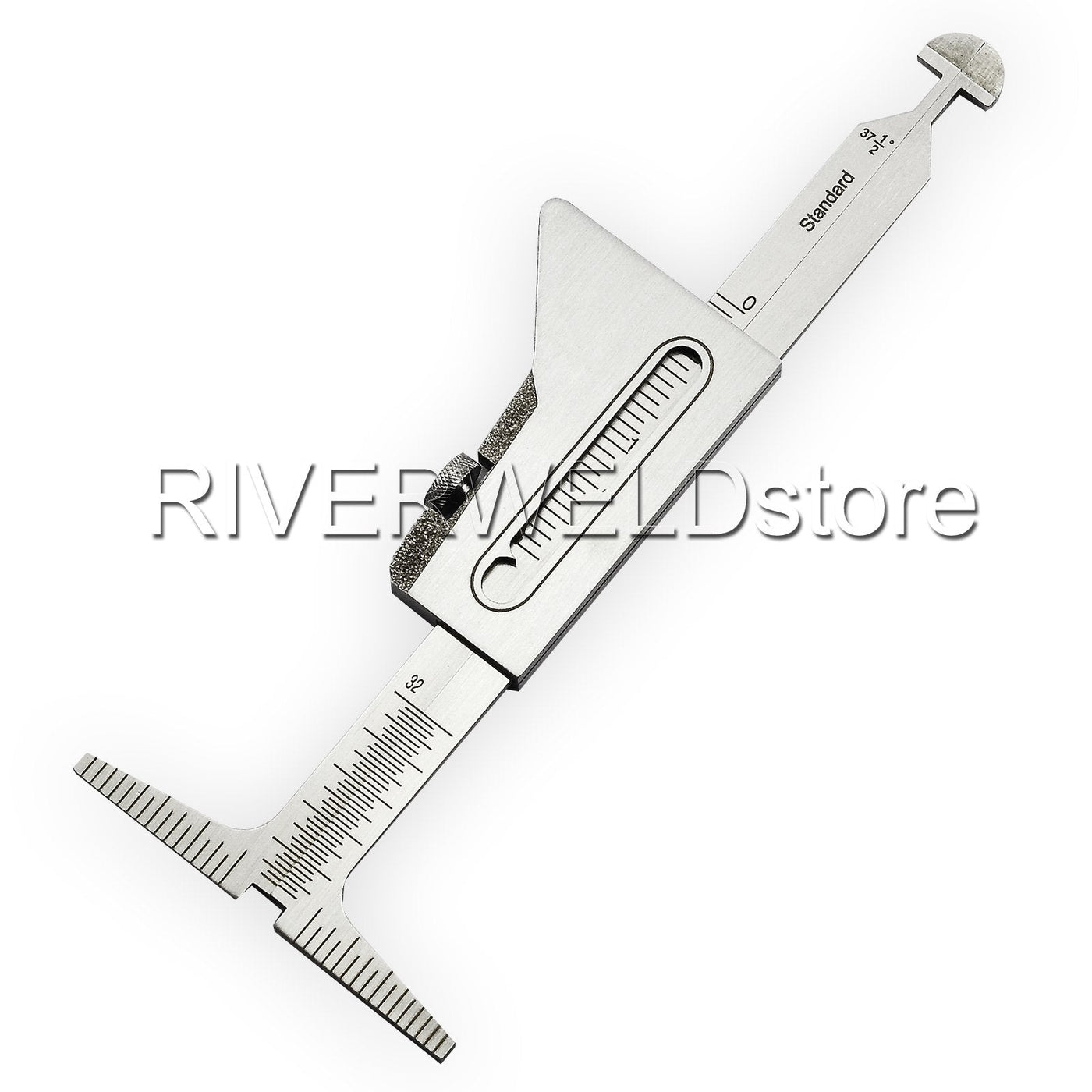

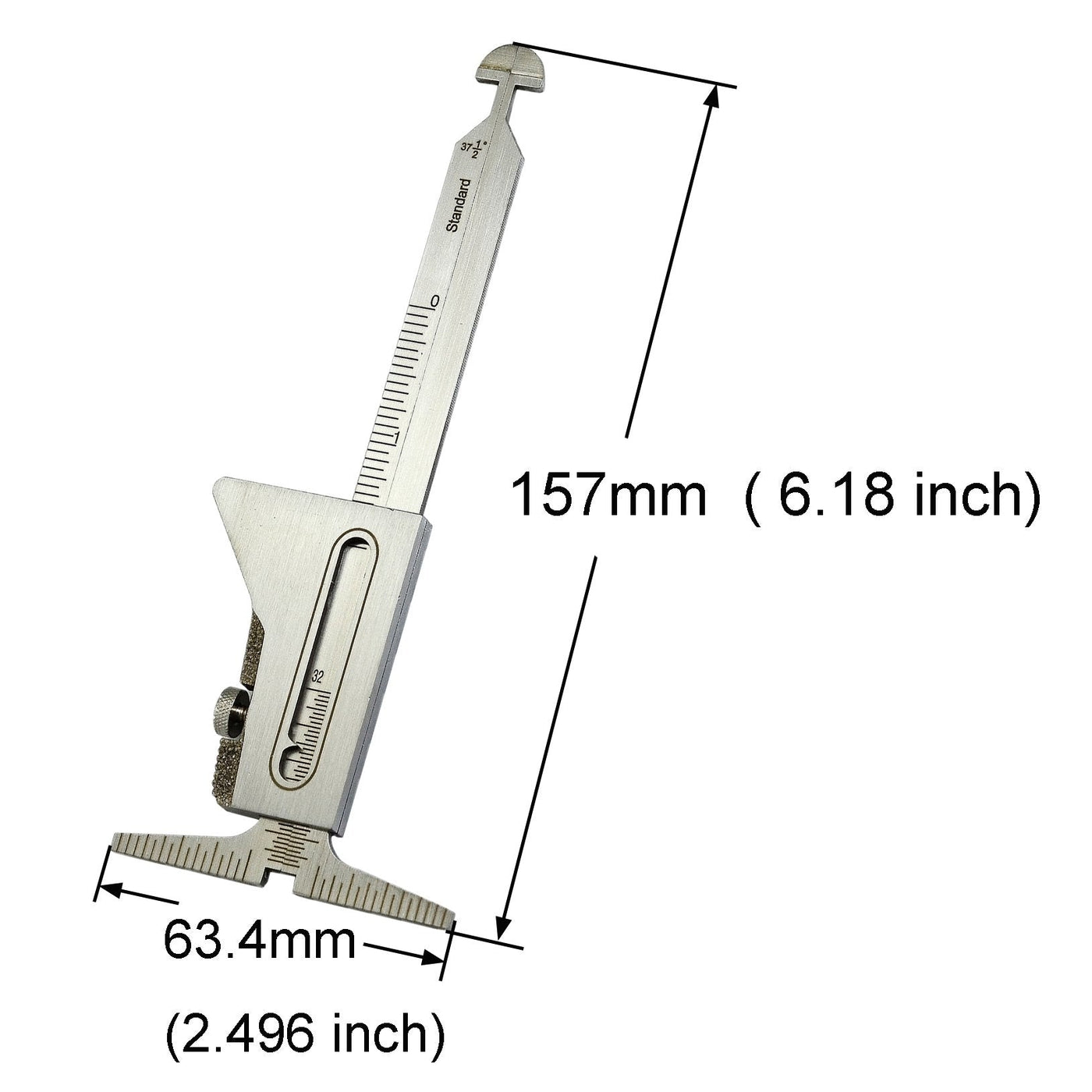

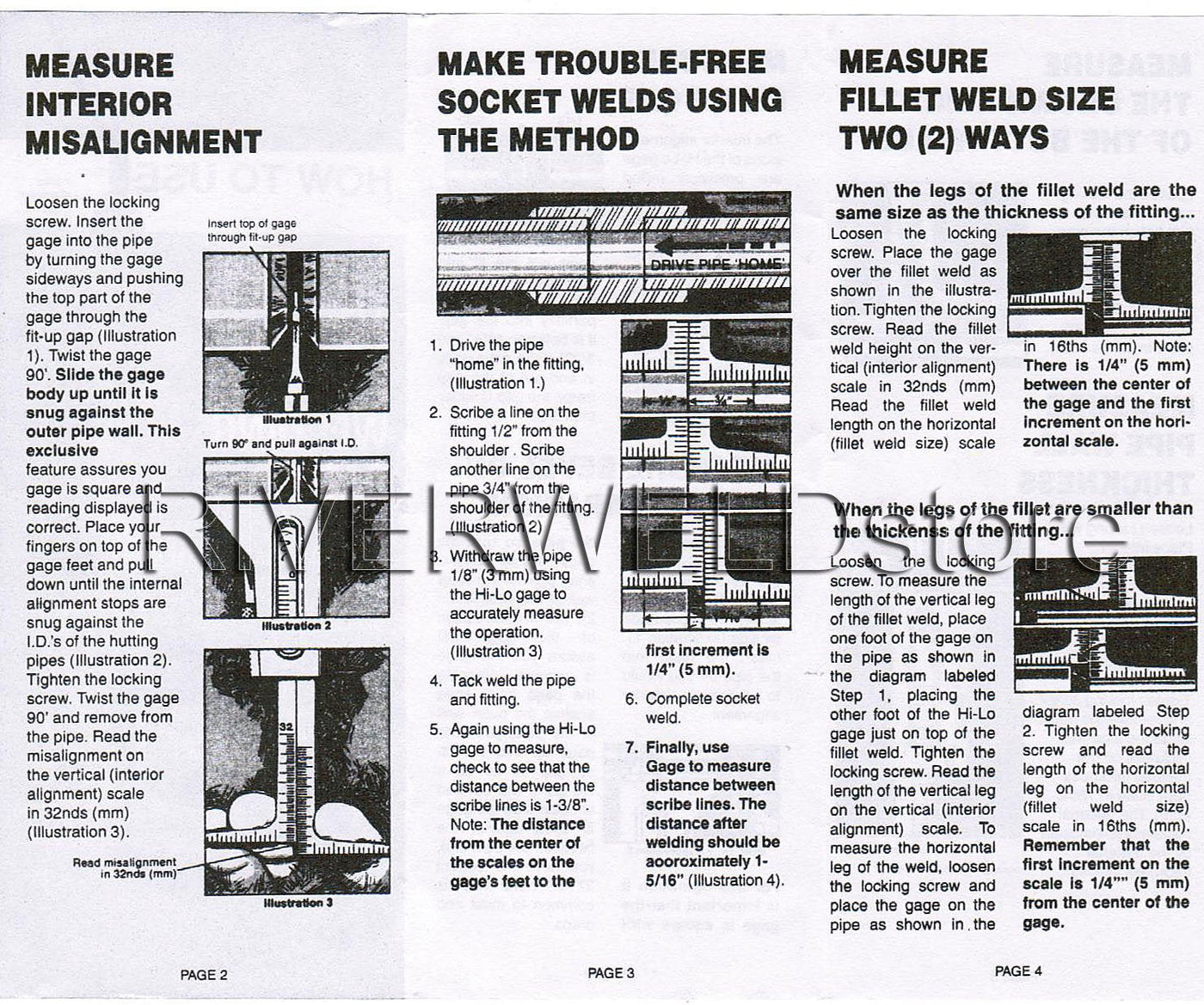

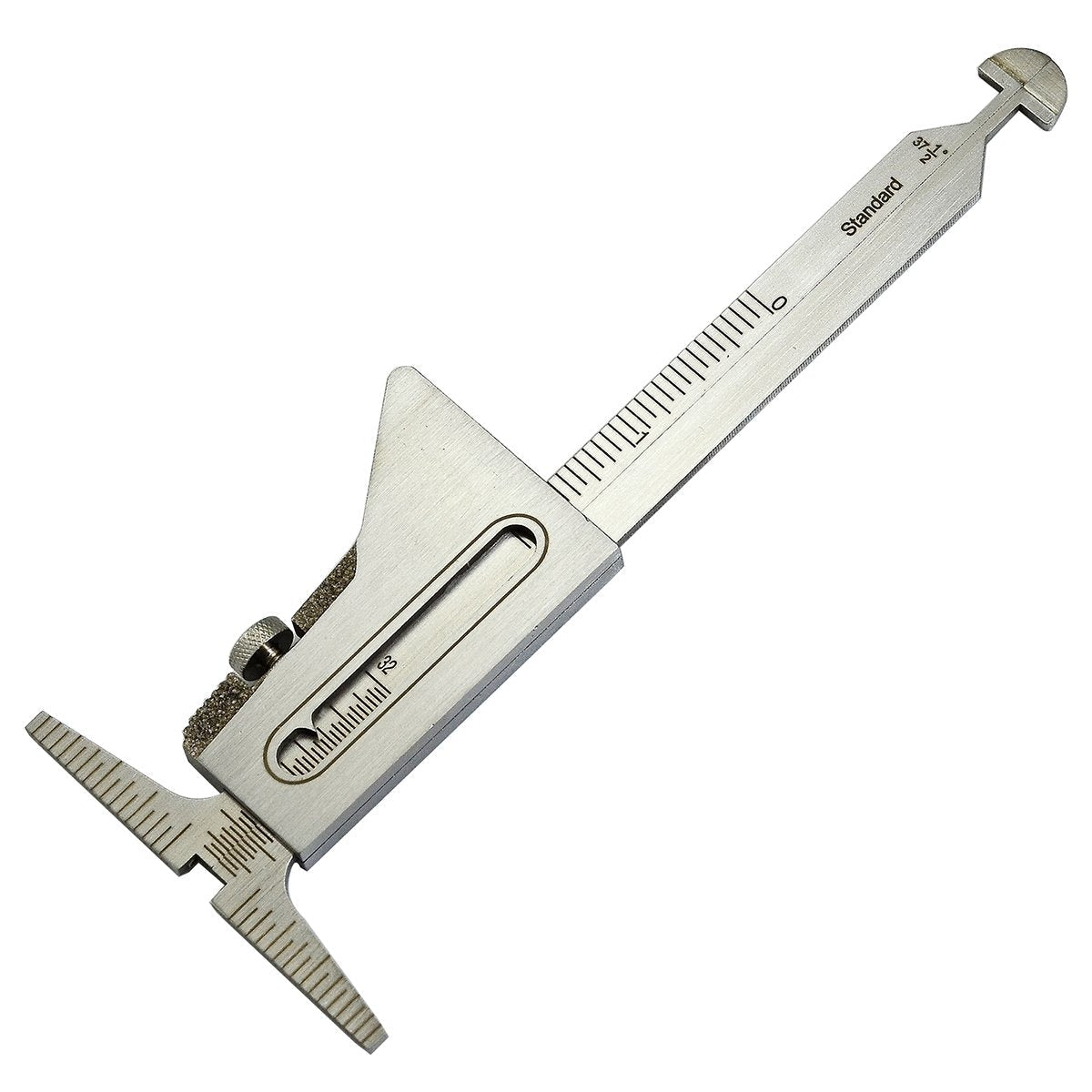

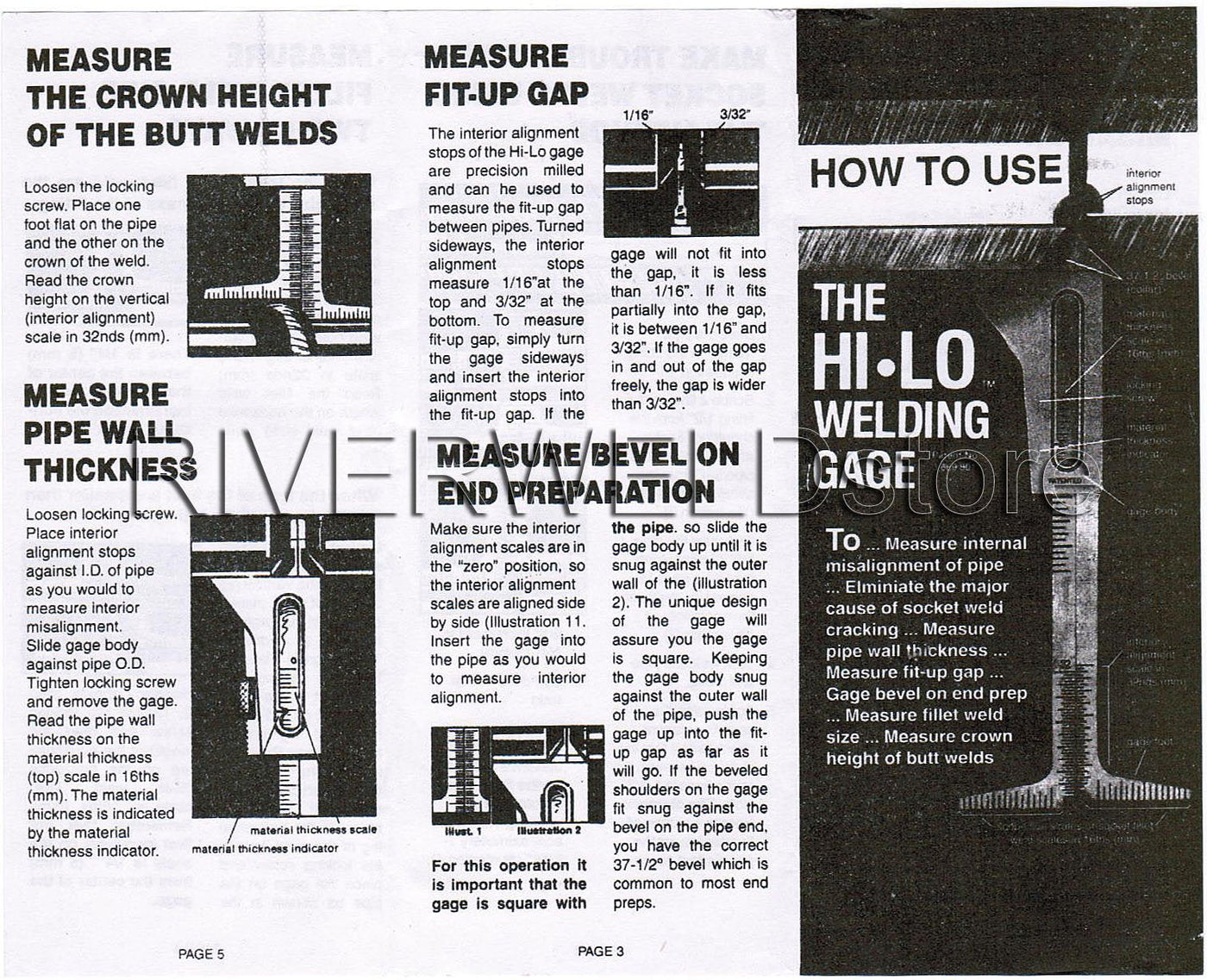

{"id":7412937195680,"title":"Hi Lo Welding Gauge Gage Stainless Steel Test Ulnar Welder Inspection Gauge Both Inch and Metric Inch \u0026 Metric","handle":"hi-lo-welding-gauge-gage-stainless-steel-test-ulnar-welder-inspection-gauge-both-inch-and-metric-inch-metric","description":"\u003ch3\u003eHi Lo Welding Gauge Gage Stainless Steel Test Ulnar Welder Inspection Gauge Both Inch and Metric\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHI-LO WELDING GAGE MEASURES INTERNAL ALIGNMENT Of pipe after fit-up\/\nalignment, cuts radiographic rejects. Measures internal misalignment of pipe\nbefore and after tacking. Measurements read in standard one side, and metric\non the opposite side. Changes from standard to metric simply remove gauge\nbody, turn scales over and replace body; Measure internal misalignment;\nMeasure fit- up gap Measure bevel on end preparation; Measure the crown height\nof welds; Measure fillet weld size; Measure scribed line, socket welds; Can be\ncalibrated to NBS standard.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHI-LO WELDING GAGE MEASURES INTERNAL ALIGNMENT Of pipe after fit-up alignment, cuts radiographic rejects. Measures internal misalignment of pipe before and after tacking. Measurements read in standard one side, and metric on the opposite side.\u003c\/li\u003e\n \u003cli\u003eChanges from standard to metric simply remove gauge body, turn scales over and replace body; Measure internal misalignment;\u003c\/li\u003e\n \u003cli\u003eMeasure fit- up gap Measure bevel on end preparation; Measure the crown height of welds; Measure fillet weld size; Measure scribed line, socket welds; Can be calibrated to NBS standard.\u003c\/li\u003e\n \u003cli\u003eBoth Inch and Metric\u003c\/li\u003e\n \u003cli\u003eStainless Steel\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-13T14:39:05+10:00","created_at":"2022-06-13T14:39:14+10:00","vendor":"RIVERWELD","type":"Depth","tags":["dingo"],"price":15800,"price_min":15800,"price_max":15800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42187770364064,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07V67XR7Y","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hi Lo Welding Gauge Gage Stainless Steel Test Ulnar Welder Inspection Gauge Both Inch and Metric Inch \u0026 Metric","public_title":null,"options":["Default Title"],"price":15800,"weight":249,"compare_at_price":null,"inventory_management":null,"barcode":"No","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07V67XR7Y.jpg?v=1655164245","\/\/dingoship.com.au\/cdn\/shop\/products\/812BfQTP8wL.jpg?v=1655095154","\/\/dingoship.com.au\/cdn\/shop\/products\/813sGmtALHL.jpg?v=1655095154","\/\/dingoship.com.au\/cdn\/shop\/products\/712w8UymviL.jpg?v=1655095154","\/\/dingoship.com.au\/cdn\/shop\/products\/81XMn27J6NL.jpg?v=1655095154","\/\/dingoship.com.au\/cdn\/shop\/products\/71fw6kIqZhL.jpg?v=1655095154","\/\/dingoship.com.au\/cdn\/shop\/products\/91BG25xYENL.jpg?v=1655095154","\/\/dingoship.com.au\/cdn\/shop\/products\/91r90YuugKL.jpg?v=1655095154"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07V67XR7Y.jpg?v=1655164245","options":["Title"],"media":[{"alt":null,"id":24852990427296,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07V67XR7Y.jpg?v=1655164245"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07V67XR7Y.jpg?v=1655164245","width":1200},{"alt":null,"id":24847303573664,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/812BfQTP8wL.jpg?v=1655095154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/812BfQTP8wL.jpg?v=1655095154","width":1600},{"alt":null,"id":24847303606432,"position":3,"preview_image":{"aspect_ratio":1.116,"height":1434,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/813sGmtALHL.jpg?v=1655095154"},"aspect_ratio":1.116,"height":1434,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/813sGmtALHL.jpg?v=1655095154","width":1600},{"alt":null,"id":24847303639200,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/712w8UymviL.jpg?v=1655095154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/712w8UymviL.jpg?v=1655095154","width":1600},{"alt":null,"id":24847303671968,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81XMn27J6NL.jpg?v=1655095154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81XMn27J6NL.jpg?v=1655095154","width":1600},{"alt":null,"id":24847303704736,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1628,"width":1628,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71fw6kIqZhL.jpg?v=1655095154"},"aspect_ratio":1.0,"height":1628,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71fw6kIqZhL.jpg?v=1655095154","width":1628},{"alt":null,"id":24847303737504,"position":7,"preview_image":{"aspect_ratio":1.231,"height":1228,"width":1512,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91BG25xYENL.jpg?v=1655095154"},"aspect_ratio":1.231,"height":1228,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91BG25xYENL.jpg?v=1655095154","width":1512},{"alt":null,"id":24847303770272,"position":8,"preview_image":{"aspect_ratio":1.197,"height":1236,"width":1480,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91r90YuugKL.jpg?v=1655095154"},"aspect_ratio":1.197,"height":1236,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91r90YuugKL.jpg?v=1655095154","width":1480}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHi Lo Welding Gauge Gage Stainless Steel Test Ulnar Welder Inspection Gauge Both Inch and Metric\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHI-LO WELDING GAGE MEASURES INTERNAL ALIGNMENT Of pipe after fit-up\/\nalignment, cuts radiographic rejects. Measures internal misalignment of pipe\nbefore and after tacking. Measurements read in standard one side, and metric\non the opposite side. Changes from standard to metric simply remove gauge\nbody, turn scales over and replace body; Measure internal misalignment;\nMeasure fit- up gap Measure bevel on end preparation; Measure the crown height\nof welds; Measure fillet weld size; Measure scribed line, socket welds; Can be\ncalibrated to NBS standard.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHI-LO WELDING GAGE MEASURES INTERNAL ALIGNMENT Of pipe after fit-up alignment, cuts radiographic rejects. Measures internal misalignment of pipe before and after tacking. Measurements read in standard one side, and metric on the opposite side.\u003c\/li\u003e\n \u003cli\u003eChanges from standard to metric simply remove gauge body, turn scales over and replace body; Measure internal misalignment;\u003c\/li\u003e\n \u003cli\u003eMeasure fit- up gap Measure bevel on end preparation; Measure the crown height of welds; Measure fillet weld size; Measure scribed line, socket welds; Can be calibrated to NBS standard.\u003c\/li\u003e\n \u003cli\u003eBoth Inch and Metric\u003c\/li\u003e\n \u003cli\u003eStainless Steel\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
