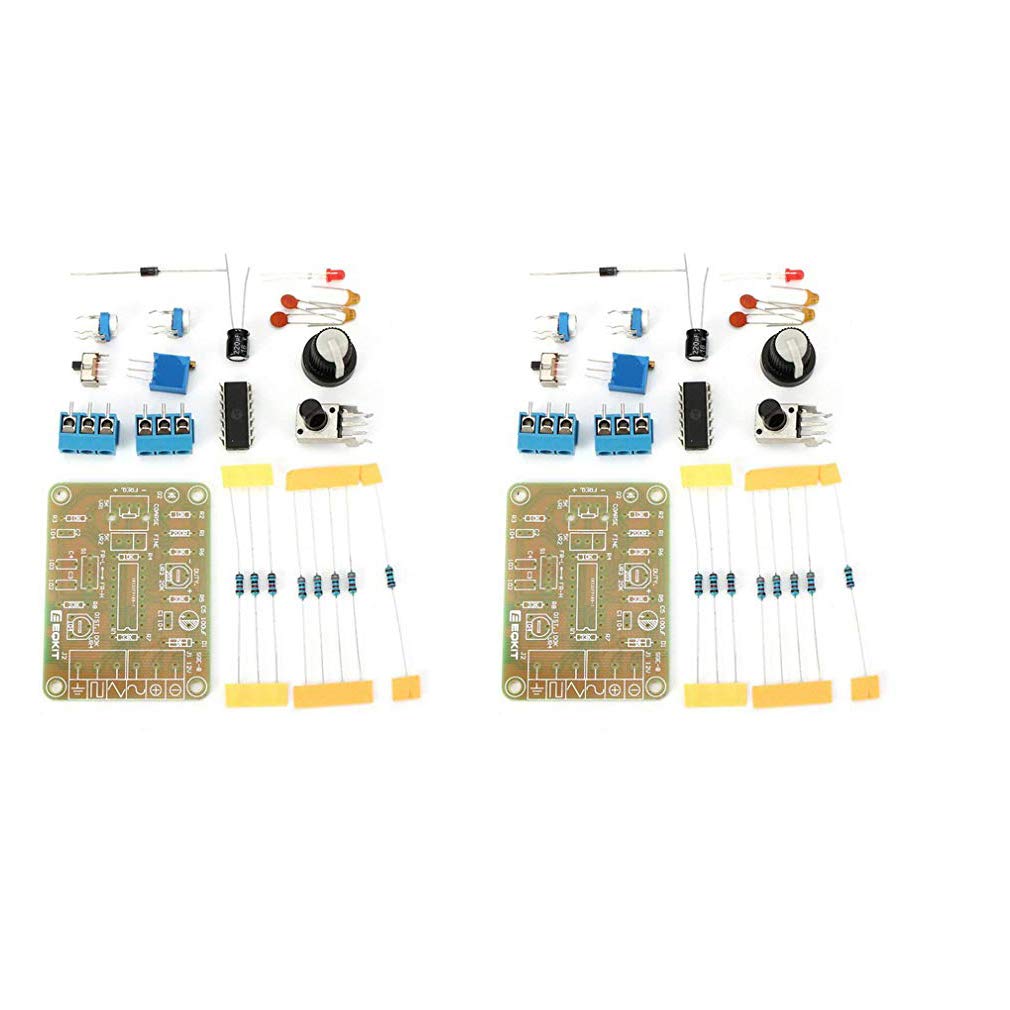

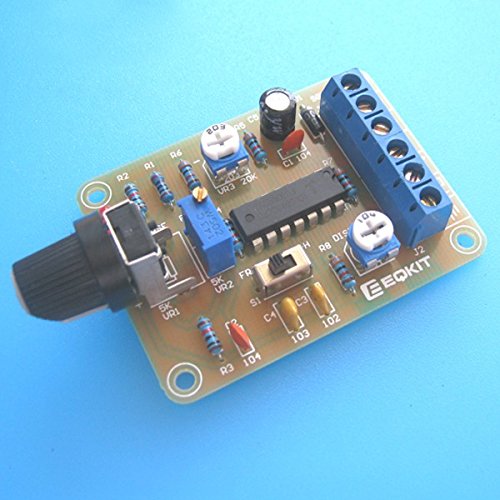

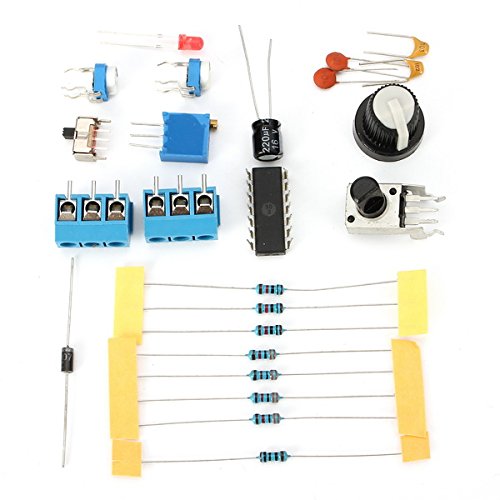

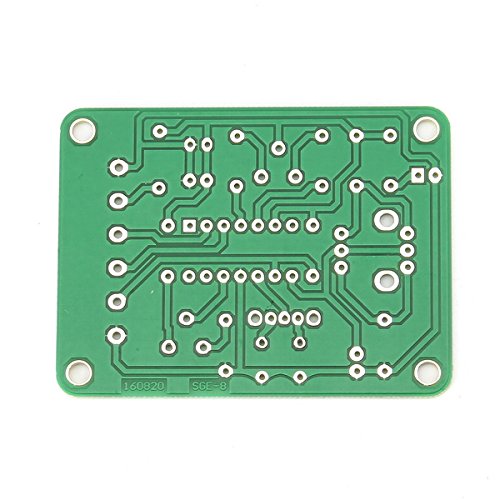

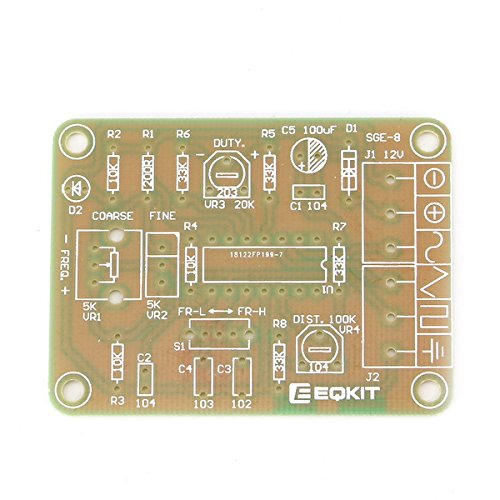

{"id":7417409208480,"title":"HiLetgo 2pcs ICL8038 Monolithic Function Signal Generator Module DIY Kit Sine Square Triangle","handle":"hiletgo-2pcs-icl8038-monolithic-function-signal-generator-module-diy-kit-sine-square-triangle","description":"\u003ch3\u003eHiLetgo 2pcs ICL8038 Monolithic Function Signal Generator Module DIY Kit Sine Square Triangle\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: ICL8038 pin functions: Pin 1, Pin 12: sine waveform adjusting\nterminal; Pin 2: sine wave output; Pin 3: triangle wave output; Pin 4, Pin 5:\nthe frequency and duty cycle (or waveform asymmetry) adjustment; Pin 6: V +,\nthe positive power supply; Pin 7: Frequency Offset; Pin 8: Frequency\nadjustment input terminal; Pin 9: square wave output. This is an open\ncollector output terminal, work should take a load resistor to the\ncorresponding positive power supply terminal from the pin, to get a TTL-\ncompatible square-wave output, the load resistance must be connected to + 5V\npower supply; Pin 10: timing capacitor terminal; Pin 11: V-, negative power\nsupply terminal or the ground. When Use positive and negative power supply,\nPin 11 to the negative supply, the output waveform are symmetrical with\nrespect to 0 V; When use a single positive power supply, Pin 11 grounded, the\noutput waveform is unipolar, uniform voltage is + VCC \/ 2; Pin 13 and Pin 14:\nEmpty Pin. The kit is designed for a frequency range is 50-5KHz, two bands\nwith using a switch S to switch, RP1 is the frequency adjustment, RP2 is the\nduty cycle adjustment, RP3 is a sine wave distortion adjustment. Circuit uses\n12V single power supply, input from the X1; X2, X3 is a waveform output side,\nyou can use oscilloscope to observe three output waveforms. Model: ICL8038\nInput: 12V DC Frequency range: 50-5KHz, Package Included: 1 ICL8038 Function\nSignal Generator DIY KIT Note: Please contact us if you need the Schematic.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eICL8038 Monolithic Function Signal Generator Module DIY Kit\u003c\/li\u003e\n \u003cli\u003eFrequency range: 50-5KHz,\u003c\/li\u003e\n \u003cli\u003eInput: 12V DC\u003c\/li\u003e\n \u003cli\u003eModel: ICL8038\u003c\/li\u003e\n \u003cli\u003euniform voltage is + VCC \/ 2\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-26T14:55:40+11:00","created_at":"2022-06-16T22:18:55+10:00","vendor":"HiLetgo","type":"Function Generators","tags":["dingo"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42211071033504,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01I4HOEZ2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo 2pcs ICL8038 Monolithic Function Signal Generator Module DIY Kit Sine Square Triangle","public_title":null,"options":["Default Title"],"price":10900,"weight":50,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B01I4HOEZ2.jpg?v=1655425590","\/\/dingoship.com.au\/cdn\/shop\/products\/51oa5NUSIjL.jpg?v=1655381935","\/\/dingoship.com.au\/cdn\/shop\/products\/51JP2fyIMLL.jpg?v=1655381935","\/\/dingoship.com.au\/cdn\/shop\/products\/517hiFZWwZL.jpg?v=1655381935","\/\/dingoship.com.au\/cdn\/shop\/products\/51rkJzvqTeL.jpg?v=1655381935"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B01I4HOEZ2.jpg?v=1655425590","options":["Title"],"media":[{"alt":null,"id":24872249589920,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B01I4HOEZ2.jpg?v=1655425590"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B01I4HOEZ2.jpg?v=1655425590","width":1010},{"alt":null,"id":24869377769632,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51oa5NUSIjL.jpg?v=1655381935"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51oa5NUSIjL.jpg?v=1655381935","width":500},{"alt":null,"id":24869377802400,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51JP2fyIMLL.jpg?v=1655381935"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51JP2fyIMLL.jpg?v=1655381935","width":500},{"alt":null,"id":24869377835168,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/517hiFZWwZL.jpg?v=1655381935"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/517hiFZWwZL.jpg?v=1655381935","width":500},{"alt":null,"id":24869377867936,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51rkJzvqTeL.jpg?v=1655381935"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51rkJzvqTeL.jpg?v=1655381935","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo 2pcs ICL8038 Monolithic Function Signal Generator Module DIY Kit Sine Square Triangle\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: ICL8038 pin functions: Pin 1, Pin 12: sine waveform adjusting\nterminal; Pin 2: sine wave output; Pin 3: triangle wave output; Pin 4, Pin 5:\nthe frequency and duty cycle (or waveform asymmetry) adjustment; Pin 6: V +,\nthe positive power supply; Pin 7: Frequency Offset; Pin 8: Frequency\nadjustment input terminal; Pin 9: square wave output. This is an open\ncollector output terminal, work should take a load resistor to the\ncorresponding positive power supply terminal from the pin, to get a TTL-\ncompatible square-wave output, the load resistance must be connected to + 5V\npower supply; Pin 10: timing capacitor terminal; Pin 11: V-, negative power\nsupply terminal or the ground. When Use positive and negative power supply,\nPin 11 to the negative supply, the output waveform are symmetrical with\nrespect to 0 V; When use a single positive power supply, Pin 11 grounded, the\noutput waveform is unipolar, uniform voltage is + VCC \/ 2; Pin 13 and Pin 14:\nEmpty Pin. The kit is designed for a frequency range is 50-5KHz, two bands\nwith using a switch S to switch, RP1 is the frequency adjustment, RP2 is the\nduty cycle adjustment, RP3 is a sine wave distortion adjustment. Circuit uses\n12V single power supply, input from the X1; X2, X3 is a waveform output side,\nyou can use oscilloscope to observe three output waveforms. Model: ICL8038\nInput: 12V DC Frequency range: 50-5KHz, Package Included: 1 ICL8038 Function\nSignal Generator DIY KIT Note: Please contact us if you need the Schematic.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eICL8038 Monolithic Function Signal Generator Module DIY Kit\u003c\/li\u003e\n \u003cli\u003eFrequency range: 50-5KHz,\u003c\/li\u003e\n \u003cli\u003eInput: 12V DC\u003c\/li\u003e\n \u003cli\u003eModel: ICL8038\u003c\/li\u003e\n \u003cli\u003euniform voltage is + VCC \/ 2\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
