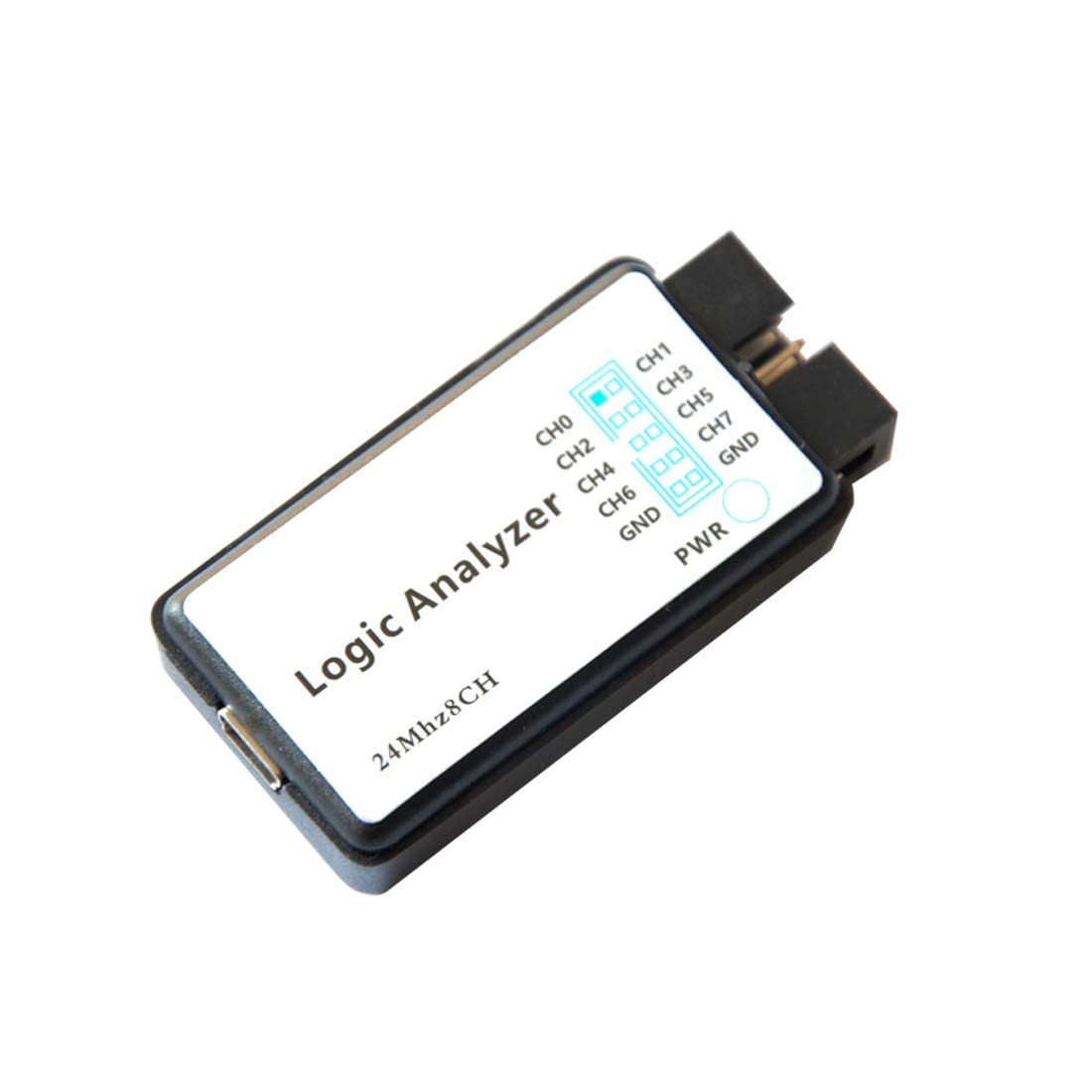

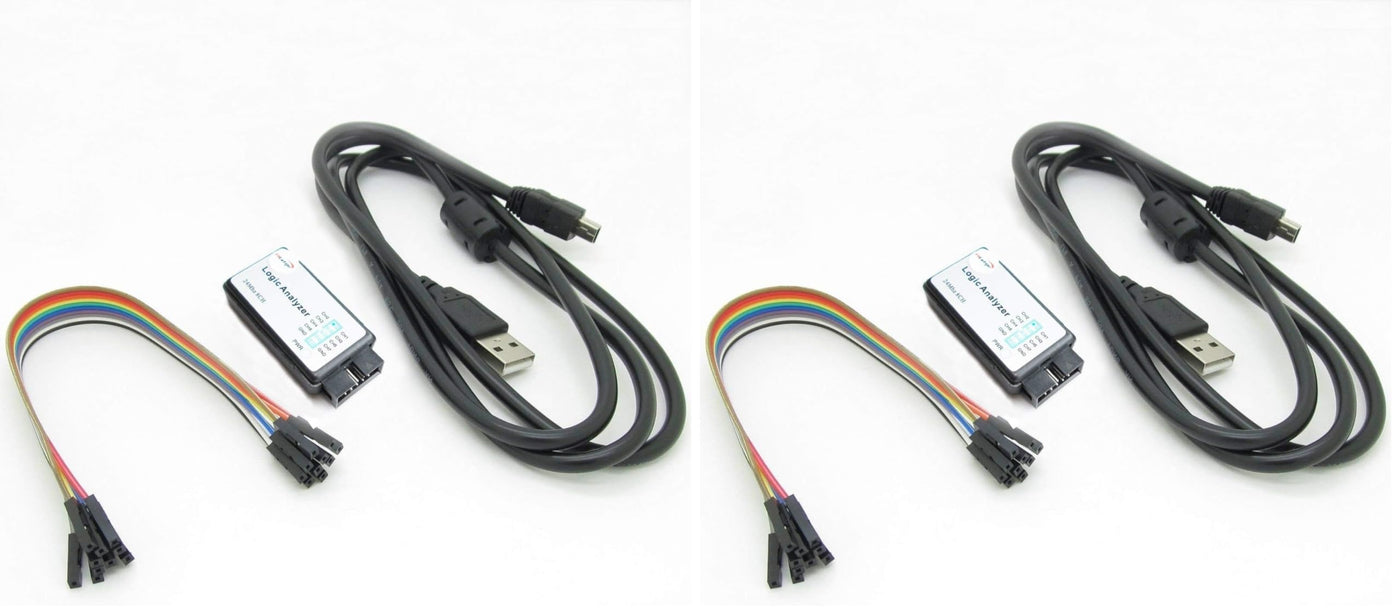

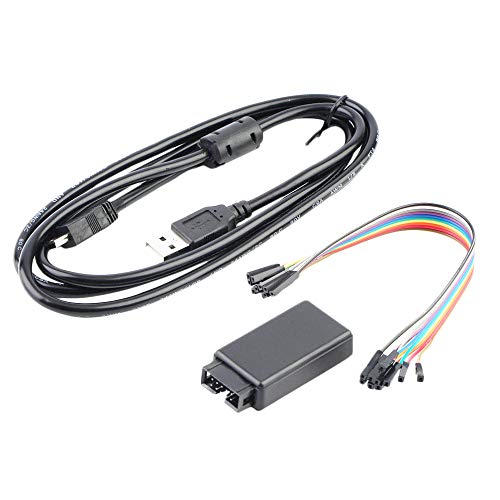

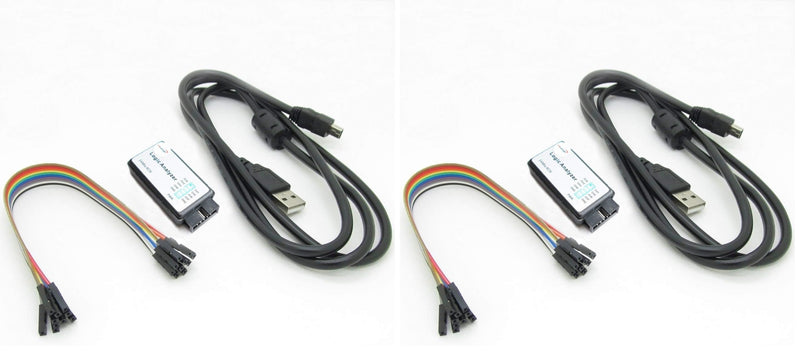

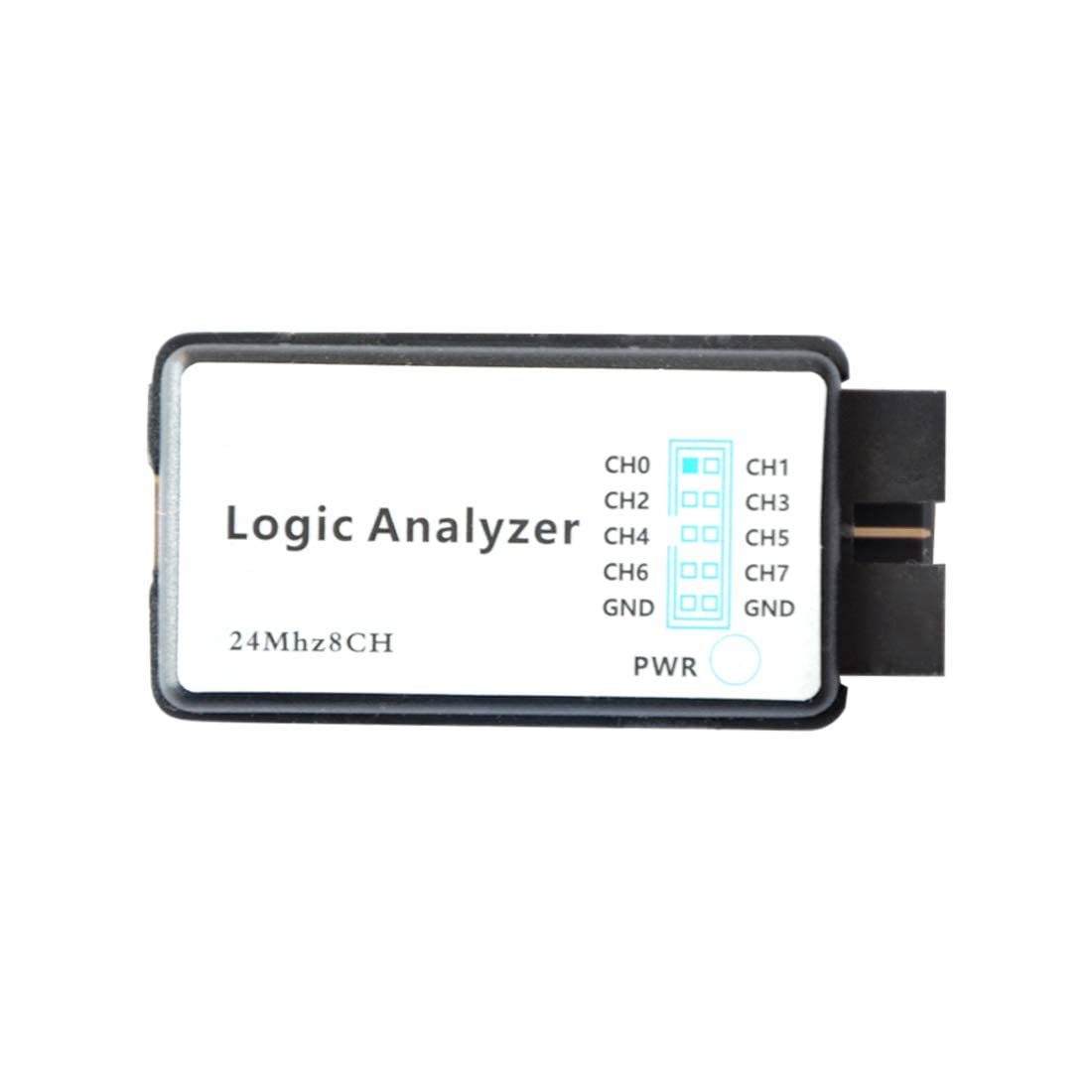

{"id":15790003454112,"title":"HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug (Pack of 2) Small (Pack of 2)","handle":"hiletgo-usb-logic-analyzer-device-with-emi-ferrite-ring-usb-cable-24mhz-8ch-24mhz-8-channel-uart-iic-spi-debug-pack-of-2-small-pack-of-2","description":"\u003ch3\u003eHiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHiLetgo USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel\nUART IIC SPI Debug Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz,\n8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The\nlogic for each channel sampling rate of 24M\/s. General applications around\n10M, enough to cope with a variety ofoccasions; 8-channel; Voltage range:\nInput voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input\nHigh Voltage: 2.0V to 5.25V Works with 5V, 3.3V, 2.5V, 2.0V systems. May work\nwith 1.8V but not recommended. Input Impedance: 1Mohm || 10pF (typical,\napproximate) Crystal: +\/-20ppm, 24MHz Error\/Accuracy: pulse-width measurement:\n+\/- 42ns (at 24MHz). Packing Included: 1 Logic Analyser 1 USB Cable 1 \nDupont Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe information below is per-pack only\u003c\/li\u003e\n \u003cli\u003eThe logic for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety ofoccasions; 8-channel\u003c\/li\u003e\n \u003cli\u003eSampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;\u003c\/li\u003e\n \u003cli\u003eThe logic for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety ofoccasions;\u003c\/li\u003e\n \u003cli\u003eInput voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-16T17:31:37+10:00","created_at":"2026-07-14T17:24:23+10:00","vendor":"HiLetgo","type":"Logic Analyzers","tags":["home_improvement_July2026"],"price":14100,"price_min":14100,"price_max":14100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58176485425312,"title":"Small (Pack of 2)","option1":"Small (Pack of 2)","option2":null,"option3":null,"sku":"B0FRDSX44C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug (Pack of 2) Small (Pack of 2) - Small (Pack of 2)","public_title":"Small (Pack of 2)","options":["Small (Pack of 2)"],"price":14100,"weight":136,"compare_at_price":null,"inventory_management":"shopify","barcode":"3-01-0015","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B0FRDSX44C.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/51q_liIWphL.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/41DS55jWljL.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/51wzj6wQGoL.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/41PRfXF3evL.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/51UkjL8nrkL.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/512q6jTlahL.jpg?v=1784013865","\/\/dingoship.com.au\/cdn\/shop\/files\/51_Du5sRIiL_ba18ae12-e109-45b2-a420-caeeef6d8bb0.jpg?v=1784013865"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0FRDSX44C.jpg?v=1784013865","options":["Size"],"media":[{"alt":null,"id":69750492659872,"position":1,"preview_image":{"aspect_ratio":2.278,"height":1124,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0FRDSX44C.jpg?v=1784013865"},"aspect_ratio":2.278,"height":1124,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0FRDSX44C.jpg?v=1784013865","width":2560},{"alt":null,"id":69750492692640,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51q_liIWphL.jpg?v=1784013865"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51q_liIWphL.jpg?v=1784013865","width":1100},{"alt":null,"id":69750492725408,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41DS55jWljL.jpg?v=1784013865"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41DS55jWljL.jpg?v=1784013865","width":1100},{"alt":null,"id":69750492758176,"position":4,"preview_image":{"aspect_ratio":1.88,"height":266,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51wzj6wQGoL.jpg?v=1784013865"},"aspect_ratio":1.88,"height":266,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51wzj6wQGoL.jpg?v=1784013865","width":500},{"alt":null,"id":69750492790944,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41PRfXF3evL.jpg?v=1784013865"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41PRfXF3evL.jpg?v=1784013865","width":500},{"alt":null,"id":69750492823712,"position":6,"preview_image":{"aspect_ratio":1.88,"height":266,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51UkjL8nrkL.jpg?v=1784013865"},"aspect_ratio":1.88,"height":266,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51UkjL8nrkL.jpg?v=1784013865","width":500},{"alt":null,"id":69750492856480,"position":7,"preview_image":{"aspect_ratio":1.326,"height":377,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/512q6jTlahL.jpg?v=1784013865"},"aspect_ratio":1.326,"height":377,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/512q6jTlahL.jpg?v=1784013865","width":500},{"alt":null,"id":69750492889248,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51_Du5sRIiL_ba18ae12-e109-45b2-a420-caeeef6d8bb0.jpg?v=1784013865"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51_Du5sRIiL_ba18ae12-e109-45b2-a420-caeeef6d8bb0.jpg?v=1784013865","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHiLetgo USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel\nUART IIC SPI Debug Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz,\n8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The\nlogic for each channel sampling rate of 24M\/s. General applications around\n10M, enough to cope with a variety ofoccasions; 8-channel; Voltage range:\nInput voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input\nHigh Voltage: 2.0V to 5.25V Works with 5V, 3.3V, 2.5V, 2.0V systems. May work\nwith 1.8V but not recommended. Input Impedance: 1Mohm || 10pF (typical,\napproximate) Crystal: +\/-20ppm, 24MHz Error\/Accuracy: pulse-width measurement:\n+\/- 42ns (at 24MHz). Packing Included: 1 Logic Analyser 1 USB Cable 1 \nDupont Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe information below is per-pack only\u003c\/li\u003e\n \u003cli\u003eThe logic for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety ofoccasions; 8-channel\u003c\/li\u003e\n \u003cli\u003eSampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;\u003c\/li\u003e\n \u003cli\u003eThe logic for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety ofoccasions;\u003c\/li\u003e\n \u003cli\u003eInput voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V\u003c\/li\u003e\n \u003c\/ul\u003e"}
