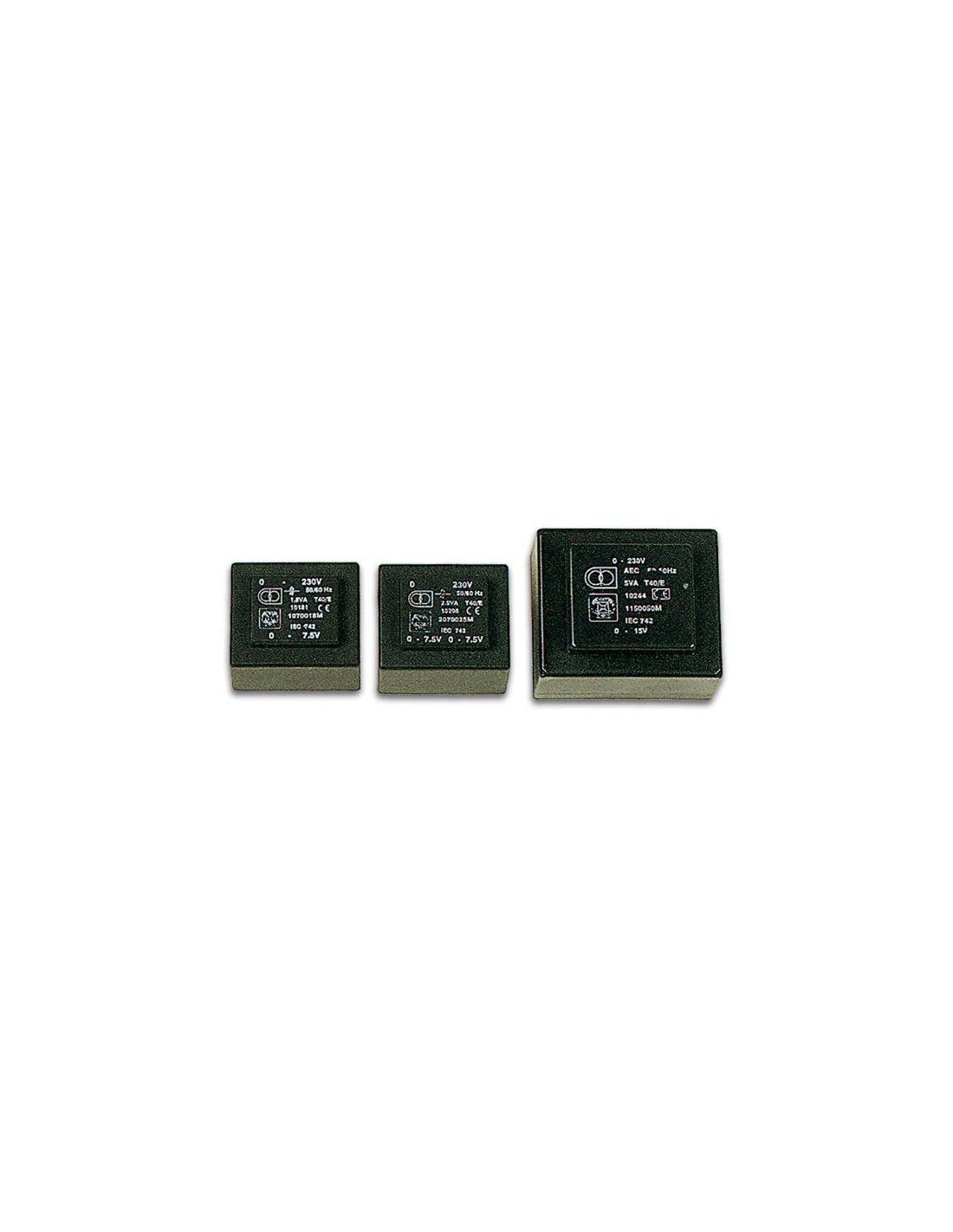

{"id":12791757406368,"title":"INFO GAMES - 1070050M print transformer, 5VA, 1 x 7.5V, 1 x 0.667 Amp 138793","handle":"info-games-1070050m-print-transformer-5va-1-x-7-5v-1-x-0-667-amp-138793","description":"\u003ch3\u003eINFO GAMES - 1070050M Print transformer, 5VA, 1 x 7.5V, 1 x 0.667 Amp 138793\u003c\/h3\u003e \u003cp id=\"b\"\u003eVoltage: 1 x 7.5V. Current: 1 x 0.667A. Insulation resistance: \u0026gt;.5Mohm \/ 500Vdc. Dielectric strength: \u0026gt;.5kV min. designed for an ambient temperature of. max.40°C. Material of insulation class E 120°. Short circuit proof up to 3VA. Protection possible through thermal fuse. max. temperature for insulation class E: 95°C. Primary voltage: 230V ± 10%. 50\/60Hz. secondary voltage tolerance: +7% -3% at 230V and max. load. perfect solderability for a wave pool. CE approval. Creepage distance and spaces according to IEC742. Figure: 1: Coil with 2nd chambers. 2:Primary winding. 3: Encapsulation in epoxy resin. 4: Secondary winding. 5: Connection pins. 6: Polyamide housing. 7: magnetic core. 8: Safety transformer. 9: Short circuit protection. 10:Primary voltage. 11: Rated power\/rated temperature. 12: Manufacturer's reference.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003enom. Secondary voltages\u003c\/li\u003e \u003cli\u003eApprovals\u003c\/li\u003e \u003cli\u003eOrder number\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-25T18:26:23+11:00","created_at":"2024-03-25T18:26:25+11:00","vendor":"Velleman","type":"Audio transformers","tags":["industryDE"],"price":15800,"price_min":15800,"price_max":15800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49184708755616,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B00L3ICGZK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"INFO GAMES - 1070050M print transformer, 5VA, 1 x 7.5V, 1 x 0.667 Amp 138793","public_title":null,"options":["Default Title"],"price":15800,"weight":350,"compare_at_price":null,"inventory_management":"shopify","barcode":"138793","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00L3ICGZK.jpg?v=1711409126"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00L3ICGZK.jpg?v=1711409126","options":["Title"],"media":[{"alt":null,"id":32959646072992,"position":1,"preview_image":{"aspect_ratio":0.774,"height":1422,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00L3ICGZK.jpg?v=1711409126"},"aspect_ratio":0.774,"height":1422,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00L3ICGZK.jpg?v=1711409126","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eINFO GAMES - 1070050M Print transformer, 5VA, 1 x 7.5V, 1 x 0.667 Amp 138793\u003c\/h3\u003e \u003cp id=\"b\"\u003eVoltage: 1 x 7.5V. Current: 1 x 0.667A. Insulation resistance: \u0026gt;.5Mohm \/ 500Vdc. Dielectric strength: \u0026gt;.5kV min. designed for an ambient temperature of. max.40°C. Material of insulation class E 120°. Short circuit proof up to 3VA. Protection possible through thermal fuse. max. temperature for insulation class E: 95°C. Primary voltage: 230V ± 10%. 50\/60Hz. secondary voltage tolerance: +7% -3% at 230V and max. load. perfect solderability for a wave pool. CE approval. Creepage distance and spaces according to IEC742. Figure: 1: Coil with 2nd chambers. 2:Primary winding. 3: Encapsulation in epoxy resin. 4: Secondary winding. 5: Connection pins. 6: Polyamide housing. 7: magnetic core. 8: Safety transformer. 9: Short circuit protection. 10:Primary voltage. 11: Rated power\/rated temperature. 12: Manufacturer's reference.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003enom. Secondary voltages\u003c\/li\u003e \u003cli\u003eApprovals\u003c\/li\u003e \u003cli\u003eOrder number\u003c\/li\u003e \u003c\/ul\u003e"}
