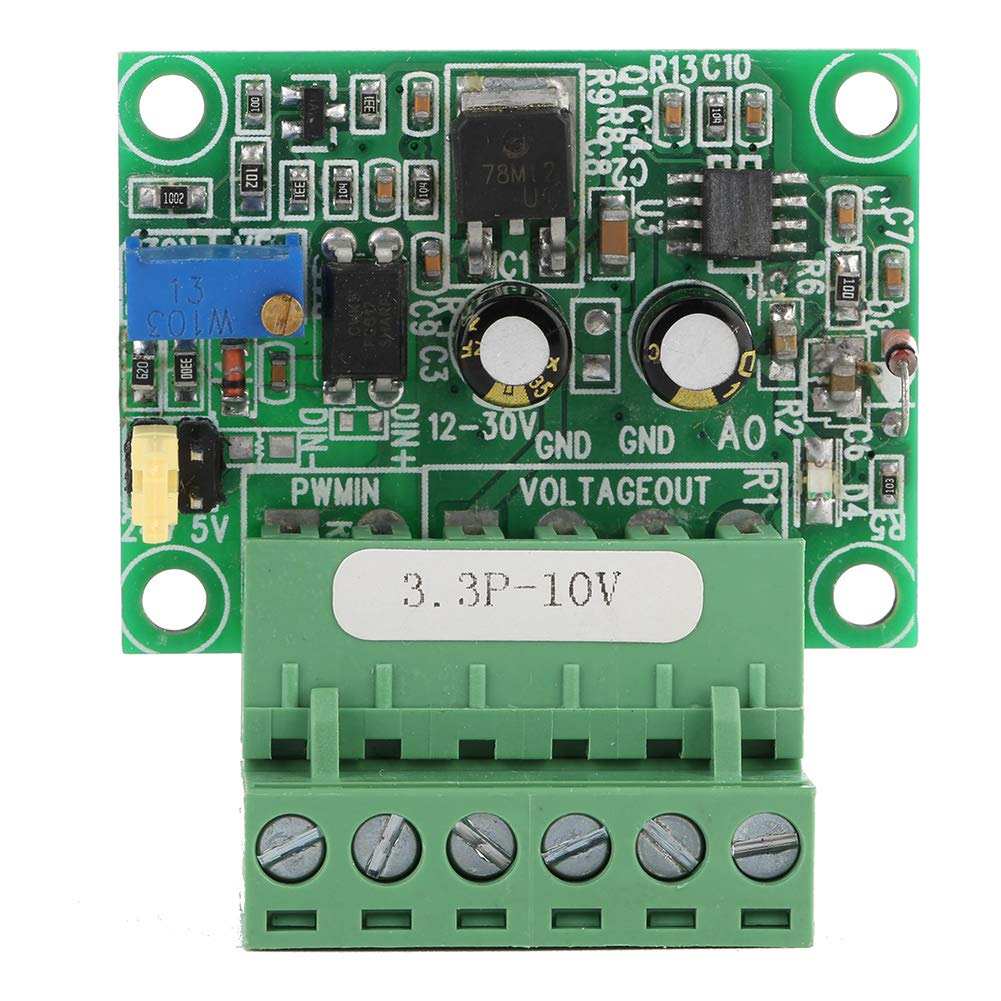

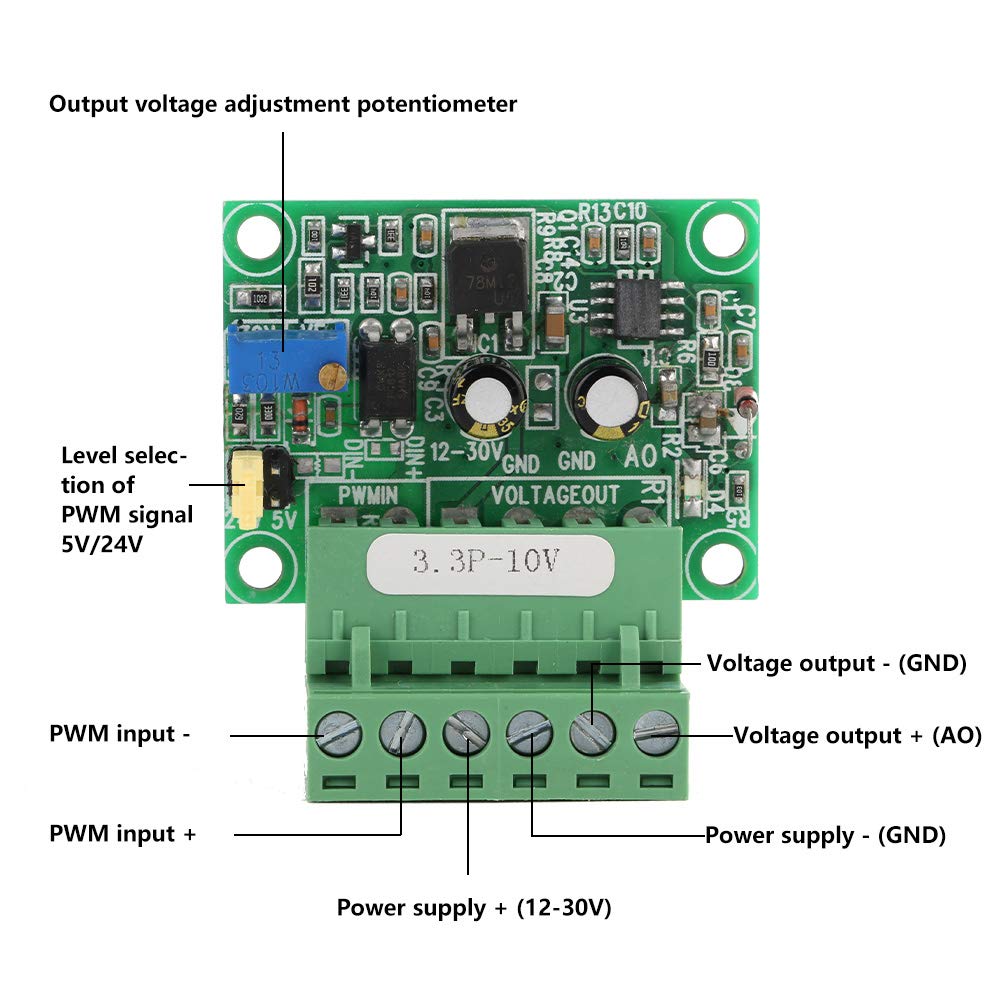

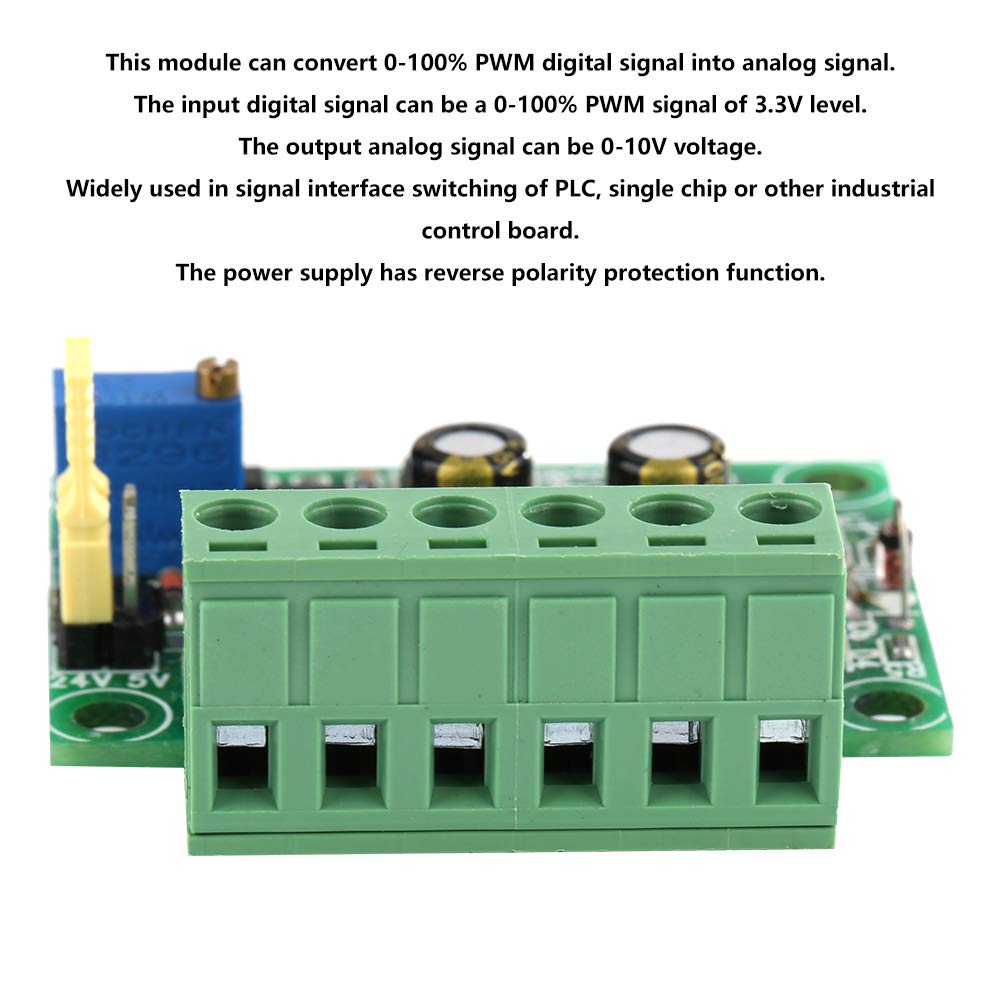

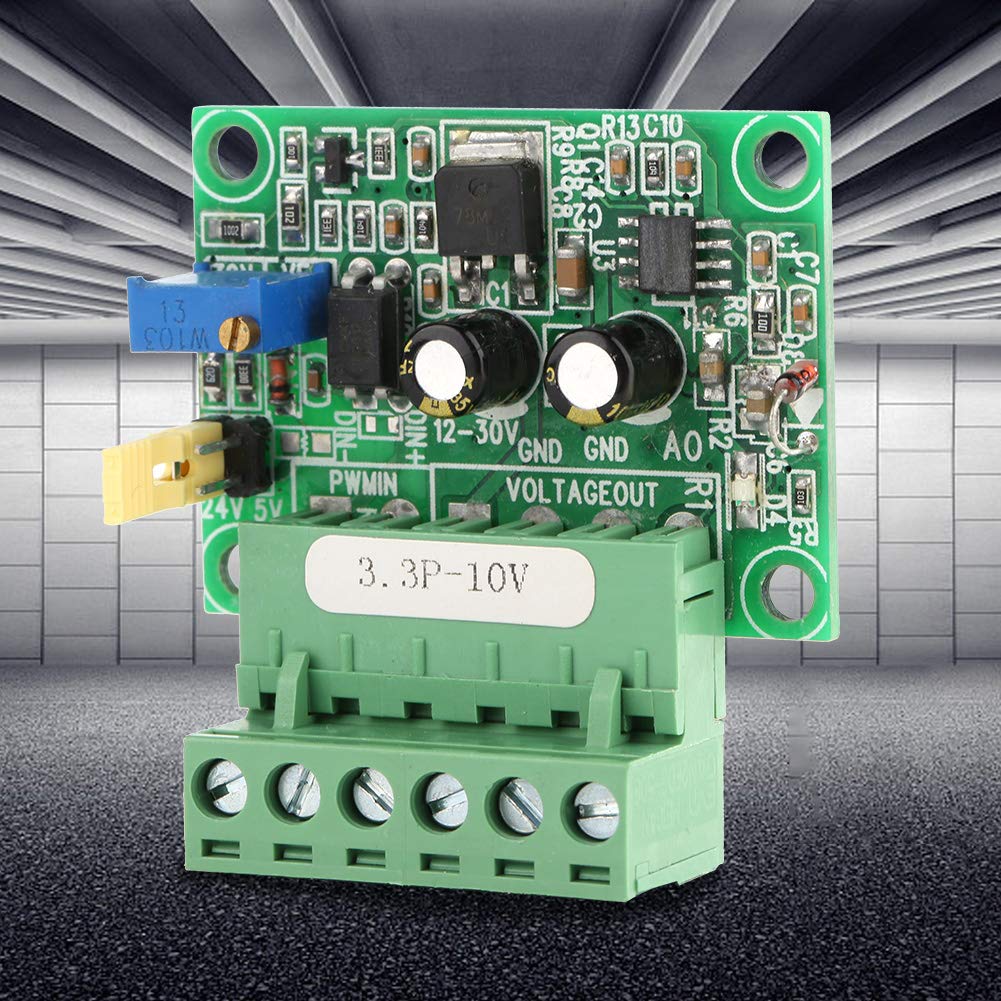

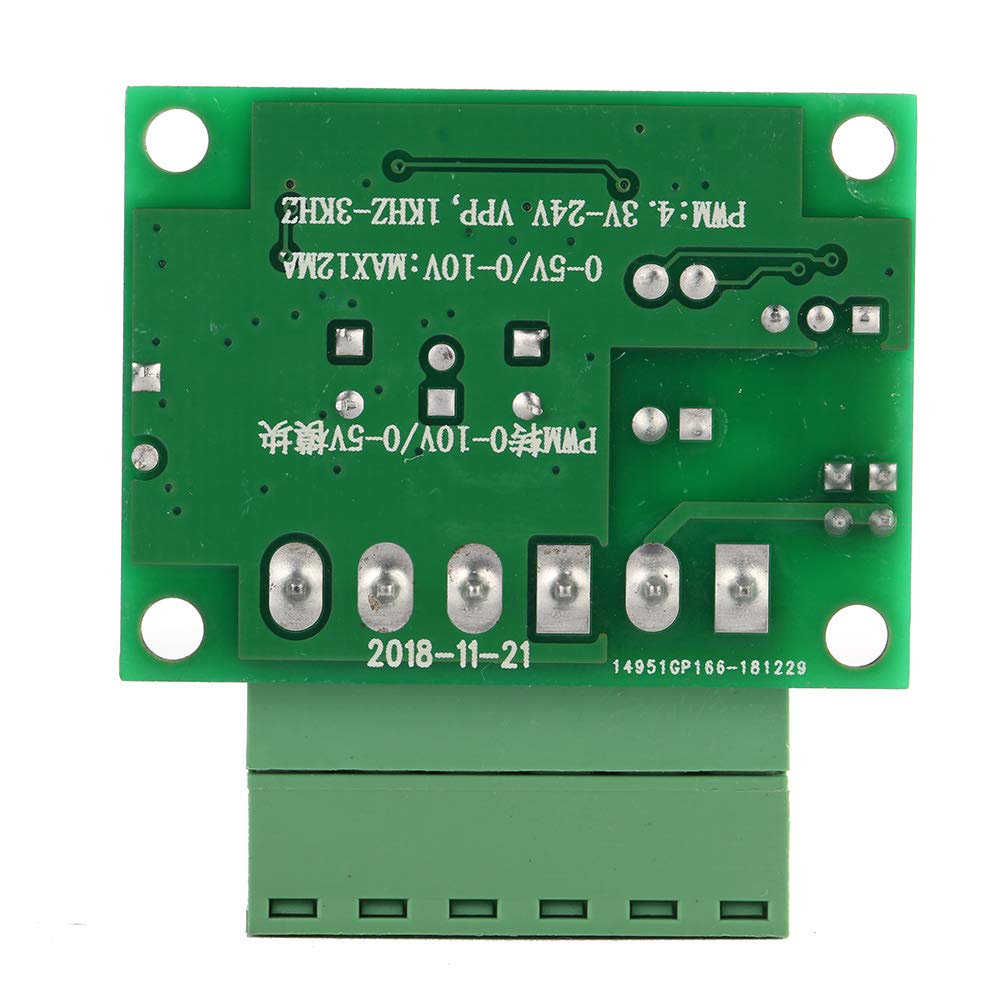

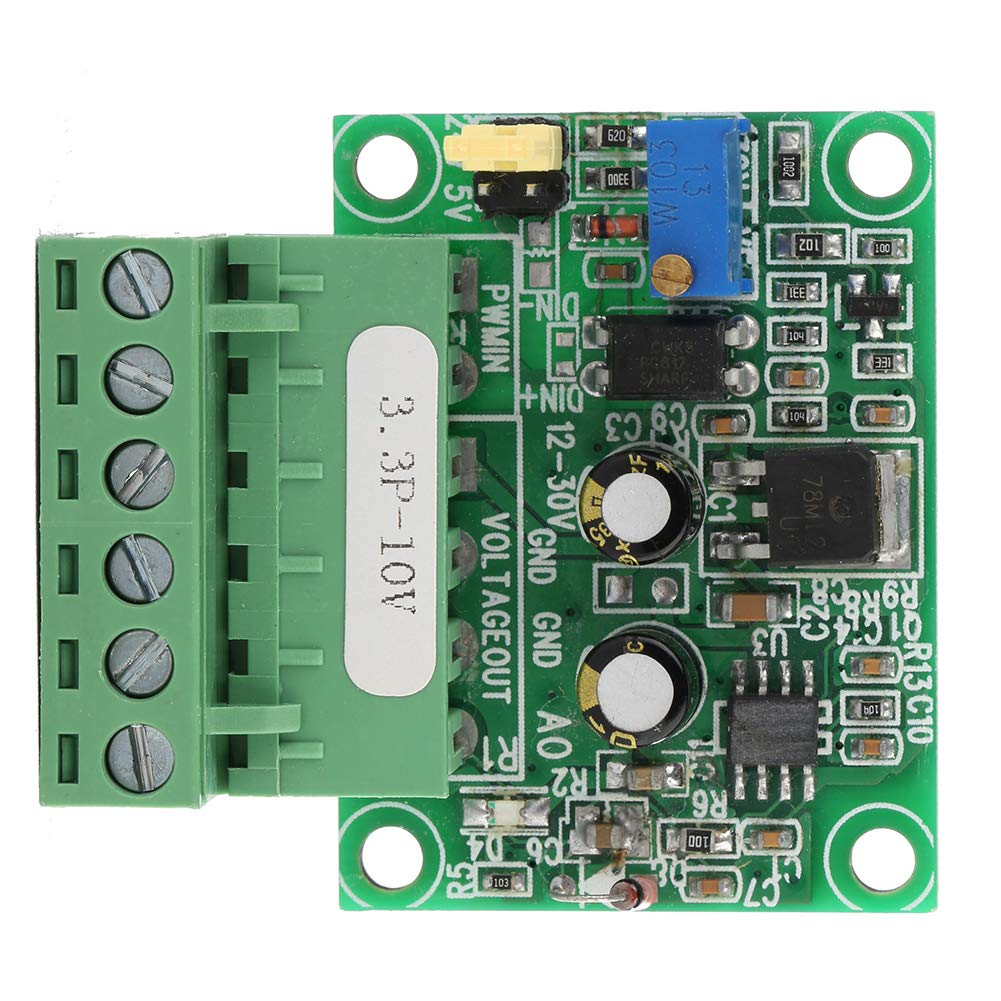

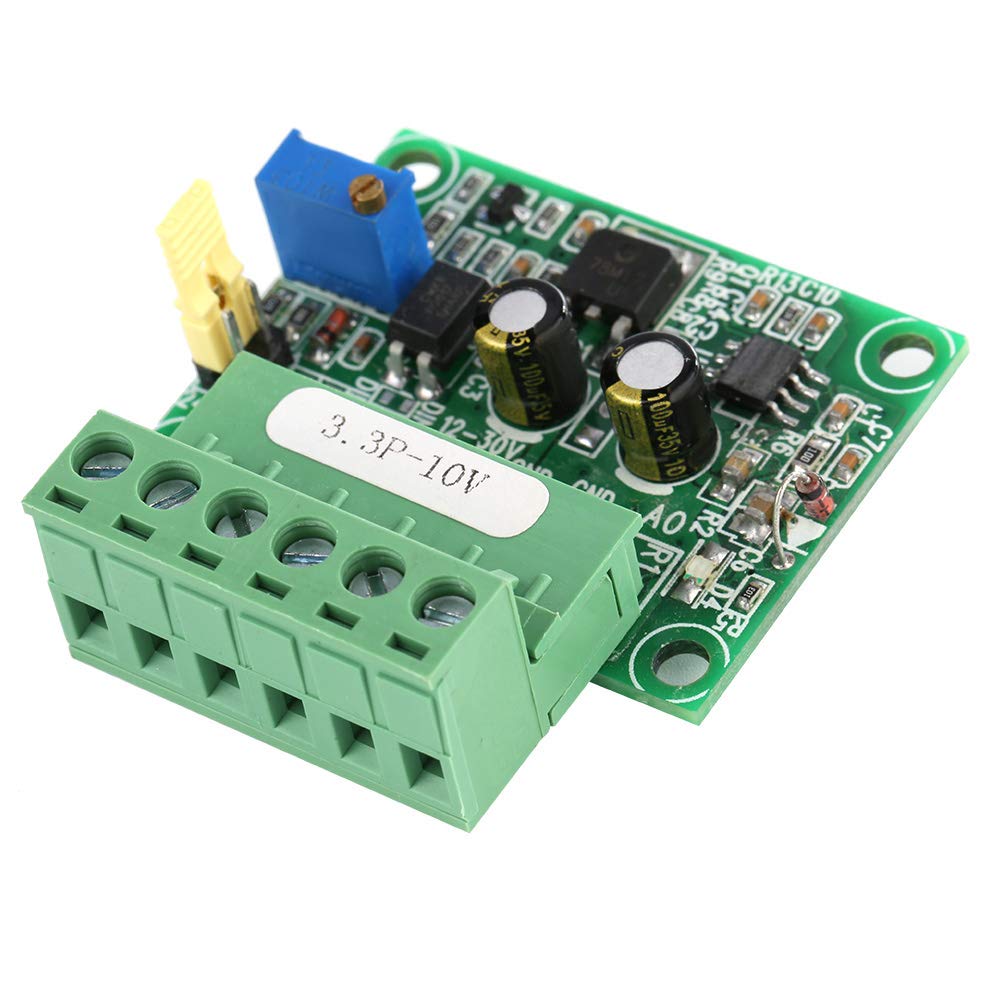

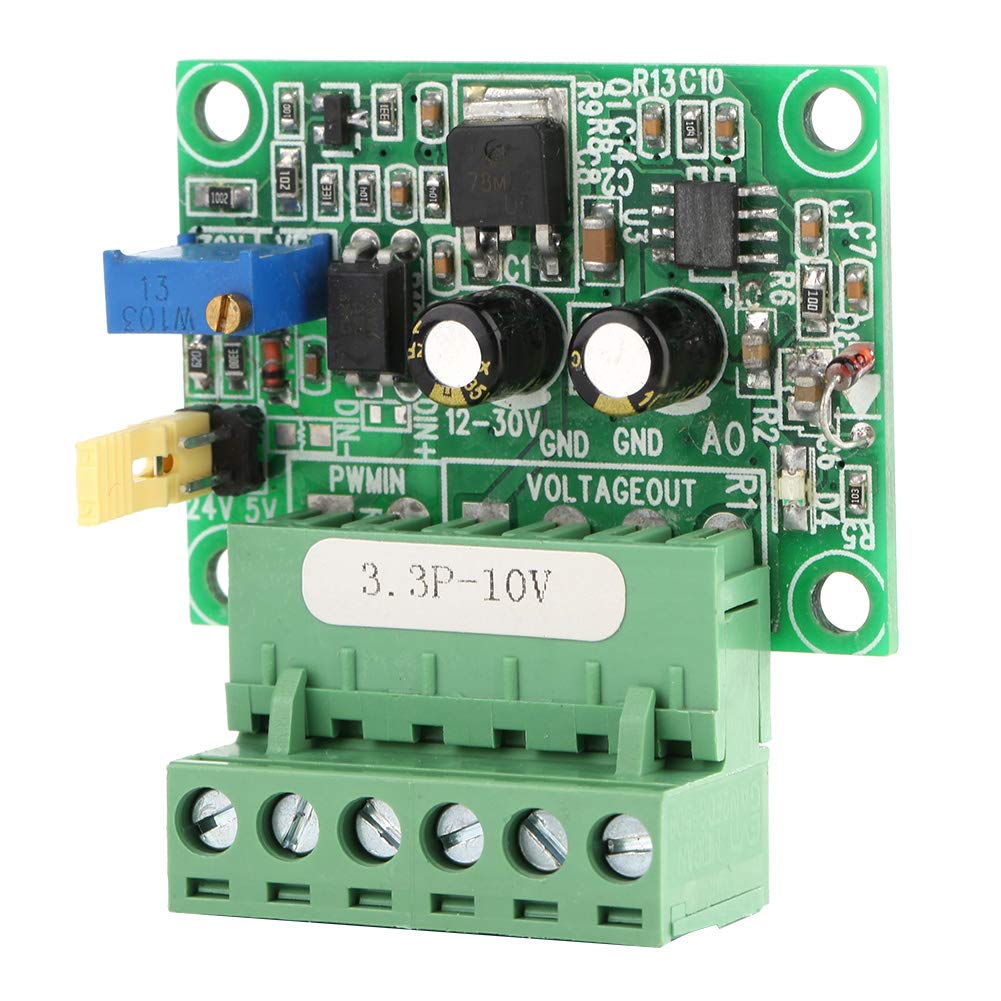

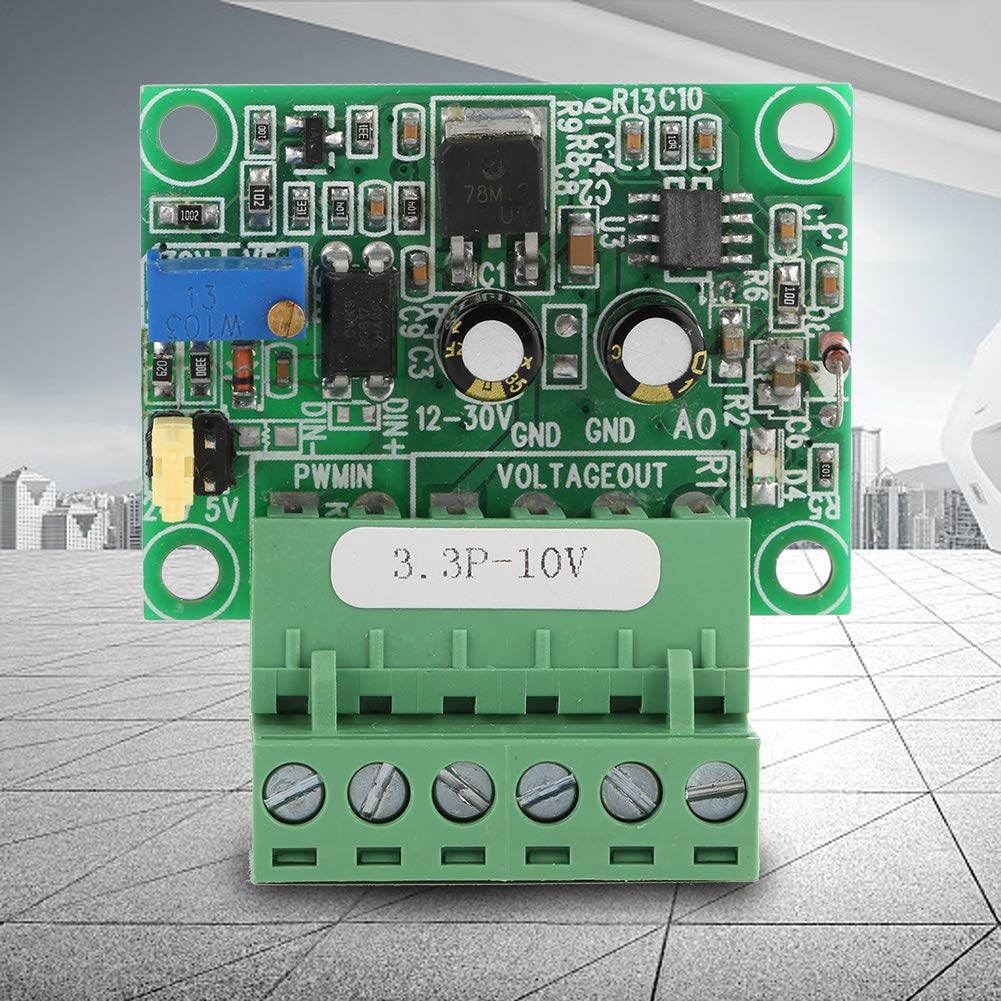

{"id":15190058926240,"title":"Jadeshay Digital to Analog Converter 3.3V PWM Signal to 0-10V PWM Voltage Converter Module PWM Digital Analog Converter Module Converter Module","handle":"jadeshay-digital-to-analog-converter-3-3v-pwm-signal-to-0-10v-pwm-voltage-converter-module-pwm-digital-analog-converter-module-converter-module","description":"\u003ch3\u003eJadeshay Digital to Analog Converter 3.3V PWM Signal to 0-10V PWM Voltage Converter Module PWM Digital Analog Converter Module Converter Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: 1. Model: 3, 3P-5V function: input 0-100% PWM signal with 3.3V level, output 0-10V voltage 2. Receiving frequency range of PWM signal: 100Hz to 3kHz (1 to 3kHz recommended) 3. Plug in the jump P pin at 5V 4. Analog voltage output: 0-10V output voltage After power on, when there is no input signal, the output is 0V. For the first power on, calibration can be performed: give the signal with a duty cycle of 50% and an amplitude of 3.3 V in DIN - and DIN+. The frequency is 1-3 kHz. Use a multimeter to measure the AO and GND ports. Adjust the potentiometer on the board so that the multimeter reads 5.40V. This is used to calibrate the correspondence between the pulse signal and this module. The resolution of the module is 0.1V. The output current capacity is 10 MA. If the duty cycle percentage is inversely proportional to the voltage, you can check the STEP LOW and ACTIVE checkboxes in the MACH 3 software to set the PWM output pins. 5. Supply voltage: 15-30VDC (current requirement: \u0026gt;100MA), 12V can be customized 6. Output power: about 10MA 7. Installation method: 4 M3 screw hole Port: 1. DIN+: positive end of PWM signal (common female PWM - Signal; common male signal end 3.3V) 2. DIN -: negative end of PWM signal (GND is connected to male and female connector; PWM signal is connected to male and female connector) 3. 12-30V: positive terminal of power supply 4. GND: Power supply ground 5. GND: Power supply ground. It is connected to the power supply ground 6. AO: Analog voltage output (0-10V) Package list: 1 Digital-Analog PLC Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u0026lt; li\u0026gt;Signal conversion This converter module can convert 0-100% PWM digital signal into analog signal, output power: about 10mA, insert jump pin at 5V \u003cli\u003eSignal range The digital input signal can be a PWM Signal from 0-100% can be 3.3V. The analog output signal can be a voltage of 0-10V.\u003c\/li\u003e \u003cli\u003eFrequency range The PWM voltage converter module is very practical.PWM signal reception frequency range: 100Hz-3KHz (1-3kHz is recommended)\u003c\/li\u003e \u003cli\u003eEasy to install Installing the digital to analog converter module is very easy. Mounting method: 4*M3 screw hole. Commonly used in the signal interface circuit of PLC, single chip or other industrial control board.\u003c\/li\u003e \u003cli\u003eMultifunction The power supply has a reverse polarity protection function. Supply voltage: 15-30VDC (Power supply current requirement:\u0026gt;100mA), 12V customizable\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-01T16:00:23+10:00","created_at":"2025-10-01T16:00:19+10:00","vendor":"Jadeshay","type":"Digital-to-analog converter","tags":["industryDE"],"price":16400,"price_min":16400,"price_max":16400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52863920013472,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0C9QGNNWT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Jadeshay Digital to Analog Converter 3.3V PWM Signal to 0-10V PWM Voltage Converter Module PWM Digital Analog Converter Module Converter Module","public_title":null,"options":["Default Title"],"price":16400,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0C9QGNNWT.jpg?v=1775752496","\/\/dingoship.com.au\/cdn\/shop\/files\/711gBYkSIlL_51314bb7-2f86-4fd7-8b91-c43bab11796d.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/61_7sO8BuqL.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/61eBn660iYL_085edbcf-fc55-48a3-8ddf-80f5ca9f26af.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/71IRonLVVJL_69e0e8f4-998f-456c-91a2-46cf320582e1.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/71WM3FJJJ7L_76274509-ece0-4e98-9c3f-8aadc605ec0e.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/612L43jTHYL_103569d6-d205-40c8-9786-42d73deeb1fc.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/61Kmoxr8kmL_710678fe-0996-4c10-8180-b1fb552d9e11.jpg?v=1759298422","\/\/dingoship.com.au\/cdn\/shop\/files\/71QyEJemM8L_2dec7808-3704-4d47-a67c-4b99ea84a30f.jpg?v=1759298422"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0C9QGNNWT.jpg?v=1775752496","options":["Title"],"media":[{"alt":null,"id":38370439135392,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0C9QGNNWT.jpg?v=1775752496"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0C9QGNNWT.jpg?v=1775752496","width":1001},{"alt":null,"id":38370439168160,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/711gBYkSIlL_51314bb7-2f86-4fd7-8b91-c43bab11796d.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/711gBYkSIlL_51314bb7-2f86-4fd7-8b91-c43bab11796d.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439200928,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_7sO8BuqL.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_7sO8BuqL.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439233696,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61eBn660iYL_085edbcf-fc55-48a3-8ddf-80f5ca9f26af.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61eBn660iYL_085edbcf-fc55-48a3-8ddf-80f5ca9f26af.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439266464,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71IRonLVVJL_69e0e8f4-998f-456c-91a2-46cf320582e1.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71IRonLVVJL_69e0e8f4-998f-456c-91a2-46cf320582e1.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439299232,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71WM3FJJJ7L_76274509-ece0-4e98-9c3f-8aadc605ec0e.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71WM3FJJJ7L_76274509-ece0-4e98-9c3f-8aadc605ec0e.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439332000,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612L43jTHYL_103569d6-d205-40c8-9786-42d73deeb1fc.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612L43jTHYL_103569d6-d205-40c8-9786-42d73deeb1fc.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439364768,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Kmoxr8kmL_710678fe-0996-4c10-8180-b1fb552d9e11.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Kmoxr8kmL_710678fe-0996-4c10-8180-b1fb552d9e11.jpg?v=1759298422","width":1001},{"alt":null,"id":38370439397536,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71QyEJemM8L_2dec7808-3704-4d47-a67c-4b99ea84a30f.jpg?v=1759298422"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71QyEJemM8L_2dec7808-3704-4d47-a67c-4b99ea84a30f.jpg?v=1759298422","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJadeshay Digital to Analog Converter 3.3V PWM Signal to 0-10V PWM Voltage Converter Module PWM Digital Analog Converter Module Converter Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: 1. Model: 3, 3P-5V function: input 0-100% PWM signal with 3.3V level, output 0-10V voltage 2. Receiving frequency range of PWM signal: 100Hz to 3kHz (1 to 3kHz recommended) 3. Plug in the jump P pin at 5V 4. Analog voltage output: 0-10V output voltage After power on, when there is no input signal, the output is 0V. For the first power on, calibration can be performed: give the signal with a duty cycle of 50% and an amplitude of 3.3 V in DIN - and DIN+. The frequency is 1-3 kHz. Use a multimeter to measure the AO and GND ports. Adjust the potentiometer on the board so that the multimeter reads 5.40V. This is used to calibrate the correspondence between the pulse signal and this module. The resolution of the module is 0.1V. The output current capacity is 10 MA. If the duty cycle percentage is inversely proportional to the voltage, you can check the STEP LOW and ACTIVE checkboxes in the MACH 3 software to set the PWM output pins. 5. Supply voltage: 15-30VDC (current requirement: \u0026gt;100MA), 12V can be customized 6. Output power: about 10MA 7. Installation method: 4 M3 screw hole Port: 1. DIN+: positive end of PWM signal (common female PWM - Signal; common male signal end 3.3V) 2. DIN -: negative end of PWM signal (GND is connected to male and female connector; PWM signal is connected to male and female connector) 3. 12-30V: positive terminal of power supply 4. GND: Power supply ground 5. GND: Power supply ground. It is connected to the power supply ground 6. AO: Analog voltage output (0-10V) Package list: 1 Digital-Analog PLC Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u0026lt; li\u0026gt;Signal conversion This converter module can convert 0-100% PWM digital signal into analog signal, output power: about 10mA, insert jump pin at 5V \u003cli\u003eSignal range The digital input signal can be a PWM Signal from 0-100% can be 3.3V. The analog output signal can be a voltage of 0-10V.\u003c\/li\u003e \u003cli\u003eFrequency range The PWM voltage converter module is very practical.PWM signal reception frequency range: 100Hz-3KHz (1-3kHz is recommended)\u003c\/li\u003e \u003cli\u003eEasy to install Installing the digital to analog converter module is very easy. Mounting method: 4*M3 screw hole. Commonly used in the signal interface circuit of PLC, single chip or other industrial control board.\u003c\/li\u003e \u003cli\u003eMultifunction The power supply has a reverse polarity protection function. Supply voltage: 15-30VDC (Power supply current requirement:\u0026gt;100mA), 12V customizable\u003c\/li\u003e\n\u003c\/ul\u003e"}
