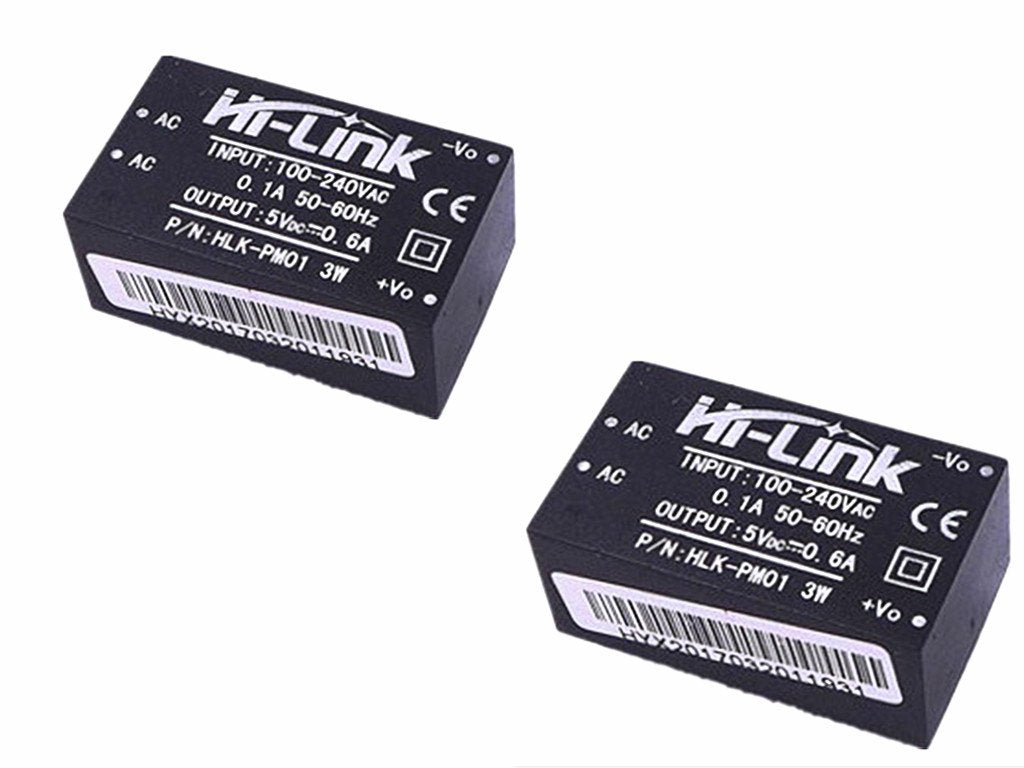

{"id":12633501466784,"title":"JZK 2 x HLK-PM01 AC DC 220V to 5V household power supply module power supply module","handle":"jzk-2-x-hlk-pm01-ac-dc-220v-to-5v-household-power-supply-module-power-supply-module","description":"\u003ch3\u003eJZK 2 x HLK-PM01 AC DC 220V to 5V household power supply module power supply module\u003c\/h3\u003e \u003cp id=\"b\"\u003eJZK 2 x HLK-PM01 DC power supply module DC 220V to 5V isolated power supply module. HLK-PM01 mini size: 3.4 x 2 x 1.5 cm (length width height). Weight: 21g Rated input voltage: 100-240V AC Input voltage range: 90 ~ 264V AC Maximum input current: ≤ 0.2A Input inrush current: ≤10A Maximum input voltage: ≤270V AC Slow start input: ≤ 50mS Low voltage input efficiency: Vin = 110V AC, full load output ≥ 69% High voltage input efficiency: Vin = 220 VAc, full load output ≥ 70% Long term reliability: MTBF ≥ 100,000 H No-load rated output voltage: 5 ± 0.1 V DC Full load output voltage: 5 ± 0.2 V DC Maximum output current at Short circuit: ≥ 1000 MA Long term maximum output current: ≥600 MA Voltage regulation: ±0.2% Charge regulation: ±0.5% Inverter and output noise: (MVp-p) ≤ 50 MV. - Rated input voltage, full load output. Using an oscilloscope with a 20 MHz bandwidth, the load side is tested with 10 µF and 0.1 µF capacitors. Machine overload: (Rated input voltage, output plus 10% load) ≤ 5% VO output overcurrent protection - 150-200% maximum output load A output short circuit protection. NOTE: Temperature rise rule: At room temperature, the temperature of the power supply capacitor, main transformer and other internal surfaces must not exceed 90°C; The temperature rise of the shell surface cannot exceed 60℃; Package includes: 2 Full voltage input (90264V AC). * Output: 5V DC, 0.6A * Part number: HLK-PM01, 3W. \u003c\/p\u003e\u003cli\u003eJZK 2 x HLK-PM01 DC power supply module DC 220V to 5V isolated power supply module.\u003c\/li\u003e \u003cli\u003eThe latest Hi-Link power module, suitable for intelligent switch control devices, small volume, low current, input voltage range, is the best choice for smart home.\u003c\/li\u003e \u003cli\u003eLow ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low energy consumption. 100% stress test.\u003c\/li\u003e \u003cli\u003eMeet the requirements of UL, CE, EMC and safety testing. Quality guarantee of at least 10 years.\u003c\/li\u003e","published_at":"2024-03-06T02:31:39+11:00","created_at":"2024-03-06T02:31:43+11:00","vendor":"JZK","type":"Power input modules","tags":["industryDE"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48962592506016,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B073QH1XT8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JZK 2 x HLK-PM01 AC DC 220V to 5V household power supply module power supply module","public_title":null,"options":["Default Title"],"price":13200,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"JZK","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B073QH1XT8.jpg?v=1709686202","\/\/dingoship.com.au\/cdn\/shop\/products\/614a74TSYtL.jpg?v=1709652703","\/\/dingoship.com.au\/cdn\/shop\/products\/51uHoyGNc8L.jpg?v=1709652703"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B073QH1XT8.jpg?v=1709686202","options":["Title"],"media":[{"alt":null,"id":32666752155808,"position":1,"preview_image":{"aspect_ratio":1.333,"height":768,"width":1024,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B073QH1XT8.jpg?v=1709686202"},"aspect_ratio":1.333,"height":768,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B073QH1XT8.jpg?v=1709686202","width":1024},{"alt":null,"id":32661657485472,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/614a74TSYtL.jpg?v=1709652703"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/614a74TSYtL.jpg?v=1709652703","width":1000},{"alt":null,"id":32661657518240,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51uHoyGNc8L.jpg?v=1709652703"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51uHoyGNc8L.jpg?v=1709652703","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJZK 2 x HLK-PM01 AC DC 220V to 5V household power supply module power supply module\u003c\/h3\u003e \u003cp id=\"b\"\u003eJZK 2 x HLK-PM01 DC power supply module DC 220V to 5V isolated power supply module. HLK-PM01 mini size: 3.4 x 2 x 1.5 cm (length width height). Weight: 21g Rated input voltage: 100-240V AC Input voltage range: 90 ~ 264V AC Maximum input current: ≤ 0.2A Input inrush current: ≤10A Maximum input voltage: ≤270V AC Slow start input: ≤ 50mS Low voltage input efficiency: Vin = 110V AC, full load output ≥ 69% High voltage input efficiency: Vin = 220 VAc, full load output ≥ 70% Long term reliability: MTBF ≥ 100,000 H No-load rated output voltage: 5 ± 0.1 V DC Full load output voltage: 5 ± 0.2 V DC Maximum output current at Short circuit: ≥ 1000 MA Long term maximum output current: ≥600 MA Voltage regulation: ±0.2% Charge regulation: ±0.5% Inverter and output noise: (MVp-p) ≤ 50 MV. - Rated input voltage, full load output. Using an oscilloscope with a 20 MHz bandwidth, the load side is tested with 10 µF and 0.1 µF capacitors. Machine overload: (Rated input voltage, output plus 10% load) ≤ 5% VO output overcurrent protection - 150-200% maximum output load A output short circuit protection. NOTE: Temperature rise rule: At room temperature, the temperature of the power supply capacitor, main transformer and other internal surfaces must not exceed 90°C; The temperature rise of the shell surface cannot exceed 60℃; Package includes: 2 Full voltage input (90264V AC). * Output: 5V DC, 0.6A * Part number: HLK-PM01, 3W. \u003c\/p\u003e\u003cli\u003eJZK 2 x HLK-PM01 DC power supply module DC 220V to 5V isolated power supply module.\u003c\/li\u003e \u003cli\u003eThe latest Hi-Link power module, suitable for intelligent switch control devices, small volume, low current, input voltage range, is the best choice for smart home.\u003c\/li\u003e \u003cli\u003eLow ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low energy consumption. 100% stress test.\u003c\/li\u003e \u003cli\u003eMeet the requirements of UL, CE, EMC and safety testing. Quality guarantee of at least 10 years.\u003c\/li\u003e"}
