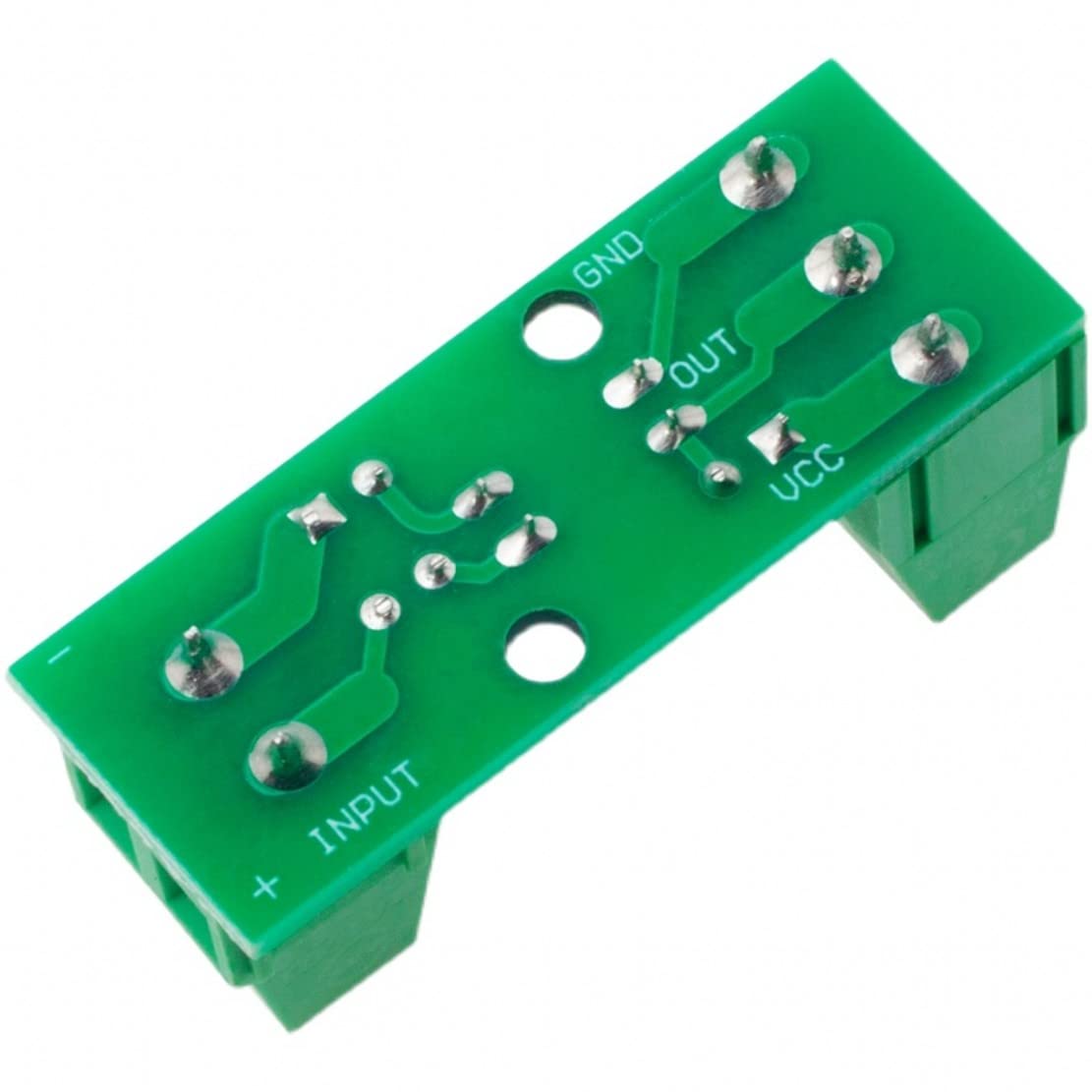

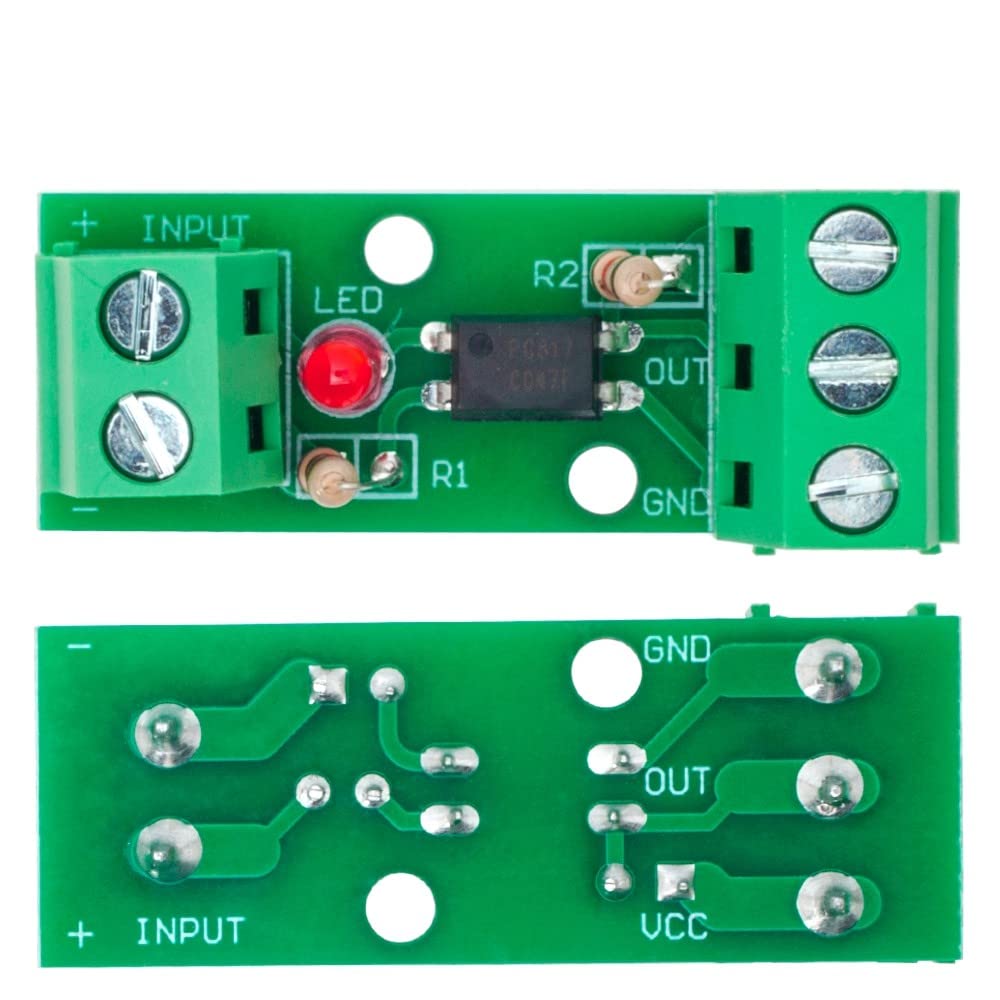

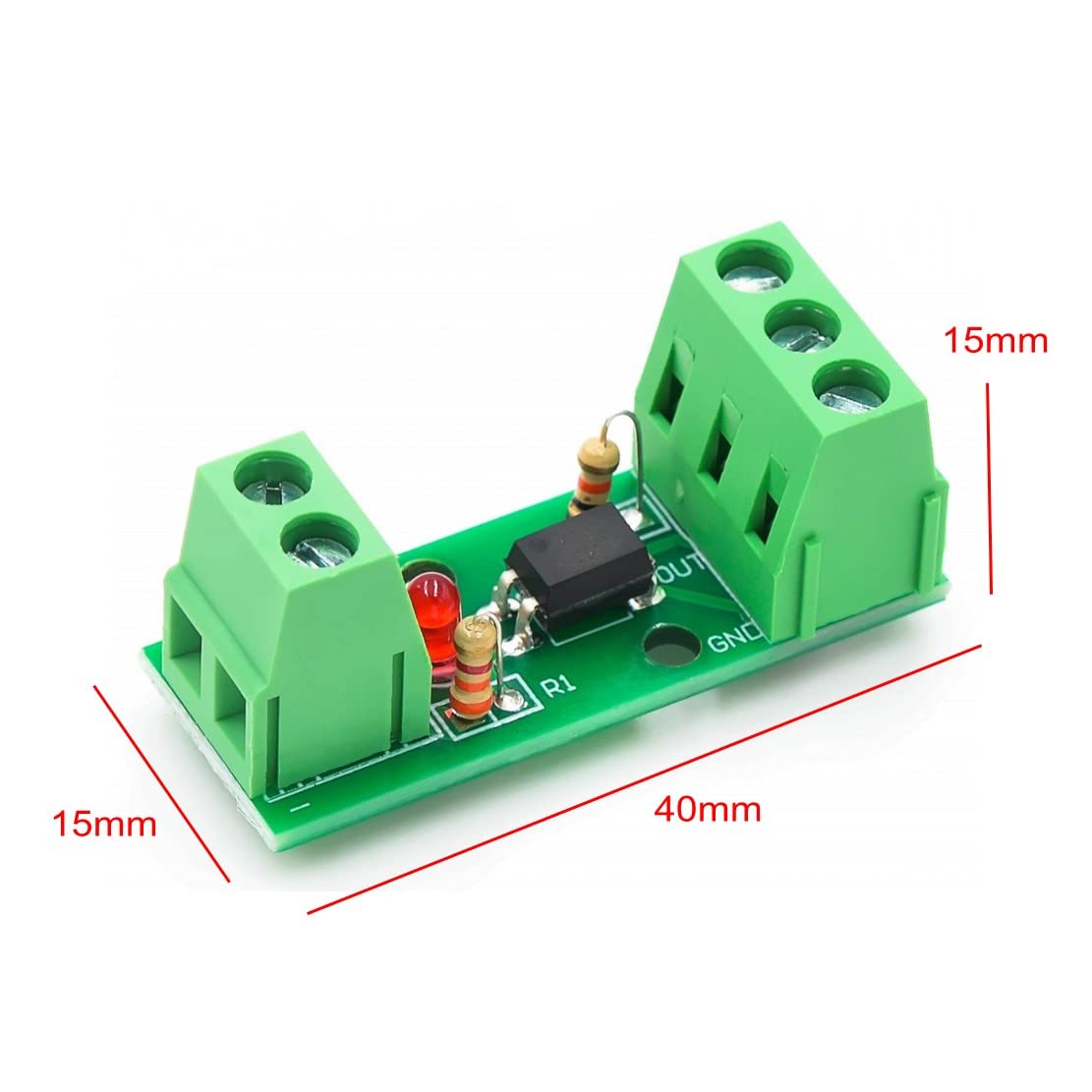

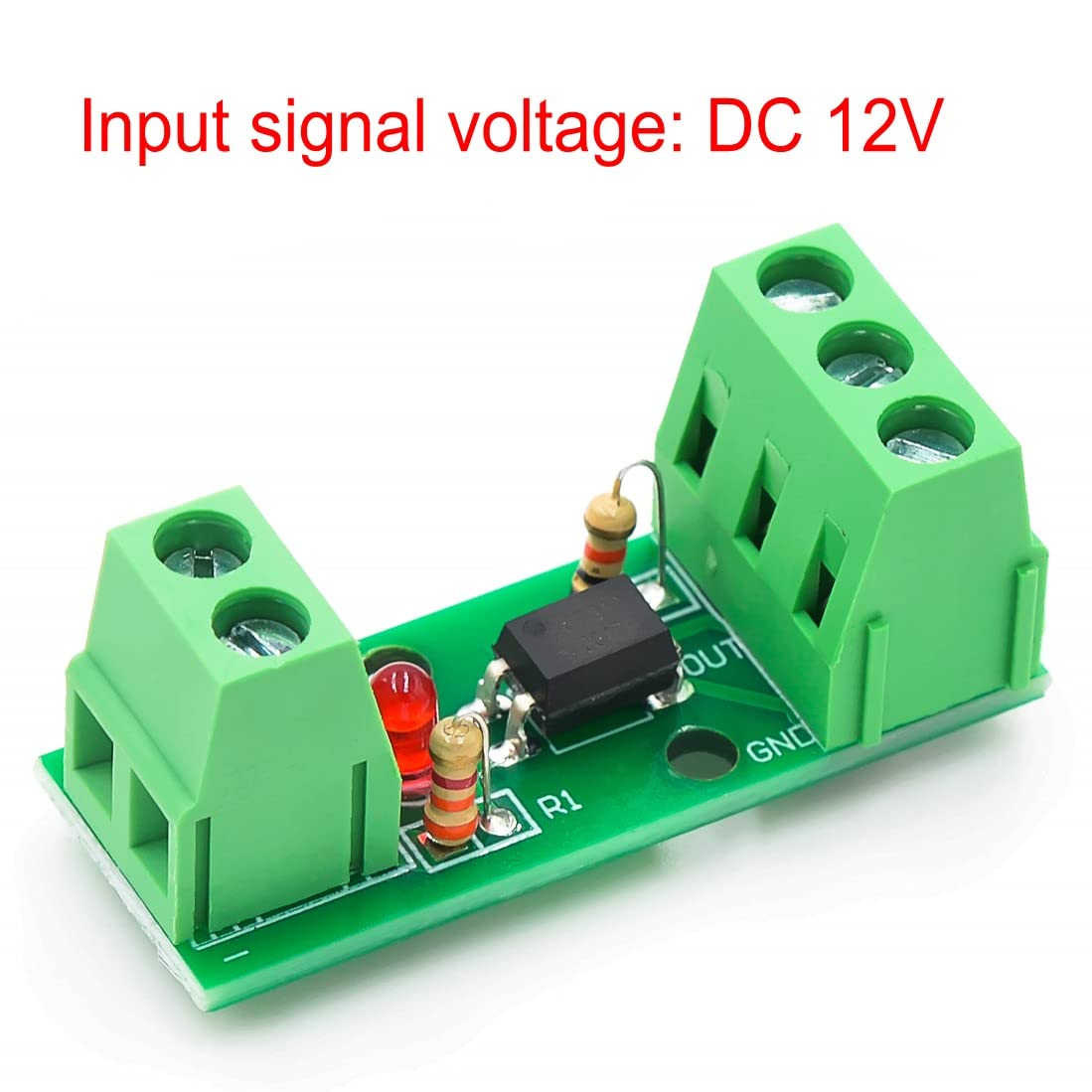

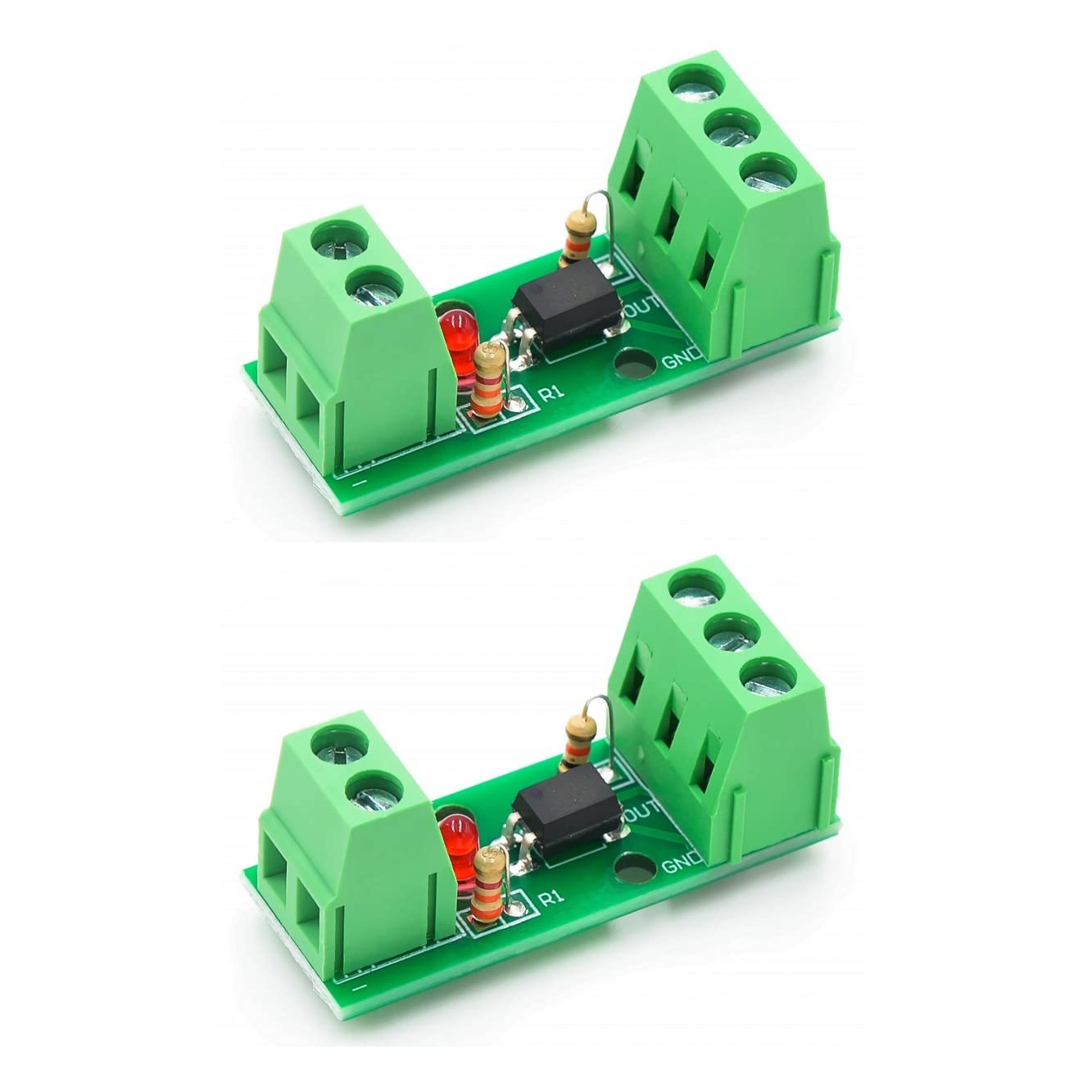

{"id":12982332653728,"title":"JZK 2Pcs Optical Isolator Module, Optocoupler 12V 80KHz 1 Channel Isolated Current Converter Board PC817 EL817 PLC Processors, Voltage Current Converter Module","handle":"jzk-2pcs-optical-isolator-module-optocoupler-12v-80khz-1-channel-isolated-current-converter-board-pc817-el817-plc-processors-voltage-current-converter-module","description":"\u003ch3\u003eJZK 2Pcs Optical Isolator Module, Optocoupler 12V 80KHz 1 Channel Isolated Current Converter Board PC817 EL817 PLC Processors, Voltage Current Converter Module\u003c\/h3\u003e \u003cp id=\"b\"\u003ePackage includes: 2pcs 12V 1-way optocoupler isolation module. Product parameters: Input signal voltage: DC 12V. Output voltage: Wide voltage suitable for DC1.8V-24V EL817 Features: Isolation voltage is greater than 3000V Input current max 50MA Working current\u0026gt;1MA Maximum output current 50MA (input current must be 15-20MA) Working temperature -55~110 degrees. Maximum application signal frequency: 5KHz Product introduction: The 1 channel optocoupler isolation module uses 5.0 pitch screw terminals for convenient wiring. The module is suitable for isolation when the output level of the SCM is used to drive inductive components such as motors, and anti-interference protects some circuits of the single-chip microcomputer. The module uses optocoupler isolation, which is stable and reliable and has a long service life.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eInput signal voltage: DC 12V. Output signal voltage: Wide voltage suitable for DC1.8V-24V. Features of the EL817: The isolation voltage is greater than 3000 V. Input current max. 50 mA. Working current \u0026gt;1MA. Maximum output current 50mA (input current must be 15-20mA).\u003c\/li\u003e \u003cli\u003eThe module is suitable for isolation when the output level of the SCM is used to drive inductive components such as motors, and anti-interference protects some circuits of the single-chip microcomputer.\u003c\/li\u003e \u003cli\u003eThe 1-channel optocoupler isolation module has 5.0 pitch screw terminals for convenient wiring.\u003c\/li\u003e \u003cli\u003eThe module uses optocoupler isolation , which is stable and reliable and has a long service life.\u003c\/li\u003e \u003cli\u003ePackage includes: 2 pieces 12V 1-way optocoupler isolation module.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-04-08T10:25:58+10:00","created_at":"2024-04-08T10:26:06+10:00","vendor":"JZK","type":"optocoupler","tags":["industryDE"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49453014974624,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09TF7LKVF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JZK 2Pcs Optical Isolator Module, Optocoupler 12V 80KHz 1 Channel Isolated Current Converter Board PC817 EL817 PLC Processors, Voltage Current Converter Module","public_title":null,"options":["Default Title"],"price":16100,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09TF7LKVF.jpg?v=1712618957","\/\/dingoship.com.au\/cdn\/shop\/files\/61qn2qkMvXL.jpg?v=1712535966","\/\/dingoship.com.au\/cdn\/shop\/files\/51Ejay9UoAL.jpg?v=1712535966","\/\/dingoship.com.au\/cdn\/shop\/files\/61tOS5IAydL.jpg?v=1712535966","\/\/dingoship.com.au\/cdn\/shop\/files\/51syGHx-3aL.jpg?v=1712535966","\/\/dingoship.com.au\/cdn\/shop\/files\/51kSIKIoTdL.jpg?v=1712535966"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09TF7LKVF.jpg?v=1712618957","options":["Title"],"media":[{"alt":null,"id":33828962959520,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1333,"width":1333,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09TF7LKVF.jpg?v=1712618957"},"aspect_ratio":1.0,"height":1333,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09TF7LKVF.jpg?v=1712618957","width":1333},{"alt":null,"id":33811830145184,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1099,"width":1099,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61qn2qkMvXL.jpg?v=1712535966"},"aspect_ratio":1.0,"height":1099,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61qn2qkMvXL.jpg?v=1712535966","width":1099},{"alt":null,"id":33811830177952,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1111,"width":1111,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51Ejay9UoAL.jpg?v=1712535966"},"aspect_ratio":1.0,"height":1111,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51Ejay9UoAL.jpg?v=1712535966","width":1111},{"alt":null,"id":33811830210720,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61tOS5IAydL.jpg?v=1712535966"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61tOS5IAydL.jpg?v=1712535966","width":1000},{"alt":null,"id":33811830243488,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1111,"width":1111,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51syGHx-3aL.jpg?v=1712535966"},"aspect_ratio":1.0,"height":1111,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51syGHx-3aL.jpg?v=1712535966","width":1111},{"alt":null,"id":33811830276256,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1222,"width":1222,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51kSIKIoTdL.jpg?v=1712535966"},"aspect_ratio":1.0,"height":1222,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51kSIKIoTdL.jpg?v=1712535966","width":1222}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJZK 2Pcs Optical Isolator Module, Optocoupler 12V 80KHz 1 Channel Isolated Current Converter Board PC817 EL817 PLC Processors, Voltage Current Converter Module\u003c\/h3\u003e \u003cp id=\"b\"\u003ePackage includes: 2pcs 12V 1-way optocoupler isolation module. Product parameters: Input signal voltage: DC 12V. Output voltage: Wide voltage suitable for DC1.8V-24V EL817 Features: Isolation voltage is greater than 3000V Input current max 50MA Working current\u0026gt;1MA Maximum output current 50MA (input current must be 15-20MA) Working temperature -55~110 degrees. Maximum application signal frequency: 5KHz Product introduction: The 1 channel optocoupler isolation module uses 5.0 pitch screw terminals for convenient wiring. The module is suitable for isolation when the output level of the SCM is used to drive inductive components such as motors, and anti-interference protects some circuits of the single-chip microcomputer. The module uses optocoupler isolation, which is stable and reliable and has a long service life.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eInput signal voltage: DC 12V. Output signal voltage: Wide voltage suitable for DC1.8V-24V. Features of the EL817: The isolation voltage is greater than 3000 V. Input current max. 50 mA. Working current \u0026gt;1MA. Maximum output current 50mA (input current must be 15-20mA).\u003c\/li\u003e \u003cli\u003eThe module is suitable for isolation when the output level of the SCM is used to drive inductive components such as motors, and anti-interference protects some circuits of the single-chip microcomputer.\u003c\/li\u003e \u003cli\u003eThe 1-channel optocoupler isolation module has 5.0 pitch screw terminals for convenient wiring.\u003c\/li\u003e \u003cli\u003eThe module uses optocoupler isolation , which is stable and reliable and has a long service life.\u003c\/li\u003e \u003cli\u003ePackage includes: 2 pieces 12V 1-way optocoupler isolation module.\u003c\/li\u003e \u003c\/ul\u003e"}
