How to use it: Step 1 : Download and install sigrok PluseView (. Step 2: Connect the logic analyzer to a USB port. Step 3: Run the Zadig driver installer (located in the C: 'Program Files (x86)' folder). Step 4: Run the PulseView Connect the cable at one end to the signal (e.g. CH0) and ground pins of the logic analyzer and at the other ports to the logic ports (digital output D3 or whatever for Arduino). .Step 5: Finally, do a small sketch to generate a PWM waveform on D3 and click the "Run" button in PulseView. It will be there in the PulseView display. Specification: Maximum sampling speed: 24Msps Input voltage range: 0~5V Digital Channel: 8 Low Input Level: <0.8V High Input Level: >1.4V Support Protocol: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite , PS/2 input impedance: 1Mohm || 10pF (typical, approximate) Crystal: ± 20 ppm, 24 MHz Error / Accuracy: Pulse width measurement: ± 42 ns (at 24 MHz) Dimensions (LxWxH): 55 x 28 x 14 mm Test hook clip dimensions: approx. 5 x 1.5 cm Note: The clips need to be soldered with a solid wire (<2 mm diameter) into which the included probe wires can be inserted, or solder the cables directly into the clips. Package contents: 1x logic analyzer 1x USB cable 1x 10-pin Ribbon Cable 12 x IC Hook Test Clip
Product Features

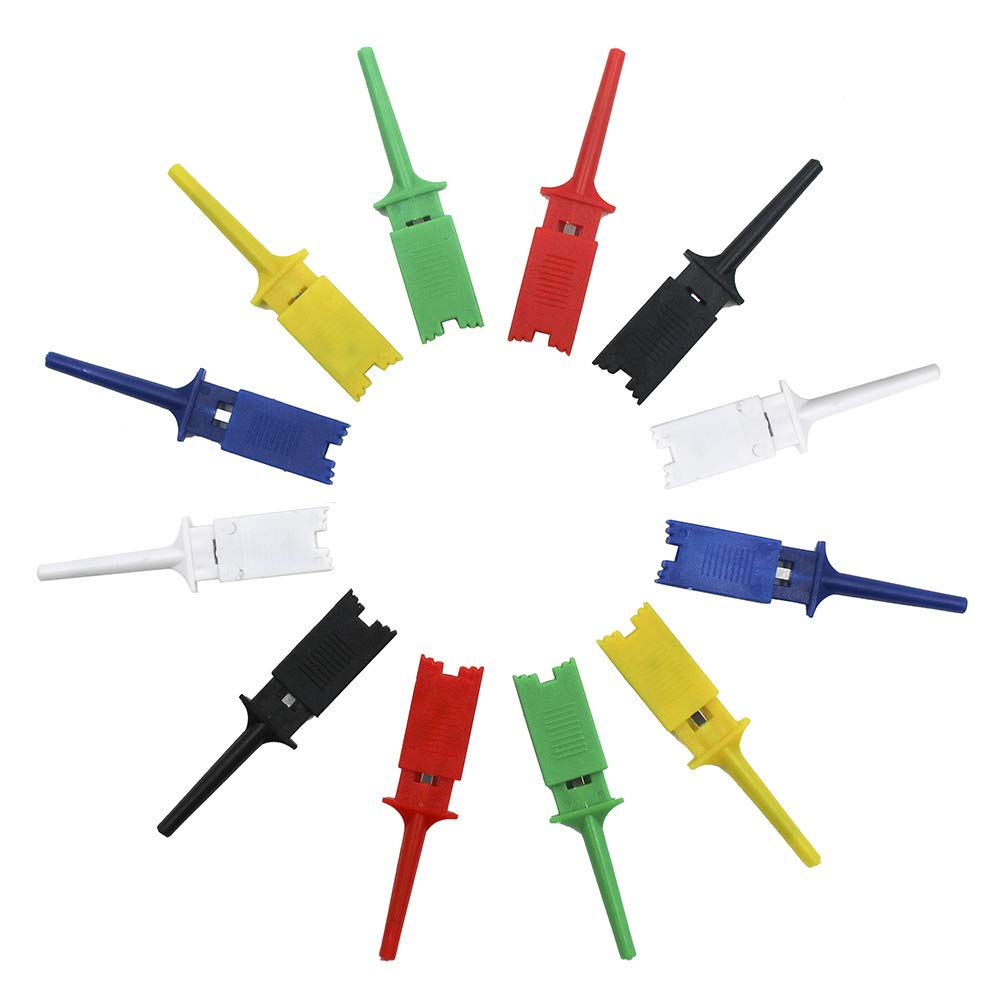

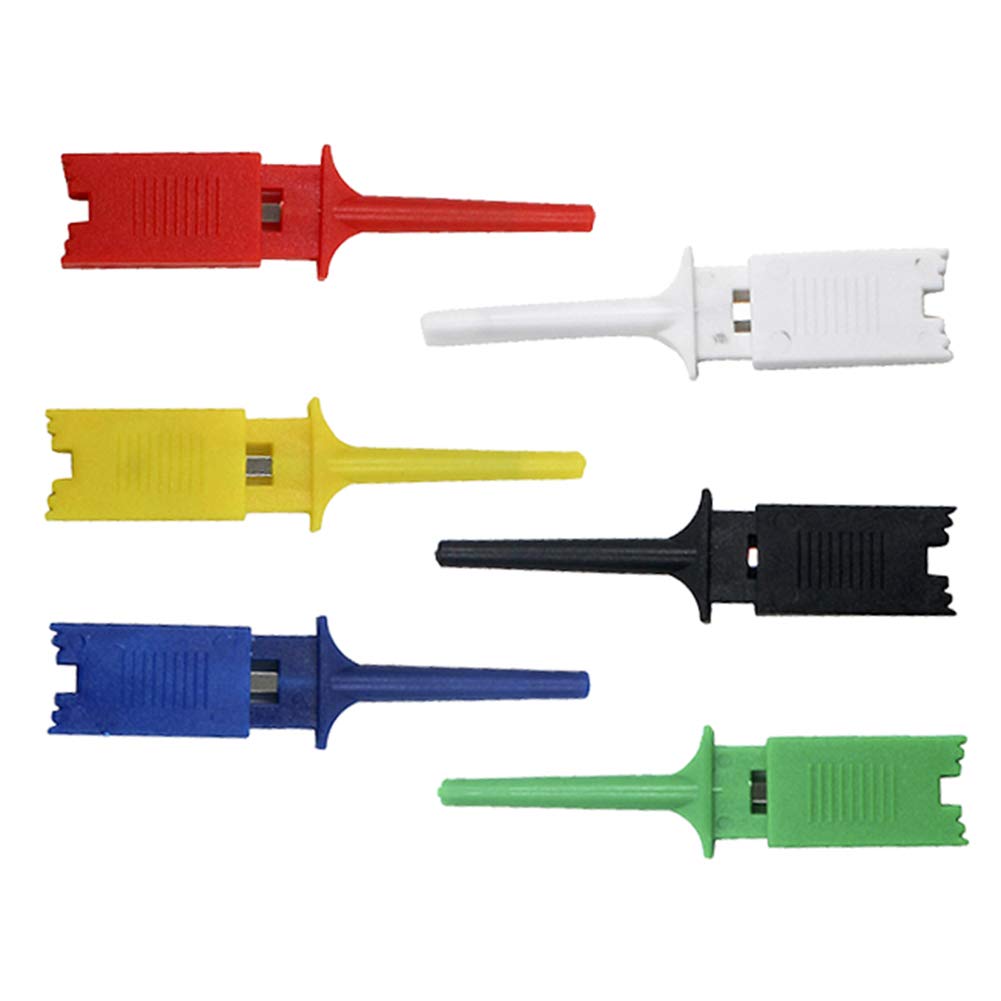

- This kit contains 12 pieces of SMD IC 6 colors test test clips, which are ideal for the use of this 24 MHz 8CH logic analyzer.
- You can download the open source programs Pulse View project from. It provides a very good GUI logic analyzer and protocol decoder.
- If you work on microcontrollers, ARM systems and FPGA development, we highly recommend you to buy this product! This article will help you solve your problem when running MCU-related products, especially for UART, SPI, IIC and other communications debugging.
- Compatible with Logic analysis software and open source programs such as B. sigrok (Protocol analysis of RS232, SPI, I2C, 1-Wire HD44780, etc.)
- Reliable technical support: We have a detailed tutorial that includes: guide, demo code, burning tools, required class libraries . Visit the website (github.com/Keeyees/KY-57) for instructions.
