Kiro&Seeu ADXL335 3-Axis Accelerometer Angular Transducer Sensor Module Analog Output Compatible with Ar-duino, (DXL335-MD-1P)

In Stock. Leaves warehouse within 2 - 3 business days

109.00 AUD
Maximum quantity available reached.
Enter 5DINGO at Checkout for 5% OFF & Free Shipping in Australia
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Kiro&Seeu ADXL335 3-Axis Accelerometer Angular Transducer Sensor Module Analog Output Compatible with Ar-duino, (DXL335-MD-1P)

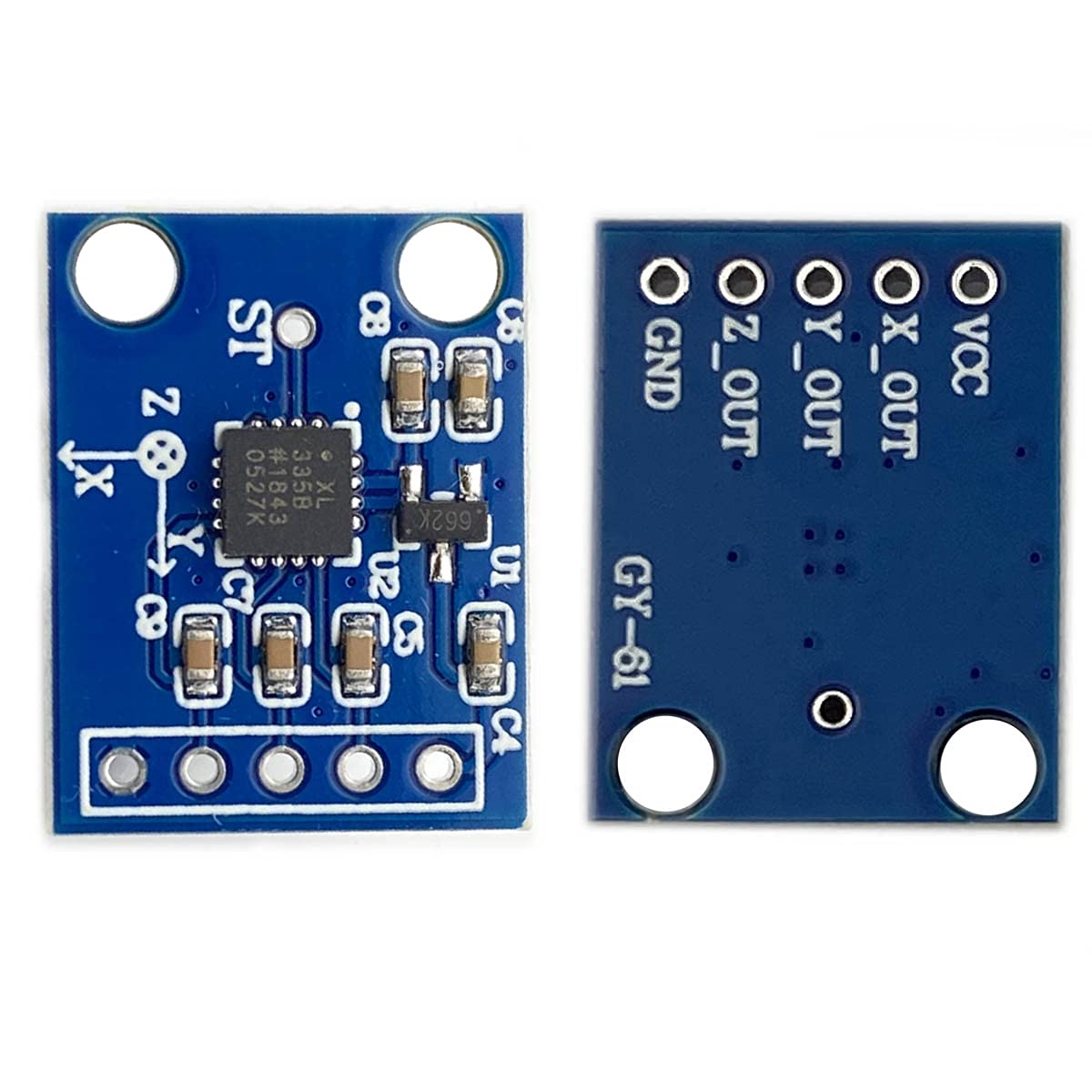

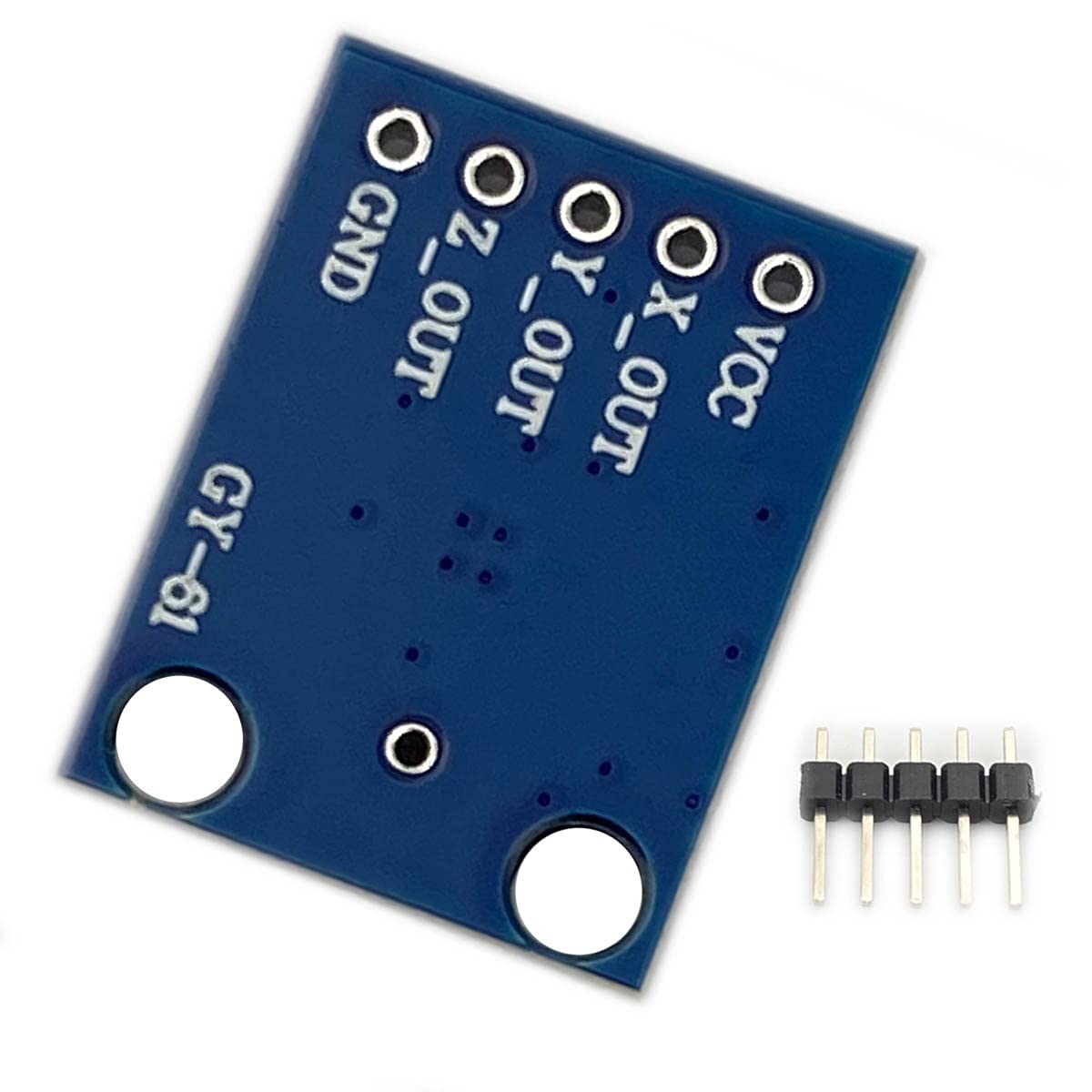

ADXL335 Module 3-axis Digital Gravity Angle Sensor Tilt Angle Module Schematic and reference code download lInk: Description: The ADXL335 is a small, low profile, low power, complete three-axis accelerometer that provides a signal- conditioned voltage output that measures acceleration over a full ±30 g range. It measures static gravitational acceleration in tilt detection applications as well as dynamic acceleration caused by motion, shock or vibration. The user selects the bandwidth of the accelerometer using the capacitors XOUT, YOUT, and ZOUT on the CX, CY, and CZ pins. The appropriate bandwidth can be selected depending on the application. The X-axis and Y-axis bandwidths range from 0.5 Hz to 1600 Hz, and the Z-axis bandwidth ranges from 0.5 Hz to 550 Hz. Parameter: Power supply: 3~5 V Supply current: 400uA Communication interface: analog output Operating temperature: -40 ° C ~ 85 ° C. Dimensions (length x width x height): 15.7 mm × 20.3 mm × 11.6 mm. Pin description: VCC: Power supply range 3-5V. X_OUT: X-axis output. Y_OUT : Y axis output. Z_OUT : Z-axis output. GND: Power ground. Package Included: 1pcs ADXL335 Module 3-axis Digital Gravity Angle Sensor Tilt Angle Module

Product Features

  • The ADXL335 is a small, low profile, low power, complete three-axis accelerometer that provides a signal-conditioned voltage output that measures acceleration over a full 30 g range.
  • It measures static gravitational acceleration in tilt detection applications as well as dynamic acceleration caused by motion, shock or vibration.
  • The user selects the bandwidth of the accelerometer using the capacitors X_OUT, Y_OUT, and Z_OUT on the CX, CY, and CZ pins.
  • The appropriate bandwidth can be selected depending on the application. The X-axis and Y-axis bandwidths range from 0.5 Hz to 1600 Hz, and the Z-axis bandwidth ranges from 0.5 Hz to 550 Hz.
  • Power supply: 3~5 V, supply current: 400uA.
