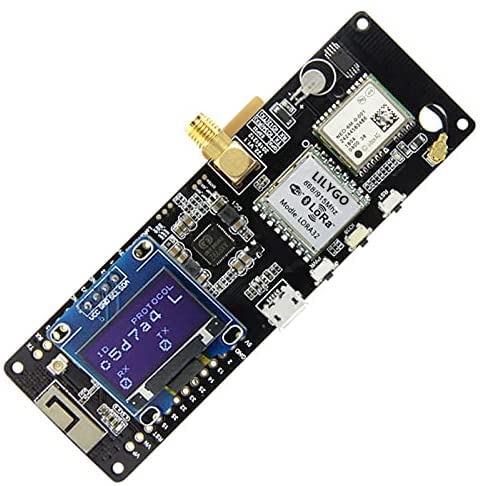

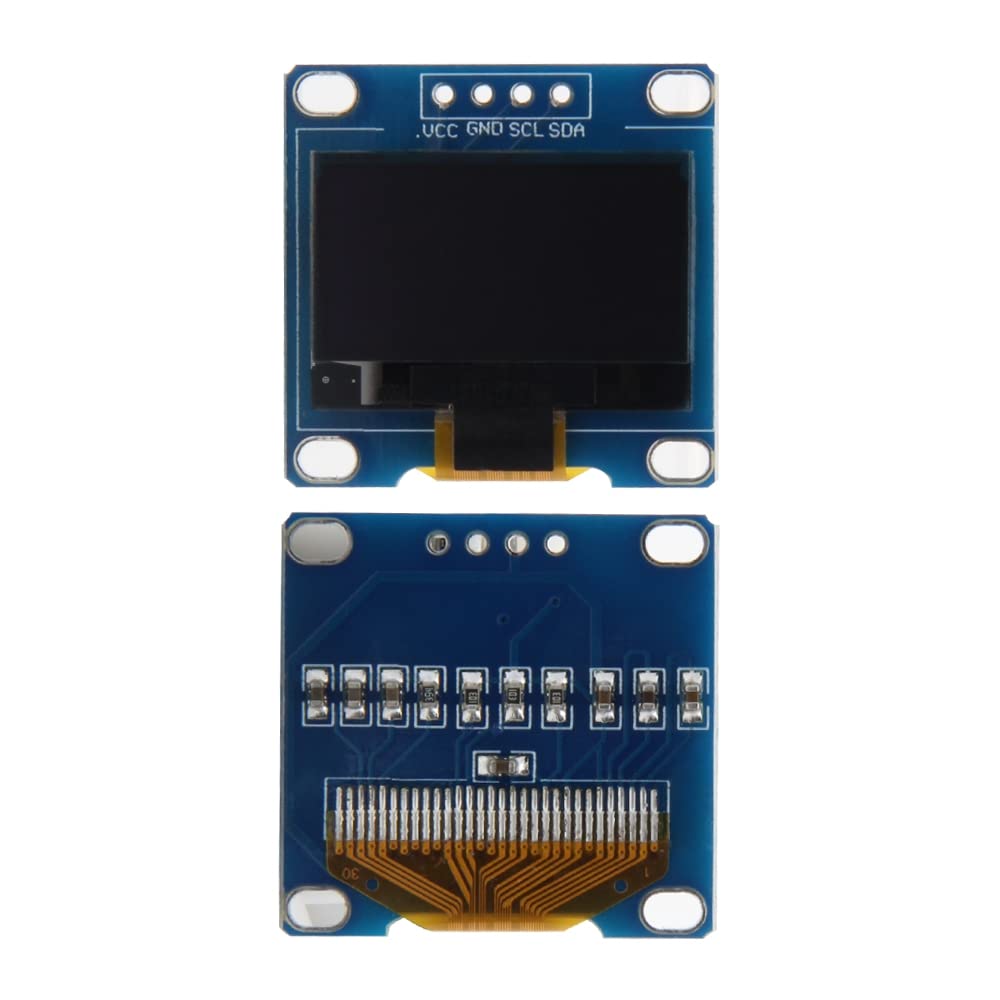

{"id":7409387733152,"title":"LILYGO LORA32 T-Beam V1.1 ESP32 Development Board WiFi BLE CH9102F Chip TTGO OLED Module","handle":"lilygo-lora32-t-beam-v1-1-esp32-development-board-wifi-ble-ch9102f-chip-ttgo-oled-module","description":"\u003ch3\u003eLILYGO LORA32 T-Beam V1.1 ESP32 Development Board WiFi BLE CH9102F Chip TTGO OLED Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct introduction Meshtastic program is not pre-\ninstalled on this product. If you need to install, please check the steps\ngithub.com\/geeksville\/Meshtastic-Android\/blob\/master\/README.md\ngithub.com\/meshtastic\/Meshtastic-device\/releases Product Display GPS - GPS\nmodules NEO-6M with ceramic antenna - Save the configuration parameter data\nEEPROM Down with data backup battery - There are LED signal indicator -\nDefault Baud Rate: 9600 Power - Power Supply Input: USB 5V\/1A - Charging\ncurrent: 500mA - Battery Input: 3.7-4.2V - Charge IC: AXP192 Working voltage:\n1.8~3.7v Acceptable current：10~14mA Transmit current: 120mA@+20dBm 90mA@+17dBm\n29mA@+13dBm Operating frequency:915MHz version Transmit power: +20dBm\nFrequency error：+\/-15KHz FIFO space ： 64Byte Data rate ：1.2K~300Kbps@FSK\n0.018K~37.5Kbps@LoRa Interface form ： SPI Sleep current\n：0.2uA@SLEEP，1.5uA@IDLE Operating temperature ：-40℃- +85℃ Read more Shipping\nList： 1LILYGO T-BEAM 1 915 MHZ ANTENNA 2PIN 1OLED All products are\npackaged in foam and boxes to prevent collision during transportation T-beam\nand OLED come in separate boxes protected by black foam tape Read more Read\nmore\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e-8MB PSRAM\/4MB FLASH\u003c\/li\u003e\n \u003cli\u003e-Digital RSSI function\u003c\/li\u003e\n \u003cli\u003e-Lora antenna connector is RG316\u003c\/li\u003e\n \u003cli\u003e-GPS modules NEO-6M with ceramic antenna\u003c\/li\u003e\n \u003cli\u003e-128 x 64 high resolution OLED with 0.96 inch screen\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-09T18:11:53+10:00","created_at":"2022-06-09T18:12:04+10:00","vendor":"LILYGO","type":"Single Board Computers","tags":["dingo"],"price":21700,"price_min":21700,"price_max":21700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42172677193888,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09VLFQQG4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LILYGO LORA32 T-Beam V1.1 ESP32 Development Board WiFi BLE CH9102F Chip TTGO OLED Module","public_title":null,"options":["Default Title"],"price":21700,"weight":41,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B09VLFQQG4.jpg?v=1654816734","\/\/dingoship.com.au\/cdn\/shop\/products\/61Wldn-ghRL.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/51H9gI4TjYL.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/51Hq7AJ-9jL.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/51Yg4o0skYL.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/51G_nn_guXL.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/51k8M2Sbe4L.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/515ANBt6VzL.jpg?v=1654762324","\/\/dingoship.com.au\/cdn\/shop\/products\/411a57NVN8L.jpg?v=1654762324"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09VLFQQG4.jpg?v=1654816734","options":["Title"],"media":[{"alt":null,"id":24831917523104,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09VLFQQG4.jpg?v=1654816734"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09VLFQQG4.jpg?v=1654816734","width":1000},{"alt":null,"id":24826830258336,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Wldn-ghRL.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Wldn-ghRL.jpg?v=1654762324","width":1000},{"alt":null,"id":24826830291104,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51H9gI4TjYL.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51H9gI4TjYL.jpg?v=1654762324","width":1000},{"alt":null,"id":24826830323872,"position":4,"preview_image":{"aspect_ratio":0.988,"height":486,"width":480,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Hq7AJ-9jL.jpg?v=1654762324"},"aspect_ratio":0.988,"height":486,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Hq7AJ-9jL.jpg?v=1654762324","width":480},{"alt":null,"id":24826830389408,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Yg4o0skYL.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Yg4o0skYL.jpg?v=1654762324","width":1000},{"alt":null,"id":24826830422176,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51G_nn_guXL.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51G_nn_guXL.jpg?v=1654762324","width":1000},{"alt":null,"id":24826830454944,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51k8M2Sbe4L.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51k8M2Sbe4L.jpg?v=1654762324","width":1000},{"alt":null,"id":24826830487712,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/515ANBt6VzL.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/515ANBt6VzL.jpg?v=1654762324","width":1000},{"alt":null,"id":24826830520480,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/411a57NVN8L.jpg?v=1654762324"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/411a57NVN8L.jpg?v=1654762324","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLILYGO LORA32 T-Beam V1.1 ESP32 Development Board WiFi BLE CH9102F Chip TTGO OLED Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct introduction Meshtastic program is not pre-\ninstalled on this product. If you need to install, please check the steps\ngithub.com\/geeksville\/Meshtastic-Android\/blob\/master\/README.md\ngithub.com\/meshtastic\/Meshtastic-device\/releases Product Display GPS - GPS\nmodules NEO-6M with ceramic antenna - Save the configuration parameter data\nEEPROM Down with data backup battery - There are LED signal indicator -\nDefault Baud Rate: 9600 Power - Power Supply Input: USB 5V\/1A - Charging\ncurrent: 500mA - Battery Input: 3.7-4.2V - Charge IC: AXP192 Working voltage:\n1.8~3.7v Acceptable current：10~14mA Transmit current: 120mA@+20dBm 90mA@+17dBm\n29mA@+13dBm Operating frequency:915MHz version Transmit power: +20dBm\nFrequency error：+\/-15KHz FIFO space ： 64Byte Data rate ：1.2K~300Kbps@FSK\n0.018K~37.5Kbps@LoRa Interface form ： SPI Sleep current\n：0.2uA@SLEEP，1.5uA@IDLE Operating temperature ：-40℃- +85℃ Read more Shipping\nList： 1LILYGO T-BEAM 1 915 MHZ ANTENNA 2PIN 1OLED All products are\npackaged in foam and boxes to prevent collision during transportation T-beam\nand OLED come in separate boxes protected by black foam tape Read more Read\nmore\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e-8MB PSRAM\/4MB FLASH\u003c\/li\u003e\n \u003cli\u003e-Digital RSSI function\u003c\/li\u003e\n \u003cli\u003e-Lora antenna connector is RG316\u003c\/li\u003e\n \u003cli\u003e-GPS modules NEO-6M with ceramic antenna\u003c\/li\u003e\n \u003cli\u003e-128 x 64 high resolution OLED with 0.96 inch screen\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
