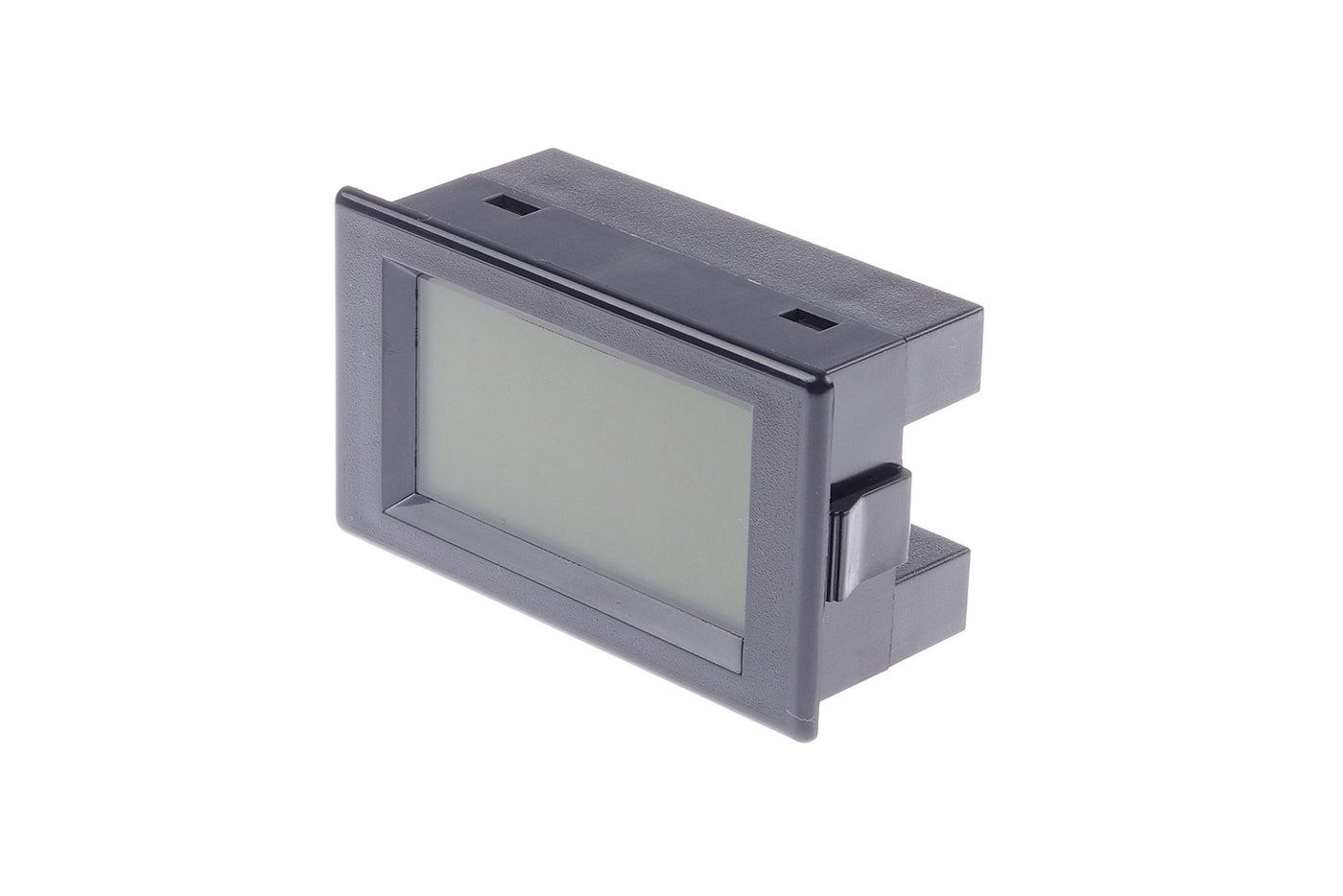

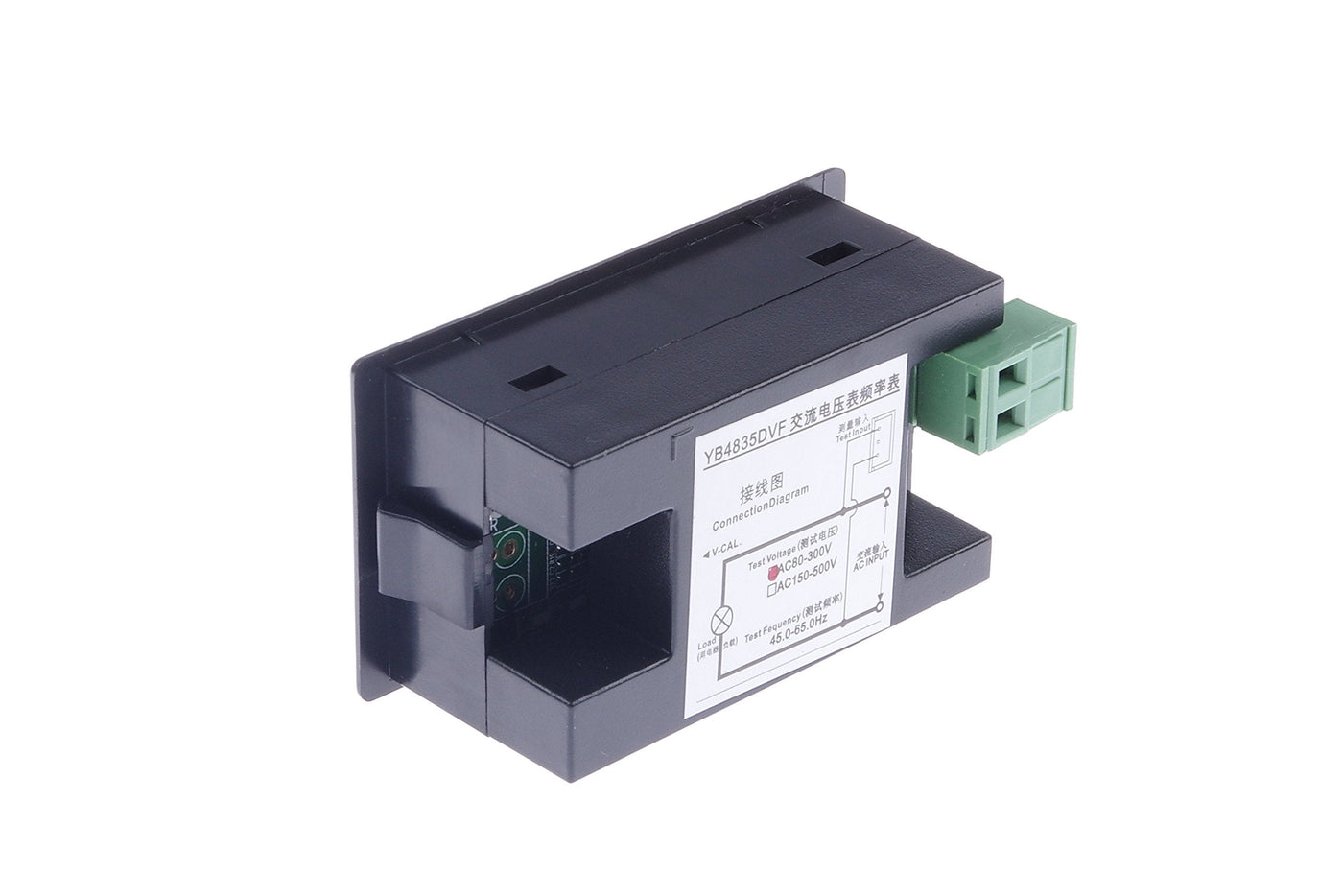

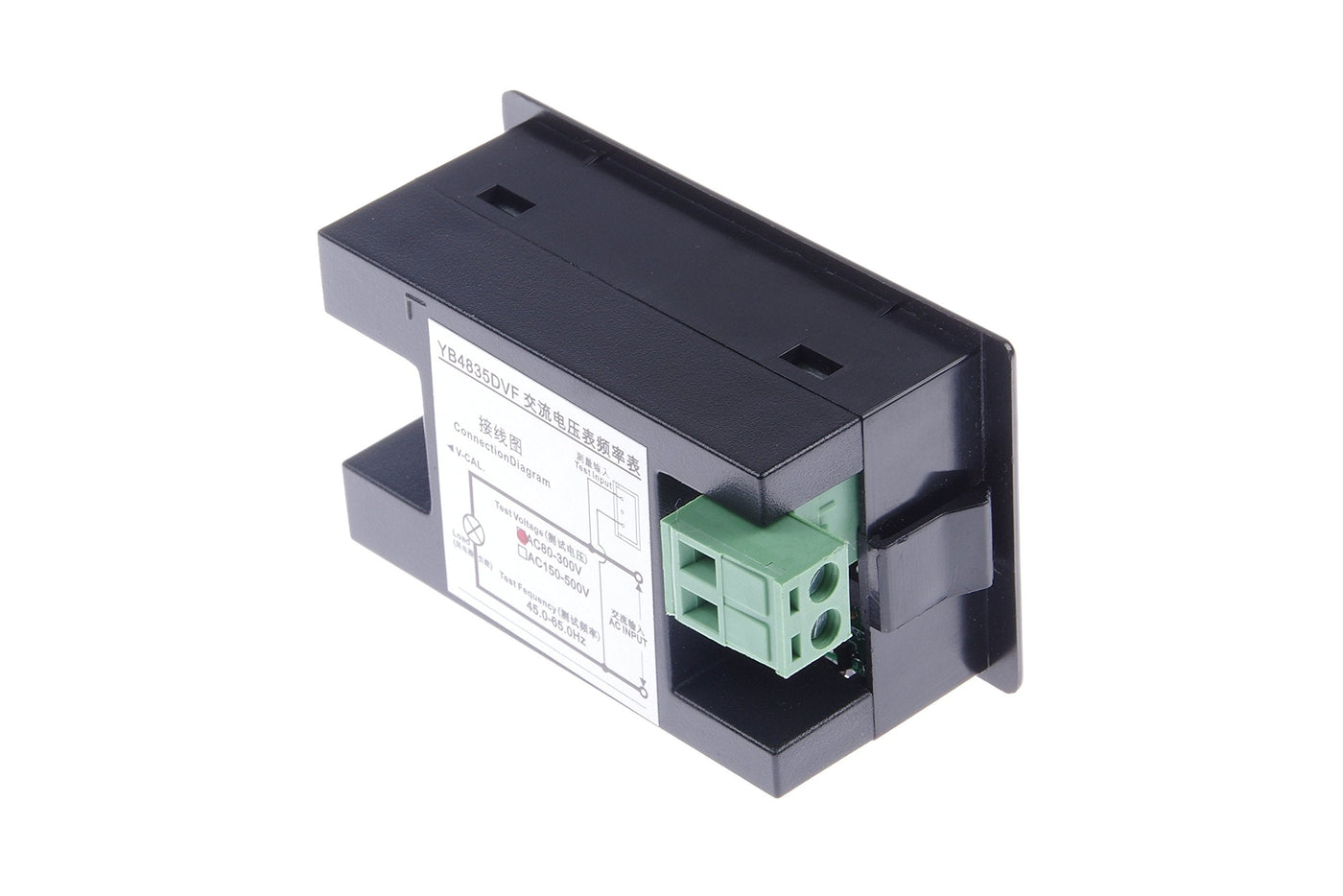

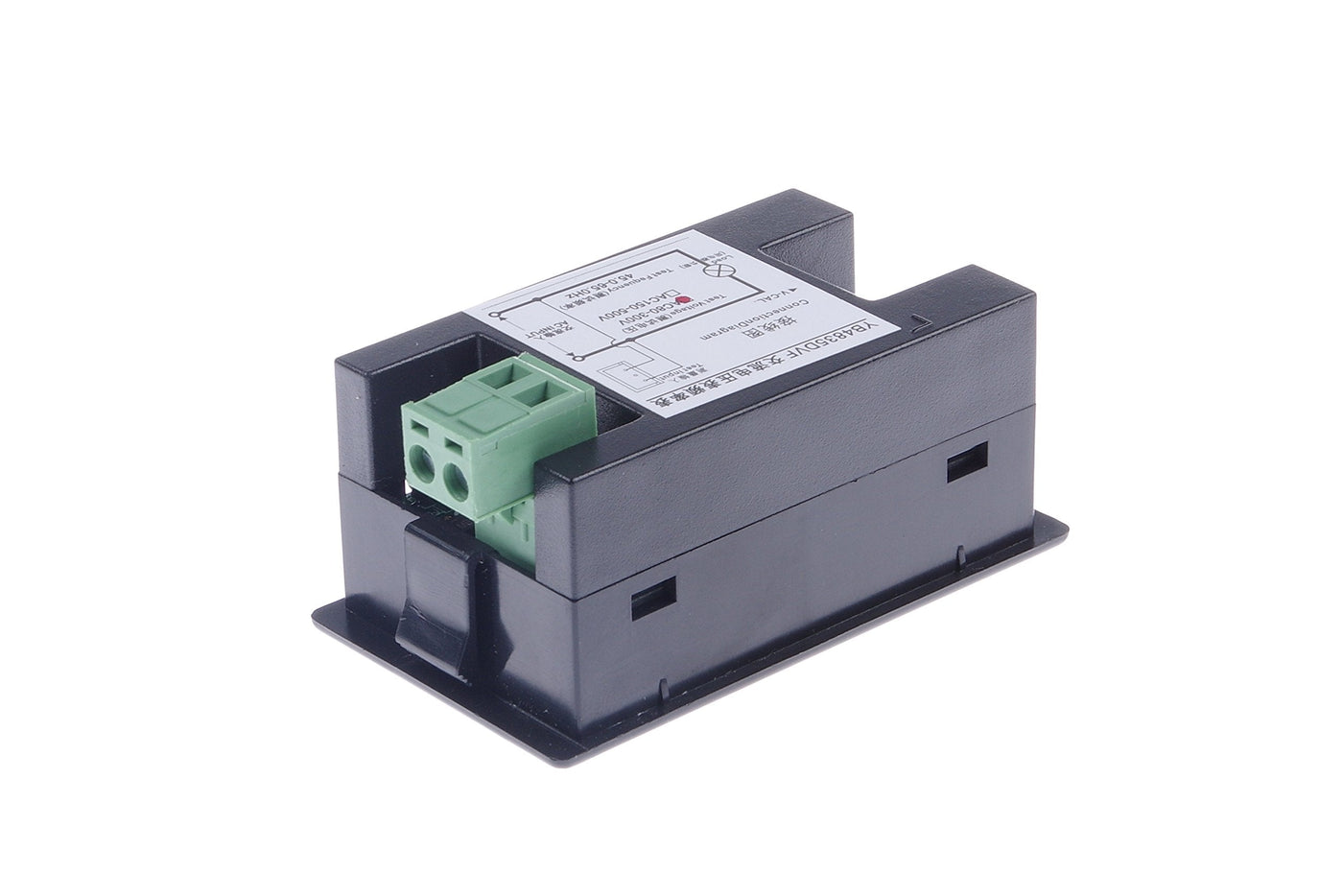

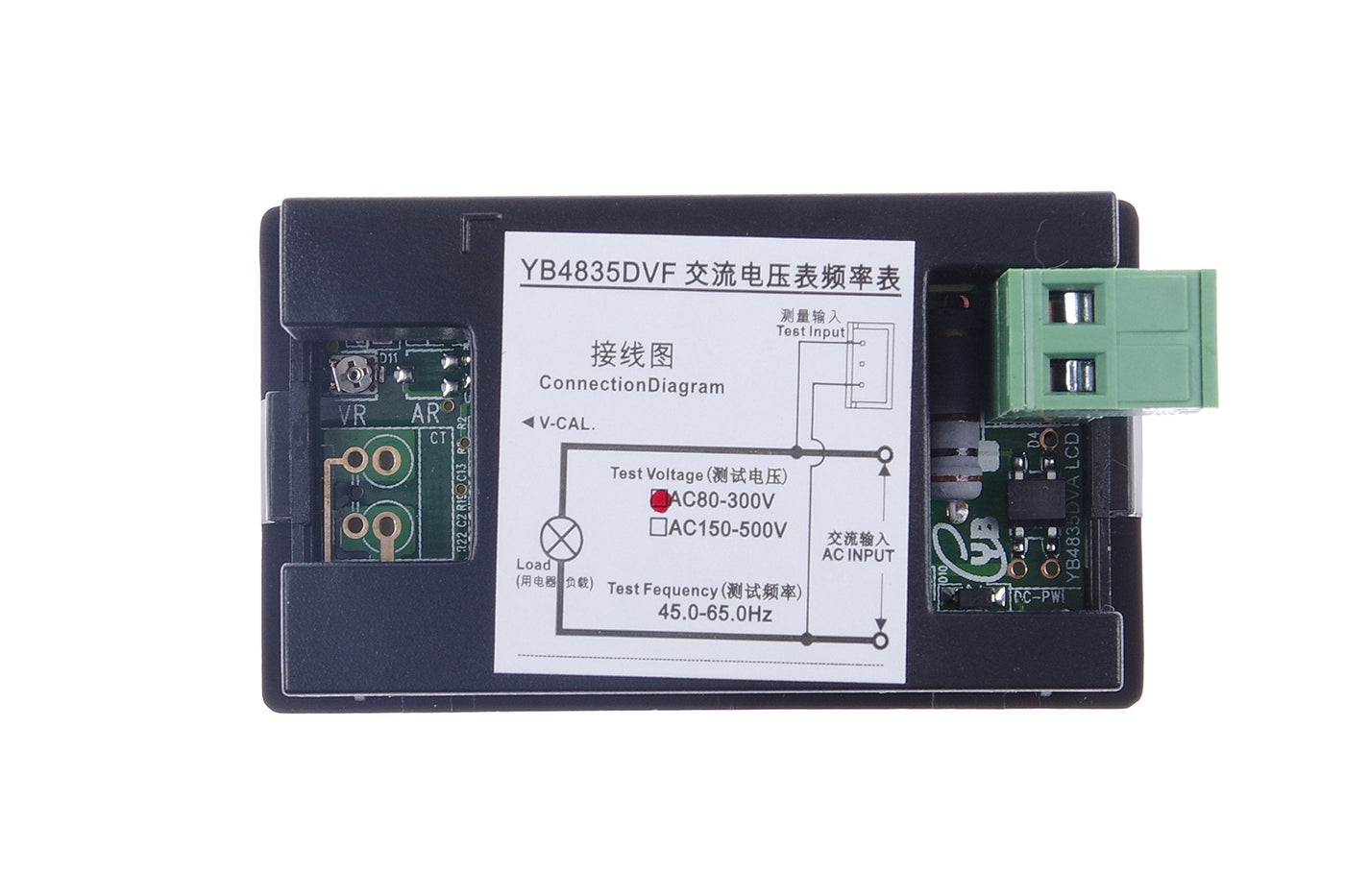

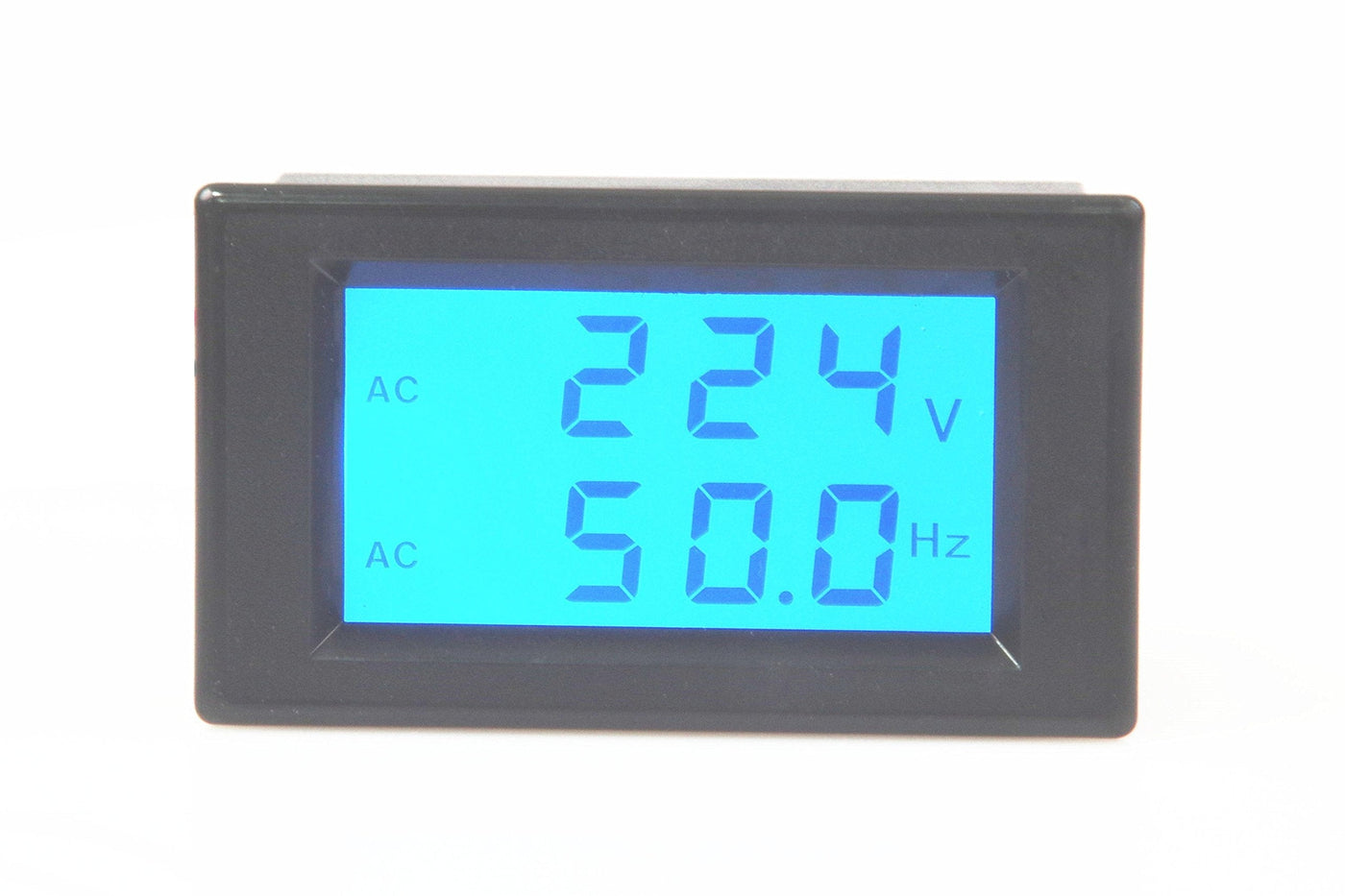

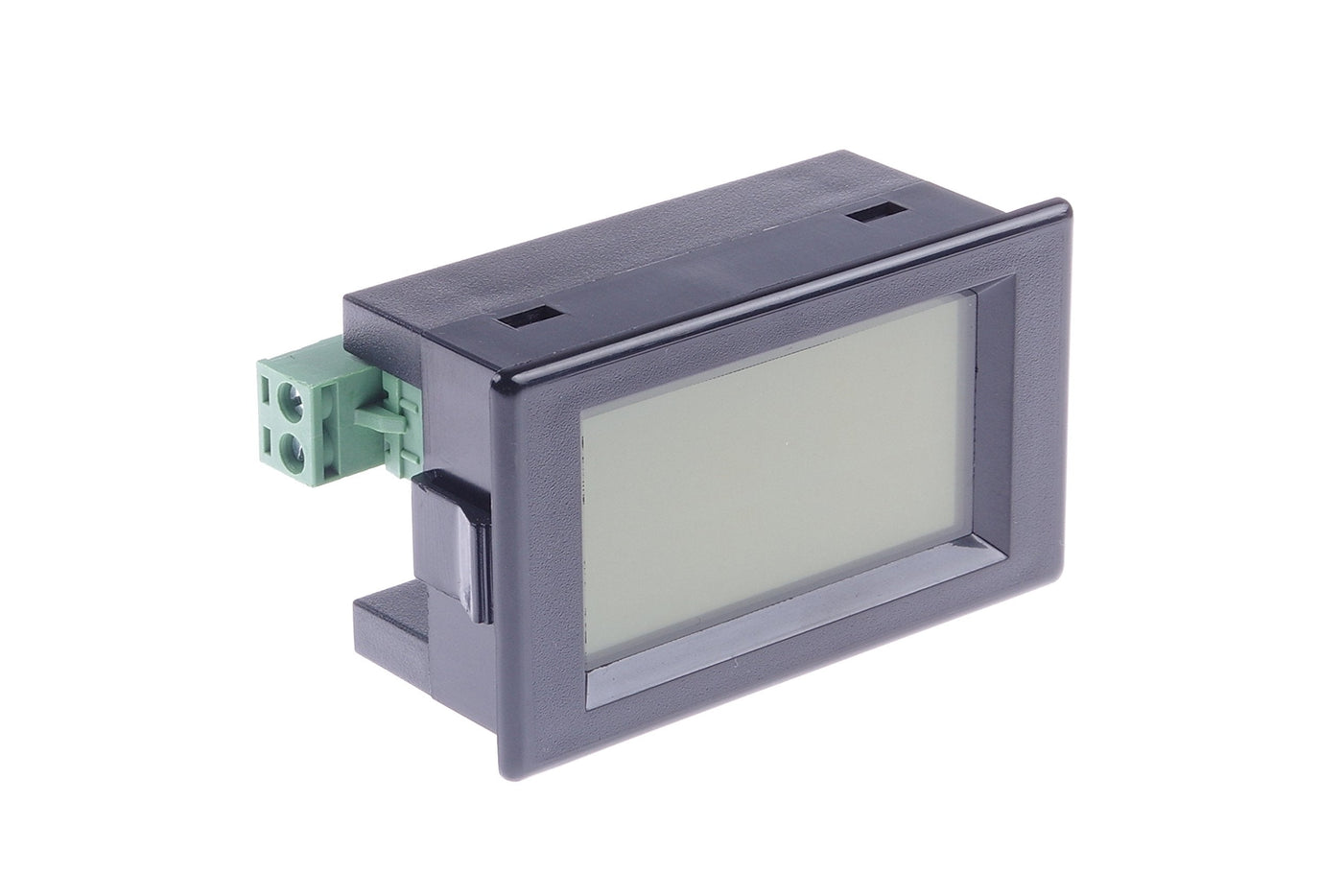

{"id":7414067855520,"title":"LM YN Digital AC Voltmeter AC80-300V Frequency Counter 45.0-65.0HZ LCD Display Voltage Frequency 2 in 1 Meter Tester","handle":"lm-yn-digital-ac-voltmeter-ac80-300v-frequency-counter-45-0-65-0hz-lcd-display-voltage-frequency-2-in-1-meter-tester","description":"\u003ch3\u003eLM YN Digital AC Voltmeter AC80-300V Frequency Counter 45.0-65.0HZ LCD Display Voltage Frequency 2 in 1 Meter Tester\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Accuracy: 1％±2 digits . Display: LCD displayer . Measuring Range:\nAC 80-300.0V . Testing Frequency: 45-65.0Hz . Measuring Velocity: 2 times\/sec\n. Product Size: 70 mm x 40 mm x 30mm（LWH） . Extreme Working Condition:\nOperating Temperature: -10～+50℃ . Operating Humidity: 10～80%(no condensation)\n. Working Pressure: 80～106kPa . Sunlight Irradiation: No . Note: 1.Needn't\npower supply: you can dirrectly connect two wires to the tested voltage to\nmeasure voltage and frequency . 2.This meter is only suitable for AC45-65Hz\nmains supply, This voltmeter is designed using the principle of capacitor\nstep-down. Because the higher the frequency, the smaller the impedance of the\ncapacitor, so it is not suitable for high-frequency electronic speed\nregulation, unconventional AC sine wave frequencies, or other high-frequency\nequipment. Otherwise, it may appear inaccurate test or damaged voltmeter..\nPackage Included: 1× Digital AC Voltmeter AC80-300V Frequency Counter\n45.0-65.0HZ LCD Display Voltage Frequency 2 in 1 Meter Tester If you for any\nreason are not happy with any product supplied , please do not hesitate to\ncontact us and we will do our best to solve your problem .\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 in 1 meter which can measure AC voltage and frequency simultaneously, with potentiometer for frequency calibration, turn the screw clockwise to increase frequency and turn the screw anticlockwise to reduce the frequency.\u003c\/li\u003e\n \u003cli\u003eIt can directly connect two wires to the tested voltage to measure voltage and frequency without power supply.\u003c\/li\u003e\n \u003cli\u003eIt is for testing AC 80V to 300V with high accuracy and high working efficiency of 2 times\/s measuring speed.\u003c\/li\u003e\n \u003cli\u003eOnly suitable for AC45-65Hz mains supply,This voltmeter is designed using the principle of capacitor step-down. Because the higher the frequency, the smaller the impedance of the capacitor, so it is not suitable for high-frequency electronic speed regulation, unconventional AC sine wave frequencies, or other high-frequency equipment. Otherwise, it may appear inaccurate test or damaged voltmeter.\u003c\/li\u003e\n \u003cli\u003eTwo wires direct connection, standard installation size, can work under extreme environmental condition.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T15:23:20+10:00","created_at":"2022-06-14T15:23:26+10:00","vendor":"LM YN","type":"Voltage Testers","tags":["dingo"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194443337888,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01M1J97QM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LM YN Digital AC Voltmeter AC80-300V Frequency Counter 45.0-65.0HZ LCD Display Voltage Frequency 2 in 1 Meter Tester","public_title":null,"options":["Default Title"],"price":12300,"weight":45,"compare_at_price":null,"inventory_management":null,"barcode":"603983633250","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B01M1J97QM.jpg?v=1655252354","\/\/dingoship.com.au\/cdn\/shop\/products\/712KgtVZivL.jpg?v=1655184206","\/\/dingoship.com.au\/cdn\/shop\/products\/71sJ5qDrZ5L.jpg?v=1655184206","\/\/dingoship.com.au\/cdn\/shop\/products\/71_TKzWpS-L.jpg?v=1655184206","\/\/dingoship.com.au\/cdn\/shop\/products\/71nEp4op3-L.jpg?v=1655184206","\/\/dingoship.com.au\/cdn\/shop\/products\/817JUzePReL.jpg?v=1655184206","\/\/dingoship.com.au\/cdn\/shop\/products\/71Hec0UXIpL.jpg?v=1655184206"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B01M1J97QM.jpg?v=1655252354","options":["Title"],"media":[{"alt":null,"id":24860378759328,"position":1,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B01M1J97QM.jpg?v=1655252354"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B01M1J97QM.jpg?v=1655252354","width":2560},{"alt":null,"id":24854093365408,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/712KgtVZivL.jpg?v=1655184206"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/712KgtVZivL.jpg?v=1655184206","width":2560},{"alt":null,"id":24854093398176,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71sJ5qDrZ5L.jpg?v=1655184206"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71sJ5qDrZ5L.jpg?v=1655184206","width":2560},{"alt":null,"id":24854093430944,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71_TKzWpS-L.jpg?v=1655184206"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71_TKzWpS-L.jpg?v=1655184206","width":2560},{"alt":null,"id":24854093463712,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71nEp4op3-L.jpg?v=1655184206"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71nEp4op3-L.jpg?v=1655184206","width":2560},{"alt":null,"id":24854093496480,"position":6,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/817JUzePReL.jpg?v=1655184206"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/817JUzePReL.jpg?v=1655184206","width":2560},{"alt":null,"id":24854093529248,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Hec0UXIpL.jpg?v=1655184206"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Hec0UXIpL.jpg?v=1655184206","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLM YN Digital AC Voltmeter AC80-300V Frequency Counter 45.0-65.0HZ LCD Display Voltage Frequency 2 in 1 Meter Tester\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Accuracy: 1％±2 digits . Display: LCD displayer . Measuring Range:\nAC 80-300.0V . Testing Frequency: 45-65.0Hz . Measuring Velocity: 2 times\/sec\n. Product Size: 70 mm x 40 mm x 30mm（LWH） . Extreme Working Condition:\nOperating Temperature: -10～+50℃ . Operating Humidity: 10～80%(no condensation)\n. Working Pressure: 80～106kPa . Sunlight Irradiation: No . Note: 1.Needn't\npower supply: you can dirrectly connect two wires to the tested voltage to\nmeasure voltage and frequency . 2.This meter is only suitable for AC45-65Hz\nmains supply, This voltmeter is designed using the principle of capacitor\nstep-down. Because the higher the frequency, the smaller the impedance of the\ncapacitor, so it is not suitable for high-frequency electronic speed\nregulation, unconventional AC sine wave frequencies, or other high-frequency\nequipment. Otherwise, it may appear inaccurate test or damaged voltmeter..\nPackage Included: 1× Digital AC Voltmeter AC80-300V Frequency Counter\n45.0-65.0HZ LCD Display Voltage Frequency 2 in 1 Meter Tester If you for any\nreason are not happy with any product supplied , please do not hesitate to\ncontact us and we will do our best to solve your problem .\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 in 1 meter which can measure AC voltage and frequency simultaneously, with potentiometer for frequency calibration, turn the screw clockwise to increase frequency and turn the screw anticlockwise to reduce the frequency.\u003c\/li\u003e\n \u003cli\u003eIt can directly connect two wires to the tested voltage to measure voltage and frequency without power supply.\u003c\/li\u003e\n \u003cli\u003eIt is for testing AC 80V to 300V with high accuracy and high working efficiency of 2 times\/s measuring speed.\u003c\/li\u003e\n \u003cli\u003eOnly suitable for AC45-65Hz mains supply,This voltmeter is designed using the principle of capacitor step-down. Because the higher the frequency, the smaller the impedance of the capacitor, so it is not suitable for high-frequency electronic speed regulation, unconventional AC sine wave frequencies, or other high-frequency equipment. Otherwise, it may appear inaccurate test or damaged voltmeter.\u003c\/li\u003e\n \u003cli\u003eTwo wires direct connection, standard installation size, can work under extreme environmental condition.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
