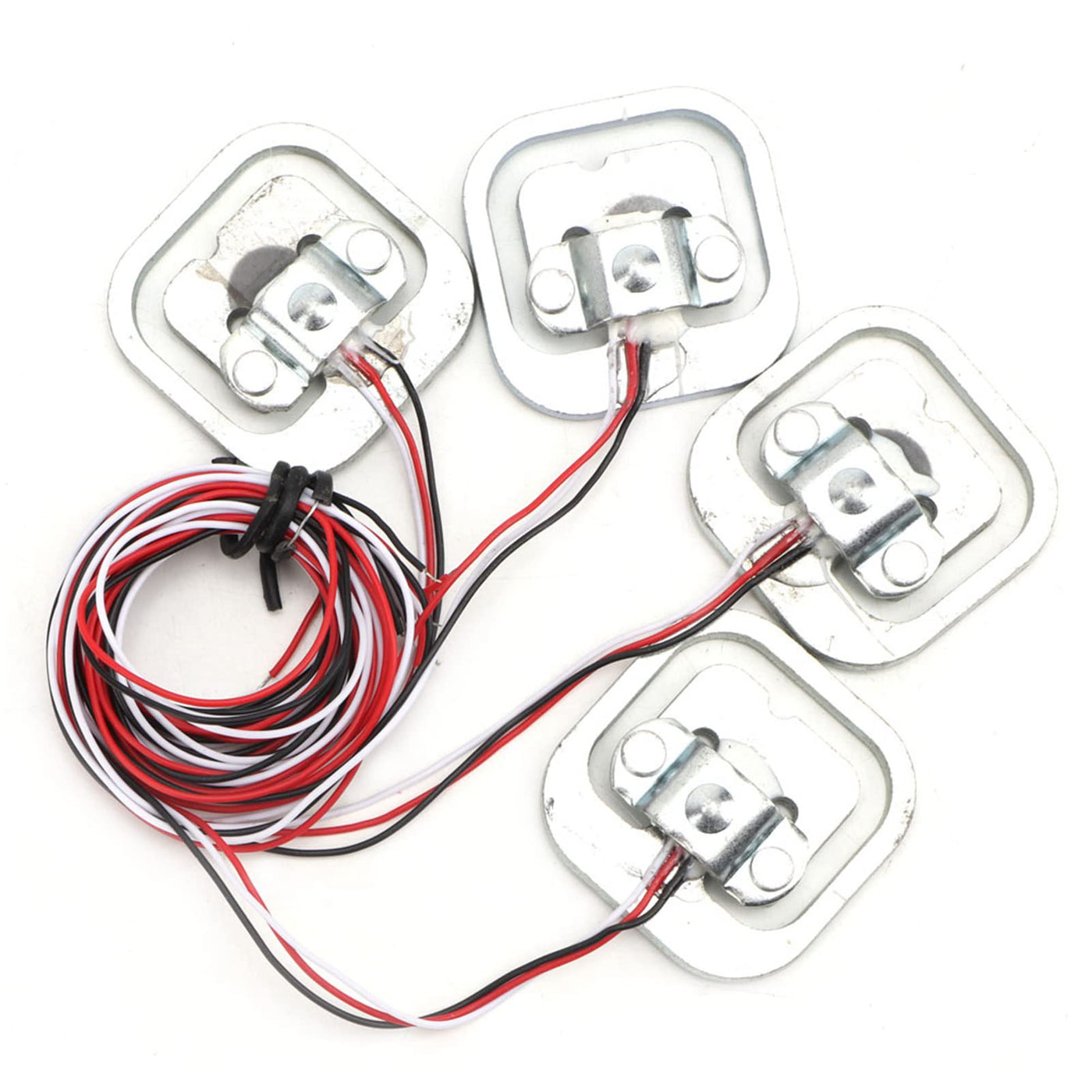

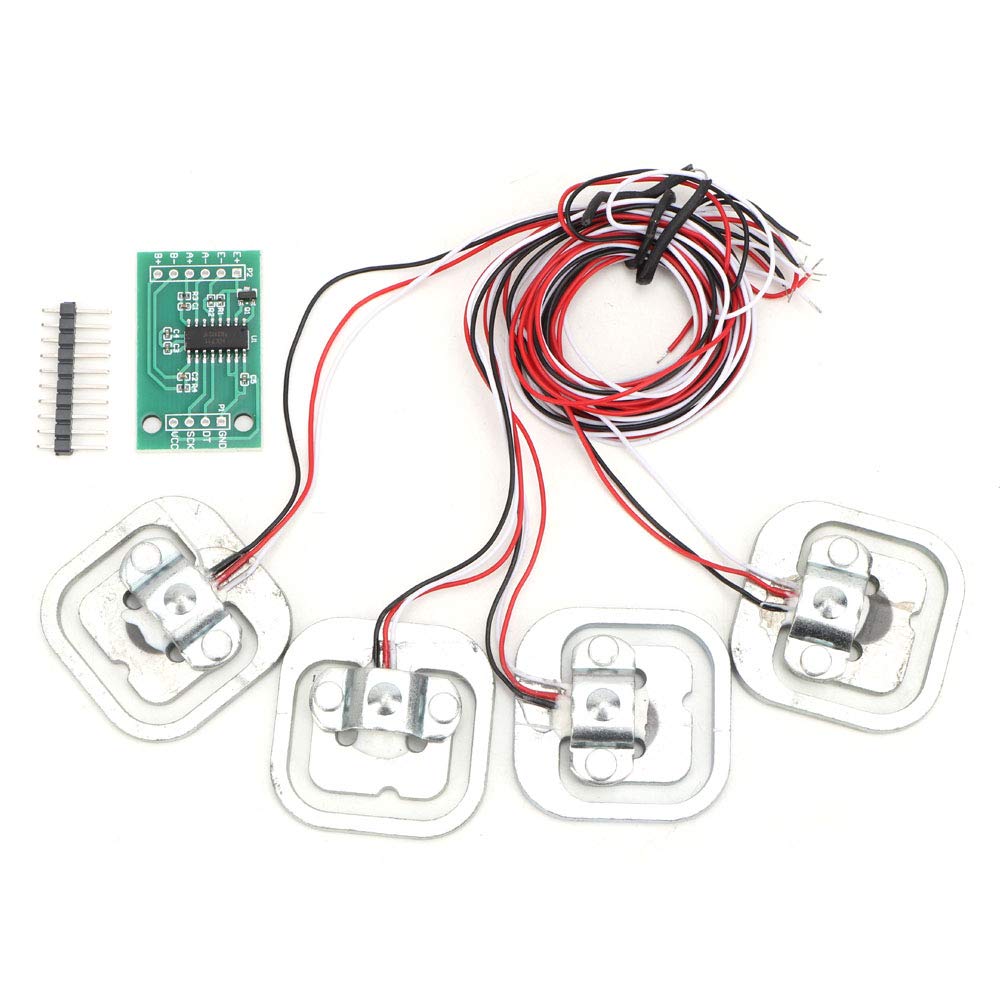

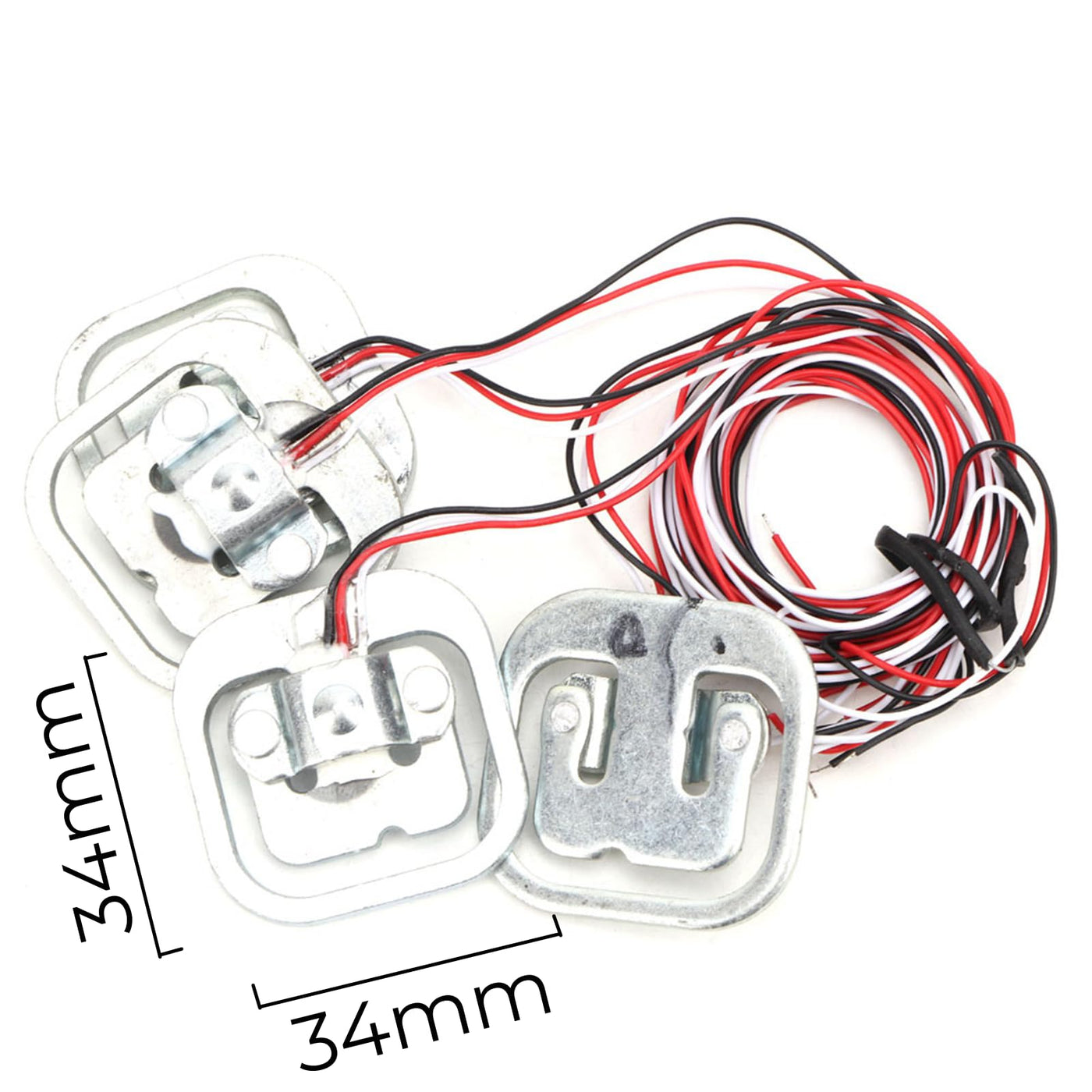

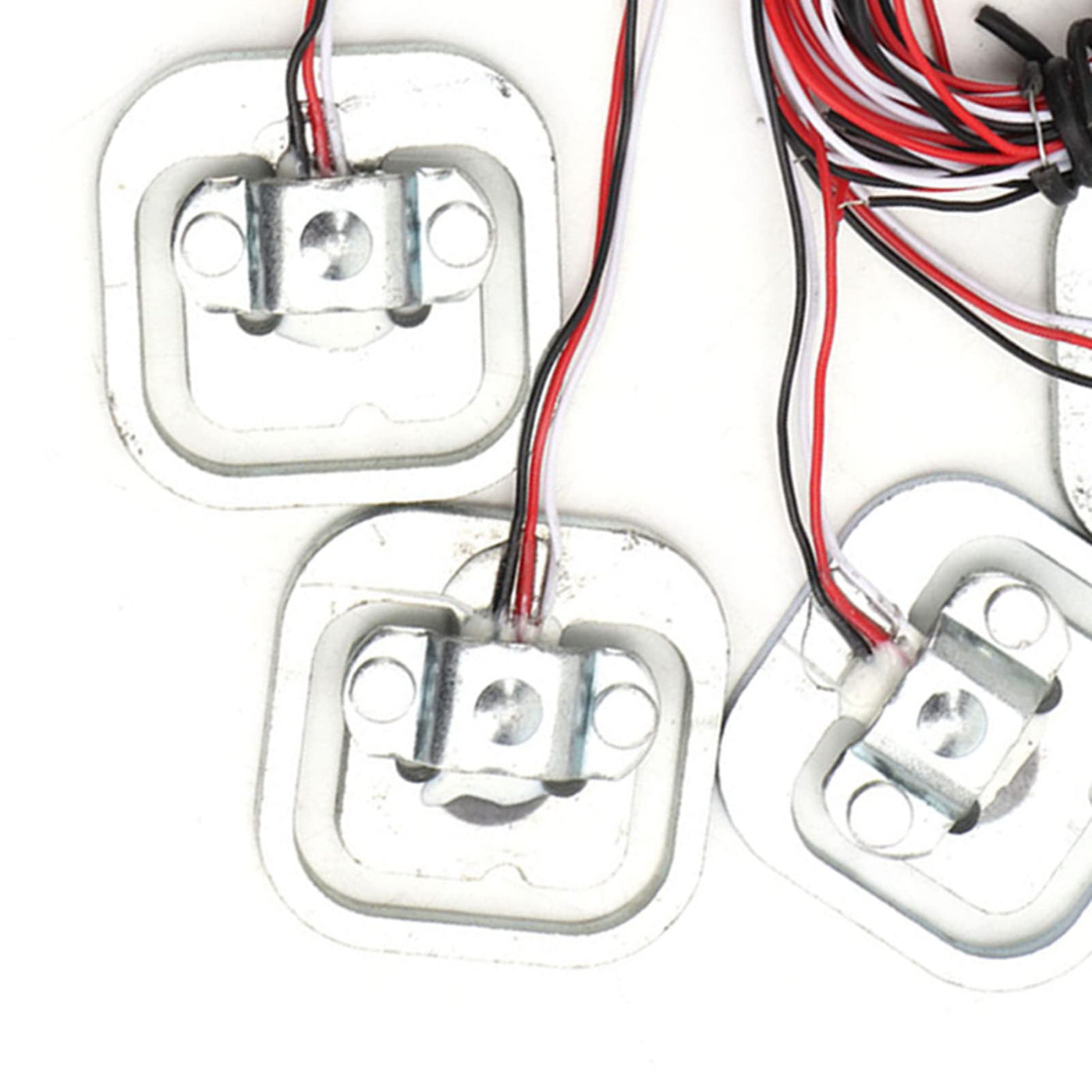

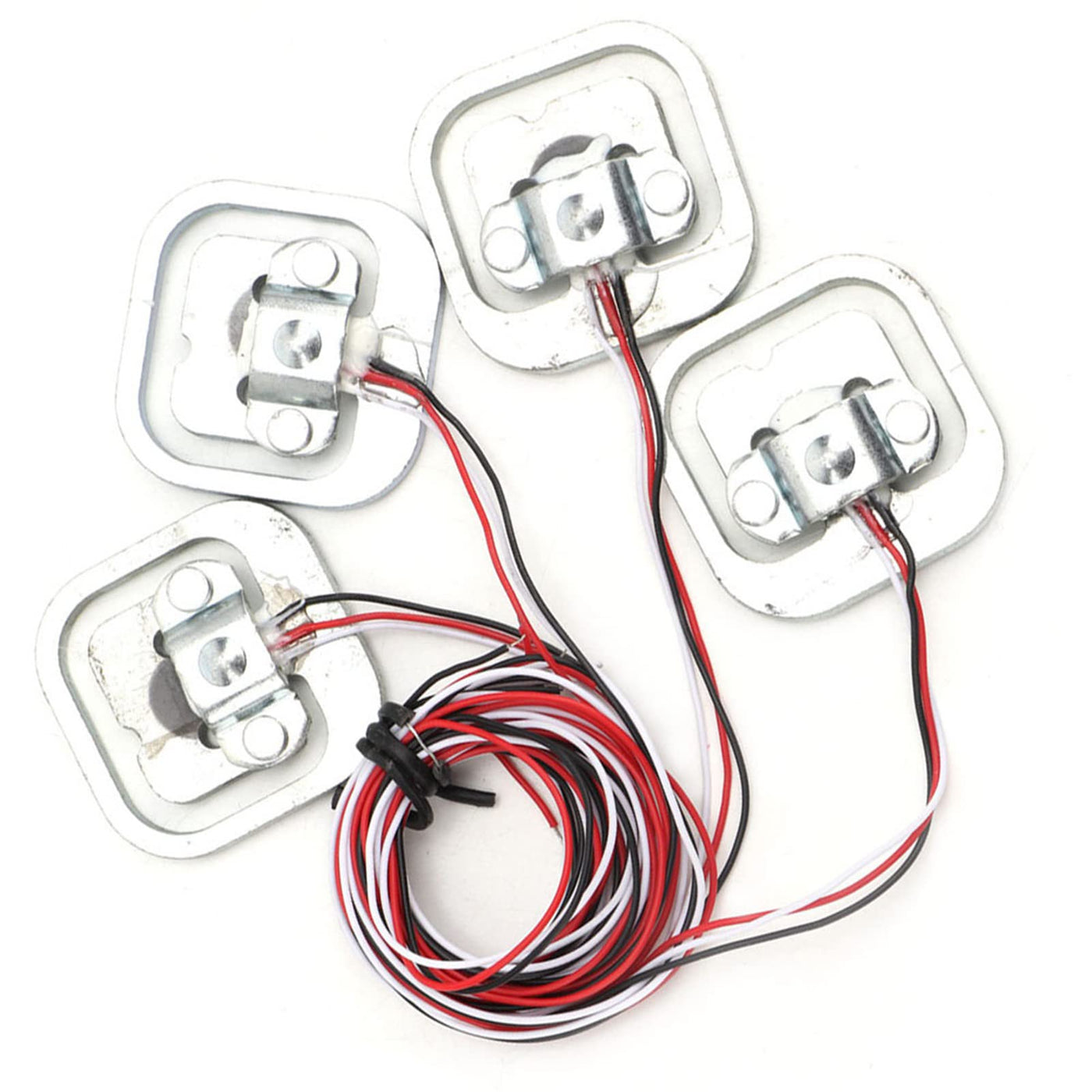

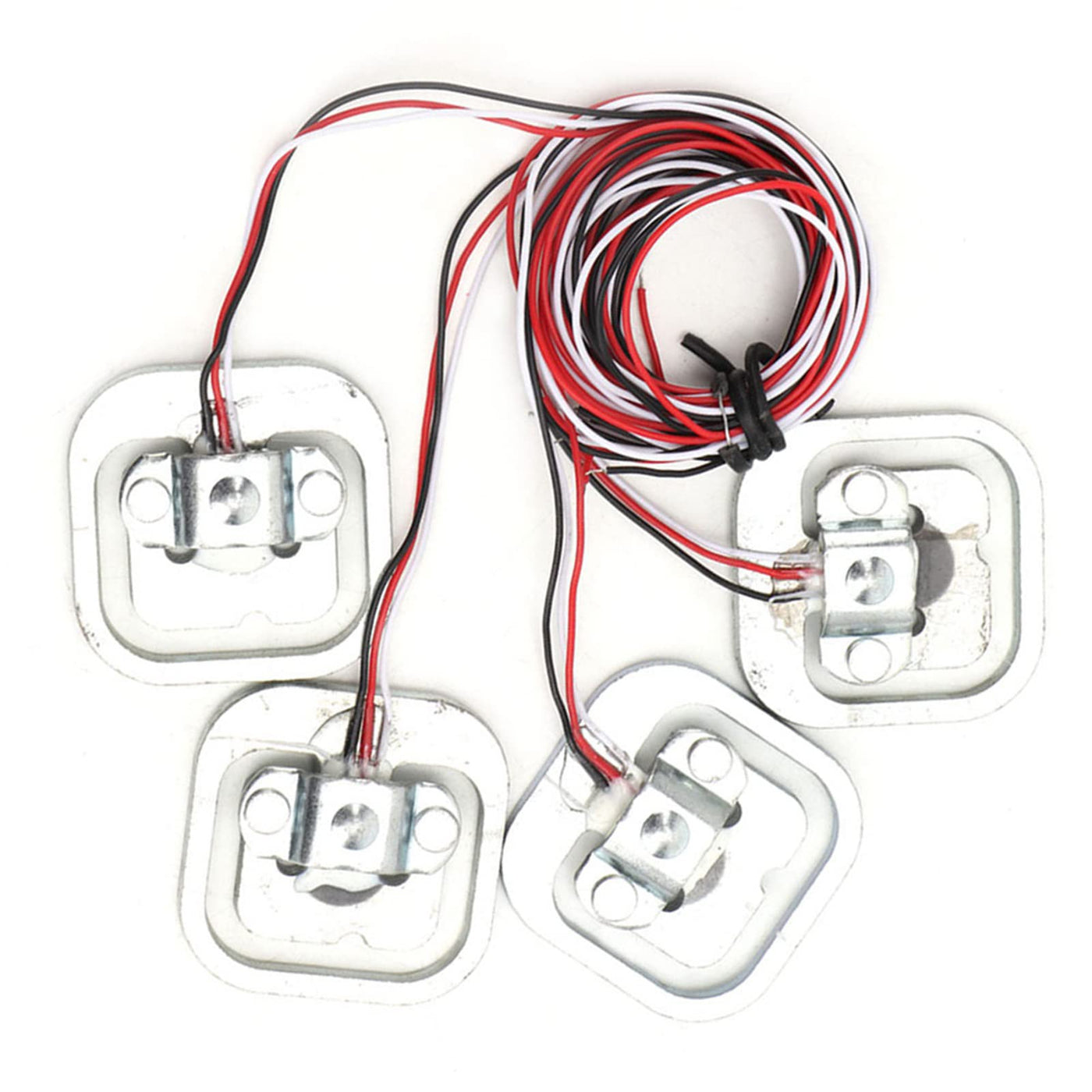

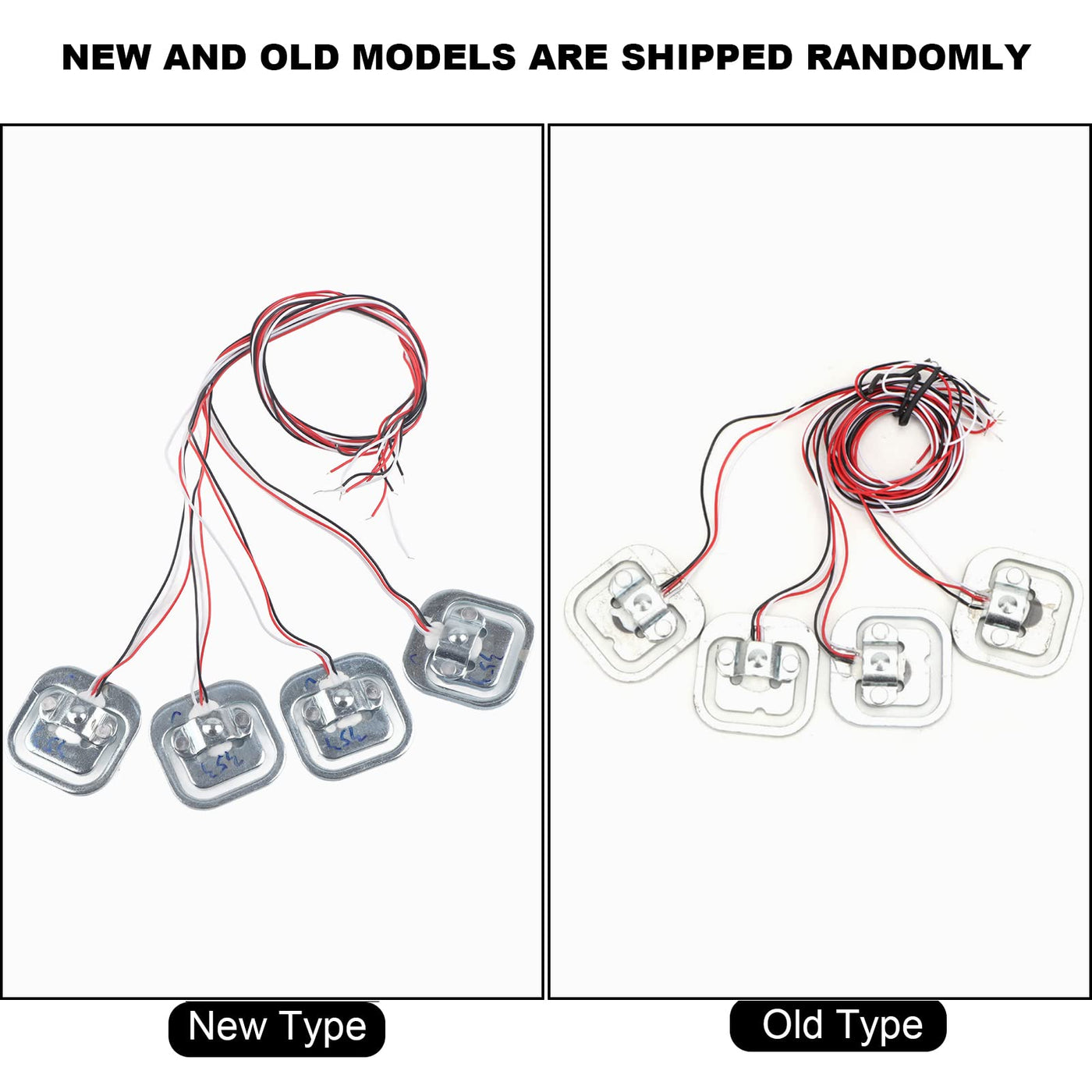

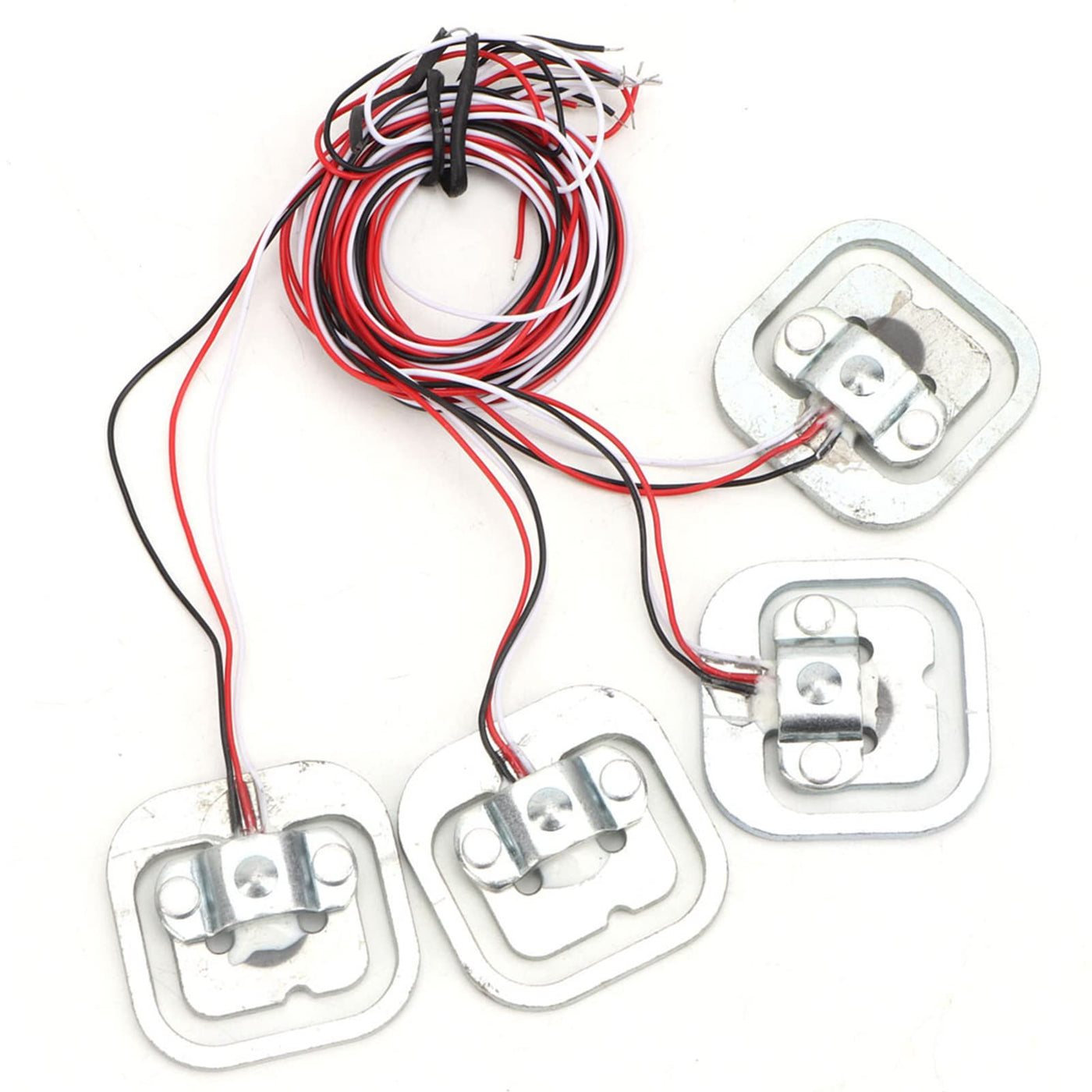

{"id":12965872533664,"title":"Load cell kit half bridge 50 kg load cell load cell 100 kg strain gauge HX711 module 4 individual 50 kg","handle":"load-cell-kit-half-bridge-50-kg-load-cell-load-cell-100-kg-strain-gauge-hx711-module-4-individual-50-kg","description":"\u003ch3\u003eLoad cell kit half bridge 50 kg load cell load cell 100 kg strain gauge HX711 module 4 individual 50 kg\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Sensor size: 34 x 34 mm\/1.34 x 1.34 inch sensor - Internal construction: 1000 ohm half-bridge strain gauge Measuring range: 50kg\/100kg\/200kg Package list: 4 weighing sensor 1 HX711 module User manual: When measuring, external force is applied correctly to the outside. The strain beam part of the E-shaped sensor (that is, the beam arm with the white rubber in the middle of the strain gauge) and the outside are intended to form a shear force in the opposite direction, that is, the middle of the strain beam must be able to undergo bending changes under load, and on the other There must be no obstruction on the side of the expansion beam. Inside the sensor there is a set of half-bridge strain gauges that can be used in the following three ways: 1. Use a sensor with external resistance to form a full-bridge measurement. The range corresponds to the range of a sensor: 50 kg. Requires higher external resistance requirements. 2. Use two sensors to form a full bridge measurement. The range is the sum of the ranges of the two sensors: 50kgx2=100kg. 3. When using four sensors to form a full bridge measurement, the range is the sum of the ranges of four sensors: 50kg x 4 = 200kg Note: Please note that the new type and old type of this product are sent randomly , and make sure you don't mind before ordering.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThis module uses a high-precision 24-bit A\/ D-converter chip HX711 designed for high-precision electronic scales.\u003c\/li\u003e \u003cli\u003eThe input circuit can be configured as a bridge sensor, providing bridge pressure sensor modes (e.g. pressure, weighing), making it an ideal, high-precision, cost-effective Front-end module for scanning power.\u003c\/li\u003e \u003cli\u003eTwo analog channel inputs with integrated programmable amplifier with 128x gain.\u003c\/li\u003e \u003cli\u003eThe weighing sensor is accurate and sensitive at small volumes.\u003c\/li\u003e \u0026lt; li\u0026gt;The sensor is a set of half-bridge strain gauges with three usage modes. \u003c\/ul\u003e","published_at":"2024-04-07T03:39:19+10:00","created_at":"2024-04-07T03:39:33+10:00","vendor":"LiebeWH","type":"Pressure probes \u0026 pressure sensors","tags":["industryDE"],"price":16900,"price_min":16900,"price_max":16900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49430540353696,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0BGMBS8MV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Load cell kit half bridge 50 kg load cell load cell 100 kg strain gauge HX711 module 4 individual 50 kg","public_title":null,"options":["Default Title"],"price":16900,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGMBS8MV.jpg?v=1712446567","\/\/dingoship.com.au\/cdn\/shop\/files\/719Kjw2avuL.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/71mr5Cm6R-L.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/71mmRdAViXL.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/71mT2_Cxc8L.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/71VQ0ZkeALL.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/71tsO3OLfyL_31af814b-00fb-4e1d-bba2-8018f74c73f3.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/61TBMeCsodL_a72302ef-d8dd-4849-92df-1bf599edcc0a.jpg?v=1712425173","\/\/dingoship.com.au\/cdn\/shop\/files\/71r-0LyMa1L.jpg?v=1712425173"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGMBS8MV.jpg?v=1712446567","options":["Title"],"media":[{"alt":null,"id":33793668579488,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGMBS8MV.jpg?v=1712446567"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGMBS8MV.jpg?v=1712446567","width":1001},{"alt":null,"id":33789592174752,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/719Kjw2avuL.jpg?v=1712425173"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/719Kjw2avuL.jpg?v=1712425173","width":2560},{"alt":null,"id":33789592207520,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71mr5Cm6R-L.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71mr5Cm6R-L.jpg?v=1712425173","width":1601},{"alt":null,"id":33789592240288,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71mmRdAViXL.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71mmRdAViXL.jpg?v=1712425173","width":1601},{"alt":null,"id":33789592273056,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71mT2_Cxc8L.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71mT2_Cxc8L.jpg?v=1712425173","width":1601},{"alt":null,"id":33789592305824,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71VQ0ZkeALL.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71VQ0ZkeALL.jpg?v=1712425173","width":1601},{"alt":null,"id":33789592338592,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71tsO3OLfyL_31af814b-00fb-4e1d-bba2-8018f74c73f3.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71tsO3OLfyL_31af814b-00fb-4e1d-bba2-8018f74c73f3.jpg?v=1712425173","width":1601},{"alt":null,"id":33789592371360,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61TBMeCsodL_a72302ef-d8dd-4849-92df-1bf599edcc0a.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61TBMeCsodL_a72302ef-d8dd-4849-92df-1bf599edcc0a.jpg?v=1712425173","width":1601},{"alt":null,"id":33789592404128,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71r-0LyMa1L.jpg?v=1712425173"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71r-0LyMa1L.jpg?v=1712425173","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLoad cell kit half bridge 50 kg load cell load cell 100 kg strain gauge HX711 module 4 individual 50 kg\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Sensor size: 34 x 34 mm\/1.34 x 1.34 inch sensor - Internal construction: 1000 ohm half-bridge strain gauge Measuring range: 50kg\/100kg\/200kg Package list: 4 weighing sensor 1 HX711 module User manual: When measuring, external force is applied correctly to the outside. The strain beam part of the E-shaped sensor (that is, the beam arm with the white rubber in the middle of the strain gauge) and the outside are intended to form a shear force in the opposite direction, that is, the middle of the strain beam must be able to undergo bending changes under load, and on the other There must be no obstruction on the side of the expansion beam. Inside the sensor there is a set of half-bridge strain gauges that can be used in the following three ways: 1. Use a sensor with external resistance to form a full-bridge measurement. The range corresponds to the range of a sensor: 50 kg. Requires higher external resistance requirements. 2. Use two sensors to form a full bridge measurement. The range is the sum of the ranges of the two sensors: 50kgx2=100kg. 3. When using four sensors to form a full bridge measurement, the range is the sum of the ranges of four sensors: 50kg x 4 = 200kg Note: Please note that the new type and old type of this product are sent randomly , and make sure you don't mind before ordering.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThis module uses a high-precision 24-bit A\/ D-converter chip HX711 designed for high-precision electronic scales.\u003c\/li\u003e \u003cli\u003eThe input circuit can be configured as a bridge sensor, providing bridge pressure sensor modes (e.g. pressure, weighing), making it an ideal, high-precision, cost-effective Front-end module for scanning power.\u003c\/li\u003e \u003cli\u003eTwo analog channel inputs with integrated programmable amplifier with 128x gain.\u003c\/li\u003e \u003cli\u003eThe weighing sensor is accurate and sensitive at small volumes.\u003c\/li\u003e \u0026lt; li\u0026gt;The sensor is a set of half-bridge strain gauges with three usage modes. \u003c\/ul\u003e"}
