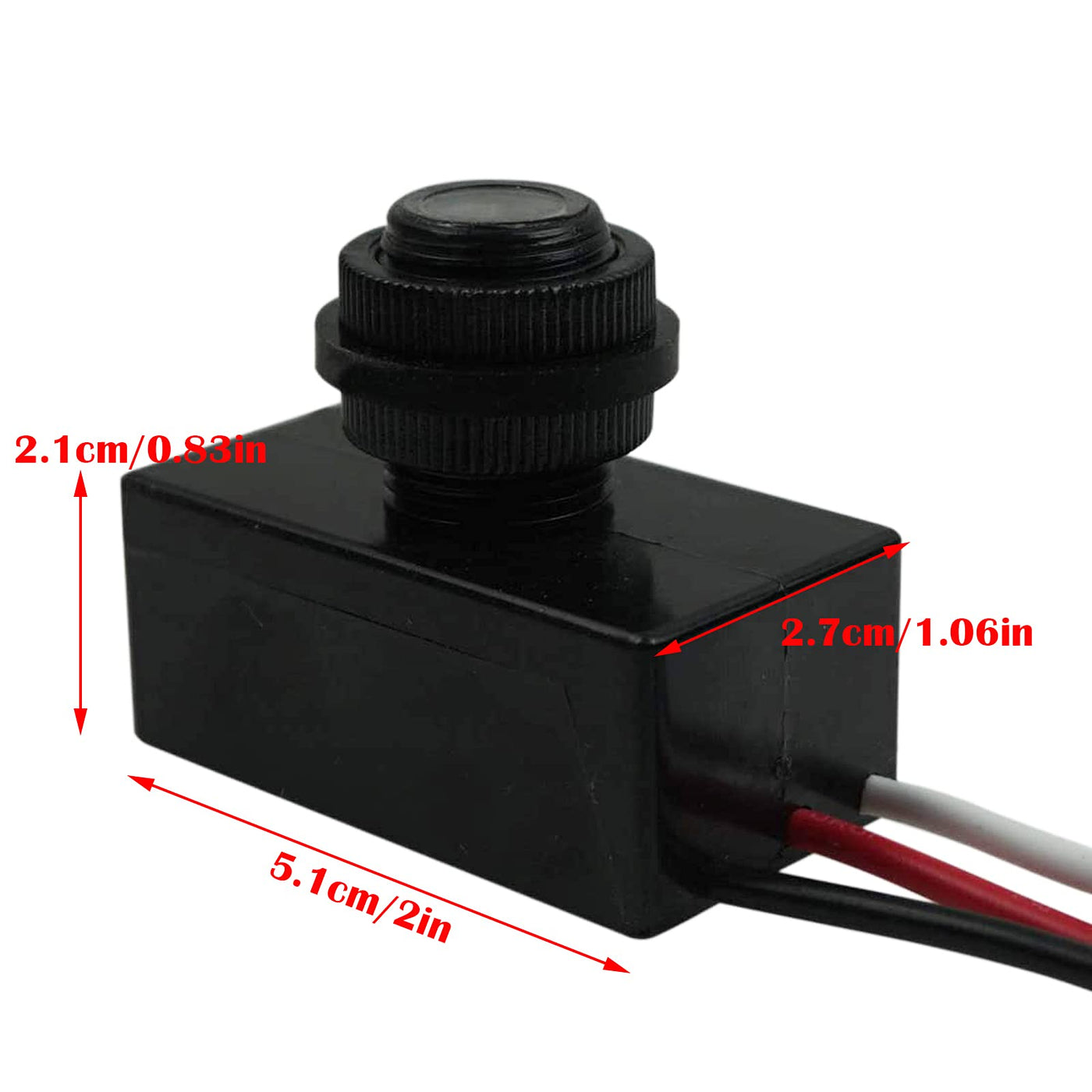

{"id":7414066446496,"title":"MGGi DC Sensor Photoelectric Light Switch for Outdoor Lighting Fixtures, 5A Dusk to Dawn Photocell Switch, Mini Auto Photoswitch, Hard-Wired Post Eye Light Control Switch - Sensor Control Switch 8-50V","handle":"mggi-dc-sensor-photoelectric-light-switch-for-outdoor-lighting-fixtures-5a-dusk-to-dawn-photocell-switch-mini-auto-photoswitch-hard-wired-post-eye-light-control-switch-sensor-control-switch-8-50v","description":"\u003ch3\u003eMGGi DC Sensor Photoelectric Light Switch for Outdoor Lighting Fixtures, 5A Dusk to Dawn Photocell Switch, Mini Auto Photoswitch, Hard-Wired Post Eye Light Control Switch - Sensor Control Switch 8-50V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: Voltage range: 8-50V DC Rated voltage: 12V 24V 36V 48V DC Rated\nloading: 5A Power consumption: 0.6W On\/Off level: 5-10LUX ON ; 30-60LUX OFF\nAnti-interference delay: 6s(on\/off) Ambient temp: (-40℃) (+70℃) Related\nhumidity: 99%RH Probe rain level: IP65 Type: three-wire system Overall\ndimensions(LxWxH): 52.5x28.5x22.4 mm Probe size: 14(dia)x20(H)mm Leads length:\n160mm or customer request (AWG18) Application: street lighting, garden\nlighting, LED lighting Longlife: use 5000 times Net weight:1.5oz\/42g The 3\nwire (Red, Black, White): 1. The black wire is the ground (-) of the battery\nconnector or power source, the load common or ground is not involved with this\nconnection 2. The white wire is the positive (+) of the switch (the positive\nconnection of the load goes to the positive of the battery together in\nparallel ) 3. The red wire(the actual switched wire) is the ground (-) of the\nlight, It switches the ground to the load. How to connect: 1. The WHITE wire\nAND the Positive Connection of the Load goes directly to the positive\nconnection of the source or battery. Both wires. The load and the switch\npositive in parallel. 2. The BLACK wire from the switch goes directly to the\nnegative or ground of the source or battery. Note: This will be the only\nground or common connection to the source or battery. 3. The RED wire is the\nactual switched wire. It switches the ground or common connection of the load\nto the source or battery. The red wire of the switch connects to the load\ncommon or ground.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePhotoelectric Switch Automatic DC 12V 24V 36V 48V for outdoor lights - with sensor photoelectric system, turns lights on at dusk and off at dawn automatically; wide voltage input range DC 8V-50V; rated loading 5A\u003c\/li\u003e\n \u003cli\u003eWaterproof and safety - with heavy-duty case to protect elements, matching waterproof washer, dustproof and waterproof, suitable for commercial or residential outdoor fixtures\u003c\/li\u003e\n \u003cli\u003eHigh sensitivity and low consumption - 6 second anti-interference delay maintenance function, can protect switch and lamps at the same time, long life and save energy\u003c\/li\u003e\n \u003cli\u003eWide application - fits to automatic switching control of solar Led lights, stree lamps, courtyard lamps, corridor lamps and other lighting fixtures; or cars, motorcycles, electric cars, golf cart, club car and other power supply voltage is 12V 24V 36V 48V lamps and lanterns or equipment\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T15:22:43+10:00","created_at":"2022-06-14T15:22:48+10:00","vendor":"MGGi","type":"Light Switches","tags":["dingo"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194441273504,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09FQ5MKXP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MGGi DC Sensor Photoelectric Light Switch for Outdoor Lighting Fixtures, 5A Dusk to Dawn Photocell Switch, Mini Auto Photoswitch, Hard-Wired Post Eye Light Control Switch - Sensor Control Switch 8-50V","public_title":null,"options":["Default Title"],"price":12300,"weight":50,"compare_at_price":null,"inventory_management":null,"barcode":"MG20210830","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B09FQ5MKXP.jpg?v=1655252324","\/\/dingoship.com.au\/cdn\/shop\/products\/61DkYUNhxbL.jpg?v=1655184168","\/\/dingoship.com.au\/cdn\/shop\/products\/61fAgp7Je3L.jpg?v=1655184168","\/\/dingoship.com.au\/cdn\/shop\/products\/61KT8fL31eL.jpg?v=1655184168","\/\/dingoship.com.au\/cdn\/shop\/products\/51FKfzVxn4L.jpg?v=1655184168","\/\/dingoship.com.au\/cdn\/shop\/products\/519hR0Ze8fL.jpg?v=1655184168"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09FQ5MKXP.jpg?v=1655252324","options":["Title"],"media":[{"alt":null,"id":24860377383072,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09FQ5MKXP.jpg?v=1655252324"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09FQ5MKXP.jpg?v=1655252324","width":1600},{"alt":null,"id":24854085796000,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61DkYUNhxbL.jpg?v=1655184168"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61DkYUNhxbL.jpg?v=1655184168","width":1600},{"alt":null,"id":24854085828768,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61fAgp7Je3L.jpg?v=1655184168"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61fAgp7Je3L.jpg?v=1655184168","width":1600},{"alt":null,"id":24854085861536,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61KT8fL31eL.jpg?v=1655184168"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61KT8fL31eL.jpg?v=1655184168","width":1600},{"alt":null,"id":24854085894304,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51FKfzVxn4L.jpg?v=1655184168"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51FKfzVxn4L.jpg?v=1655184168","width":1600},{"alt":null,"id":24854085927072,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/519hR0Ze8fL.jpg?v=1655184168"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/519hR0Ze8fL.jpg?v=1655184168","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMGGi DC Sensor Photoelectric Light Switch for Outdoor Lighting Fixtures, 5A Dusk to Dawn Photocell Switch, Mini Auto Photoswitch, Hard-Wired Post Eye Light Control Switch - Sensor Control Switch 8-50V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: Voltage range: 8-50V DC Rated voltage: 12V 24V 36V 48V DC Rated\nloading: 5A Power consumption: 0.6W On\/Off level: 5-10LUX ON ; 30-60LUX OFF\nAnti-interference delay: 6s(on\/off) Ambient temp: (-40℃) (+70℃) Related\nhumidity: 99%RH Probe rain level: IP65 Type: three-wire system Overall\ndimensions(LxWxH): 52.5x28.5x22.4 mm Probe size: 14(dia)x20(H)mm Leads length:\n160mm or customer request (AWG18) Application: street lighting, garden\nlighting, LED lighting Longlife: use 5000 times Net weight:1.5oz\/42g The 3\nwire (Red, Black, White): 1. The black wire is the ground (-) of the battery\nconnector or power source, the load common or ground is not involved with this\nconnection 2. The white wire is the positive (+) of the switch (the positive\nconnection of the load goes to the positive of the battery together in\nparallel ) 3. The red wire(the actual switched wire) is the ground (-) of the\nlight, It switches the ground to the load. How to connect: 1. The WHITE wire\nAND the Positive Connection of the Load goes directly to the positive\nconnection of the source or battery. Both wires. The load and the switch\npositive in parallel. 2. The BLACK wire from the switch goes directly to the\nnegative or ground of the source or battery. Note: This will be the only\nground or common connection to the source or battery. 3. The RED wire is the\nactual switched wire. It switches the ground or common connection of the load\nto the source or battery. The red wire of the switch connects to the load\ncommon or ground.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePhotoelectric Switch Automatic DC 12V 24V 36V 48V for outdoor lights - with sensor photoelectric system, turns lights on at dusk and off at dawn automatically; wide voltage input range DC 8V-50V; rated loading 5A\u003c\/li\u003e\n \u003cli\u003eWaterproof and safety - with heavy-duty case to protect elements, matching waterproof washer, dustproof and waterproof, suitable for commercial or residential outdoor fixtures\u003c\/li\u003e\n \u003cli\u003eHigh sensitivity and low consumption - 6 second anti-interference delay maintenance function, can protect switch and lamps at the same time, long life and save energy\u003c\/li\u003e\n \u003cli\u003eWide application - fits to automatic switching control of solar Led lights, stree lamps, courtyard lamps, corridor lamps and other lighting fixtures; or cars, motorcycles, electric cars, golf cart, club car and other power supply voltage is 12V 24V 36V 48V lamps and lanterns or equipment\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
