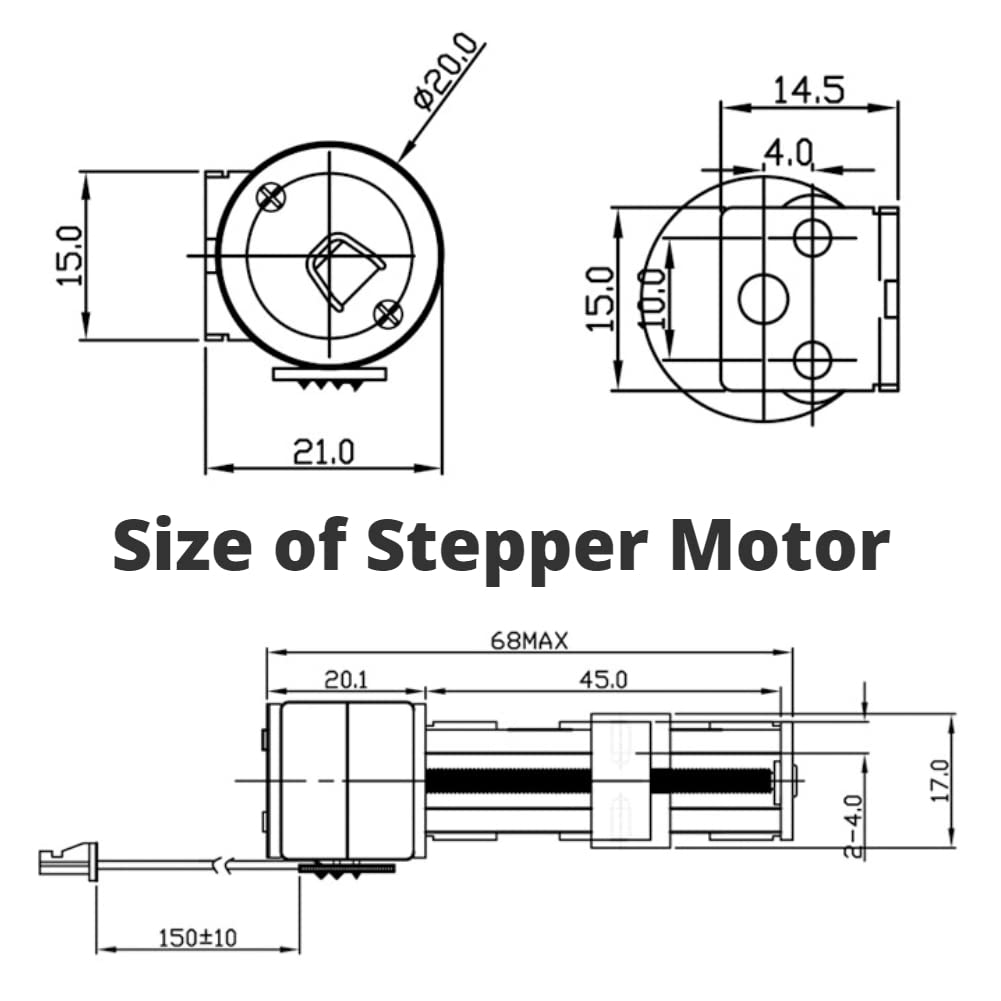

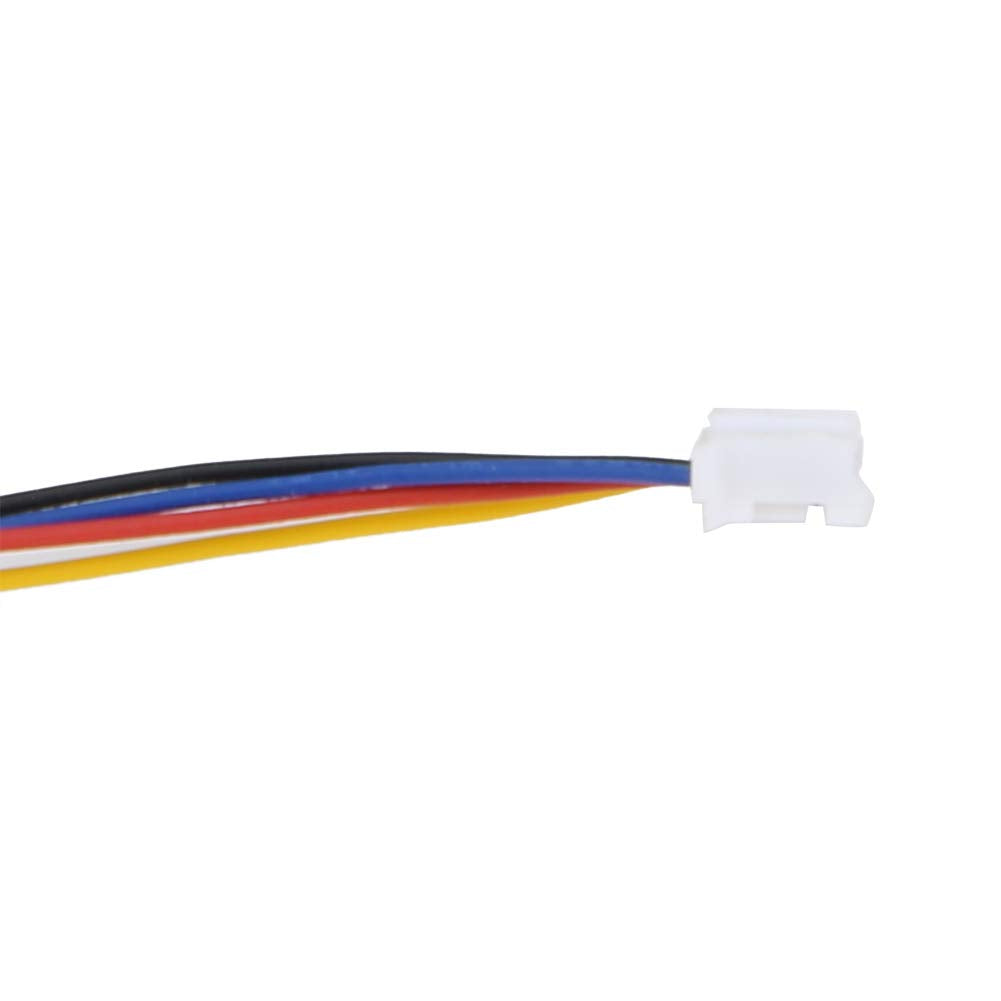

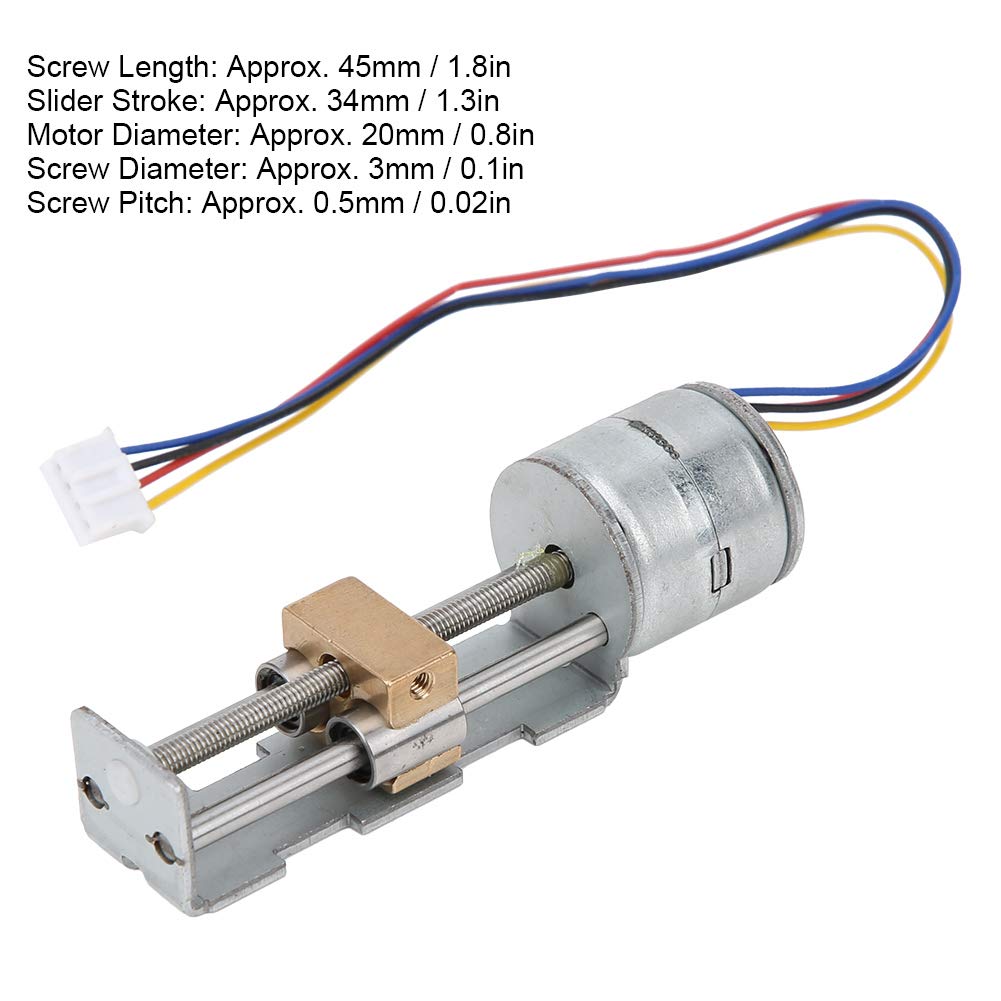

{"id":7573781905568,"title":"Mini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire Stepper Motor Linear Screw Slide Table Slider Stroke 34mm","handle":"mini-linear-lead-screw-nut-slider-2-phase-4-wire-stepper-motor-linear-screw-slide-table-slider-stroke-34mm","description":"\u003ch3\u003eMini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire Stepper Motor Linear Screw Slide Table Slider Stroke 34mm\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification:Item Type: Stepper MotorMotor Type: 2-phase 4-wire systemDrive\nVoltage: 5-9V\/200-600mA (the higher the voltage, the greater the force, the\ngreater the heat)Screw Length: Approx. 45mm \/ 1.8inSlider Stroke: Approx. 34mm\n\/ 1.3inMotor Diameter: Approx. 20mm \/ 0.8inScrew Diameter: Approx. 3mm \/\n0.1inScrew Pitch: Approx. 0.5mm \/ 0.02in (moving 0.025mm in one step,\nsubdivision drive can be used if smaller)Step Angle: 18°Phase Resistance:\n21ΩBlue A+Black B+Red B-Yellow A-Package List:1 x Stepper MotorNote:Note that\nit is a stepper motor, it will not turn when directly connected to the power,\nand a stepper motor driver board and control board.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAll metal The linear screw adopts an all-metal structure, with fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion.\u003c\/li\u003e\n \u003cli\u003eSize Screw length: about 45mm\/1.8inch, screw diameter: about 3mm\/0.1inch, pitch: about 0.5mm\/0.02in (moving in one step is 0.025mm, if smaller, you can use a subdivision driver).\u003c\/li\u003e\n \u003cli\u003e2-phase 4-wire stepper motor With a miniature 2-phase 4-wire stepping motor, the slider stroke is about 34 mm\/1.3 inches, and the motor diameter is about 20 mm\/0.8 inches. The driving voltage of the motor is 5-9V\/200-600mA (the higher the voltage, the greater the force Larger, the greater the calorific value).\u003c\/li\u003e\n \u003cli\u003eEasy to use The micro stepping motor slide table can drive the accurate diagonal to move the metal slide up and down.\u003c\/li\u003e\n \u003cli\u003eApplication Stepper motor guide linear slide table can be used for DIY small slider\/project\/measurement equipment\/laser printer, etc.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-10-11T13:55:24+11:00","created_at":"2022-10-11T13:55:32+11:00","vendor":"Hilitand","type":"","tags":["industrial2"],"price":20500,"price_min":20500,"price_max":20500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42666125754528,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08LNVC92F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire Stepper Motor Linear Screw Slide Table Slider Stroke 34mm","public_title":null,"options":["Default Title"],"price":20500,"weight":59,"compare_at_price":null,"inventory_management":null,"barcode":"Hilitandwnh1osay8z","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B08LNVC92F.jpg?v=1665533711","\/\/dingoship.com.au\/cdn\/shop\/products\/610T0_0BopL.jpg?v=1665456933","\/\/dingoship.com.au\/cdn\/shop\/products\/51bf56T3sUL.jpg?v=1665456933","\/\/dingoship.com.au\/cdn\/shop\/products\/61KNUHwXppL.jpg?v=1665456933","\/\/dingoship.com.au\/cdn\/shop\/products\/61J1PTR-kwL.jpg?v=1665456933","\/\/dingoship.com.au\/cdn\/shop\/products\/41e9JbFG7DL.jpg?v=1665456933","\/\/dingoship.com.au\/cdn\/shop\/products\/61Nv7DIxrnL.jpg?v=1665456933","\/\/dingoship.com.au\/cdn\/shop\/products\/516sxDy6k1L.jpg?v=1665456933"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08LNVC92F.jpg?v=1665533711","options":["Title"],"media":[{"alt":null,"id":25641422553248,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08LNVC92F.jpg?v=1665533711"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08LNVC92F.jpg?v=1665533711","width":1001},{"alt":null,"id":25636780900512,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/610T0_0BopL.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/610T0_0BopL.jpg?v=1665456933","width":1001},{"alt":null,"id":25636780933280,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51bf56T3sUL.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51bf56T3sUL.jpg?v=1665456933","width":1001},{"alt":null,"id":25636780966048,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61KNUHwXppL.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61KNUHwXppL.jpg?v=1665456933","width":1001},{"alt":null,"id":25636780998816,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61J1PTR-kwL.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61J1PTR-kwL.jpg?v=1665456933","width":1001},{"alt":null,"id":25636781064352,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41e9JbFG7DL.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41e9JbFG7DL.jpg?v=1665456933","width":1001},{"alt":null,"id":25636781097120,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Nv7DIxrnL.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Nv7DIxrnL.jpg?v=1665456933","width":1001},{"alt":null,"id":25636781129888,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/516sxDy6k1L.jpg?v=1665456933"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/516sxDy6k1L.jpg?v=1665456933","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire Stepper Motor Linear Screw Slide Table Slider Stroke 34mm\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification:Item Type: Stepper MotorMotor Type: 2-phase 4-wire systemDrive\nVoltage: 5-9V\/200-600mA (the higher the voltage, the greater the force, the\ngreater the heat)Screw Length: Approx. 45mm \/ 1.8inSlider Stroke: Approx. 34mm\n\/ 1.3inMotor Diameter: Approx. 20mm \/ 0.8inScrew Diameter: Approx. 3mm \/\n0.1inScrew Pitch: Approx. 0.5mm \/ 0.02in (moving 0.025mm in one step,\nsubdivision drive can be used if smaller)Step Angle: 18°Phase Resistance:\n21ΩBlue A+Black B+Red B-Yellow A-Package List:1 x Stepper MotorNote:Note that\nit is a stepper motor, it will not turn when directly connected to the power,\nand a stepper motor driver board and control board.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAll metal The linear screw adopts an all-metal structure, with fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion.\u003c\/li\u003e\n \u003cli\u003eSize Screw length: about 45mm\/1.8inch, screw diameter: about 3mm\/0.1inch, pitch: about 0.5mm\/0.02in (moving in one step is 0.025mm, if smaller, you can use a subdivision driver).\u003c\/li\u003e\n \u003cli\u003e2-phase 4-wire stepper motor With a miniature 2-phase 4-wire stepping motor, the slider stroke is about 34 mm\/1.3 inches, and the motor diameter is about 20 mm\/0.8 inches. The driving voltage of the motor is 5-9V\/200-600mA (the higher the voltage, the greater the force Larger, the greater the calorific value).\u003c\/li\u003e\n \u003cli\u003eEasy to use The micro stepping motor slide table can drive the accurate diagonal to move the metal slide up and down.\u003c\/li\u003e\n \u003cli\u003eApplication Stepper motor guide linear slide table can be used for DIY small slider\/project\/measurement equipment\/laser printer, etc.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
