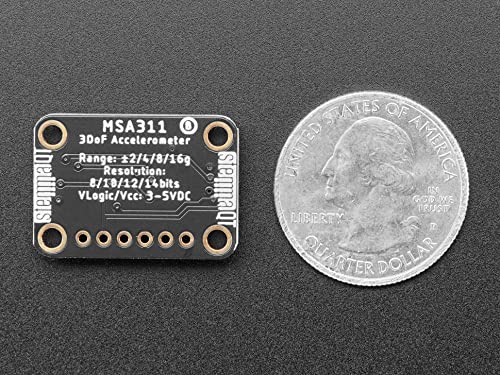

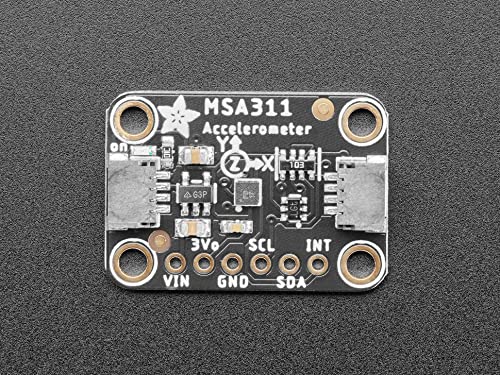

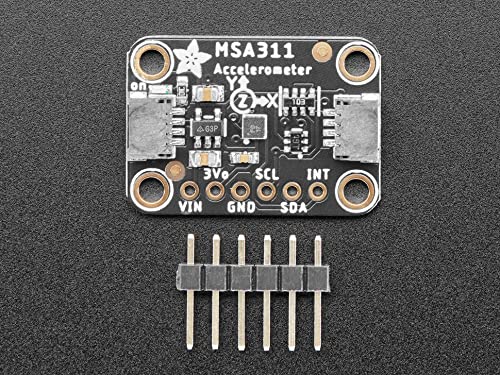

{"id":7415952867488,"title":"MSA311 Triple Axis Accelerometer - Stemma QT\/Qwiic ADA 5309","handle":"msa311-triple-axis-accelerometer-stemma-qt-qwiic-ada-5309","description":"\u003ch3\u003eMSA311 Triple Axis Accelerometer - Stemma QT\/Qwiic ADA 5309\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe MSA311 is a super small and low-cost triple-axis accelerometer. It's\ninexpensive, but has just about every 'extra' you'd want in an accelerometer:\nThree-axis sensing, 14-bit resolution ±2g\/±4g\/±8g\/±16g selectable scaling I2C\ninterface on fixed I2C address 0x62 Interrupt output Multiple data rate\noptions 1 Hz to 500 Hz As low as 2uA current draw in low power mode (just the\nchip itself, not including any supporting circuitry) Tap, Double-tap,\norientation \u0026amp; freefall detection The MSA311 is very similar to the MSA301, but\nis not a drop-in replacement. The I2C address has changed from 0x26 to 0x62!\nThis sensor communicates over I2C or SPI (our library code supports both) so\nyou can share it with a bunch of other sensors on the same I2C bus. There's an\naddress selection pin so you can have two accelerometers share an I2C bus. To\nget you going fast, we spun up a custom-made PCB in the STEMMA QT form factor,\nmaking them easy to interface with. The STEMMA QT connectors on either side\nare compatible with the SparkFun Qwiic I2C connectors. This allows you to make\nsolderless connections between your development board and the MSA311 or to\nchain with a wide range of other sensors and accessories using a compatible\ncable. QT Cable is not included, but we have a variety in the shop We’ve of\ncourse broken out all the pins to standard headers and added a voltage\nregulator and level shifting so allow you to use it with either 3.3V or 5V\nsystems such as the Raspberry Pi + Feather series or Arduino Uno respectively.\nComes with a bit of 0.1\" standard header in case you want to use it with a\nbreadboard or perfboard. Four mounting holes for easy attachment.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThree-axis sensing, 14-bit resolution 2g\/4g\/8g\/16g selectable scaling\u003c\/li\u003e\n \u003cli\u003eI2C interface on fixed I2C address 0x62 Interrupt output\u003c\/li\u003e\n \u003cli\u003eMultiple data rate options 1 Hz to 500 Hz\u003c\/li\u003e\n \u003cli\u003eAs low as 2uA current draw in low power mode (just the chip itself, not including any supporting circuitry)\u003c\/li\u003e\n \u003cli\u003eTap, Double-tap, orientation \u0026amp; freefall detection\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-15T20:24:45+10:00","created_at":"2022-06-15T20:24:48+10:00","vendor":"Adafruit","type":"Acceleration Sensors","tags":["dingo"],"price":10400,"price_min":10400,"price_max":10400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42205362880672,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09PZLWNP7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MSA311 Triple Axis Accelerometer - Stemma QT\/Qwiic ADA 5309","public_title":null,"options":["Default Title"],"price":10400,"weight":45,"compare_at_price":null,"inventory_management":null,"barcode":"5309","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B09PZLWNP7.jpg?v=1655338922","\/\/dingoship.com.au\/cdn\/shop\/products\/51EwO-8vr2L.jpg?v=1655288689","\/\/dingoship.com.au\/cdn\/shop\/products\/51b5FvUbz4L.jpg?v=1655288689"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09PZLWNP7.jpg?v=1655338922","options":["Title"],"media":[{"alt":null,"id":24866776154272,"position":1,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09PZLWNP7.jpg?v=1655338922"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09PZLWNP7.jpg?v=1655338922","width":500},{"alt":null,"id":24862716166304,"position":2,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51EwO-8vr2L.jpg?v=1655288689"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51EwO-8vr2L.jpg?v=1655288689","width":500},{"alt":null,"id":24862716199072,"position":3,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51b5FvUbz4L.jpg?v=1655288689"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51b5FvUbz4L.jpg?v=1655288689","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMSA311 Triple Axis Accelerometer - Stemma QT\/Qwiic ADA 5309\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe MSA311 is a super small and low-cost triple-axis accelerometer. It's\ninexpensive, but has just about every 'extra' you'd want in an accelerometer:\nThree-axis sensing, 14-bit resolution ±2g\/±4g\/±8g\/±16g selectable scaling I2C\ninterface on fixed I2C address 0x62 Interrupt output Multiple data rate\noptions 1 Hz to 500 Hz As low as 2uA current draw in low power mode (just the\nchip itself, not including any supporting circuitry) Tap, Double-tap,\norientation \u0026amp; freefall detection The MSA311 is very similar to the MSA301, but\nis not a drop-in replacement. The I2C address has changed from 0x26 to 0x62!\nThis sensor communicates over I2C or SPI (our library code supports both) so\nyou can share it with a bunch of other sensors on the same I2C bus. There's an\naddress selection pin so you can have two accelerometers share an I2C bus. To\nget you going fast, we spun up a custom-made PCB in the STEMMA QT form factor,\nmaking them easy to interface with. The STEMMA QT connectors on either side\nare compatible with the SparkFun Qwiic I2C connectors. This allows you to make\nsolderless connections between your development board and the MSA311 or to\nchain with a wide range of other sensors and accessories using a compatible\ncable. QT Cable is not included, but we have a variety in the shop We’ve of\ncourse broken out all the pins to standard headers and added a voltage\nregulator and level shifting so allow you to use it with either 3.3V or 5V\nsystems such as the Raspberry Pi + Feather series or Arduino Uno respectively.\nComes with a bit of 0.1\" standard header in case you want to use it with a\nbreadboard or perfboard. Four mounting holes for easy attachment.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThree-axis sensing, 14-bit resolution 2g\/4g\/8g\/16g selectable scaling\u003c\/li\u003e\n \u003cli\u003eI2C interface on fixed I2C address 0x62 Interrupt output\u003c\/li\u003e\n \u003cli\u003eMultiple data rate options 1 Hz to 500 Hz\u003c\/li\u003e\n \u003cli\u003eAs low as 2uA current draw in low power mode (just the chip itself, not including any supporting circuitry)\u003c\/li\u003e\n \u003cli\u003eTap, Double-tap, orientation \u0026amp; freefall detection\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
