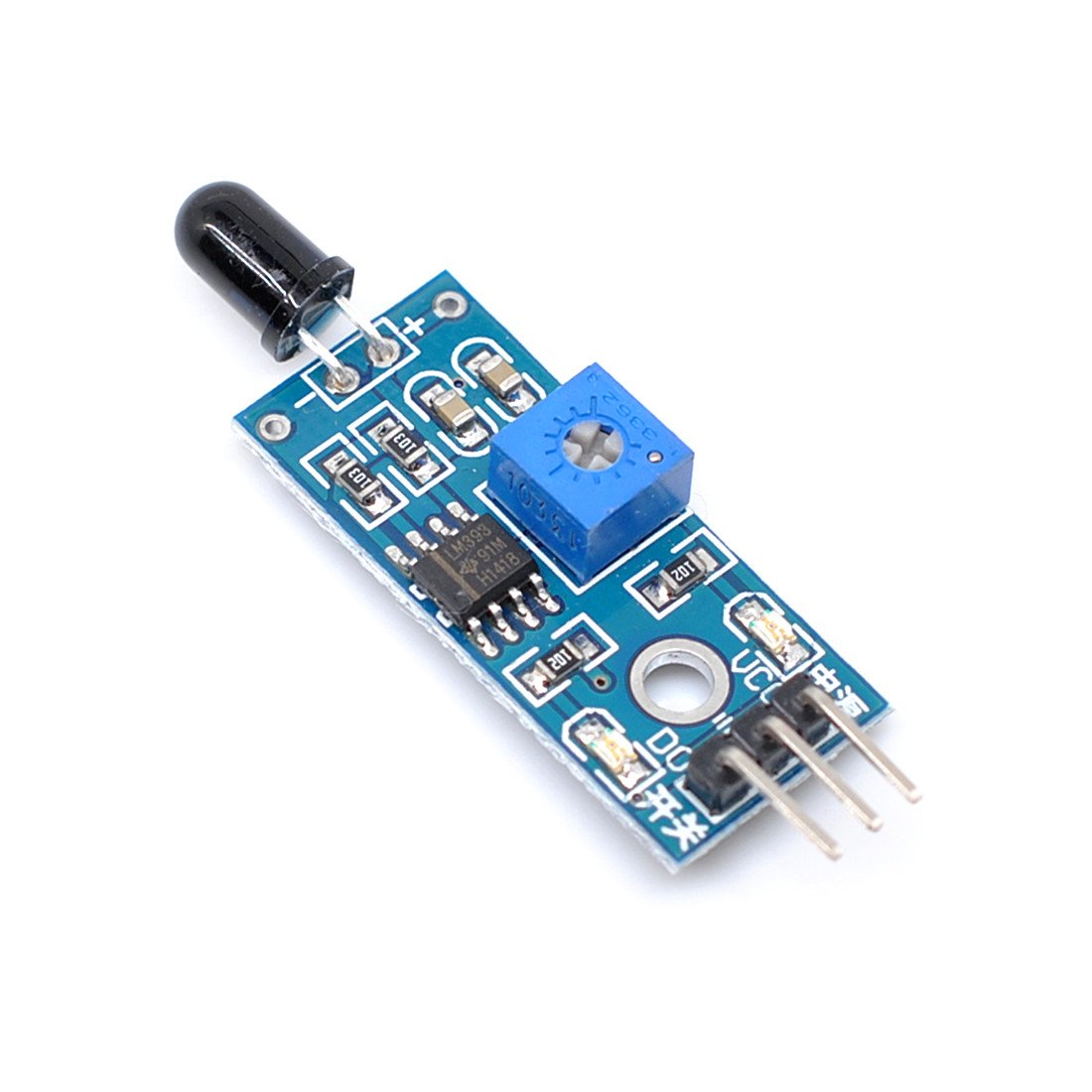

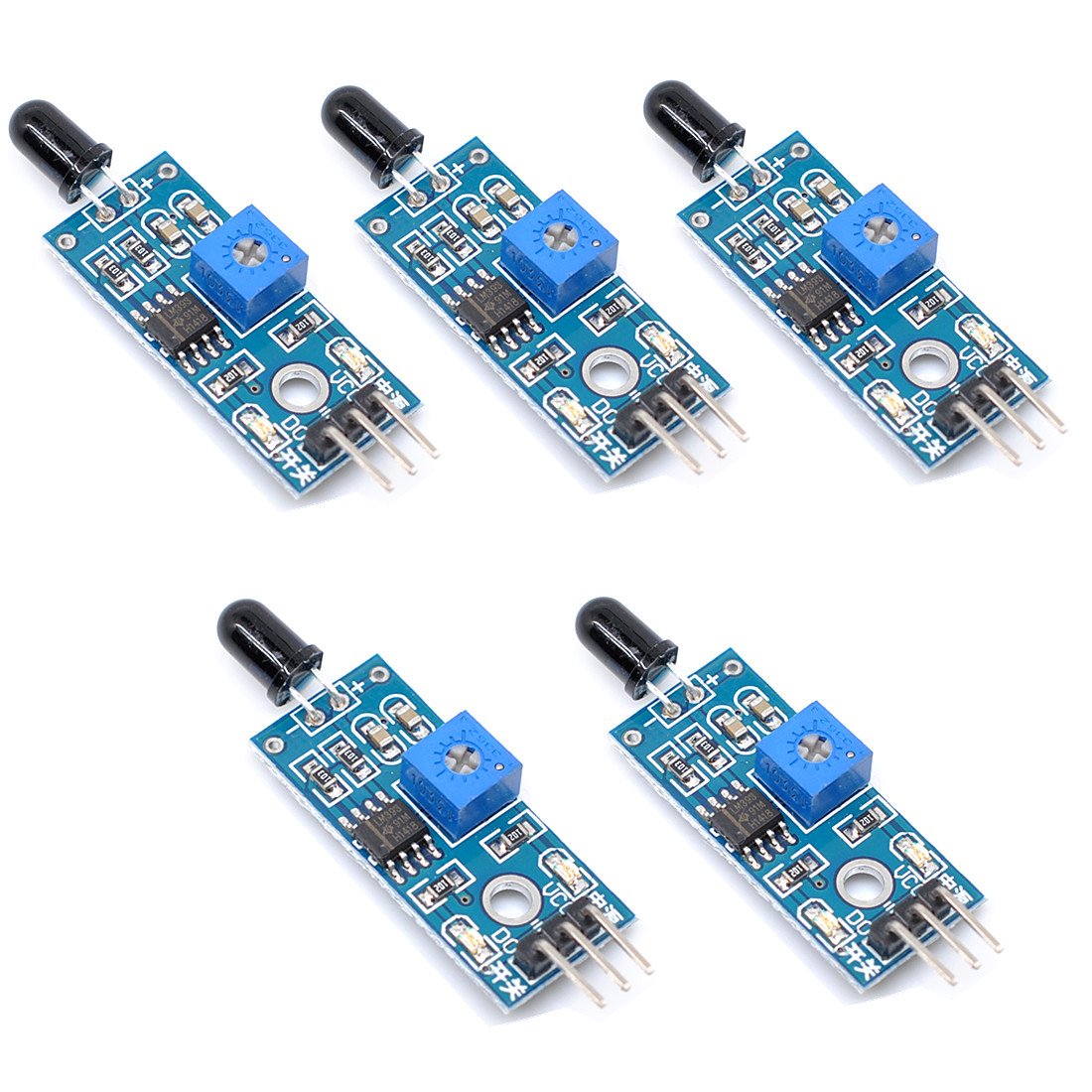

{"id":7418304200864,"title":"Oiyagai 5pcs IR Flame Sensor Module Detector Smartsense for Temperature Detecting Compatible with Arduino","handle":"oiyagai-5pcs-ir-flame-sensor-module-detector-smartsense-for-temperature-detecting-compatible-with-arduino","description":"\u003ch3\u003eOiyagai 5pcs IR Flame Sensor Module Detector Smartsense for Temperature Detecting Compatible with Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWorking Voltage : 3-5.5V DCTotal Size : 50 x 15 x 15mm\/2\"\nx 0.59\"x 0.59\"(LWH)Flame Detection Sensor ModuleFit for ArduinoAccuracy\nadjustable Oiyagai 5pcs IR Flame Sensor Module Detector Smartsense for\nTemperature Detecting Compatible with Arduino Read more Description: 1.Can\ndetect a flame or in a 760 nanometer wavelength of ~ 1100 nm range of the\nlight, lighter flame test distance of 80cm, for the greater flame, the farther\nthe distance test2.The detection angle of 60 degrees or so, particularly\nsensitive to the flame spectrum3.Sensitivity adjustable (shown in blue digital\npotentiometer adjustment)4. The comparator output signal clean, good waveform,\ndriving ability, more than 15mA5. With adjustable precision potentiometer\nsensitivity adjustment6. The working voltage of 3.3V-5V7. The output format:\nDO digital switching outputs (0 and 1) and AO analog voltage output8. A fixed\nbolt holes for easy installation9. PCB Size: 32mm x 14mm10. Using a wide\nvoltage LM393 comparator Instructions for use: 1. the flame sensor flame most\nsensitive to ordinary light is also a reaction, generally used as a flame\nalarm purposes.2. the output interface can be directly connected to the\nmicrocontroller IO port.3. with the flame sensor to maintain a certain\ndistance, so as not to damage the sensor temperature, the flame of a lighter\ntest distance 800mm, for the greater flame, the farther the distance test.4.\nanalog output and the AD conversion process, can achieve higher accuracy.\nNote: The polarity of the power supply cannot be reversed, otherwise the chip\nmay be damaged. When the switch signal indicator is on, it outputs low level.\nWhen it is off, it outputs high level. The level of the signal output is close\nto the power supply voltage. TIPS: The sensor must be kept at a distance from\nthe flame to avoid damage to the sensor. When the sensor detects a flame,\nsunlight, or infrared light, if achieve potentiometer setting threshold, the\ngreen indicator light will ON, the DO output low level (0-0.1 - V), the green\nlight is OFF, the DO output about 3 V high voltage level. Read more Package\nContent: 5 x IR Flame Sensor Module Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking Voltage : 3-5.5V DC\u003c\/li\u003e\n \u003cli\u003eTotal Size : 50 x 15 x 15mm\/2\" x 0.59\"x 0.59\"(L*W*H)\u003c\/li\u003e\n \u003cli\u003eFlame Detection Sensor Module\u003c\/li\u003e\n \u003cli\u003eFit for Arduino\u003c\/li\u003e\n \u003cli\u003eAccuracy adjustable\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-18T00:02:43+10:00","created_at":"2022-06-18T00:02:51+10:00","vendor":"Oiyagai","type":"Connectors \u0026 Adapters","tags":["dingo"],"price":9600,"price_min":9600,"price_max":9600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42215090585760,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B077799TGS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Oiyagai 5pcs IR Flame Sensor Module Detector Smartsense for Temperature Detecting Compatible with Arduino","public_title":null,"options":["Default Title"],"price":9600,"weight":5,"compare_at_price":null,"inventory_management":null,"barcode":"4332721988","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B077799TGS.jpg?v=1655508953","\/\/dingoship.com.au\/cdn\/shop\/products\/61WFPZpMf_L.jpg?v=1655474572","\/\/dingoship.com.au\/cdn\/shop\/products\/61BldCJSoOL.jpg?v=1655474572","\/\/dingoship.com.au\/cdn\/shop\/products\/613TNurK0wL.jpg?v=1655474572","\/\/dingoship.com.au\/cdn\/shop\/products\/71koVZjm1HL.jpg?v=1655474572","\/\/dingoship.com.au\/cdn\/shop\/products\/61R09ea6KrL.jpg?v=1655474572","\/\/dingoship.com.au\/cdn\/shop\/products\/71C-ZosbYfL.jpg?v=1655474572"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B077799TGS.jpg?v=1655508953","options":["Title"],"media":[{"alt":null,"id":24876951273632,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B077799TGS.jpg?v=1655508953"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B077799TGS.jpg?v=1655508953","width":1100},{"alt":null,"id":24874604200096,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61WFPZpMf_L.jpg?v=1655474572"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61WFPZpMf_L.jpg?v=1655474572","width":1100},{"alt":null,"id":24874604232864,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BldCJSoOL.jpg?v=1655474572"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BldCJSoOL.jpg?v=1655474572","width":1100},{"alt":null,"id":24874604265632,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/613TNurK0wL.jpg?v=1655474572"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/613TNurK0wL.jpg?v=1655474572","width":1100},{"alt":null,"id":24874604298400,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2200,"width":2200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71koVZjm1HL.jpg?v=1655474572"},"aspect_ratio":1.0,"height":2200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71koVZjm1HL.jpg?v=1655474572","width":2200},{"alt":null,"id":24874604331168,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61R09ea6KrL.jpg?v=1655474572"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61R09ea6KrL.jpg?v=1655474572","width":1001},{"alt":null,"id":24874604363936,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2200,"width":2200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71C-ZosbYfL.jpg?v=1655474572"},"aspect_ratio":1.0,"height":2200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71C-ZosbYfL.jpg?v=1655474572","width":2200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eOiyagai 5pcs IR Flame Sensor Module Detector Smartsense for Temperature Detecting Compatible with Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWorking Voltage : 3-5.5V DCTotal Size : 50 x 15 x 15mm\/2\"\nx 0.59\"x 0.59\"(LWH)Flame Detection Sensor ModuleFit for ArduinoAccuracy\nadjustable Oiyagai 5pcs IR Flame Sensor Module Detector Smartsense for\nTemperature Detecting Compatible with Arduino Read more Description: 1.Can\ndetect a flame or in a 760 nanometer wavelength of ~ 1100 nm range of the\nlight, lighter flame test distance of 80cm, for the greater flame, the farther\nthe distance test2.The detection angle of 60 degrees or so, particularly\nsensitive to the flame spectrum3.Sensitivity adjustable (shown in blue digital\npotentiometer adjustment)4. The comparator output signal clean, good waveform,\ndriving ability, more than 15mA5. With adjustable precision potentiometer\nsensitivity adjustment6. The working voltage of 3.3V-5V7. The output format:\nDO digital switching outputs (0 and 1) and AO analog voltage output8. A fixed\nbolt holes for easy installation9. PCB Size: 32mm x 14mm10. Using a wide\nvoltage LM393 comparator Instructions for use: 1. the flame sensor flame most\nsensitive to ordinary light is also a reaction, generally used as a flame\nalarm purposes.2. the output interface can be directly connected to the\nmicrocontroller IO port.3. with the flame sensor to maintain a certain\ndistance, so as not to damage the sensor temperature, the flame of a lighter\ntest distance 800mm, for the greater flame, the farther the distance test.4.\nanalog output and the AD conversion process, can achieve higher accuracy.\nNote: The polarity of the power supply cannot be reversed, otherwise the chip\nmay be damaged. When the switch signal indicator is on, it outputs low level.\nWhen it is off, it outputs high level. The level of the signal output is close\nto the power supply voltage. TIPS: The sensor must be kept at a distance from\nthe flame to avoid damage to the sensor. When the sensor detects a flame,\nsunlight, or infrared light, if achieve potentiometer setting threshold, the\ngreen indicator light will ON, the DO output low level (0-0.1 - V), the green\nlight is OFF, the DO output about 3 V high voltage level. Read more Package\nContent: 5 x IR Flame Sensor Module Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking Voltage : 3-5.5V DC\u003c\/li\u003e\n \u003cli\u003eTotal Size : 50 x 15 x 15mm\/2\" x 0.59\"x 0.59\"(L*W*H)\u003c\/li\u003e\n \u003cli\u003eFlame Detection Sensor Module\u003c\/li\u003e\n \u003cli\u003eFit for Arduino\u003c\/li\u003e\n \u003cli\u003eAccuracy adjustable\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
