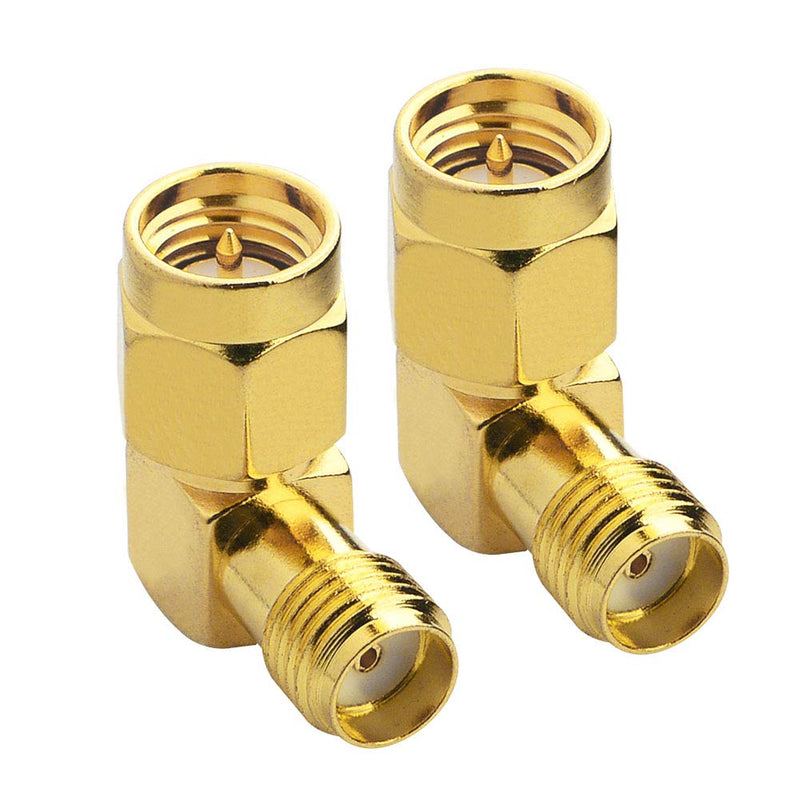

{"id":7276055003296,"title":"onelinkmore SMA Male to Female Right Angle 90-Degree Adapter Gold Plated Contacts Pack of 4… 90 Degree","handle":"onelinkmore-sma-male-to-female-right-angle-90-degree-adapter-gold-plated-contacts-pack-of-4-90-degree","description":"\u003ch3\u003eonelinkmore SMA Male to Female Right Angle 90-Degree Adapter Gold Plated Contacts Pack of 4…\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct Series:TYPE SMA is one kinf of RF coaxial connectors that is widely\napplied,with small-sized thread coupling,characteristic impedance is 50 Ω,This\nSMA series is small threaded coaxial connectors with high frequency bandwidth,\nexcellent performance, high reliability and long life, has a wide range of\napplication, eg: connection for two-way radio, audio, video, and other test\nequipment.Product Specification:Temp range:-65～+165℃ (PE\nCable-40～+85℃)Vibration:MIL-STD-202,Method 213Impedance:50ΩFrequency\nRange：DC～12.4GHzWorking Voltage：335V maxInsulation resistance≥ 5000 MΩ\nInsertion loss≤0.15 dB\/6GHzSMA Coaxial adapterBody Plating:GoldplatedConnector\nMaterial:BrassGender:SMA Plug,male pin\/SMA Jack,female pinStyle:Right\nAngleMounting Type:Free hanging\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSMA 90 degree Angle Adapter Jack to Plug; Commercial Grade SMA Series Adapters\u003c\/li\u003e\n \u003cli\u003eThe connector housing and pin in center are made of pure brass to ensure a lower VSWR for higher transmission efficiency\u003c\/li\u003e\n \u003cli\u003eSMA Male with A pin in center to SMA Female with A hole in center\u003c\/li\u003e\n \u003cli\u003eImpedance:50, Insertion loss0.15dB\/3GHz,VSWR1.1;Teflon Insulator ; Color: Gold\u003c\/li\u003e\n \u003cli\u003ePackage Content : 4 x SMA Female to Male Adapter\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-03-06T16:41:39+11:00","created_at":"2022-03-02T22:24:29+11:00","vendor":"onelinkmore","type":"Connectors \u0026 Adapters","tags":["electronics2022"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41805412860064,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07YW3M4GB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"onelinkmore SMA Male to Female Right Angle 90-Degree Adapter Gold Plated Contacts Pack of 4… 90 Degree","public_title":null,"options":["Default Title"],"price":11900,"weight":23,"compare_at_price":null,"inventory_management":null,"barcode":"6059323035064","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07YW3M4GB.jpg?v=1649538088","\/\/dingoship.com.au\/cdn\/shop\/products\/61sle36Ry0L.jpg?v=1646220269","\/\/dingoship.com.au\/cdn\/shop\/products\/61LBP8Jr1TL.jpg?v=1646220269","\/\/dingoship.com.au\/cdn\/shop\/products\/61D56Eamh1L.jpg?v=1646220269"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07YW3M4GB.jpg?v=1649538088","options":["Title"],"media":[{"alt":null,"id":24432298426528,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07YW3M4GB.jpg?v=1649538088"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07YW3M4GB.jpg?v=1649538088","width":1001},{"alt":null,"id":24109885358240,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61sle36Ry0L.jpg?v=1646220269"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61sle36Ry0L.jpg?v=1646220269","width":1001},{"alt":null,"id":24109885391008,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61LBP8Jr1TL.jpg?v=1646220269"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61LBP8Jr1TL.jpg?v=1646220269","width":1001},{"alt":null,"id":24109885423776,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61D56Eamh1L.jpg?v=1646220269"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61D56Eamh1L.jpg?v=1646220269","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eonelinkmore SMA Male to Female Right Angle 90-Degree Adapter Gold Plated Contacts Pack of 4…\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct Series:TYPE SMA is one kinf of RF coaxial connectors that is widely\napplied,with small-sized thread coupling,characteristic impedance is 50 Ω,This\nSMA series is small threaded coaxial connectors with high frequency bandwidth,\nexcellent performance, high reliability and long life, has a wide range of\napplication, eg: connection for two-way radio, audio, video, and other test\nequipment.Product Specification:Temp range:-65～+165℃ (PE\nCable-40～+85℃)Vibration:MIL-STD-202,Method 213Impedance:50ΩFrequency\nRange：DC～12.4GHzWorking Voltage：335V maxInsulation resistance≥ 5000 MΩ\nInsertion loss≤0.15 dB\/6GHzSMA Coaxial adapterBody Plating:GoldplatedConnector\nMaterial:BrassGender:SMA Plug,male pin\/SMA Jack,female pinStyle:Right\nAngleMounting Type:Free hanging\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSMA 90 degree Angle Adapter Jack to Plug; Commercial Grade SMA Series Adapters\u003c\/li\u003e\n \u003cli\u003eThe connector housing and pin in center are made of pure brass to ensure a lower VSWR for higher transmission efficiency\u003c\/li\u003e\n \u003cli\u003eSMA Male with A pin in center to SMA Female with A hole in center\u003c\/li\u003e\n \u003cli\u003eImpedance:50, Insertion loss0.15dB\/3GHz,VSWR1.1;Teflon Insulator ; Color: Gold\u003c\/li\u003e\n \u003cli\u003ePackage Content : 4 x SMA Female to Male Adapter\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
