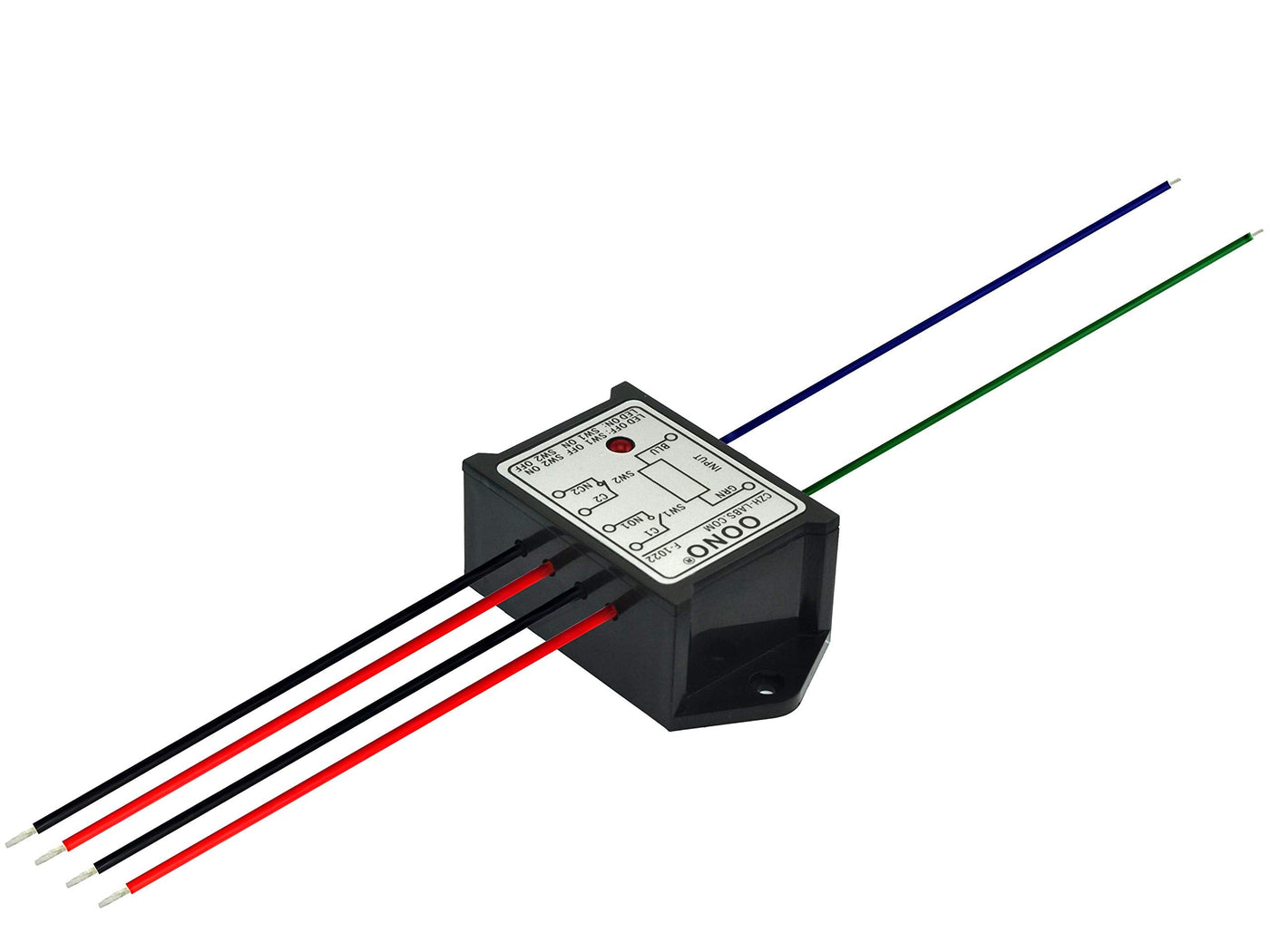

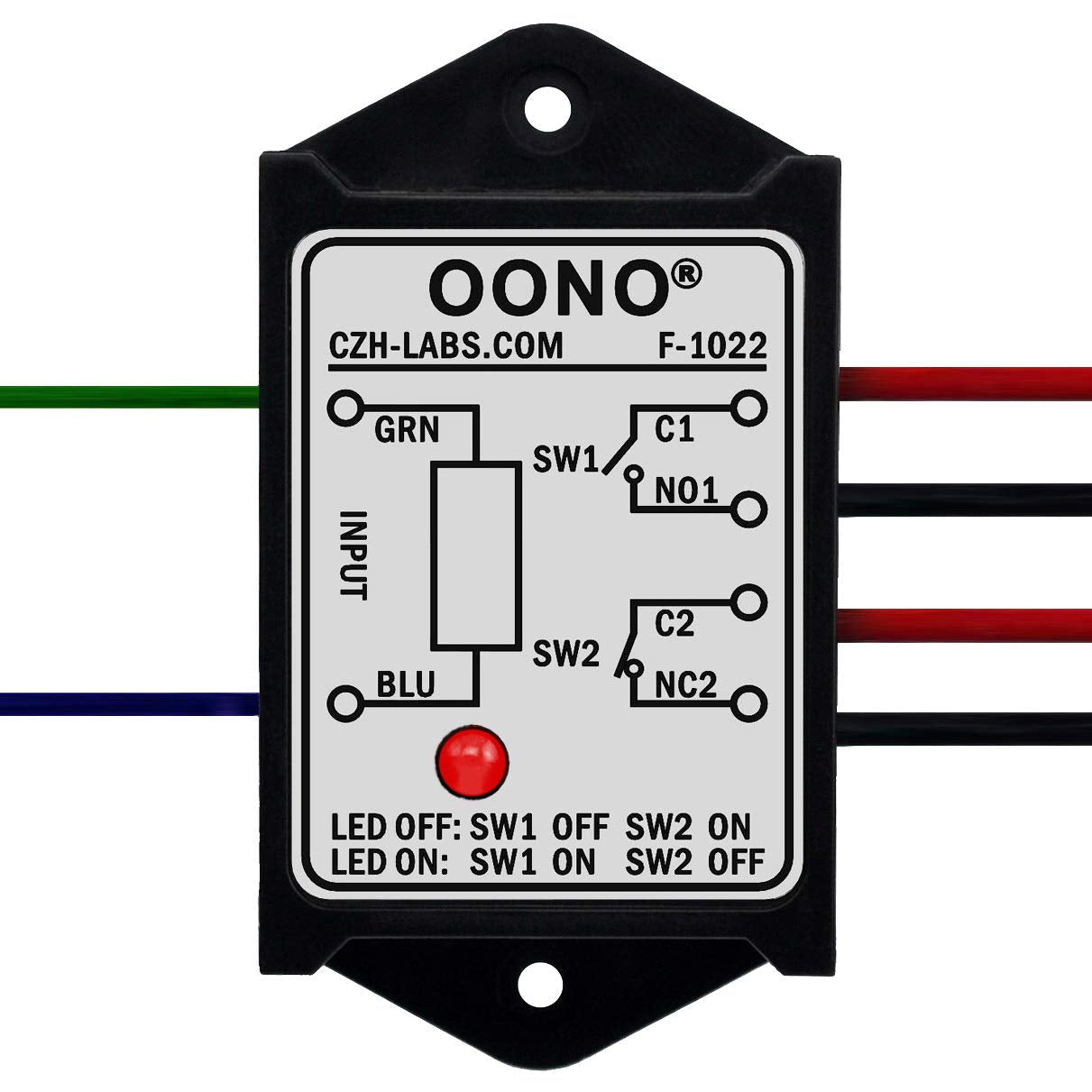

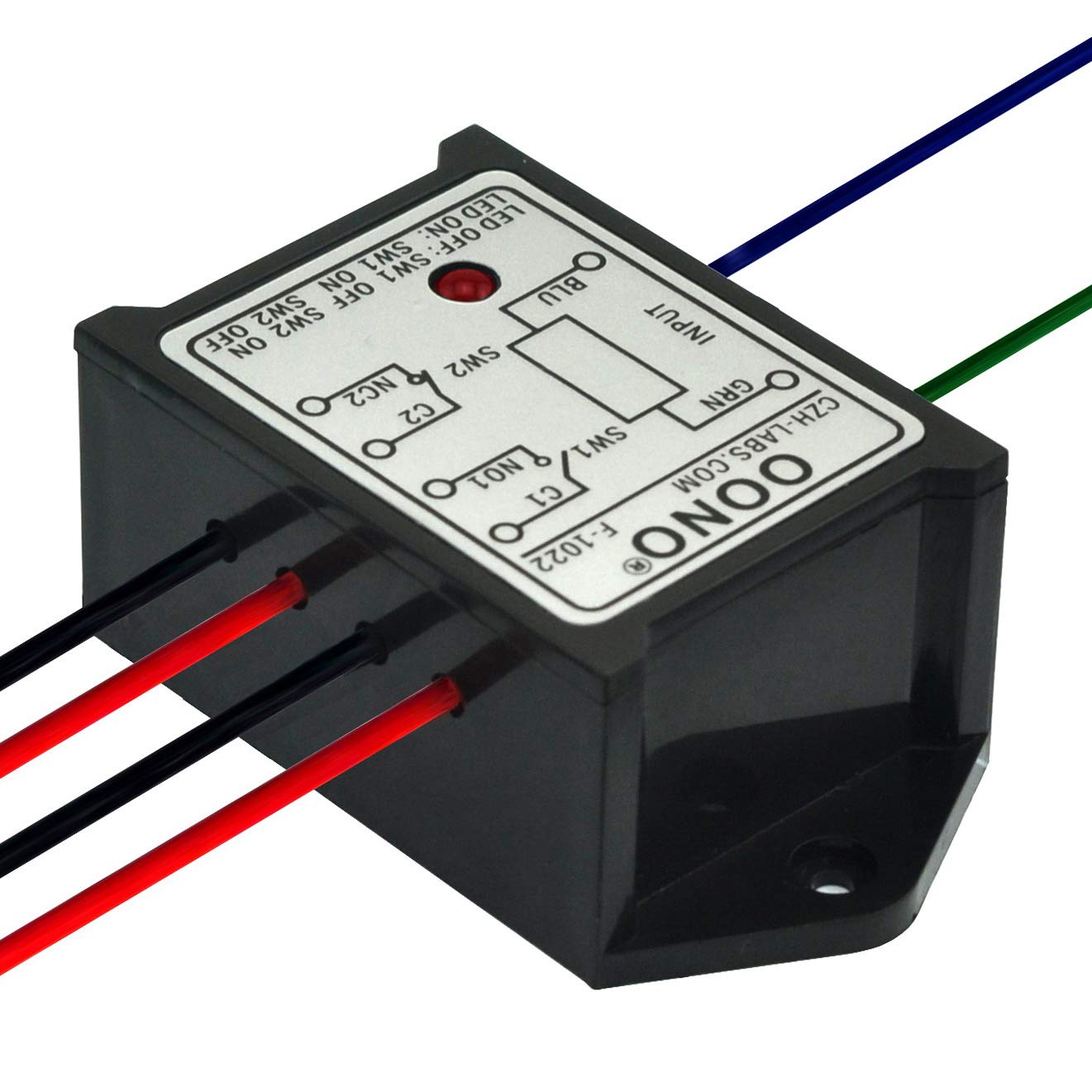

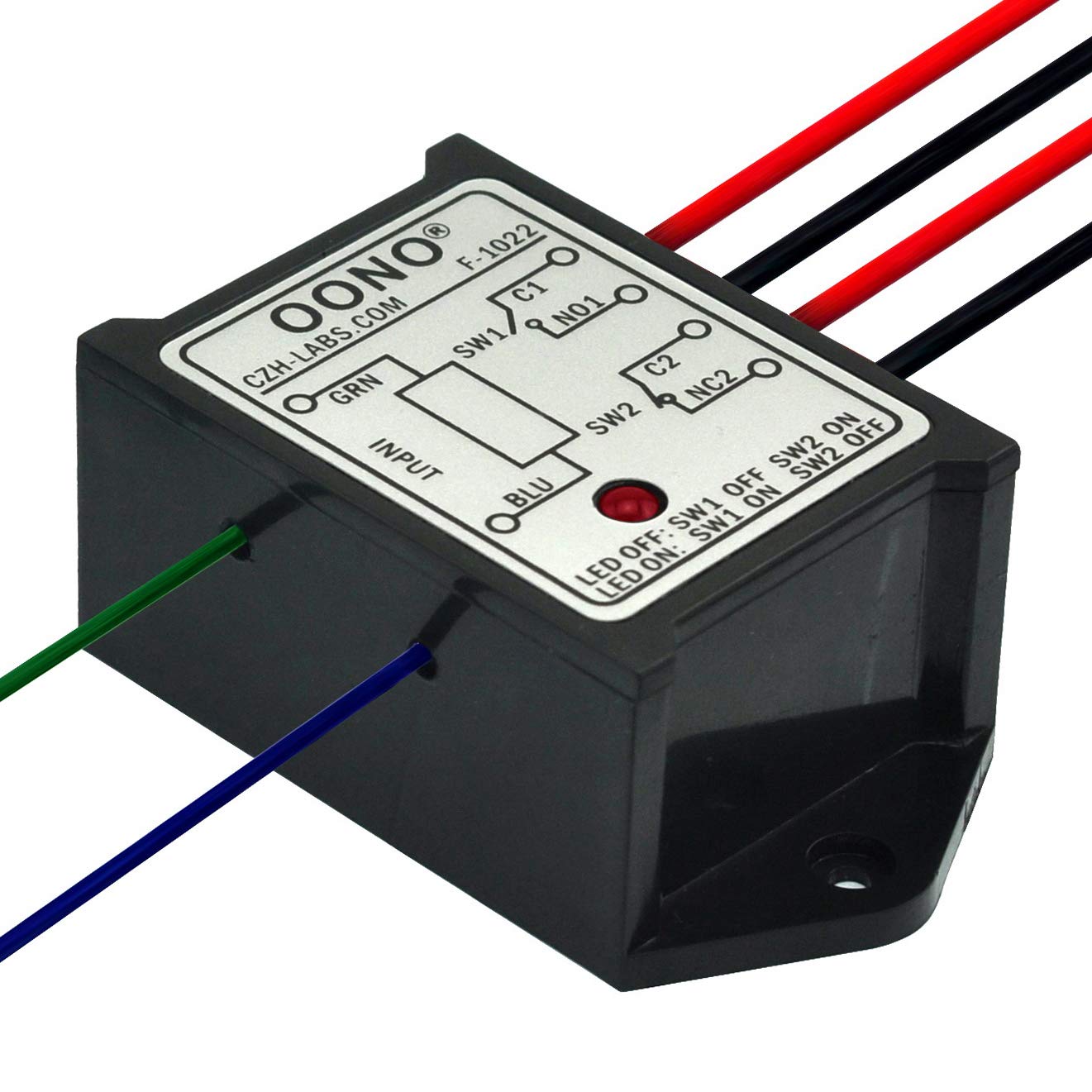

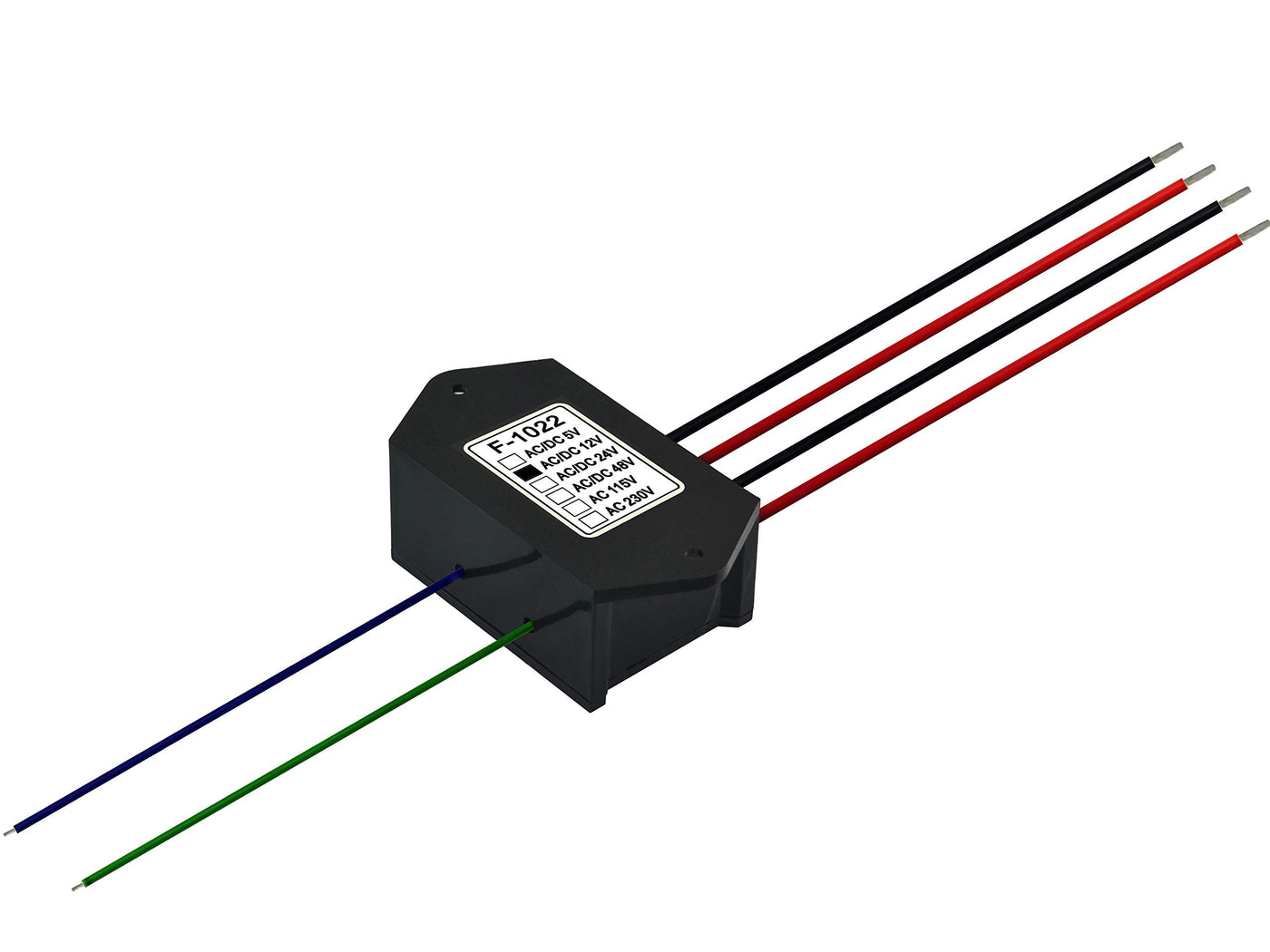

{"id":7414011560096,"title":"OONO DPST 1NO 1NC 8Amp Power Relay Module, AC\/DC 12V Control Voltage","handle":"oono-dpst-1no-1nc-8amp-power-relay-module-ac-dc-12v-control-voltage","description":"\u003ch3\u003eOONO DPST 1NO 1NC 8Amp Power Relay Module, AC\/DC 12V Control Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInput control signal: AC\/DC5V, AC\/DC12V, AC\/DC24V,\nAC\/DC48V, AC115V and AC230V version selectable.Output switch DPST 1NO\n1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated\ncurrent 8A\/250VAC or 8A\/30VDC (one switch).Compact plastic case and wires\nconnects for easy mount.LED indication for relay action.This is a simple and\npractical passive relay module, which is very convenient to use. It can\nsupport both Normally Open and Normally Close. Two screw mounting holes are\nconvenient for you to fix it on the wall or wooden board. Of course, you can\nalso choose not to lock the screw. Input Control Signal Input control signal:\nAC\/DC5V, AC\/DC12V, AC\/DC24V, AC\/DC48V, AC115V and AC230V selectable. 5V: AC\n4.0-6.0V or DC 4.2-6.5V, Current 80mA. 12V: AC 10-13V or DC 9.6-15V, Current\n33mA. 24V: AC 16-25V or DC 19-30V, Current 17mA. 48V: AC 36-50V or DC 38-60V,\nCurrent 9mA. 115V: AC 87-143V, Current 6mA. 230V: AC 174-286V, Current 3mA.\nOutput Switch Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally\nOpen and 1x Normally Close ). Rated current 8A\/250VAC or 8A\/30VDC (one\nswitch). Easy Installation Compact plastic case and wires connects for easy\nmount. LED indication for relay action. This is a simple and practical passive\nrelay module, which is very convenient to use. It can support both Normally\nOpen and Normally Close. Two screw mounting holes are convenient for you to\nfix it on the wall or wooden board. Of course, you can also choose not to lock\nthe screw. Read more Dimensions: Dual SPST-NO 10Amp Power Relay Module DPST\n1NO 1NC 8Amp Power Relay Module DPST 1NO 1NC 8Amp Latching Relay Module DC-DC\n10Amp Isolated Solid State Relay Module DC-AC 3Amp Isolated Solid State Relay\nModule 4 SPDT 10Amp Power Relay Module Part Number F-1001 Series F-1022 Series\nF-1030 Series F-1049 F-1050 F-1002 Series Version AC\/DC 5V, AC\/DC 12V, AC\/DC\n24V, AC\/DC 5V, AC\/DC 12V, AC\/DC 24V, AC\/DC 48V, AC 115V, AC 230V, DC 5V, DC\n12V, DC 24V In 3-32VDC Out 5-30VDC In 3-32VDC Out 90-250VAC DC 5V, DC 12V, DC\n24V\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eInput control signal: Voltage AC or DC 12V, Current 33mA.\u003c\/li\u003e\n \u003cli\u003eOutput switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A\/250VAC or 8A\/30VDC (one switch).\u003c\/li\u003e\n \u003cli\u003eCompact plastic case and wires connects for easy mount. LED indication for relay action.\u003c\/li\u003e\n \u003cli\u003eThis is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T14:26:51+10:00","created_at":"2022-06-14T14:26:56+10:00","vendor":"OONO","type":"Relays","tags":["dingo","sold2025"],"price":12600,"price_min":12600,"price_max":12600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194320949408,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B089Q6KLPQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"OONO DPST 1NO 1NC 8Amp Power Relay Module, AC\/DC 12V Control Voltage","public_title":null,"options":["Default Title"],"price":12600,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":"F-1022 Series","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B089Q6KLPQ.jpg?v=1655249443","\/\/dingoship.com.au\/cdn\/shop\/products\/71hgoNQEImL.jpg?v=1655180816","\/\/dingoship.com.au\/cdn\/shop\/products\/71hYH7AgusL.jpg?v=1655180816","\/\/dingoship.com.au\/cdn\/shop\/products\/61VkusclFhL.jpg?v=1655180816","\/\/dingoship.com.au\/cdn\/shop\/products\/61pE2i8yfZL.jpg?v=1655180816","\/\/dingoship.com.au\/cdn\/shop\/products\/71sh14Uv9fL.jpg?v=1655180816"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B089Q6KLPQ.jpg?v=1655249443","options":["Title"],"media":[{"alt":null,"id":24860208365728,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1211,"width":1211,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B089Q6KLPQ.jpg?v=1655249443"},"aspect_ratio":1.0,"height":1211,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B089Q6KLPQ.jpg?v=1655249443","width":1211},{"alt":null,"id":24853830205600,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71hgoNQEImL.jpg?v=1655180816"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71hgoNQEImL.jpg?v=1655180816","width":2560},{"alt":null,"id":24853830238368,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71hYH7AgusL.jpg?v=1655180816"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71hYH7AgusL.jpg?v=1655180816","width":2560},{"alt":null,"id":24853830271136,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1321,"width":1321,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61VkusclFhL.jpg?v=1655180816"},"aspect_ratio":1.0,"height":1321,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61VkusclFhL.jpg?v=1655180816","width":1321},{"alt":null,"id":24853830303904,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1321,"width":1321,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61pE2i8yfZL.jpg?v=1655180816"},"aspect_ratio":1.0,"height":1321,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61pE2i8yfZL.jpg?v=1655180816","width":1321},{"alt":null,"id":24853830336672,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71sh14Uv9fL.jpg?v=1655180816"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71sh14Uv9fL.jpg?v=1655180816","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eOONO DPST 1NO 1NC 8Amp Power Relay Module, AC\/DC 12V Control Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInput control signal: AC\/DC5V, AC\/DC12V, AC\/DC24V,\nAC\/DC48V, AC115V and AC230V version selectable.Output switch DPST 1NO\n1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated\ncurrent 8A\/250VAC or 8A\/30VDC (one switch).Compact plastic case and wires\nconnects for easy mount.LED indication for relay action.This is a simple and\npractical passive relay module, which is very convenient to use. It can\nsupport both Normally Open and Normally Close. Two screw mounting holes are\nconvenient for you to fix it on the wall or wooden board. Of course, you can\nalso choose not to lock the screw. Input Control Signal Input control signal:\nAC\/DC5V, AC\/DC12V, AC\/DC24V, AC\/DC48V, AC115V and AC230V selectable. 5V: AC\n4.0-6.0V or DC 4.2-6.5V, Current 80mA. 12V: AC 10-13V or DC 9.6-15V, Current\n33mA. 24V: AC 16-25V or DC 19-30V, Current 17mA. 48V: AC 36-50V or DC 38-60V,\nCurrent 9mA. 115V: AC 87-143V, Current 6mA. 230V: AC 174-286V, Current 3mA.\nOutput Switch Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally\nOpen and 1x Normally Close ). Rated current 8A\/250VAC or 8A\/30VDC (one\nswitch). Easy Installation Compact plastic case and wires connects for easy\nmount. LED indication for relay action. This is a simple and practical passive\nrelay module, which is very convenient to use. It can support both Normally\nOpen and Normally Close. Two screw mounting holes are convenient for you to\nfix it on the wall or wooden board. Of course, you can also choose not to lock\nthe screw. Read more Dimensions: Dual SPST-NO 10Amp Power Relay Module DPST\n1NO 1NC 8Amp Power Relay Module DPST 1NO 1NC 8Amp Latching Relay Module DC-DC\n10Amp Isolated Solid State Relay Module DC-AC 3Amp Isolated Solid State Relay\nModule 4 SPDT 10Amp Power Relay Module Part Number F-1001 Series F-1022 Series\nF-1030 Series F-1049 F-1050 F-1002 Series Version AC\/DC 5V, AC\/DC 12V, AC\/DC\n24V, AC\/DC 5V, AC\/DC 12V, AC\/DC 24V, AC\/DC 48V, AC 115V, AC 230V, DC 5V, DC\n12V, DC 24V In 3-32VDC Out 5-30VDC In 3-32VDC Out 90-250VAC DC 5V, DC 12V, DC\n24V\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eInput control signal: Voltage AC or DC 12V, Current 33mA.\u003c\/li\u003e\n \u003cli\u003eOutput switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A\/250VAC or 8A\/30VDC (one switch).\u003c\/li\u003e\n \u003cli\u003eCompact plastic case and wires connects for easy mount. LED indication for relay action.\u003c\/li\u003e\n \u003cli\u003eThis is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
