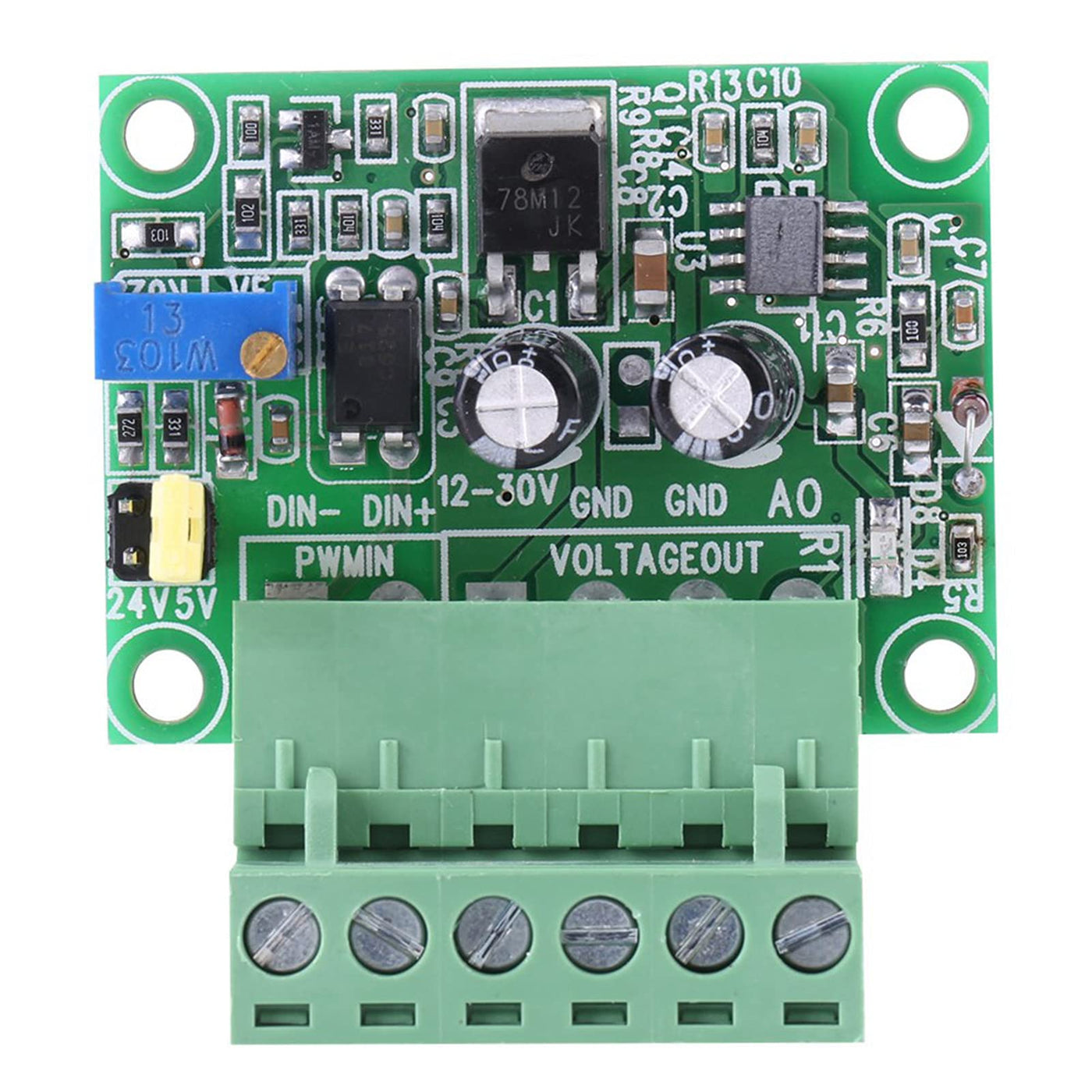

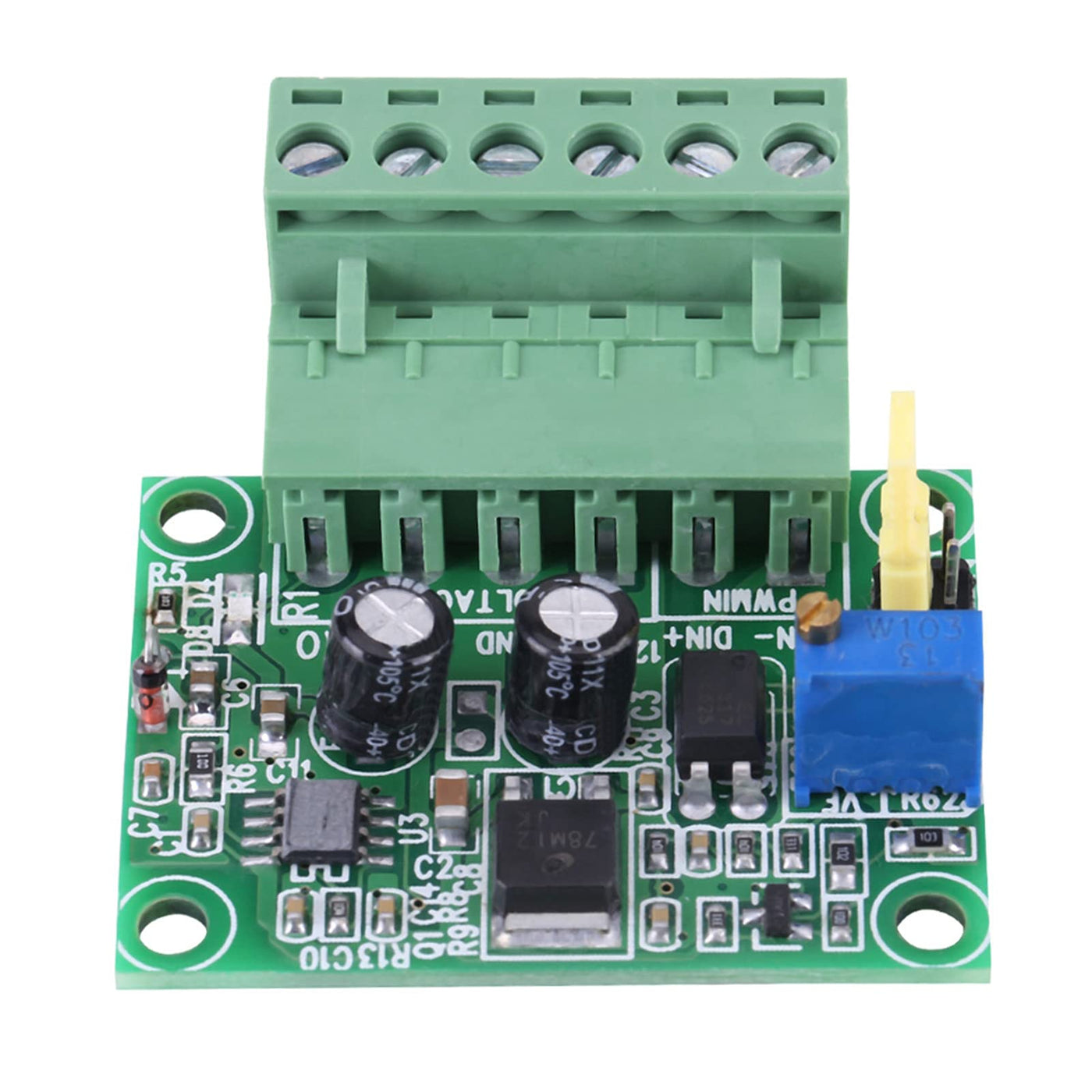

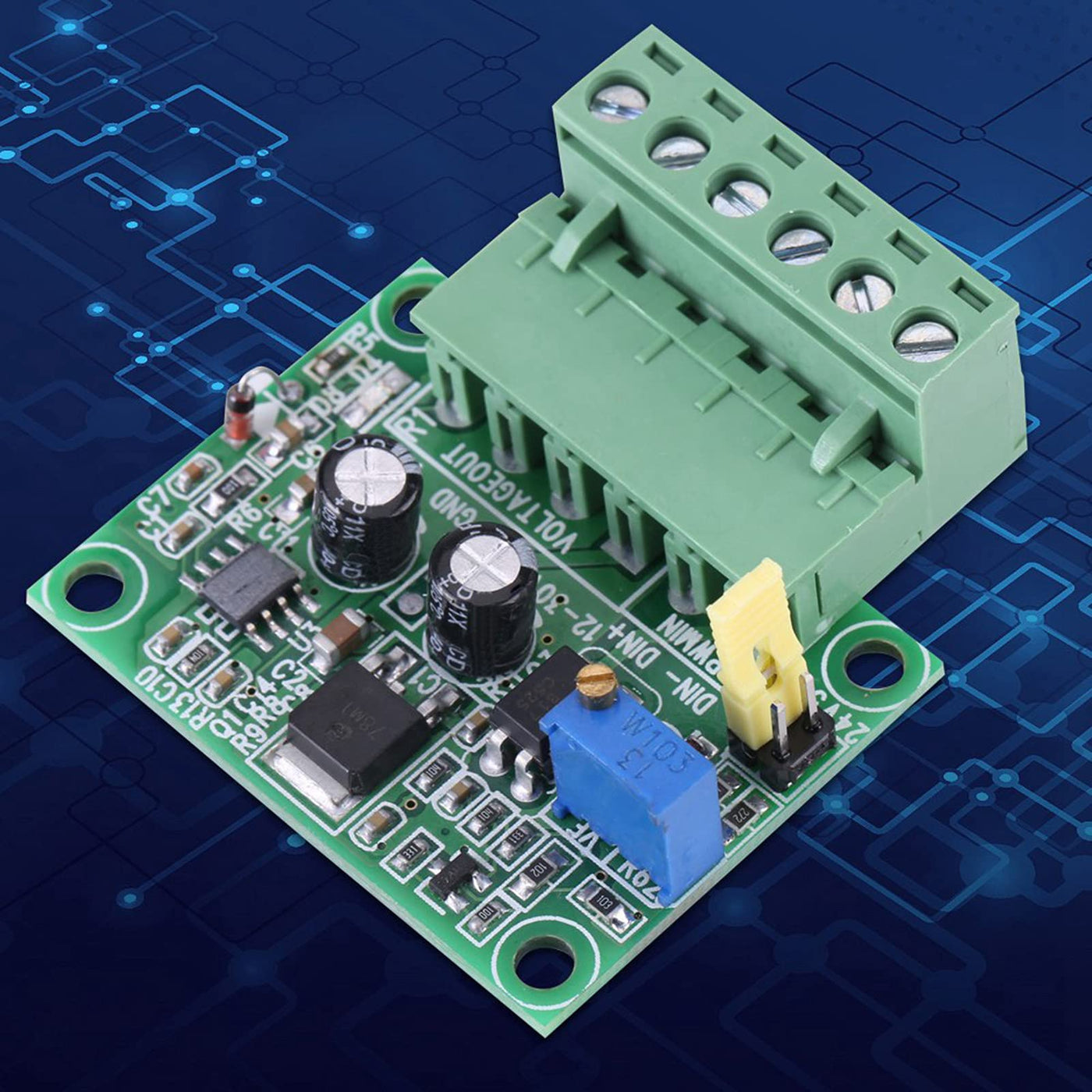

{"id":15204507091104,"title":"Oumefar 0-10V Digital to Analog Module PLC to Voltage Converter PWM Converter PWM to Voltage Module for Industrial Control Panel PLC","handle":"oumefar-0-10v-digital-to-analog-module-plc-to-voltage-converter-pwm-converter-pwm-to-voltage-module-for-industrial-control-panel-plc","description":"\u003ch3\u003eOumefar 0-10V Digital to Analog Module PLC to Voltage Converter PWM Converter PWM to Voltage Module for Industrial Control Panel PLC\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Features: PWM converts digital into analog (0 to 10V). Input\r\ndigital can be 5V or 24V 0- PWM . Output analog can be 0-10V voltage. Can be\r\nused for industrial control panel PLC or other interface switching. This\r\nmodule is easy to wire and convenient to use. Specification: Condition: brand\r\nnew and high quality Current: . 12mA Power supply input voltage: 12-30V Size:\r\nApprox. 5 x 4.5cm \/ 1.97 x 1.77inch Weight: 20g Quantity: 1pc Using : PWM\r\ninput frequency range: 1KHZ-3KHZ PWM input range: 4.5V to 10V to , jumper\r\ninserted at 5V. This type mainly for conventional industrial control card\r\n(such as for board), for 5V the CPU interface. 12 to 24V to , jumper inserted\r\nat 24V. This type mainly for conventional PLC interface 0-10V analog voltage\r\noutput explanation: When the input port is not connected, the output port\r\ngives 0V. The first time when we power on this module, we better calibrate it:\r\nfind a 50% duty ratio , connect to DIN-, DIN+, the amplitude matches\r\ncorresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to\r\ntest AO, GND. The meter should be showing around 5.4V. We adjust the\r\npotentiometer on the converter module to make multi-meter shows about 5.4V.\r\nAfter this is done, we have calibrated and matched pulse with this converter\r\nmodule. The module has a definition of 0.1V. Output current 10mA. If duty\r\nratio is in opposite to voltage, we can select PWM output pin STEP LOW \/\r\nACTIVE for software. Package Included: 1 x PWM to Voltage Converter Note:\r\nAfter power-up, when there is no input , the output is 0V. There is output\r\nonly when there is input.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePWM converts digital into analog (0 to 10V) .\u003c\/li\u003e\r\n \u003cli\u003eThis module is easy to wire and convenient to use .\u003c\/li\u003e\r\n \u003cli\u003eInput digital can be 5V or 24V level 0PWM .\u003c\/li\u003e\r\n \u003cli\u003eOutput analog can be 0 10v voltage or 0 5v voltage .\u003c\/li\u003e\r\n \u003cli\u003eCan be used for industrial control panel PLC or other interface switching .\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-18T04:40:41+11:00","created_at":"2025-10-18T04:40:37+11:00","vendor":"Oumefar","type":"","tags":["electronics_selected_Oct2025"],"price":9200,"price_min":9200,"price_max":9200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52940070453408,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08JHHY2NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Oumefar 0-10V Digital to Analog Module PLC to Voltage Converter PWM Converter PWM to Voltage Module for Industrial Control Panel PLC","public_title":null,"options":["Default Title"],"price":9200,"weight":45,"compare_at_price":null,"inventory_management":"shopify","barcode":"Oumefarw381ezpfsg","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B08JHHY2NC.jpg?v=1775759746","\/\/dingoship.com.au\/cdn\/shop\/files\/71gV3Du-1nS.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/71HGaK56ciS.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/811fCsrGkqS_27254172-b7f1-4d75-8d1f-3d2f163526b9.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/7133GptIxNS_5388bb4d-8fa3-4a1f-b483-608fdfdce500.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/61Ajm9oE5RS.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/71B9gcL_KiS.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/61gA9K0hLDS.jpg?v=1760722840","\/\/dingoship.com.au\/cdn\/shop\/files\/71Is1bwZl6S.jpg?v=1760722840"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B08JHHY2NC.jpg?v=1775759746","options":["Title"],"media":[{"alt":null,"id":38469294096544,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B08JHHY2NC.jpg?v=1775759746"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B08JHHY2NC.jpg?v=1775759746","width":1601},{"alt":null,"id":38469294129312,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71gV3Du-1nS.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71gV3Du-1nS.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294162080,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71HGaK56ciS.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71HGaK56ciS.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294194848,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/811fCsrGkqS_27254172-b7f1-4d75-8d1f-3d2f163526b9.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/811fCsrGkqS_27254172-b7f1-4d75-8d1f-3d2f163526b9.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294227616,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/7133GptIxNS_5388bb4d-8fa3-4a1f-b483-608fdfdce500.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/7133GptIxNS_5388bb4d-8fa3-4a1f-b483-608fdfdce500.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294260384,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Ajm9oE5RS.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Ajm9oE5RS.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294293152,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71B9gcL_KiS.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71B9gcL_KiS.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294325920,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gA9K0hLDS.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gA9K0hLDS.jpg?v=1760722840","width":1601},{"alt":null,"id":38469294358688,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71Is1bwZl6S.jpg?v=1760722840"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71Is1bwZl6S.jpg?v=1760722840","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eOumefar 0-10V Digital to Analog Module PLC to Voltage Converter PWM Converter PWM to Voltage Module for Industrial Control Panel PLC\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Features: PWM converts digital into analog (0 to 10V). Input\r\ndigital can be 5V or 24V 0- PWM . Output analog can be 0-10V voltage. Can be\r\nused for industrial control panel PLC or other interface switching. This\r\nmodule is easy to wire and convenient to use. Specification: Condition: brand\r\nnew and high quality Current: . 12mA Power supply input voltage: 12-30V Size:\r\nApprox. 5 x 4.5cm \/ 1.97 x 1.77inch Weight: 20g Quantity: 1pc Using : PWM\r\ninput frequency range: 1KHZ-3KHZ PWM input range: 4.5V to 10V to , jumper\r\ninserted at 5V. This type mainly for conventional industrial control card\r\n(such as for board), for 5V the CPU interface. 12 to 24V to , jumper inserted\r\nat 24V. This type mainly for conventional PLC interface 0-10V analog voltage\r\noutput explanation: When the input port is not connected, the output port\r\ngives 0V. The first time when we power on this module, we better calibrate it:\r\nfind a 50% duty ratio , connect to DIN-, DIN+, the amplitude matches\r\ncorresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to\r\ntest AO, GND. The meter should be showing around 5.4V. We adjust the\r\npotentiometer on the converter module to make multi-meter shows about 5.4V.\r\nAfter this is done, we have calibrated and matched pulse with this converter\r\nmodule. The module has a definition of 0.1V. Output current 10mA. If duty\r\nratio is in opposite to voltage, we can select PWM output pin STEP LOW \/\r\nACTIVE for software. Package Included: 1 x PWM to Voltage Converter Note:\r\nAfter power-up, when there is no input , the output is 0V. There is output\r\nonly when there is input.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePWM converts digital into analog (0 to 10V) .\u003c\/li\u003e\r\n \u003cli\u003eThis module is easy to wire and convenient to use .\u003c\/li\u003e\r\n \u003cli\u003eInput digital can be 5V or 24V level 0PWM .\u003c\/li\u003e\r\n \u003cli\u003eOutput analog can be 0 10v voltage or 0 5v voltage .\u003c\/li\u003e\r\n \u003cli\u003eCan be used for industrial control panel PLC or other interface switching .\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
