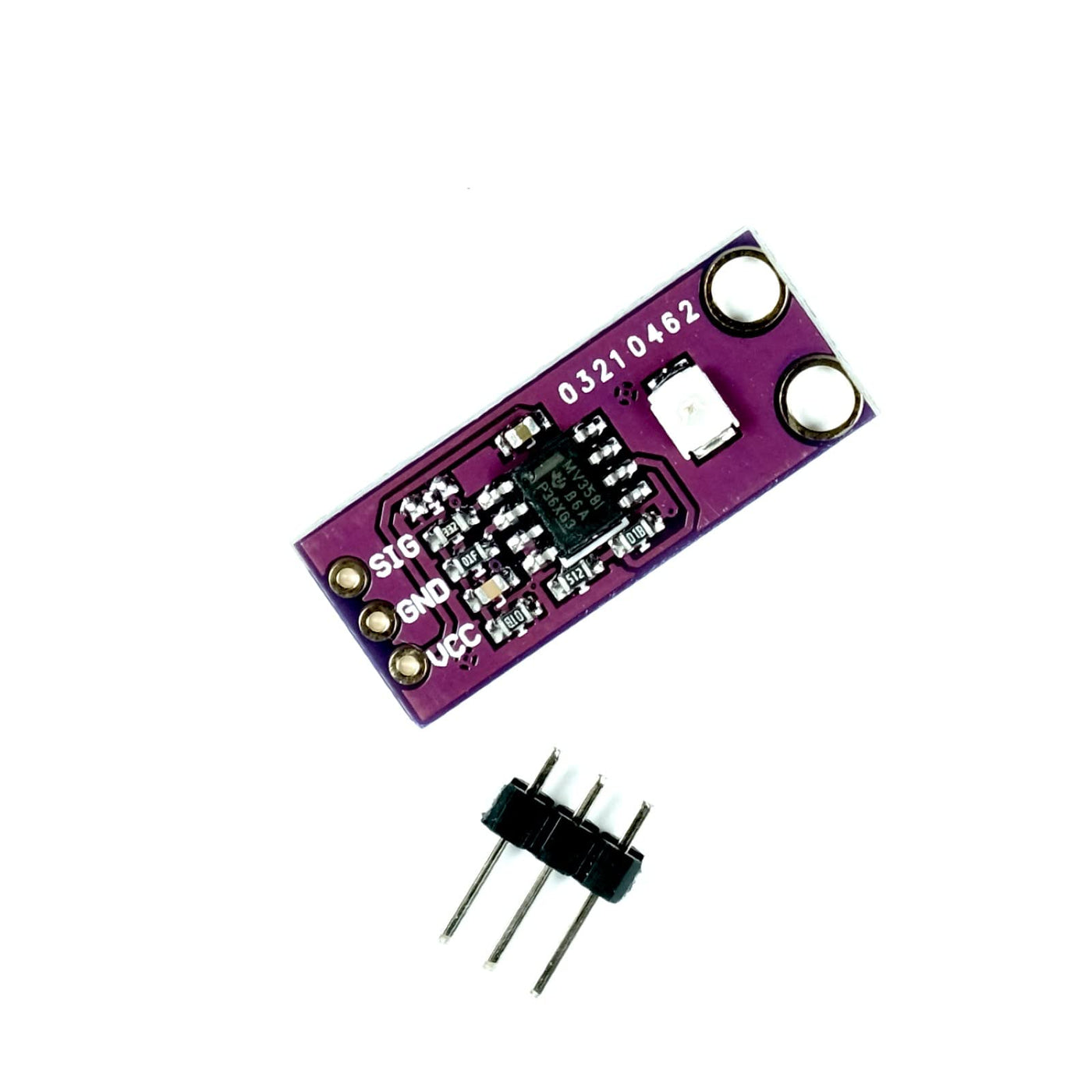

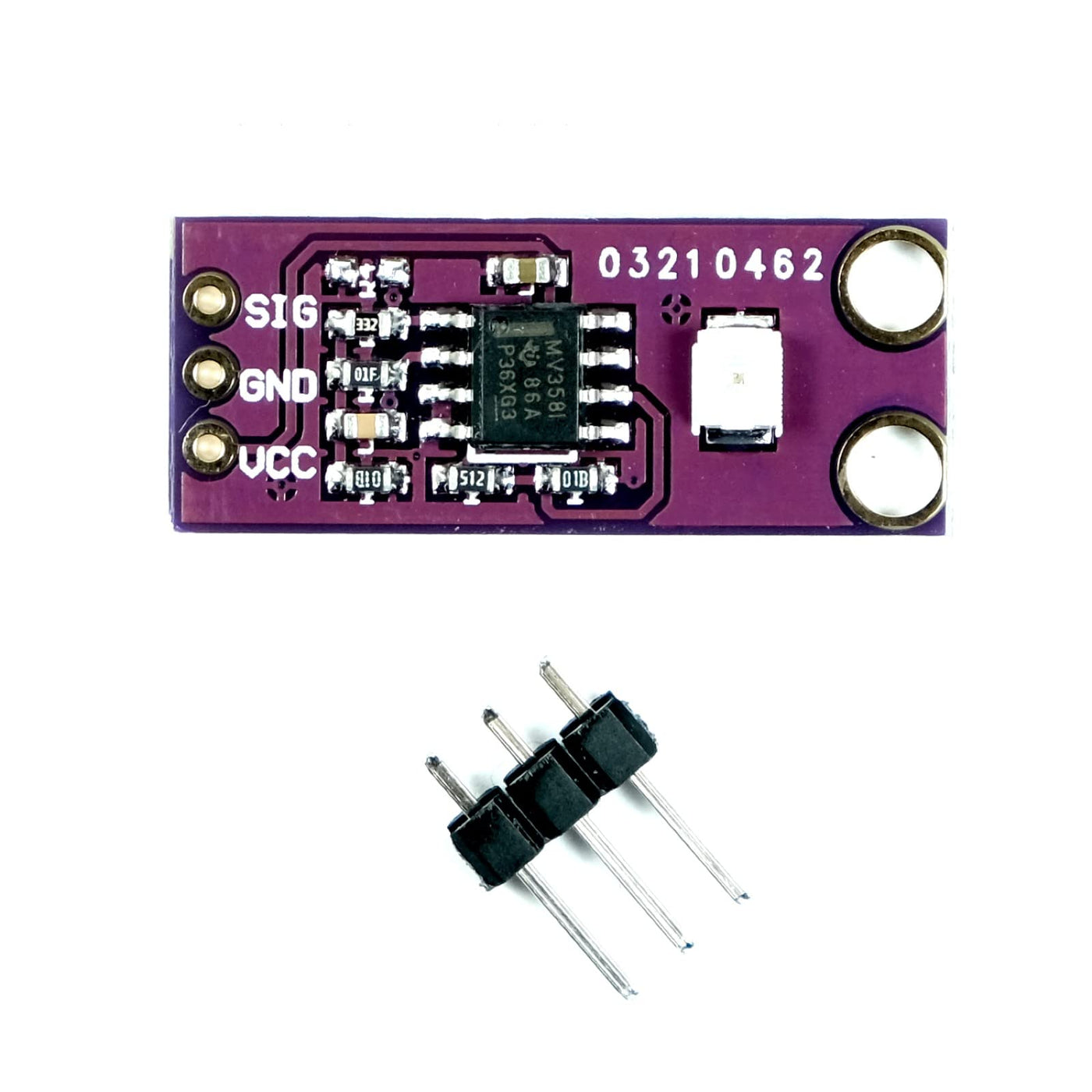

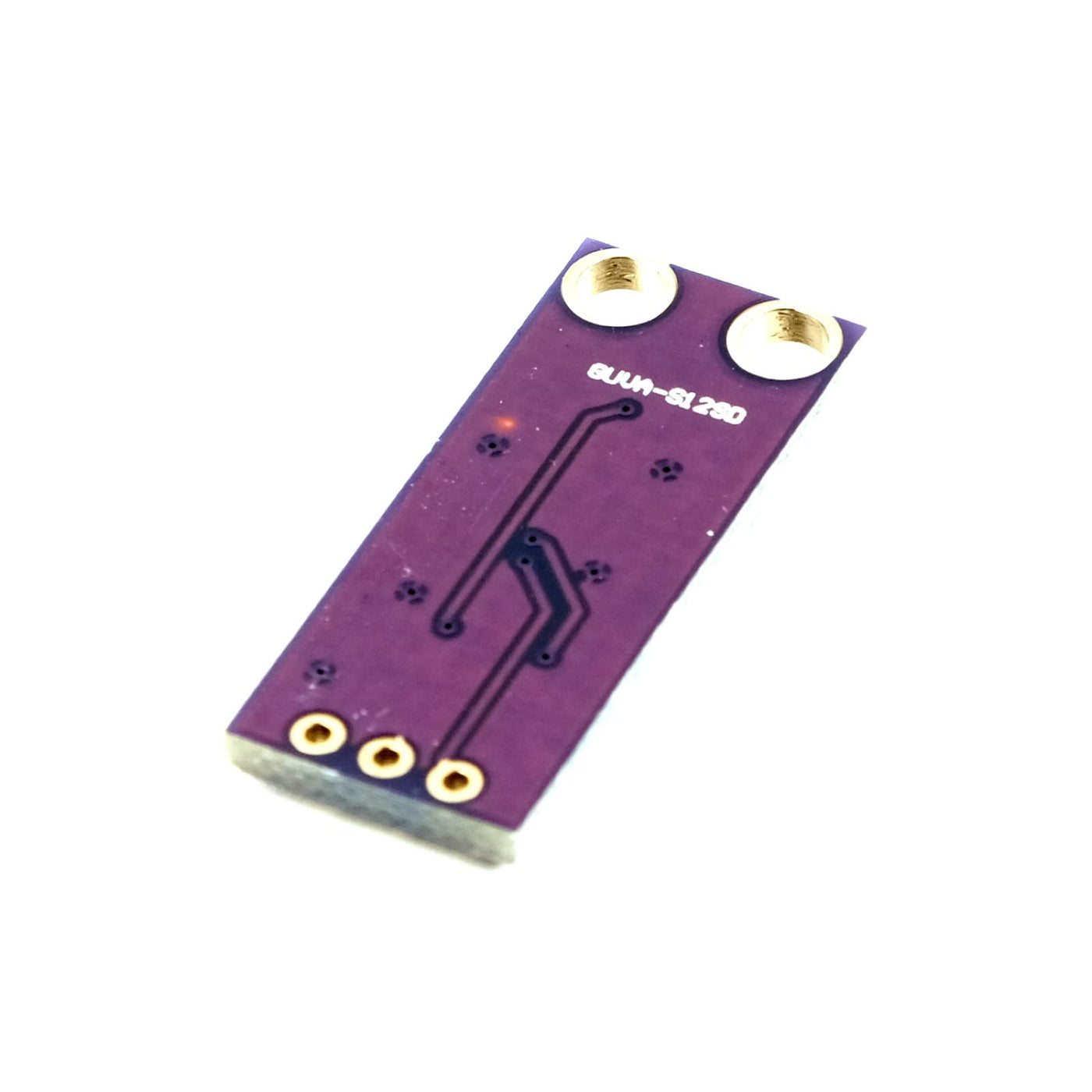

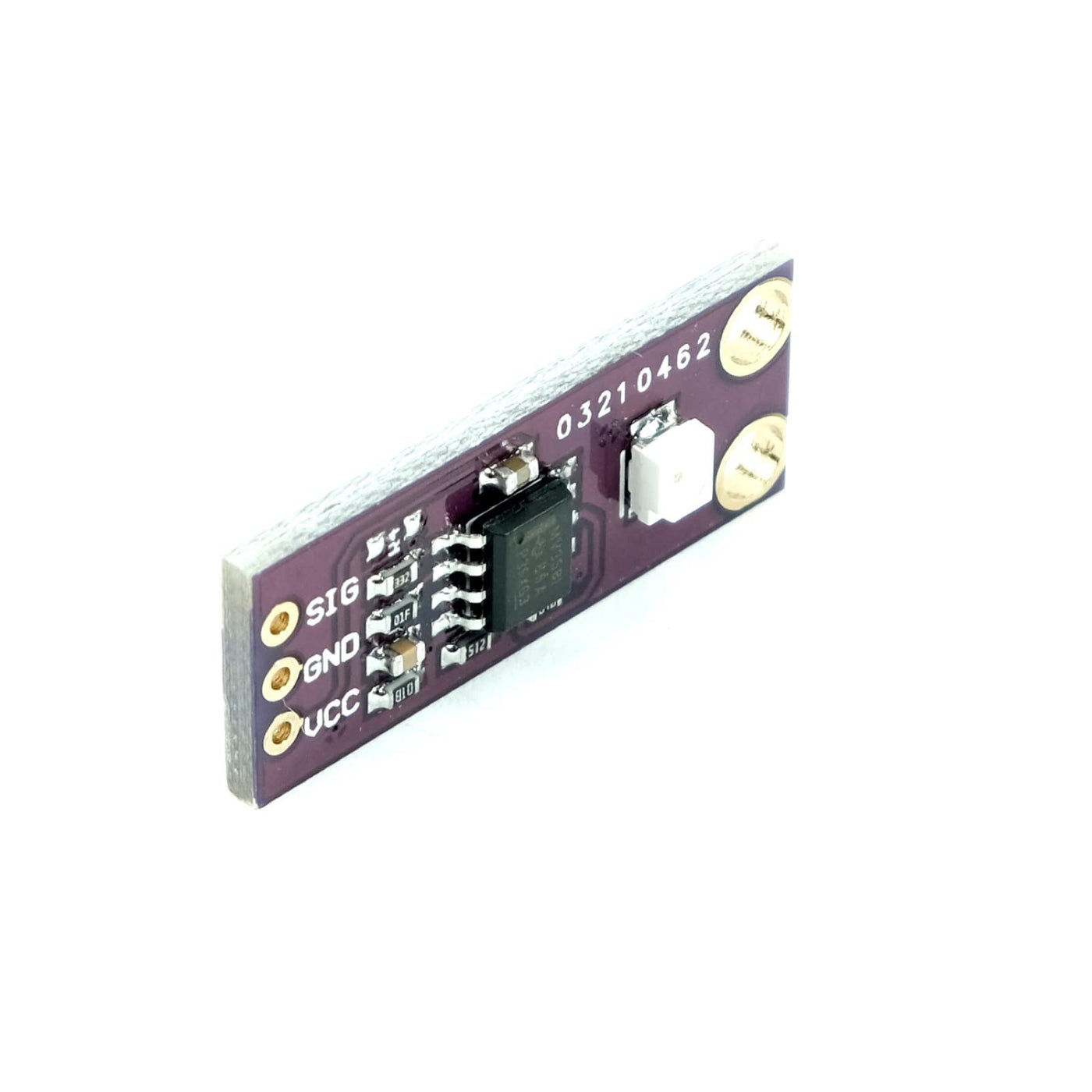

{"id":12640642334880,"title":"Paradisetronic.com UV light sensor GUVA-S12SD with analog output, 3-5V, 240-370nm, for e.g. Arduino","handle":"paradisetronic-com-uv-light-sensor-guva-s12sd-with-analog-output-3-5v-240-370nm-for-e-g-arduino","description":"\u003ch3\u003eParadisetronic.com UV light sensor GUVA-S12SD with analog output, 3-5V, 240-370nm, for e.g. Arduino\u003c\/h3\u003e \u003cp id=\"b\"\u003eUV light sensor GUVA-S12SD with analog output, 3-5V , 240-370nm, for e.g. Arduino Use the GUVA-S12SD UV light sensor to measure light in the UV-B and large parts of the UV-A spectrum. The analog output makes controlling the sensor board particularly easy. Simply connect VCC and GND to your voltage source and tap the UV component at the analog output SIG. Voltages between 2.5V and 5V are supported. Due to the almost linear characteristic curve, the conversion to the UV index can be easily implemented using the following formula: UV index = SIG 10 - 1 This means that an output voltage of 0.2V corresponds approximately to the UV index 1, an output voltage of 1, 0V approximately the UV index 9. Due to the wide input voltage range of 2.5-5V, the board is suitable for both 5V microcontroller boards, such as the Arduino UNO, as well as 3V boards, such as the Adafruit QT Py.\u003c\/p\u003e \u0026lt; h3\u0026gt;Product Features \u003cul class=\"a\"\u003e \u003cli\u003eMEASUREMENT IN THE UV-A\/UV-B SPECTRUM - 240-370nm measuring range enable the measurement of the light intensity in UV-B and large parts of UV-A Spectrum.\u003c\/li\u003e \u003cli\u003eEASY CONTROL - Connect VCC and GND to the power supply and tap the UV component at the analog output SIG. The board supports operating voltages of 2.5-5V.\u003c\/li\u003e \u003cli\u003eEASY CONVERSION TO UV INDEX - Thanks to the almost linear characteristic curve, the conversion from output voltage to UV index can be easily carried out: UV index = SIG * 10 - 1\u003c\/li\u003e \u003cli\u003eSCOPE OF DELIVERY - You will receive a UV light sensor GUVA-S12SD board with pin headers that you can solder if necessary, sealed in anti-static packaging.\u003c\/li\u003e \u003cli\u003ePROVIDED QUALITY - If you do not want to, despite our If you have any reason to complain about quality controls, we at Paradisetronic will help you quickly and easily.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-07T03:40:33+11:00","created_at":"2024-03-07T03:40:38+11:00","vendor":"Paradisetronic.com","type":"Optical sensors","tags":["industryDE"],"price":12900,"price_min":12900,"price_max":12900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48973142622368,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09X1SFR2J","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Paradisetronic.com UV light sensor GUVA-S12SD with analog output, 3-5V, 240-370nm, for e.g. Arduino","public_title":null,"options":["Default Title"],"price":12900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"968","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09X1SFR2J.jpg?v=1709772572","\/\/dingoship.com.au\/cdn\/shop\/products\/51TkRDsJ8TL.jpg?v=1709743238","\/\/dingoship.com.au\/cdn\/shop\/products\/51-6alh688L.jpg?v=1709743238","\/\/dingoship.com.au\/cdn\/shop\/products\/61wGhmy5KpL.jpg?v=1709743238"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09X1SFR2J.jpg?v=1709772572","options":["Title"],"media":[{"alt":null,"id":32684190924960,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09X1SFR2J.jpg?v=1709772572"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09X1SFR2J.jpg?v=1709772572","width":1600},{"alt":null,"id":32677722259616,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51TkRDsJ8TL.jpg?v=1709743238"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51TkRDsJ8TL.jpg?v=1709743238","width":1600},{"alt":null,"id":32677722292384,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51-6alh688L.jpg?v=1709743238"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51-6alh688L.jpg?v=1709743238","width":1600},{"alt":null,"id":32677722325152,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61wGhmy5KpL.jpg?v=1709743238"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61wGhmy5KpL.jpg?v=1709743238","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eParadisetronic.com UV light sensor GUVA-S12SD with analog output, 3-5V, 240-370nm, for e.g. Arduino\u003c\/h3\u003e \u003cp id=\"b\"\u003eUV light sensor GUVA-S12SD with analog output, 3-5V , 240-370nm, for e.g. Arduino Use the GUVA-S12SD UV light sensor to measure light in the UV-B and large parts of the UV-A spectrum. The analog output makes controlling the sensor board particularly easy. Simply connect VCC and GND to your voltage source and tap the UV component at the analog output SIG. Voltages between 2.5V and 5V are supported. Due to the almost linear characteristic curve, the conversion to the UV index can be easily implemented using the following formula: UV index = SIG 10 - 1 This means that an output voltage of 0.2V corresponds approximately to the UV index 1, an output voltage of 1, 0V approximately the UV index 9. Due to the wide input voltage range of 2.5-5V, the board is suitable for both 5V microcontroller boards, such as the Arduino UNO, as well as 3V boards, such as the Adafruit QT Py.\u003c\/p\u003e \u0026lt; h3\u0026gt;Product Features \u003cul class=\"a\"\u003e \u003cli\u003eMEASUREMENT IN THE UV-A\/UV-B SPECTRUM - 240-370nm measuring range enable the measurement of the light intensity in UV-B and large parts of UV-A Spectrum.\u003c\/li\u003e \u003cli\u003eEASY CONTROL - Connect VCC and GND to the power supply and tap the UV component at the analog output SIG. The board supports operating voltages of 2.5-5V.\u003c\/li\u003e \u003cli\u003eEASY CONVERSION TO UV INDEX - Thanks to the almost linear characteristic curve, the conversion from output voltage to UV index can be easily carried out: UV index = SIG * 10 - 1\u003c\/li\u003e \u003cli\u003eSCOPE OF DELIVERY - You will receive a UV light sensor GUVA-S12SD board with pin headers that you can solder if necessary, sealed in anti-static packaging.\u003c\/li\u003e \u003cli\u003ePROVIDED QUALITY - If you do not want to, despite our If you have any reason to complain about quality controls, we at Paradisetronic will help you quickly and easily.\u003c\/li\u003e \u003c\/ul\u003e"}
