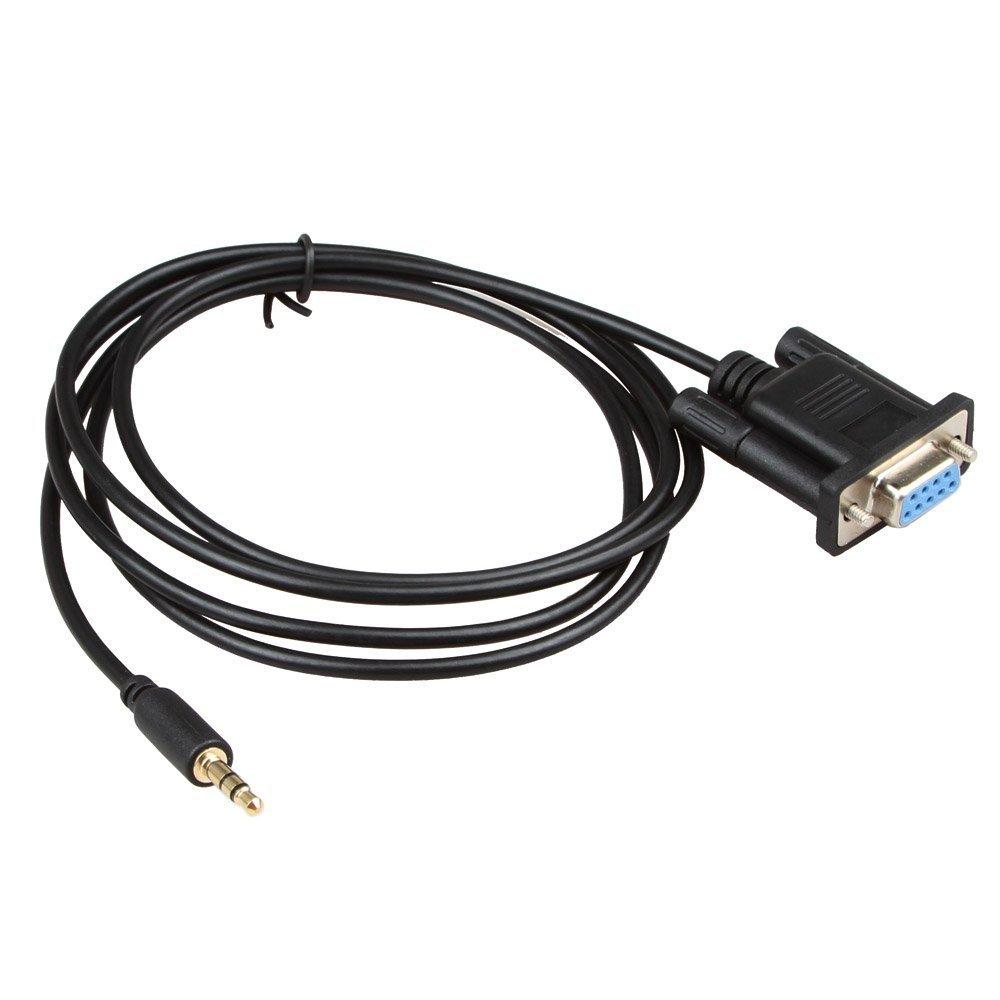

Relper-Lineso DB9Pin Female to DC3.5mm Serial Cable-6 Feet Black
Relper-Lineso DB9Pin Female to DC3.5mm Serial Cable-6 Feet Black

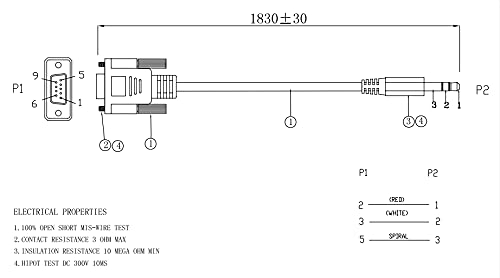

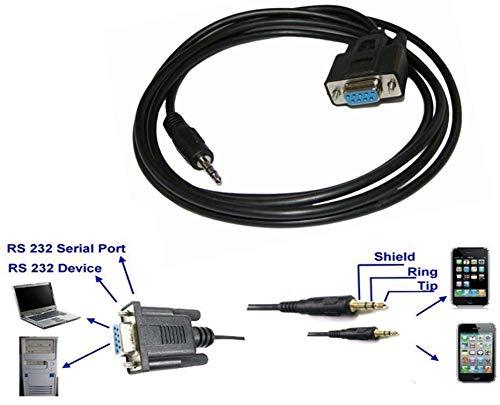

Color:DB9 Female To DC 3.5mm Cable 6feet DB9 Female to 3.5mm Serial Cable DB9Pin Serial Transfer Cable For Devices Stereo 3.5 mm Jack to DB9 Pin Female Serial Port. Primarily used to transfer Serial Data back and forth from Small devices. Wiring Schematic: DB9 TRS Connector / Audio DC3.5mm Pin 1-6-7-8 open Pin 2 Tip - Left Pin 3 Ring - Right Pin 4 open Pin 5 Shield - Ground Pin 9 open Our Recommendation : Please Kindly Confirm The Last Picture, Especially The Pinout Wiring Diagram.
Product Features
- 6Ft DB9 Female to 3.5mm Serial Cable
- Generic Serial Transfer Cable For Devices,
- Stereo 3.5 mm Jack to DB9-F Serial Port.
- Pacage:1* 6 feet/1.8M Stereo 3.5mm to DB9 Velocity Audio/Video Cable
