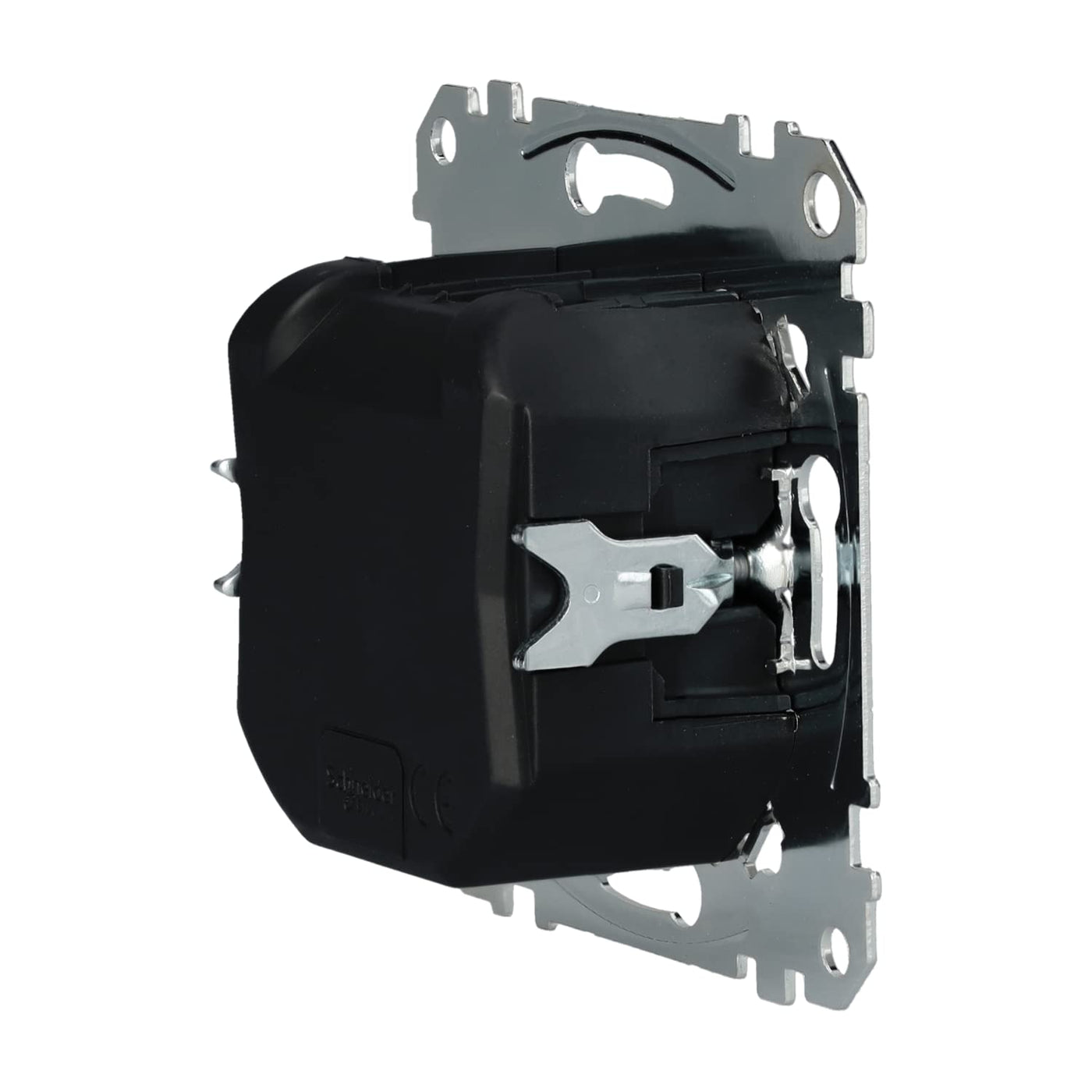

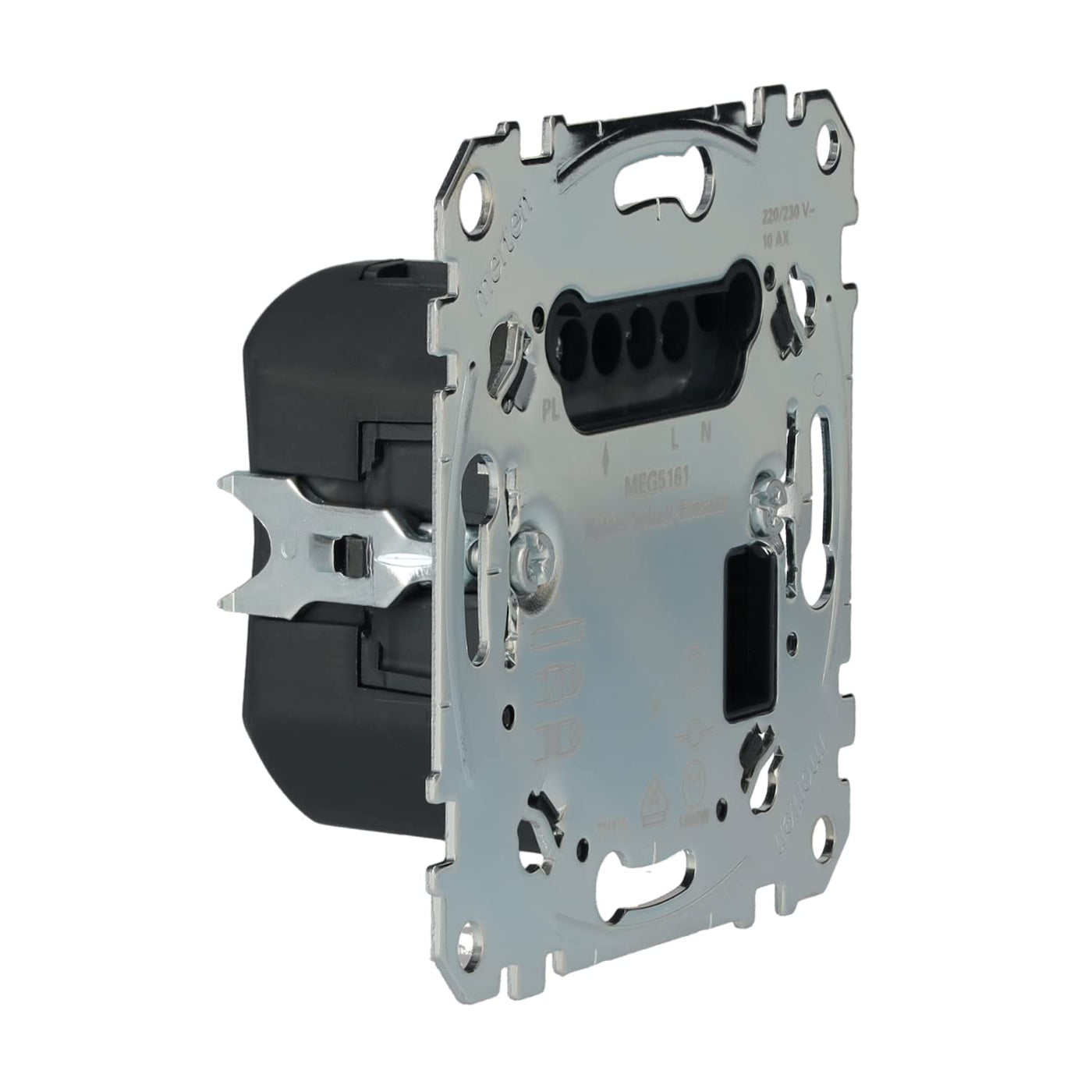

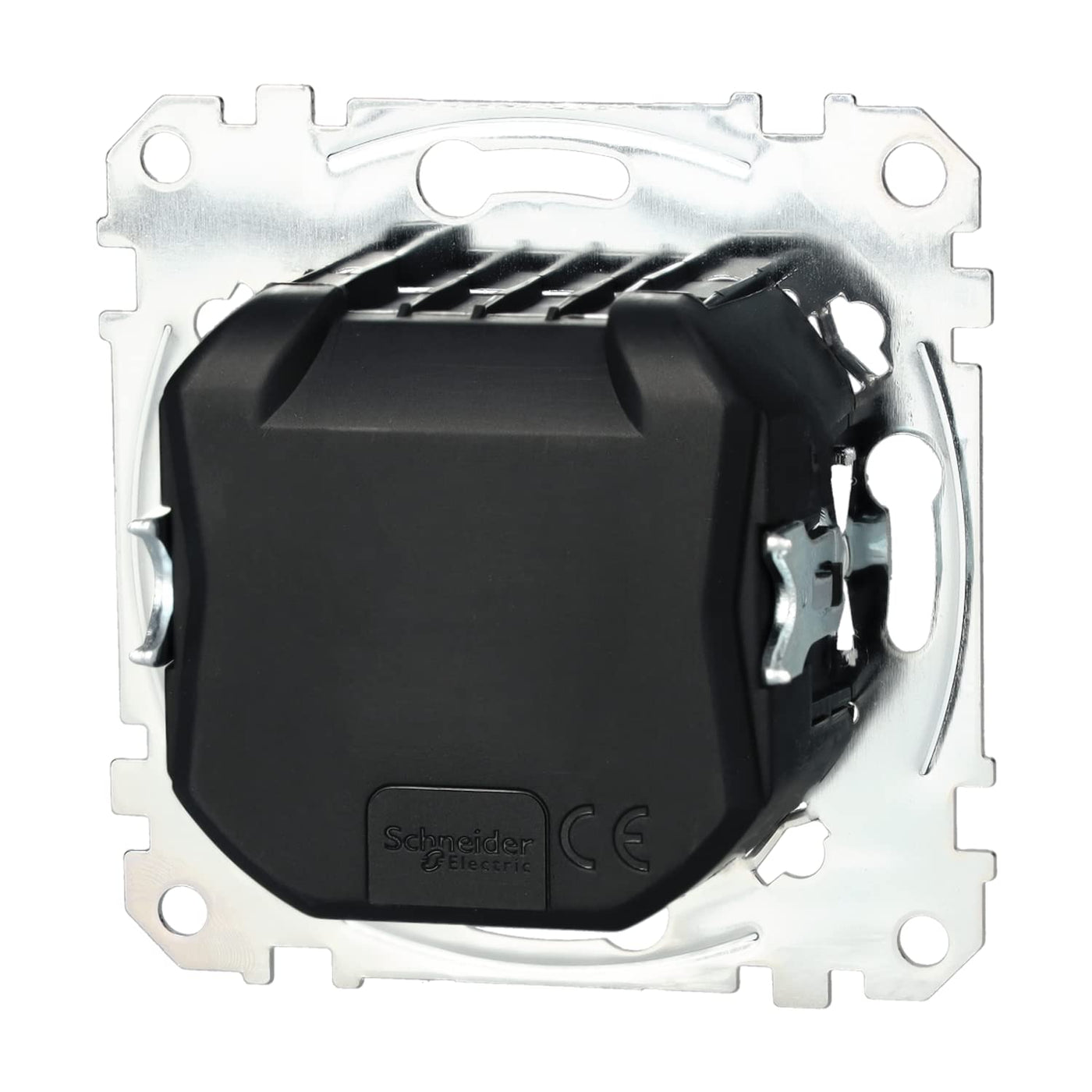

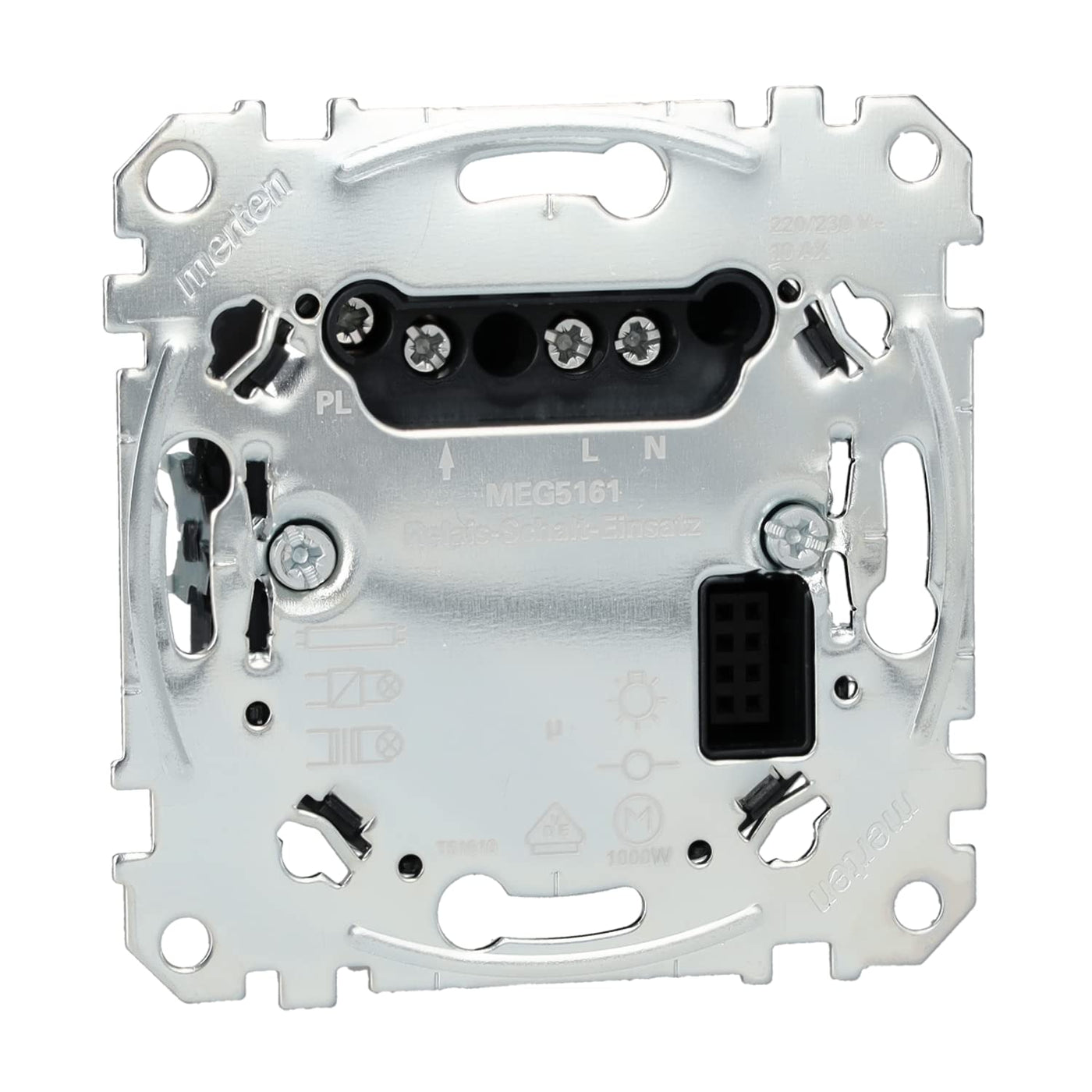

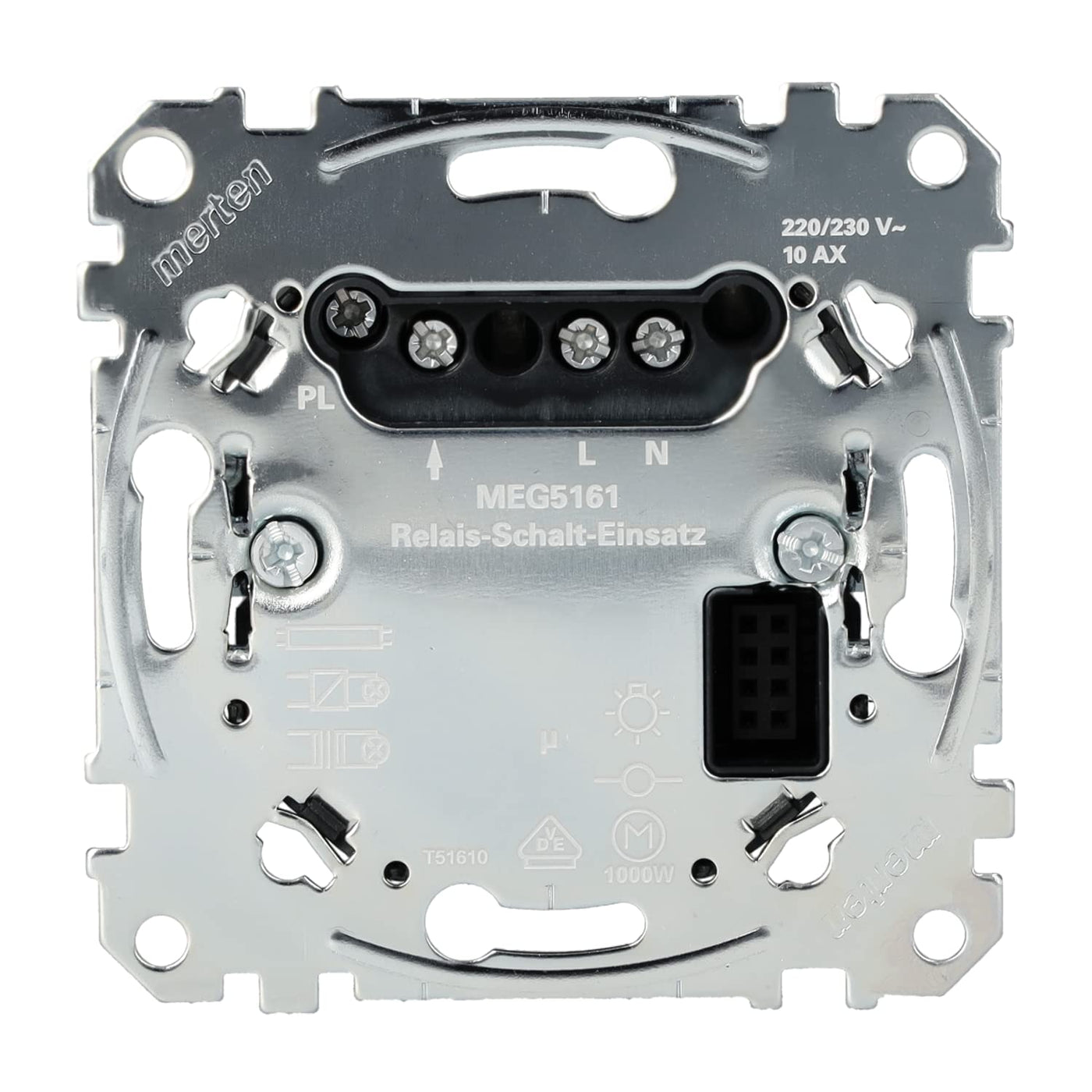

{"id":12792190369952,"title":"Schneider Electric Merten MEG5161-0000 flush-mounted relay switching insert 1-gang for ohmic, inductive and capacitive loads such as incandescent lamps, energy-saving lamps 1-gang","handle":"schneider-electric-merten-meg5161-0000-flush-mounted-relay-switching-insert-1-gang-for-ohmic-inductive-and-capacitive-loads-such-as-incandescent-lamps-energy-saving-lamps-1-gang","description":"\u003ch3\u003eSchneider Electric Merten MEG5161-0000 flush-mounted relay switching insert 1-fold for ohmic, inductive and capacitive loads such as incandescent lamps, energy-saving lamps\u003c\/h3\u003e \u003cp id=\"b\"\u003eFor ohmic, inductive and capacitive loads such as incandescent lamps, Energy-saving lamps, LV halogen lighting with conventional transformers, electronic transformers, fluorescent lamps. With claw and screw fastening. With screw terminals. Functions: -Switching from one output. The module determines the way in which the function of the insert is used. External control via a PlusLink inputxx Rated voltage: AC 220\/230 V, 50\/60 Hz. Rated current: max. 10 AX, cos Phi 0.6. Outputs: 1xNO. Max. switching power per channel: Incandescent lamps: 2200 W. HV halogen lamps: 2000 W. LV halogen lamps with wound transformer: 500 VA. Electronic transformers: 1050 W. Capacitive load: 10 A, 140 uF. Energy saving lamps: 100 VA. Motor load: 1000 VA. Neutral conductor: required (3-wire system). Connection cross section: max. 2x2.5 mm². To be completed with: Button module Basic, 1-fold System M MEG5110-0300, System Design MEG5110-60xx Button module Basic, 2-fold System M MEG5120-0300, System Design MEG5120-60xx. Button module Comfort, 1-gang System M MEG5111-0300, System Design MEG5111-60xx Button module Comfort, 2-gang System M MEG5121-0300, System Design MEG5121-60xx Button module Comfort Plus with IR, 1-gang System M MEG5112-0300. Button module Comfort Plus, 2-fold System M MEG5122-0300. Wiser button module, 1-fold system M MEG5113-0300, system design MEG5113-60xx Wiser button module, 2-fold system M MEG5123-03xx, system design MEG5123-60xx rotary control module system M MEG5252-03xx\/-04xx. ARGUS 180 UP sensor module system M MEG5710-03xx\/-04xx, system design MEG5710-60xx ARGUS 180 UP sensor module with switch system M MEG5711-03xx\/-04xx, system design MEG5711-60xx. ARGUS presence 180\/2.20 m UP sensor module system M MEG5530-03xx\/-04xx ARGUS presence sensor module with IR MEG5522-00xx timer module standard system M MEG5754-03xx\/-04xx. Time switch module System M MEG5755-03xx\/-04xx, system design MEG5755-60xx. Transmitter: Extension Plus, 1-gang System M MEG5119-0300, System Design MEG5119-60xx Extension Plus, 2-gang System M MEG5129-0300, System Design MEG5129-60xx central station insert MEG5190-0000. Accessories: PlusLink distributor (3 phases) MEG5130-0001. PlusLink extension MEG5130-0000.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eVersatile multifunctional control device: The Merten MEG5161-0000 flush-mounted relay switching insert is perfect for controlling Suitable for incandescent lamps, energy saving lamps, halogen lamps and more; It can handle resistive, inductive and capacitive loads\u003c\/li\u003e \u003cli\u003eEasy Installation: This mounting frame mechanism allows for flush mounting through screws and claws, making installation effortless; With just one rocker you can control an output\u003c\/li\u003e \u003cli\u003eHigh switching power: With a maximum switching power of 2,200 W for incandescent lamps and 2,000 W for halogen lamps, this control unit is powerful enough to effectively control your lighting and electrical devices li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eWide voltage support: The device works with a rated operating voltage of 220\/230 V AC at 50\/60 Hz, which makes it compatible with most power supplies\u003c\/li\u003e \u003cli\u003eReliable quality: With an operating temperature of -5 up to 35C and IP20 protection, this product is robust and durable to reliably meet your lighting control needs\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-25T19:45:30+11:00","created_at":"2024-03-25T19:45:37+11:00","vendor":"Schneider Electric","type":"Pressure switch","tags":["industryDE"],"price":34000,"price_min":34000,"price_max":34000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49185339146400,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B007Y8SU5I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schneider Electric Merten MEG5161-0000 flush-mounted relay switching insert 1-gang for ohmic, inductive and capacitive loads such as incandescent lamps, energy-saving lamps 1-gang","public_title":null,"options":["Default Title"],"price":34000,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B007Y8SU5I.jpg?v=1711411714","\/\/dingoship.com.au\/cdn\/shop\/files\/61XOpfvPnkL.jpg?v=1711356337","\/\/dingoship.com.au\/cdn\/shop\/files\/61kOCJAZk2L.jpg?v=1711356337","\/\/dingoship.com.au\/cdn\/shop\/files\/61Hb3-7BtKL.jpg?v=1711356337","\/\/dingoship.com.au\/cdn\/shop\/files\/51KjFXFZ1wL.jpg?v=1711356337"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B007Y8SU5I.jpg?v=1711411714","options":["Title"],"media":[{"alt":null,"id":32960284917920,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B007Y8SU5I.jpg?v=1711411714"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B007Y8SU5I.jpg?v=1711411714","width":1500},{"alt":null,"id":32950096855200,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61XOpfvPnkL.jpg?v=1711356337"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61XOpfvPnkL.jpg?v=1711356337","width":1500},{"alt":null,"id":32950096887968,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61kOCJAZk2L.jpg?v=1711356337"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61kOCJAZk2L.jpg?v=1711356337","width":1500},{"alt":null,"id":32950096920736,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Hb3-7BtKL.jpg?v=1711356337"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Hb3-7BtKL.jpg?v=1711356337","width":1500},{"alt":null,"id":32950096953504,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51KjFXFZ1wL.jpg?v=1711356337"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51KjFXFZ1wL.jpg?v=1711356337","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSchneider Electric Merten MEG5161-0000 flush-mounted relay switching insert 1-fold for ohmic, inductive and capacitive loads such as incandescent lamps, energy-saving lamps\u003c\/h3\u003e \u003cp id=\"b\"\u003eFor ohmic, inductive and capacitive loads such as incandescent lamps, Energy-saving lamps, LV halogen lighting with conventional transformers, electronic transformers, fluorescent lamps. With claw and screw fastening. With screw terminals. Functions: -Switching from one output. The module determines the way in which the function of the insert is used. External control via a PlusLink inputxx Rated voltage: AC 220\/230 V, 50\/60 Hz. Rated current: max. 10 AX, cos Phi 0.6. Outputs: 1xNO. Max. switching power per channel: Incandescent lamps: 2200 W. HV halogen lamps: 2000 W. LV halogen lamps with wound transformer: 500 VA. Electronic transformers: 1050 W. Capacitive load: 10 A, 140 uF. Energy saving lamps: 100 VA. Motor load: 1000 VA. Neutral conductor: required (3-wire system). Connection cross section: max. 2x2.5 mm². To be completed with: Button module Basic, 1-fold System M MEG5110-0300, System Design MEG5110-60xx Button module Basic, 2-fold System M MEG5120-0300, System Design MEG5120-60xx. Button module Comfort, 1-gang System M MEG5111-0300, System Design MEG5111-60xx Button module Comfort, 2-gang System M MEG5121-0300, System Design MEG5121-60xx Button module Comfort Plus with IR, 1-gang System M MEG5112-0300. Button module Comfort Plus, 2-fold System M MEG5122-0300. Wiser button module, 1-fold system M MEG5113-0300, system design MEG5113-60xx Wiser button module, 2-fold system M MEG5123-03xx, system design MEG5123-60xx rotary control module system M MEG5252-03xx\/-04xx. ARGUS 180 UP sensor module system M MEG5710-03xx\/-04xx, system design MEG5710-60xx ARGUS 180 UP sensor module with switch system M MEG5711-03xx\/-04xx, system design MEG5711-60xx. ARGUS presence 180\/2.20 m UP sensor module system M MEG5530-03xx\/-04xx ARGUS presence sensor module with IR MEG5522-00xx timer module standard system M MEG5754-03xx\/-04xx. Time switch module System M MEG5755-03xx\/-04xx, system design MEG5755-60xx. Transmitter: Extension Plus, 1-gang System M MEG5119-0300, System Design MEG5119-60xx Extension Plus, 2-gang System M MEG5129-0300, System Design MEG5129-60xx central station insert MEG5190-0000. Accessories: PlusLink distributor (3 phases) MEG5130-0001. PlusLink extension MEG5130-0000.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eVersatile multifunctional control device: The Merten MEG5161-0000 flush-mounted relay switching insert is perfect for controlling Suitable for incandescent lamps, energy saving lamps, halogen lamps and more; It can handle resistive, inductive and capacitive loads\u003c\/li\u003e \u003cli\u003eEasy Installation: This mounting frame mechanism allows for flush mounting through screws and claws, making installation effortless; With just one rocker you can control an output\u003c\/li\u003e \u003cli\u003eHigh switching power: With a maximum switching power of 2,200 W for incandescent lamps and 2,000 W for halogen lamps, this control unit is powerful enough to effectively control your lighting and electrical devices li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eWide voltage support: The device works with a rated operating voltage of 220\/230 V AC at 50\/60 Hz, which makes it compatible with most power supplies\u003c\/li\u003e \u003cli\u003eReliable quality: With an operating temperature of -5 up to 35C and IP20 protection, this product is robust and durable to reliably meet your lighting control needs\u003c\/li\u003e\n\u003c\/ul\u003e"}
