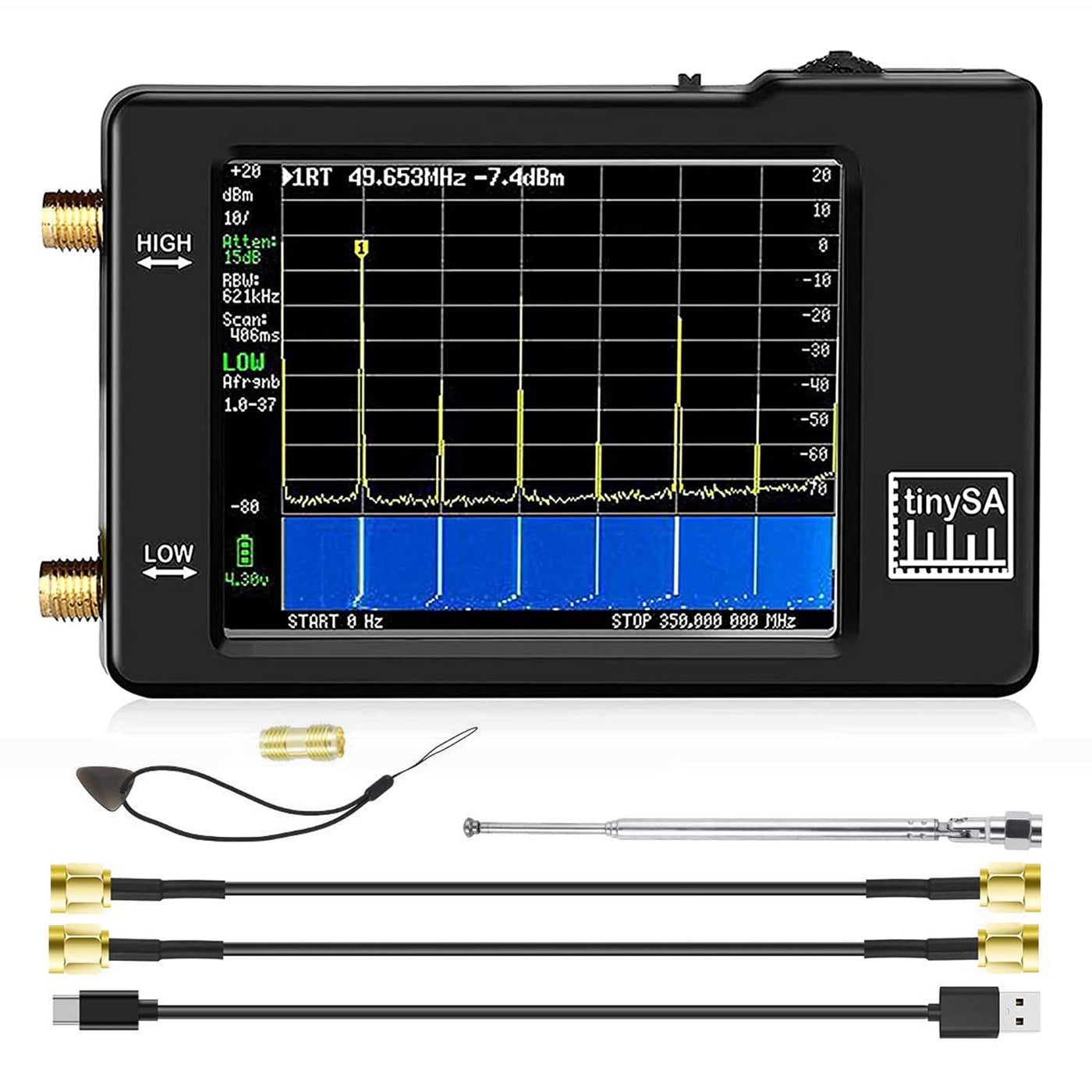

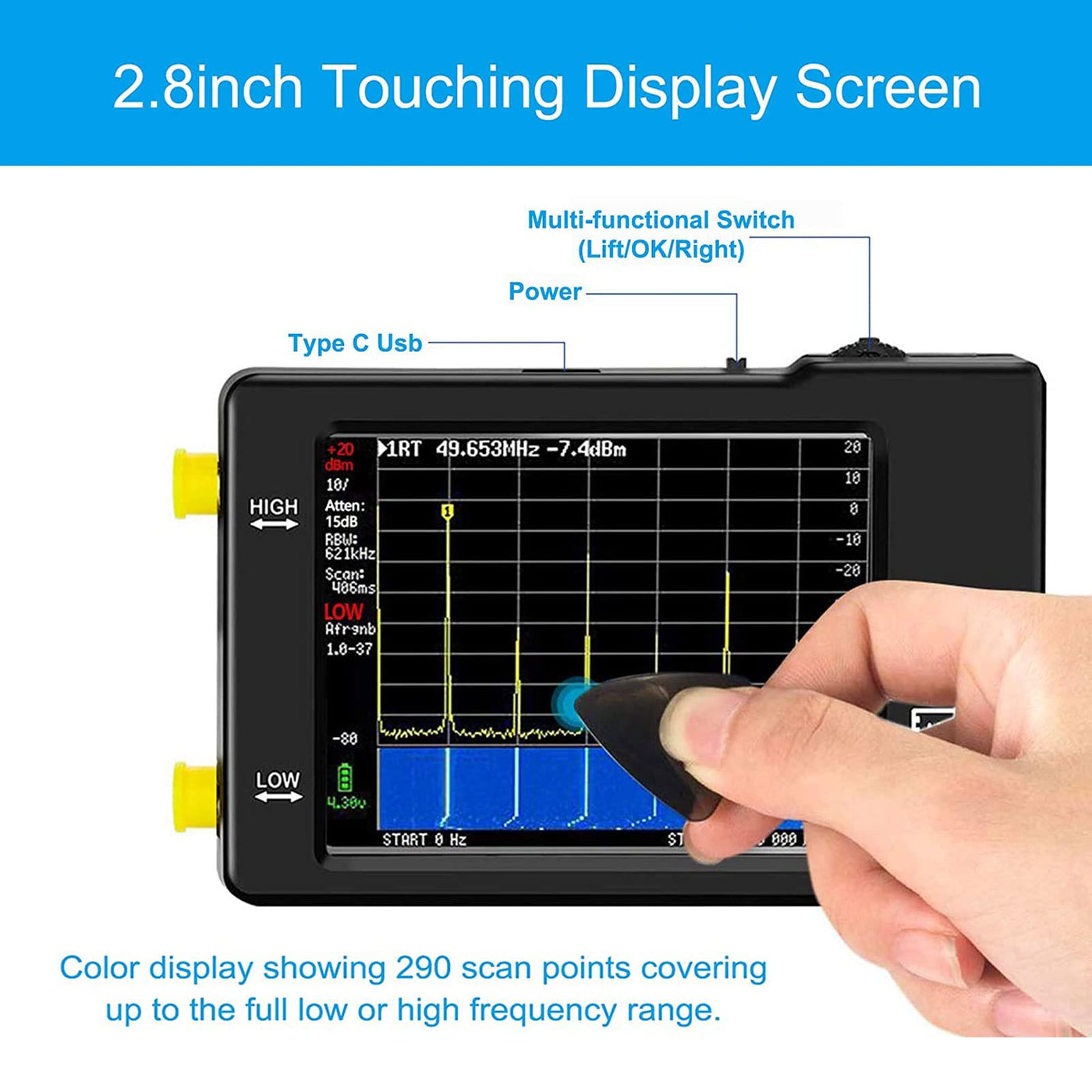

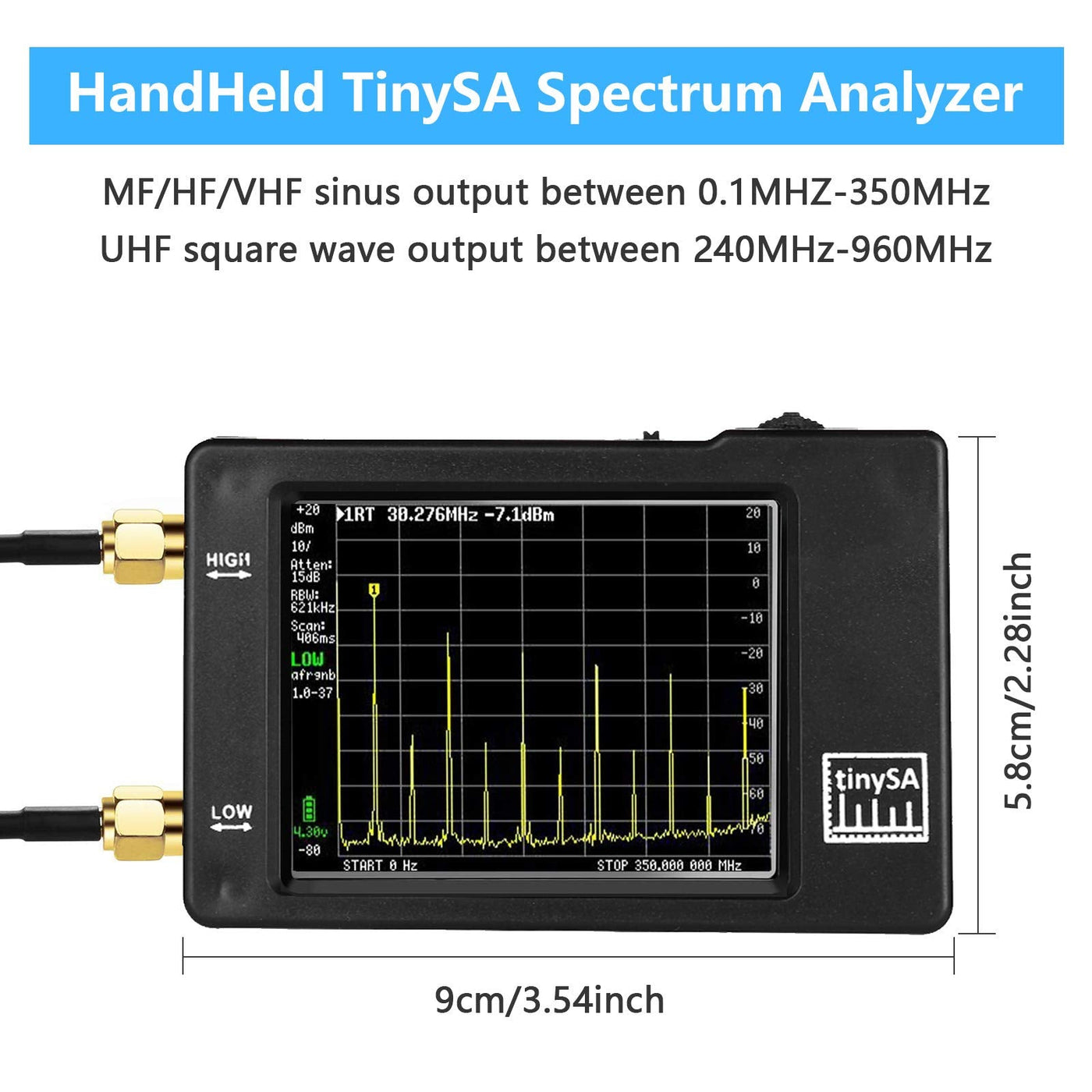

{"id":7407163277472,"title":"SDRGEEK TinySA Handheld Tiny Spectrum Analyzer 2.8 Inch Touching Display 100KHz-960MHz Screen Spectrum Analyzers Signal Generator with Battery","handle":"sdrgeek-tinysa-handheld-tiny-spectrum-analyzer-2-8-inch-touching-display-100khz-960mhz-screen-spectrum-analyzers-signal-generator-with-battery","description":"\u003ch3\u003eSDRGEEK TinySA Handheld Tiny Spectrum Analyzer 2.8 Inch Touching Display 100KHz-960MHz Screen Spectrum Analyzers Signal Generator with Battery\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePortable TinySA Spectrum Analyzer has 2021 upgraded\nversion with 2.8 inch touch screen Spectrum Analyzer with two inputs, high\nquality MF\/HF\/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for\n240MHz-960MHz. Switchable resolution bandpass filters for both ranges between\n2.6kHz and 640kHz. The input\/output specification of the tinySA is split over\nthe 4 modes: Low input mode, High input mode, Low output mode, High output\nmode. The firmware of the tinySA can be updated by the user. Feature Bulit-in\nrechargeable battery allowing a minimum of at least 2 hours portable use.\nColor display showing 290 scan points covering up to the full low or high\nfrequency range. The performance of the 2021 latest version 3.1 will be more\nstable and sensitive, with a new ESD protrcted function enable the product to\nhave a higher antistatic level and a longer service life. Packing List: 1 \nSpectrum Analyzer 2 SMA Cable and A Barrel Connector 1 Antenna with An SMA\nConnector 1 USB-C Cable 1 Touching Screen Paddle Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWith Two InputsSpectrum analyzer with two inputs, fine quality MF\/HF\/VHF input for 0.1MHz-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 2.6KHz and 640KHz.\u003c\/li\u003e\n \u003cli\u003eMF\/HF\/VHF InputInput step attenuator from 0dB to 31dB for the MF\/HF\/VHF input. Color display showing 290 scan points covering up to the full low or high frequency range.\u003c\/li\u003e\n \u003cli\u003ePortable and ConvenientRechargeable battery allowing a minimum of at least 2 hours portable use. Connected to a PC via USB it becomes a PC controlled spectrum analyzer.\u003c\/li\u003e\n \u003cli\u003eWide ApplicationWhen not used as spectrum analyzer it can be used as signal generator, MF\/HF\/VHF sinus output between 0.1MHz-350MHz, UHF square wave output between 240MHz-960MHz.\u003c\/li\u003e\n \u003cli\u003ePackage Included1 * Spectrum Analyzer; 2 * SMA Cable and A Barrel Connector; 1 * Antenna with An SMA Connector; 1 * USB-C Cable; 1 * Touching Screen Paddle.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-08T17:49:28+10:00","created_at":"2022-06-08T17:49:35+10:00","vendor":"SDRGEEK","type":"Spectrum Analyzers","tags":["dingo"],"price":32700,"price_min":32700,"price_max":32700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42167623057568,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08RYV2354","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SDRGEEK TinySA Handheld Tiny Spectrum Analyzer 2.8 Inch Touching Display 100KHz-960MHz Screen Spectrum Analyzers Signal Generator with Battery","public_title":null,"options":["Default Title"],"price":32700,"weight":240,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B08RYV2354.jpg?v=1654730392","\/\/dingoship.com.au\/cdn\/shop\/products\/71WH-kNMioL.jpg?v=1654674575","\/\/dingoship.com.au\/cdn\/shop\/products\/713kO8d6mDL.jpg?v=1654674575","\/\/dingoship.com.au\/cdn\/shop\/products\/71FLXcXOhWL.jpg?v=1654674575","\/\/dingoship.com.au\/cdn\/shop\/products\/71pnNVA2u_L.jpg?v=1654674575","\/\/dingoship.com.au\/cdn\/shop\/products\/71Yo9uoQmcL.jpg?v=1654674575"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08RYV2354.jpg?v=1654730392","options":["Title"],"media":[{"alt":null,"id":24824079220896,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08RYV2354.jpg?v=1654730392"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08RYV2354.jpg?v=1654730392","width":1600},{"alt":null,"id":24818538381472,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71WH-kNMioL.jpg?v=1654674575"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71WH-kNMioL.jpg?v=1654674575","width":1600},{"alt":null,"id":24818538414240,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/713kO8d6mDL.jpg?v=1654674575"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/713kO8d6mDL.jpg?v=1654674575","width":1600},{"alt":null,"id":24818538447008,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71FLXcXOhWL.jpg?v=1654674575"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71FLXcXOhWL.jpg?v=1654674575","width":1600},{"alt":null,"id":24818538479776,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71pnNVA2u_L.jpg?v=1654674575"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71pnNVA2u_L.jpg?v=1654674575","width":1500},{"alt":null,"id":24818538512544,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Yo9uoQmcL.jpg?v=1654674575"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Yo9uoQmcL.jpg?v=1654674575","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSDRGEEK TinySA Handheld Tiny Spectrum Analyzer 2.8 Inch Touching Display 100KHz-960MHz Screen Spectrum Analyzers Signal Generator with Battery\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePortable TinySA Spectrum Analyzer has 2021 upgraded\nversion with 2.8 inch touch screen Spectrum Analyzer with two inputs, high\nquality MF\/HF\/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for\n240MHz-960MHz. Switchable resolution bandpass filters for both ranges between\n2.6kHz and 640kHz. The input\/output specification of the tinySA is split over\nthe 4 modes: Low input mode, High input mode, Low output mode, High output\nmode. The firmware of the tinySA can be updated by the user. Feature Bulit-in\nrechargeable battery allowing a minimum of at least 2 hours portable use.\nColor display showing 290 scan points covering up to the full low or high\nfrequency range. The performance of the 2021 latest version 3.1 will be more\nstable and sensitive, with a new ESD protrcted function enable the product to\nhave a higher antistatic level and a longer service life. Packing List: 1 \nSpectrum Analyzer 2 SMA Cable and A Barrel Connector 1 Antenna with An SMA\nConnector 1 USB-C Cable 1 Touching Screen Paddle Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWith Two InputsSpectrum analyzer with two inputs, fine quality MF\/HF\/VHF input for 0.1MHz-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 2.6KHz and 640KHz.\u003c\/li\u003e\n \u003cli\u003eMF\/HF\/VHF InputInput step attenuator from 0dB to 31dB for the MF\/HF\/VHF input. Color display showing 290 scan points covering up to the full low or high frequency range.\u003c\/li\u003e\n \u003cli\u003ePortable and ConvenientRechargeable battery allowing a minimum of at least 2 hours portable use. Connected to a PC via USB it becomes a PC controlled spectrum analyzer.\u003c\/li\u003e\n \u003cli\u003eWide ApplicationWhen not used as spectrum analyzer it can be used as signal generator, MF\/HF\/VHF sinus output between 0.1MHz-350MHz, UHF square wave output between 240MHz-960MHz.\u003c\/li\u003e\n \u003cli\u003ePackage Included1 * Spectrum Analyzer; 2 * SMA Cable and A Barrel Connector; 1 * Antenna with An SMA Connector; 1 * USB-C Cable; 1 * Touching Screen Paddle.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
