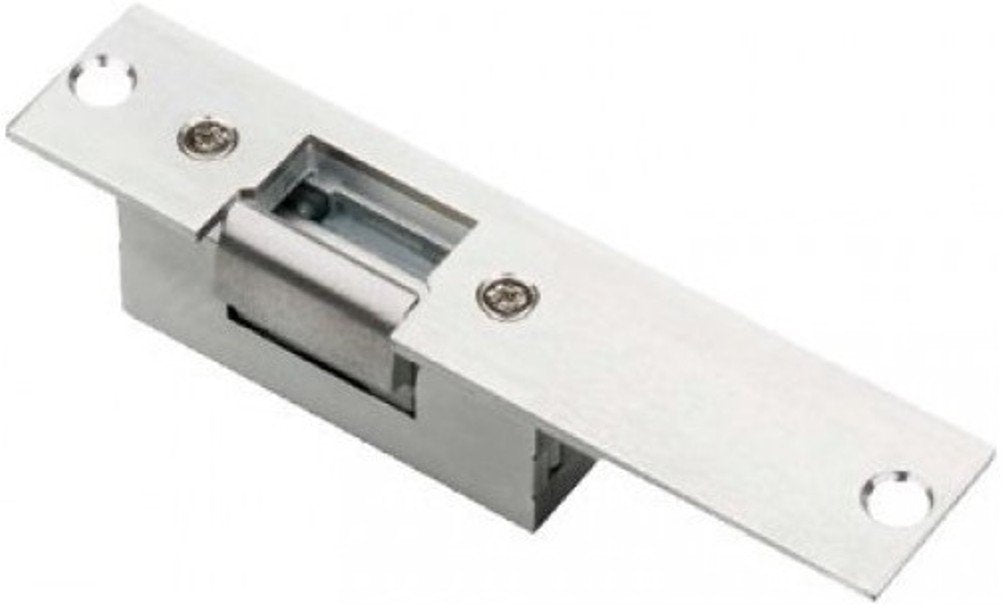

Seco-Larm Enforcer Reversible Electric Door Strike, Asymmetric (SD-994A-A1AQ)
Seco-Larm Enforcer Reversible Electric Door Strike, Asymmetric (SD-994A-A1AQ)
Available in both asymmetric and symmetric models, the Seco-Larm Enforcer Reversible Electric Door Strike offers an ideal solution for converting a wooden door’s cylindrical lockset into an electronic access control system. It allows the door to be locked/unlocked either manually or through an access control/security system. Built for reliable security, the door strike features 1,000 pounds (453kg) of locking jaw strength.Compatible with any cylindrical- door locking systemReversible faceplate for right- or left-hand doorsFail- secure operation (locks if power is lost)Miniature lock body for easier installationBoth models of the Reversible Electric Door Strike have a reversible chrome faceplate to fit either right-hand or left-hand doors. The lock body is miniaturized to facilitate installation, and the case as well as all moving parts are corrosion-resistant for long life. The door strike has been tested to last for at least 500,000 lock/unlock cycles.ContentsDoor Strike(2) Mounting ScrewsUser ManualNOTE: For use on wooden doors only.Technical DetailsMPN: SD-994A-A1AQType: Asymmetric (off-center strike portion)Operation: Fail secureOperating Voltage: 8~16 VAC/12VDCCurrent Draw:16VAC: 800mA12VDC: 750mAJaw Strength: 1,000 pounds (453kg)Faceplate Size: 5-7/8 x 1-1/4 x 1/8 inches (150 x 32 x 3.2 mm)Keeper Depth: 21/32 inch (16.8mm)Latch Depth: 3/4 inch (19mm)Strike Depth: 1-1/2 inches (38mm)Operating Temperature: 14° to 113°F (-10° to 45°C)Weight: 10.3 ounces (292g)Warranty: 1 Year
Product Features
- Compatible with any cylindrical-door locking system
- Reversible faceplate for right- or left-hand doors
- Fail-secure operation (locks if power is lost)
- Miniature lock body for easier installation
- Type: Asymmetric (off-center strike portion)
