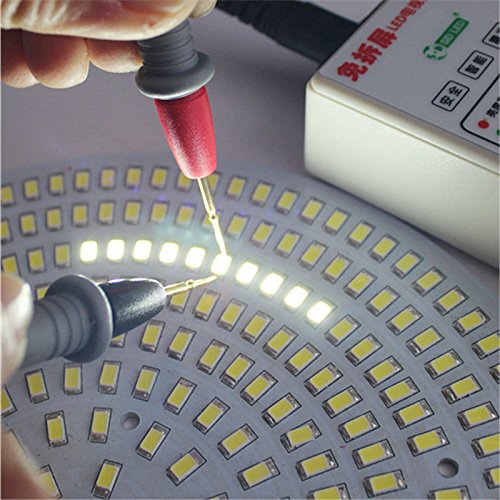

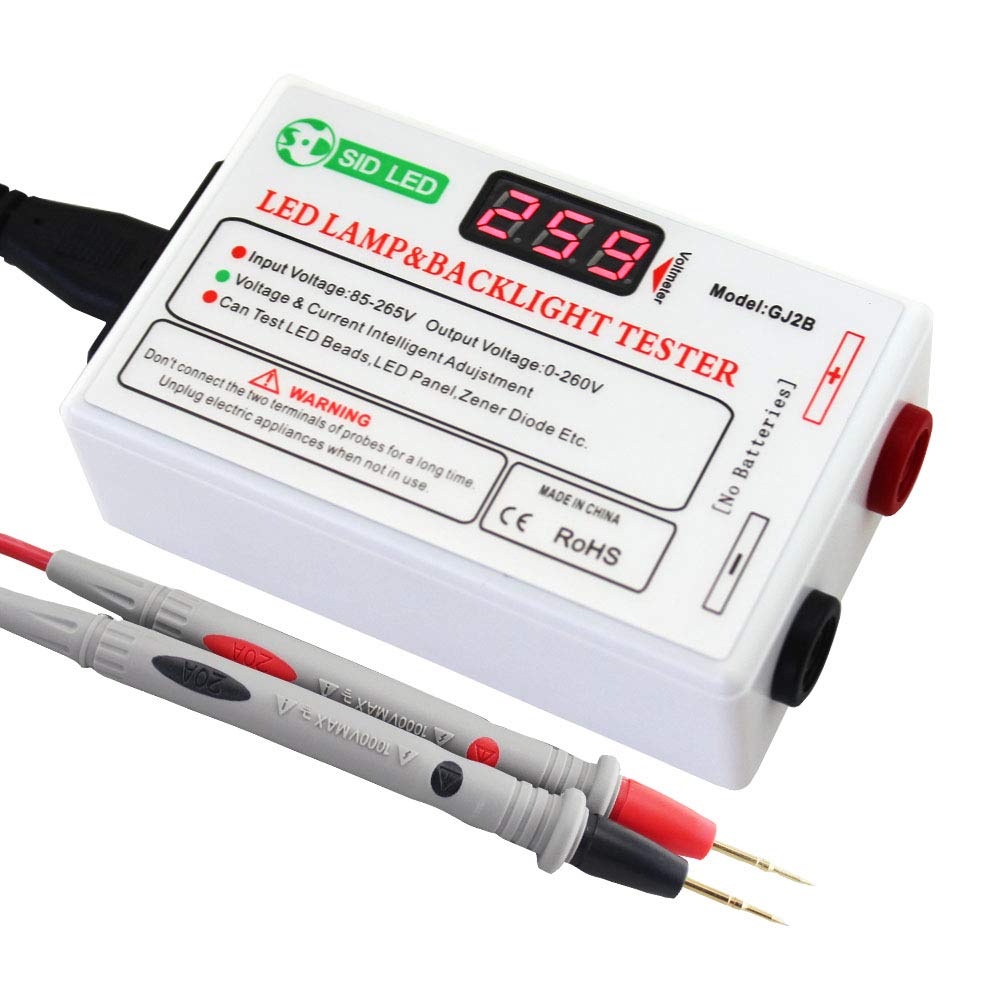

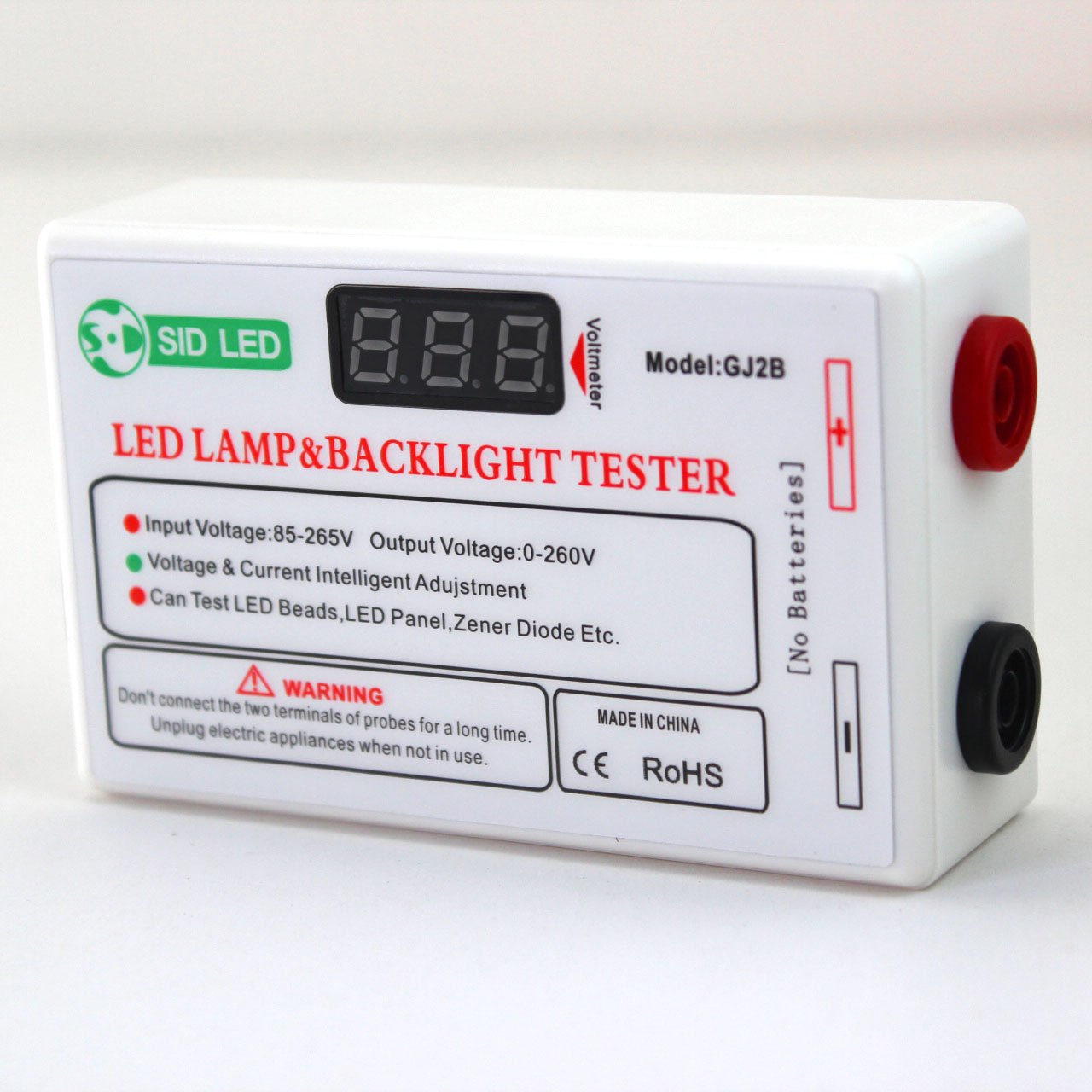

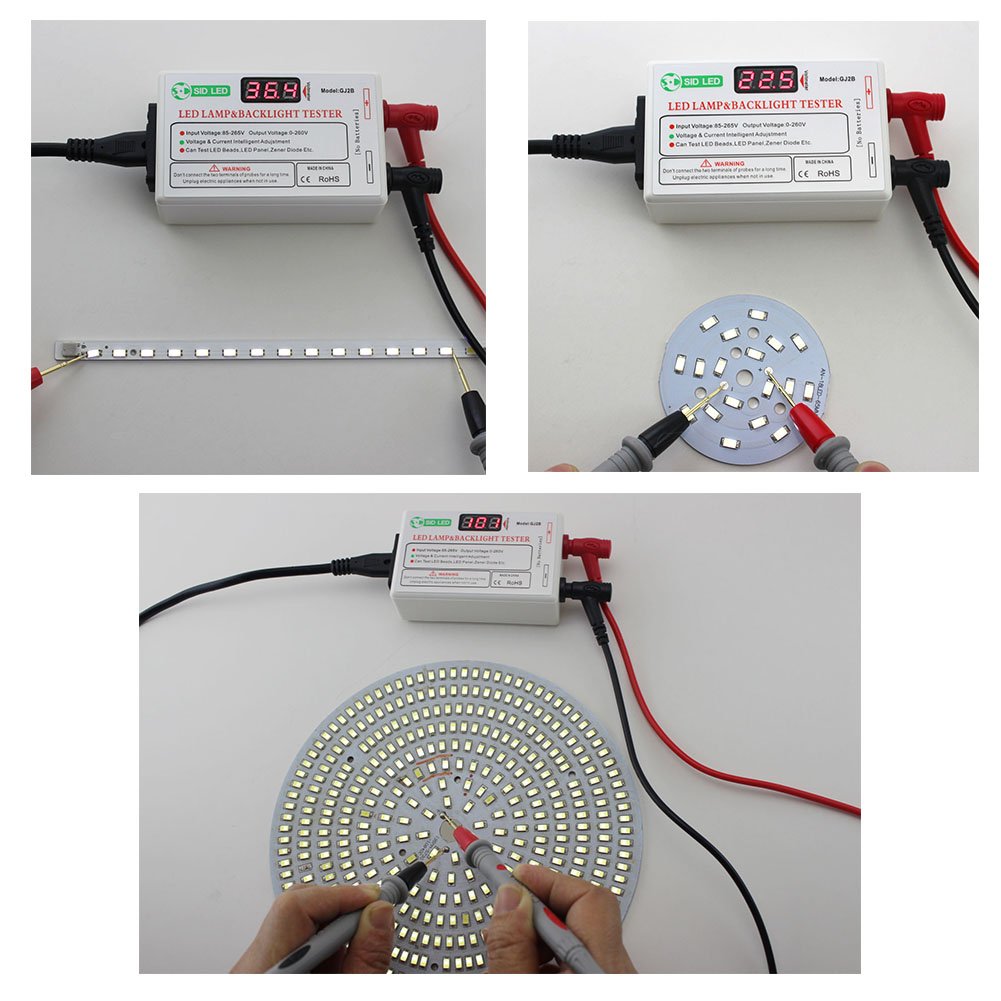

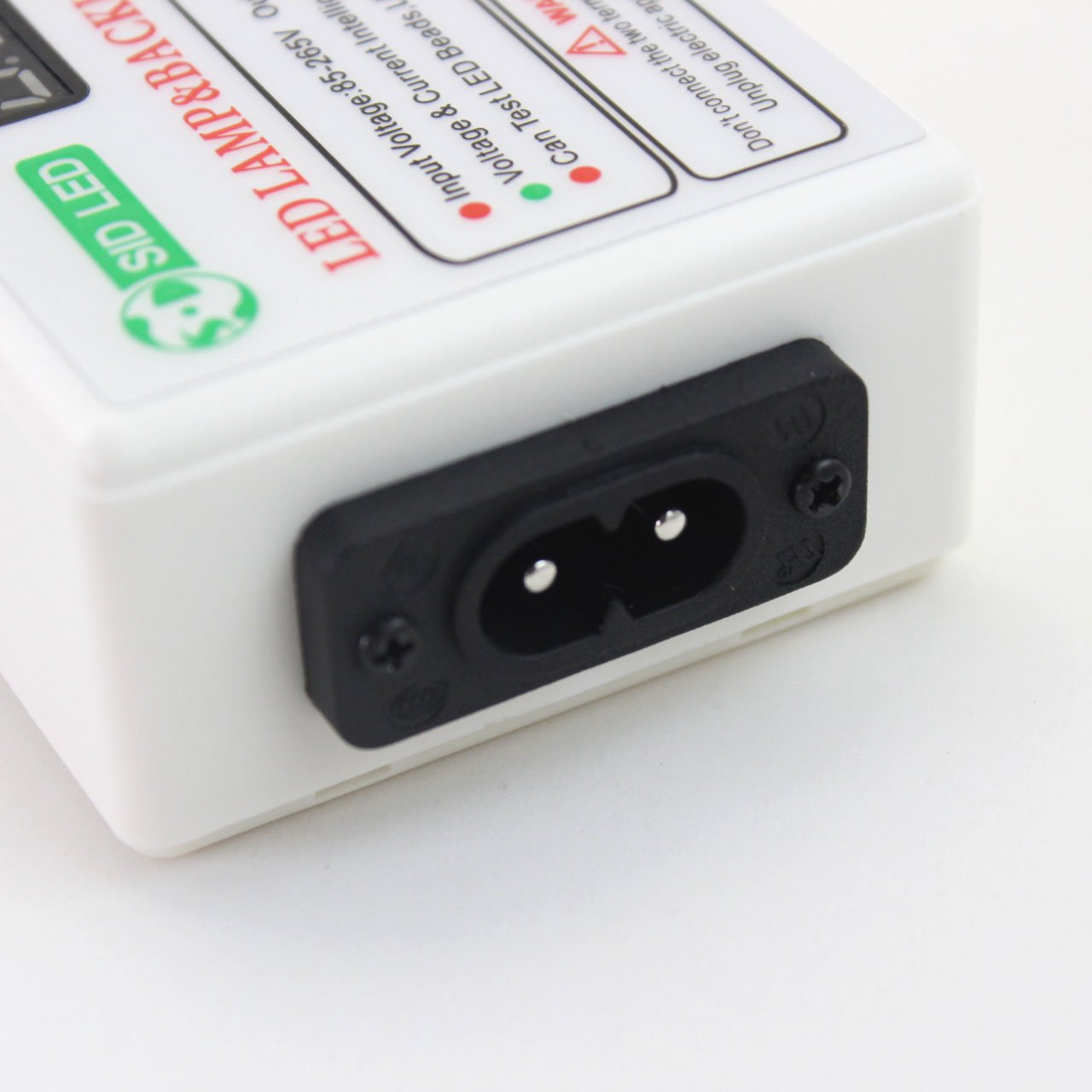

{"id":7410721947808,"title":"SID LED Lamp and Backlight Tester Need to Disassemble LCD Screen for All LED Lights Repair Output 0-260V","handle":"sid-led-lamp-and-backlight-tester-need-to-disassemble-lcd-screen-for-all-led-lights-repair-output-0-260v","description":"\u003ch3\u003eSID LED Lamp and Backlight Tester Need to Disassemble LCD Screen for All LED Lights Repair Output 0-260V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModel: GJ2B Input Voltage: 85-265V (International General) Output Voltage:\n0-260V Output Current:2mA Voltage Range:0-260V (Adopt soft start mode, the\nvoltage slowly increases.About 4% of the reasonable error!) Main Application:\n- Testing the LED TV backlight need to disassemble LCD screen. - Testing of\nLED stirng, LED panel,COB and integrated LED lights,etc.(DO NOT LOOK DIRECTLY\nAT THE LIGHT.) Testing of single LED bead.(Don’t connect the probes to the LED\nfor a long time if you can’t determine the “+”and “-”.) - Test voltage\nparameters for DC power(\u0026lt;300V). - According to the voltage to determine open-\ncircuit,short circuit and the number of the light beads in series. - Check for\nelectric leakage. Product characteristics: - Dedicated Function for LED\nBeads,LED Stirng, LED Panel,COB and Integrated LED Lights,etc. - Double\nIsolated Safe Protection. - Voltage and Current Intelligent Adjustment.\nATTENTIONS: 1. Please disconnect the power of the detected object first.(If\nyou use to test TV backlight,you should make sure the LCD screen is powered\non.) 2. Plug in power,it can be used after 5 to 10 seconds to reach 260V.The\nsoft start mode make the backlight getting brighter slowly. 3. Don’t connect\nthe probes to the LED for a long time if you can’t determine the “+”and “-”.\n4. Don’t touch the output terminal of probes for a long time .It’s safe for\ntouch the probes in short time periods.Matters need attention:It's suitable\nfor LED manufacturers,used for testing LED lamp bead,lamp board,lamp bar.With\nmoderate brightness and not dazzling.GJ2B is not suitable for testing TV\nbacklight without disassembly.You can disassembling the screen to test it.It\nhas no size limited.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eExcellent tool for diagnosing and locating bad LEDs in backlights.\u003c\/li\u003e\n \u003cli\u003eWith help of this tool, you can know the LED light problem quickly.\u003c\/li\u003e\n \u003cli\u003eIt test in low-light, and will not damage your eyes.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-10T22:32:33+10:00","created_at":"2022-06-10T22:32:42+10:00","vendor":"SID LED","type":"Voltage Testers","tags":["dingo"],"price":17900,"price_min":17900,"price_max":17900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42177228505248,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B078BD2CPH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SID LED Lamp and Backlight Tester Need to Disassemble LCD Screen for All LED Lights Repair Output 0-260V","public_title":null,"options":["Default Title"],"price":17900,"weight":272,"compare_at_price":null,"inventory_management":null,"barcode":"613739727409","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B078BD2CPH.jpg?v=1654906477","\/\/dingoship.com.au\/cdn\/shop\/products\/61LC85kTH4L.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/61ABnYNVHBL.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/71pMDtWcrVL.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/41RmoB0d8dL_df11c69a-aef1-400e-a09e-f4800669df64.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/71kxVWzKAPL.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/61rVYKtUBXL.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/51N2mQ2ED2L_693e283e-6d91-460f-a0b3-e0f86ff92e39.jpg?v=1654864362","\/\/dingoship.com.au\/cdn\/shop\/products\/51If-egoTvL.jpg?v=1654864362"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B078BD2CPH.jpg?v=1654906477","options":["Title"],"media":[{"alt":null,"id":24837116035232,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B078BD2CPH.jpg?v=1654906477"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B078BD2CPH.jpg?v=1654906477","width":1001},{"alt":null,"id":24834829582496,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61LC85kTH4L.jpg?v=1654864362"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61LC85kTH4L.jpg?v=1654864362","width":1280},{"alt":null,"id":24834829615264,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ABnYNVHBL.jpg?v=1654864362"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ABnYNVHBL.jpg?v=1654864362","width":1280},{"alt":null,"id":24834829648032,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71pMDtWcrVL.jpg?v=1654864362"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71pMDtWcrVL.jpg?v=1654864362","width":1280},{"alt":null,"id":24834829680800,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41RmoB0d8dL_df11c69a-aef1-400e-a09e-f4800669df64.jpg?v=1654864362"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41RmoB0d8dL_df11c69a-aef1-400e-a09e-f4800669df64.jpg?v=1654864362","width":500},{"alt":null,"id":24834829713568,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71kxVWzKAPL.jpg?v=1654864362"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71kxVWzKAPL.jpg?v=1654864362","width":1280},{"alt":null,"id":24834829746336,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rVYKtUBXL.jpg?v=1654864362"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rVYKtUBXL.jpg?v=1654864362","width":1001},{"alt":null,"id":24834829779104,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51N2mQ2ED2L_693e283e-6d91-460f-a0b3-e0f86ff92e39.jpg?v=1654864362"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51N2mQ2ED2L_693e283e-6d91-460f-a0b3-e0f86ff92e39.jpg?v=1654864362","width":1280},{"alt":null,"id":24834829811872,"position":9,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51If-egoTvL.jpg?v=1654864362"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51If-egoTvL.jpg?v=1654864362","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSID LED Lamp and Backlight Tester Need to Disassemble LCD Screen for All LED Lights Repair Output 0-260V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModel: GJ2B Input Voltage: 85-265V (International General) Output Voltage:\n0-260V Output Current:2mA Voltage Range:0-260V (Adopt soft start mode, the\nvoltage slowly increases.About 4% of the reasonable error!) Main Application:\n- Testing the LED TV backlight need to disassemble LCD screen. - Testing of\nLED stirng, LED panel,COB and integrated LED lights,etc.(DO NOT LOOK DIRECTLY\nAT THE LIGHT.) Testing of single LED bead.(Don’t connect the probes to the LED\nfor a long time if you can’t determine the “+”and “-”.) - Test voltage\nparameters for DC power(\u0026lt;300V). - According to the voltage to determine open-\ncircuit,short circuit and the number of the light beads in series. - Check for\nelectric leakage. Product characteristics: - Dedicated Function for LED\nBeads,LED Stirng, LED Panel,COB and Integrated LED Lights,etc. - Double\nIsolated Safe Protection. - Voltage and Current Intelligent Adjustment.\nATTENTIONS: 1. Please disconnect the power of the detected object first.(If\nyou use to test TV backlight,you should make sure the LCD screen is powered\non.) 2. Plug in power,it can be used after 5 to 10 seconds to reach 260V.The\nsoft start mode make the backlight getting brighter slowly. 3. Don’t connect\nthe probes to the LED for a long time if you can’t determine the “+”and “-”.\n4. Don’t touch the output terminal of probes for a long time .It’s safe for\ntouch the probes in short time periods.Matters need attention:It's suitable\nfor LED manufacturers,used for testing LED lamp bead,lamp board,lamp bar.With\nmoderate brightness and not dazzling.GJ2B is not suitable for testing TV\nbacklight without disassembly.You can disassembling the screen to test it.It\nhas no size limited.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eExcellent tool for diagnosing and locating bad LEDs in backlights.\u003c\/li\u003e\n \u003cli\u003eWith help of this tool, you can know the LED light problem quickly.\u003c\/li\u003e\n \u003cli\u003eIt test in low-light, and will not damage your eyes.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
