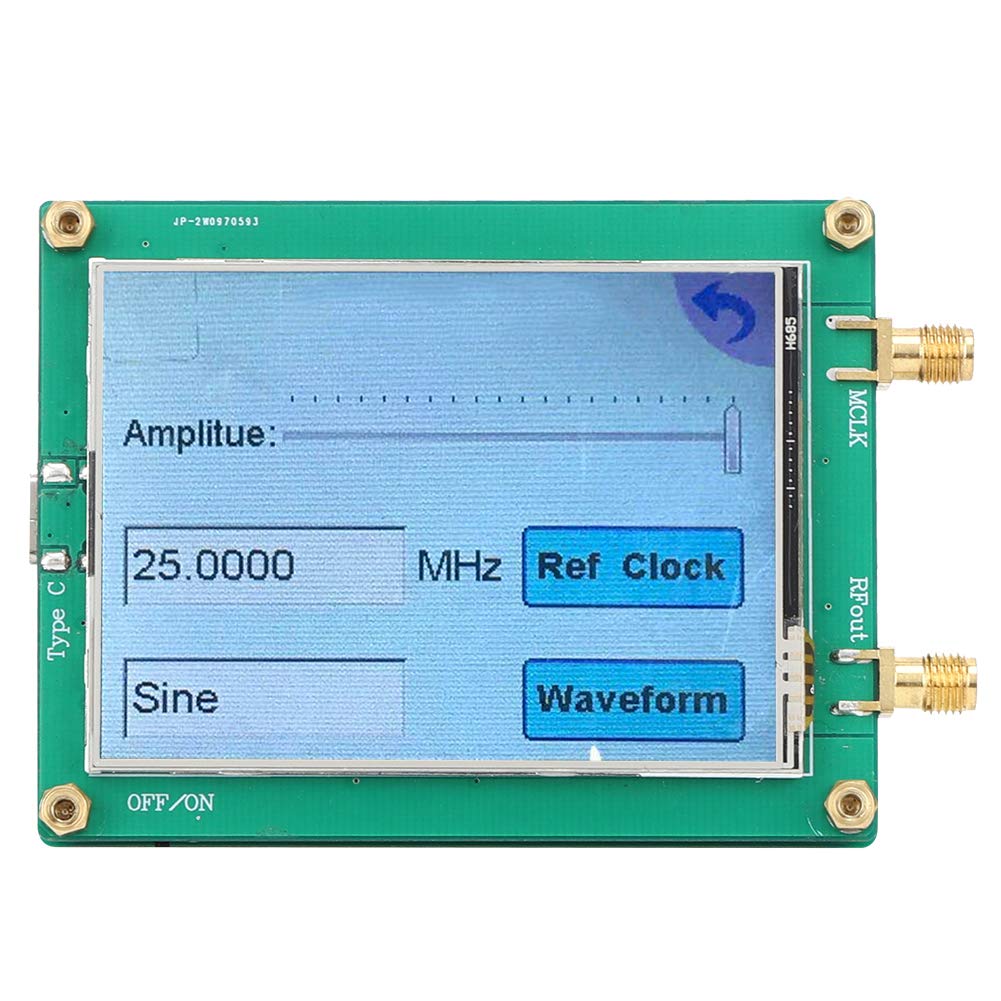

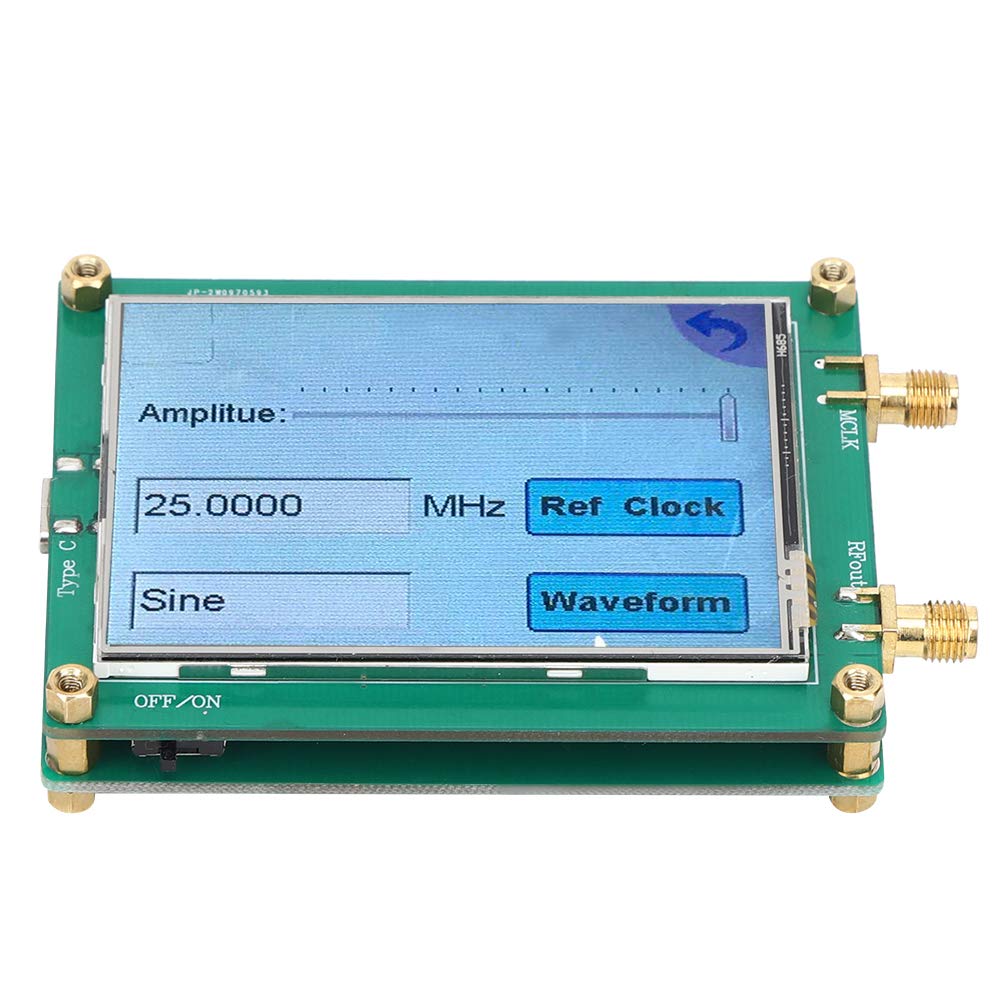

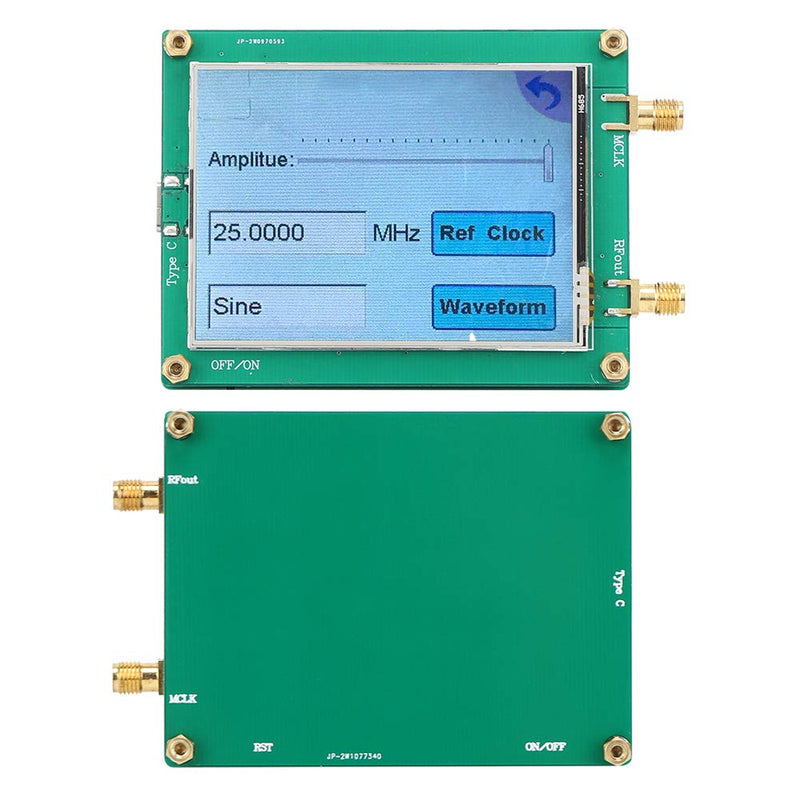

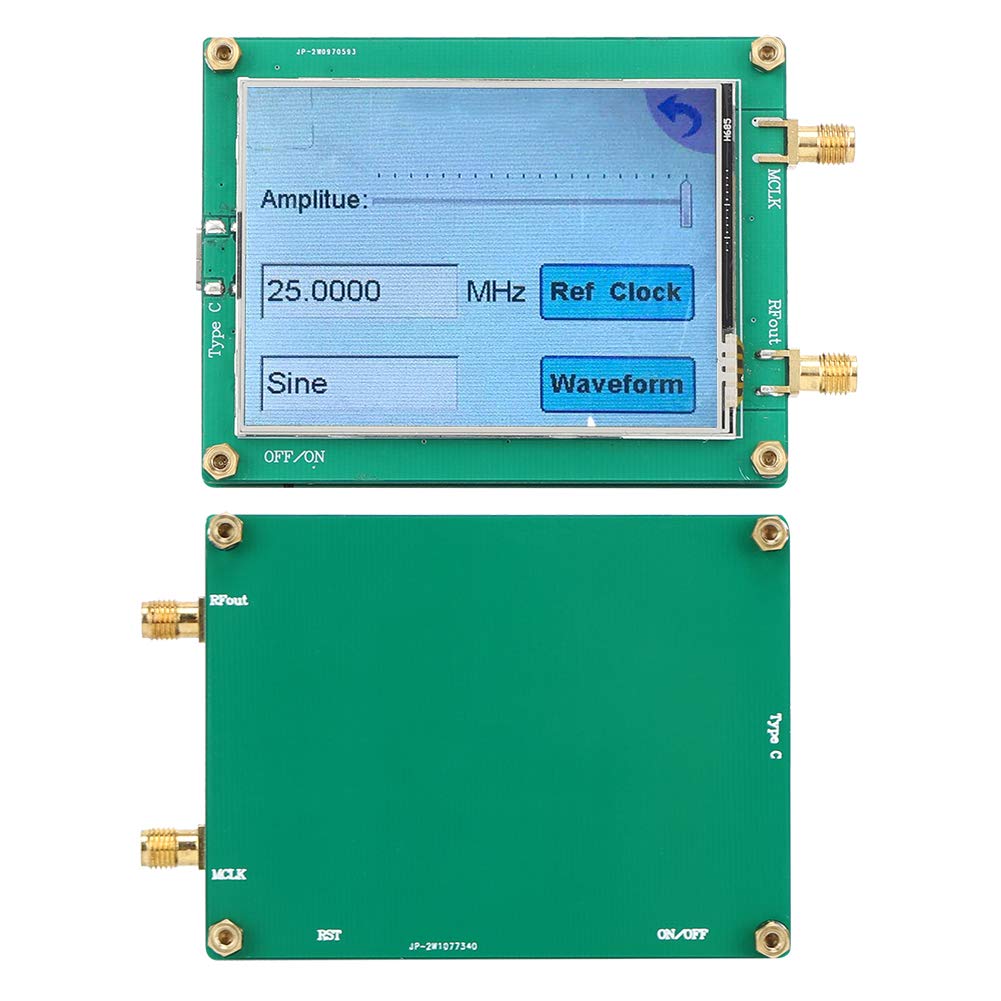

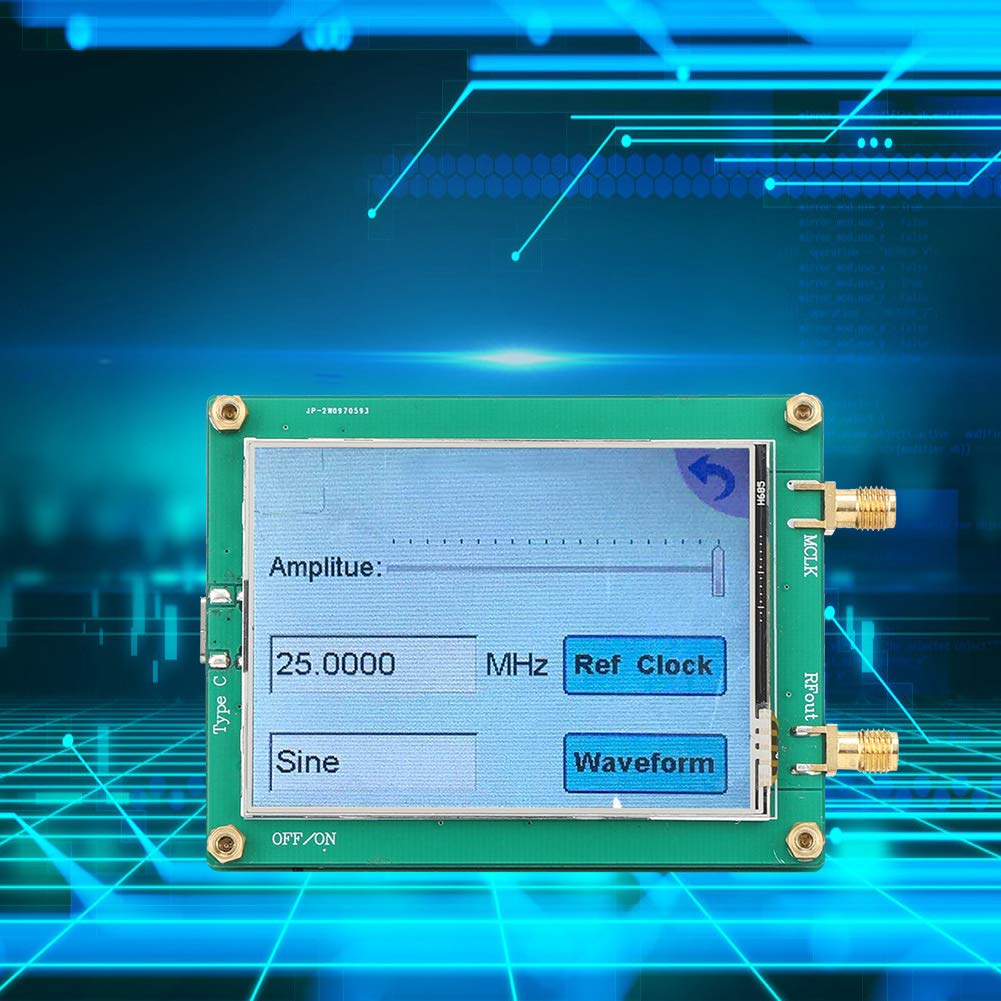

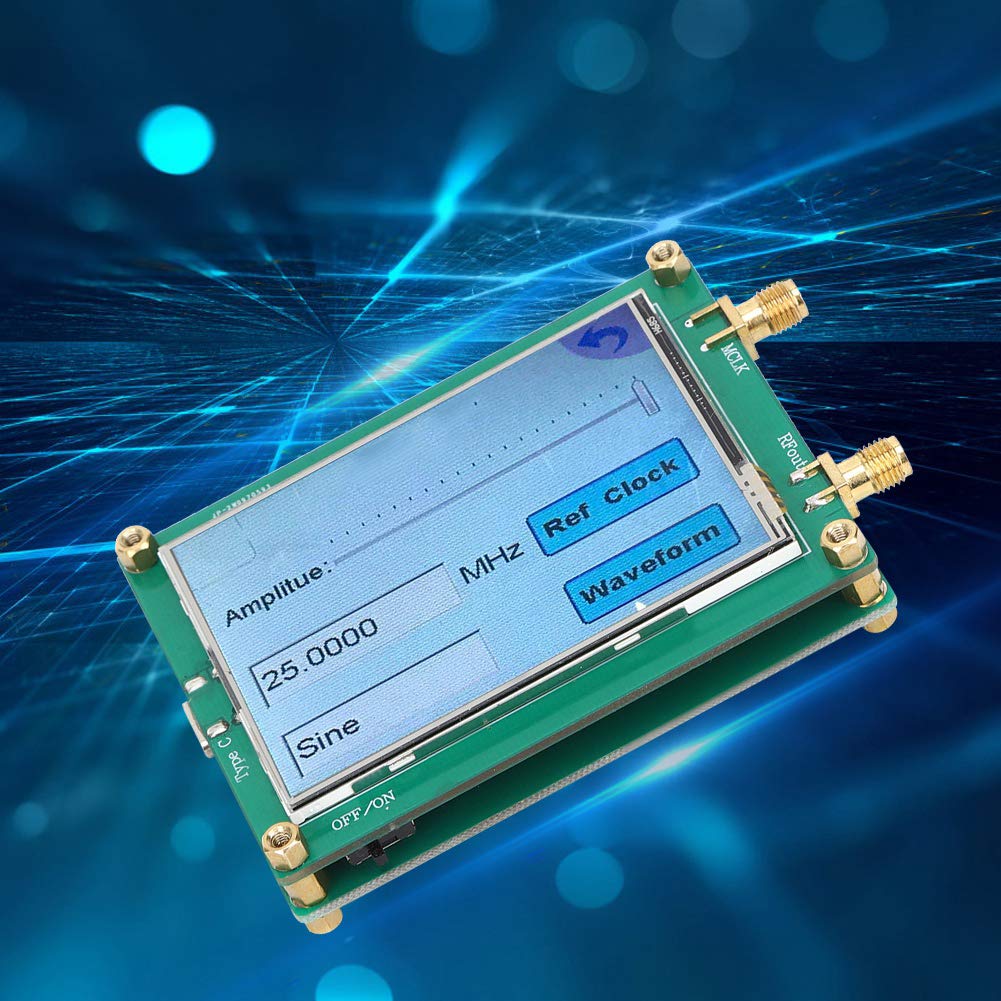

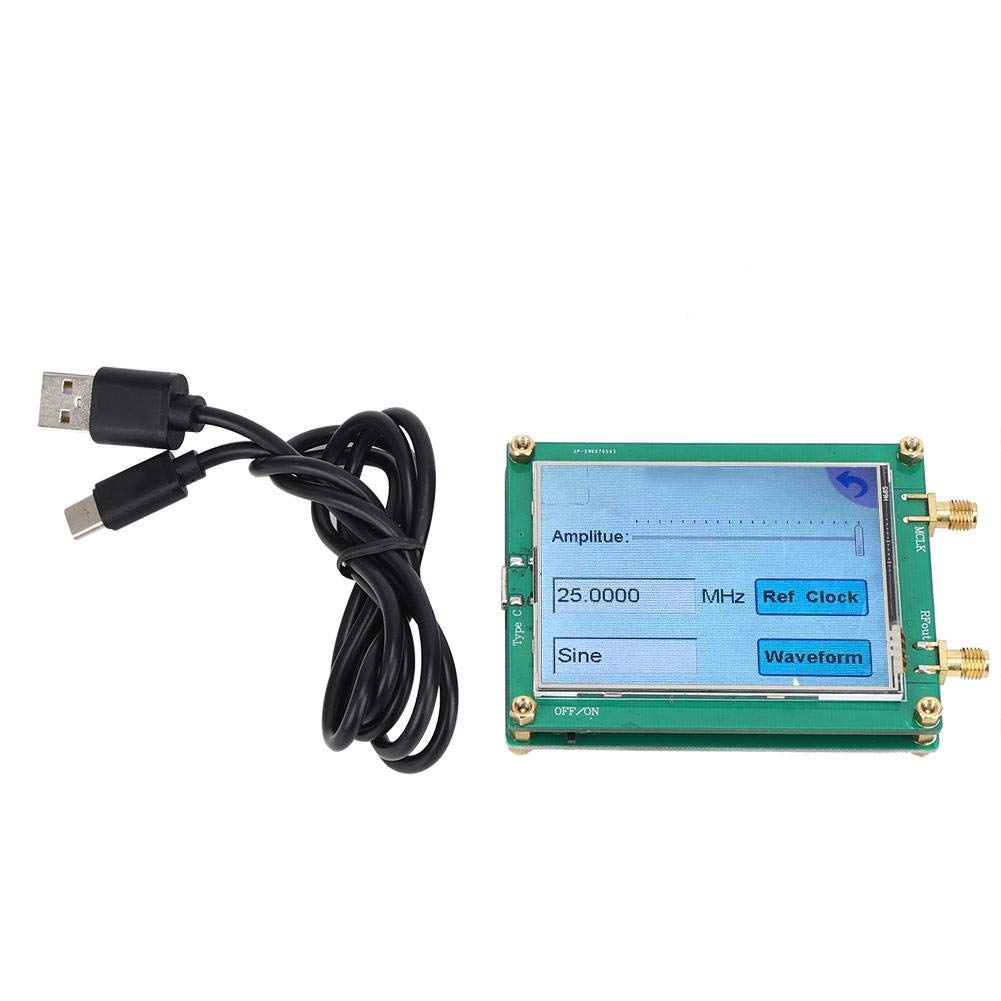

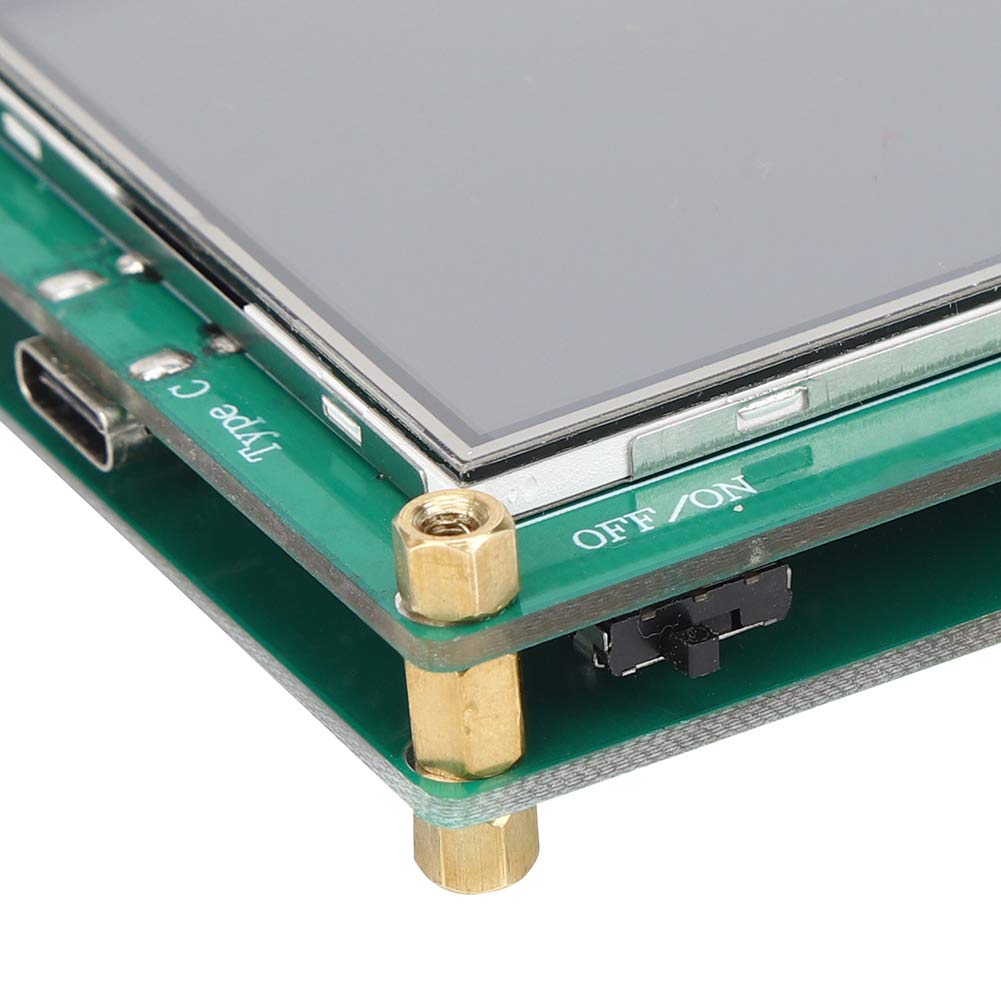

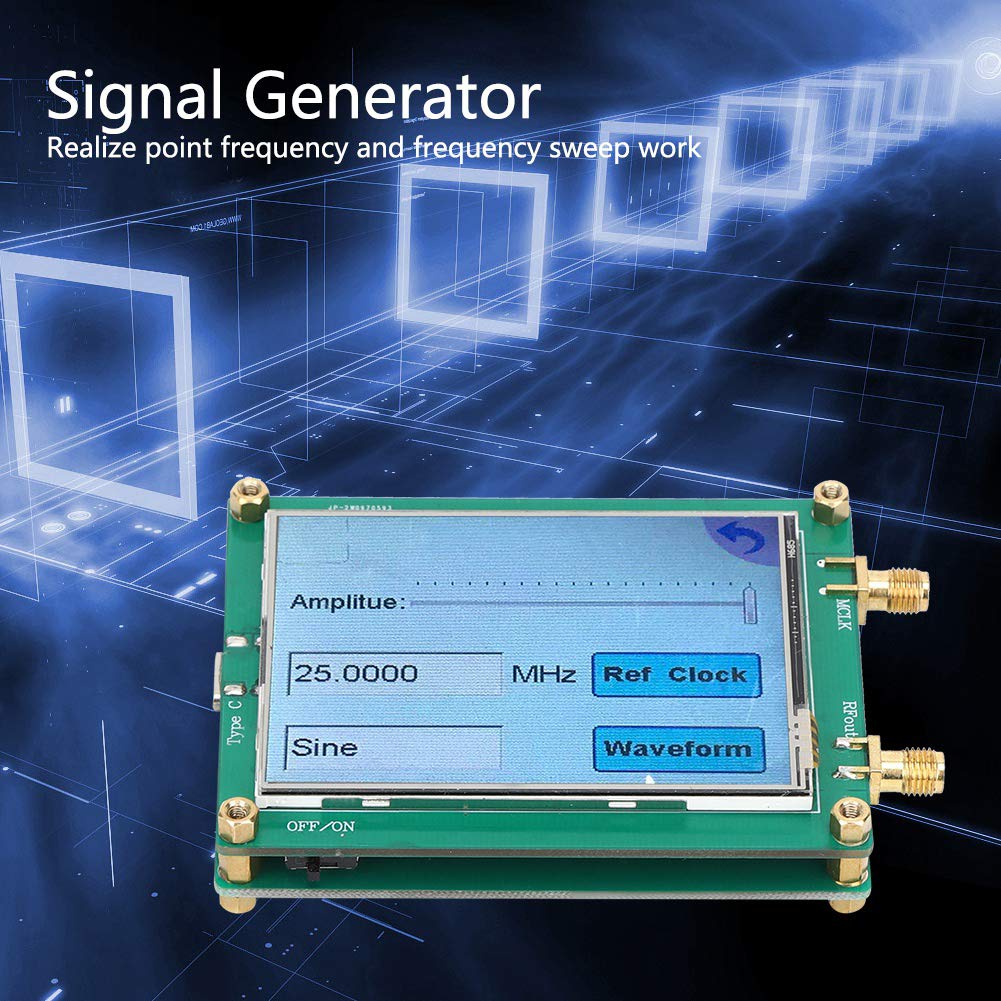

{"id":7411633160352,"title":"Signal Generator, AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine\/Triangle\/Square Wave, for Proximity, Motion and Defect Detection","handle":"signal-generator-ad9833-tft-full-touch-screen-signal-generator-dds-source-dot-frequency-for-sine-triangle-square-wave-for-proximity-motion-and-defect-detection","description":"\u003ch3\u003eSignal Generator, AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine\/Triangle\/Square Wave, for Proximity, Motion and Defect Detection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type: DDS Generator Module Features: 1. Power Supply\nVoltage: Type c interface power supply 2. Onboard 25MHZ Active\nCrystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be\nconnected through three-way-equipment. 3. Point Frequency and Frequency Sweep\nWork: Achieved for full touch screen operation 4. Output Waveform: Sine wave,\ntriangle wave and square wave can be set. 5. Output Amplitude: Sine wave and\ntriangle wave are about 0.6Vpp (can be amplified by external amplifier), the\nhigh end of the frequency drops slightly; square wave is about 3Vpp 6. Output\nImpedance: 200R. It is recommended to add a buffer amplifier when loading 7.\nOutput Frequency: Sine wave about DC-3MHz; square wave and triangle wave about\nDC-1MHz 8. Output and External Clock Interface: SMA female seat (outer screw\ninner hole) Package List: 1 x Generator 1 x USB Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFeatureThe DDS generator can measure liquid and air flow, and it is easy to use in life. And it also can communicate with PC through TYPE C interface to provide host computer software\u003c\/li\u003e\n \u003cli\u003eApplicationAs for sensor applications, the generator can be suitable for proximity, motion and defect detection, line loss or attenuation, testing and equipment, scan or clock generator, time domain reflectometry (TDR) applications\u003c\/li\u003e\n \u003cli\u003eWaveform CharacteristicsFunction signal generator enables to communicate with PC through TYPE C interface to provide host computer software. When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave\u003c\/li\u003e\n \u003cli\u003eFrequency StimulationThe adjustable signal generator can make frequency stimulation or waveform generation, which is practical. It has man-machine interface with three interfaces: main display, setting interface, and keyboard interface\u003c\/li\u003e\n \u003cli\u003eSpecificationsOutput Impedance: 200R, Power Supply Voltage: Type c interface power supply , Output and External Clock Interface: SMA female seat\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-12T03:52:23+10:00","created_at":"2022-06-12T03:52:32+10:00","vendor":"Fafeicy","type":"Function Generators","tags":["dingo"],"price":15000,"price_min":15000,"price_max":15000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42180242473120,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08C2PMBB5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal Generator, AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine\/Triangle\/Square Wave, for Proximity, Motion and Defect Detection","public_title":null,"options":["Default Title"],"price":15000,"weight":128,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B08C2PMBB5.jpg?v=1654992412","\/\/dingoship.com.au\/cdn\/shop\/products\/61TerVxyICL.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/51lDVMdDg9L.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/71D-u-wzvrL.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/71Xgyt536FL.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/61Q8m7soBEL.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/61RGon1e32L.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/61nbggJYTHL.jpg?v=1654969952","\/\/dingoship.com.au\/cdn\/shop\/products\/51Slvnf2gaL.jpg?v=1654969952"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08C2PMBB5.jpg?v=1654992412","options":["Title"],"media":[{"alt":null,"id":24841993846944,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08C2PMBB5.jpg?v=1654992412"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08C2PMBB5.jpg?v=1654992412","width":1001},{"alt":null,"id":24840095498400,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61TerVxyICL.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61TerVxyICL.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095531168,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51lDVMdDg9L.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51lDVMdDg9L.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095563936,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71D-u-wzvrL.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71D-u-wzvrL.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095596704,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Xgyt536FL.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Xgyt536FL.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095629472,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Q8m7soBEL.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Q8m7soBEL.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095662240,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61RGon1e32L.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61RGon1e32L.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095695008,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61nbggJYTHL.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61nbggJYTHL.jpg?v=1654969952","width":1001},{"alt":null,"id":24840095727776,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Slvnf2gaL.jpg?v=1654969952"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Slvnf2gaL.jpg?v=1654969952","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSignal Generator, AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine\/Triangle\/Square Wave, for Proximity, Motion and Defect Detection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type: DDS Generator Module Features: 1. Power Supply\nVoltage: Type c interface power supply 2. Onboard 25MHZ Active\nCrystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be\nconnected through three-way-equipment. 3. Point Frequency and Frequency Sweep\nWork: Achieved for full touch screen operation 4. Output Waveform: Sine wave,\ntriangle wave and square wave can be set. 5. Output Amplitude: Sine wave and\ntriangle wave are about 0.6Vpp (can be amplified by external amplifier), the\nhigh end of the frequency drops slightly; square wave is about 3Vpp 6. Output\nImpedance: 200R. It is recommended to add a buffer amplifier when loading 7.\nOutput Frequency: Sine wave about DC-3MHz; square wave and triangle wave about\nDC-1MHz 8. Output and External Clock Interface: SMA female seat (outer screw\ninner hole) Package List: 1 x Generator 1 x USB Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFeatureThe DDS generator can measure liquid and air flow, and it is easy to use in life. And it also can communicate with PC through TYPE C interface to provide host computer software\u003c\/li\u003e\n \u003cli\u003eApplicationAs for sensor applications, the generator can be suitable for proximity, motion and defect detection, line loss or attenuation, testing and equipment, scan or clock generator, time domain reflectometry (TDR) applications\u003c\/li\u003e\n \u003cli\u003eWaveform CharacteristicsFunction signal generator enables to communicate with PC through TYPE C interface to provide host computer software. When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave\u003c\/li\u003e\n \u003cli\u003eFrequency StimulationThe adjustable signal generator can make frequency stimulation or waveform generation, which is practical. It has man-machine interface with three interfaces: main display, setting interface, and keyboard interface\u003c\/li\u003e\n \u003cli\u003eSpecificationsOutput Impedance: 200R, Power Supply Voltage: Type c interface power supply , Output and External Clock Interface: SMA female seat\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
