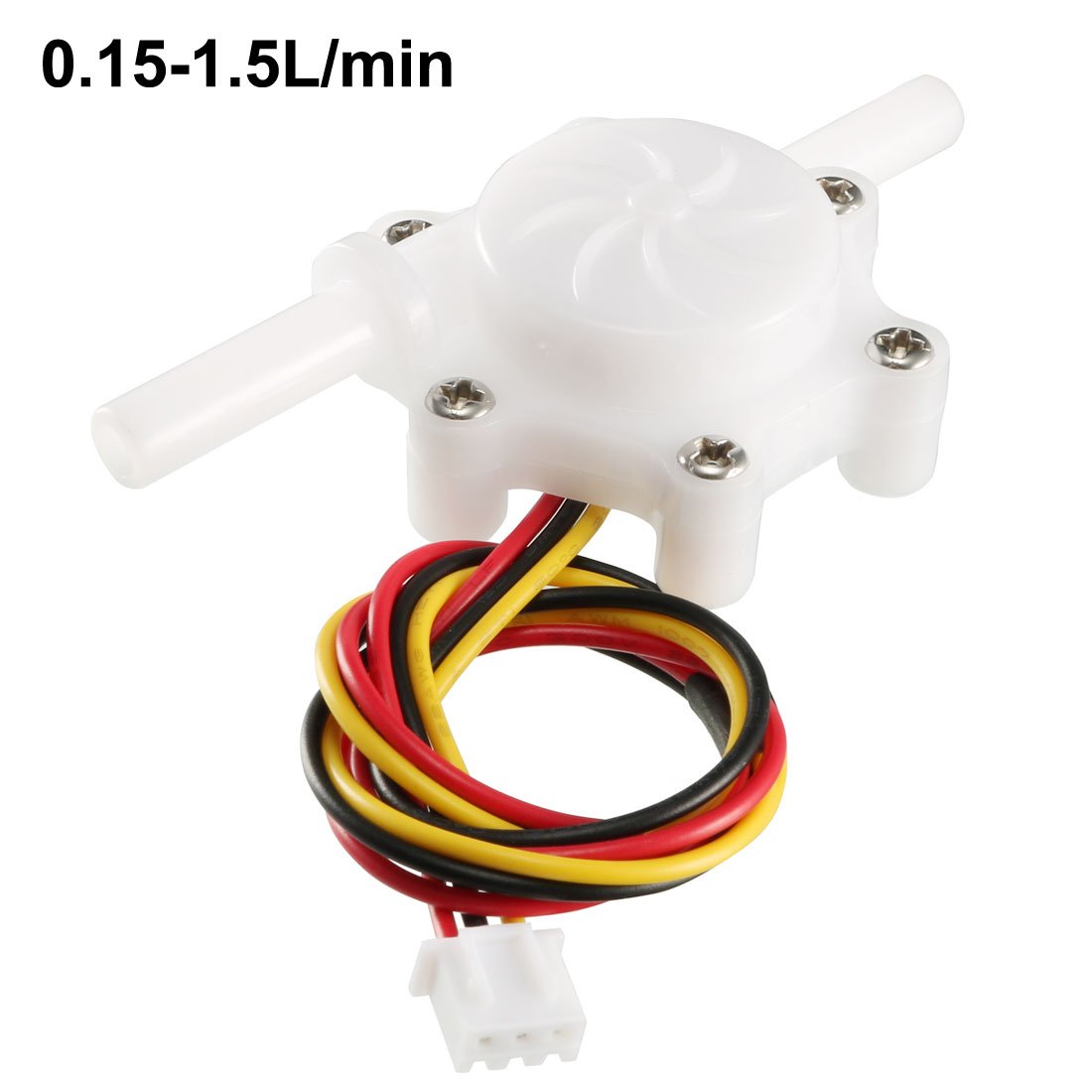

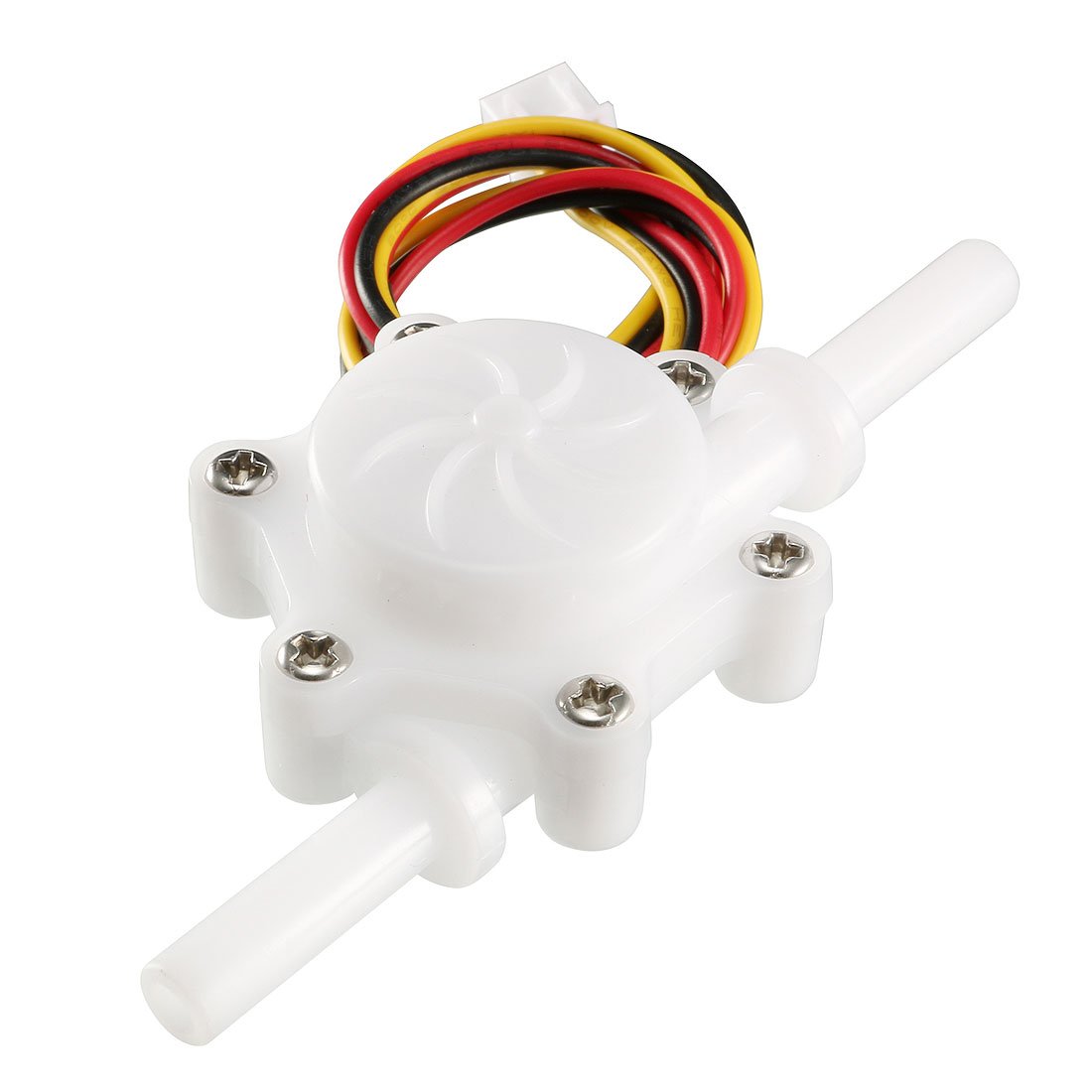

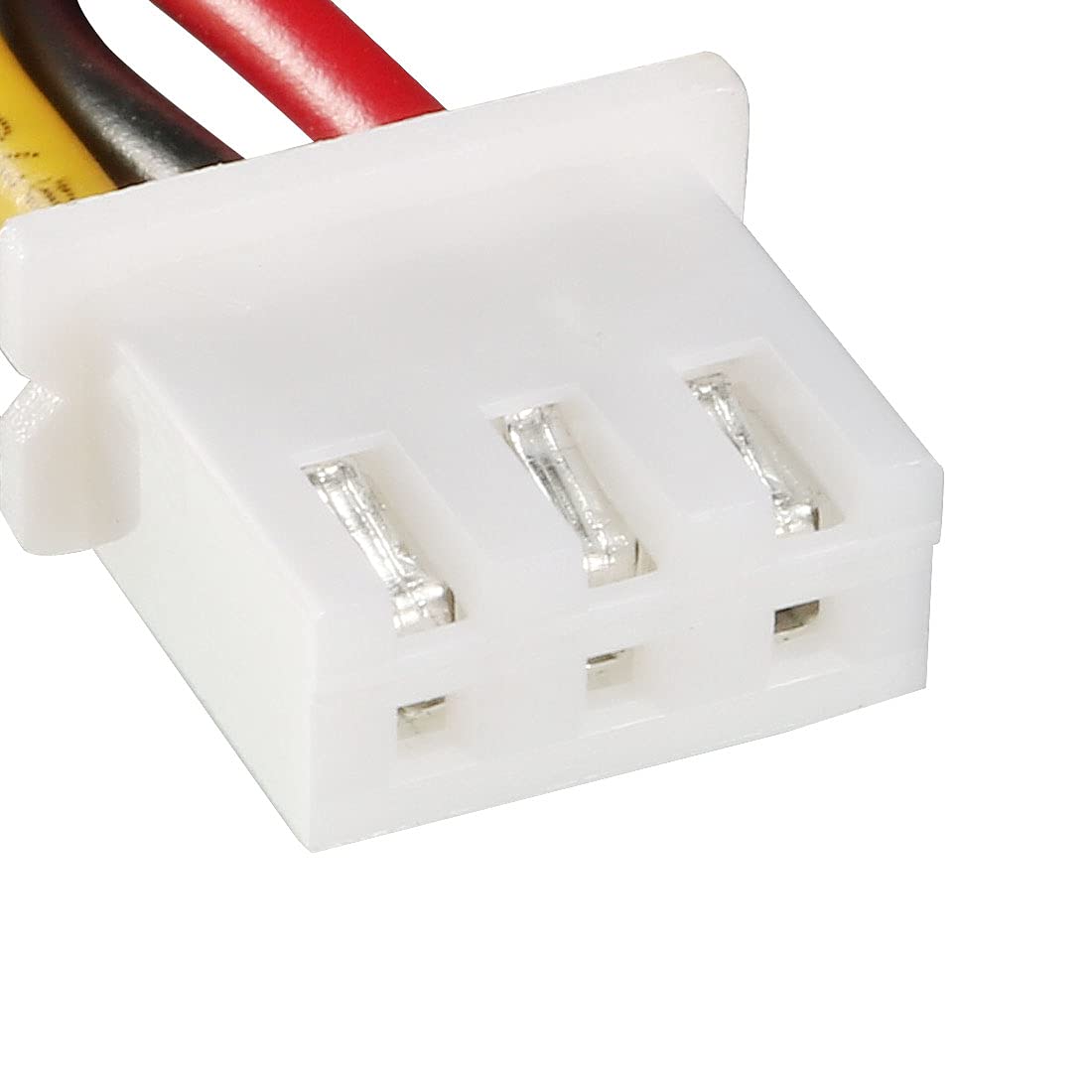

{"id":15190068461728,"title":"sourcing map Hall Effect Water Switch Flow Meter DC5V 0.15-1.5L\/min SEN-HZ06K DE de","handle":"sourcing-map-hall-effect-water-switch-flow-meter-dc5v-0-15-1-5l-min-sen-hz06k-de-de","description":"\u003ch3\u003esourcing map Hall Effect Water Switch Flow Meter DC5V 0.15-1.5L\/min SEN-HZ06K DE en\u003c\/h3\u003e \u003cp id=\"b\"\u003e1. The water flow sensor is light, fast, small and easy to install. The bearings in the rotating part. All materials meet SGS testing standards. 2. There is a built-in magnetic Hall effect sensor that emits an electrical pulse with each revolution. The Hall effect sensor is sealed from the water pipe and therefore enables a safe and dry sensor. 3. Three-wire connection: Red for positive, black for negative, yellow for pulse signal. Specifications: Product name: Water flow sensor Material: POM (shell) Liquid temperature: No more than 60C Rated voltage: DC 5V Max current: 10mA (DC 5V) Maximum water pressure: 1.2MPa Protection class: IP65 Connector size: 1\/4 Male thread diameter: 11mm Connector: Male XH- 3P Color: White Net Weight: 32g Package Included: 1 x Water Flow Sensor Note: 1. Installation according to the flow direction in the back of the product, otherwise there will be no signal output. 2. A filter screen must be installed at the entrance of the sensor to prevent particles and dirt from entering the sensor.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eAll Materials comply with SGS testing standards.\u003c\/li\u003e \u003cli\u003eLight weight, small size, easy to install.\u003c\/li\u003e \u003cli\u003eThree-wire connection: Red for positive, black for negative, yellow for pulse signal.\u003c\/li\u003e \u003cli\u003eThe water flow sensor is used for the water heater and can be used as a flow switch.\u003c\/li\u003e \u003cli\u003eMaximum water pressure: 1.2 MPa, flow range: 0.15-1.5L\/min\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2025-10-01T16:12:54+10:00","created_at":"2025-10-01T16:12:51+10:00","vendor":"sourcing map","type":"Flow sensors","tags":["industryDE"],"price":17500,"price_min":17500,"price_max":17500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52863944753312,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07GYKMZ6C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"sourcing map Hall Effect Water Switch Flow Meter DC5V 0.15-1.5L\/min SEN-HZ06K DE de","public_title":null,"options":["Default Title"],"price":17500,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GYKMZ6C.jpg?v=1775752846","\/\/dingoship.com.au\/cdn\/shop\/files\/51QXGjCqaTL.jpg?v=1759299174","\/\/dingoship.com.au\/cdn\/shop\/files\/41b78OFnySS.jpg?v=1759299174","\/\/dingoship.com.au\/cdn\/shop\/files\/61rZji0hc7L.jpg?v=1759299173","\/\/dingoship.com.au\/cdn\/shop\/files\/61IOGAWaJDL.jpg?v=1759299174"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GYKMZ6C.jpg?v=1775752846","options":["Title"],"media":[{"alt":null,"id":38370508079264,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GYKMZ6C.jpg?v=1775752846"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GYKMZ6C.jpg?v=1775752846","width":1100},{"alt":null,"id":38370508112032,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51QXGjCqaTL.jpg?v=1759299174"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51QXGjCqaTL.jpg?v=1759299174","width":1100},{"alt":null,"id":38370508144800,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41b78OFnySS.jpg?v=1759299174"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41b78OFnySS.jpg?v=1759299174","width":1100},{"alt":null,"id":38370508177568,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rZji0hc7L.jpg?v=1759299173"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rZji0hc7L.jpg?v=1759299173","width":1100},{"alt":null,"id":38370508210336,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61IOGAWaJDL.jpg?v=1759299174"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61IOGAWaJDL.jpg?v=1759299174","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003esourcing map Hall Effect Water Switch Flow Meter DC5V 0.15-1.5L\/min SEN-HZ06K DE en\u003c\/h3\u003e \u003cp id=\"b\"\u003e1. The water flow sensor is light, fast, small and easy to install. The bearings in the rotating part. All materials meet SGS testing standards. 2. There is a built-in magnetic Hall effect sensor that emits an electrical pulse with each revolution. The Hall effect sensor is sealed from the water pipe and therefore enables a safe and dry sensor. 3. Three-wire connection: Red for positive, black for negative, yellow for pulse signal. Specifications: Product name: Water flow sensor Material: POM (shell) Liquid temperature: No more than 60C Rated voltage: DC 5V Max current: 10mA (DC 5V) Maximum water pressure: 1.2MPa Protection class: IP65 Connector size: 1\/4 Male thread diameter: 11mm Connector: Male XH- 3P Color: White Net Weight: 32g Package Included: 1 x Water Flow Sensor Note: 1. Installation according to the flow direction in the back of the product, otherwise there will be no signal output. 2. A filter screen must be installed at the entrance of the sensor to prevent particles and dirt from entering the sensor.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eAll Materials comply with SGS testing standards.\u003c\/li\u003e \u003cli\u003eLight weight, small size, easy to install.\u003c\/li\u003e \u003cli\u003eThree-wire connection: Red for positive, black for negative, yellow for pulse signal.\u003c\/li\u003e \u003cli\u003eThe water flow sensor is used for the water heater and can be used as a flow switch.\u003c\/li\u003e \u003cli\u003eMaximum water pressure: 1.2 MPa, flow range: 0.15-1.5L\/min\u003c\/li\u003e \u003c\/ul\u003e"}
