sourcing map tap and die and drill set M6 x 1 left thread milling cutter and round die 5mm cobalt high speed steel twist drill
sourcing map tap and die and drill set M6 x 1 left-hand thread milling cutter and round die 5mm cobalt high-speed steel twist drill

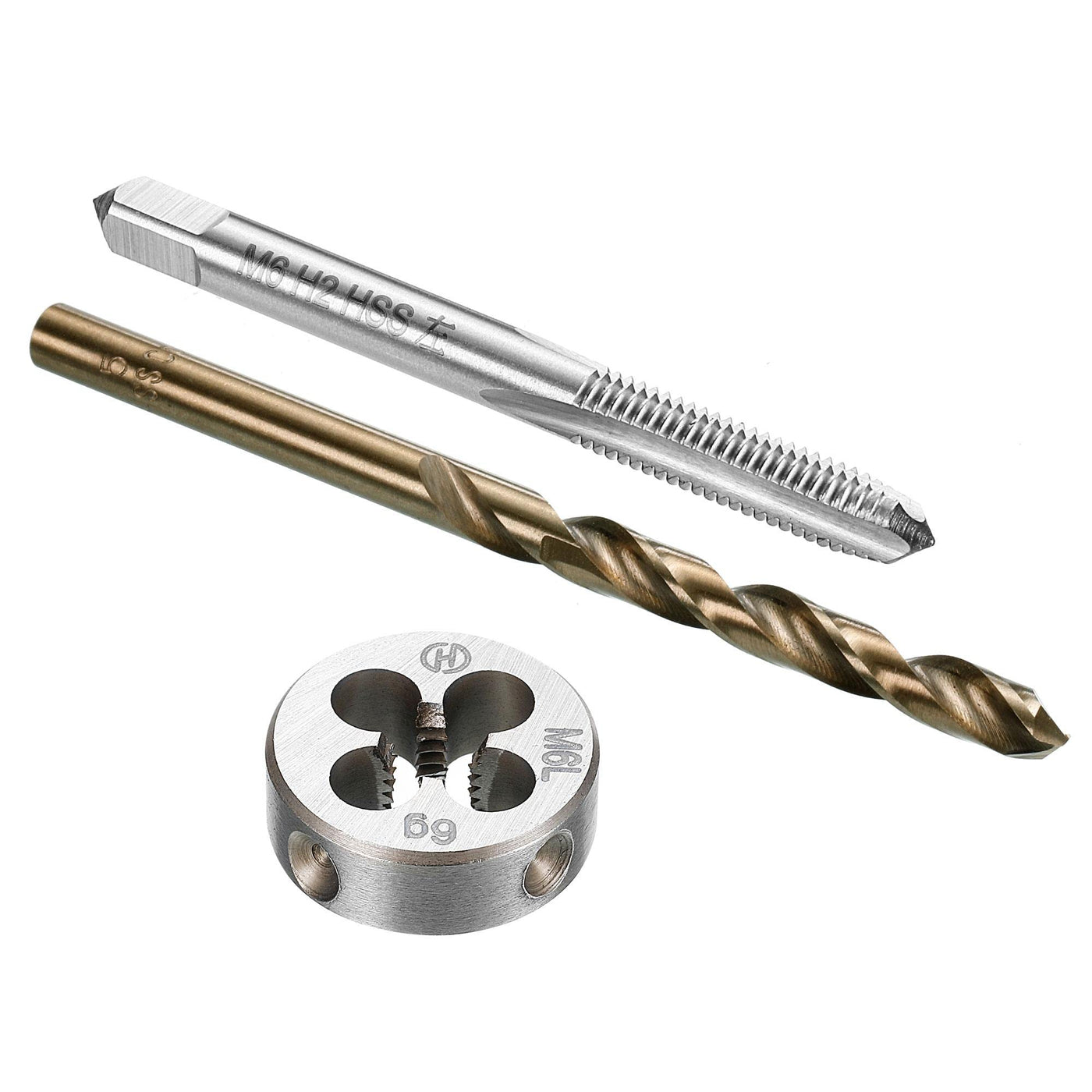

Tap: Thread size: M6 x 1; Thread Length: 26mm/1.02inch; Total Length: 70mm/2.76inch; Square Shank Size: 5mm / 0.2"; Cutting Direction: Left Handed; Accuracy: H2; Material: High Speed Steel 6542 Round Die: Thread Size: M6 x 1; Outer Diameter: 20mm / 0.79"; Thickness: 7mm / 0.28"; Cutting Direction: Left-handed; Material: Alloy Tool Steel (9SiCr) Drill Bit: Cutting Edge Diameter: 5.0mm / 0.2"; Cutting Edge Length: 40mm / 1.57"; Total Length: 86mm / 3.39" Material: M35 Cobalt High Speed Steel (HSS, 5% Cobalt) Package: 1pc x Tap, 1pc x Round Die, 1pc x Drill Descriptions : Tap and die set are suitable for making or repairing external and internal threads, durable and with clear threads, for general applications. Use with thread cutting oil to achieve higher quality threads and longer lasting taps and dies. Spiral groove design, upward chip removal. Process blind holes and sticky materials. For thread cutting aluminum, die steel, stainless steel, bronze, hard plastics, etc. Black nitride coating greatly improves wear resistance, corrosion resistance and temperature resistance. Machine taps are used on drilling machines, tapping machines, CNC and milling machines. The round die is characterized by good abrasion resistance. Spiral chip space design for quick and clean chip removal. The sharp cutting edge ensures a smooth cut and no interference.
Product Features
- Compatibility: M6 x 1 metric tap and die set are suitable for manufacturing or Repair of external and internal threads. They are both left-hand thread, durable and with clear threads, good for general applications.
- Taps: Straight groove design, chip evacuation downwards. Process through holes during maintenance and repair work. For tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc. Use with tapping oil to obtain higher quality threads and longer-lasting taps.
- Round die: The round die is characterized by good abrasion resistance. Use with die wrench (not included). The mounting screws in the center of the wrench should be inserted into the slot of the die and tightened. Appropriate lubricating oil should be added to the cutting edge.
- 5.0mm drill: Spiral chip space design for quick and clean chip evacuation. The M35 cobalt high speed steel tool features high hardness (HRC65-66) and high red hardness as well as high wear resistance. Specially used for drilling stainless steel.
- Tips: Recommended feed speed: general steel: 6-15 m/min; harder steel: 5-10m/min; Stainless steel: 2-7m/min; Cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
