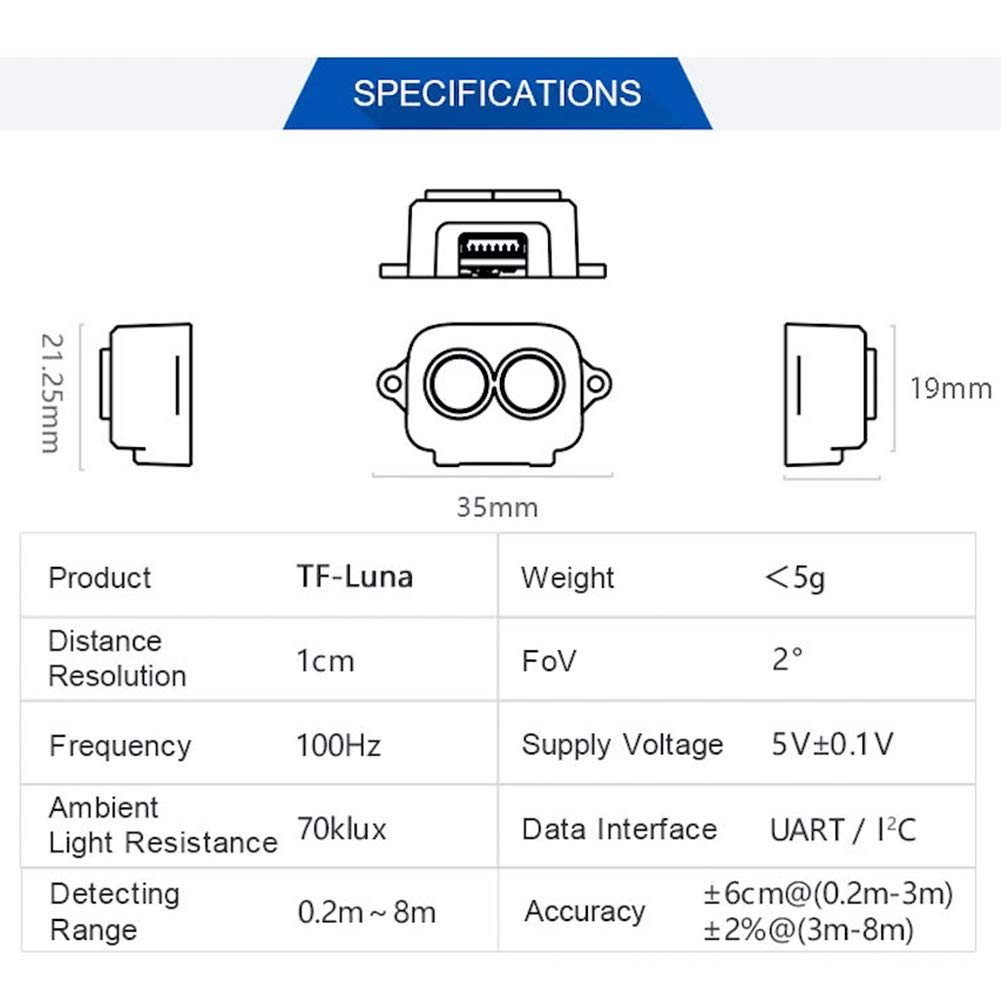

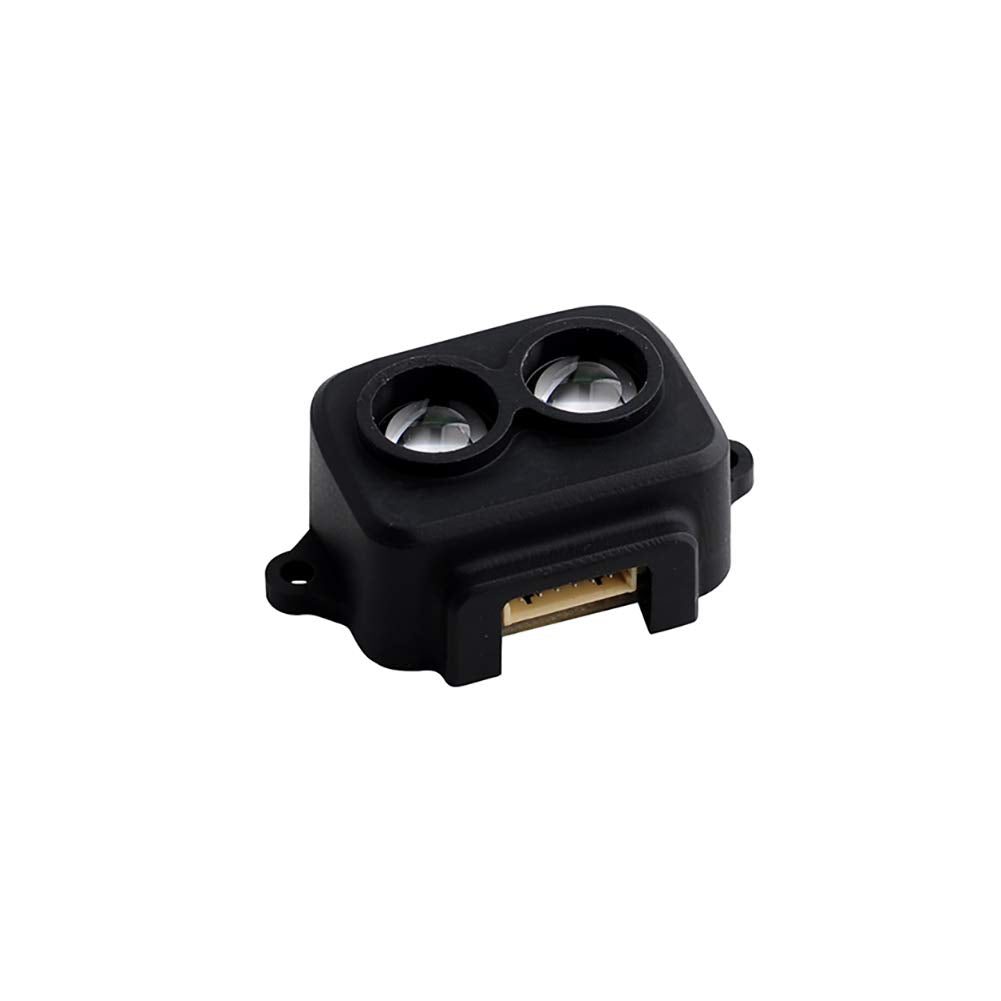

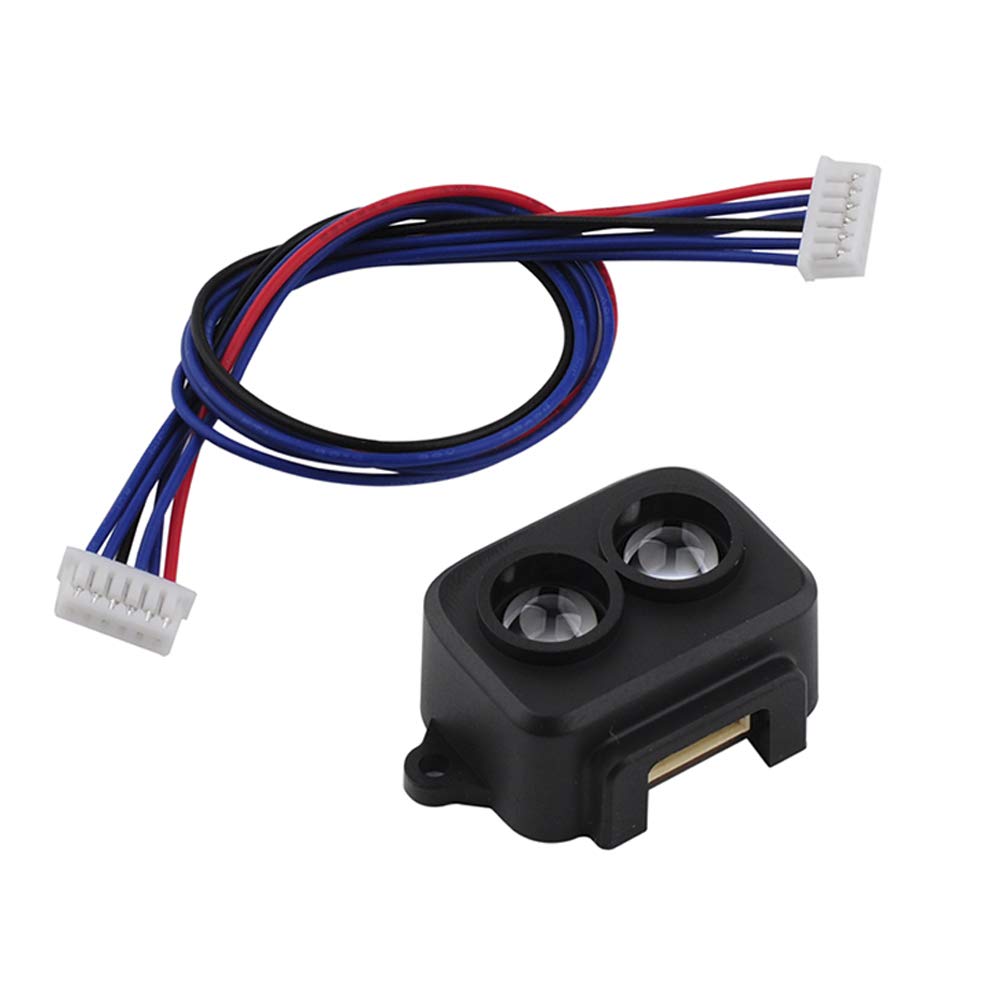

{"id":12792366137504,"title":"Stemedu Benewake TF-Luna LiDAR Module Radar Distance Meter Sensor Single Point Micro Ranging Module measurement for Arduino Pixhawk pedestrian vehicle detection, UART IIC 0.2 m ~ 8 m","handle":"stemedu-benewake-tf-luna-lidar-module-radar-distance-meter-sensor-single-point-micro-ranging-module-measurement-for-arduino-pixhawk-pedestrian-vehicle-detection-uart-iic-0-2-m-8-m","description":"\u003ch3\u003eStemedu Benewake TF-Luna LiDAR Module Radar Distance Meter Sensor Single Point Micro Ranging Module measurement for Arduino Pixhawk pedestrian vehicle detection, UART IIC 0.2 m ~ 8 m\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: Range: 0.2m ~ 8m1. Accuracy: ±6cm @ (0.2-3m), ±2% @ (3-8m) Unit of measurement: cm. Range Resolution: 1 cm Field of View: 2°3. Frame frequency: 1 ~ 250 Hz (adjustable). Supply voltage: 5V ± 0.1V. Average current: ≤ 70 mA. Peak current: 150mA Average power: 350 mW. Communication level: LVTTL (3.3V) Communication interface: UART\/IIC Standard baud rate: 115200. Data bit: 8 Stop bit: 1 Parity check: none Light source: VCSEL Wavelength: 850 nm. Operating temperature: -20°C to +75°C. Certifications: CE, FCC, RoHS. Fall detection\/anti-fall When moving, the robot can encounter the situation that the road surface is down or the ground is sleeping. If the robot cannot perceive them and take actions, it risks falling. Drone obstacle avoidance and altitude hold mode. Benewake LiDAR drones can achieve posture and obstacle avoidance tasks in applications such as patrol, security, agriculture and delivery. Smart Trash 1. TF-Luna is installed on the side of the trash can. When people come near the garbage, the TF-Luna will trigger sound system to broadcast garbage classification rules and so on. 2. TF-Luna is installed in the garbage bin to measure the full state or empty state. Smart Home Smart Mirror The pervasive Internet of Things brings more science and technology to life, Benewake LiDAR can detect distance from person to mirror, so that the mirror can be switched to realize a change between mirror and advertising. Advertising for elevators. Projection Switch Trigger Advertising Projector in Elevator Turn the projector on\/off when the elevator door closes\/opens to optimize efficiency. Scope of delivery: 1 x TF-Luna LiDAR module.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eTF-Luna works with Arduino\u003c\/li\u003e \u003cli\u003eRange: 0.2m ~ 8m, Communication interface: UART\/IIC\u003c\/li\u003e \u003cli\u003eThe product is equipped with algorithms adapted to different application environments and has multiple adjustable configurations and parameters to achieve excellent distance measurement performance in complex application areas and scenarios \u003c\/li\u003e \u003cli\u003eApplications: Traffic monitoring, obstacle detection, level measurement, smart device, security and obstacle avoidance, drone altitude and terrain, machine control and safety sensors, distance measuring device\u003c\/li\u003e \u003cli\u003eWhat you get: 1 TF card Luna LiDAR module\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-25T20:24:53+11:00","created_at":"2024-03-25T20:25:04+11:00","vendor":"Stemedu","type":"Current sensors","tags":["industryDE"],"price":29800,"price_min":29800,"price_max":29800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49185557610656,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B087QWT52L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Stemedu Benewake TF-Luna LiDAR Module Radar Distance Meter Sensor Single Point Micro Ranging Module measurement for Arduino Pixhawk pedestrian vehicle detection, UART IIC 0.2 m ~ 8 m","public_title":null,"options":["Default Title"],"price":29800,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B087QWT52L.jpg?v=1711412923","\/\/dingoship.com.au\/cdn\/shop\/files\/41S49k2S1NL.jpg?v=1711358704","\/\/dingoship.com.au\/cdn\/shop\/files\/51QJFJKTvJL.jpg?v=1711358704","\/\/dingoship.com.au\/cdn\/shop\/files\/61m2Xmn87OL.jpg?v=1711358704","\/\/dingoship.com.au\/cdn\/shop\/files\/51dzjcIHXYL.jpg?v=1711358704","\/\/dingoship.com.au\/cdn\/shop\/files\/61tXyfVu56L.jpg?v=1711358704","\/\/dingoship.com.au\/cdn\/shop\/files\/417rTPnGDPL.jpg?v=1711358704","\/\/dingoship.com.au\/cdn\/shop\/files\/71-ekyArcNL.jpg?v=1711358704"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B087QWT52L.jpg?v=1711412923","options":["Title"],"media":[{"alt":null,"id":32960561479840,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B087QWT52L.jpg?v=1711412923"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B087QWT52L.jpg?v=1711412923","width":1001},{"alt":null,"id":32950607184032,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41S49k2S1NL.jpg?v=1711358704"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41S49k2S1NL.jpg?v=1711358704","width":1001},{"alt":null,"id":32950607216800,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51QJFJKTvJL.jpg?v=1711358704"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51QJFJKTvJL.jpg?v=1711358704","width":1001},{"alt":null,"id":32950607249568,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61m2Xmn87OL.jpg?v=1711358704"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61m2Xmn87OL.jpg?v=1711358704","width":1001},{"alt":null,"id":32950607282336,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51dzjcIHXYL.jpg?v=1711358704"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51dzjcIHXYL.jpg?v=1711358704","width":1001},{"alt":null,"id":32950607315104,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61tXyfVu56L.jpg?v=1711358704"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61tXyfVu56L.jpg?v=1711358704","width":1001},{"alt":null,"id":32950607347872,"position":7,"preview_image":{"aspect_ratio":0.746,"height":500,"width":373,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/417rTPnGDPL.jpg?v=1711358704"},"aspect_ratio":0.746,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/417rTPnGDPL.jpg?v=1711358704","width":373},{"alt":null,"id":32950607380640,"position":8,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-ekyArcNL.jpg?v=1711358704"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-ekyArcNL.jpg?v=1711358704","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eStemedu Benewake TF-Luna LiDAR Module Radar Distance Meter Sensor Single Point Micro Ranging Module measurement for Arduino Pixhawk pedestrian vehicle detection, UART IIC 0.2 m ~ 8 m\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: Range: 0.2m ~ 8m1. Accuracy: ±6cm @ (0.2-3m), ±2% @ (3-8m) Unit of measurement: cm. Range Resolution: 1 cm Field of View: 2°3. Frame frequency: 1 ~ 250 Hz (adjustable). Supply voltage: 5V ± 0.1V. Average current: ≤ 70 mA. Peak current: 150mA Average power: 350 mW. Communication level: LVTTL (3.3V) Communication interface: UART\/IIC Standard baud rate: 115200. Data bit: 8 Stop bit: 1 Parity check: none Light source: VCSEL Wavelength: 850 nm. Operating temperature: -20°C to +75°C. Certifications: CE, FCC, RoHS. Fall detection\/anti-fall When moving, the robot can encounter the situation that the road surface is down or the ground is sleeping. If the robot cannot perceive them and take actions, it risks falling. Drone obstacle avoidance and altitude hold mode. Benewake LiDAR drones can achieve posture and obstacle avoidance tasks in applications such as patrol, security, agriculture and delivery. Smart Trash 1. TF-Luna is installed on the side of the trash can. When people come near the garbage, the TF-Luna will trigger sound system to broadcast garbage classification rules and so on. 2. TF-Luna is installed in the garbage bin to measure the full state or empty state. Smart Home Smart Mirror The pervasive Internet of Things brings more science and technology to life, Benewake LiDAR can detect distance from person to mirror, so that the mirror can be switched to realize a change between mirror and advertising. Advertising for elevators. Projection Switch Trigger Advertising Projector in Elevator Turn the projector on\/off when the elevator door closes\/opens to optimize efficiency. Scope of delivery: 1 x TF-Luna LiDAR module.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eTF-Luna works with Arduino\u003c\/li\u003e \u003cli\u003eRange: 0.2m ~ 8m, Communication interface: UART\/IIC\u003c\/li\u003e \u003cli\u003eThe product is equipped with algorithms adapted to different application environments and has multiple adjustable configurations and parameters to achieve excellent distance measurement performance in complex application areas and scenarios \u003c\/li\u003e \u003cli\u003eApplications: Traffic monitoring, obstacle detection, level measurement, smart device, security and obstacle avoidance, drone altitude and terrain, machine control and safety sensors, distance measuring device\u003c\/li\u003e \u003cli\u003eWhat you get: 1 TF card Luna LiDAR module\u003c\/li\u003e\n\u003c\/ul\u003e"}
