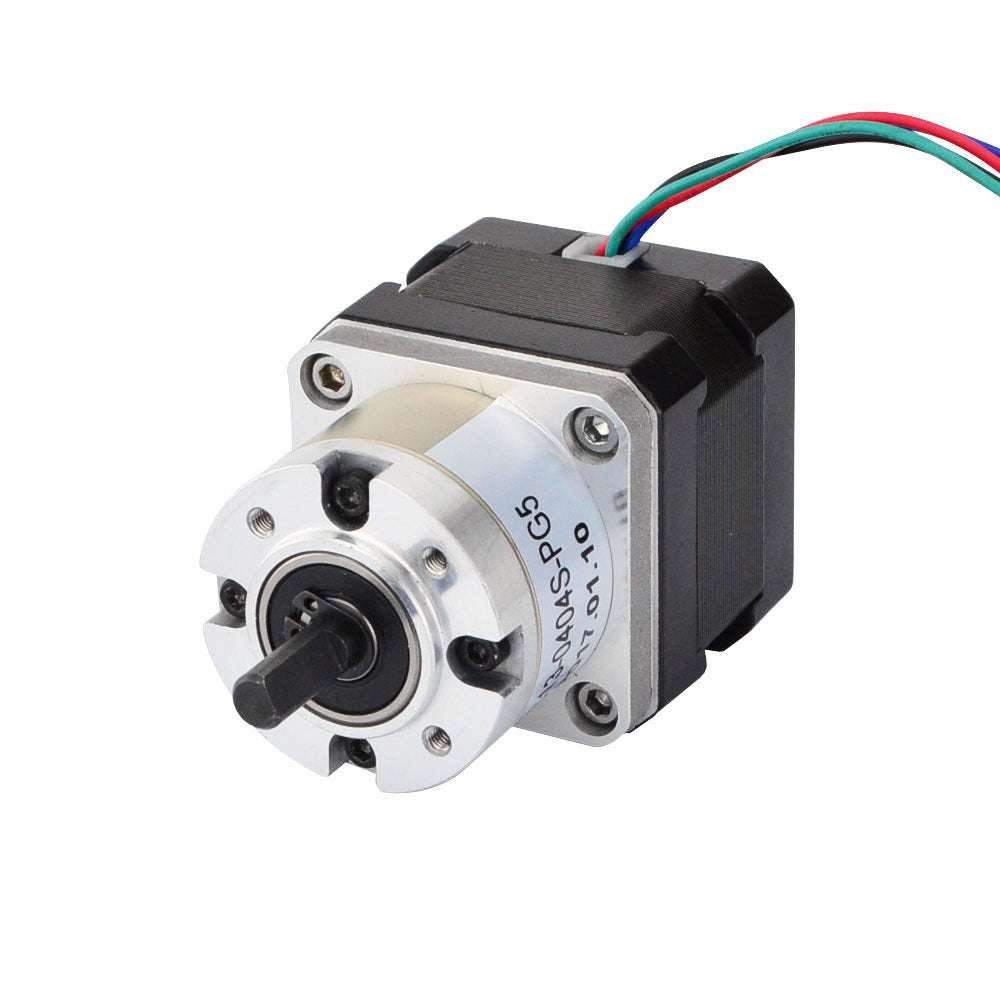

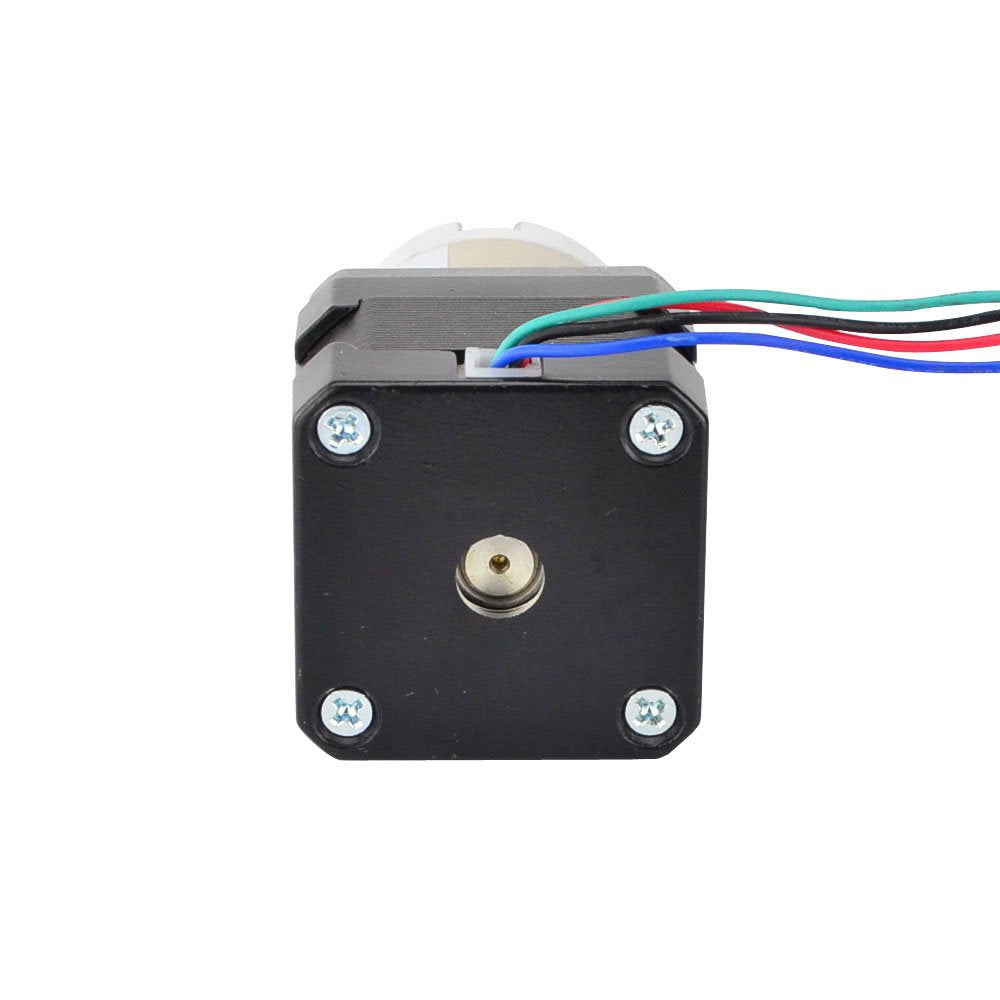

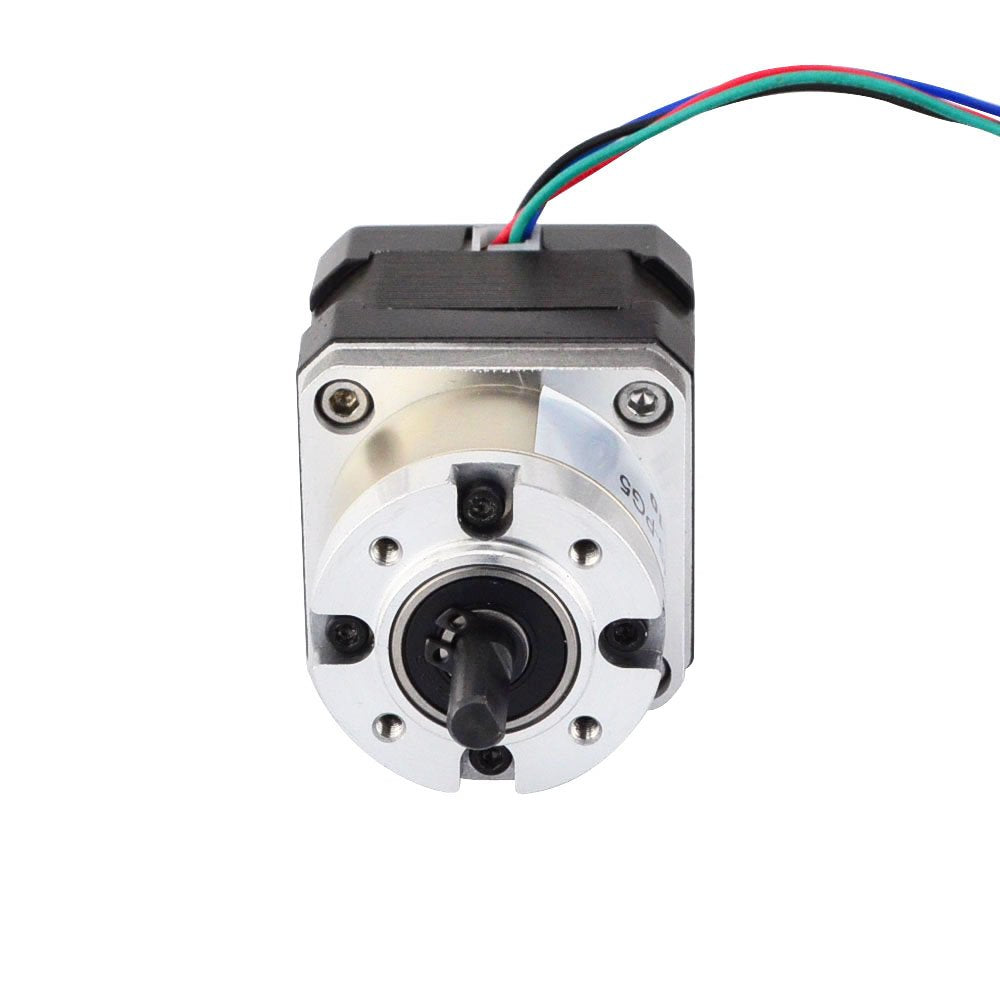

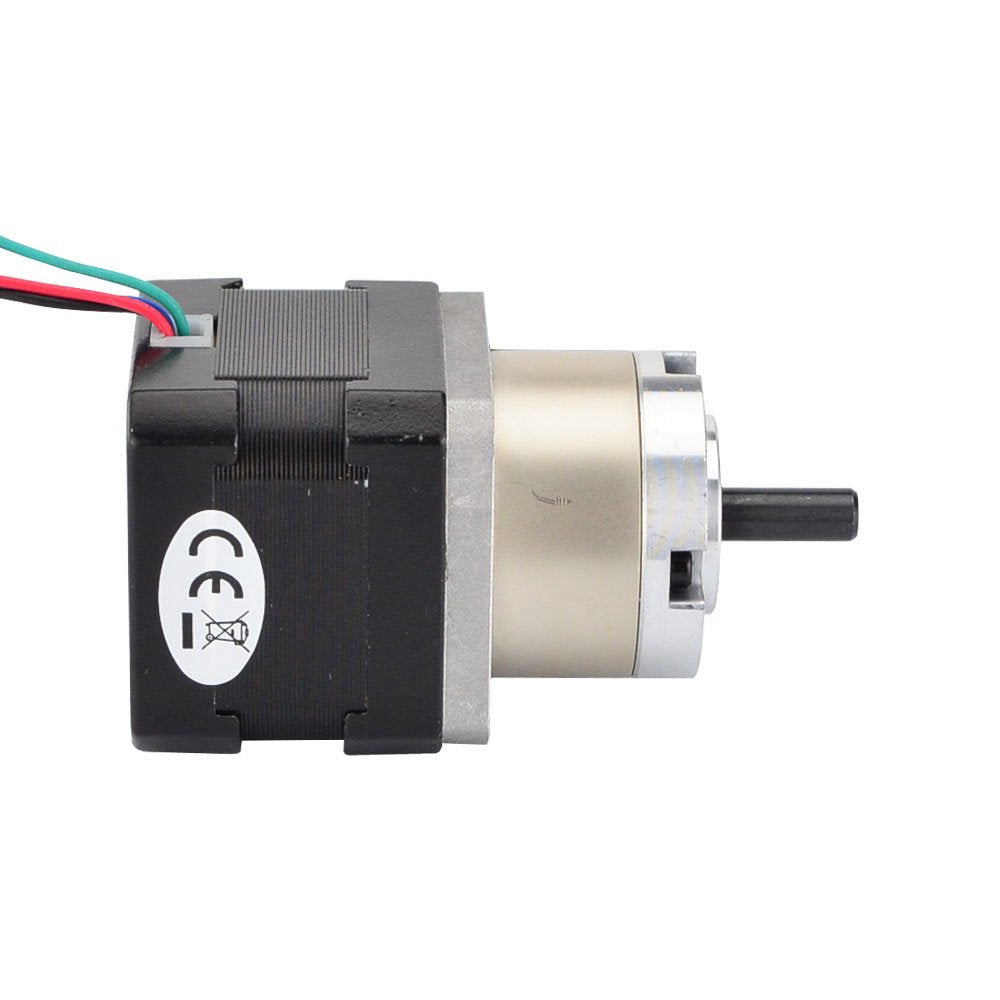

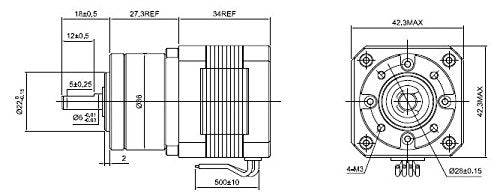

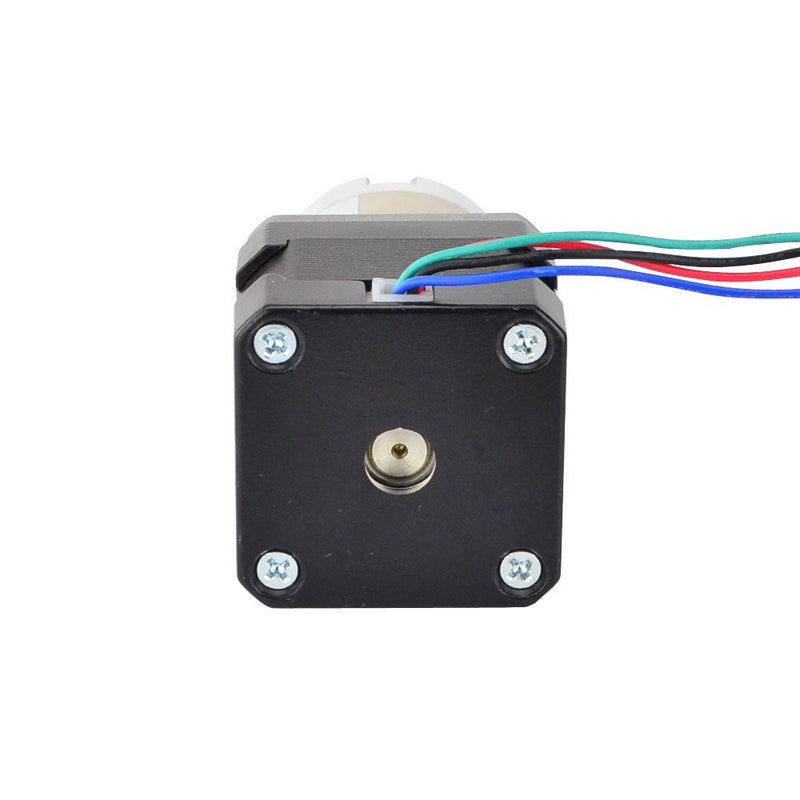

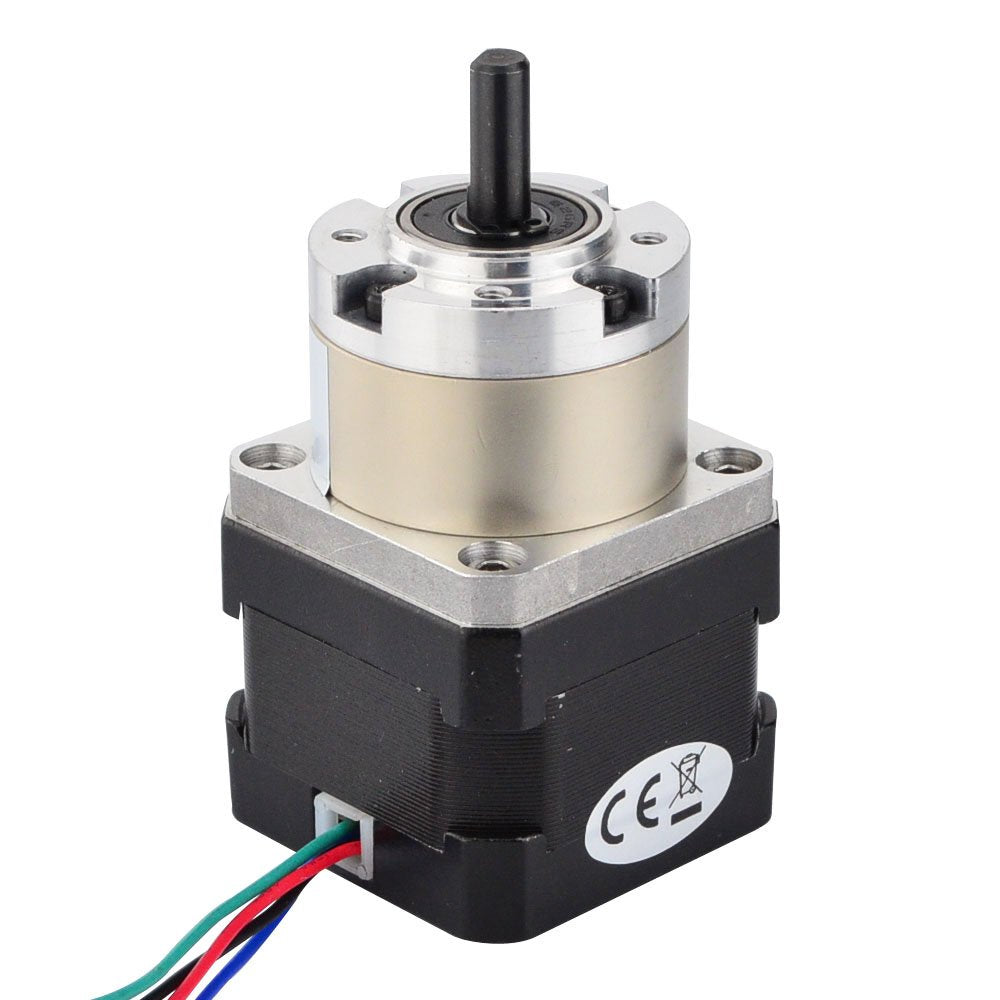

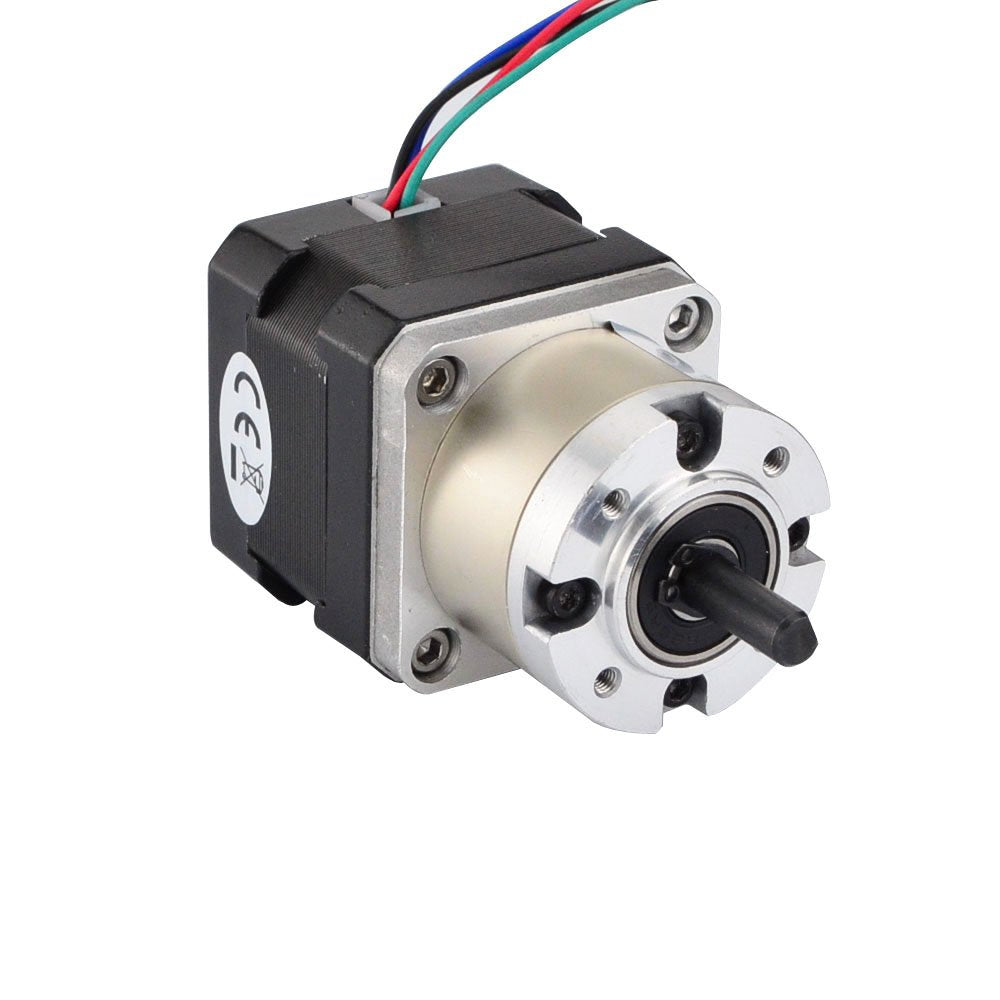

{"id":7562138222752,"title":"STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer","handle":"stepperonline-5-1-planetary-gearbox-nema-17-stepper-motor-0-4a-for-diy-cnc-robot-3d-printer","description":"\u003ch3\u003eSTEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is a short geared NEMA 17 Stepper motor, total length inlcuding shaft\nbelow 80mm, and with 6mm diameter shaft. It has an integrated planetary\ngearbox with a 5.18:1 gear ratio, the resolution reach 0.35 deg. step angle.\nIt's a good solution in applications that need very low rotation speeds and\/or\nlots of torque. Electrical Specification: Manufacturer Part Number:\n17HS13-0404S-PG5 Motor Type: Bipolar Stepper Step Angle: 0.35 deg. \nHolding Torque: 121.2Ncm Rated Current\/phase: 0.4A Phase Resistance:\n30ohms Inductance: 34mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 5.18:1 Efficiency: 90% Backlash at No-load: \u0026lt;=1\ndeg. Max.Permissible Torque: 2Nm(283oz-in) Moment Permissible Torque:\n4Nm(566oz-in) Shaft Maximum Axial Load: 50N Shaft Maximum Radial Load:\n100N Physical Specifications: Frame Size: 42 x 42mm Motor Length: 34mm \nGearbox Length: 27.3mm Shaft Diameter: 6mm Shaft Length: 18mm D-cut\nLength: 12mm Number of Leads: 4 Lead Length: 500mm Weight: 380g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.35 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 5.18:1\u003c\/li\u003e\n \u003cli\u003eRated current 0.4A \u0026amp; resistance 30ohms\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-01T04:22:02+10:00","created_at":"2022-10-01T04:22:09+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["workwarehouse"],"price":21800,"price_min":21800,"price_max":21800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42622725816480,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNER4V6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer","public_title":null,"options":["Default Title"],"price":21800,"weight":340,"compare_at_price":null,"inventory_management":null,"barcode":"701056330867","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B00PNER4V6.jpg?v=1664562130","\/\/dingoship.com.au\/cdn\/shop\/products\/61ewFeTuQPL.jpg?v=1664562130","\/\/dingoship.com.au\/cdn\/shop\/products\/51h3QQrUr0L.jpg?v=1664562130","\/\/dingoship.com.au\/cdn\/shop\/products\/61iUvdhgvxL.jpg?v=1664562130","\/\/dingoship.com.au\/cdn\/shop\/products\/51-N6hD9W3L.jpg?v=1664562130","\/\/dingoship.com.au\/cdn\/shop\/products\/51f2lwQpxJL.jpg?v=1664562130","\/\/dingoship.com.au\/cdn\/shop\/products\/41bEioSjcpL.jpg?v=1664562130"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00PNER4V6.jpg?v=1664562130","options":["Title"],"media":[{"alt":null,"id":25575910211744,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00PNER4V6.jpg?v=1664562130"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00PNER4V6.jpg?v=1664562130","width":1000},{"alt":null,"id":25575910244512,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ewFeTuQPL.jpg?v=1664562130"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ewFeTuQPL.jpg?v=1664562130","width":1000},{"alt":null,"id":25575910277280,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51h3QQrUr0L.jpg?v=1664562130"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51h3QQrUr0L.jpg?v=1664562130","width":1000},{"alt":null,"id":25575910310048,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61iUvdhgvxL.jpg?v=1664562130"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61iUvdhgvxL.jpg?v=1664562130","width":1000},{"alt":null,"id":25575910342816,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51-N6hD9W3L.jpg?v=1664562130"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51-N6hD9W3L.jpg?v=1664562130","width":1000},{"alt":null,"id":25575910375584,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51f2lwQpxJL.jpg?v=1664562130"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51f2lwQpxJL.jpg?v=1664562130","width":1000},{"alt":null,"id":25575910408352,"position":7,"preview_image":{"aspect_ratio":2.591,"height":193,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41bEioSjcpL.jpg?v=1664562130"},"aspect_ratio":2.591,"height":193,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41bEioSjcpL.jpg?v=1664562130","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is a short geared NEMA 17 Stepper motor, total length inlcuding shaft\nbelow 80mm, and with 6mm diameter shaft. It has an integrated planetary\ngearbox with a 5.18:1 gear ratio, the resolution reach 0.35 deg. step angle.\nIt's a good solution in applications that need very low rotation speeds and\/or\nlots of torque. Electrical Specification: Manufacturer Part Number:\n17HS13-0404S-PG5 Motor Type: Bipolar Stepper Step Angle: 0.35 deg. \nHolding Torque: 121.2Ncm Rated Current\/phase: 0.4A Phase Resistance:\n30ohms Inductance: 34mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 5.18:1 Efficiency: 90% Backlash at No-load: \u0026lt;=1\ndeg. Max.Permissible Torque: 2Nm(283oz-in) Moment Permissible Torque:\n4Nm(566oz-in) Shaft Maximum Axial Load: 50N Shaft Maximum Radial Load:\n100N Physical Specifications: Frame Size: 42 x 42mm Motor Length: 34mm \nGearbox Length: 27.3mm Shaft Diameter: 6mm Shaft Length: 18mm D-cut\nLength: 12mm Number of Leads: 4 Lead Length: 500mm Weight: 380g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.35 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 5.18:1\u003c\/li\u003e\n \u003cli\u003eRated current 0.4A \u0026amp; resistance 30ohms\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
