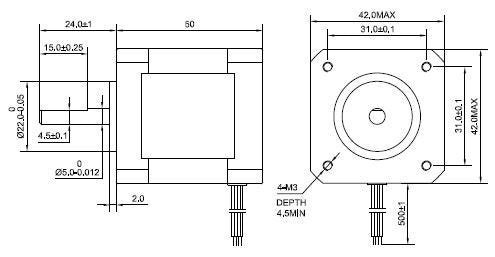

{"id":15858957418656,"title":"STEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in\/65Ncm 2.1A Extruder Motor","handle":"stepperonline-high-torque-nema-17-bipolar-stepper-motor-92oz-in-65ncm-2-1a-extruder-motor","description":"\u003ch3\u003eSTEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in\/65Ncm 2.1A Extruder Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step\nangle (200 steps\/revolution). Each phase draws 2.1A, allowing for a holding\ntorque up to 65Ncm(92oz.in). Electrical Specification: Manufacturer Part\nNumber: 17HS24-2104S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. \nHolding Torque: 65Ncm(92oz.in) Rated Current\/phase: 2.1A Phase Resistance:\n1.6ohms Inductance: 3mH+\/-20%(1KHz) Physical Specification: Frame Size: 42\nx 42mm Body Length: 60mm Shaft Diameter: 5mm Shaft Length: 24mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 500g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eVery High Torque\u003c\/li\u003e\n \u003cli\u003e65Ncm(92oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 1.65\"x1.65\"x2.36\" 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 deg. step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2.1A \u0026amp; resistance 1.6ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-07T01:29:39+10:00","created_at":"2026-09-06T23:23:04+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":25800,"price_min":25800,"price_max":25800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58814407147680,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B00PNEQUZ2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in\/65Ncm 2.1A Extruder Motor","public_title":null,"options":["Default Title"],"price":25800,"weight":530,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056398768","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/uk-B00PNEQUZ2.jpg?v=1788700987","\/\/dingoship.com.au\/cdn\/shop\/files\/411HmsDc9RL_5f00c7fd-32cb-4c65-b522-86dd914c4984.jpg?v=1788700987","\/\/dingoship.com.au\/cdn\/shop\/files\/41wMx-SZj5L.jpg?v=1788700987","\/\/dingoship.com.au\/cdn\/shop\/files\/41_rqw1ffrL_91611124-c216-4b65-baf6-19c6291b6cb4.jpg?v=1788700987","\/\/dingoship.com.au\/cdn\/shop\/files\/41ZQ2x_EBYL.jpg?v=1788700987","\/\/dingoship.com.au\/cdn\/shop\/files\/41T7oFxBl9L.jpg?v=1788700987","\/\/dingoship.com.au\/cdn\/shop\/files\/31cKfwDcIqL_b57d5f9d-a2ca-4914-b56d-0bfc52a51ece.jpg?v=1788700987"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/uk-B00PNEQUZ2.jpg?v=1788700987","options":["Title"],"media":[{"alt":null,"id":70250731471008,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/uk-B00PNEQUZ2.jpg?v=1788700987"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/uk-B00PNEQUZ2.jpg?v=1788700987","width":500},{"alt":null,"id":70250731503776,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/411HmsDc9RL_5f00c7fd-32cb-4c65-b522-86dd914c4984.jpg?v=1788700987"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/411HmsDc9RL_5f00c7fd-32cb-4c65-b522-86dd914c4984.jpg?v=1788700987","width":500},{"alt":null,"id":70250731536544,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41wMx-SZj5L.jpg?v=1788700987"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41wMx-SZj5L.jpg?v=1788700987","width":500},{"alt":null,"id":70250731569312,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41_rqw1ffrL_91611124-c216-4b65-baf6-19c6291b6cb4.jpg?v=1788700987"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41_rqw1ffrL_91611124-c216-4b65-baf6-19c6291b6cb4.jpg?v=1788700987","width":500},{"alt":null,"id":70250731602080,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41ZQ2x_EBYL.jpg?v=1788700987"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41ZQ2x_EBYL.jpg?v=1788700987","width":500},{"alt":null,"id":70250731634848,"position":6,"preview_image":{"aspect_ratio":1.926,"height":257,"width":495,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41T7oFxBl9L.jpg?v=1788700987"},"aspect_ratio":1.926,"height":257,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41T7oFxBl9L.jpg?v=1788700987","width":495},{"alt":null,"id":70250731667616,"position":7,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/31cKfwDcIqL_b57d5f9d-a2ca-4914-b56d-0bfc52a51ece.jpg?v=1788700987"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/31cKfwDcIqL_b57d5f9d-a2ca-4914-b56d-0bfc52a51ece.jpg?v=1788700987","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in\/65Ncm 2.1A Extruder Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step\nangle (200 steps\/revolution). Each phase draws 2.1A, allowing for a holding\ntorque up to 65Ncm(92oz.in). Electrical Specification: Manufacturer Part\nNumber: 17HS24-2104S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. \nHolding Torque: 65Ncm(92oz.in) Rated Current\/phase: 2.1A Phase Resistance:\n1.6ohms Inductance: 3mH+\/-20%(1KHz) Physical Specification: Frame Size: 42\nx 42mm Body Length: 60mm Shaft Diameter: 5mm Shaft Length: 24mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 500g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eVery High Torque\u003c\/li\u003e\n \u003cli\u003e65Ncm(92oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 1.65\"x1.65\"x2.36\" 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 deg. step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2.1A \u0026amp; resistance 1.6ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
