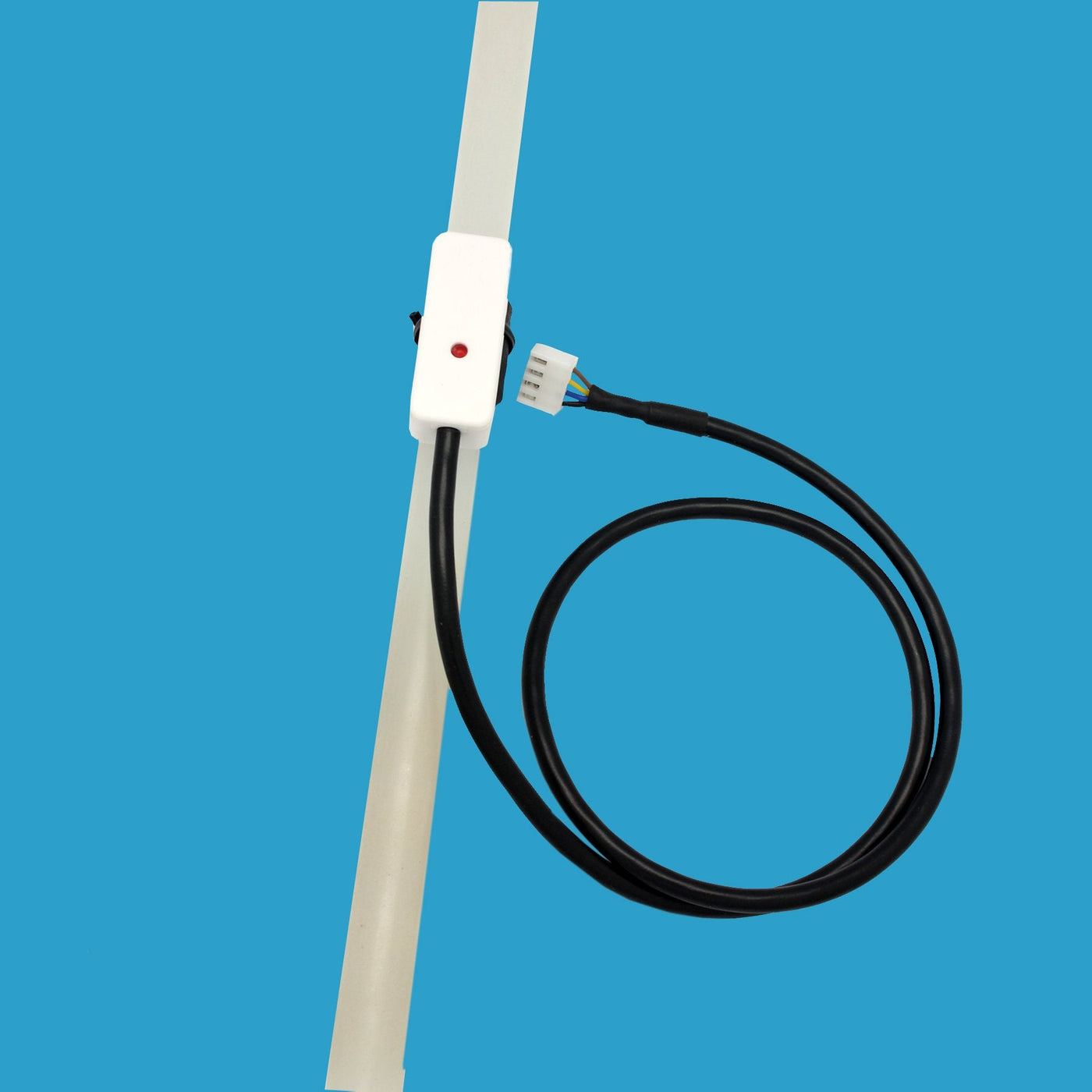

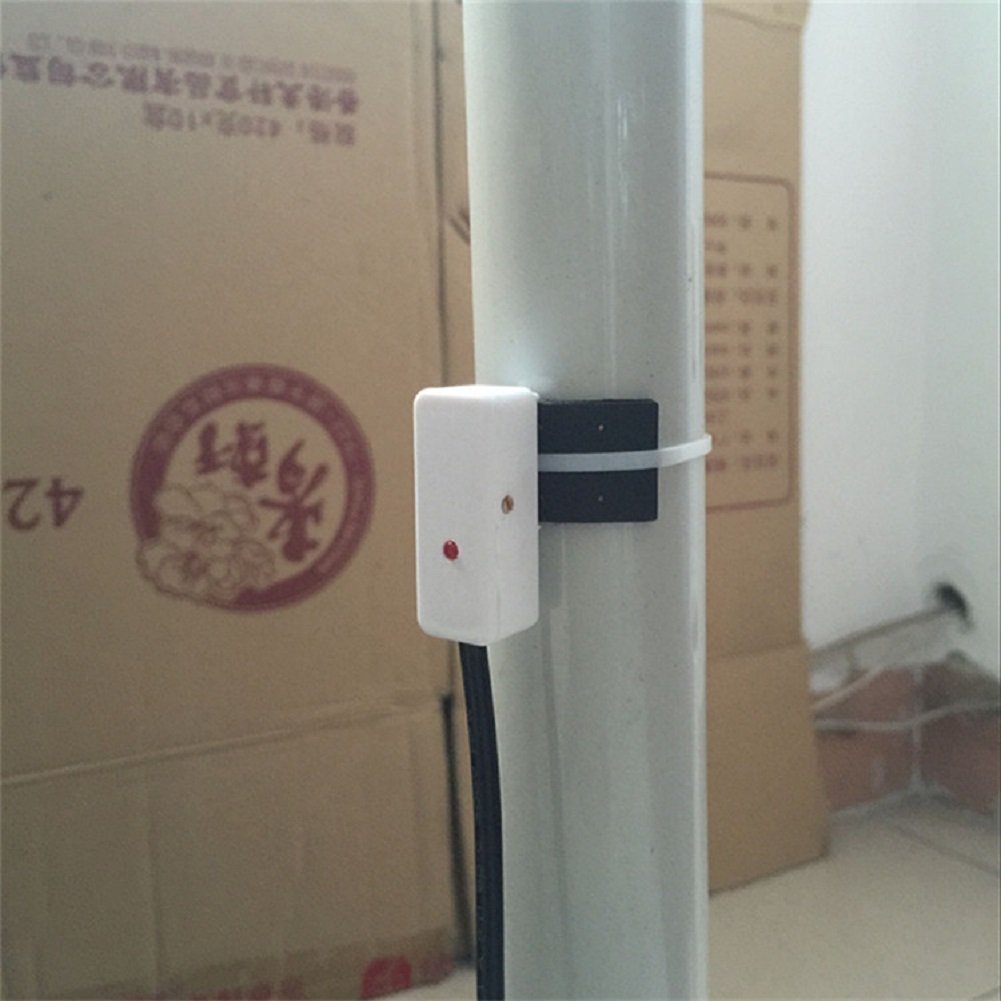

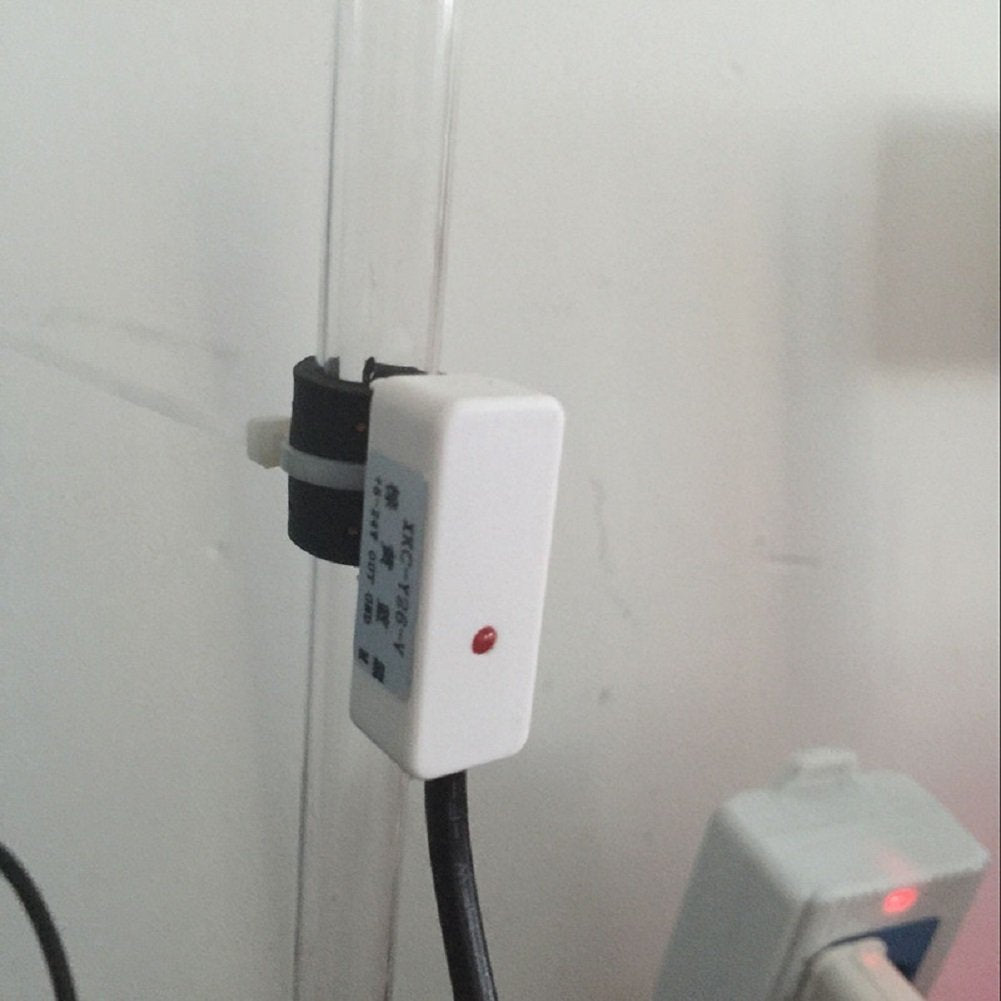

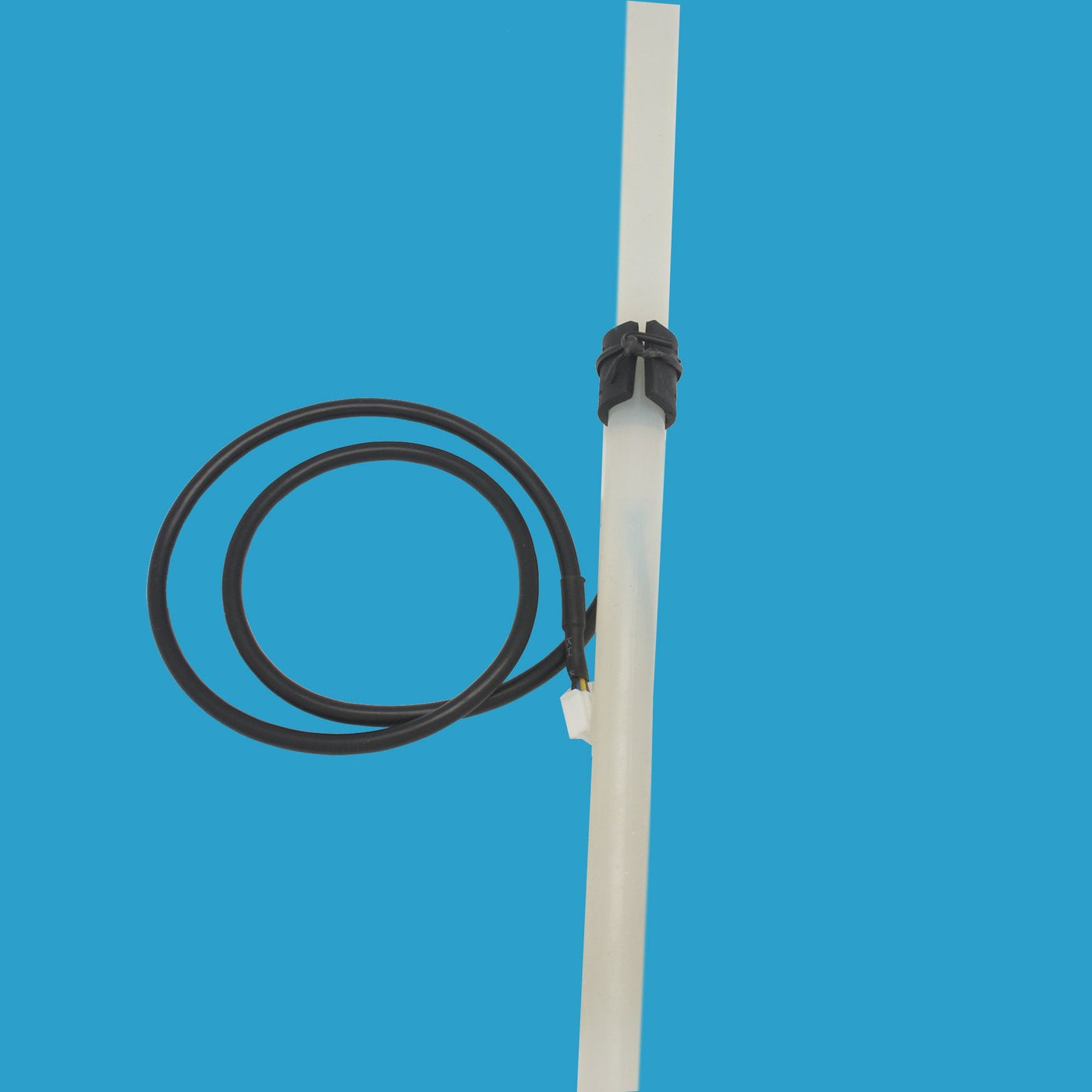

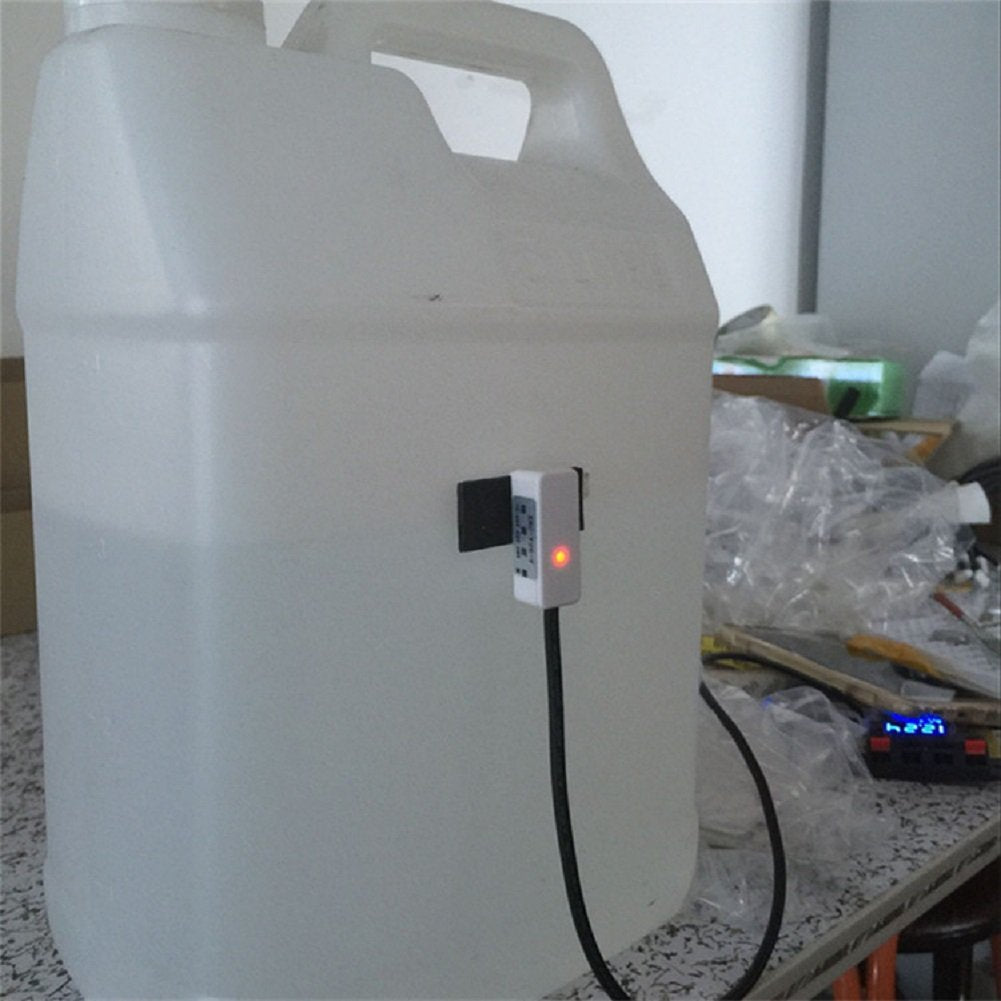

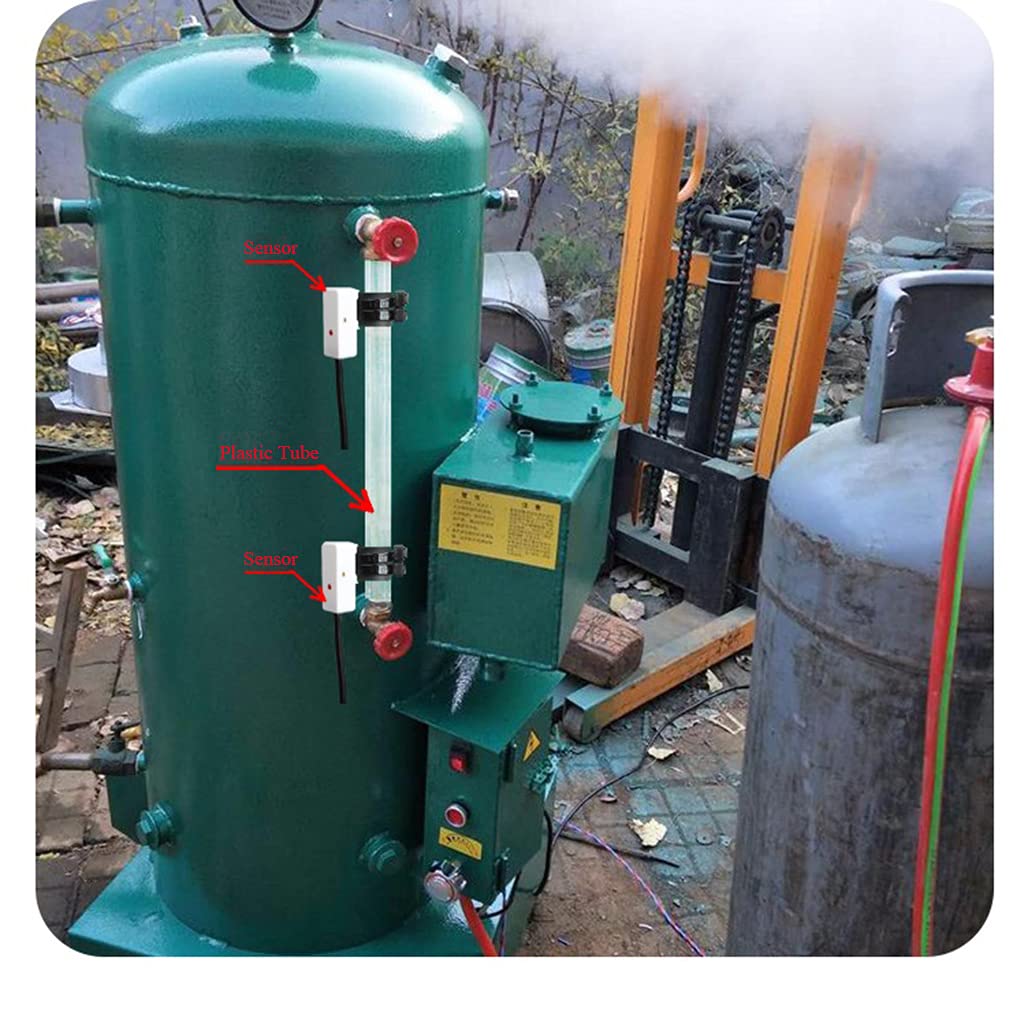

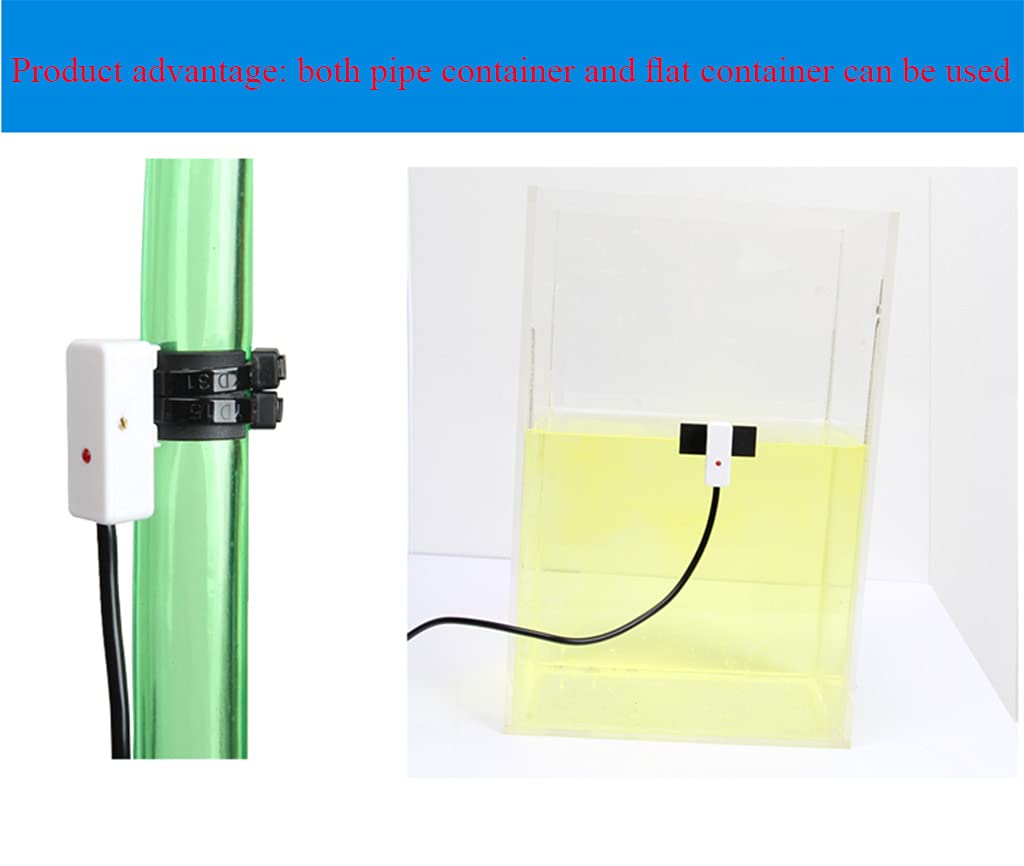

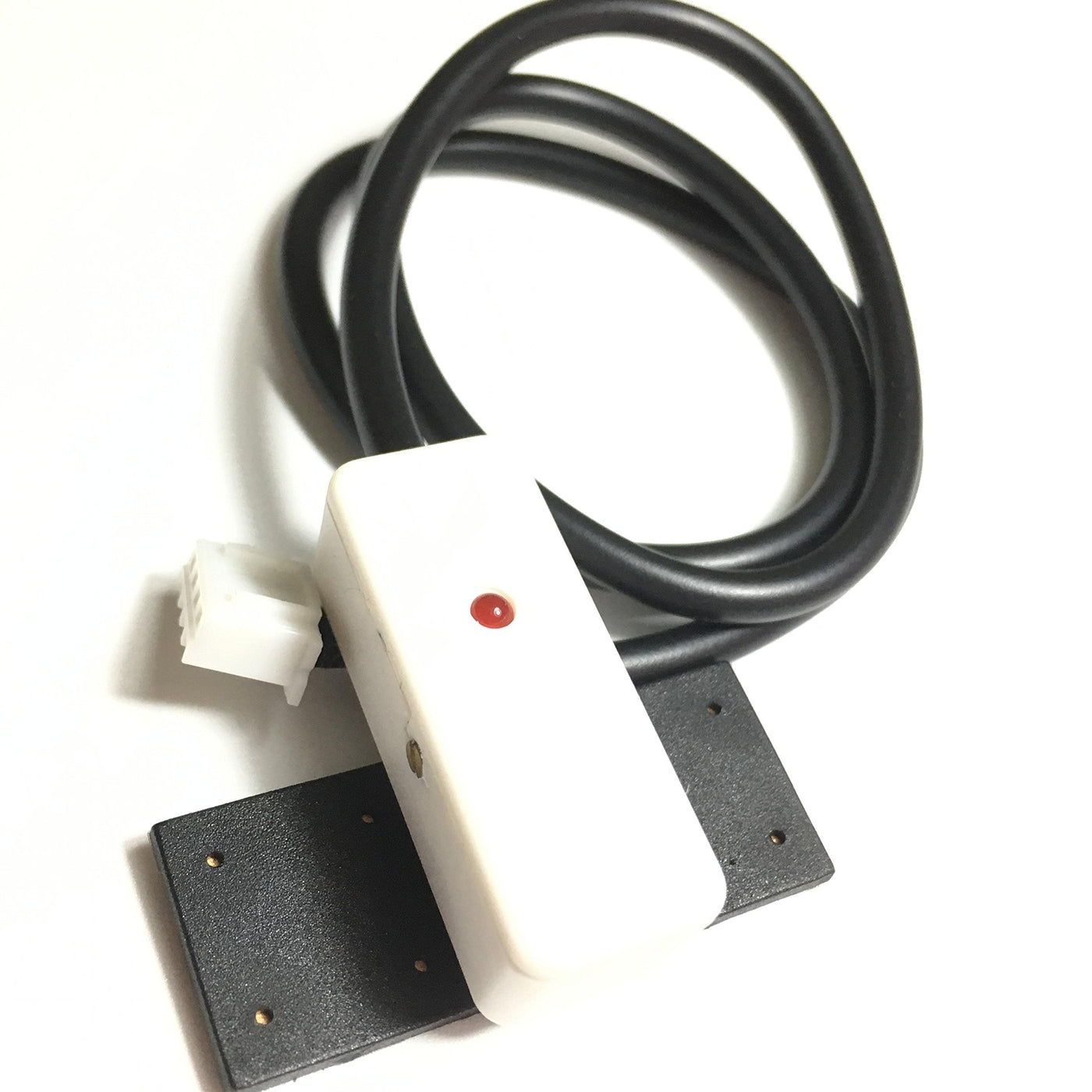

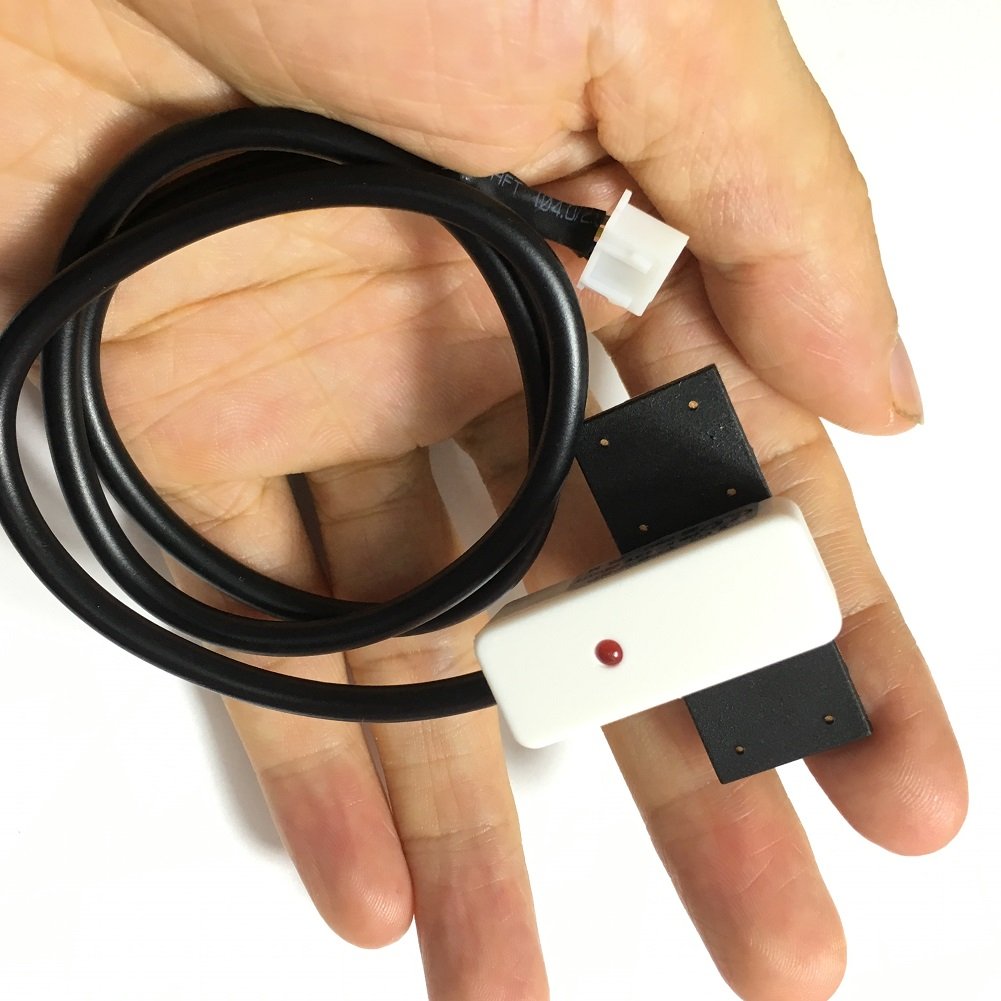

{"id":7414024568992,"title":"Taidacent Non Contact Levels of Measurement Flow Sensor Water Level Sensor Level Transmitter Float Switch Water Level Switch PNP Output","handle":"taidacent-non-contact-levels-of-measurement-flow-sensor-water-level-sensor-level-transmitter-float-switch-water-level-switch-pnp-output","description":"\u003ch3\u003eTaidacent Non Contact Levels of Measurement Flow Sensor Water Level Sensor Level Transmitter Float Switch Water Level Switch PNP Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter Product model: XKC-Y26-PNP Supply\nvoltage（Vin）：DC 5-12V Output mode： Switch quantity (high pulse effective)\nelectric current： 5mA The output voltage（high pulse）： Vin; The output\nvoltage（low pulse）： 0V; The output current： ≤100mA Response time： 500mS\nWorking temperature： -20~85℃ Sensor sensitivity Pipe outer diameter D(mm)\nD≥100，Sense container wall or tube wall thickness L(mm) 20±2； Pipe outer\ndiameter D(mm) 100\u0026gt;D≥80 ，Sense container wall or tube wall thickness L(mm) 15\n± 2； Pipe outer diameter D(mm) 80\u0026gt;D≥60，Sense container wall or tube wall\nthickness L(mm) 12 ±1.5；Pipe outer diameter D(mm) 60\u0026gt;D≥40，Sense container wall\nor tube wall thickness L(mm) 7 ±1.0；Pipe outer diameter 40\u0026gt;D≥30，Sense\ncontainer wall or tube wall thickness L(mm) 5 ±1.0； Outer diameter of pipe\nD(mm) 30\u0026gt;D≥20，Sense container wall or tube wall thickness L(mm) 3 ±1.0； pipe\nouter diameter D(mm) 20\u0026gt;D≥10，Sense container wall or tube wall thickness L(mm)\n1.5 ±0.5 Applicable pipe diameter range ≥10mm Liquid level accuracy ±1.5mm\nhumidity 5%~100% Material PC V0 Fireproof material Waterproof performance IP65\nInstallation method Install into a flat cistern as shown in the figure above\nHow to install to the water pipe The height of the sensed liquid level is\nrelated to the sensitivity of the sensor. The higher the sensitivity, the\nlower the sensed liquid level Note: The liquid level is sensed in the upper\nand lower edges of the sensor, which is normal. The induction sheet can be\ntightly attached to the pipe with strong glue, or it can be tightened with the\npipe with a nylon cable tie. Try to avoid metal and other parts where the\nprobe is installed, so as not to affect the detection. Pipes made of non-\nmetallic materials with a smooth surface, uniform thickness, tight material,\nand good insulation performance; such as glass pipes, plastic pipes,\nPC\/PVC\/PPR pipes, non-absorbent ceramic pipes, acrylic pipes, rubber pipes,\netc. or their composites Pipes made of materials. Sensitivity adjustment If\nthe non-contact liquid level sensor cannot detect or the detected liquid level\nis too high from the Y26 sensor. The sensitivity knob can be adjusted with a\nsmall screwdriver, and there are two setting methods: 1. Low sensitivity\nadjustment: turn counterclockwise to increase sensitivity. 2. High sensitivity\nadjustment: turn clockwise to lower the sensitivity. Product size and physical\nmap PNP output drive small electric relay (coil current ≤100mA) working\nprinciple: 1.When the black line is suspended, it is normally open output:\nWhen liquid is sensed, the transistor is turned on and closed, and the relay\nis energized and closed; When no liquid is sensed, the transistor will be cut\noff and the relay will not be closed when the power is turned off; 2.When the\nblack wire is grounded (connected to the negative pole of the power supply\n0V), it is normally closed output: When liquid is sensed, the transistor will\nbe cut off and the relay will not be closed when the power is turned off; When\nno liquid is sensed, the transistor is turned on and closed, and the relay is\nenergized and closed\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe intelligent non-contact liquid level sensor uses advanced signal processing technology and high-speed signal processing chip to break through the influence of the wall thickness of the container and realize the true non-contact detection of the liquid level in the closed container.\u003c\/li\u003e\n \u003cli\u003eThe liquid level sensor (probe) is installed above and below the outer wall of the container to be tested (the high and low positions of the liquid level). The non-metallic container does not need to be opened, and the installation is simple and does not affect the production.\u003c\/li\u003e\n \u003cli\u003eThe liquid level of various toxic substances, strong acids, strong alkalis and various liquids in the high-pressure closed container can be detected.\u003c\/li\u003e\n \u003cli\u003eThe liquid to be tested is required to be electrically conductive, the contact surface is non-metal, and the pipe is easy to install and can be widely used.\u003c\/li\u003e\n \u003cli\u003ePNP output: If there is induction, the output is high level; no induction, disconnected\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T14:50:35+10:00","created_at":"2022-06-14T14:50:42+10:00","vendor":"Taidacent","type":"Flow Switches","tags":["dingo"],"price":12600,"price_min":12600,"price_max":12600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194358763680,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07FC4Z2V6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Taidacent Non Contact Levels of Measurement Flow Sensor Water Level Sensor Level Transmitter Float Switch Water Level Switch PNP Output","public_title":null,"options":["Default Title"],"price":12600,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07FC4Z2V6.jpg?v=1655250657","\/\/dingoship.com.au\/cdn\/shop\/products\/613YyLK96NL_61f567a1-7c49-46a0-ab7c-c5b1afe447c2.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/51i1WX8DDcL_439cc65f-a270-4753-a3e3-252545b5928e.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/61ODN4LmedL_7bab7804-84d2-4f38-aadc-0c6f1b34047e.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/61a6RhsUwDL_5c338423-3ab6-41fb-a797-e4ec48c49707.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/61R2n0pHcUL_eec82676-fc58-42f6-8735-bfe4fe961d2b.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/61xa9vyj7sL_7e82650d-64b8-4a48-99e1-722c93fd7658.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/6111zhqyqUL_f4900d4d-2cff-4e04-907a-0c02d7242c14.jpg?v=1655182242","\/\/dingoship.com.au\/cdn\/shop\/products\/61m3H5-eHrL_51b05049-9e52-4257-baa5-ee8820025094.jpg?v=1655182242"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07FC4Z2V6.jpg?v=1655250657","options":["Title"],"media":[{"alt":null,"id":24860248309920,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07FC4Z2V6.jpg?v=1655250657"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07FC4Z2V6.jpg?v=1655250657","width":2560},{"alt":null,"id":24853915336864,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/613YyLK96NL_61f567a1-7c49-46a0-ab7c-c5b1afe447c2.jpg?v=1655182242"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/613YyLK96NL_61f567a1-7c49-46a0-ab7c-c5b1afe447c2.jpg?v=1655182242","width":1001},{"alt":null,"id":24853915369632,"position":3,"preview_image":{"aspect_ratio":1.182,"height":866,"width":1024,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51i1WX8DDcL_439cc65f-a270-4753-a3e3-252545b5928e.jpg?v=1655182242"},"aspect_ratio":1.182,"height":866,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51i1WX8DDcL_439cc65f-a270-4753-a3e3-252545b5928e.jpg?v=1655182242","width":1024},{"alt":null,"id":24853915402400,"position":4,"preview_image":{"aspect_ratio":0.996,"height":1028,"width":1024,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ODN4LmedL_7bab7804-84d2-4f38-aadc-0c6f1b34047e.jpg?v=1655182242"},"aspect_ratio":0.996,"height":1028,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ODN4LmedL_7bab7804-84d2-4f38-aadc-0c6f1b34047e.jpg?v=1655182242","width":1024},{"alt":null,"id":24853915435168,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61a6RhsUwDL_5c338423-3ab6-41fb-a797-e4ec48c49707.jpg?v=1655182242"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61a6RhsUwDL_5c338423-3ab6-41fb-a797-e4ec48c49707.jpg?v=1655182242","width":1001},{"alt":null,"id":24853915467936,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61R2n0pHcUL_eec82676-fc58-42f6-8735-bfe4fe961d2b.jpg?v=1655182242"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61R2n0pHcUL_eec82676-fc58-42f6-8735-bfe4fe961d2b.jpg?v=1655182242","width":1001},{"alt":null,"id":24853915500704,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61xa9vyj7sL_7e82650d-64b8-4a48-99e1-722c93fd7658.jpg?v=1655182242"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61xa9vyj7sL_7e82650d-64b8-4a48-99e1-722c93fd7658.jpg?v=1655182242","width":1001},{"alt":null,"id":24853915533472,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/6111zhqyqUL_f4900d4d-2cff-4e04-907a-0c02d7242c14.jpg?v=1655182242"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/6111zhqyqUL_f4900d4d-2cff-4e04-907a-0c02d7242c14.jpg?v=1655182242","width":1800},{"alt":null,"id":24853915566240,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61m3H5-eHrL_51b05049-9e52-4257-baa5-ee8820025094.jpg?v=1655182242"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61m3H5-eHrL_51b05049-9e52-4257-baa5-ee8820025094.jpg?v=1655182242","width":1800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTaidacent Non Contact Levels of Measurement Flow Sensor Water Level Sensor Level Transmitter Float Switch Water Level Switch PNP Output\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter Product model: XKC-Y26-PNP Supply\nvoltage（Vin）：DC 5-12V Output mode： Switch quantity (high pulse effective)\nelectric current： 5mA The output voltage（high pulse）： Vin; The output\nvoltage（low pulse）： 0V; The output current： ≤100mA Response time： 500mS\nWorking temperature： -20~85℃ Sensor sensitivity Pipe outer diameter D(mm)\nD≥100，Sense container wall or tube wall thickness L(mm) 20±2； Pipe outer\ndiameter D(mm) 100\u0026gt;D≥80 ，Sense container wall or tube wall thickness L(mm) 15\n± 2； Pipe outer diameter D(mm) 80\u0026gt;D≥60，Sense container wall or tube wall\nthickness L(mm) 12 ±1.5；Pipe outer diameter D(mm) 60\u0026gt;D≥40，Sense container wall\nor tube wall thickness L(mm) 7 ±1.0；Pipe outer diameter 40\u0026gt;D≥30，Sense\ncontainer wall or tube wall thickness L(mm) 5 ±1.0； Outer diameter of pipe\nD(mm) 30\u0026gt;D≥20，Sense container wall or tube wall thickness L(mm) 3 ±1.0； pipe\nouter diameter D(mm) 20\u0026gt;D≥10，Sense container wall or tube wall thickness L(mm)\n1.5 ±0.5 Applicable pipe diameter range ≥10mm Liquid level accuracy ±1.5mm\nhumidity 5%~100% Material PC V0 Fireproof material Waterproof performance IP65\nInstallation method Install into a flat cistern as shown in the figure above\nHow to install to the water pipe The height of the sensed liquid level is\nrelated to the sensitivity of the sensor. The higher the sensitivity, the\nlower the sensed liquid level Note: The liquid level is sensed in the upper\nand lower edges of the sensor, which is normal. The induction sheet can be\ntightly attached to the pipe with strong glue, or it can be tightened with the\npipe with a nylon cable tie. Try to avoid metal and other parts where the\nprobe is installed, so as not to affect the detection. Pipes made of non-\nmetallic materials with a smooth surface, uniform thickness, tight material,\nand good insulation performance; such as glass pipes, plastic pipes,\nPC\/PVC\/PPR pipes, non-absorbent ceramic pipes, acrylic pipes, rubber pipes,\netc. or their composites Pipes made of materials. Sensitivity adjustment If\nthe non-contact liquid level sensor cannot detect or the detected liquid level\nis too high from the Y26 sensor. The sensitivity knob can be adjusted with a\nsmall screwdriver, and there are two setting methods: 1. Low sensitivity\nadjustment: turn counterclockwise to increase sensitivity. 2. High sensitivity\nadjustment: turn clockwise to lower the sensitivity. Product size and physical\nmap PNP output drive small electric relay (coil current ≤100mA) working\nprinciple: 1.When the black line is suspended, it is normally open output:\nWhen liquid is sensed, the transistor is turned on and closed, and the relay\nis energized and closed; When no liquid is sensed, the transistor will be cut\noff and the relay will not be closed when the power is turned off; 2.When the\nblack wire is grounded (connected to the negative pole of the power supply\n0V), it is normally closed output: When liquid is sensed, the transistor will\nbe cut off and the relay will not be closed when the power is turned off; When\nno liquid is sensed, the transistor is turned on and closed, and the relay is\nenergized and closed\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe intelligent non-contact liquid level sensor uses advanced signal processing technology and high-speed signal processing chip to break through the influence of the wall thickness of the container and realize the true non-contact detection of the liquid level in the closed container.\u003c\/li\u003e\n \u003cli\u003eThe liquid level sensor (probe) is installed above and below the outer wall of the container to be tested (the high and low positions of the liquid level). The non-metallic container does not need to be opened, and the installation is simple and does not affect the production.\u003c\/li\u003e\n \u003cli\u003eThe liquid level of various toxic substances, strong acids, strong alkalis and various liquids in the high-pressure closed container can be detected.\u003c\/li\u003e\n \u003cli\u003eThe liquid to be tested is required to be electrically conductive, the contact surface is non-metal, and the pipe is easy to install and can be widely used.\u003c\/li\u003e\n \u003cli\u003ePNP output: If there is induction, the output is high level; no induction, disconnected\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
