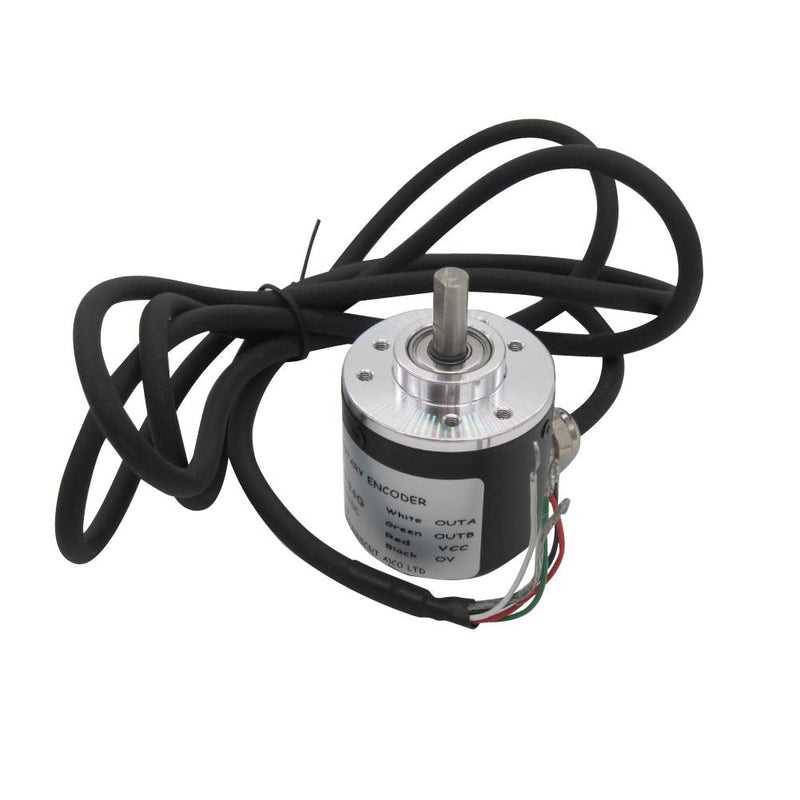

Taiss/AB 2 Phase Incremental Rotary Encoder 100P/R DC 5-24v Wide Voltage Power Supply 6mm Shaft 100P/R

In Stock. Leaves warehouse within 2 - 3 business days

162.00 AUD
Maximum quantity available reached.
Shop today and get free shipping anywhere in Australia.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Taiss/AB 2 Phase Incremental Rotary Encoder 100P/R DC 5-24v Wide Voltage Power Supply 6mm Shaft 100P/R

Incremental rotary encoders 100P/R , AB two phases Product Name:Incremental rotary encoders 100P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type . DC 5-24v Wide Voltage Power Supply 6mm Shaft 100P/R Package content：1 x Incremental Rotary Encoder ；Net Weight : 130g Read more Encoder size Encoder size: 38 x 35.5mm/1.49" x 1.39" ；Shaft: 6 x 15mm/0.23" x 0.59"；Axis stopper platform: High 5mm, 20mm；Power source: DC 5-24V；Maximum mechanical speed: 6300 R / min. Material This incremental rotary encoders Exquisite workmanship It can be used to measure the rotational speed, Angle and acceleration of the object and the length measurement. Connection Connection: white = A phase, Green = B phase, red = power +, black = V0 ； Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor. Read more Rotary Encoder Switch Push Button EC11 Rotary Encoder Module Microstep Driver DM542 Product name Rotary Encoder Switch Push Button EC11 Rotary Encoder Module Stepper Motor Driver Modle EC11 KY-040 DM542 JQX-12F 2Z Power Relay LJQX-30/2Z DC24V Electromagnetic Relay 4 String PV Combiner Box Product name Power Relay Electromagnetic Relay 4 String PV Combiner Box;Product configuration:15A Rated Current Fuse、32A Fuse Holder Base、63A DC Circuit Breakers and Lighting Arrester Modle JQX-12F/2Z DC12V LJQX-30/2Z DC24V 2016PCS Electronics Components Kit 60PCS B5K 10K 20K 50K 100K Ohm Rotary Potentiometer RV24YN20S B103 10K ohm Rotary Potentiometer Product name Electronics Components Kit Potentiometer Potentiometer model Resistor,Capacitors,Diode,LED,Potentiometer,Transistor,Voltage Regulator,PCB Board Prototype,Solderless breadboard,Rotary Encoder Module,Jumper Wire WH148 B5K 10K 20K 50K 100K Ohm RV24YN20S B103 10K ohm Type Rotary Potentiometer Rotary Potentiometer

Product Features

  • This incremental rotary encoders Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .
  • Product Name: incremental rotary encoders 100P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .
  • Encoder size : Encoder size: 38 x 35.5mm/1.49" x 1.39" ;Shaft: 6 x 15mm/0.23" x 0.59";Axis stopper platform: High 5mm, 20mm;Power source: DC 5-24V;Maximum mechanical speed: 6300 R / min.

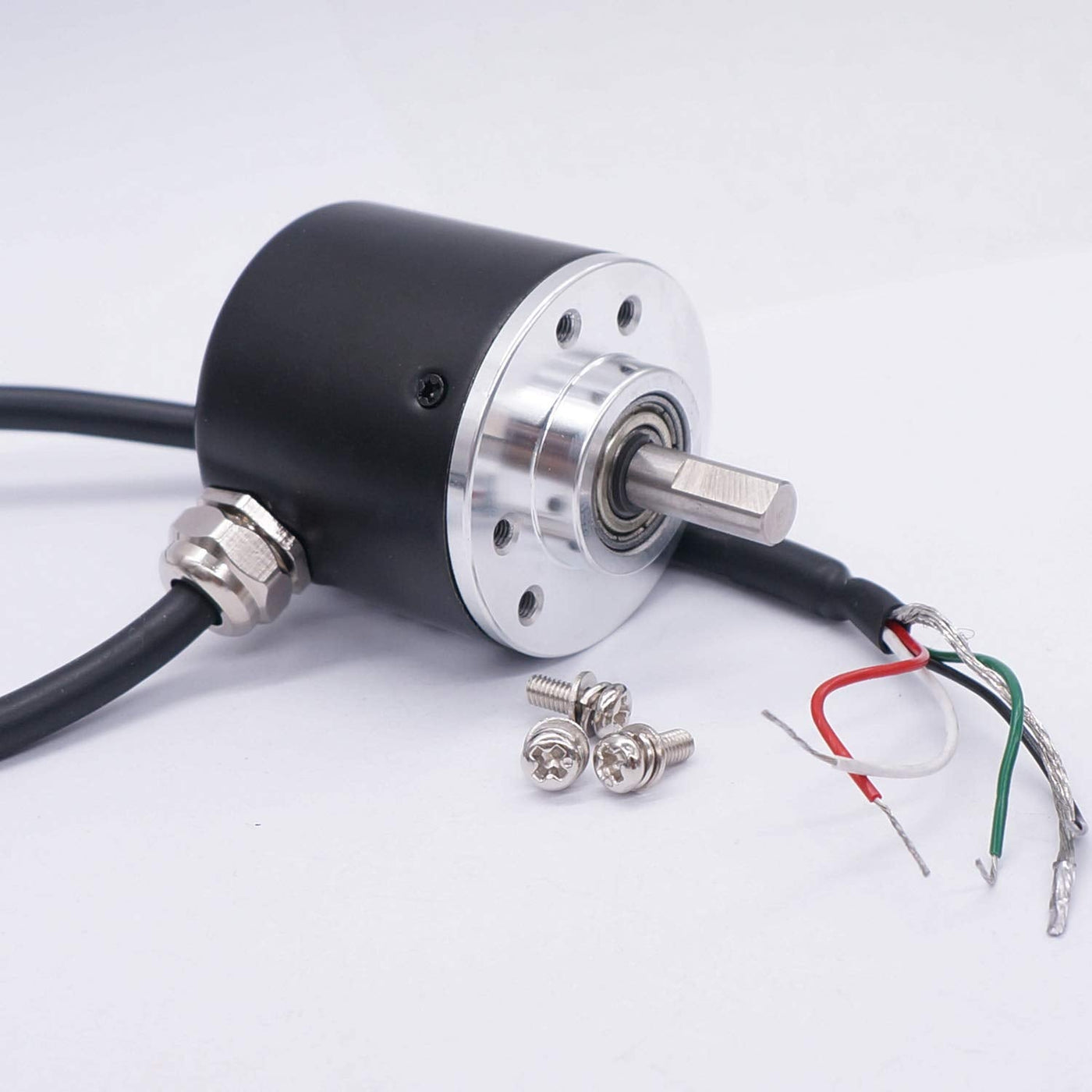

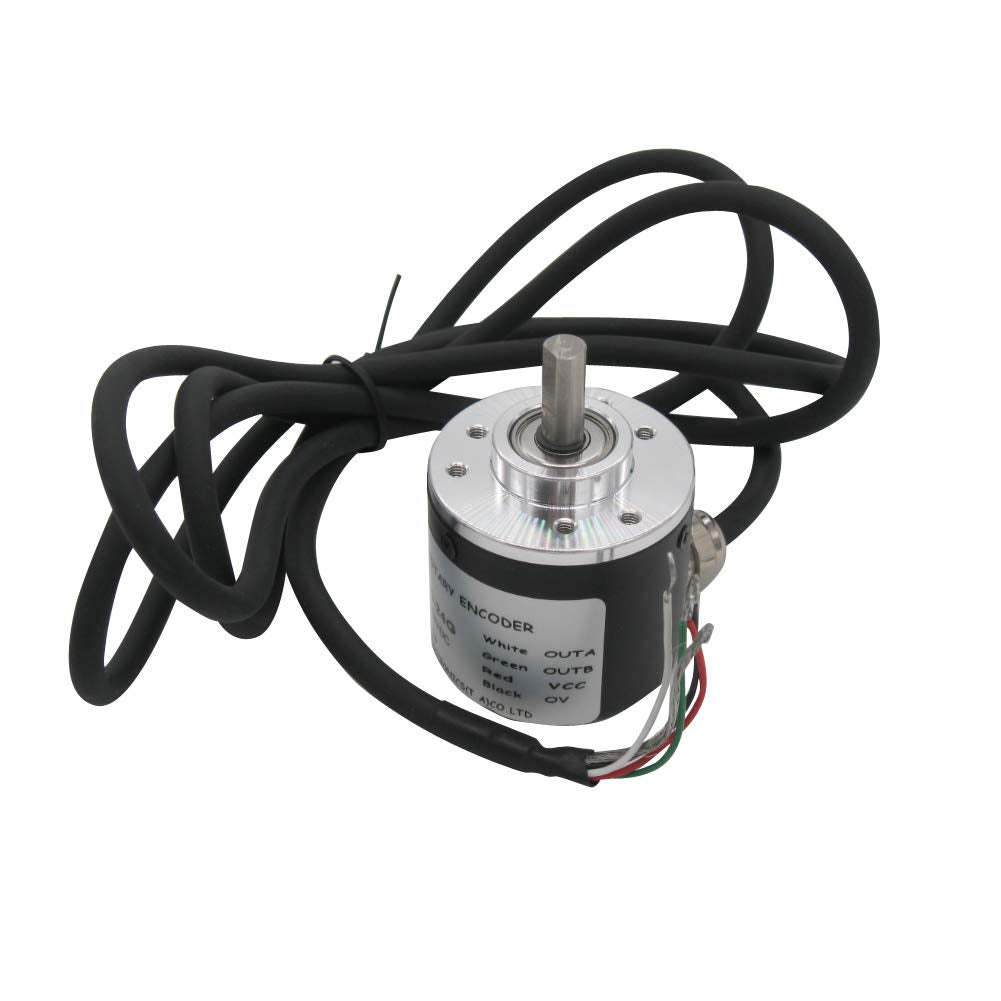

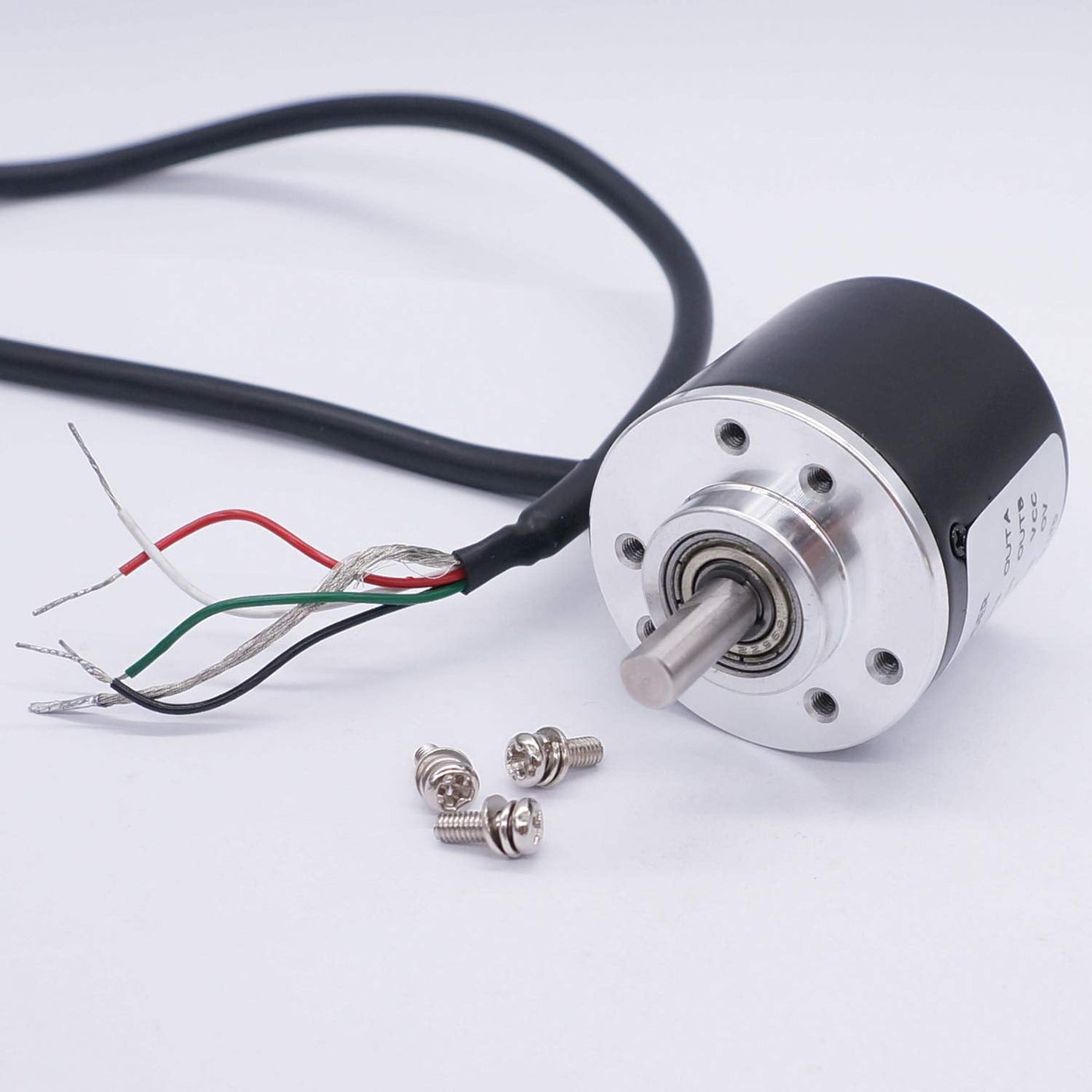

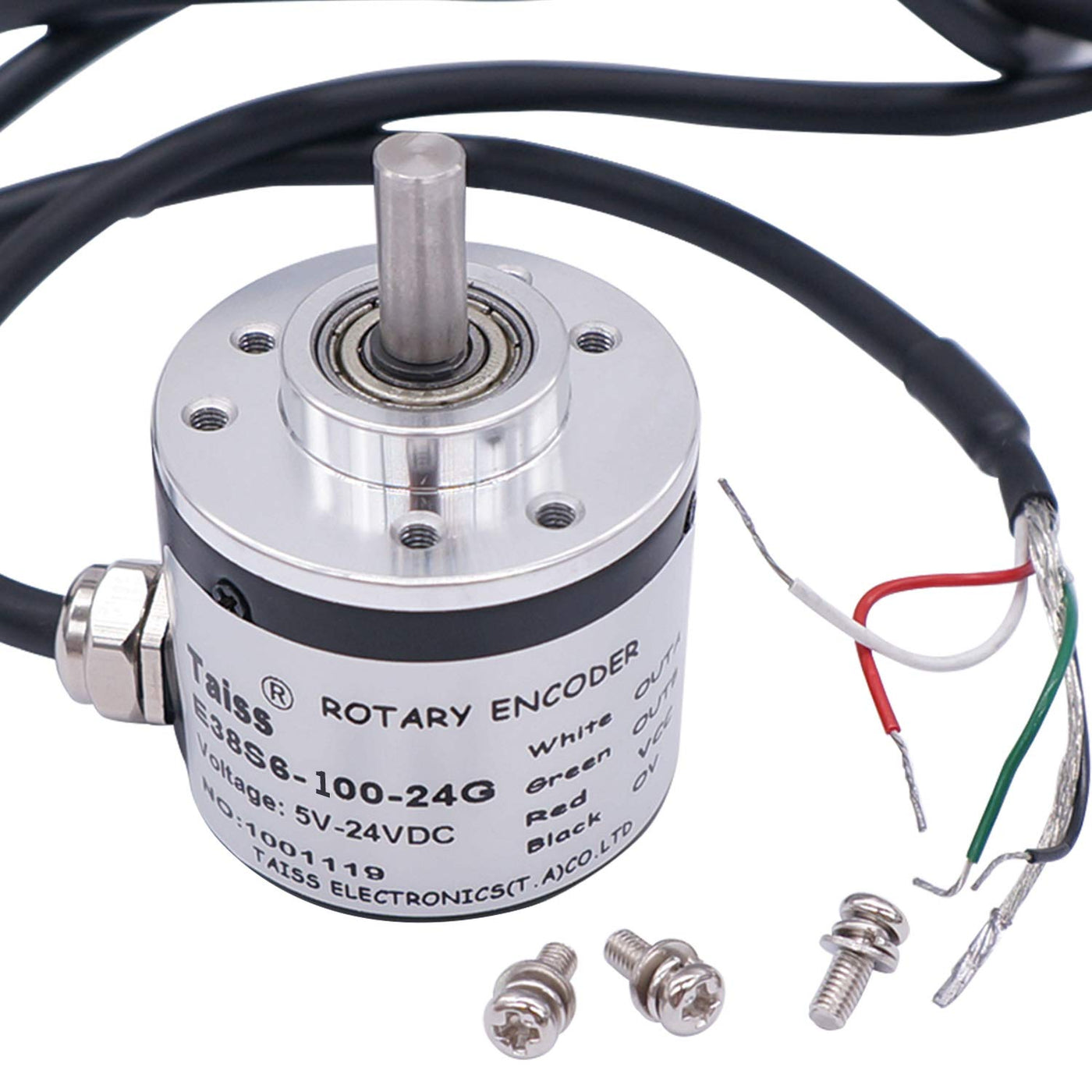

  • Connection: white = A phase, Green = B phase, red = power +, black = V0 ; Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.
  • Package content:1 x Incremental Rotary Encoder ;Net Weight : 130g;
