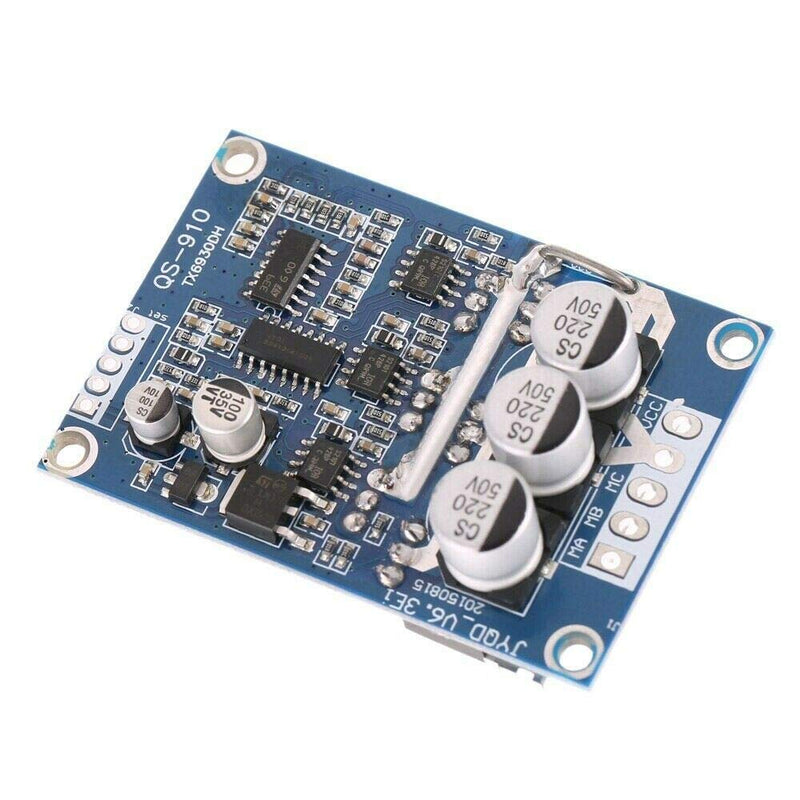

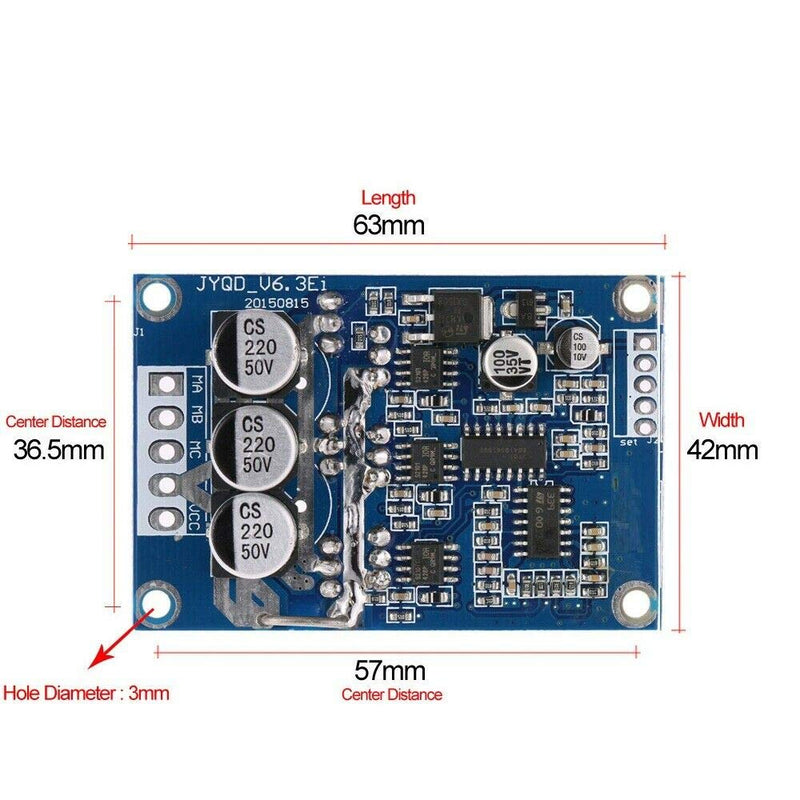

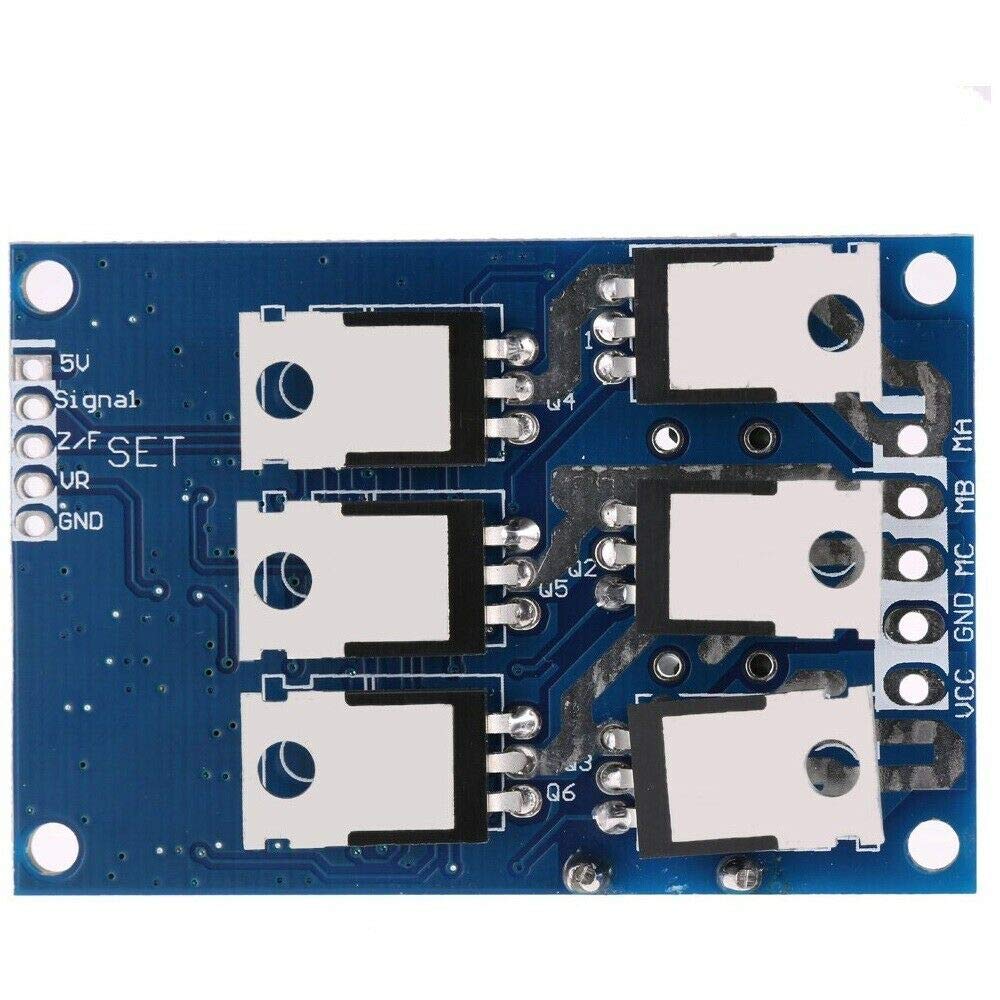

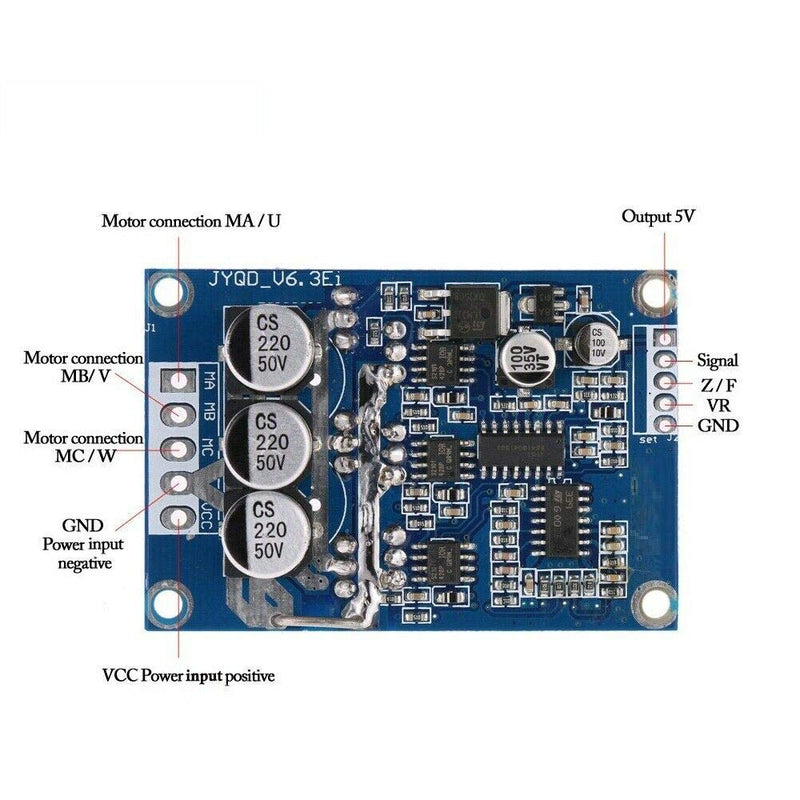

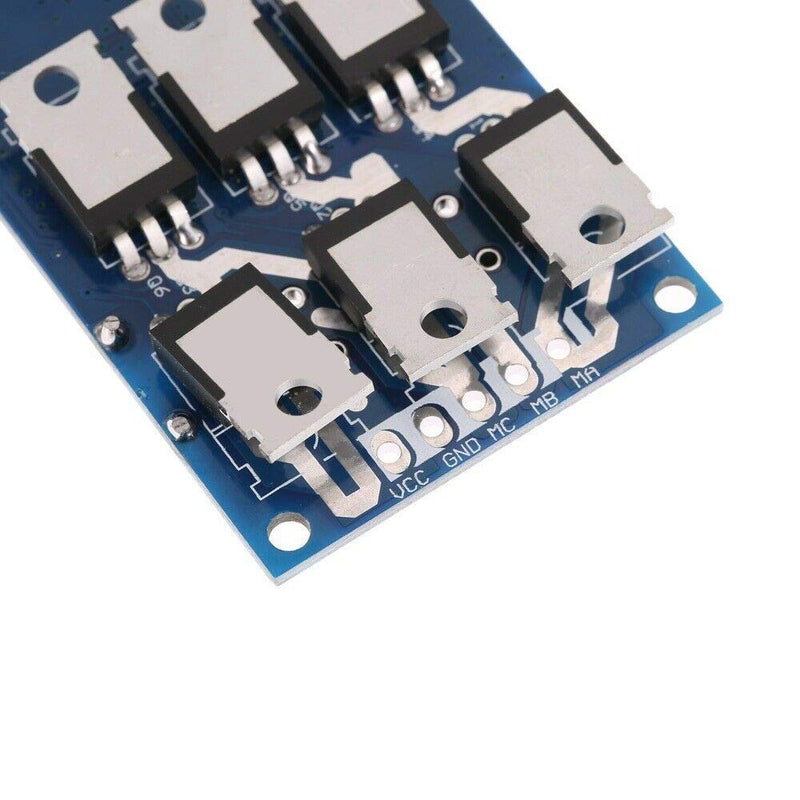

{"id":12640570769568,"title":"TECNOIOT DC 12V-36V 500W PWM Brushless Motor Controller Balanced BLDC Car Driver Board","handle":"tecnoiot-dc-12v-36v-500w-pwm-brushless-motor-controller-balanced-bldc-car-driver-board","description":"\u003ch3\u003eTECNOIOT DC 12V-36V 500W PWM Brushless Motor Controller Balanced BLDC Car Driver Board\u003c\/h3\u003e \u003cp id=\"b\"\u003eDC 12V-36V 500W PWM Brushless Motor Controller Balanced BLDC Car Driver BoardFeatures: SMT process, high quality . DC brushless motor driver board. Operating voltage: DC 12V to 36V; operating current ≤15A. With speed control function, 0.1V-5V speed voltage. Over-current protection and speed signal. Specifications: Operating Voltage: DC12-36V Operating Current: ≤15A Drive Power: ≤500W Speed Voltage: 0.1V-5V Operating Temperature: -40~85°C Humidity: ≤90%RH Over-current Protection: Yes Speed Signal: Pulse Speed Signal Speed Control Function: Yes(external potentimeter control) PCB Size: 63 42 17mm Weight: 30g Note: This driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default \"Hall\" on the board is no function, doesn't need to connect). Tips: If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W. When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation.Packet Contains:1pc xDC 12V-36V 500W PWM Brushless Motor Controller\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e500WPWMDC 12V- 36V 500W PWM Brushless Motor Controller, SMT process, high quality. DC brushless motor driver board.\u003c\/li\u003e \u003cli\u003eDesign compactOperating voltage: DC 12V to 36V; operating current 15A. With speed control function, 0.1V-5V speed voltage. Over-current protection and speed signal.\u003c\/li\u003e \u003cli\u003eEasy operationOperating Voltage: DC12-36V; Operating Current: 15A; Drive Power: 500W; Speed Voltage: 0.1V-5V.\u003c\/li\u003e \u003cli\u003eDescripcionThis driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default \"Hall\" on the board is no function, doesn't need to connect ).\u003c\/li\u003e \u003cli\u003eImportant If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W. When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-07T03:24:58+11:00","created_at":"2024-03-07T03:25:09+11:00","vendor":"TECNOIOT","type":"Motor driver","tags":["industryDE"],"price":17100,"price_min":17100,"price_max":17100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48972988874912,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B081J9V9C4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TECNOIOT DC 12V-36V 500W PWM Brushless Motor Controller Balanced BLDC Car Driver Board","public_title":null,"options":["Default Title"],"price":17100,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"A422-500WPWM-15-1PCS","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081J9V9C4.jpg?v=1709771869","\/\/dingoship.com.au\/cdn\/shop\/products\/71IS4bzxfQL.jpg?v=1709742309","\/\/dingoship.com.au\/cdn\/shop\/products\/611lIdRP9pL.jpg?v=1709742309","\/\/dingoship.com.au\/cdn\/shop\/products\/615i1crxcjL.jpg?v=1709742309","\/\/dingoship.com.au\/cdn\/shop\/products\/61TrsXbyG0L.jpg?v=1709742309","\/\/dingoship.com.au\/cdn\/shop\/products\/61tl2ENGpAL.jpg?v=1709742309","\/\/dingoship.com.au\/cdn\/shop\/products\/61Y5a773UTL.jpg?v=1709742309","\/\/dingoship.com.au\/cdn\/shop\/products\/611yt9bAsYL.jpg?v=1709742309"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081J9V9C4.jpg?v=1709771869","options":["Title"],"media":[{"alt":null,"id":32684109693088,"position":1,"preview_image":{"aspect_ratio":1.206,"height":990,"width":1194,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081J9V9C4.jpg?v=1709771869"},"aspect_ratio":1.206,"height":990,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081J9V9C4.jpg?v=1709771869","width":1194},{"alt":null,"id":32677508120736,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71IS4bzxfQL.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71IS4bzxfQL.jpg?v=1709742309","width":1000},{"alt":null,"id":32677508153504,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/611lIdRP9pL.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/611lIdRP9pL.jpg?v=1709742309","width":1000},{"alt":null,"id":32677508186272,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/615i1crxcjL.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/615i1crxcjL.jpg?v=1709742309","width":1000},{"alt":null,"id":32677508219040,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61TrsXbyG0L.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61TrsXbyG0L.jpg?v=1709742309","width":1000},{"alt":null,"id":32677508251808,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61tl2ENGpAL.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61tl2ENGpAL.jpg?v=1709742309","width":1000},{"alt":null,"id":32677508284576,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Y5a773UTL.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Y5a773UTL.jpg?v=1709742309","width":1000},{"alt":null,"id":32677508317344,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/611yt9bAsYL.jpg?v=1709742309"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/611yt9bAsYL.jpg?v=1709742309","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTECNOIOT DC 12V-36V 500W PWM Brushless Motor Controller Balanced BLDC Car Driver Board\u003c\/h3\u003e \u003cp id=\"b\"\u003eDC 12V-36V 500W PWM Brushless Motor Controller Balanced BLDC Car Driver BoardFeatures: SMT process, high quality . DC brushless motor driver board. Operating voltage: DC 12V to 36V; operating current ≤15A. With speed control function, 0.1V-5V speed voltage. Over-current protection and speed signal. Specifications: Operating Voltage: DC12-36V Operating Current: ≤15A Drive Power: ≤500W Speed Voltage: 0.1V-5V Operating Temperature: -40~85°C Humidity: ≤90%RH Over-current Protection: Yes Speed Signal: Pulse Speed Signal Speed Control Function: Yes(external potentimeter control) PCB Size: 63 42 17mm Weight: 30g Note: This driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default \"Hall\" on the board is no function, doesn't need to connect). Tips: If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W. When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation.Packet Contains:1pc xDC 12V-36V 500W PWM Brushless Motor Controller\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e500WPWMDC 12V- 36V 500W PWM Brushless Motor Controller, SMT process, high quality. DC brushless motor driver board.\u003c\/li\u003e \u003cli\u003eDesign compactOperating voltage: DC 12V to 36V; operating current 15A. With speed control function, 0.1V-5V speed voltage. Over-current protection and speed signal.\u003c\/li\u003e \u003cli\u003eEasy operationOperating Voltage: DC12-36V; Operating Current: 15A; Drive Power: 500W; Speed Voltage: 0.1V-5V.\u003c\/li\u003e \u003cli\u003eDescripcionThis driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default \"Hall\" on the board is no function, doesn't need to connect ).\u003c\/li\u003e \u003cli\u003eImportant If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W. When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation.\u003c\/li\u003e \u003c\/ul\u003e"}
