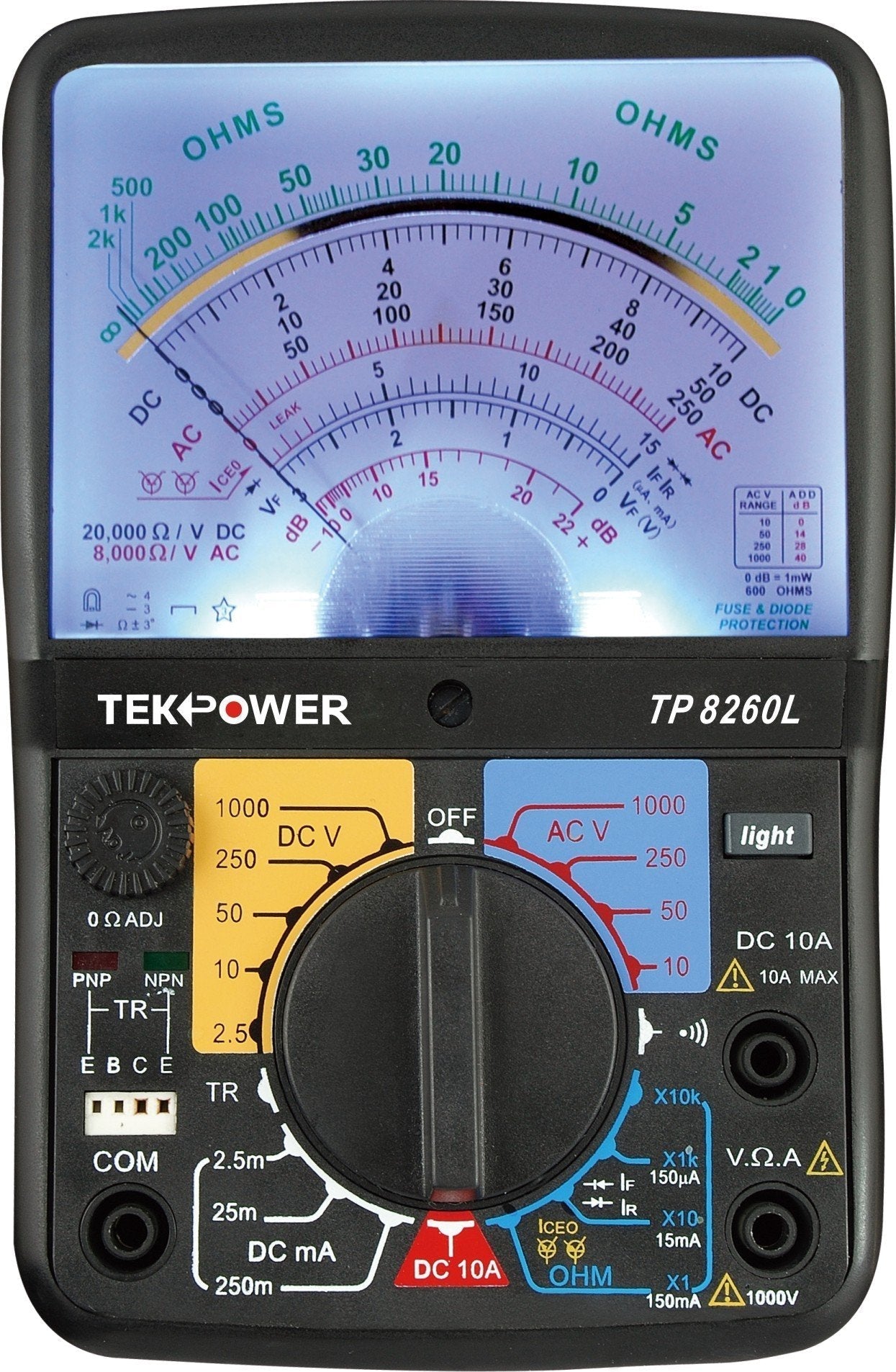

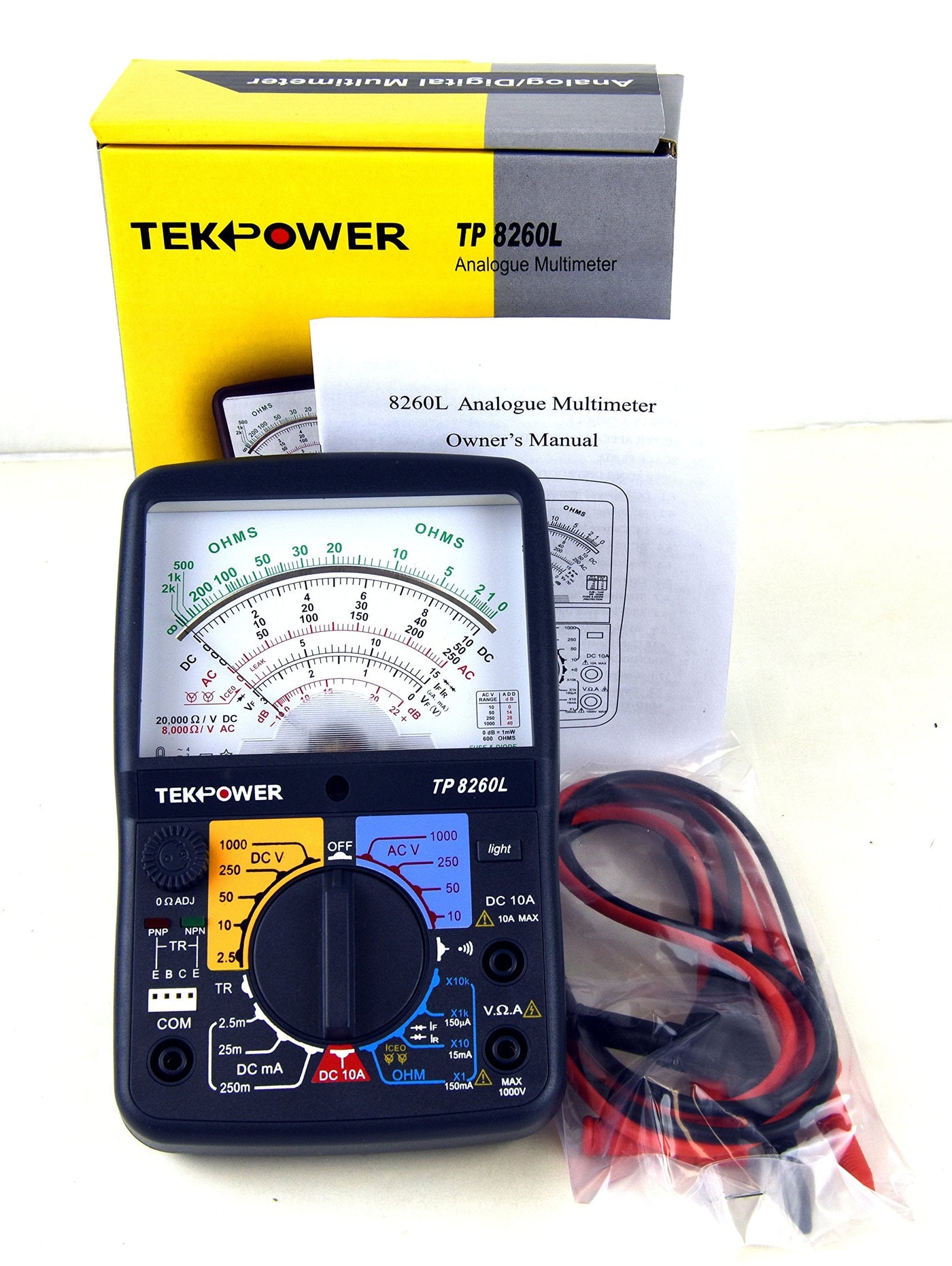

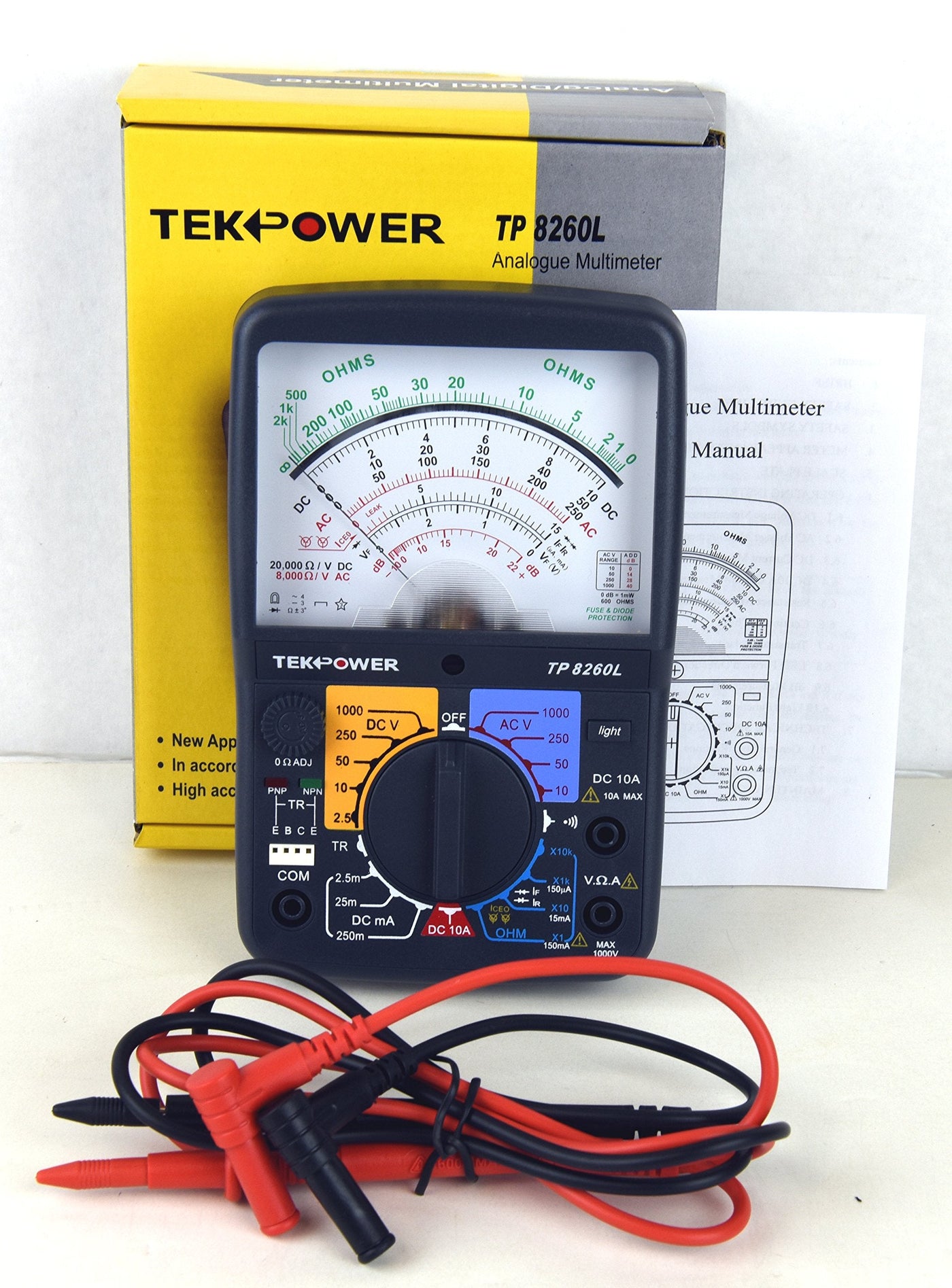

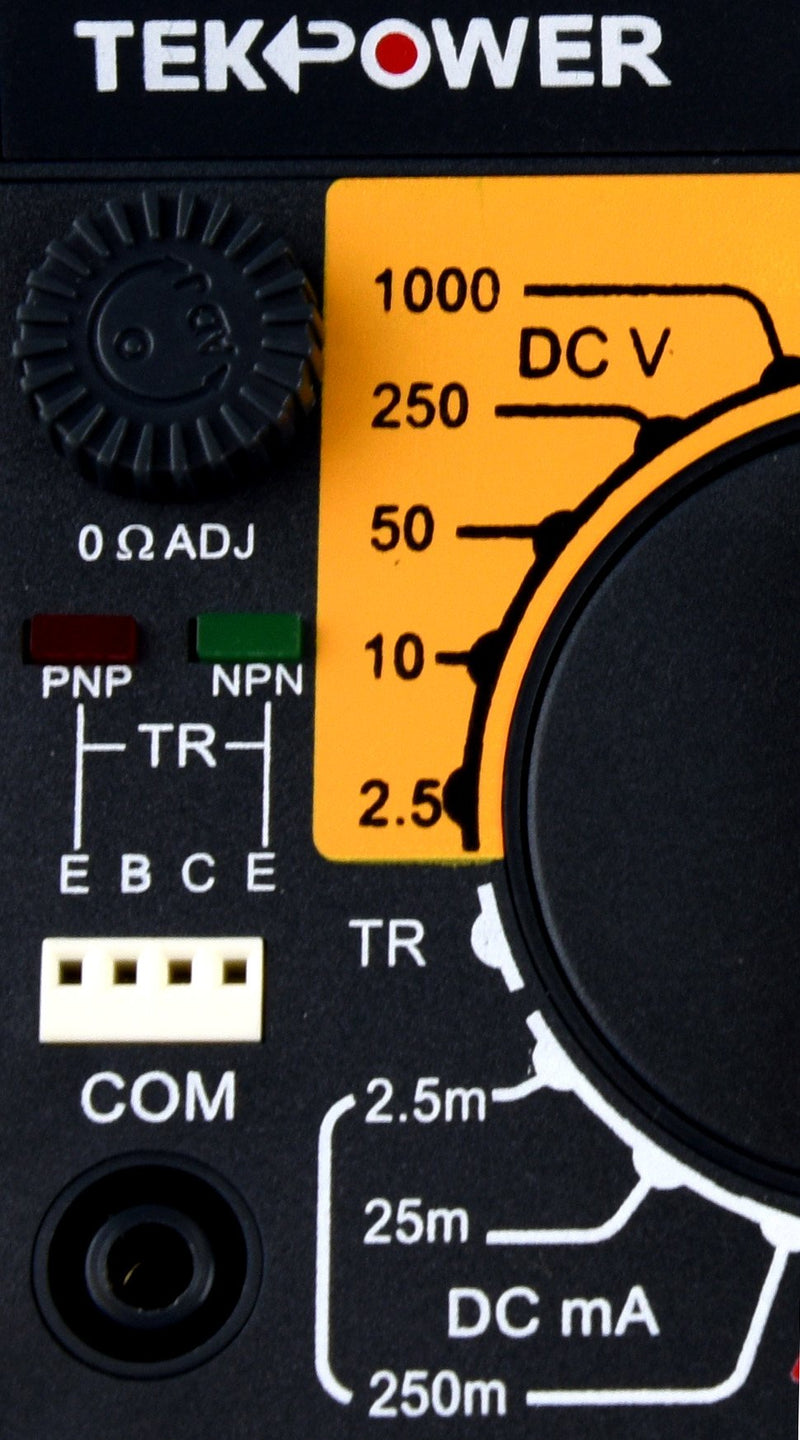

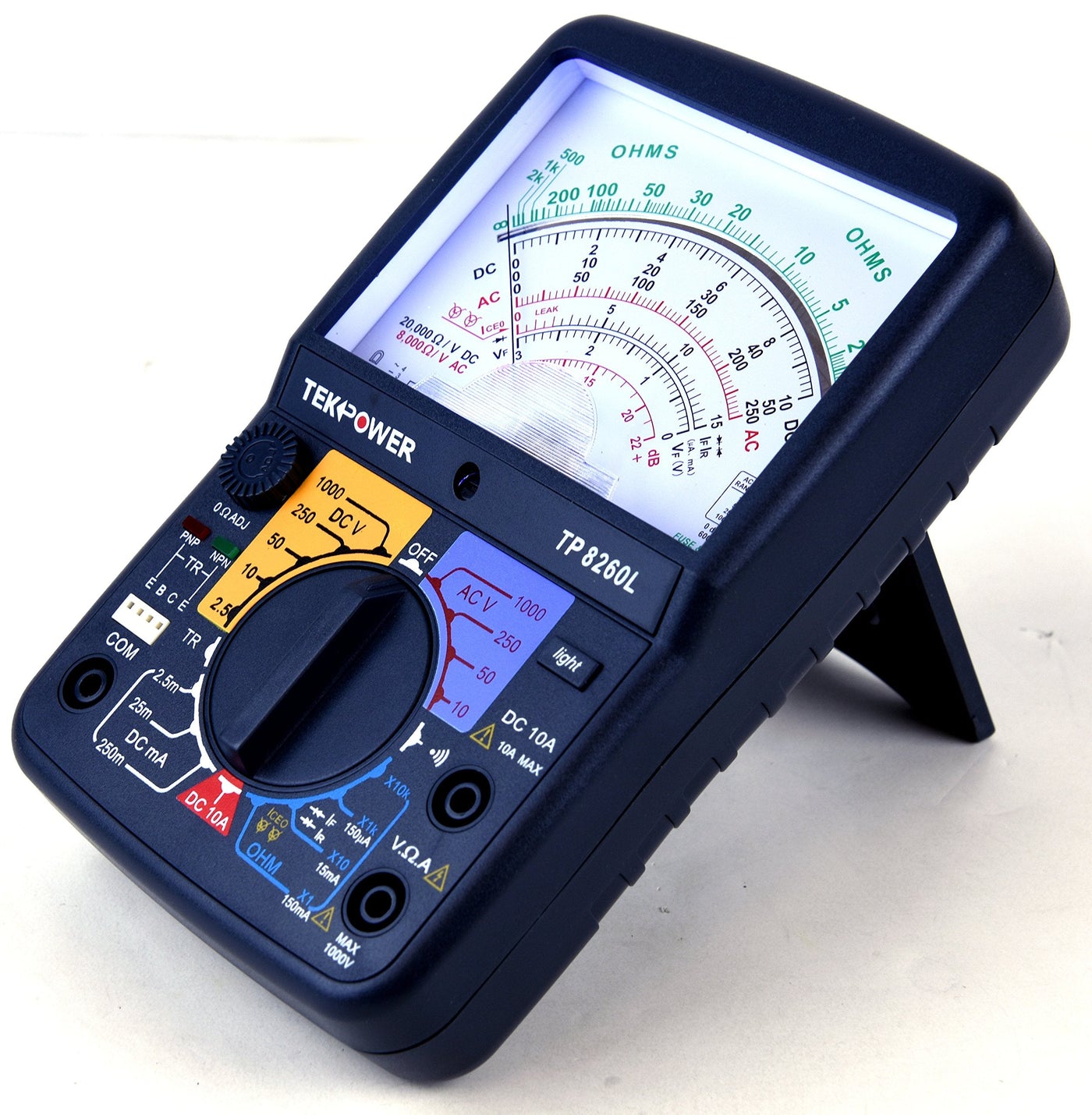

{"id":7407326888096,"title":"Tekpower TP8260L Analog Multimeter With Back Light, and Transistor Checking dock","handle":"tekpower-tp8260l-analog-multimeter-with-back-light-and-transistor-checking-dock","description":"\u003ch3\u003eTekpower TP8260L Analog Multimeter With Back Light, and Transistor Checking dock\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe Tekpower TP8260L is a 20-Range Analog Multimeter, which you can use to\nmeasure AC\/DC voltage, DC current, resistance, continuity, decibel values\/dB\nand diode test. This meter is well known for its accuracy at its low DC\nvoltage and current measurement, to measure a DC voltage up to 1000V, you have\nfour ranges to choose, they are 2.5V, 10V, 50V,250Vand 1000V. For DC current,\nyou can measure current as low as a few milli amps using the 2.5 mA range with\n3% accuracy. The transistor dock is good for both PNP and NPN types. General\nSpecifications: Power: 2 X AA, Battery life: 10 hours of continuous use,\nDimensions: 6 1\/2\" X 3 1\/2\" X 1 1\/2\" Weight: 14.3 Oz, Fuses: 250 mA \/ 250 V\n\u0026amp; 10 A \/ 250 V. Technical Specifications: DCV: 0 - 2.5V ± 3%\/ 10 V \/ 50 V \/\n250 V \/ 1000V ± 3.0%, ACV: 0 - 10 V \/ 50 V \/ 250 V \/ 500 V\/1,000V ± 4.0%,\nDCA: 2.5 mA \/ 25 mA \/ 250 mA \/ 10A ± 4.0%, (all ranges fused), Resistance:\n1-2K \/ 20K \/ 2M \/ 20M Ohm ± 3.0%, Continuity, Decibel value Diode Test.\nPackage includes: TP8260L Analog Multimeter, Test leads with shrouded plugs\nand capped tips, User Manual\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh accuracy \u0026amp; Ideal for AC and DC Voltage DC Current up to 10A\u003c\/li\u003e\n \u003cli\u003eBack light for use in dark, Decibel Value Measurement,Zero Adjustment\u003c\/li\u003e\n \u003cli\u003eThe Transistor checker with PNP \u0026amp; NPN types and LED inidicator\u003c\/li\u003e\n \u003cli\u003eConfirms to the EN61010\/IEC1010 standard CAT II 600V, 20Kohm\/V,DC, 8Kohm\/V AC\u003c\/li\u003e\n \u003cli\u003eBuilt in a strong protective case, it has 1 year warranty\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-08T19:01:33+10:00","created_at":"2022-06-08T19:01:45+10:00","vendor":"Tekpower","type":"Multi Testers","tags":["dingo"],"price":25500,"price_min":25500,"price_max":25500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42167904731296,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00MJKS0EM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Tekpower TP8260L Analog Multimeter With Back Light, and Transistor Checking dock","public_title":null,"options":["Default Title"],"price":25500,"weight":470,"compare_at_price":null,"inventory_management":null,"barcode":"857852005048","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B00MJKS0EM.jpg?v=1654732990","\/\/dingoship.com.au\/cdn\/shop\/products\/91ttxAPoNOL.jpg?v=1654678905","\/\/dingoship.com.au\/cdn\/shop\/products\/91HiSWWjhOL.jpg?v=1654678905","\/\/dingoship.com.au\/cdn\/shop\/products\/91bjrwbL0dL.jpg?v=1654678905","\/\/dingoship.com.au\/cdn\/shop\/products\/81DlLezZIRL.jpg?v=1654678905","\/\/dingoship.com.au\/cdn\/shop\/products\/917YvHXBA8L.jpg?v=1654678905","\/\/dingoship.com.au\/cdn\/shop\/products\/91M1mST1ZeL.jpg?v=1654678905","\/\/dingoship.com.au\/cdn\/shop\/products\/71GQSFfy9LL.jpg?v=1654678905"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00MJKS0EM.jpg?v=1654732990","options":["Title"],"media":[{"alt":null,"id":24824226545824,"position":1,"preview_image":{"aspect_ratio":0.653,"height":1906,"width":1245,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00MJKS0EM.jpg?v=1654732990"},"aspect_ratio":0.653,"height":1906,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00MJKS0EM.jpg?v=1654732990","width":1245},{"alt":null,"id":24819078103200,"position":2,"preview_image":{"aspect_ratio":0.642,"height":2560,"width":1644,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91ttxAPoNOL.jpg?v=1654678905"},"aspect_ratio":0.642,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91ttxAPoNOL.jpg?v=1654678905","width":1644},{"alt":null,"id":24819078135968,"position":3,"preview_image":{"aspect_ratio":0.986,"height":2560,"width":2525,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91HiSWWjhOL.jpg?v=1654678905"},"aspect_ratio":0.986,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91HiSWWjhOL.jpg?v=1654678905","width":2525},{"alt":null,"id":24819078168736,"position":4,"preview_image":{"aspect_ratio":0.979,"height":2560,"width":2506,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91bjrwbL0dL.jpg?v=1654678905"},"aspect_ratio":0.979,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91bjrwbL0dL.jpg?v=1654678905","width":2506},{"alt":null,"id":24819078201504,"position":5,"preview_image":{"aspect_ratio":0.612,"height":2560,"width":1567,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81DlLezZIRL.jpg?v=1654678905"},"aspect_ratio":0.612,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81DlLezZIRL.jpg?v=1654678905","width":1567},{"alt":null,"id":24819078234272,"position":6,"preview_image":{"aspect_ratio":0.739,"height":2560,"width":1891,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/917YvHXBA8L.jpg?v=1654678905"},"aspect_ratio":0.739,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/917YvHXBA8L.jpg?v=1654678905","width":1891},{"alt":null,"id":24819078267040,"position":7,"preview_image":{"aspect_ratio":0.752,"height":2560,"width":1926,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91M1mST1ZeL.jpg?v=1654678905"},"aspect_ratio":0.752,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/91M1mST1ZeL.jpg?v=1654678905","width":1926},{"alt":null,"id":24819078299808,"position":8,"preview_image":{"aspect_ratio":0.556,"height":1746,"width":970,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71GQSFfy9LL.jpg?v=1654678905"},"aspect_ratio":0.556,"height":1746,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71GQSFfy9LL.jpg?v=1654678905","width":970}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTekpower TP8260L Analog Multimeter With Back Light, and Transistor Checking dock\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe Tekpower TP8260L is a 20-Range Analog Multimeter, which you can use to\nmeasure AC\/DC voltage, DC current, resistance, continuity, decibel values\/dB\nand diode test. This meter is well known for its accuracy at its low DC\nvoltage and current measurement, to measure a DC voltage up to 1000V, you have\nfour ranges to choose, they are 2.5V, 10V, 50V,250Vand 1000V. For DC current,\nyou can measure current as low as a few milli amps using the 2.5 mA range with\n3% accuracy. The transistor dock is good for both PNP and NPN types. General\nSpecifications: Power: 2 X AA, Battery life: 10 hours of continuous use,\nDimensions: 6 1\/2\" X 3 1\/2\" X 1 1\/2\" Weight: 14.3 Oz, Fuses: 250 mA \/ 250 V\n\u0026amp; 10 A \/ 250 V. Technical Specifications: DCV: 0 - 2.5V ± 3%\/ 10 V \/ 50 V \/\n250 V \/ 1000V ± 3.0%, ACV: 0 - 10 V \/ 50 V \/ 250 V \/ 500 V\/1,000V ± 4.0%,\nDCA: 2.5 mA \/ 25 mA \/ 250 mA \/ 10A ± 4.0%, (all ranges fused), Resistance:\n1-2K \/ 20K \/ 2M \/ 20M Ohm ± 3.0%, Continuity, Decibel value Diode Test.\nPackage includes: TP8260L Analog Multimeter, Test leads with shrouded plugs\nand capped tips, User Manual\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh accuracy \u0026amp; Ideal for AC and DC Voltage DC Current up to 10A\u003c\/li\u003e\n \u003cli\u003eBack light for use in dark, Decibel Value Measurement,Zero Adjustment\u003c\/li\u003e\n \u003cli\u003eThe Transistor checker with PNP \u0026amp; NPN types and LED inidicator\u003c\/li\u003e\n \u003cli\u003eConfirms to the EN61010\/IEC1010 standard CAT II 600V, 20Kohm\/V,DC, 8Kohm\/V AC\u003c\/li\u003e\n \u003cli\u003eBuilt in a strong protective case, it has 1 year warranty\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
