TM27 Optical Fiber Cleaver — High Precision Fiber Optic Cleaver with 16 Cleaving Spots & 48000 Cleaves, 3-in-1 Holder for 0.25mm 0.9mm 3.0mm Fiber, FTTH Fiber Cutter with Scrap Collector
TM27 Optical Fiber Cleaver — High Precision Fiber Optic Cleaver with 16 Cleaving Spots & 48000 Cleaves, 3-in-1 Holder for 0.25mm 0.9mm 3.0mm Fiber, FTTH Fiber Cutter with Scrap Collector

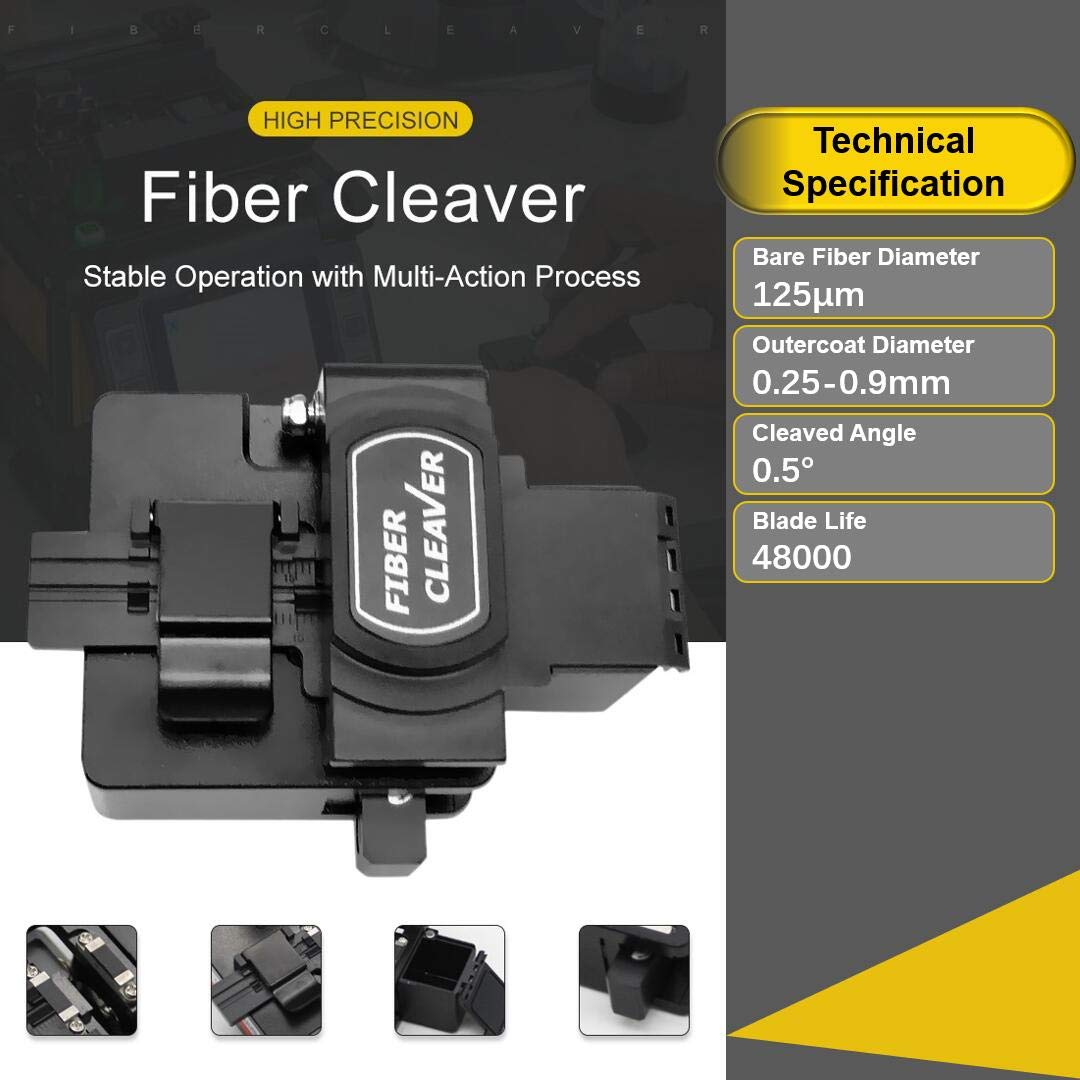

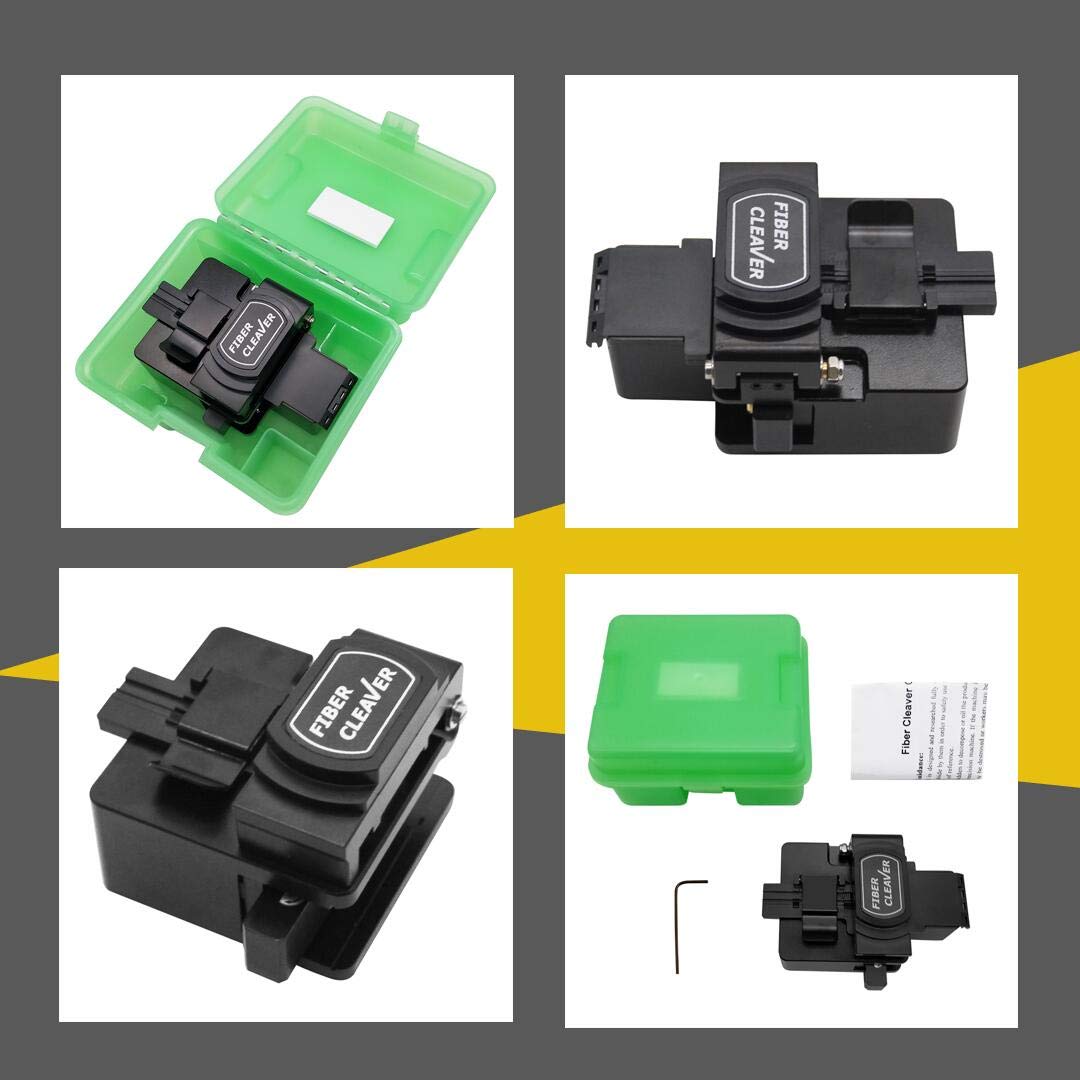

The QIIRUN TM27 is a professional optical fiber cleaver engineered for FTTH installation, fiber splicing, and telecom field maintenance. With 16-position tungsten steel blade and ≤0.5° cleave angle precision, the TM27 delivers professional-grade cleave quality that matches tools costing two to three times more.TECHNICAL SPECIFICATIONS Cleave Angle: ≤0.5° typical Bare Fiber Diameter:125μm Supported Coating Diameters: 0.25mm / 0.9mm / 3.0mm Cutting Length: 9–16mm (0.25mm fiber) | 10–16mm (0.9mm fiber) Blade Positions: 16 indexed positions | 48,000 total cleaves Blade Material:Ultra-fine tungsten steel (auto-rotation, no manual height adjustment) Weight: 266g |Dimensions: 60×57×46mm Scrap Collector: Built-in WHAT'S IN THE BOXQIIRUN TM27 Fiber Cleaver ×1 | Inner Hexagon x1 | Built-in Scrap Collector | Hard Carry Case ×1 | User Manual × 1— FREQUENTLY ASKED QUESTIONS —Q: Does it work with 3.0mm drop cable (FTTH leather cable)?A: Yes. The built-in 3-in-1 holder accommodates 0.25mm bare fiber, 0.9mm tight-buffered fiber, and 3.0mmjacketed drop cable without any adapter change.Q: How do I rotate the blade to a fresh cleaving position?A: The TM27 blade rotates automatically with each cleave cycle. No manual height adjustment or tool is needed. The 16-position tungsten blade indexes to the next positio nautomatically after each cut.Q: Does it include spare blades?A: The TM27 includes one 16-position tungsten steel blade pre- installed. When all 16 positions are used (after approximately 48,000 cleaves), replacement blades are available from QIIRUN directly.
Product Features
- HIGH PRECISION OPTICAL FIBER CLEAVER FOR FTTH INSTALLATION: The QIIRUN TM27 delivers 0.5 cleave angle precision using a 16-position tungsten steel blade with 48,000 cleave life. It ensures consistent blade contact and flat end-face every cleave. Automatic blade return resets the cleaver after each cut with zero manual adjustment. Compatible with single-mode G.652 and multimode fiber across all standard FTTH and FTTB deployments.

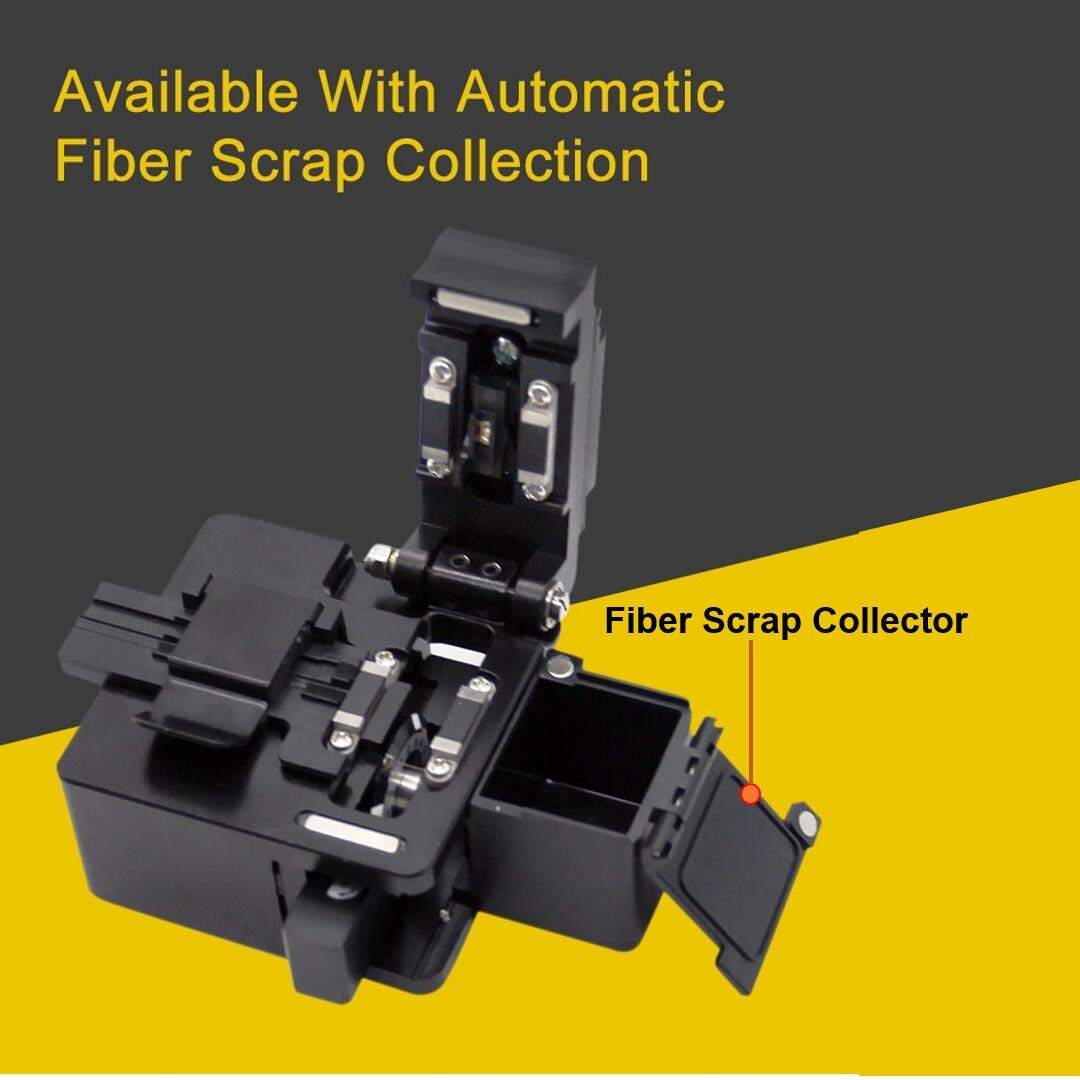

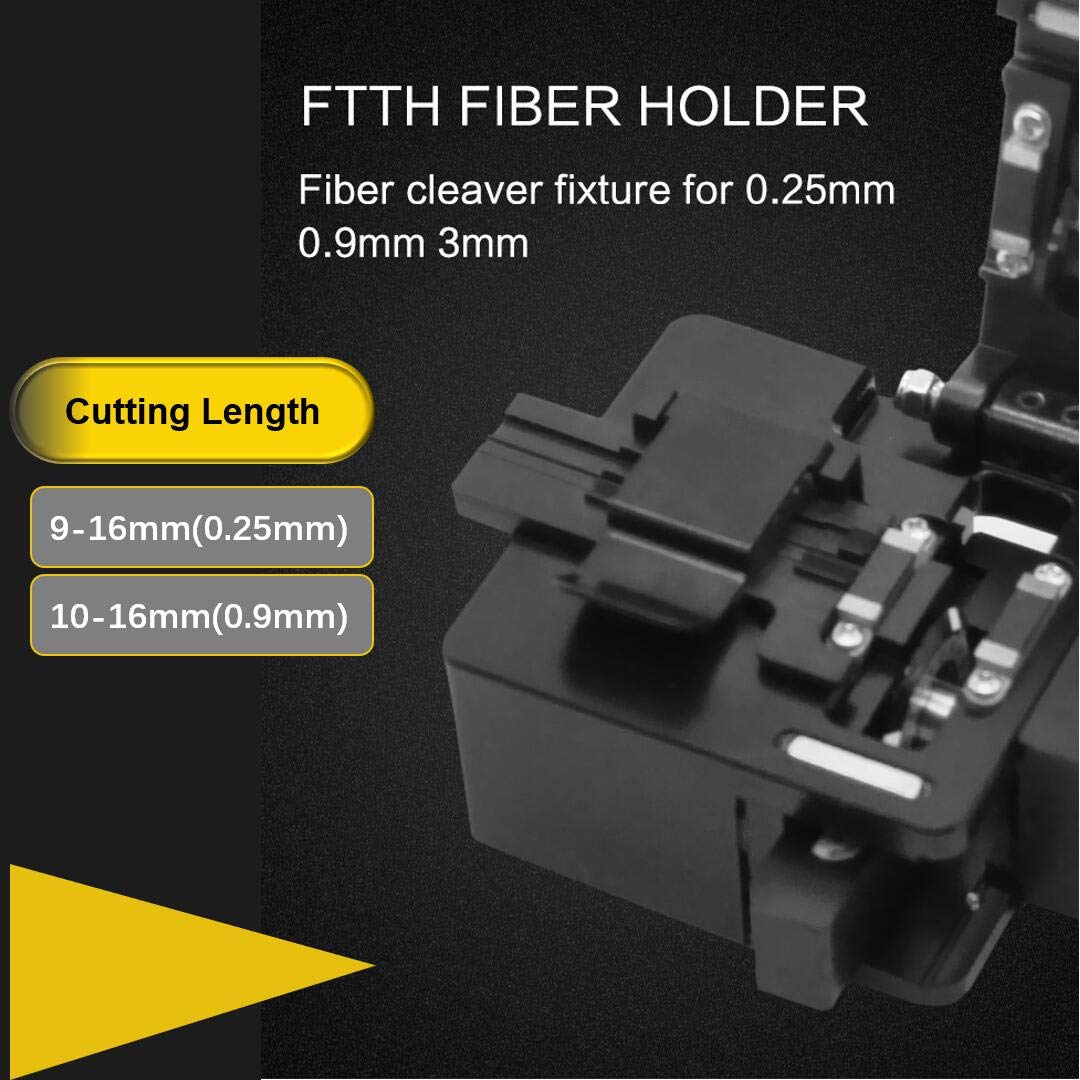

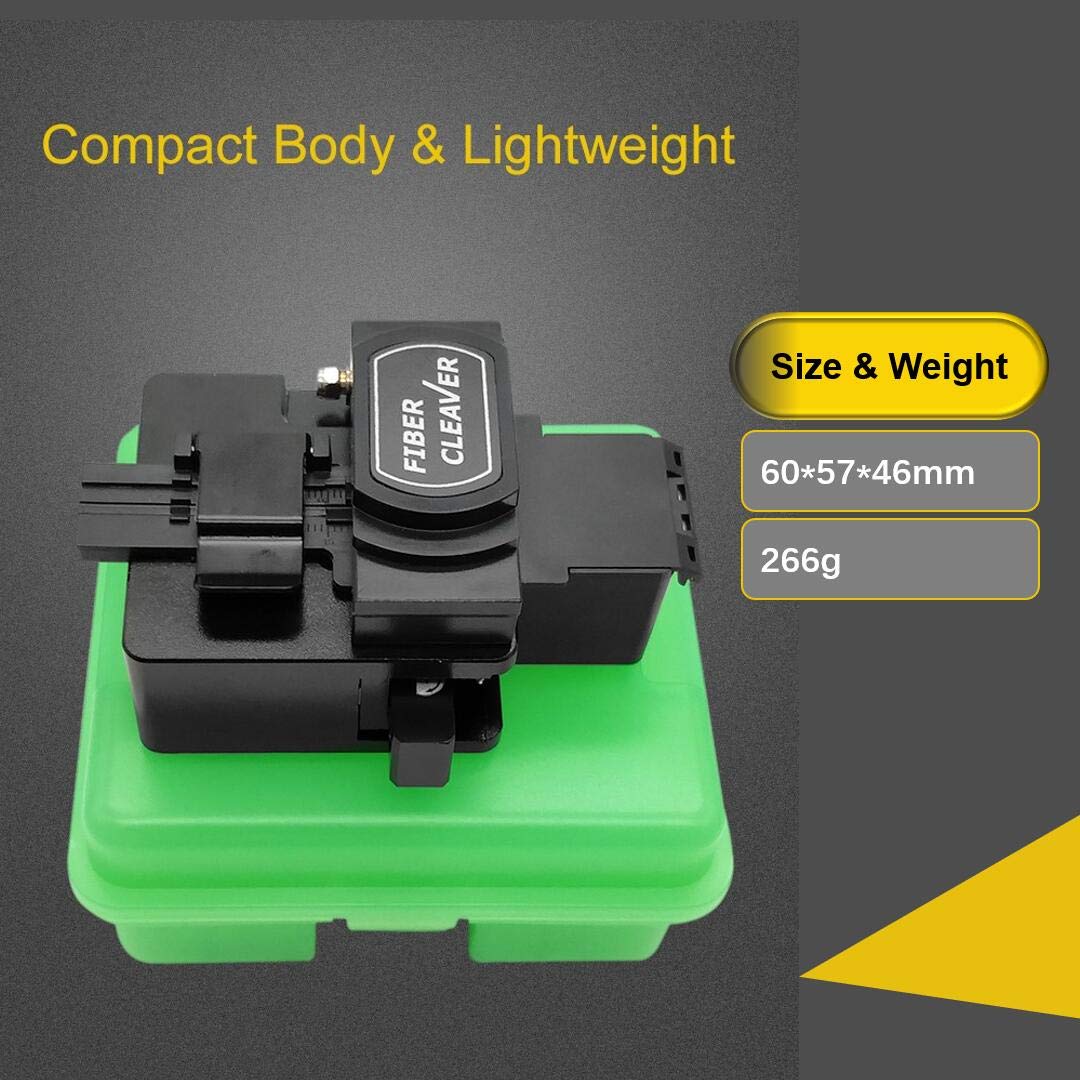

- UNIVERSAL 3-IN-1 FIBER HOLDER ONE CLEAVER FOR ALL FIBER TYPES: The TM27's 3-in-1 integrated holder accommodates 0.25mm bare fiber, 0.9mm tight-buffered fiber, and 3.0mm jacketed drop cable without swapping adapters. Cutting length adjustable from 1016mm (0.9mm fiber) and 916mm (0.25mm fiber) for precise end preparation before fusion splicing. The fiber scrap collector captures cut waste directly inside the cleaver body. Compact and light at 266g / 605746mm fits in any FTTH tool pouch.

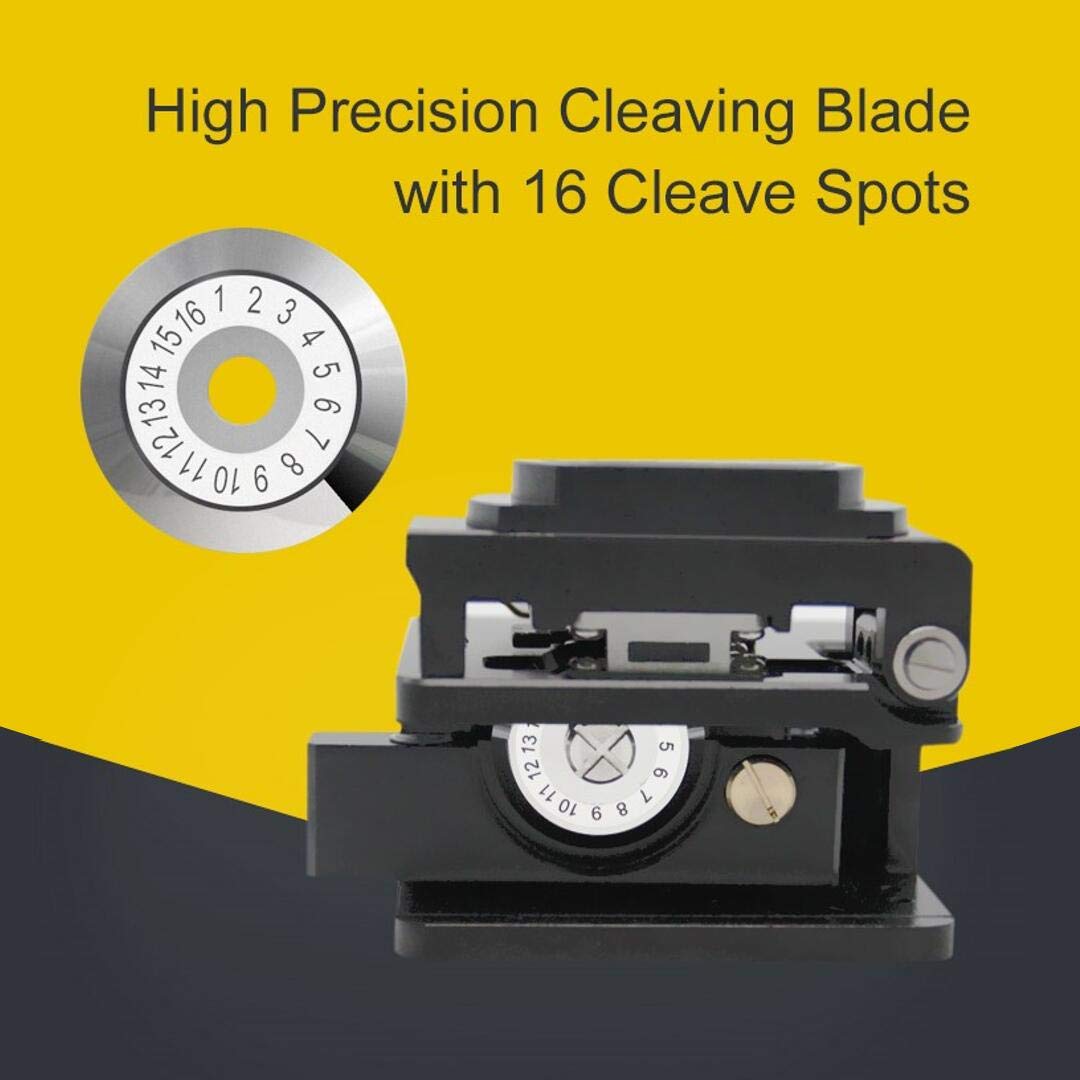

- 48,000 CLEAVES 16-POSITION TUNGSTEN STEEL BLADE: The TM27 blade uses ultra-fine tungsten steel, hardened for maximum edge retention across 48,000 cleaves equivalent to over 4 years of daily FTTH splicing work at 30 cleaves per day. 16 indexed cleaving positions rotate automatically, eliminating manual blade height adjustment and ensuring each cleave uses a fresh cutting edge. No tool required for blade rotation.
- DESIGNED FOR FTTH TECHNICIANS, FIBER SPLICERS & TELECOM FIELD CREWS: The TM27 handles the full range of FTTH splicing workflows single-fiber pigtail splicing, drop cable termination, fiber patch cord preparation, and loose-tube cable work. Compatible with all major fusion splicer brands. The hard-shell carry case protects the cleaver blade during transport between job sites.
- PROFESSIONAL-GRADE FIBER OPTIC CLEAVER BACKED BY QIIRUN MANUFACTURER SUPPORT: The TM27 delivers cleave performance matching tools 2-3 its price point same 0.5 cleave angle, same 48,000-cleave blade life, same 3-in-1 fiber compatibility. Designed for professional daily use, not occasional hobbyist projects. QIIRUN provides direct manufacturer technical support. Includes: TM27 Fiber Cleaver 1 | Inner Hexagon x 1 | Fiber Scrap Collector (built-in) | Carry Case 1 | User Manual 1.
